Cat6a oxygen free copper twisted pair data cable with PVC sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
Supplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard
Conductor:Solid OFC
Strands:8 x 1/0.560mmØ ±2%
Cable : diameter:7.3±0.5mm
Screen:Aluminium/Mylar foil
Insulation:PE 1.330±0.05mmØ
Sheath:PVC 0.55±0.05mm thickness
DC resistance @ 20°C:<9.38 Ohms/100m
Impedance (100 to 250MHz):100±15 Ohms
Impedance (250 to 500MHz):100±22 Ohms
Return loss:>25.61dB
Attenuation:<2.51dB
NEXT:>103.94dB
PSNEXT:>102dB
ELFEXT:>110.68dB
PSELFEXT:>108.56dB
Phase delay:<428.1ns
Colour:Grey
Length:305m
Weight:17.4kg
Capacitance:<330pf/100m
Specifications
AWG 23 oxygen free solid copper conductorSupplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard
Conductor:Solid OFC
Strands:8 x 1/0.560mmØ ±2%
Cable : diameter:7.3±0.5mm
Screen:Aluminium/Mylar foil
Insulation:PE 1.330±0.05mmØ
Sheath:PVC 0.55±0.05mm thickness
DC resistance @ 20°C:<9.38 Ohms/100m
Impedance (100 to 250MHz):100±15 Ohms
Impedance (250 to 500MHz):100±22 Ohms
Return loss:>25.61dB
Attenuation:<2.51dB
NEXT:>103.94dB
PSNEXT:>102dB
ELFEXT:>110.68dB
PSELFEXT:>108.56dB
Phase delay:<428.1ns
Colour:Grey
Length:305m
Weight:17.4kg
Capacitance:<330pf/100m

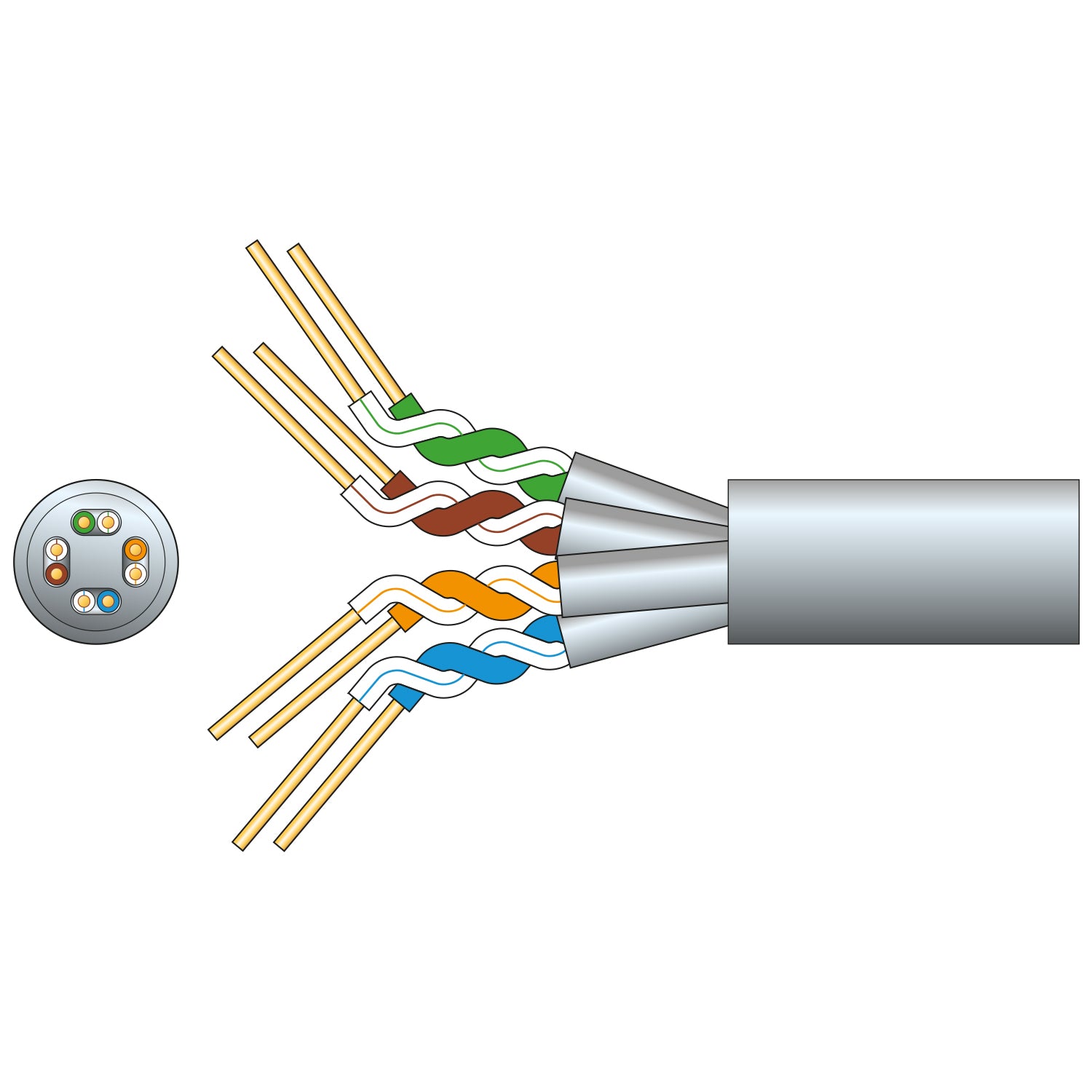

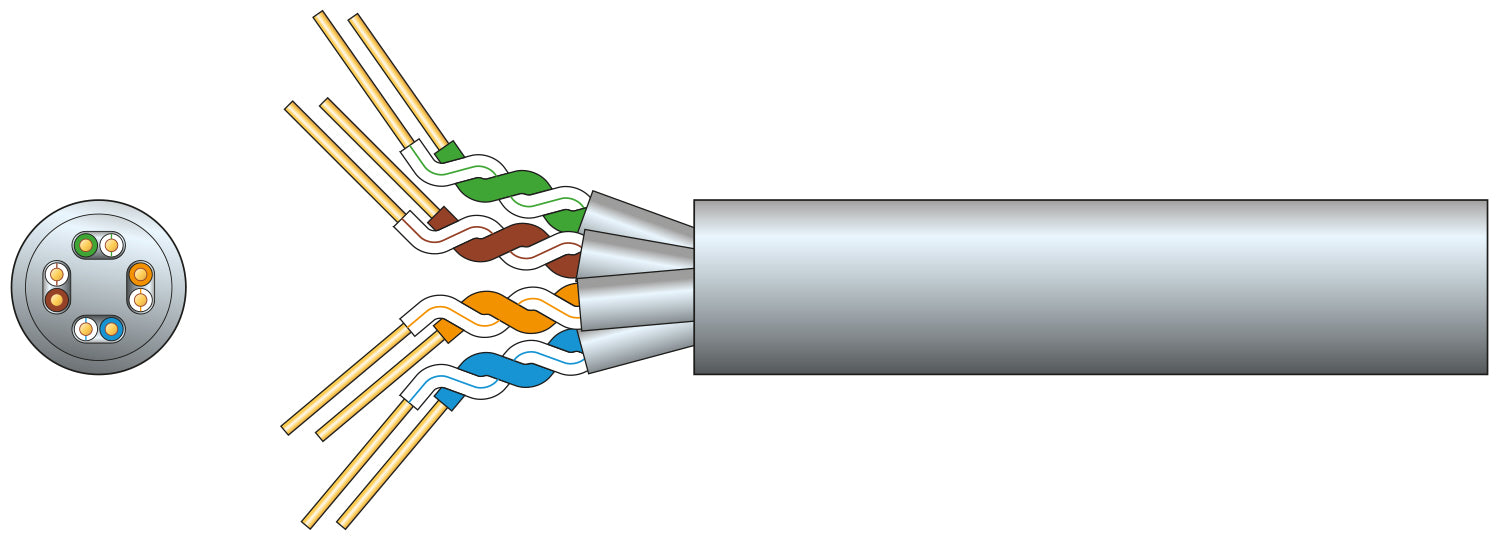

Mercury Cat6a U/FTP Network Cable 305m Grey
Brand: Mercury
SKU: 808.032UK
Regular price
£236.50
Need help with choosing the right product?
Click here to reach out to one of our experts.
Cat6a oxygen free copper twisted pair data cable with PVC sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
Supplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard
Conductor:Solid OFC
Strands:8 x 1/0.560mmØ ±2%
Cable : diameter:7.3±0.5mm
Screen:Aluminium/Mylar foil
Insulation:PE 1.330±0.05mmØ
Sheath:PVC 0.55±0.05mm thickness
DC resistance @ 20°C:<9.38 Ohms/100m
Impedance (100 to 250MHz):100±15 Ohms
Impedance (250 to 500MHz):100±22 Ohms
Return loss:>25.61dB
Attenuation:<2.51dB
NEXT:>103.94dB
PSNEXT:>102dB
ELFEXT:>110.68dB
PSELFEXT:>108.56dB
Phase delay:<428.1ns
Colour:Grey
Length:305m
Weight:17.4kg
Capacitance:<330pf/100m
Specifications
AWG 23 oxygen free solid copper conductorSupplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard
Conductor:Solid OFC
Strands:8 x 1/0.560mmØ ±2%
Cable : diameter:7.3±0.5mm
Screen:Aluminium/Mylar foil
Insulation:PE 1.330±0.05mmØ
Sheath:PVC 0.55±0.05mm thickness
DC resistance @ 20°C:<9.38 Ohms/100m
Impedance (100 to 250MHz):100±15 Ohms
Impedance (250 to 500MHz):100±22 Ohms
Return loss:>25.61dB
Attenuation:<2.51dB
NEXT:>103.94dB
PSNEXT:>102dB
ELFEXT:>110.68dB
PSELFEXT:>108.56dB
Phase delay:<428.1ns
Colour:Grey
Length:305m
Weight:17.4kg
Capacitance:<330pf/100m
