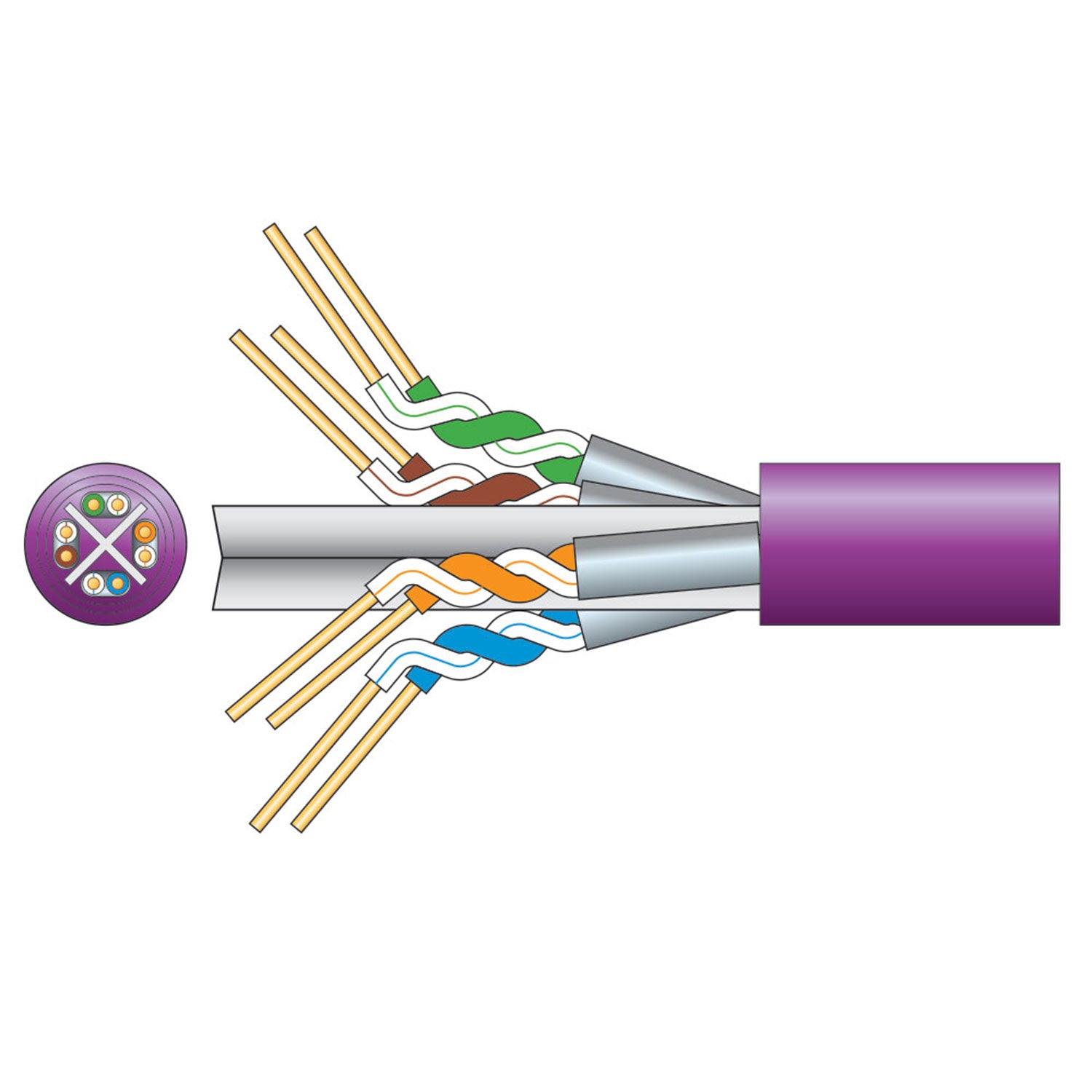

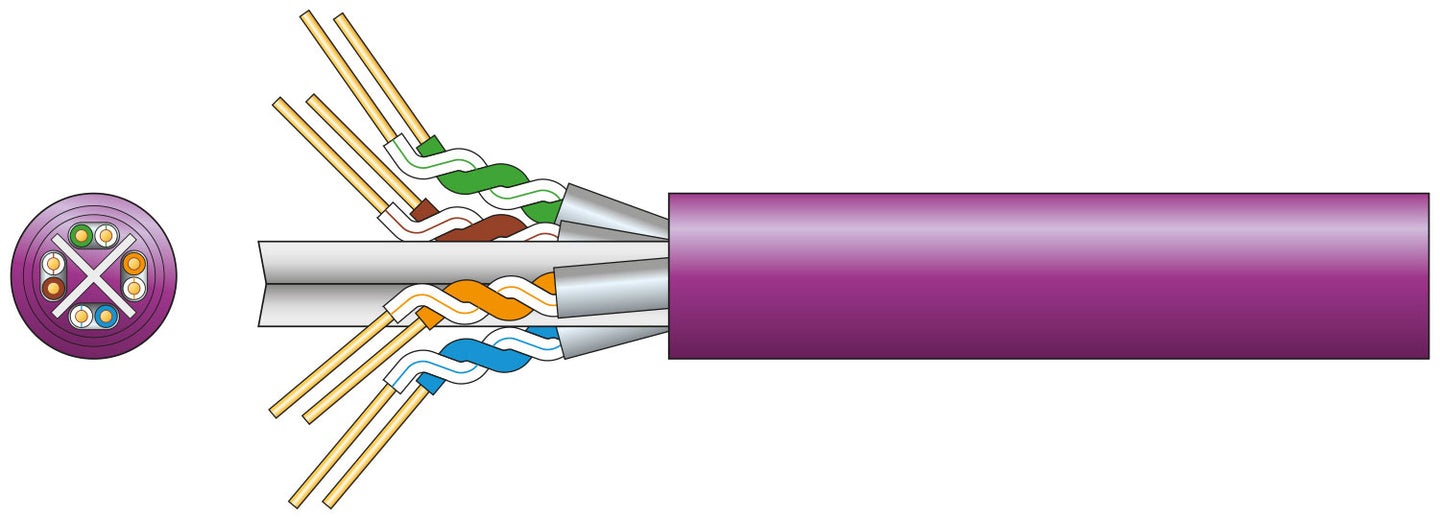

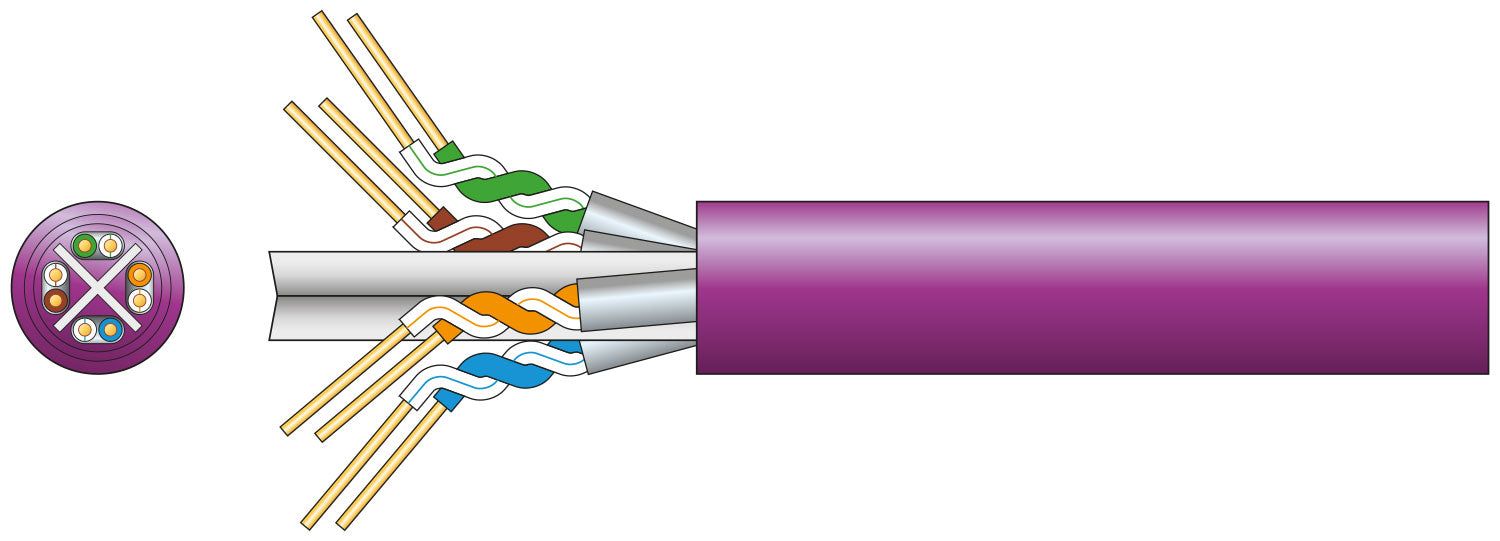

Cat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
Supplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard
Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
HDBaseT Compliant
Conductor:Solid OFC
Strands:8 x 1/0.565mmØ ±2%
Conductor CSA:8 x 0.251mm²
Cable : diameter:7.5mmØ
Insulation:PE 0.385mm thickness
Sheath:LSZH 0.55mm thickness
Capacitance:6.6nF/100m
DC resistance @ 20°C:<7.8 Ohms/100m
Impedance (250 to 500MHz):100±22 Ohms
Return loss:>25dB @100m
Attenuation:<45.3dB @100m
NEXT:>74.3dB
PSNEXT:>72.3dB
ELFEXT:>14dB
PSELFEXT:>11dB
Phase delay:<570ns
Cable colour:Lilac
Length:305m
Weight:14.5kg
Screen:Aluminium foil
Impedance (100 to 250MHz):100±15 Ohms
Specifications
AWG 23 oxygen free solid copper conductorSupplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard
Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
HDBaseT Compliant
Conductor:Solid OFC
Strands:8 x 1/0.565mmØ ±2%
Conductor CSA:8 x 0.251mm²
Cable : diameter:7.5mmØ
Insulation:PE 0.385mm thickness
Sheath:LSZH 0.55mm thickness
Capacitance:6.6nF/100m
DC resistance @ 20°C:<7.8 Ohms/100m
Impedance (250 to 500MHz):100±22 Ohms
Return loss:>25dB @100m
Attenuation:<45.3dB @100m
NEXT:>74.3dB
PSNEXT:>72.3dB
ELFEXT:>14dB
PSELFEXT:>11dB
Phase delay:<570ns
Cable colour:Lilac
Length:305m
Weight:14.5kg
Screen:Aluminium foil
Impedance (100 to 250MHz):100±15 Ohms
Mercury Cat6a U/FTP LSZH Network Cable 305m Lilac
Brand: Mercury
SKU: 808.031UK
Regular price
£239.00
Pickup available at Venutec
Usually ready in 24 hours
Mercury Cat6a U/FTP LSZH Network Cable 305m Lilac
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
