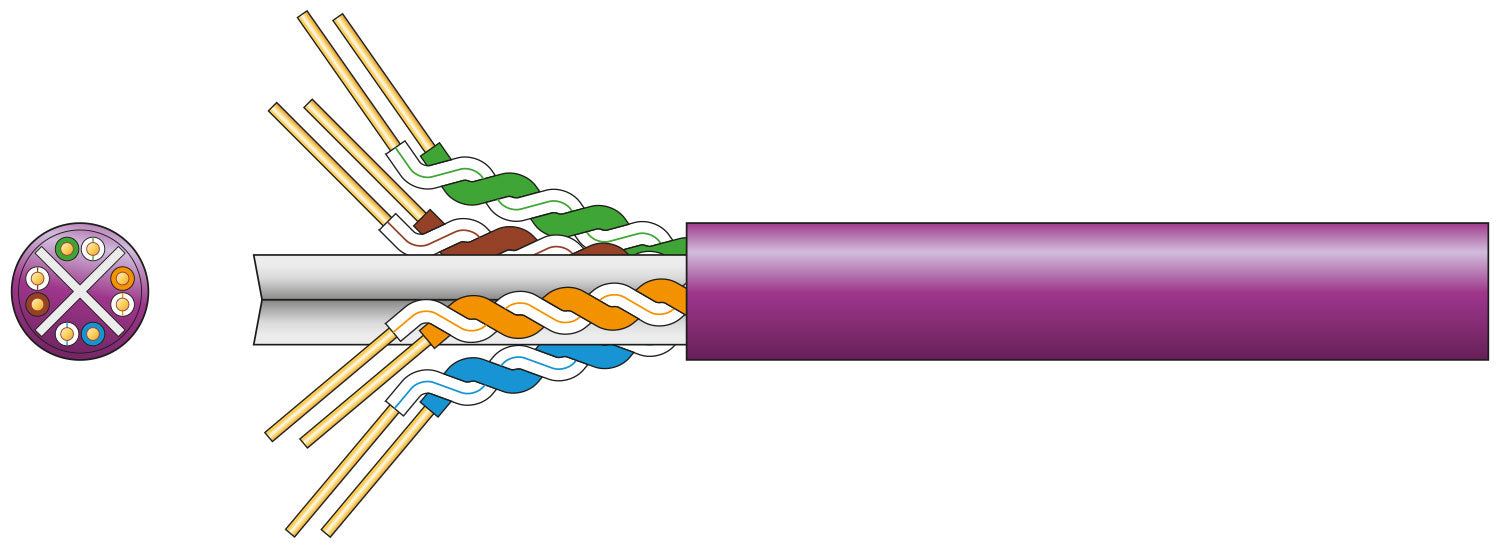

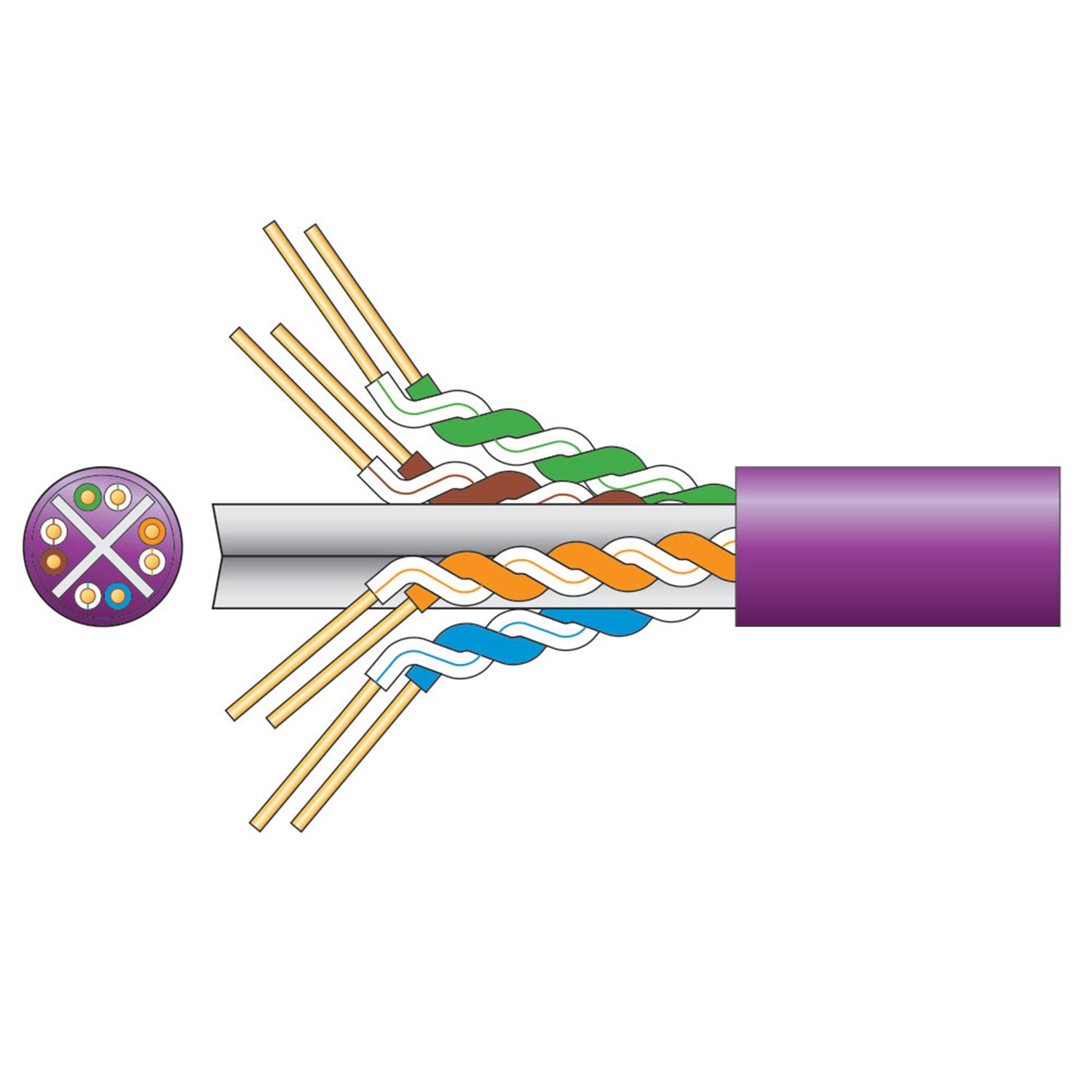

Cat6 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
Oxygen free solid copper conductor
Supplied in an easy-pull dispensing box
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
HDBaseT Compliant
Strands:8 x 1/0.54mmØ ±2%
Conductor CSA:8 x 0.229mm²
Cable : diameter:5.8mmØ
Insulation:HDPE 0.195mm thickness
Sheath:LSHF 0.55mm thickness
Capacitance:5.2nF/100m
DC resistance @ 20°C:<9.5 ohms/100m
Impedance (100 to 250MHz):100±15 ohms
Return loss:>17.3dB @100m
Attenuation:<32.8dB @100m
NEXT:>38.3dB
PSNEXT:>36.3dB
ELFEXT:>19.8dB
PSELFEXT:>16.8dB
Phase delay:<570ns
Cable colour:Lilac
Length:305m
Weight:12.7kg
Conductor:Solid OFC
Specifications
Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fireOxygen free solid copper conductor
Supplied in an easy-pull dispensing box
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
HDBaseT Compliant
Strands:8 x 1/0.54mmØ ±2%
Conductor CSA:8 x 0.229mm²
Cable : diameter:5.8mmØ
Insulation:HDPE 0.195mm thickness
Sheath:LSHF 0.55mm thickness
Capacitance:5.2nF/100m
DC resistance @ 20°C:<9.5 ohms/100m
Impedance (100 to 250MHz):100±15 ohms
Return loss:>17.3dB @100m
Attenuation:<32.8dB @100m
NEXT:>38.3dB
PSNEXT:>36.3dB
ELFEXT:>19.8dB
PSELFEXT:>16.8dB
Phase delay:<570ns
Cable colour:Lilac
Length:305m
Weight:12.7kg
Conductor:Solid OFC
Mercury Cat6 U/UTP LSZH Network Cable 305m Lilac
Brand: Mercury
SKU: 808.015UK
Regular price
£199.99
Pickup available at Venutec
Usually ready in 24 hours
Mercury Cat6 U/UTP LSZH Network Cable 305m Lilac
-
