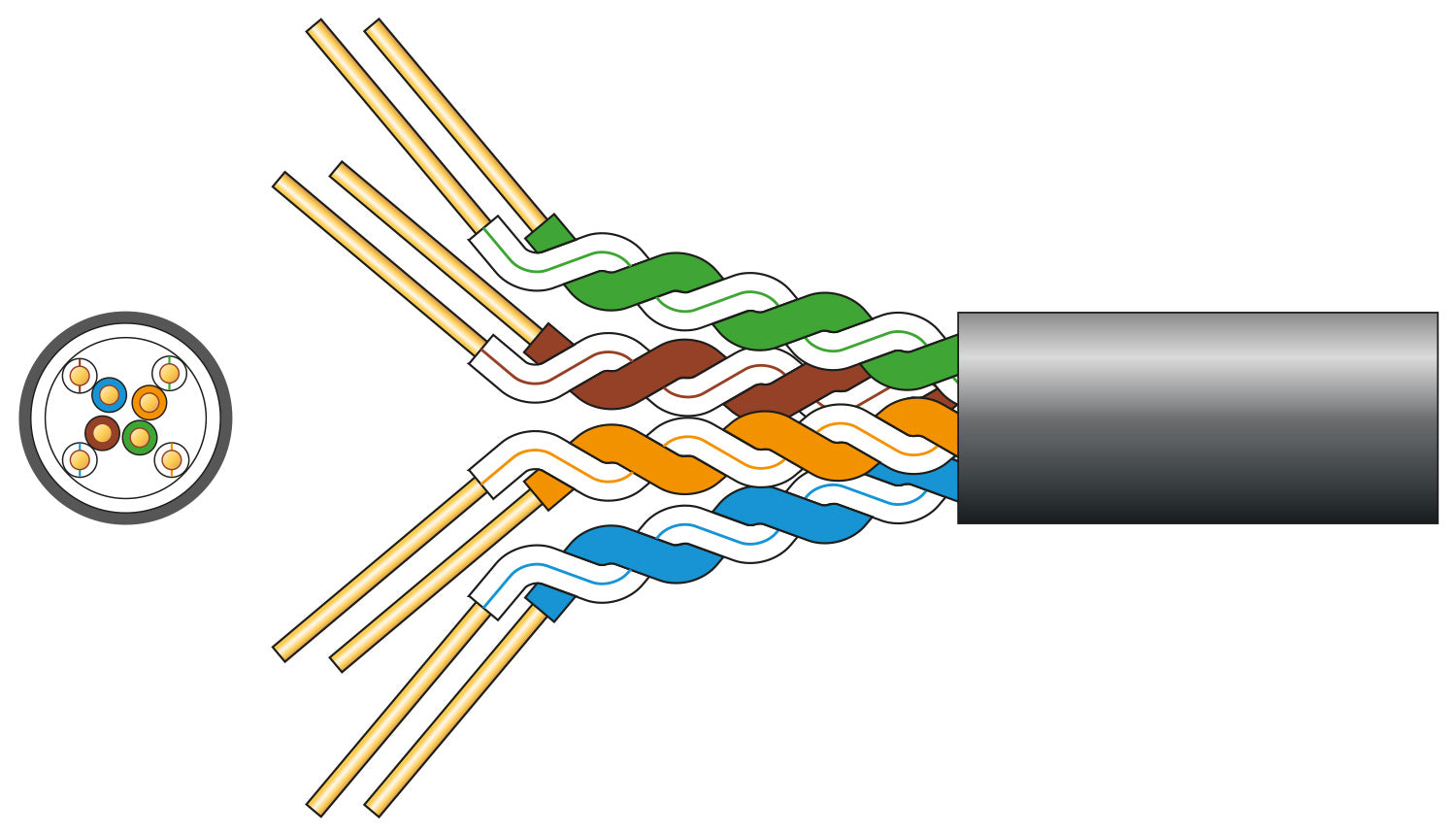

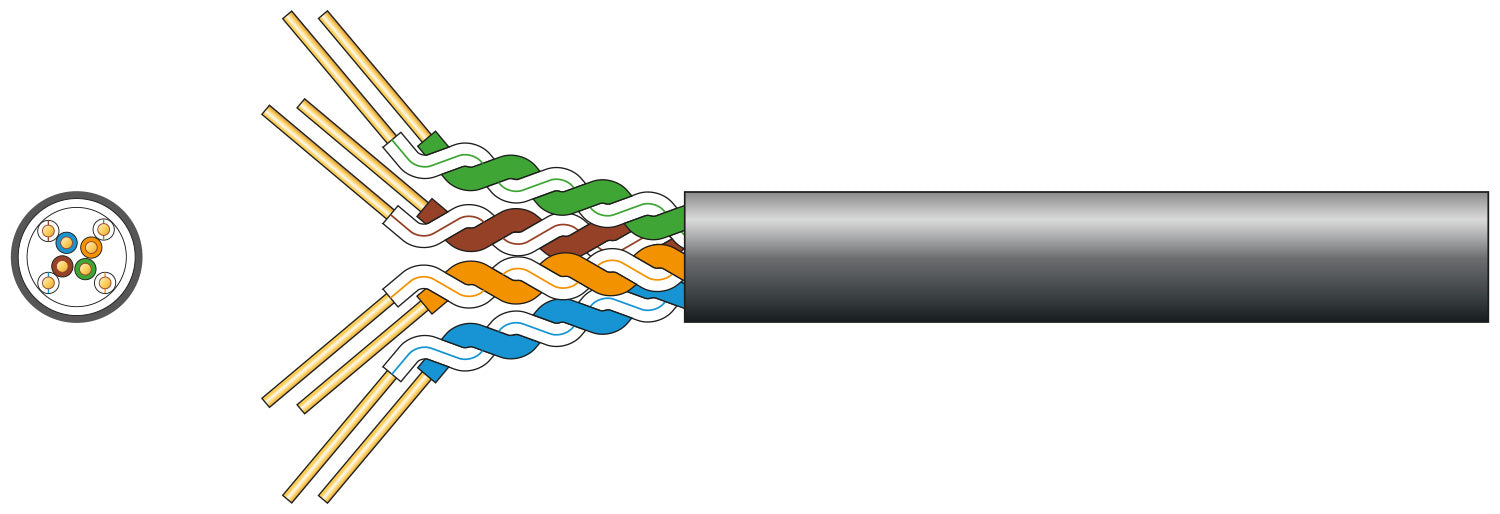

Cat5e oxygen free copper 4x twisted pair data cable with LDPE sheath. Supplied in dispensing box and marked at 1 metre intervals, this cable is designed for high speed data transmission such as Gigabit Ethernet applications.
AWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box and marked at 1m intervals
Complies to TIA/EIA-568-C.2 Cat5e standard
Conductor:Solid OFC
Strands:8 x 1/0.5mmØ ±2%
Conductor CSA:8 x 0.196mm² ±2%
Cable : diameter:5.2±0.4mmØ
Insulation:HDPE 0.87±0.03mmØ
Sheath:LDPE 0.55±0.05mm thickness
DC resistance @ 20°C:<9.5 ohms/100m
Impedance (1 to 100MHz):100±15 ohms
Return loss:>20.1dB @ 100MHz
Attenuation:>22dB @ 100MHz
NEXT:>35.3dB @ 100MHz
Phase delay:>537.60ns @ 100MHz
PSNEXT:>32.3dB @ 100MHz
ELFEXT:>23.8dB @ 100MHz
PSELFEXT:>20.8dB @ 100MHz
Cable colour:Black
Cable : length:305±1.5m
Weight:8.1Kg
Specifications
LDPE sheath and UV resistant properties make this cable ideal for outdoor installationsAWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box and marked at 1m intervals
Complies to TIA/EIA-568-C.2 Cat5e standard
Conductor:Solid OFC
Strands:8 x 1/0.5mmØ ±2%
Conductor CSA:8 x 0.196mm² ±2%
Cable : diameter:5.2±0.4mmØ
Insulation:HDPE 0.87±0.03mmØ
Sheath:LDPE 0.55±0.05mm thickness
DC resistance @ 20°C:<9.5 ohms/100m
Impedance (1 to 100MHz):100±15 ohms
Return loss:>20.1dB @ 100MHz
Attenuation:>22dB @ 100MHz
NEXT:>35.3dB @ 100MHz
Phase delay:>537.60ns @ 100MHz
PSNEXT:>32.3dB @ 100MHz
ELFEXT:>23.8dB @ 100MHz
PSELFEXT:>20.8dB @ 100MHz
Cable colour:Black
Cable : length:305±1.5m
Weight:8.1Kg
Mercury Cat5e U/UTP Outdoor-305m P/Box Black
Brand: Mercury
SKU: 808.010UK
Regular price
£149.99
Pickup available at Venutec
Usually ready in 24 hours
Mercury Cat5e U/UTP Outdoor-305m P/Box Black
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
