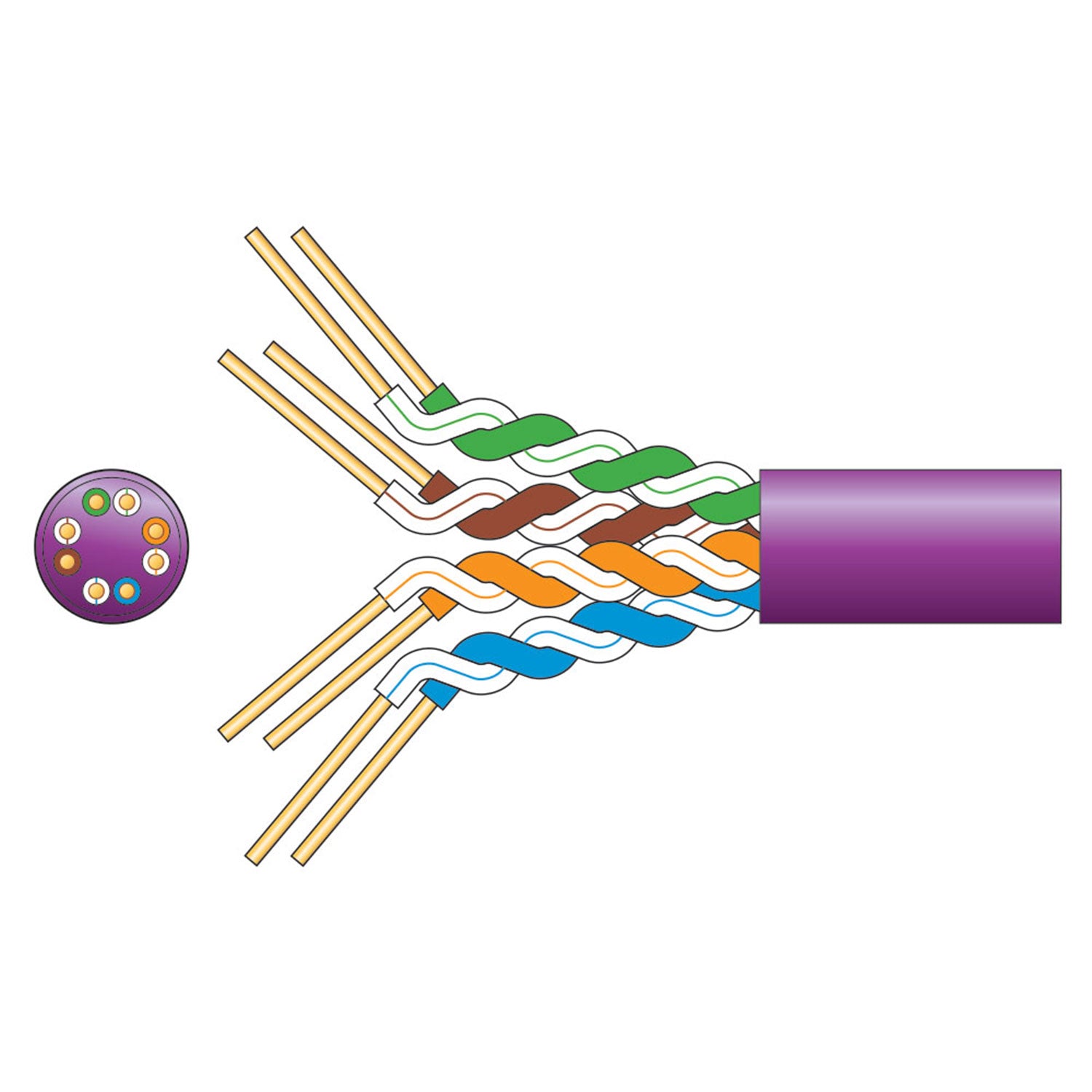

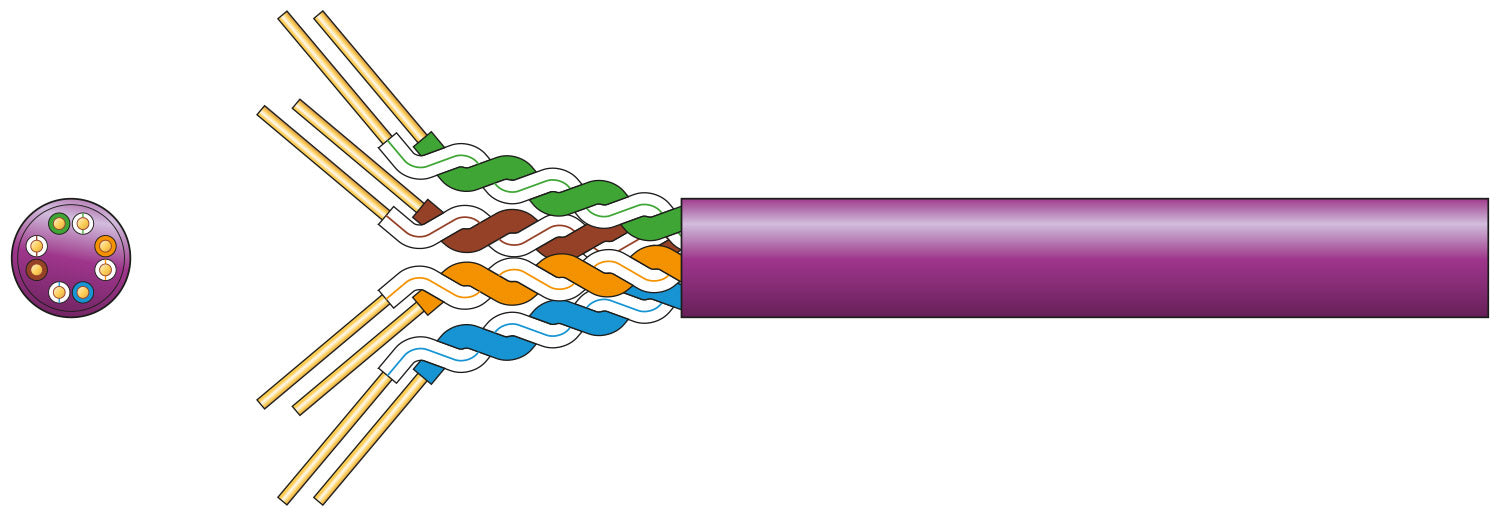

Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
AWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box
Passes Cat5e fluke test 100m at 100MHz
Complies to TIA/EIA-568 Cat5e standard
HDBaseT Compliant
Strands:8 x 1/0.5mmØ ±2%
Conductor CSA:8 x 0.196mm²
Cable : diameter:5mmØ
Insulation:HDPE 0.19mm thickness
Sheath:LSZH 0.5mm thickness
Capacitance:4.9nF/100m
DC resistance @ 20°C:<9.5 ohms/100m
Impedance (1 to 100MHz):100±15 ohms
Return loss:>20dB @100m
Attenuation:<22dB @100m
NEXT:>35.3dB
PSNEXT:>32.3dB
ELFEXT:>23.8dB
PSELFEXT:>20.8dB
Phase delay:<570ns
Cable colour:Lilac
Length:305m
Weight:8.6kg
Conductor:Solid OFC
Specifications
Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fireAWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box
Passes Cat5e fluke test 100m at 100MHz
Complies to TIA/EIA-568 Cat5e standard
HDBaseT Compliant
Strands:8 x 1/0.5mmØ ±2%
Conductor CSA:8 x 0.196mm²
Cable : diameter:5mmØ
Insulation:HDPE 0.19mm thickness
Sheath:LSZH 0.5mm thickness
Capacitance:4.9nF/100m
DC resistance @ 20°C:<9.5 ohms/100m
Impedance (1 to 100MHz):100±15 ohms
Return loss:>20dB @100m
Attenuation:<22dB @100m
NEXT:>35.3dB
PSNEXT:>32.3dB
ELFEXT:>23.8dB
PSELFEXT:>20.8dB
Phase delay:<570ns
Cable colour:Lilac
Length:305m
Weight:8.6kg
Conductor:Solid OFC
Mercury Cat5e U/UTP LSZH Network Cable 305m Lilac
Brand: Mercury
SKU: 808.005UK
Regular price
£149.99
Need help with choosing the right product?
Click here to reach out to one of our experts.
