5G LTE in-line signal filter designed to eliminate interference and channel loss from 4G and 5G mobile signals.
Easy to install, directly plug in-between signal source and TV via F-Type connector
DC pass allows power for masthead amplifier
Compatible with Digital TV, Satellite, Cable and DAB/FM radio signals
Frequency range : VHF:5 - 300MHz
Frequency range : UHF:470 - 694MHz (5G)
Insertion loss:4dB
Out of band rejection:>30dB
DC pass:12-24Vdc 300mA max
Dimensions:75 x 27 x 16mm
Weight:46g
Specifications
Fully shielded for minimum signal interferenceEasy to install, directly plug in-between signal source and TV via F-Type connector
DC pass allows power for masthead amplifier
Compatible with Digital TV, Satellite, Cable and DAB/FM radio signals
Frequency range : VHF:5 - 300MHz
Frequency range : UHF:470 - 694MHz (5G)
Insertion loss:4dB
Out of band rejection:>30dB
DC pass:12-24Vdc 300mA max
Dimensions:75 x 27 x 16mm
Weight:46g

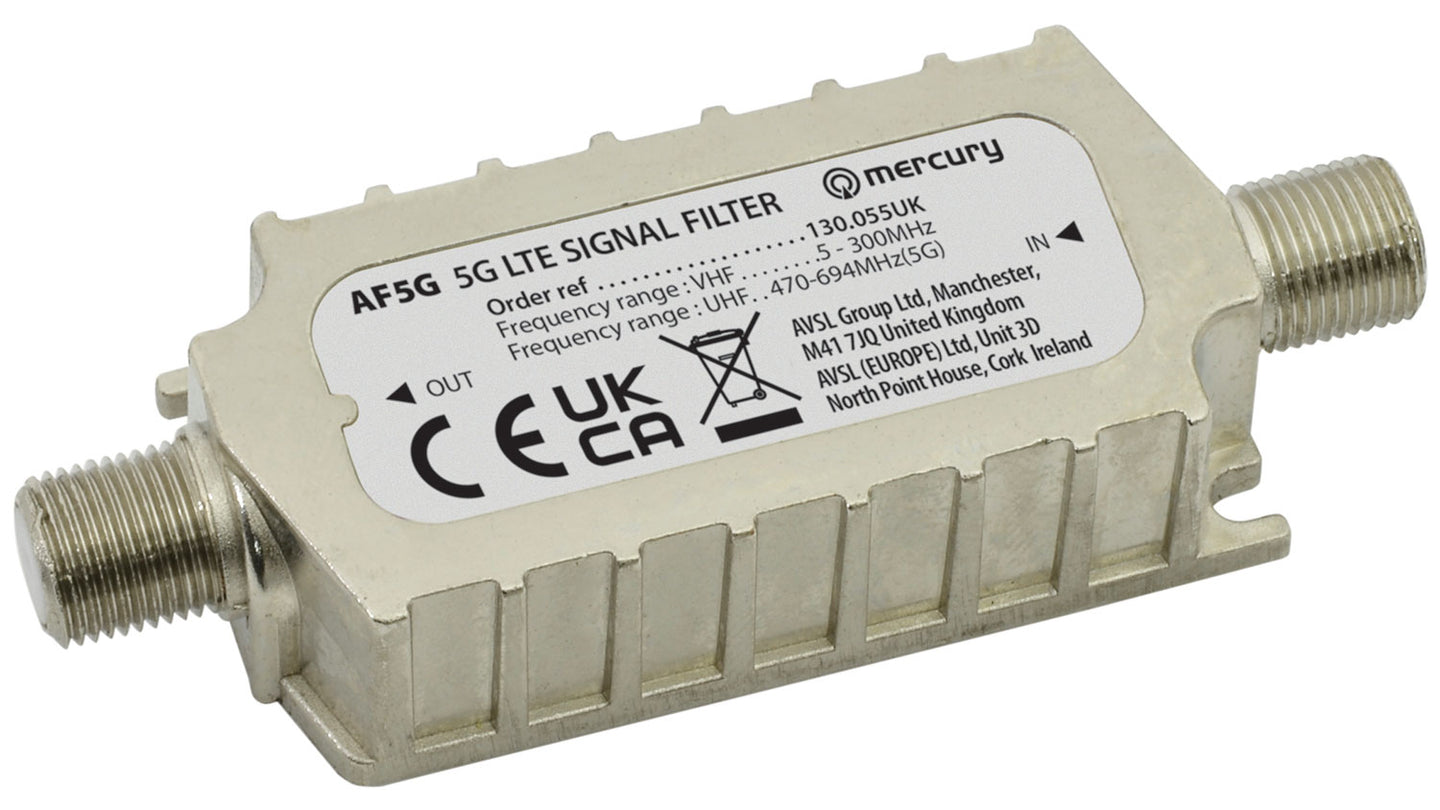

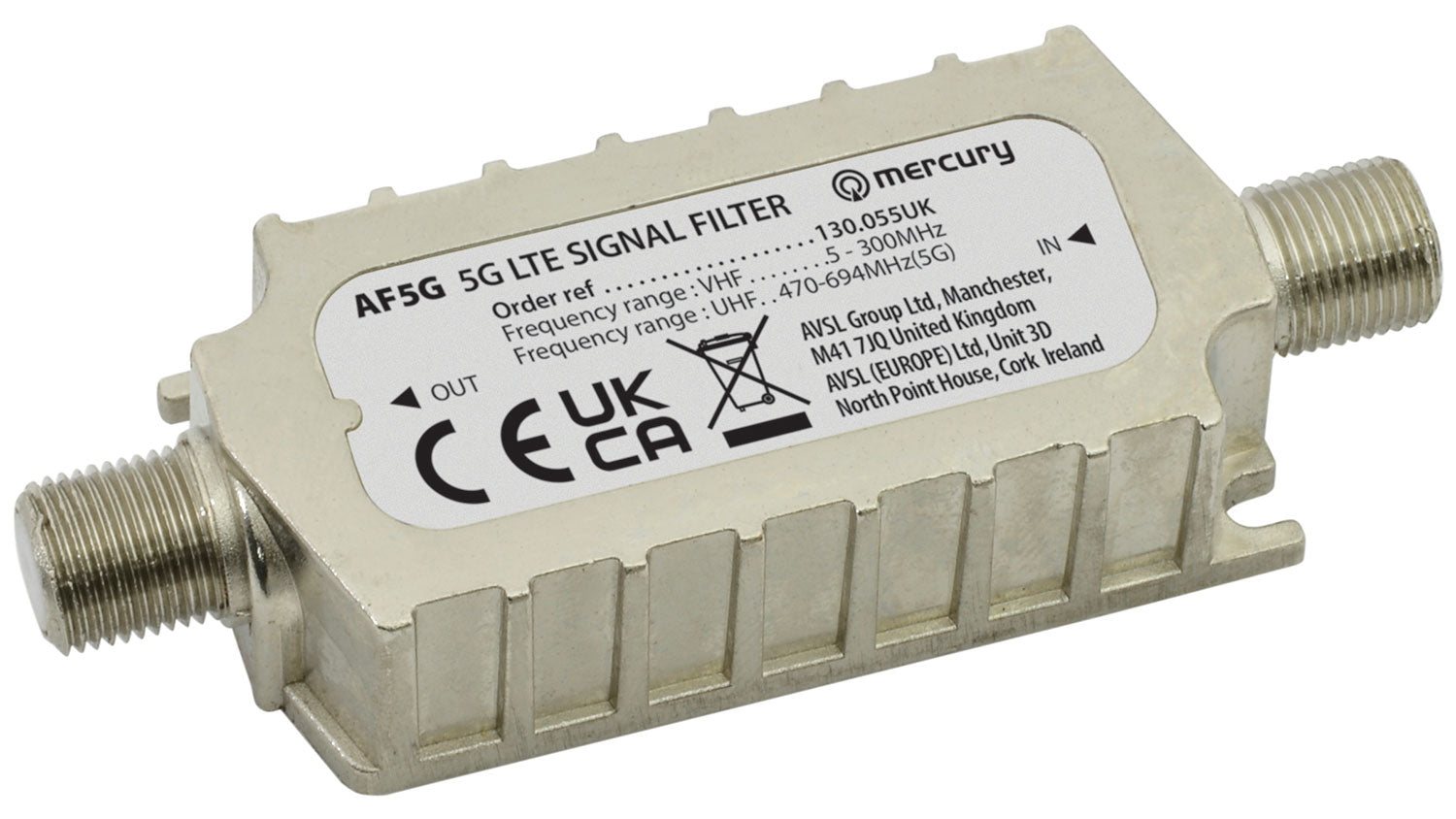

Mercury 5G LTE In-line Filter
Brand: Mercury
SKU: 130.055UK
Regular price
£7.99
Pickup available at Venutec
Usually ready in 24 hours
Mercury 5G LTE In-line Filter
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
5G LTE in-line signal filter designed to eliminate interference and channel loss from 4G and 5G mobile signals.
Easy to install, directly plug in-between signal source and TV via F-Type connector
DC pass allows power for masthead amplifier
Compatible with Digital TV, Satellite, Cable and DAB/FM radio signals
Frequency range : VHF:5 - 300MHz
Frequency range : UHF:470 - 694MHz (5G)
Insertion loss:4dB
Out of band rejection:>30dB
DC pass:12-24Vdc 300mA max
Dimensions:75 x 27 x 16mm
Weight:46g
Specifications
Fully shielded for minimum signal interferenceEasy to install, directly plug in-between signal source and TV via F-Type connector
DC pass allows power for masthead amplifier
Compatible with Digital TV, Satellite, Cable and DAB/FM radio signals
Frequency range : VHF:5 - 300MHz
Frequency range : UHF:470 - 694MHz (5G)
Insertion loss:4dB
Out of band rejection:>30dB
DC pass:12-24Vdc 300mA max
Dimensions:75 x 27 x 16mm
Weight:46g
