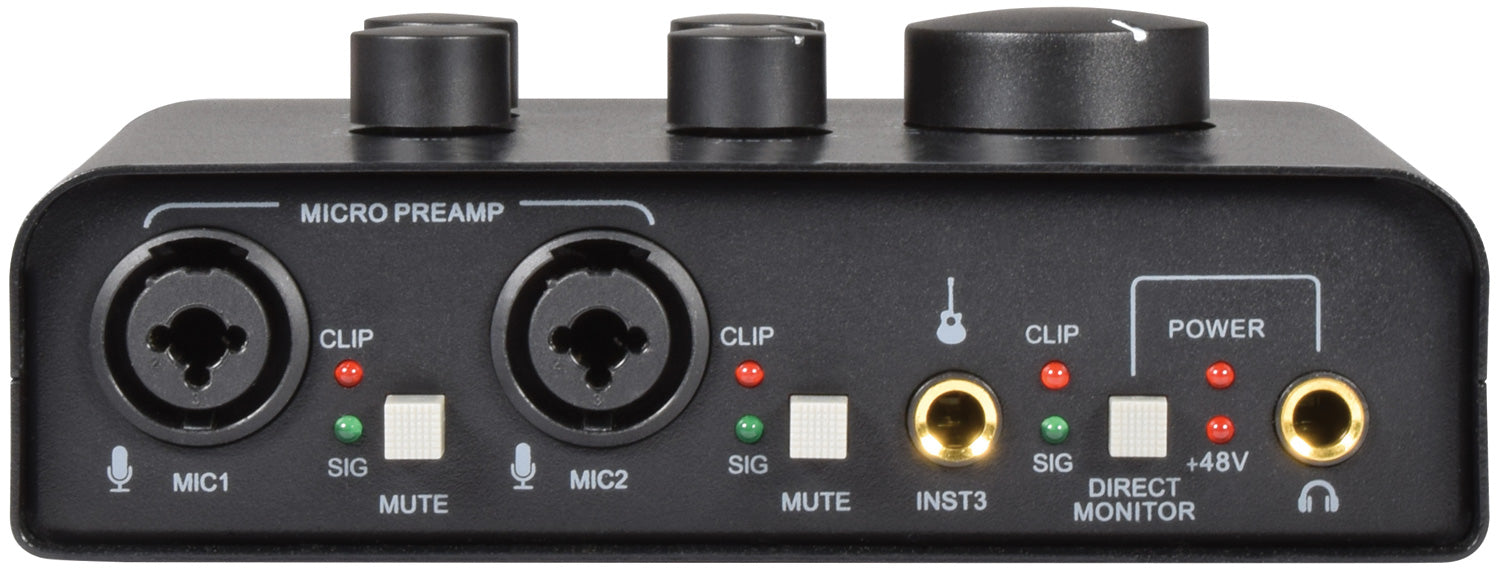

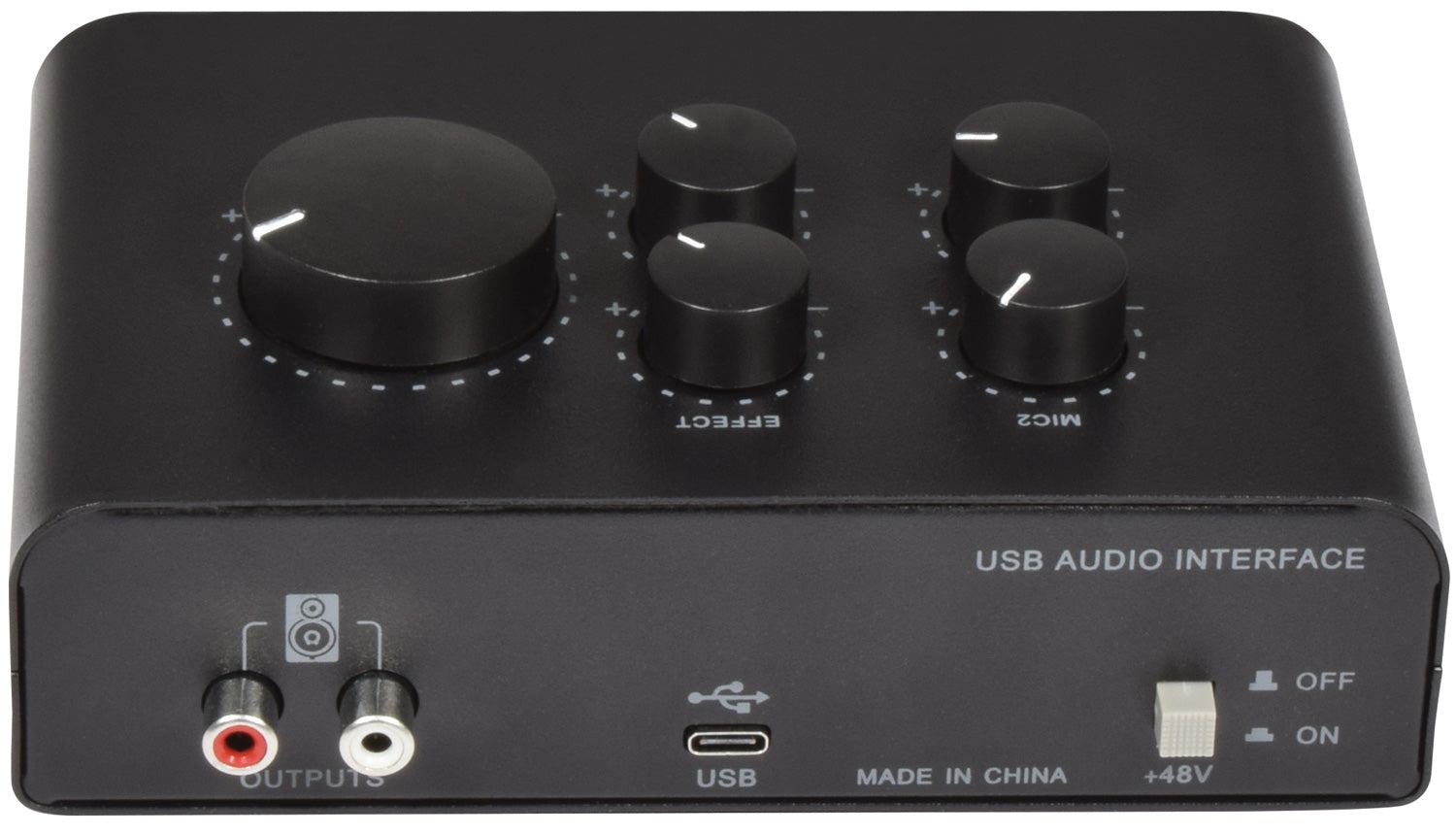

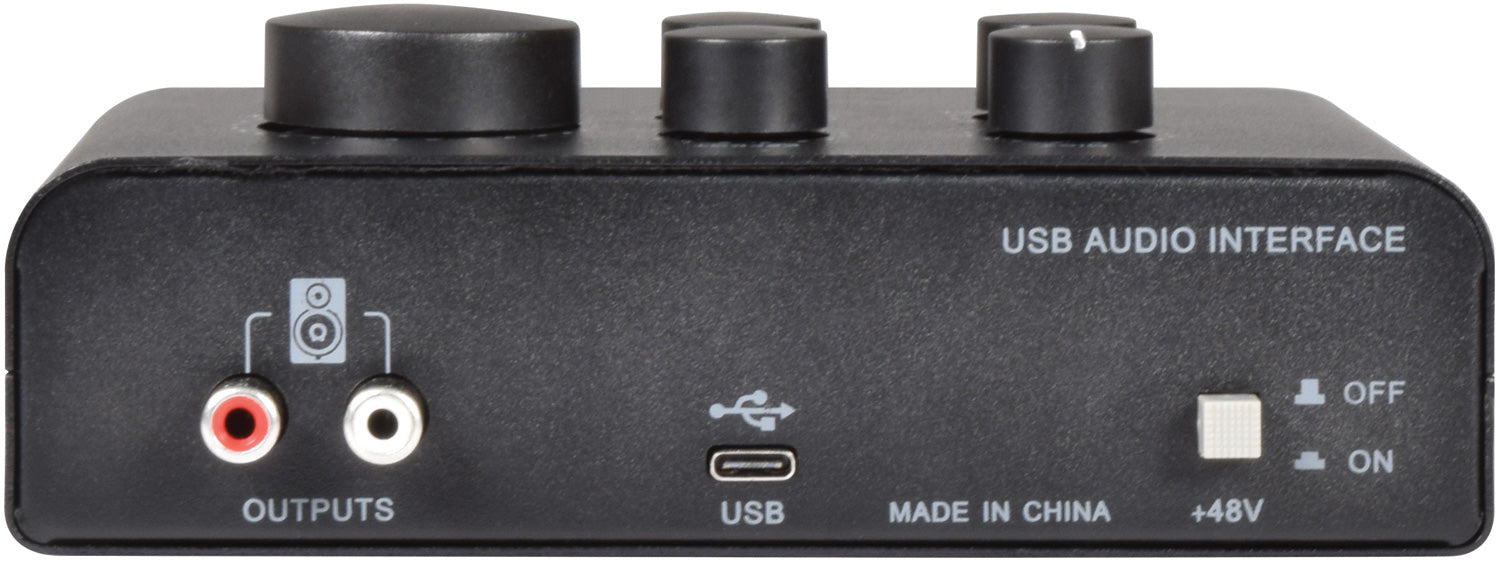

Desktop USB soundcard for a computer-based recording studio. Featuring 2 independent microphone inputs on XLR/jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with separate control. Monitoring is via a stereo 6.3mm headphone jack or L+R RCA line output on the rear of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB type-C socket at the rear. Simple yet versatile operation for project studios and DAW recording setups.

Specifications

2 XLR/jack microphone inputs with gain and mute control
Separate instrument 6.3mm jack input
Inbuilt echo effect

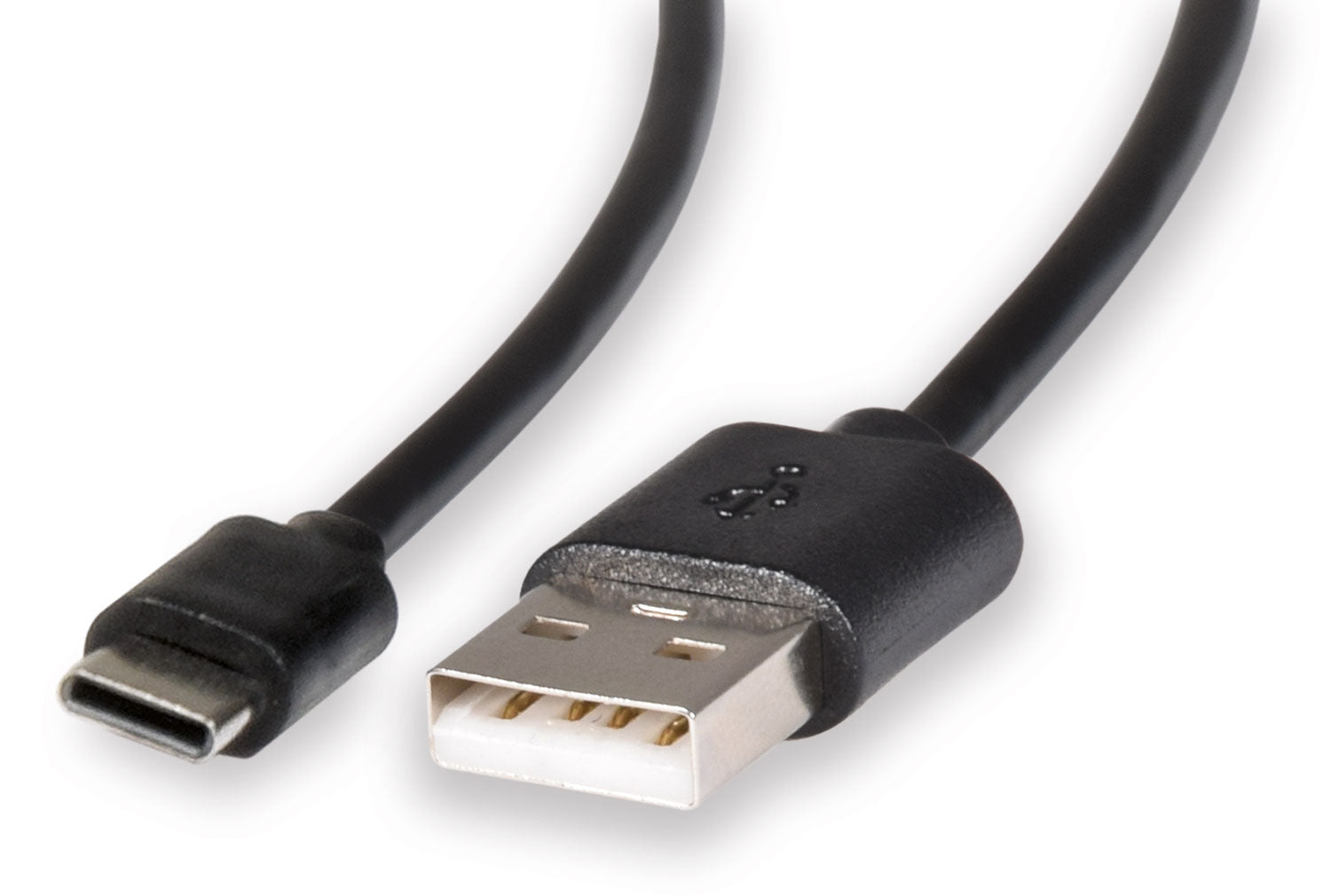

1.5m USB type C to A lead supplied
48kHz sample rate
Power supply:5Vdc (from USB)
Connection:USB type-C

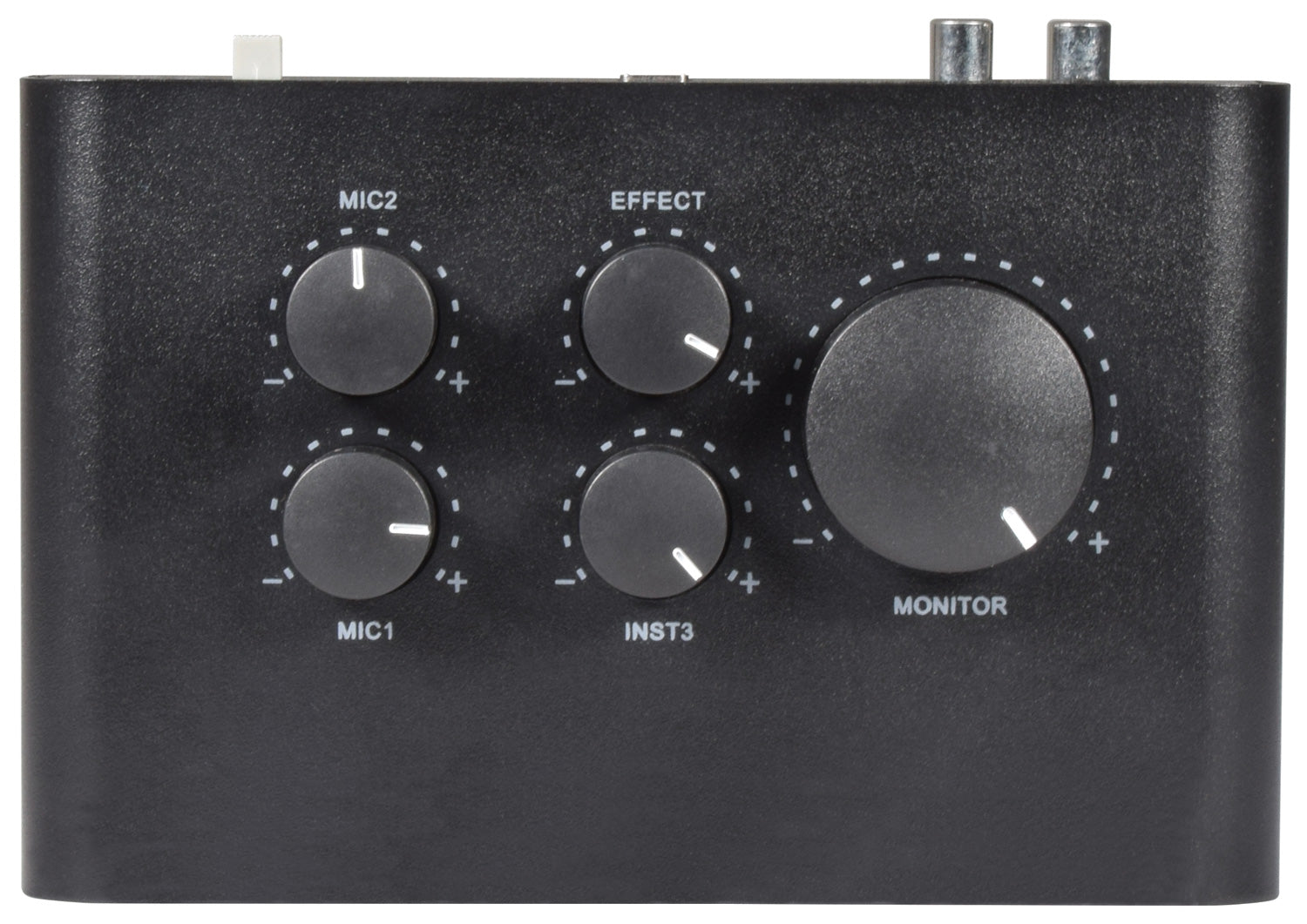

Controls:Mic1, Mic2, Inst3, Effect, Monitor
Input connections:2 x mic XLR/Jack, 1 x 6.3mm instrument jack
Frequency response:10Hz - 30kHz (-0.5dB)
Input impedance : instrument:1M Ohm
Input impedance : mic:3k Ohm
Max. input sound level:Mic or Instrument +2dBu, Line +22dBu
Phantom power:+48V switchable to XLR inputs
Dynamic range:100dB (A-weighted)
Sampling format:48kHz, 16-bit
Monitor outputs:Headphones (stereo 6.3mm jack), Line out (L+R RCA)
Dimensions:160 x 110 x 57mm
Weight:529g
