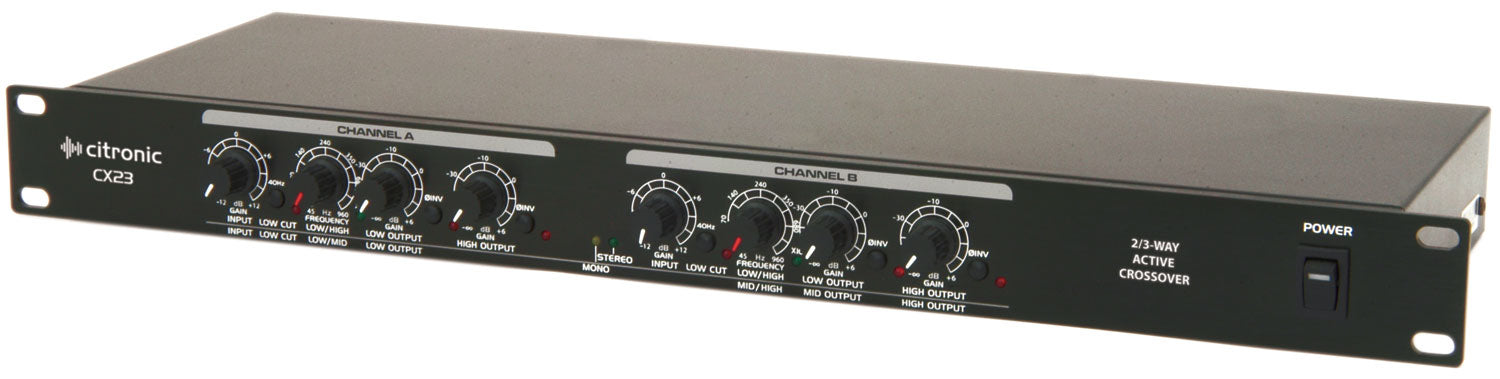

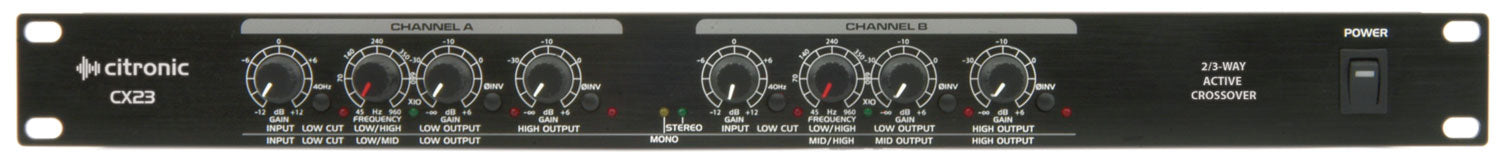

The CX23 is a 2-way stereo or 3-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.

Specifications

2-way stereo, 3-way mono crossover
19" rack mountable
Butterworth filters - 18dB/octave
Continuously adjustable cutoff frequencies
40Hz ultra-low frequency cut
Phase invert function

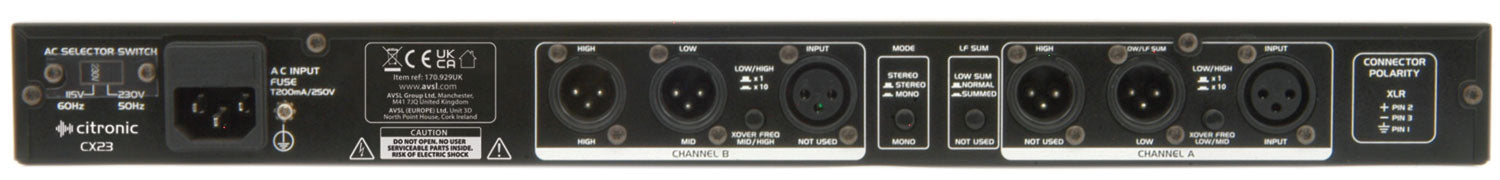

Inputs and outputs via XLR
Power supply:115/230Vac, 50/60Hz (IEC)
Input impedance : balanced:40k ohms
Input impedance : unbalanced:20k ohms
Output impedance:220 ohms
Crossover ranges : stereo:50Hz-5kHz;750Hz-7.5kHz
Crossover ranges : mono:50Hz-5kHz;750Hz-7.5kHz; 2kHz-20kHz
Filter slope:18dB/octave
Frequency response:20Hz-25kHz +0/-1dB
Signal to noise ratio:>90dB
THD:0.006%
Dimensions:482 x 44 x 170mm
Weight:2.5Kg
