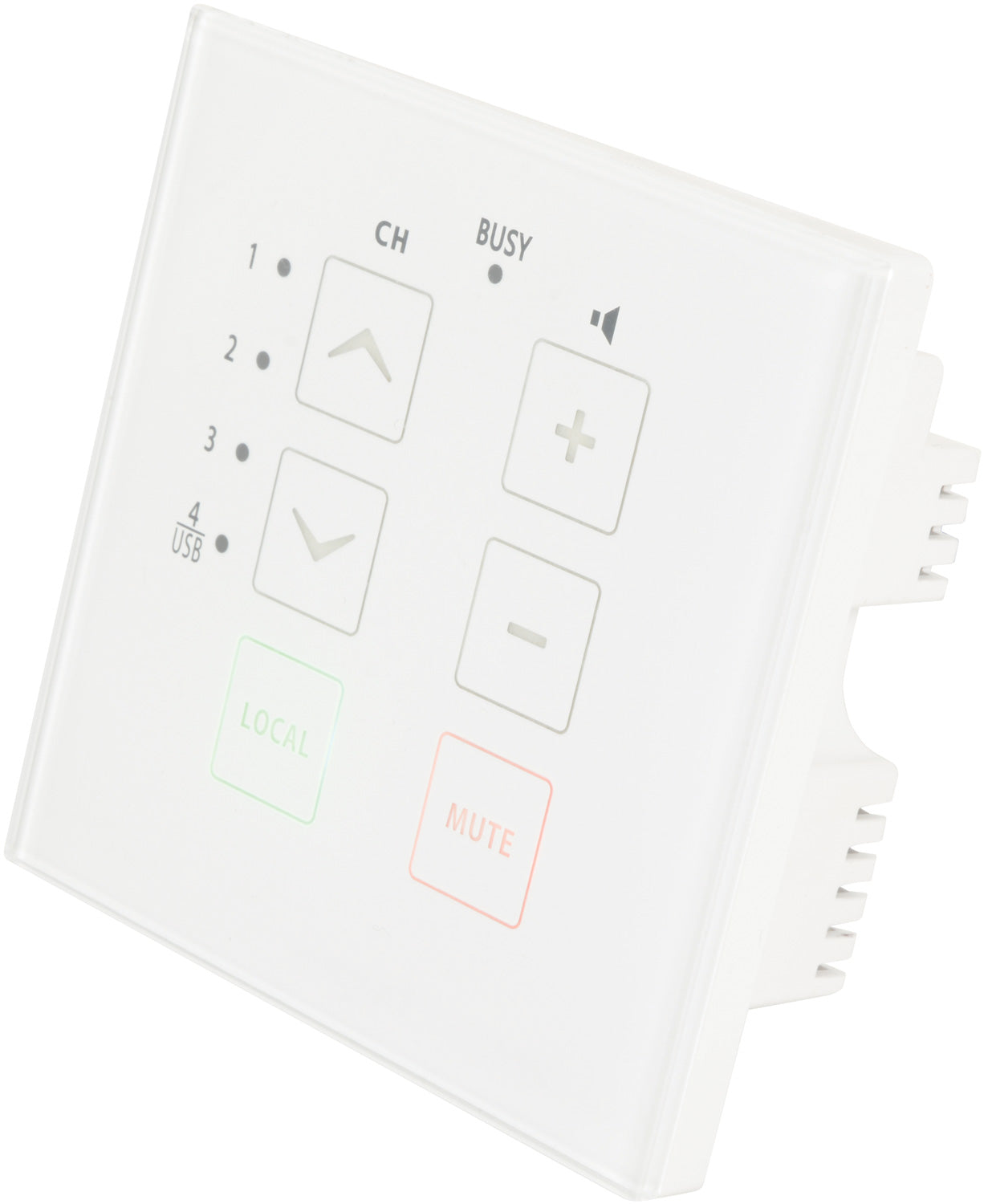

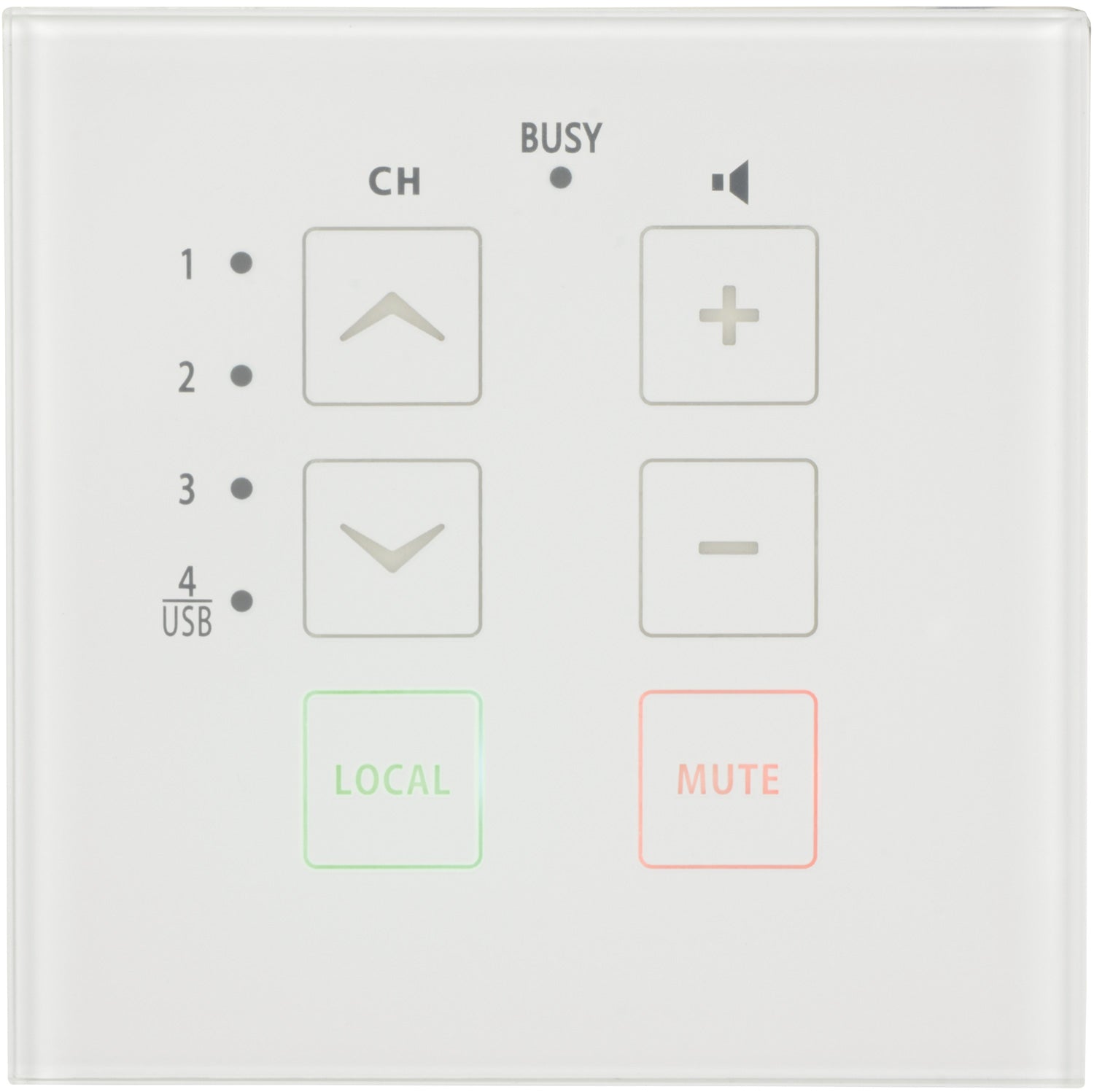

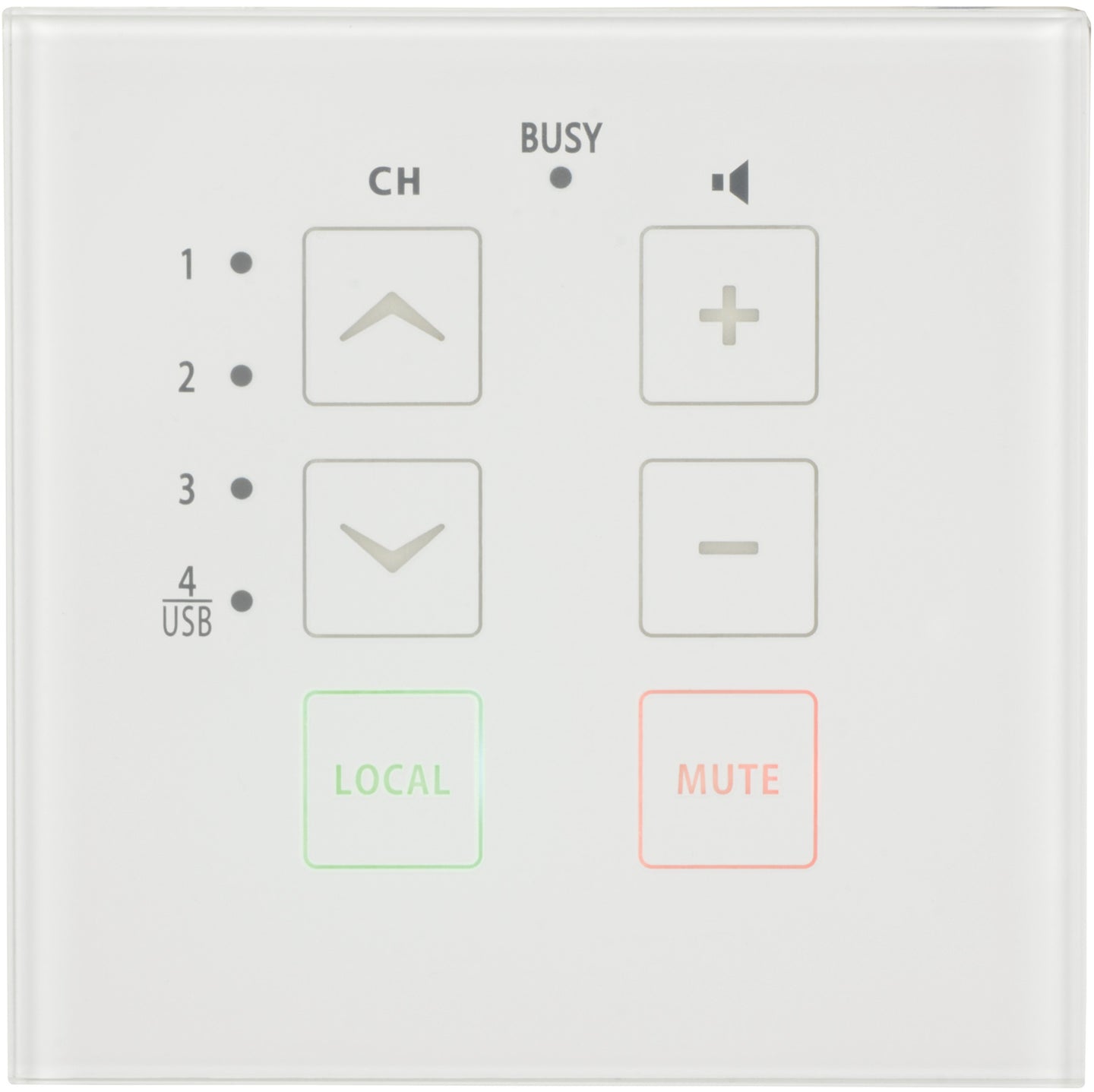

Remote control for the RZ45 audio matrix system built into a single gang 86 x 86mm wall plate. The illuminated acrylic touch-operated surface selects between 3 stereo audio sources or the inbuilt media player on the RZ45 and controls the output level to its zone. Connection by standard network cable carries signal and power to the TR86 panel up to 100m away from the RZ45 or signal up to 1km away with a separate 24Vdc power input. Additionally, a mono line level signal can be wired internally to the panel via screw terminals to provide an independent local audio source. Up to 5 TR86 remote panels may be used with a single RZ45 unit controlling up to 5 independent zones.
Illuminated with colour coded indicators
Easy installation via RJ45 connection
Up to 5 remote panels per RZ45 audio matrix
Up to 100m powered directly from RZ45 or 1km with +24V power
Connection:8P8C (RJ45)
Power supply:24Vdc (from RZ45 or externally)
Controls:Sources 1-4 (USB), Local, Mute, Level +/-

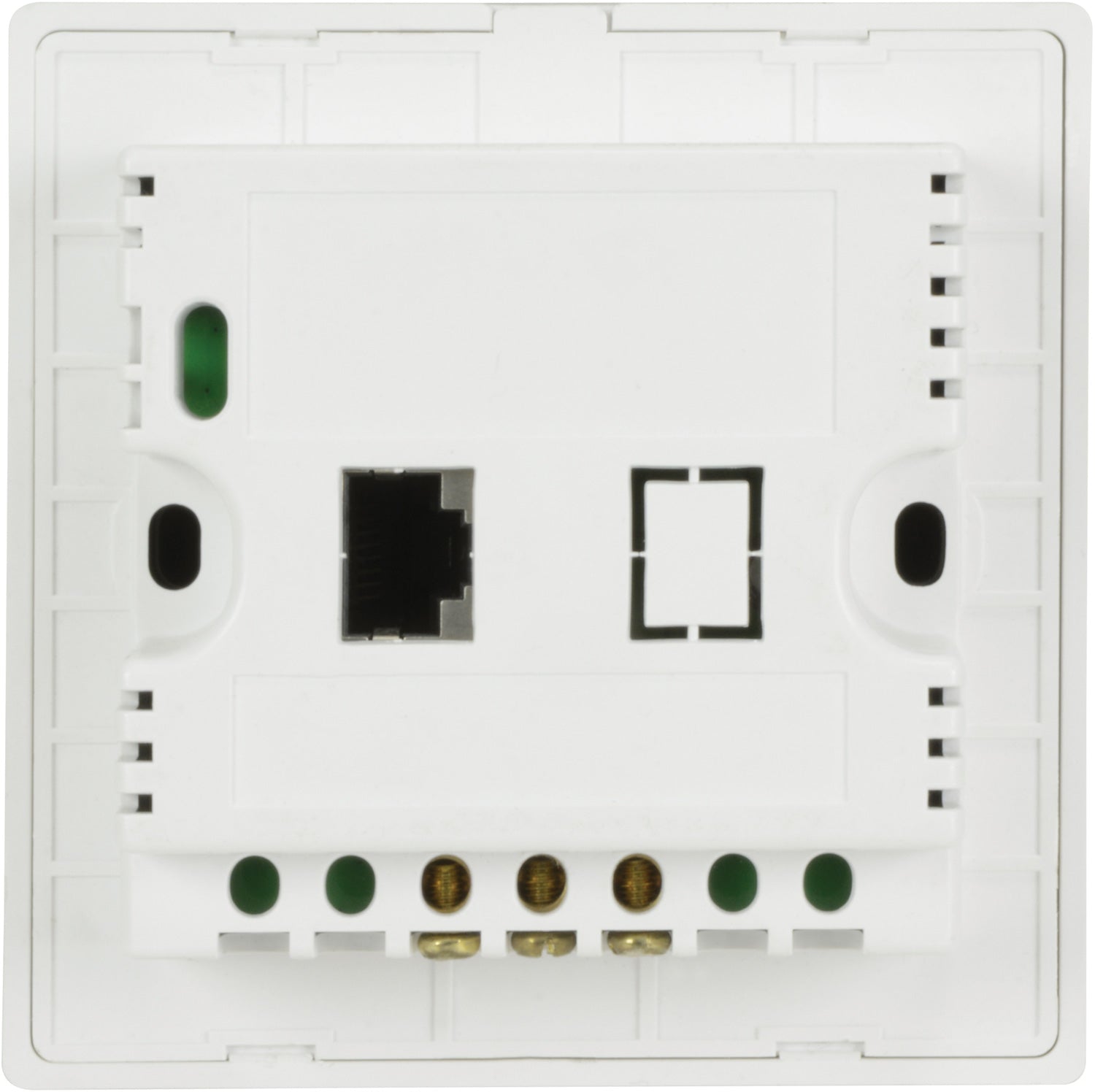

Terminals:Local +24V, Ground, Local line input
Dimensions:86 x 86 x 38mm
Mounting depth:38mm
Weight:128g
Specifications
Hygienic acrylic touch operated surfaceIlluminated with colour coded indicators
Easy installation via RJ45 connection
Up to 5 remote panels per RZ45 audio matrix
Up to 100m powered directly from RZ45 or 1km with +24V power
Connection:8P8C (RJ45)
Power supply:24Vdc (from RZ45 or externally)
Controls:Sources 1-4 (USB), Local, Mute, Level +/-
Terminals:Local +24V, Ground, Local line input
Dimensions:86 x 86 x 38mm
Mounting depth:38mm
Weight:128g
Adastra TR86 Touch Wall Remote for RZ45 Audio Matrix
Brand: Adastra
SKU: 953.050UK
Regular price
£69.00
Pickup available at Venutec
Usually ready in 24 hours
Adastra TR86 Touch Wall Remote for RZ45 Audio Matrix
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
