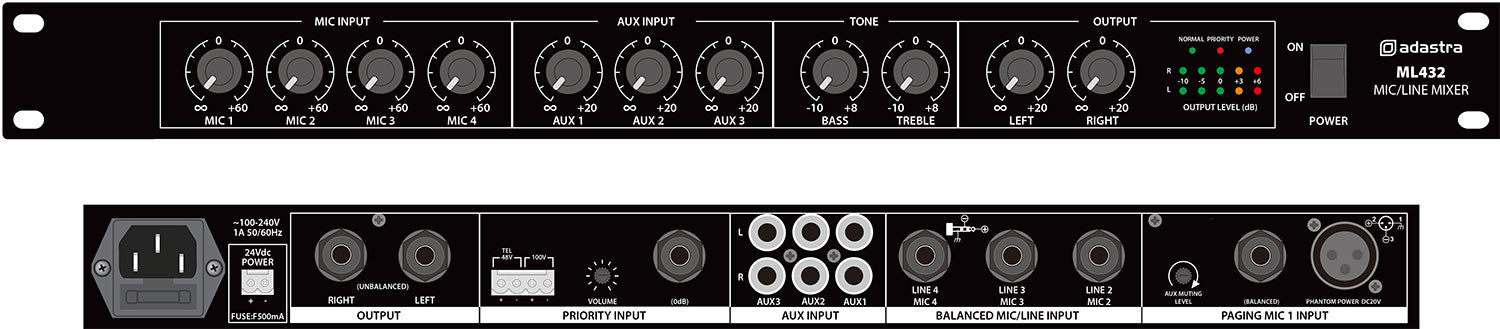

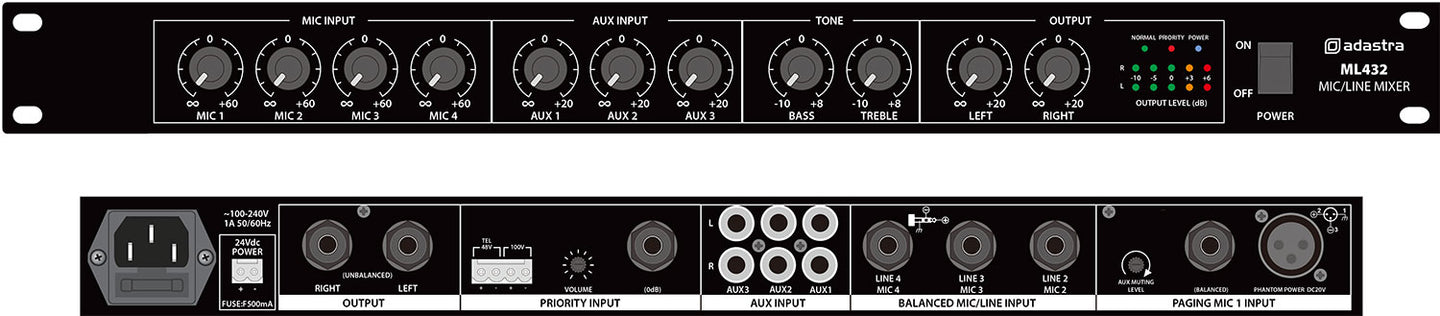

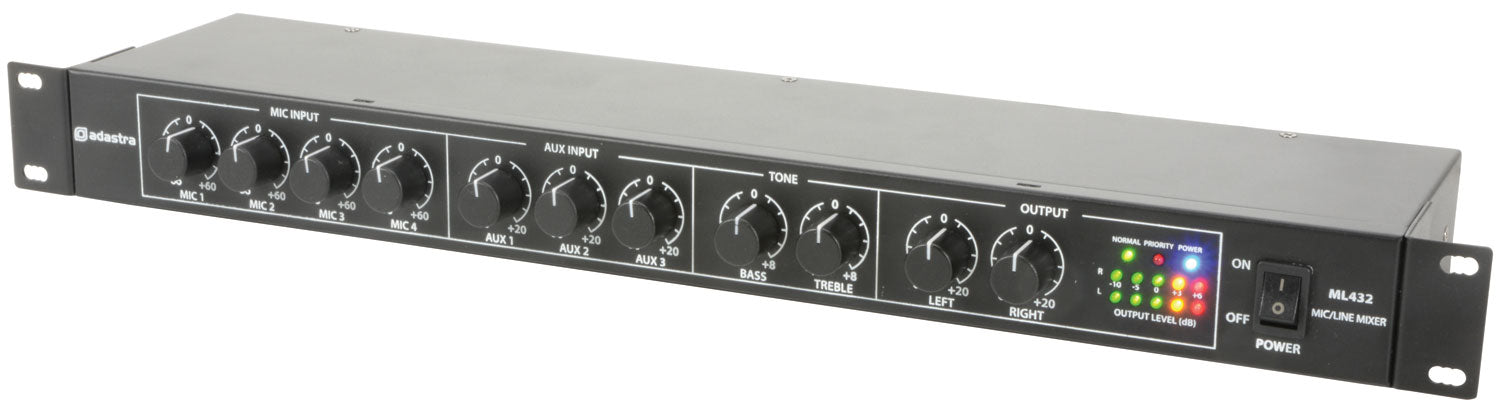

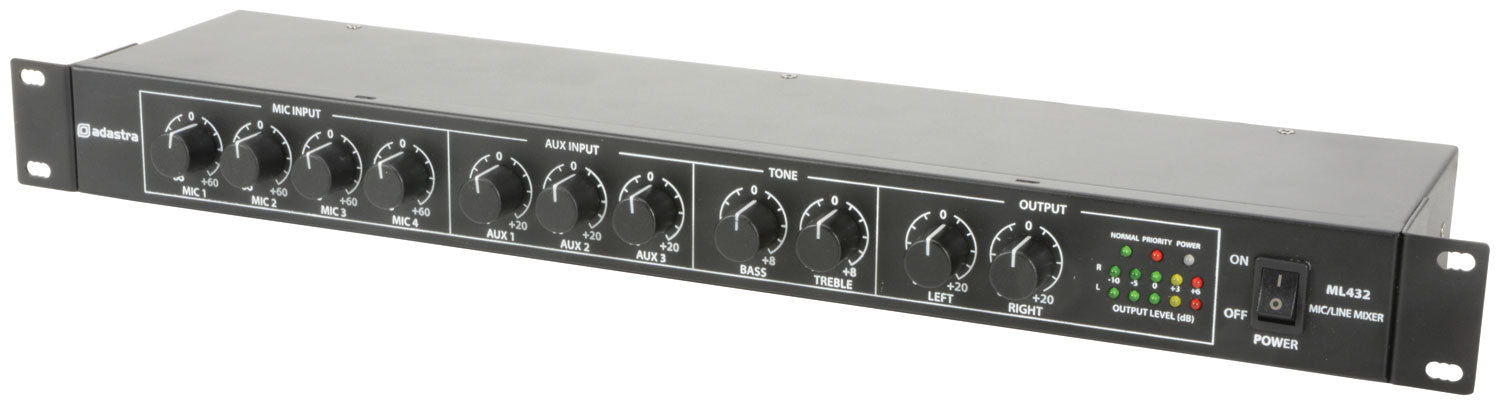

Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs. Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems.

Specifications

4 balanced microphone inputs
+20V phantom power on paging mic input
3 stereo aux line inputs
Can tap from an existing 100V PA system
24Vdc power option
Power supply:100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
Fuse:T1AL 250V (mains) or F500mA (24Vdc)
Phantom power:+20Vdc (mic1 XLR input only)

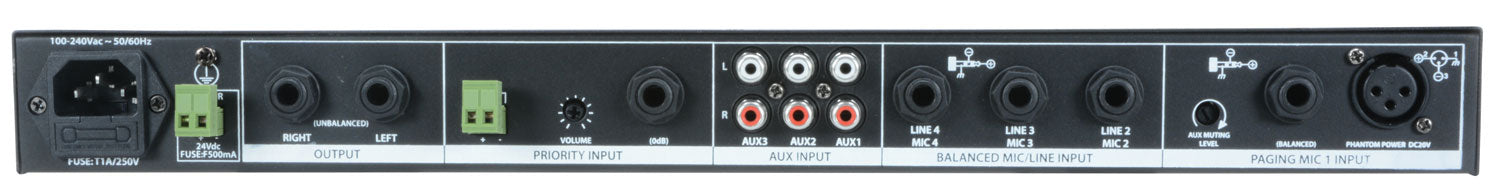

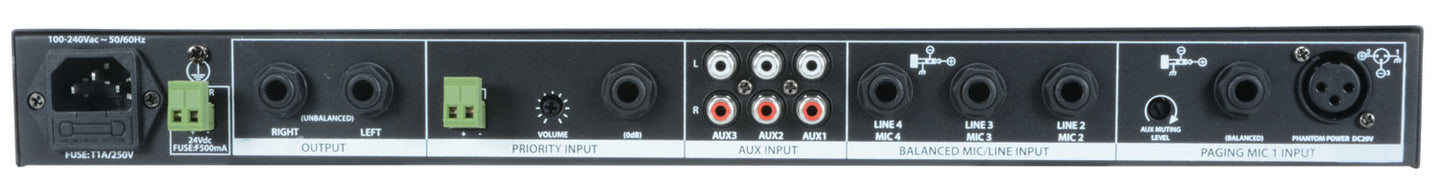

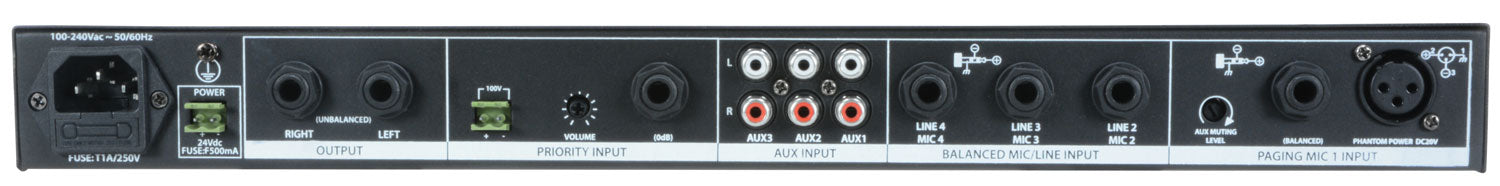

Inputs : Mic:4 x balanced 6.3mm jack (+XLR for mic1)
Inputs : Aux:3 x L+R RCA
Inputs : priority:Line level (6.3mm jack), 100V (terminals)
Outputs:Left + Right 6.3mm jack (unbalanced)

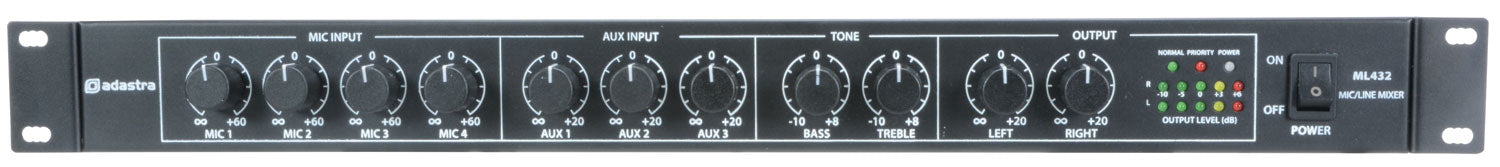

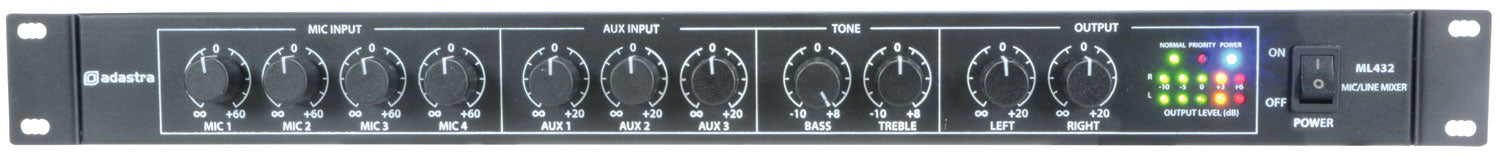

Controls:4 x Mic level, 3 x Aux level, Treble, Bass, L+R output
Rear panel controls:Aux muting level, priority input level
Input impedance:2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic:130Hz - 21kHz
Frequency response : line:120Hz - 26kHz
Frequency response : aux:50Hz - 35kHz
Input sensitivity : mic:-50dBV
Input sensitivity : line:-19dBV
Input sensitivity : aux:-12dBV
Signal to noise ratio : mic:54dB
Signal to noise ratio : aux/line:58dB
THD:0.05%
Dimensions:482 x 130 x 44mm
Weight:1.43kg
