Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.
Individual volume control for each output
Input peak LEDs
Power supply:115/230Vac, 50/60Hz (IEC)
Inputs:A & B, (6.3mm jack)
Outputs:1 - 6 & 7 - 12 (6.3mm jack)
Input impedance:20k Ohms
Output impedance:220 Ohms
Frequency response:20Hz - 20kHz, +0/-1dB
Signal to noise ratio:>95dB
THD:<0.008%
Dimensions:483 x 44 x 170mm
Weight:2.0kg
Specifications
Up to 12 outputs from 1 or 2 inputsIndividual volume control for each output
Input peak LEDs
Power supply:115/230Vac, 50/60Hz (IEC)
Inputs:A & B, (6.3mm jack)
Outputs:1 - 6 & 7 - 12 (6.3mm jack)
Input impedance:20k Ohms
Output impedance:220 Ohms
Frequency response:20Hz - 20kHz, +0/-1dB
Signal to noise ratio:>95dB
THD:<0.008%
Dimensions:483 x 44 x 170mm
Weight:2.0kg

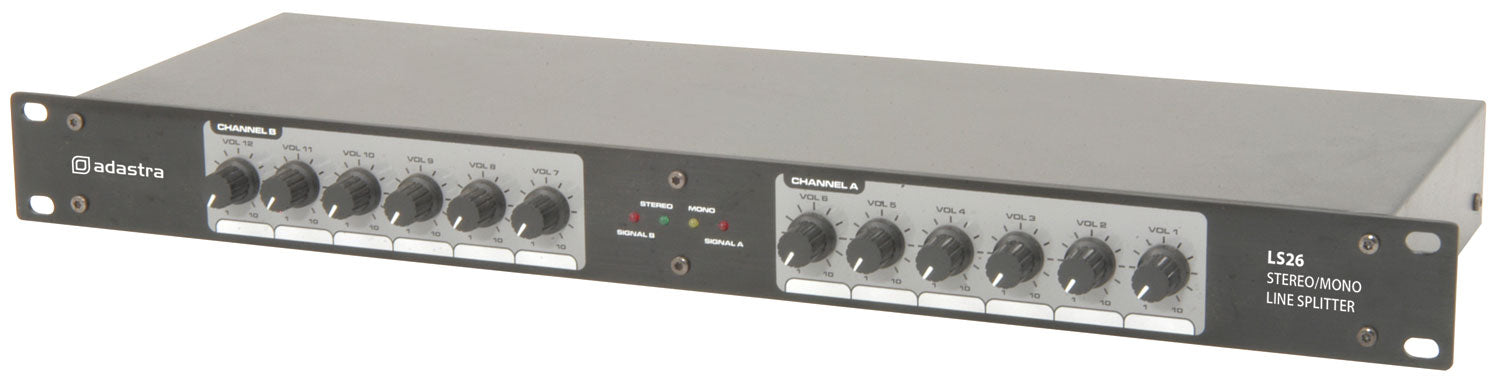

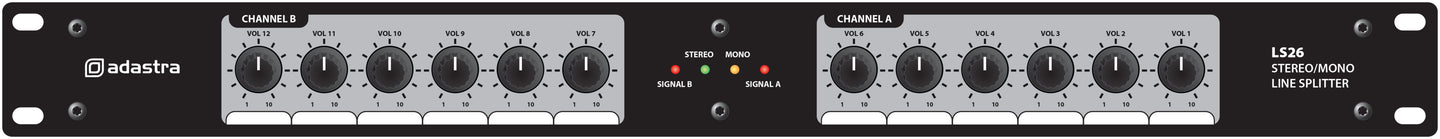

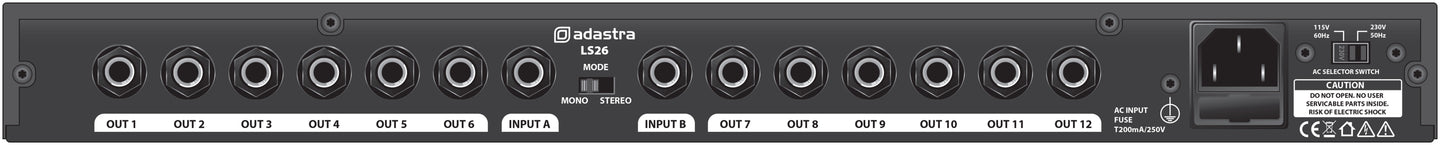

Adastra LS26 Line Splitter 1:12 / 2:6
Brand: Adastra
SKU: 953.022UK
Regular price
£109.00
Pickup available at Venutec
Usually ready in 24 hours
Adastra LS26 Line Splitter 1:12 / 2:6
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
