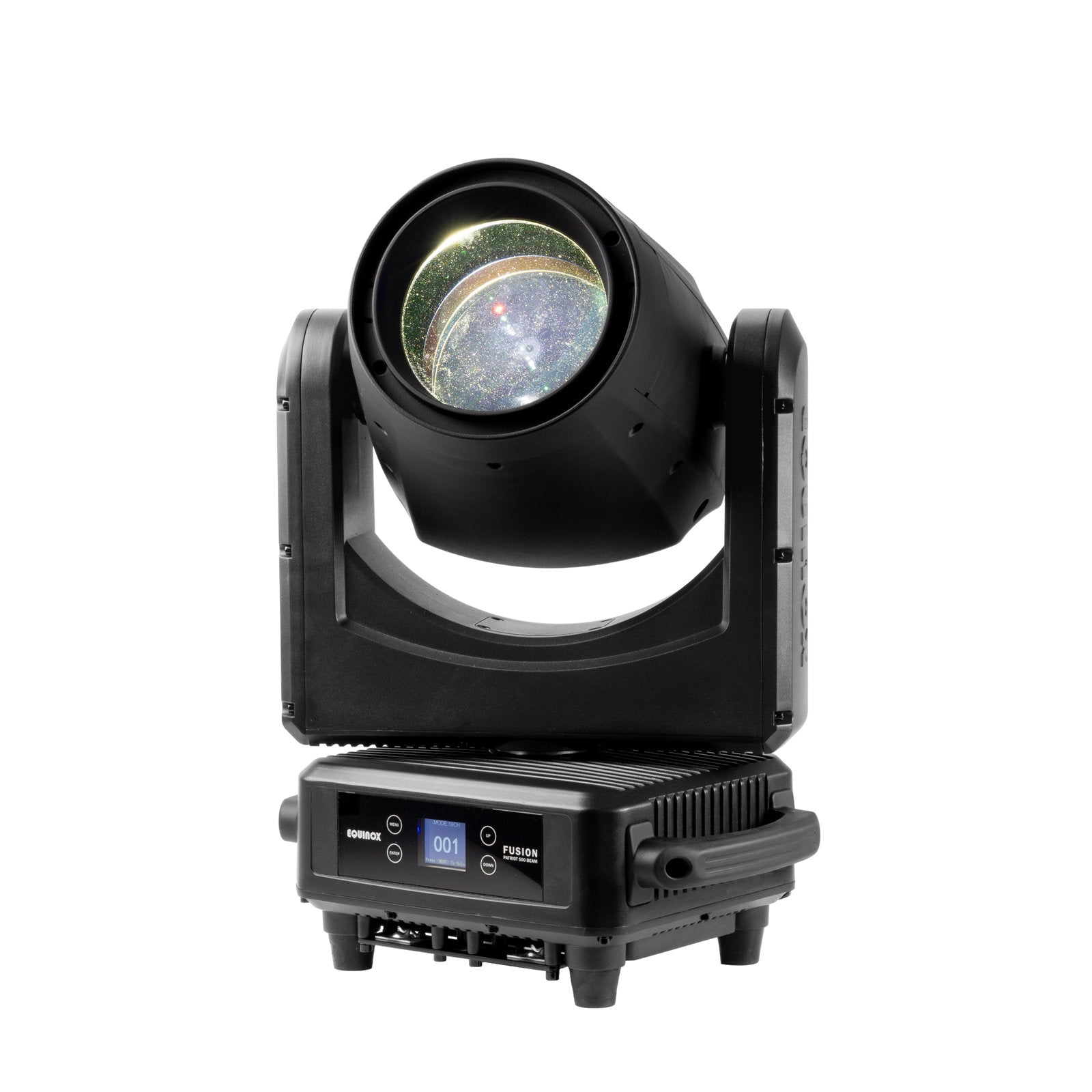

The Equinox Fusion Patriot 500 Beam is a compact yet powerful IP65-rated moving head beam designed to thrive in the toughest environments. Powered by a 50W white laser source (7000K) it delivers an intense 105000 Lux at 10 metres through a sharp 1° beam. Packed with creative tools including 19 static gobos a 12-colour wheel plus a rainbow effect and two rotating prism wheels for layered aerial visuals this fixture is ideal for professional stage and event applications. Additional features include motorised focus frost filter 16-bit pan/tilt with auto correction and selectable 14 or 18-channel DMX control. With 3/5-pin DMX PowerTwist TR1 and quick-release omega clamps this versatile fixture integrates seamlessly into any rig.

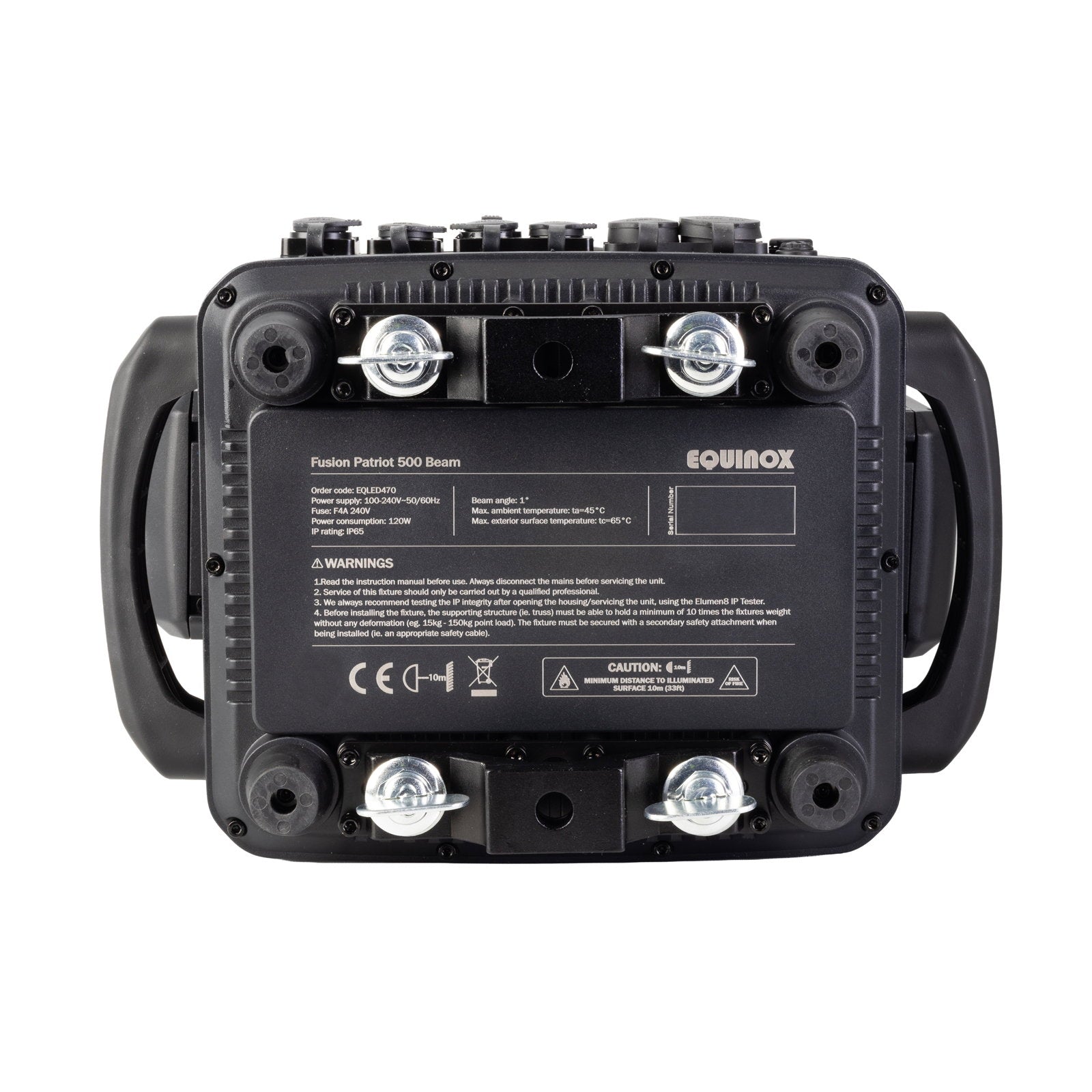

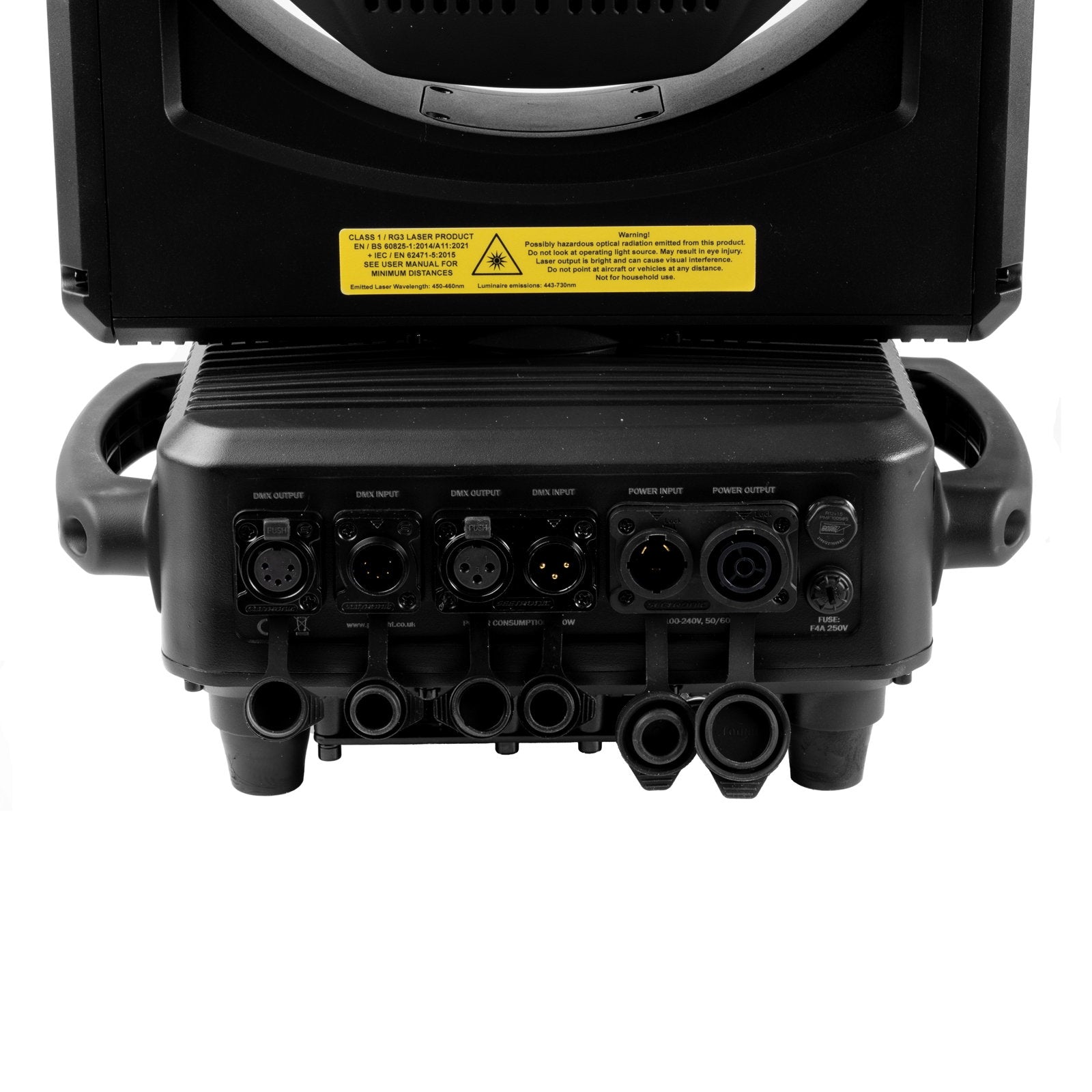

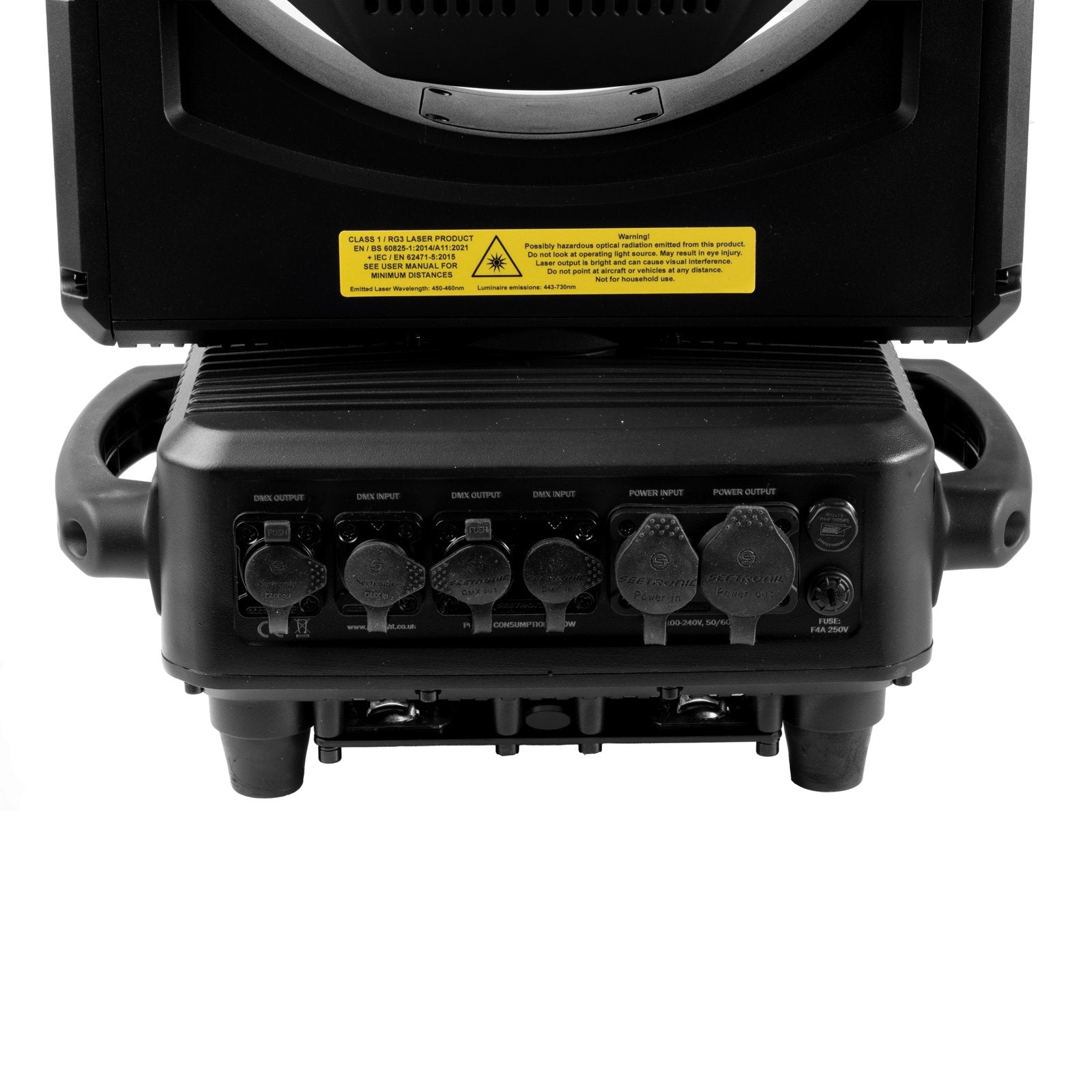

1 x 50W white laser source (7000K) Light source rated life: up to 12000 hours Beam angle: 1° 105000 Lux @ 10m Refresh rate: 650Hz–25kHz (5 presets) Motorised focus 2 prism wheels with 4 rotating prisms Wheel 1: 8 facet circular prism Wheel 2: 8 facet circular 18 facet circular 5 facet linear Frost filter Gobo wheel: 19 static gobos + open Colour wheel: 12 colours + open 6 colour rainbow effect wheel DMX channels: 14 or 18 selectable Wireless control (W-DMX Sweden compatible transceiver) Manual control & primary/secondary modes Pan/tilt auto correction 16-Bit pan/tilt positioning Pan 540° Tilt 220° 0–100% dimming Variable strobe Quick release omega clamps included 4-button menu with 1.7" LCD display PowerTwist TR1 input/output 3-Pin & 5-Pin XLR input/output Fan cooled
Power consumption: 120W Power supply: 100~240V 50/60Hz Fuse: F4A 250V IP rating: IP65 Dimensions (H x W x D): 545 x 344 x 227mm Weight: 11.5kg
1 x 50W white laser source (7000K) Light source rated life: up to 12000 hours Beam angle: 1° 105000 Lux @ 10m Refresh rate: 650Hz–25kHz (5 presets) Motorised focus 2 prism wheels with 4 rotating prisms Wheel 1: 8 facet circular prism Wheel 2: 8 facet circular 18 facet circular 5 facet linear Frost filter Gobo wheel: 19 static gobos + open Colour wheel: 12 colours + open 6 colour rainbow effect wheel DMX channels: 14 or 18 selectable Wireless control (W-DMX Sweden compatible transceiver) Manual control & primary/secondary modes Pan/tilt auto correction 16-Bit pan/tilt positioning Pan 540° Tilt 220° 0–100% dimming Variable strobe Quick release omega clamps included 4-button menu with 1.7" LCD display PowerTwist TR1 input/output 3-Pin & 5-Pin XLR input/output Fan cooled
Power consumption: 120W Power supply: 100~240V 50/60Hz Fuse: F4A 250V IP rating: IP65 Dimensions (H x W x D): 545 x 344 x 227mm Weight: 11.5kg

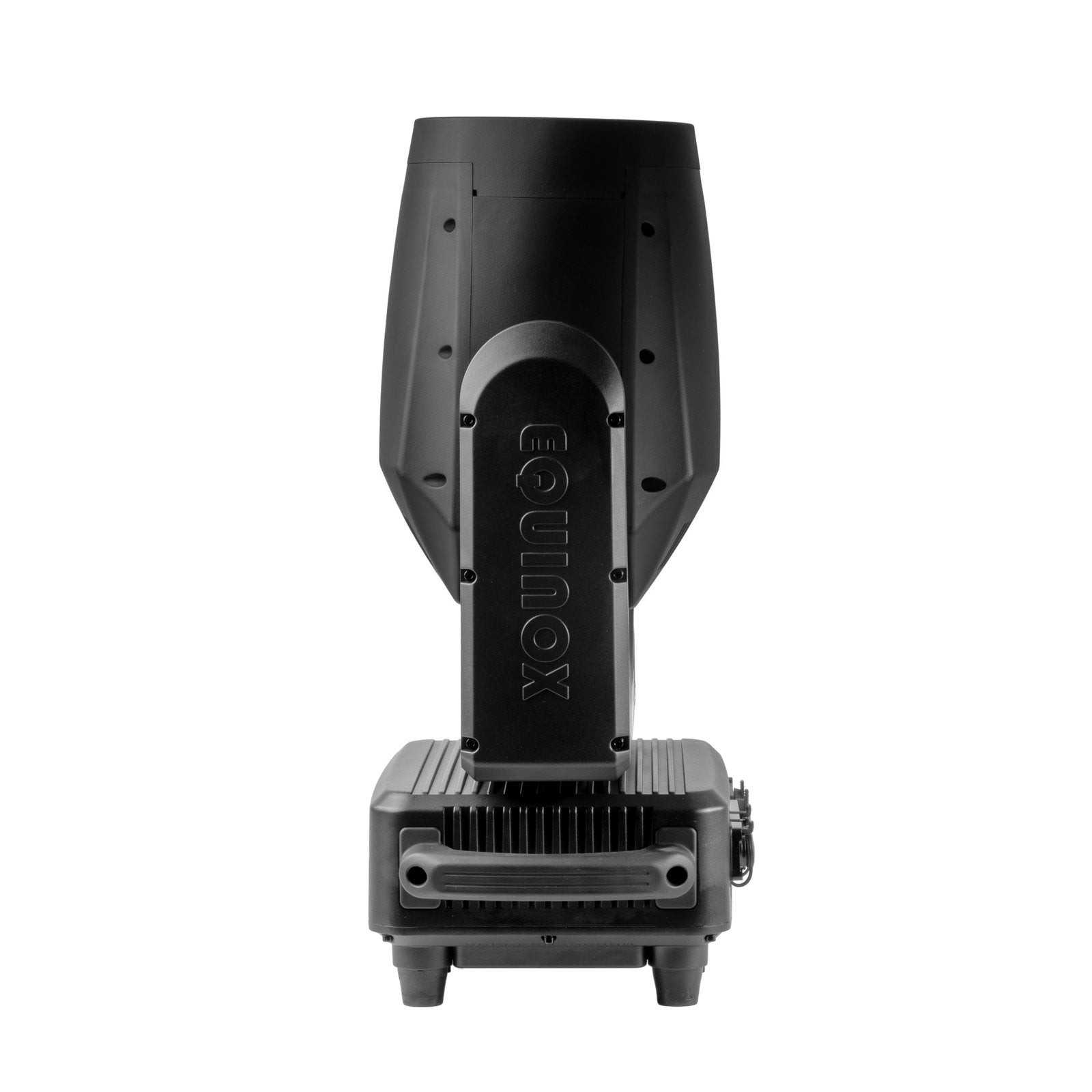

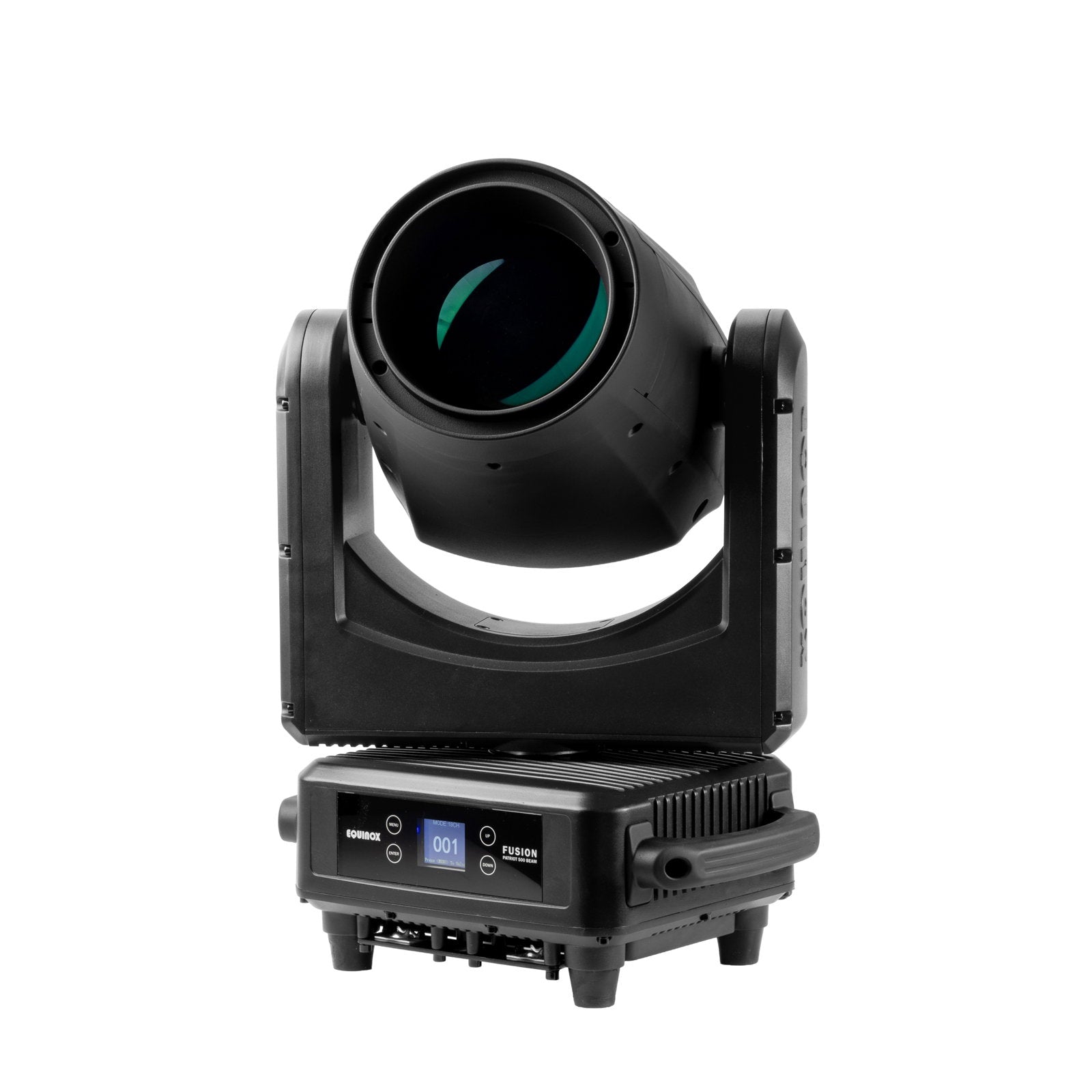

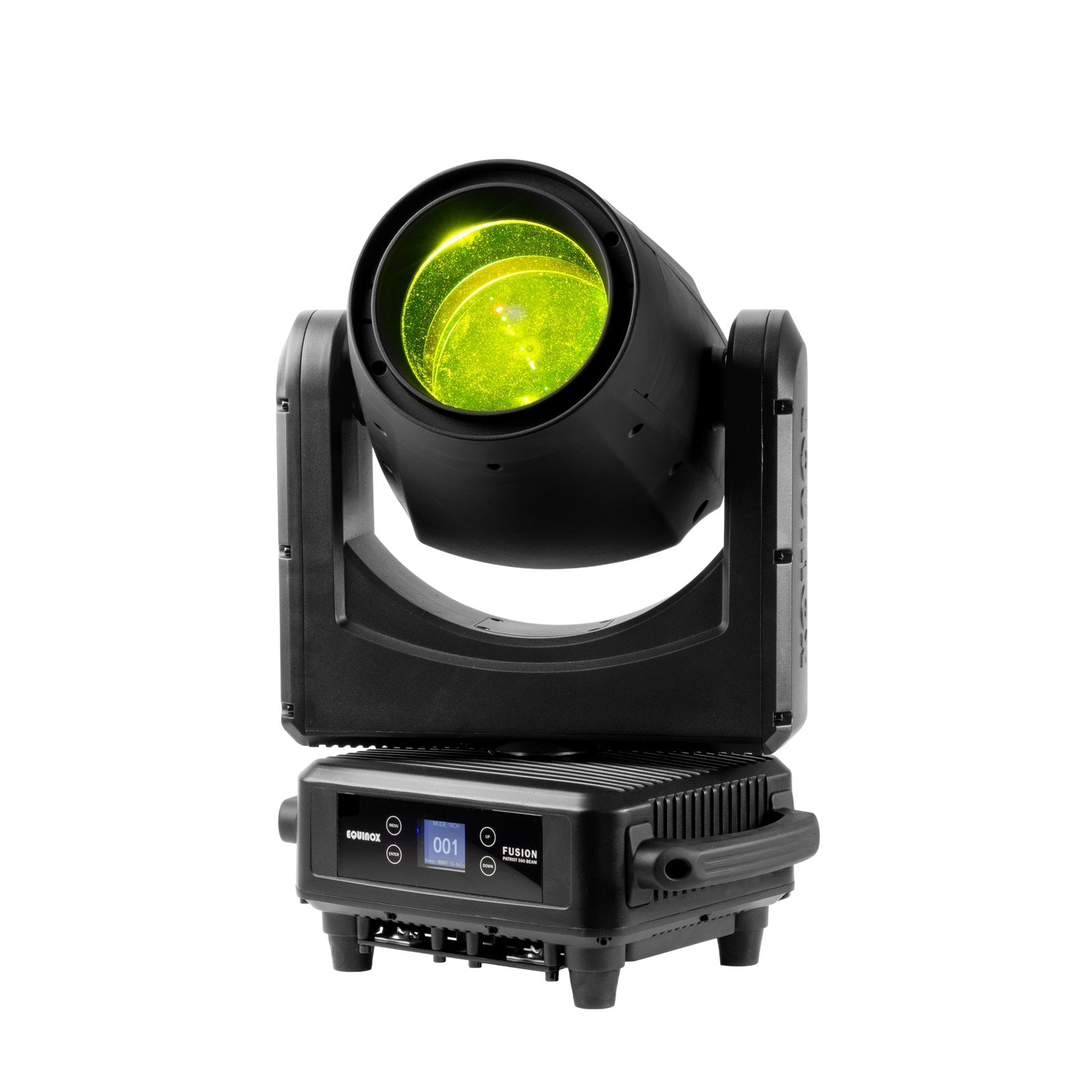

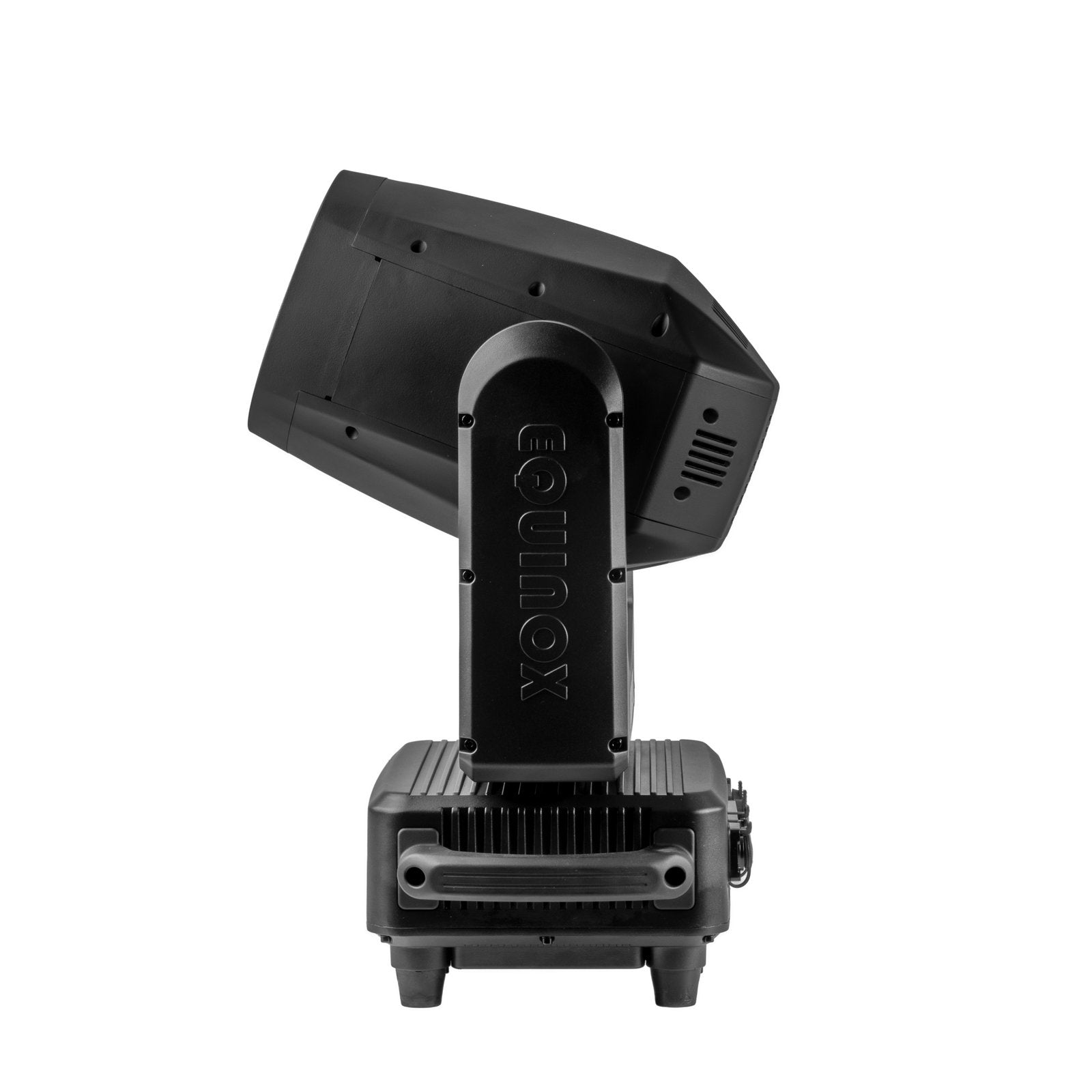

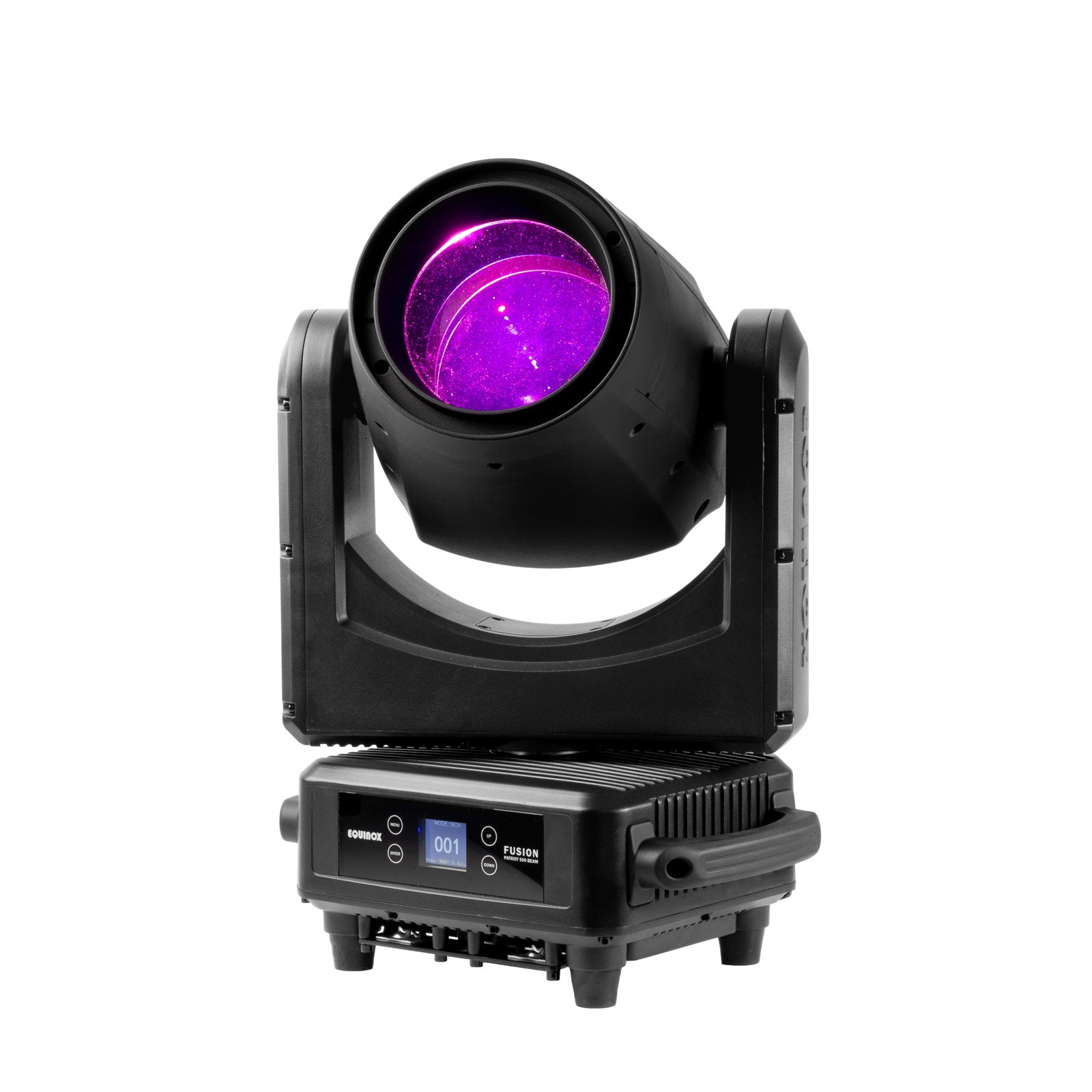

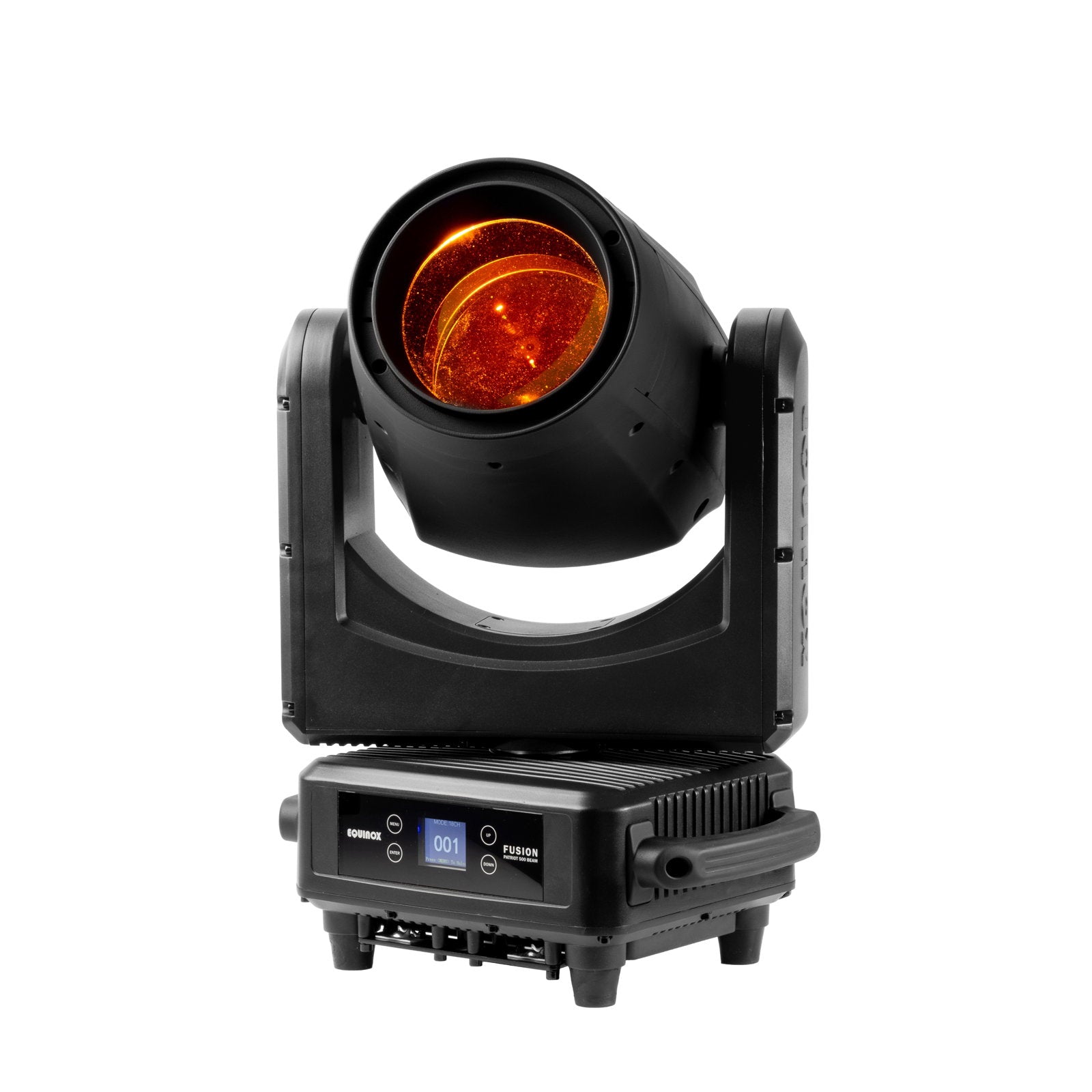

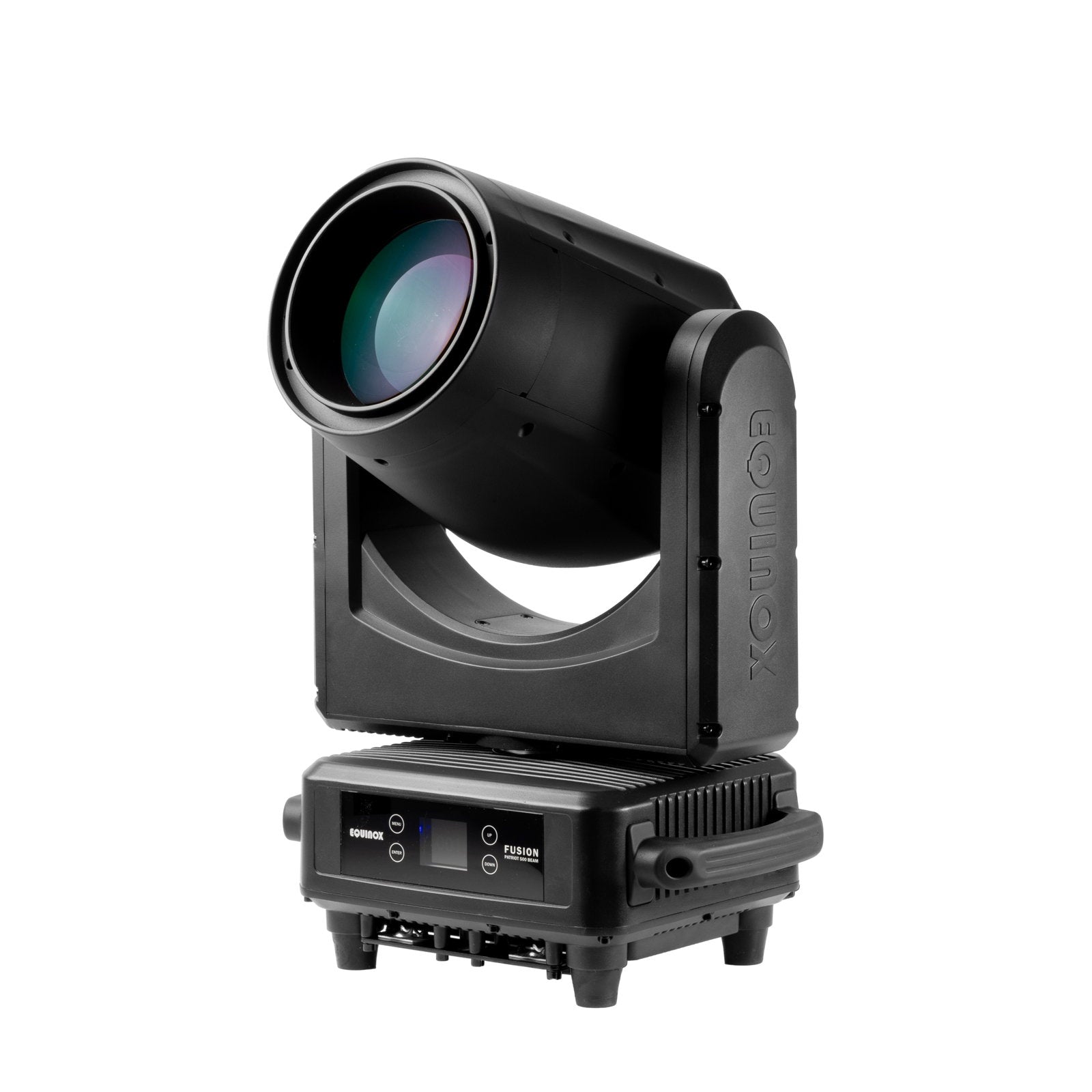

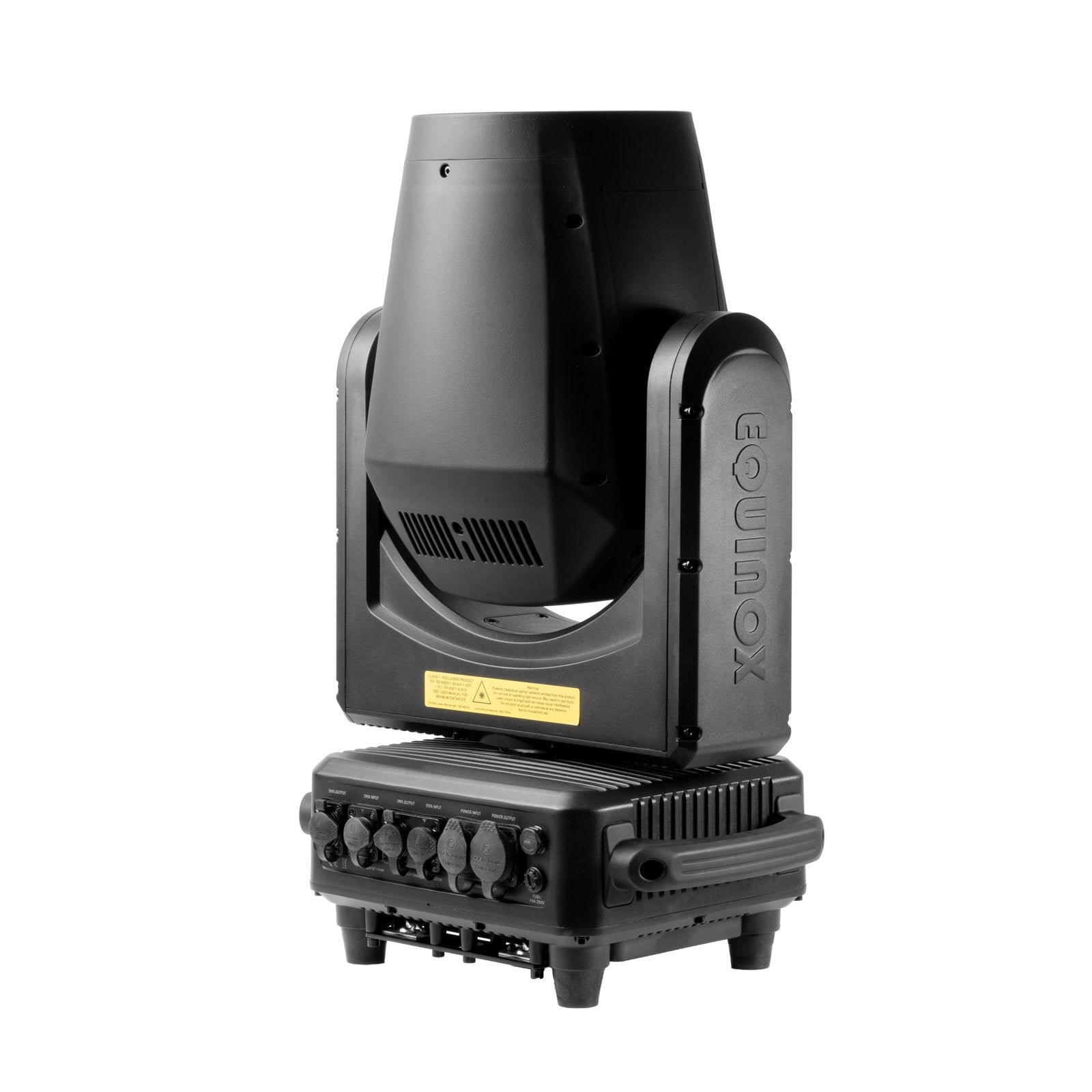

Equinox Fusion Patriot 500 Beam
Brand: Equinox
SKU: EQLED470
Regular price
£1,239.99
Pickup available at Venutec
Usually ready in 24 hours
Equinox Fusion Patriot 500 Beam
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Equinox Fusion Patriot 500 Beam is a compact yet powerful IP65-rated moving head beam designed to thrive in the toughest environments. Powered by a 50W white laser source (7000K) it delivers an intense 105000 Lux at 10 metres through a sharp 1° beam. Packed with creative tools including 19 static gobos a 12-colour wheel plus a rainbow effect and two rotating prism wheels for layered aerial visuals this fixture is ideal for professional stage and event applications. Additional features include motorised focus frost filter 16-bit pan/tilt with auto correction and selectable 14 or 18-channel DMX control. With 3/5-pin DMX PowerTwist TR1 and quick-release omega clamps this versatile fixture integrates seamlessly into any rig.
1 x 50W white laser source (7000K) Light source rated life: up to 12000 hours Beam angle: 1° 105000 Lux @ 10m Refresh rate: 650Hz–25kHz (5 presets) Motorised focus 2 prism wheels with 4 rotating prisms Wheel 1: 8 facet circular prism Wheel 2: 8 facet circular 18 facet circular 5 facet linear Frost filter Gobo wheel: 19 static gobos + open Colour wheel: 12 colours + open 6 colour rainbow effect wheel DMX channels: 14 or 18 selectable Wireless control (W-DMX Sweden compatible transceiver) Manual control & primary/secondary modes Pan/tilt auto correction 16-Bit pan/tilt positioning Pan 540° Tilt 220° 0–100% dimming Variable strobe Quick release omega clamps included 4-button menu with 1.7" LCD display PowerTwist TR1 input/output 3-Pin & 5-Pin XLR input/output Fan cooled
Power consumption: 120W Power supply: 100~240V 50/60Hz Fuse: F4A 250V IP rating: IP65 Dimensions (H x W x D): 545 x 344 x 227mm Weight: 11.5kg
1 x 50W white laser source (7000K) Light source rated life: up to 12000 hours Beam angle: 1° 105000 Lux @ 10m Refresh rate: 650Hz–25kHz (5 presets) Motorised focus 2 prism wheels with 4 rotating prisms Wheel 1: 8 facet circular prism Wheel 2: 8 facet circular 18 facet circular 5 facet linear Frost filter Gobo wheel: 19 static gobos + open Colour wheel: 12 colours + open 6 colour rainbow effect wheel DMX channels: 14 or 18 selectable Wireless control (W-DMX Sweden compatible transceiver) Manual control & primary/secondary modes Pan/tilt auto correction 16-Bit pan/tilt positioning Pan 540° Tilt 220° 0–100% dimming Variable strobe Quick release omega clamps included 4-button menu with 1.7" LCD display PowerTwist TR1 input/output 3-Pin & 5-Pin XLR input/output Fan cooled
Power consumption: 120W Power supply: 100~240V 50/60Hz Fuse: F4A 250V IP rating: IP65 Dimensions (H x W x D): 545 x 344 x 227mm Weight: 11.5kg
