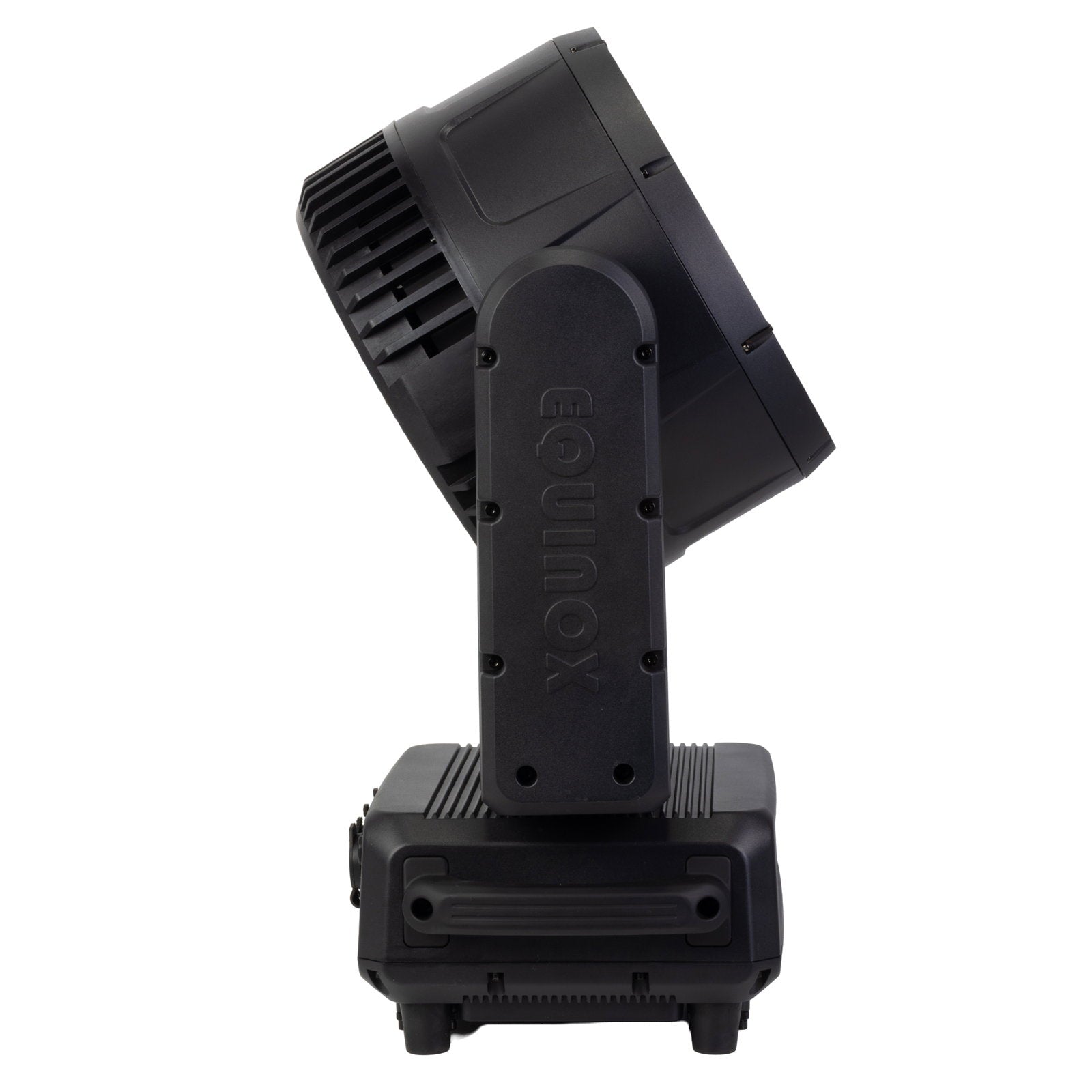

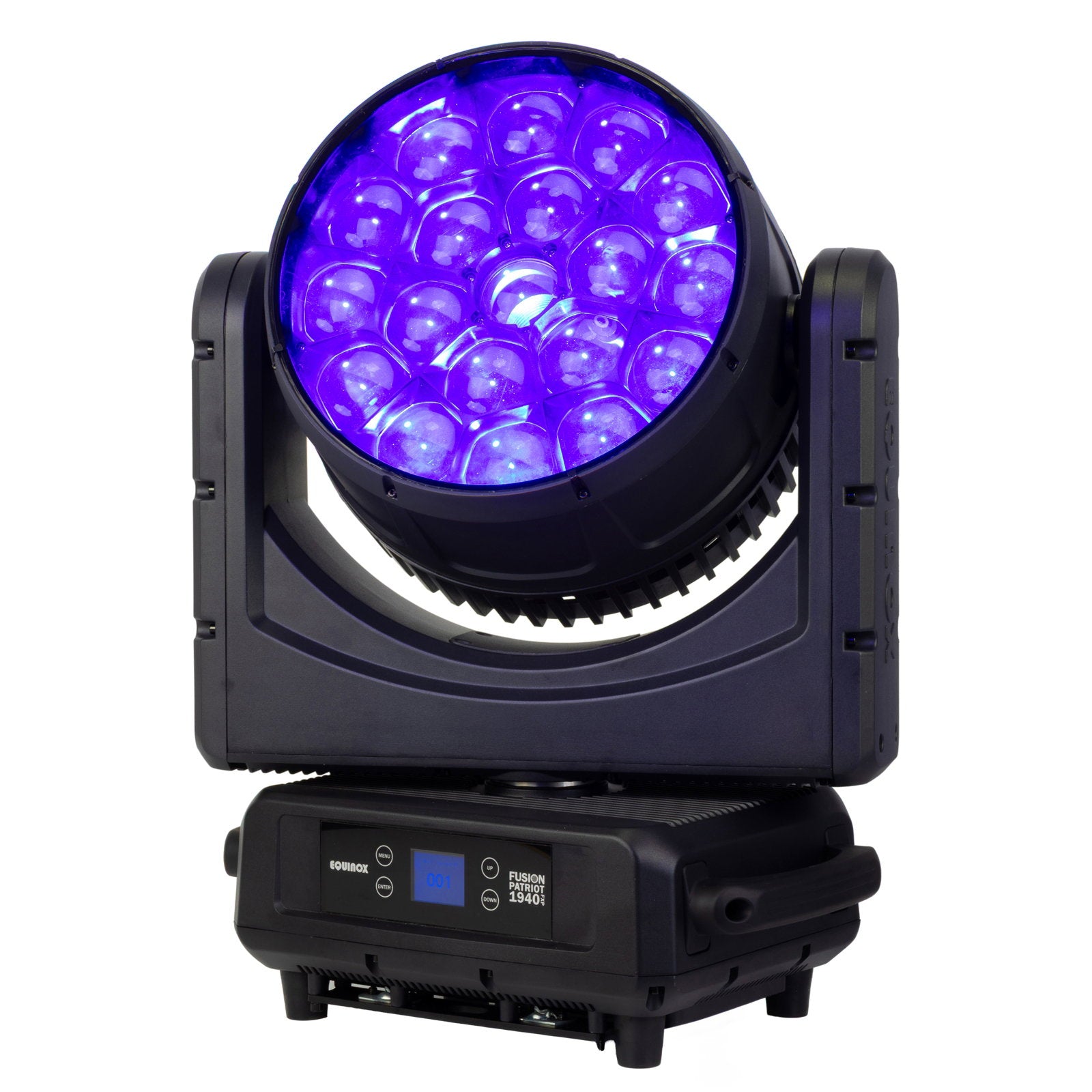

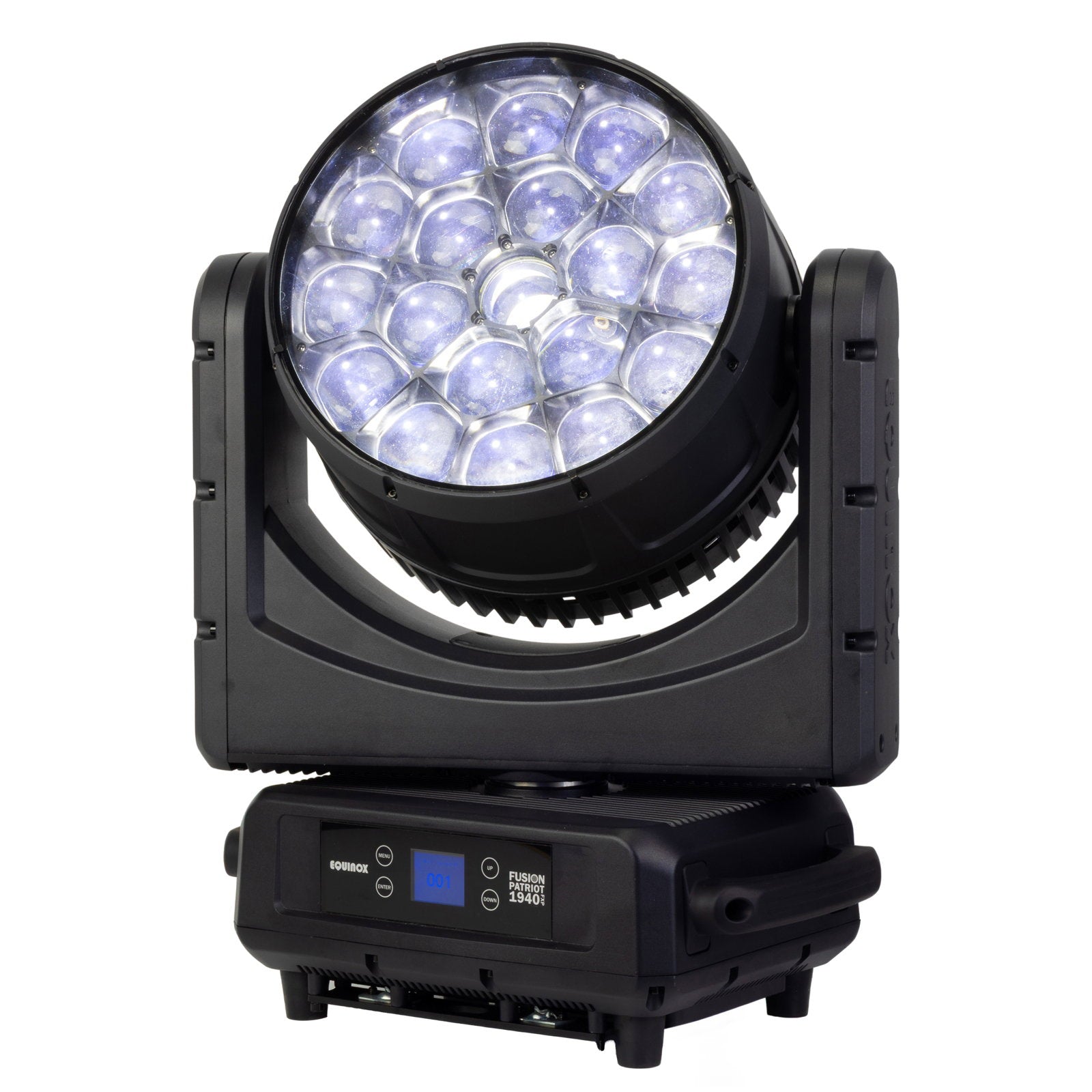

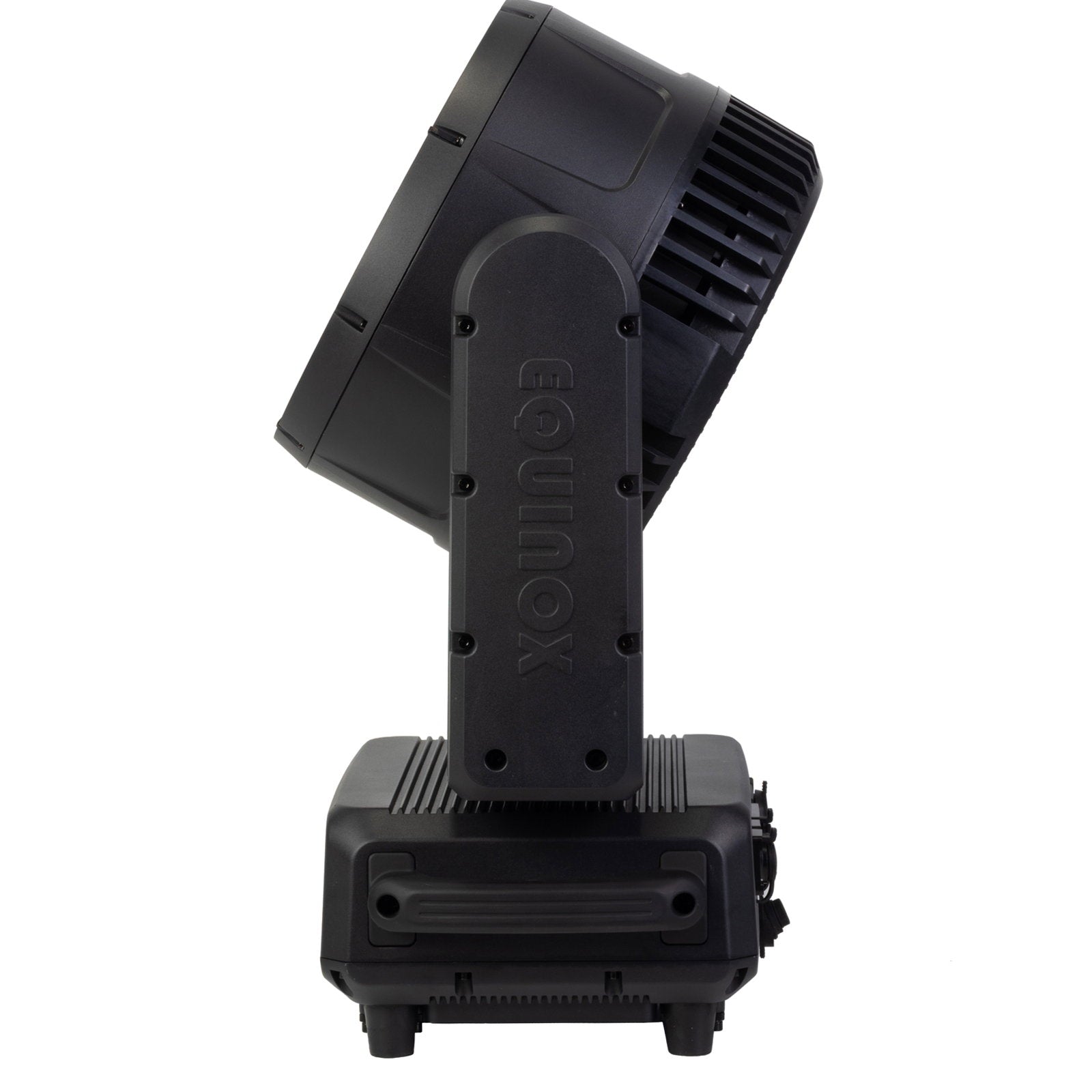

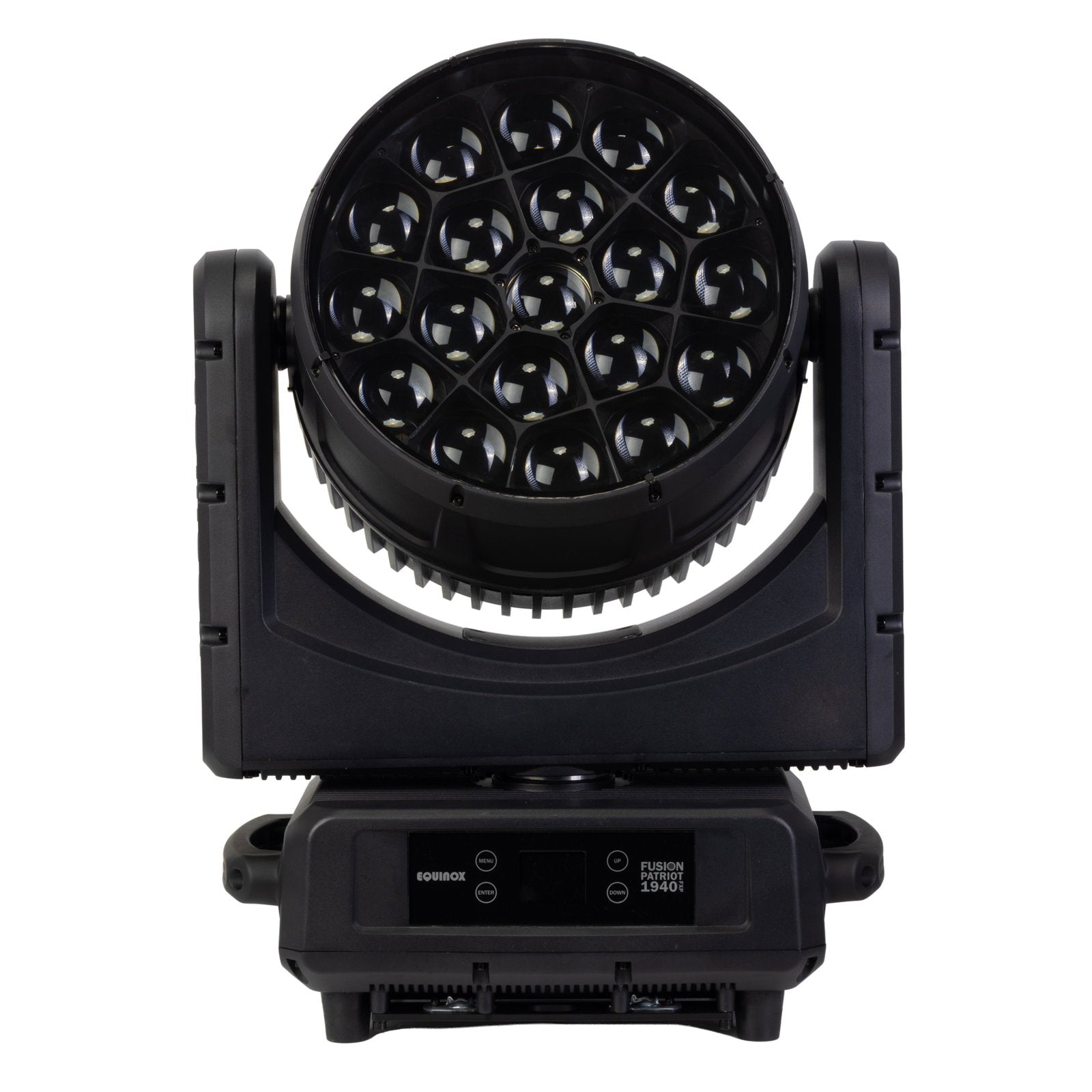

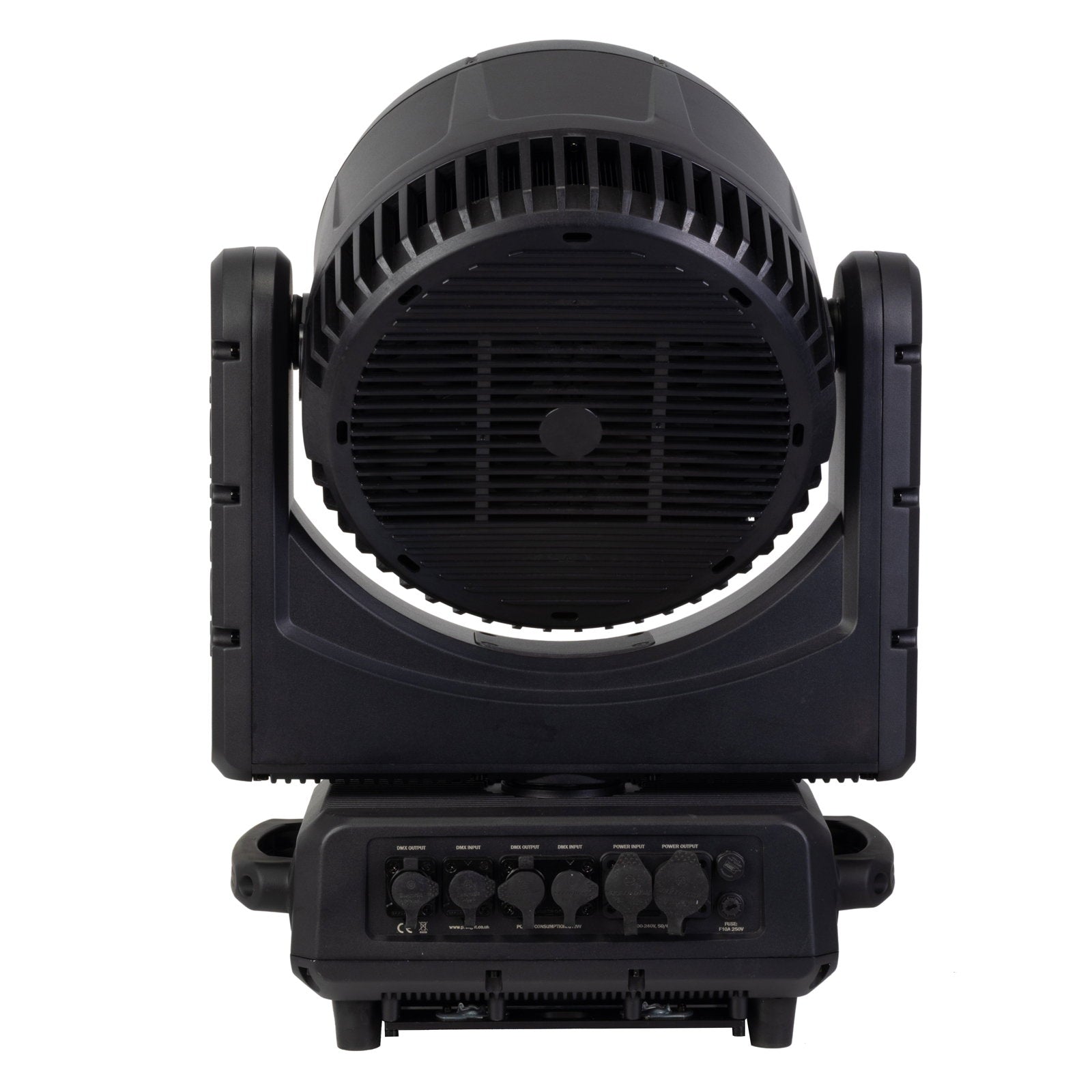

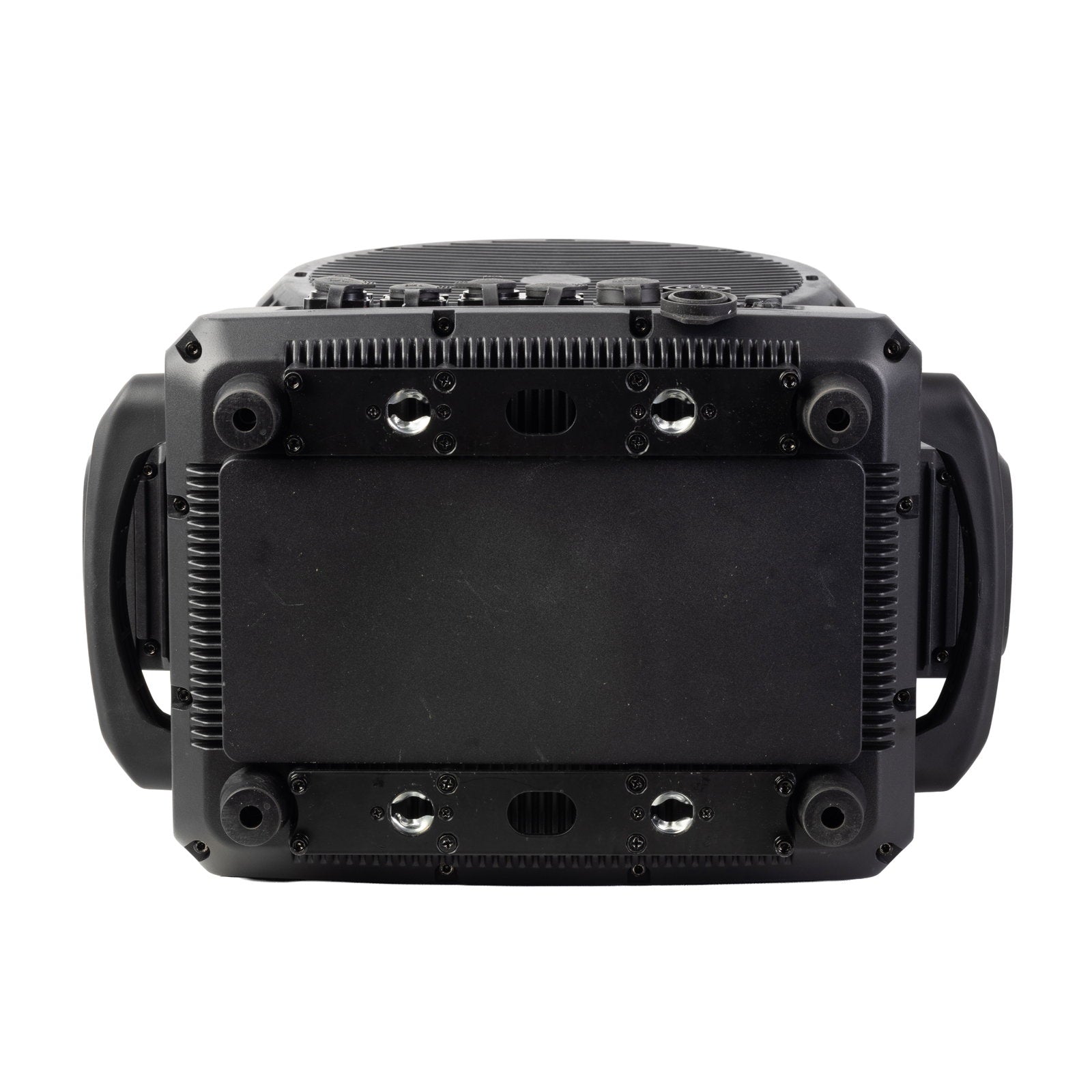

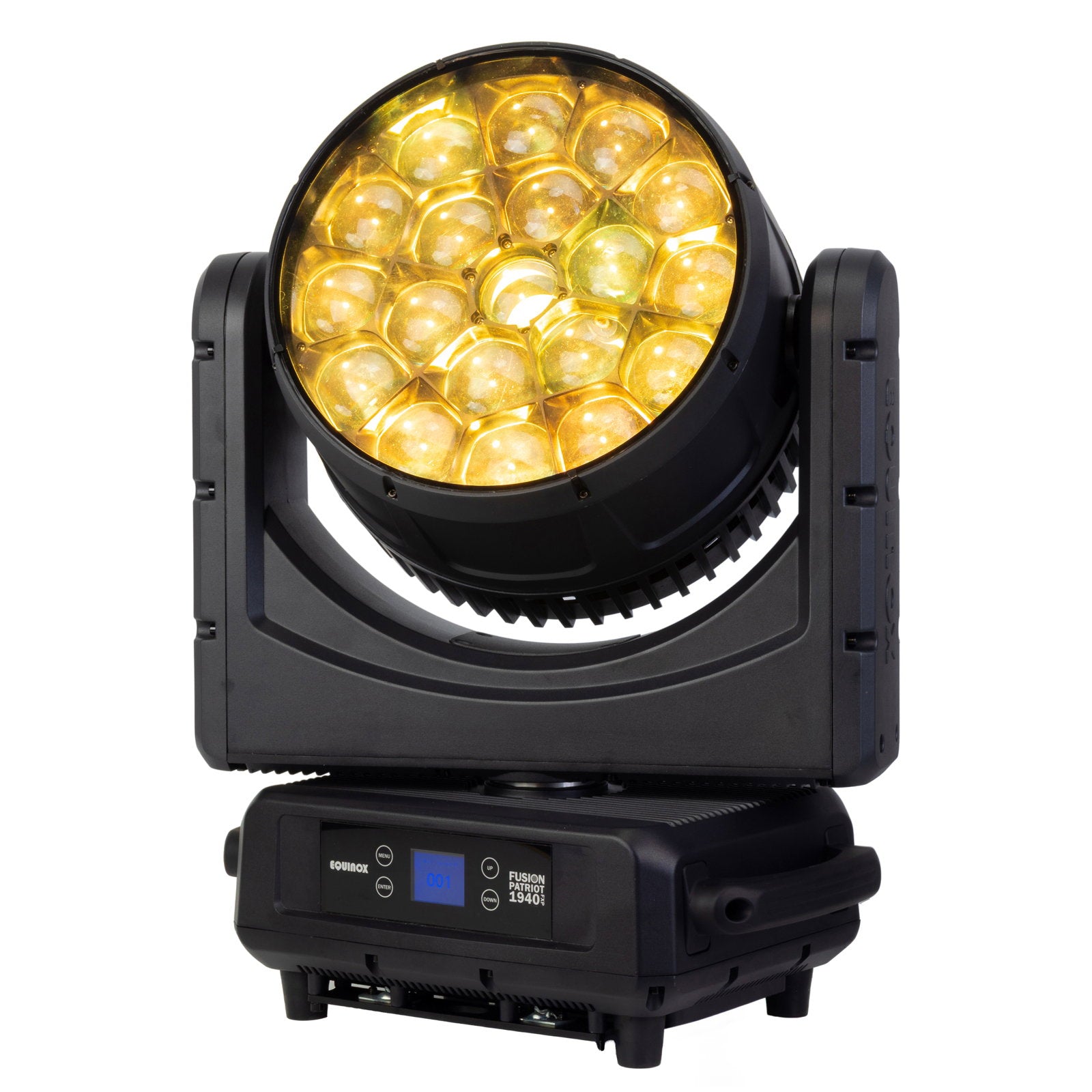

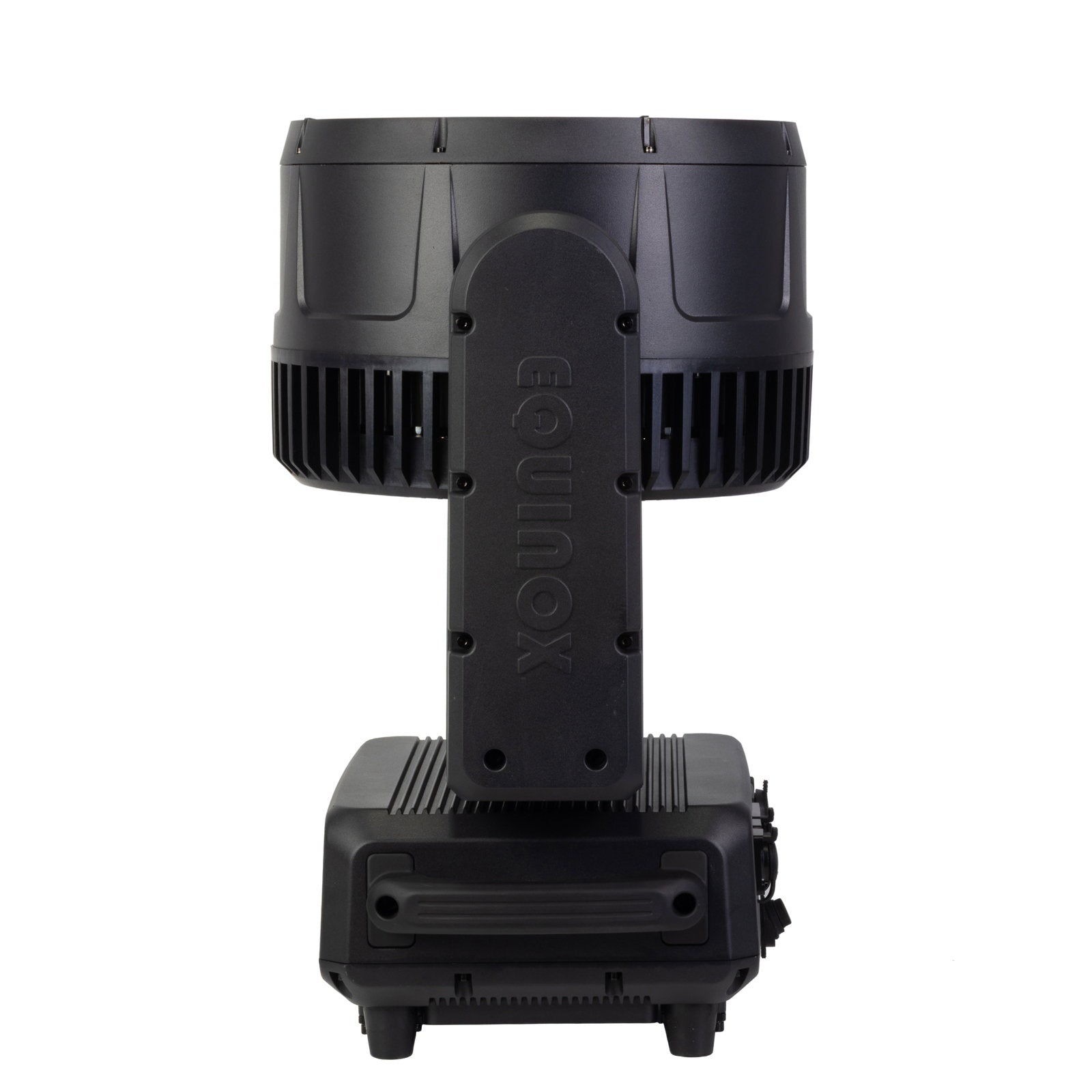

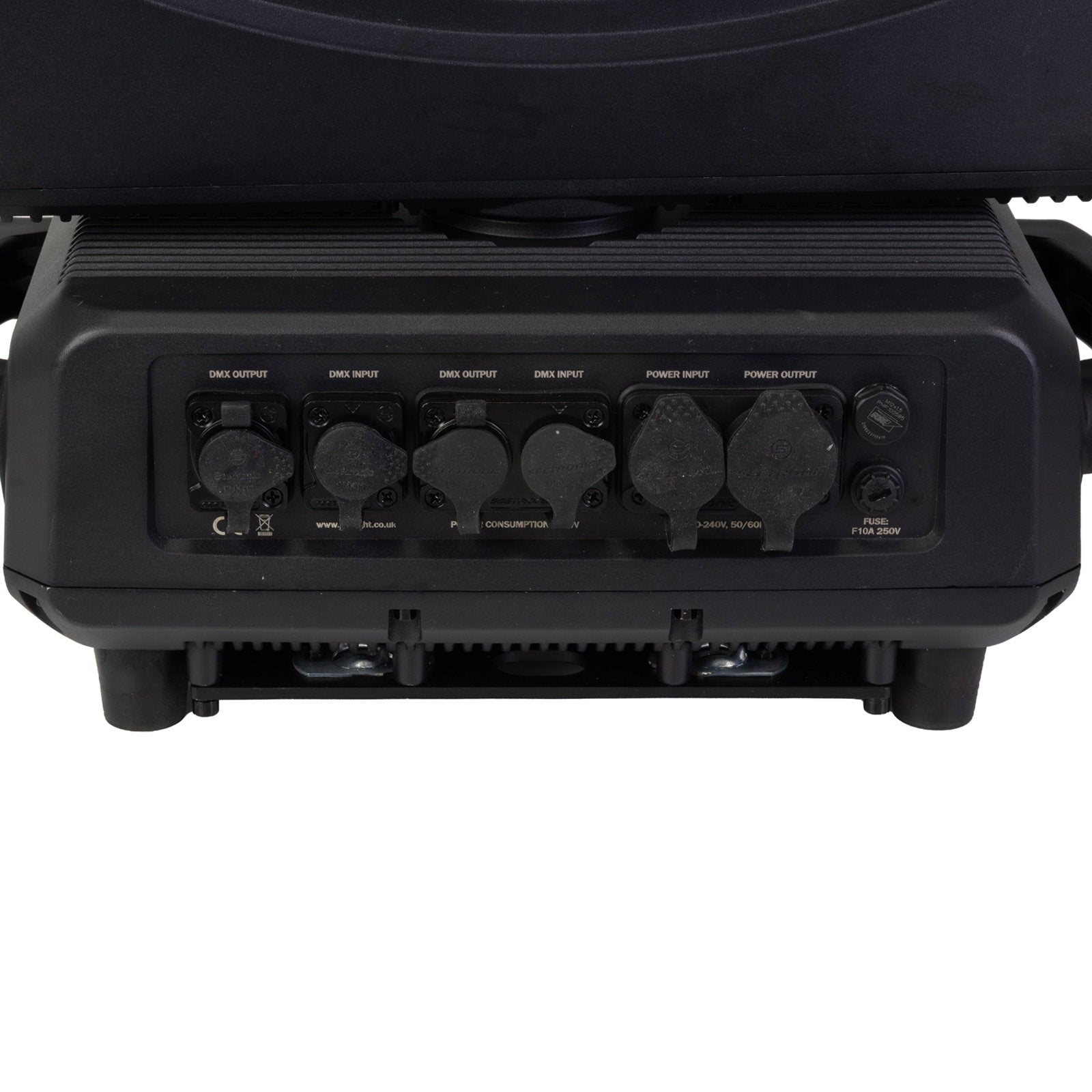

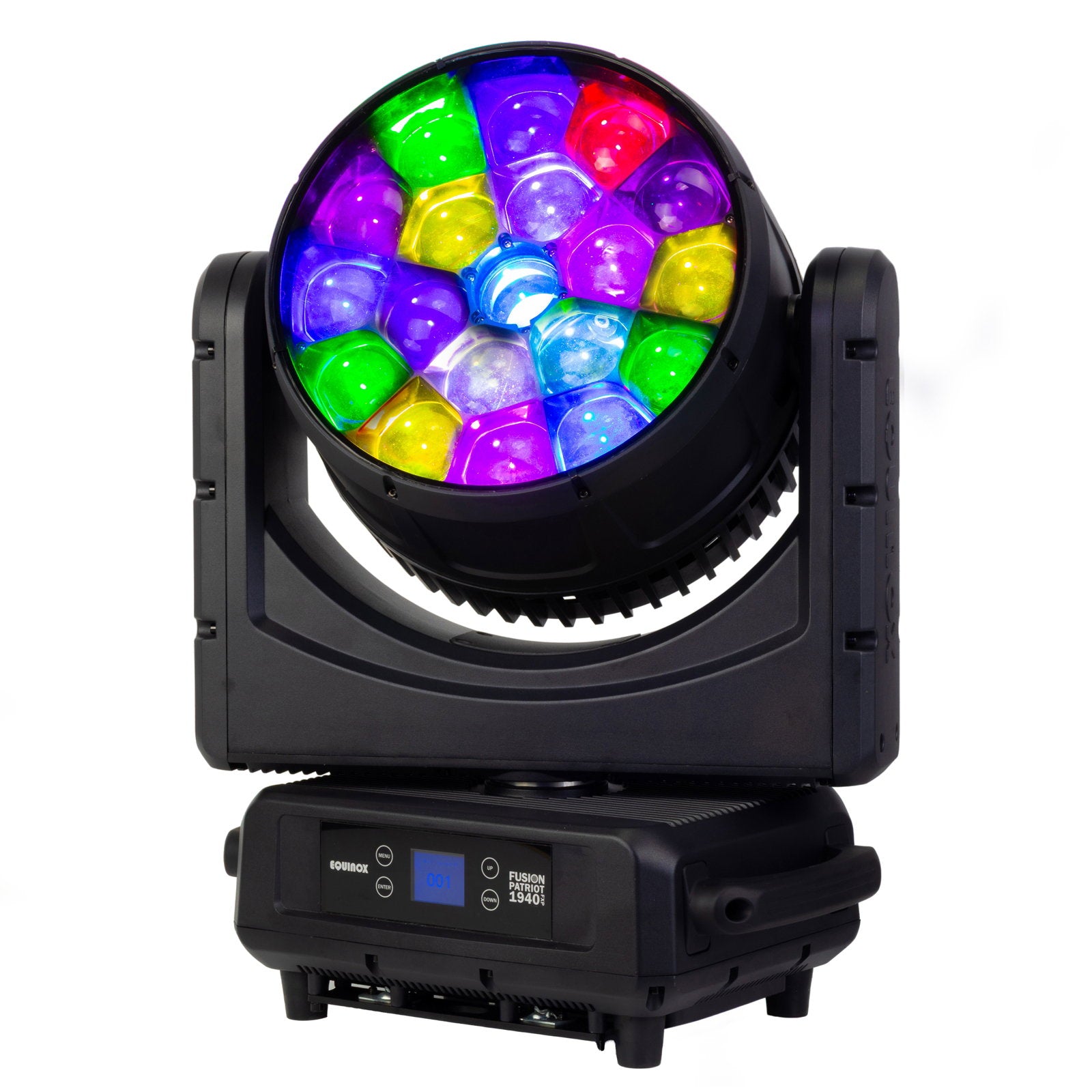

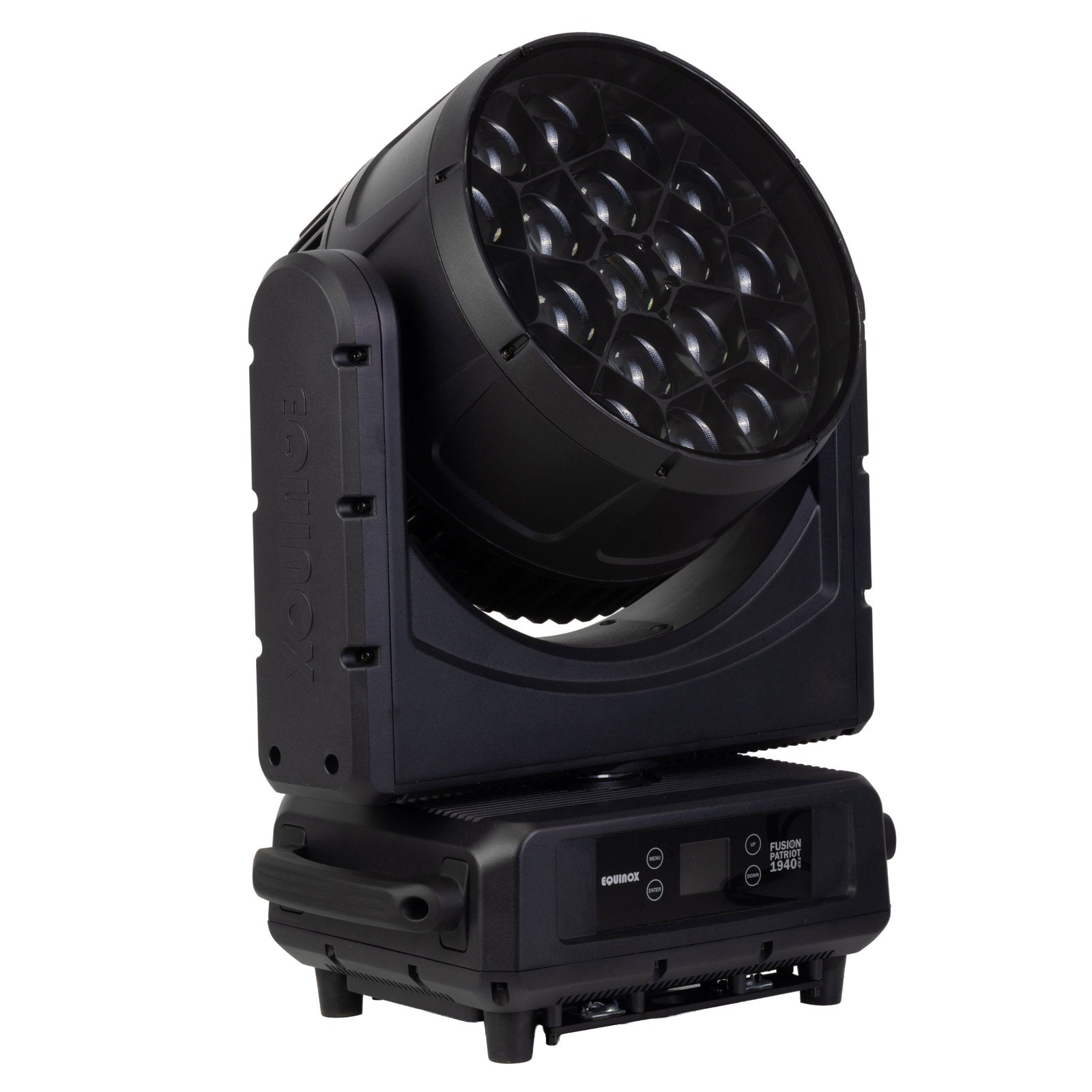

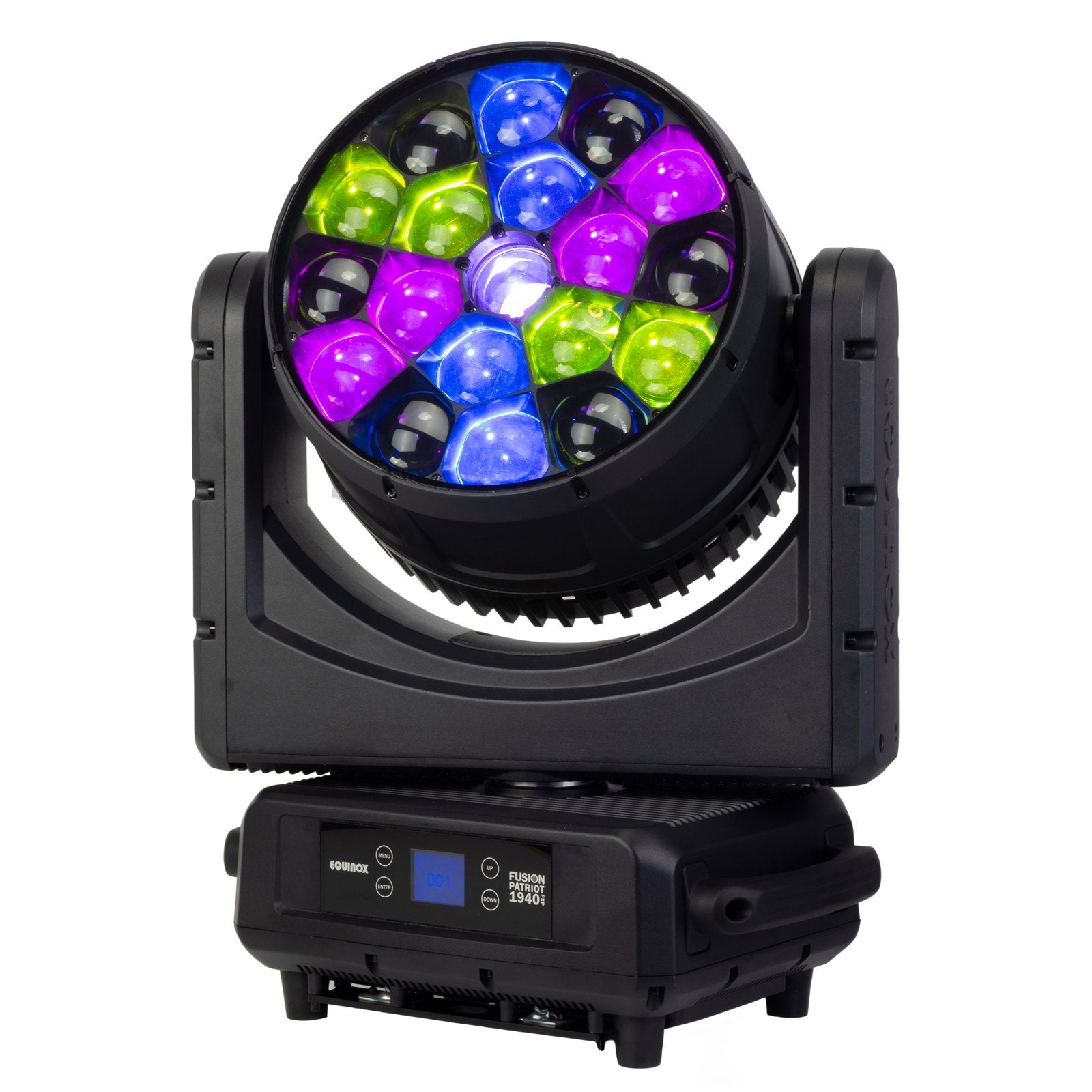

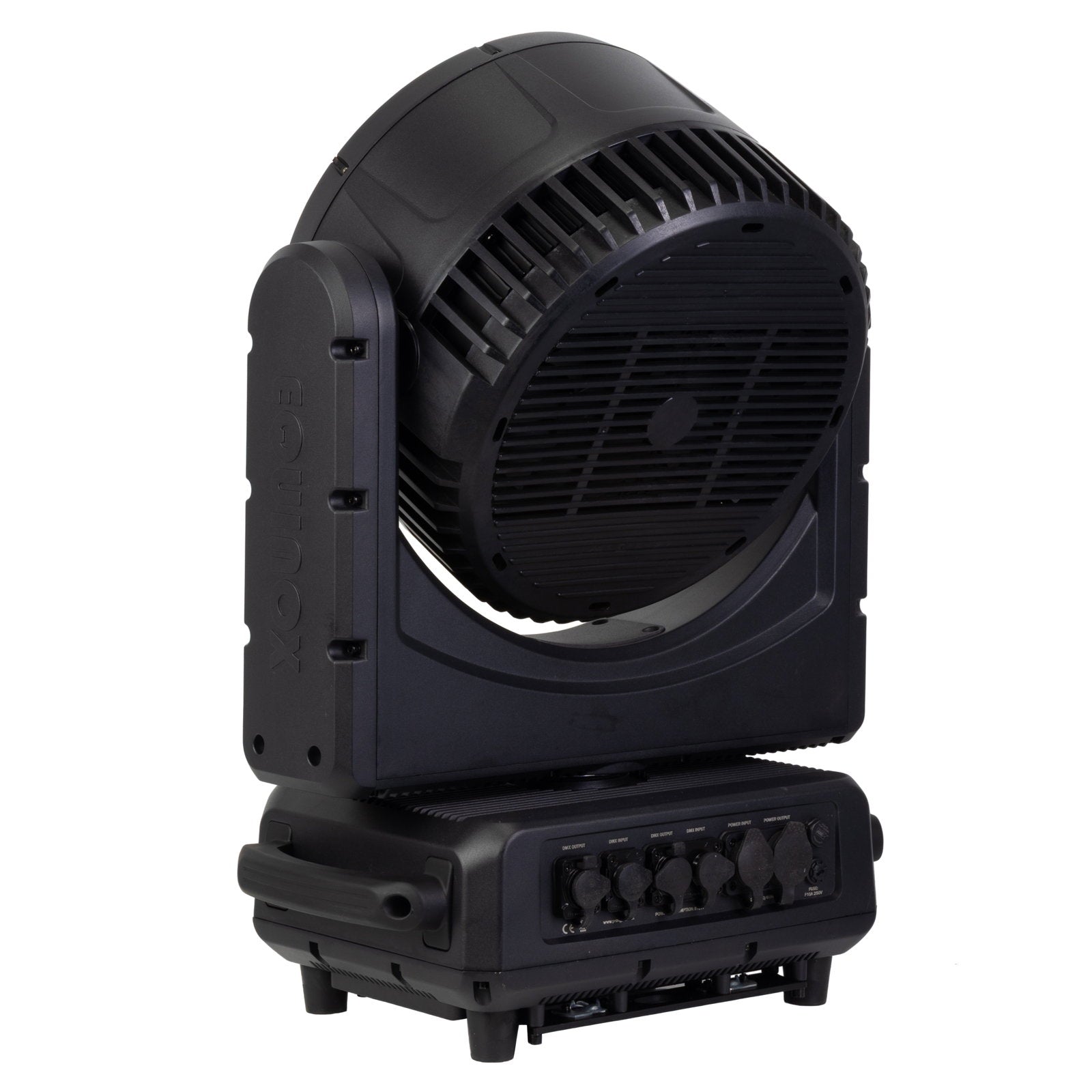

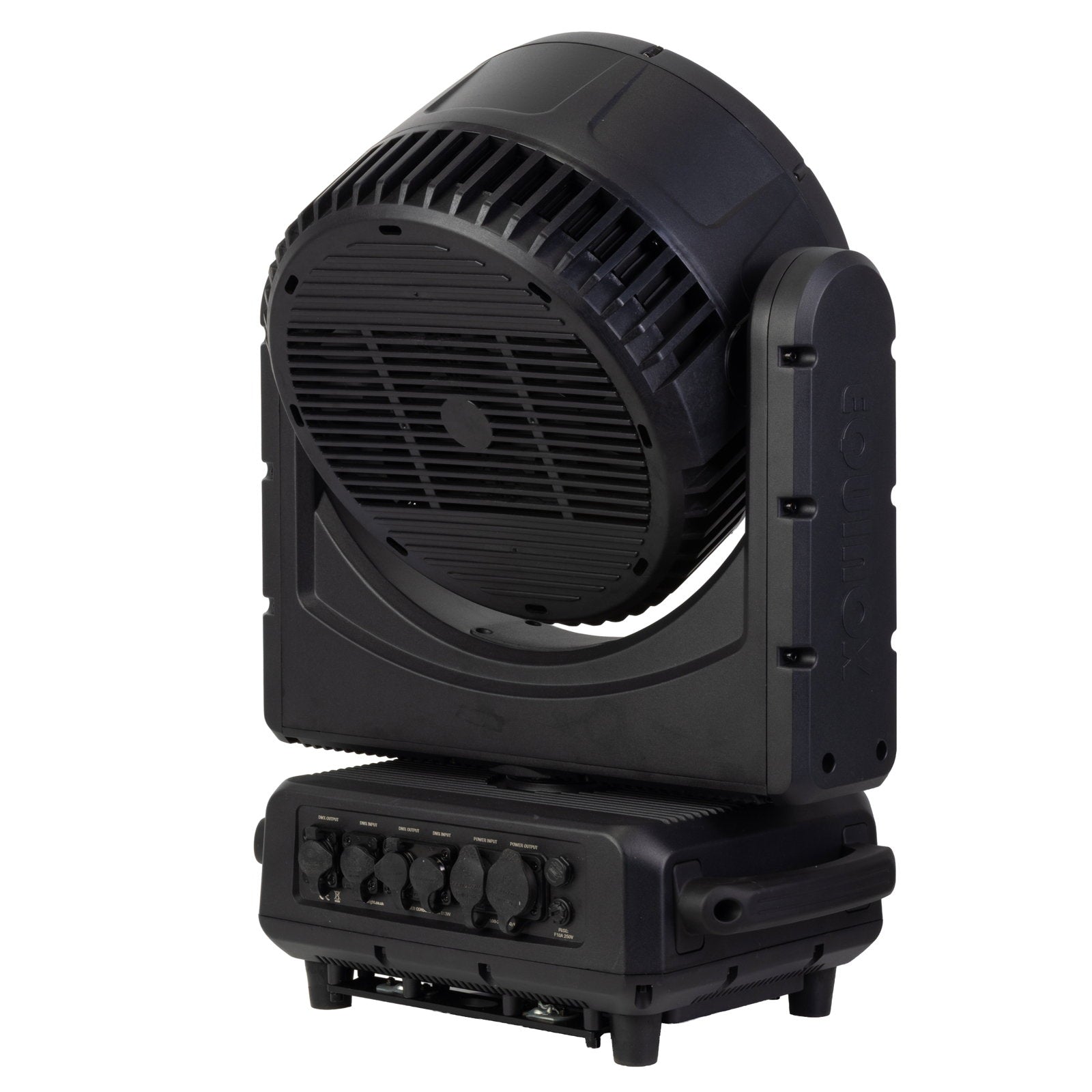

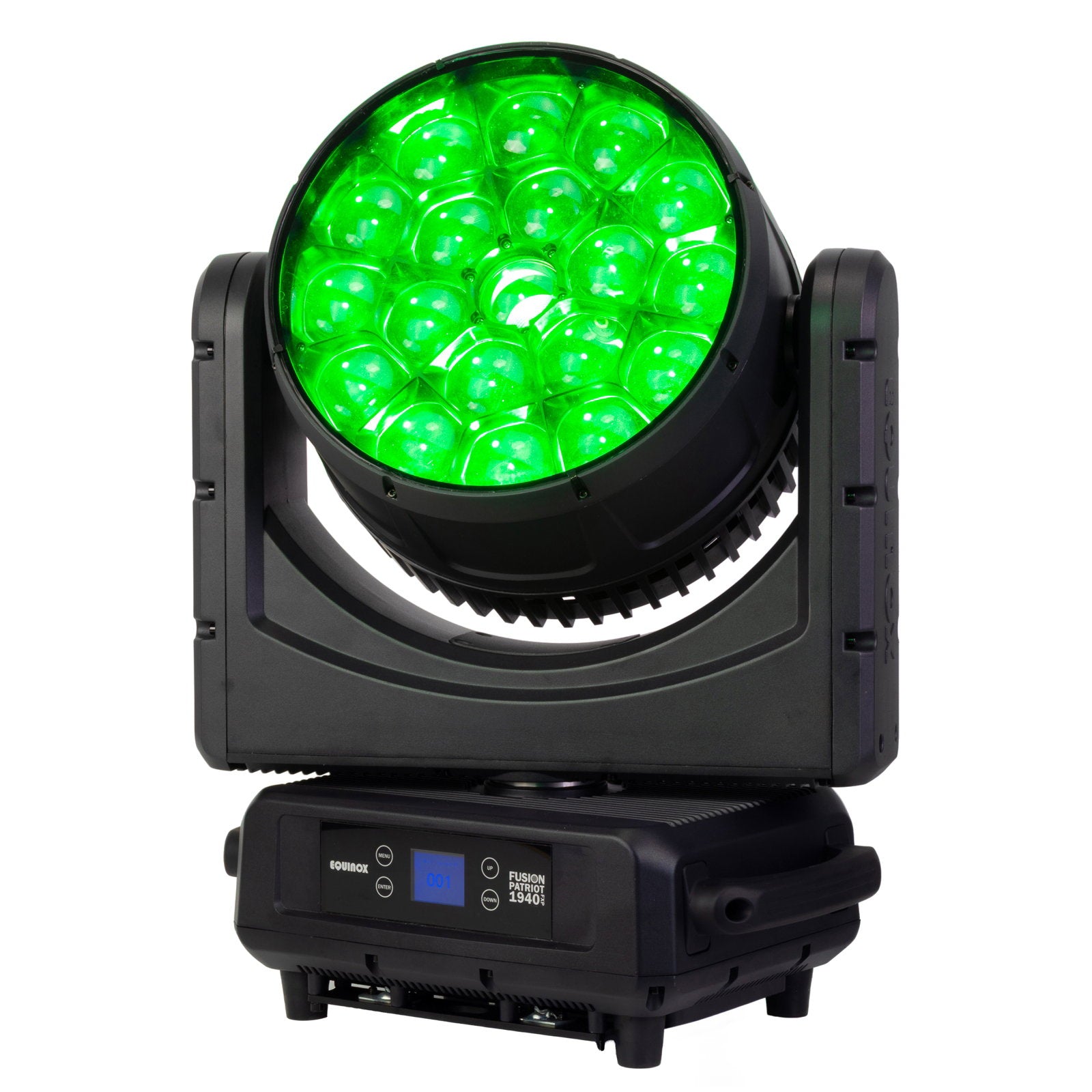

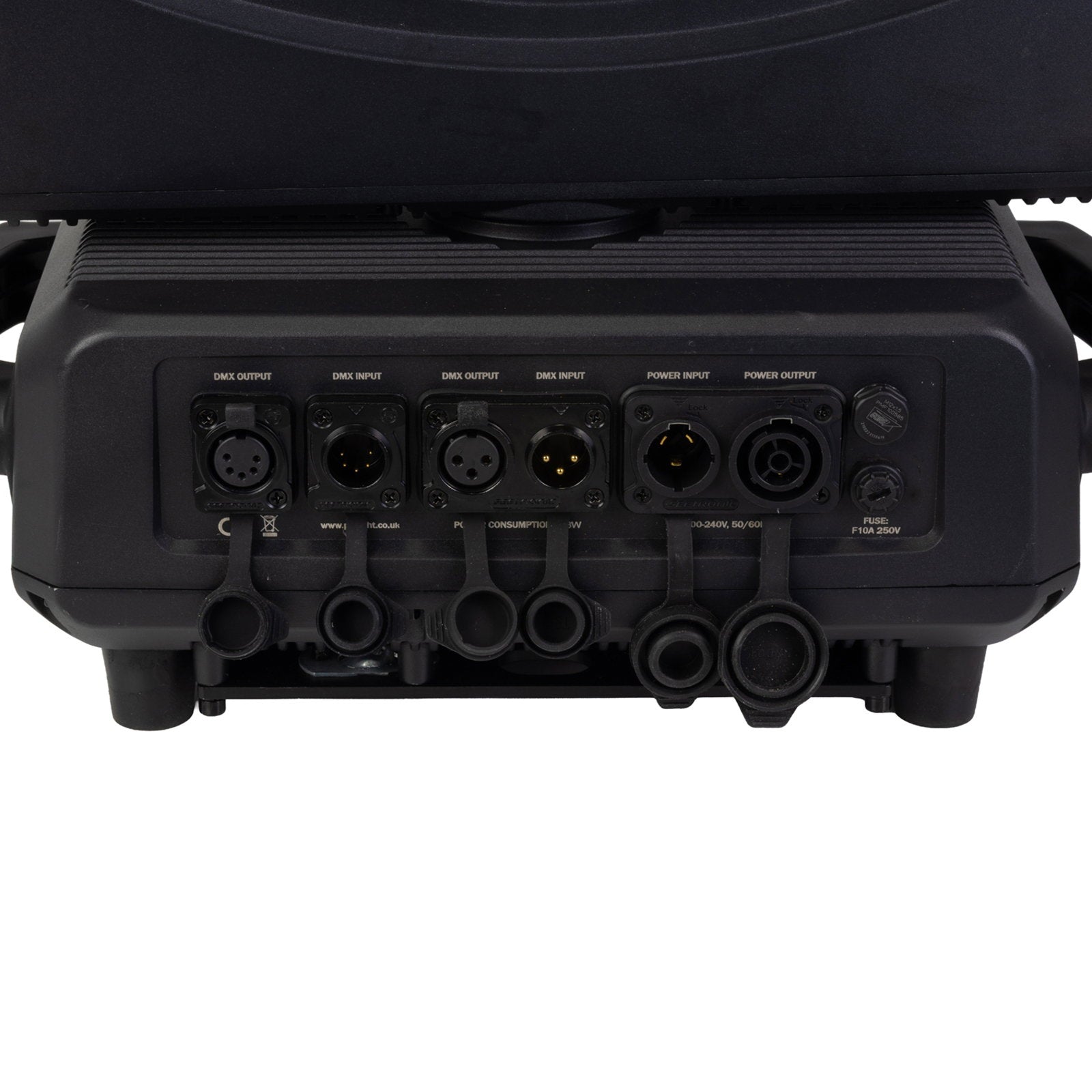

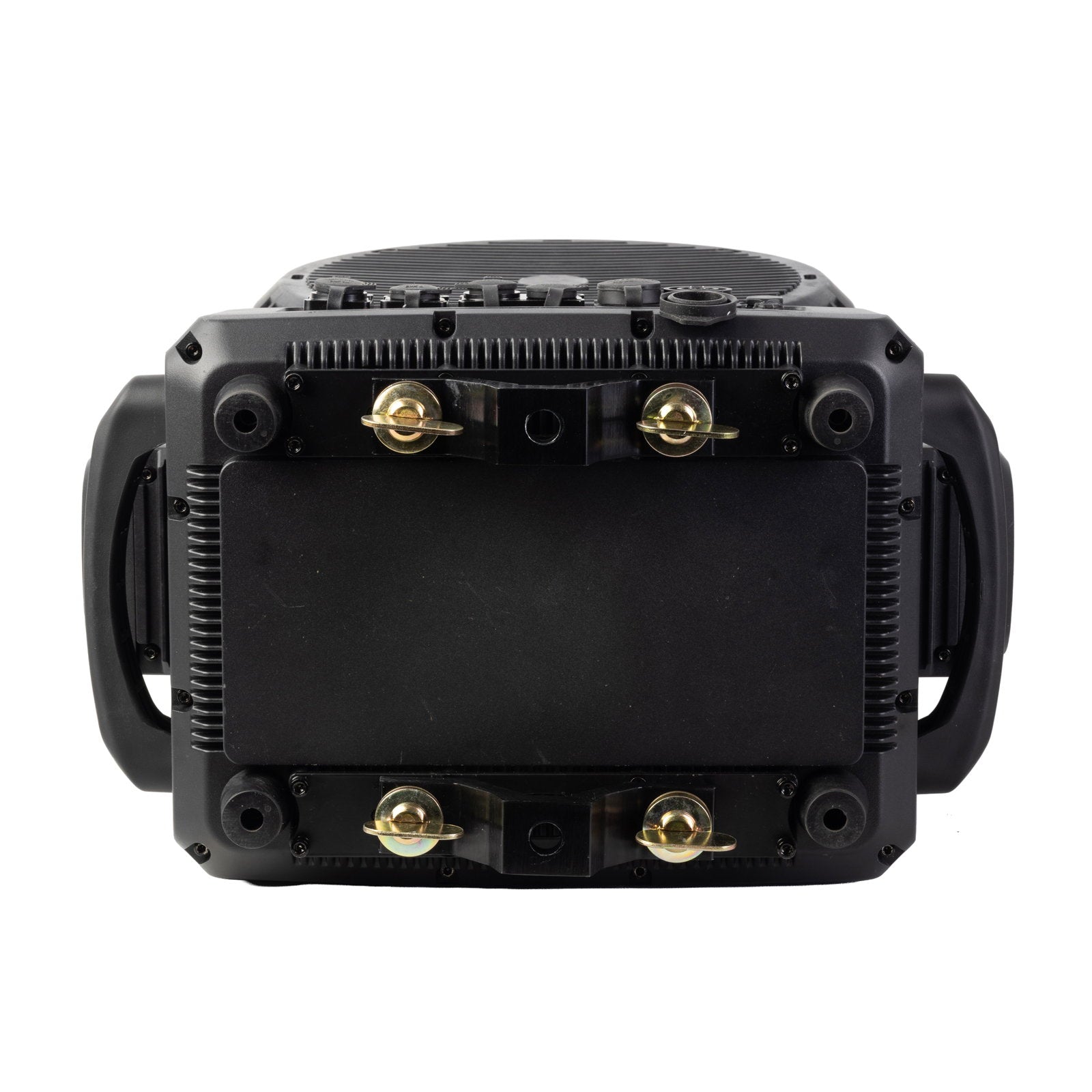

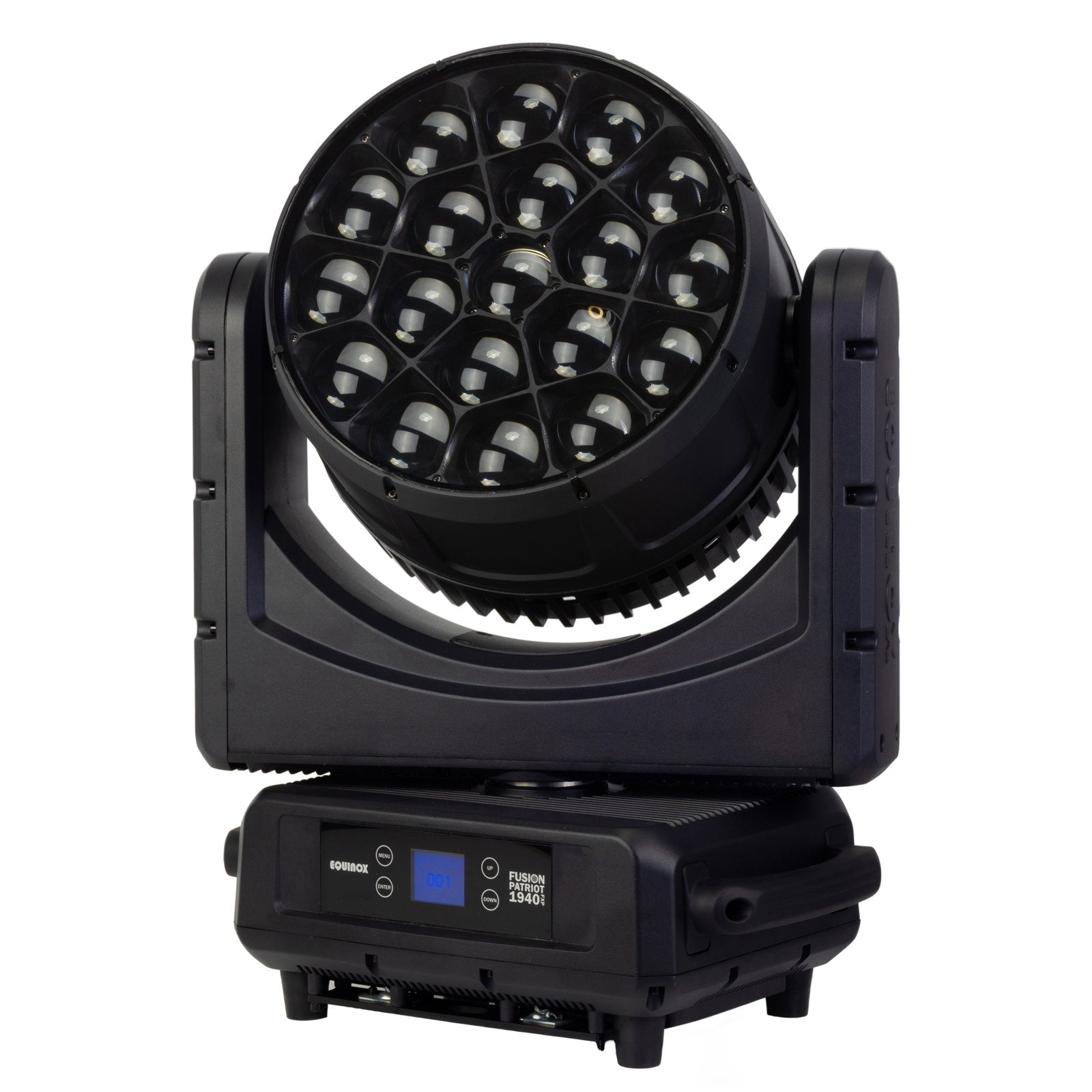

The Equinox Fusion Patriot 1940FXP is a powerful IP65-rated moving head beam designed to perform in the toughest environments. Featuring 19 x 40W quad-colour LEDs (RGBW) with full pixel mapping it produces stunning eye candy effects. The motorised zoom adjusts from a tight 4° beam to a wide 55° wash while front-lens rotation creates superb mid-air multibeam effects. With colour temperature presets W-DMX compatibility and DMX control the Patriot 1940FXP integrates seamlessly into professional rigs. All functions are accessible via the onboard LCD menu and installation is made easy with PowerTwist TR1 connectors 3/5-pin DMX and quick-release omega clamps.

19 x 40W quad-colour LEDs (RGBW) Adjustable beam angle: 4°–55° 4° - 110743 Lux @ 2m (full on) 55° - 14522 Lux @ 2m (full on) CRI: 70 Refresh rate: 5 selectable presets between 650Hz–25kHz Motorised zoom Full pixel mapping capabilities Front lens rotation DMX channels: 18/21/35/96 or 111 selectable Wireless control (W-DMX Sweden compatible transceiver) RDM (Remote Device Management) Auto manual control and primary/secondary modes Colour temperature presets Forward facing show mode Pan/tilt auto correction 16-Bit pan/tilt positioning Pan: 540° Tilt: 220° 0–100% dimming 4 dimming curves: Linear square law inverse square law S-curve Variable strobe Quick release omega clamps included 4 button menu with 1.8” LCD display PowerTwist TR1 input/output 5-Pin XLR input/output 3-Pin XLR input/output Temperature controlled fans

Power consumption: 813W Power supply: 100~240V 50/60Hz Fuse: F10A 250V IP rating: IP65 Dimensions (H x W x D): 565 x 405 x 245mm Weight: 22.7kg
