The Equinox Fusion 400 Hybrid is an all-in-one BSW moving head that combines a powerful spot beam and wash all in a single fixture. Fitted with an intense 400W LED with motorised zoom and focus it projects sharp beams and gobos over almost any distance. Two overlapping independently controlled prisms create dynamic beam effects. Two gobo wheels allow for gobo morphing and superb mid-air projections whilst full CMY colour mixing and 8 colours allow for even more effects. Also included is a frost filter and variable CTO flag. Control is facilitated by 4 button LCD display.
1 × 400W white LED (8000K) Adjustable beam angle: 4°–50° Lumens (source): 22000 Lumens (output): 13000 Motorised zoom and focus 5-facet circular rotating indexable prism plus 6-facet linear rotating indexable prism Frost filter CRI: 70 Refresh rate: 8 selectable presets between 900 Hz–25 kHz Gobo wheel 1: 7 rotating replaceable gobos + open Gobo wheel 2: 10 static replaceable gobos + open CMY colour mixing: Cyan 0–100% Magenta 0–100% Yellow 0–100% Colour wheel: 8 colours + variable CTO (0–100%) + open DMX channels: 25 or 33 selectable Wireless control (W-DMX Sweden transceiver) Auto sound active manual control and primary/secondary modes RDM (Remote Device Management) Pan/tilt transit lock and auto correction 16-bit pan/tilt positioning Pan: 540° Tilt: 270° 0–100% dimming Variable strobe Supplied with quick-release omega clamps 4-button menu with 2.8" LCD touch screen display PowerTwist TR1 input/output 3-pin XLR input/output 5-pin XLR input/output Temperature-controlled fans
Power consumption: 430W Power supply: 100~240V 50/60Hz Fuse: F7A 250V Dimensions (H × W × D): 650 x 380 x 363mm Weight: 26kg

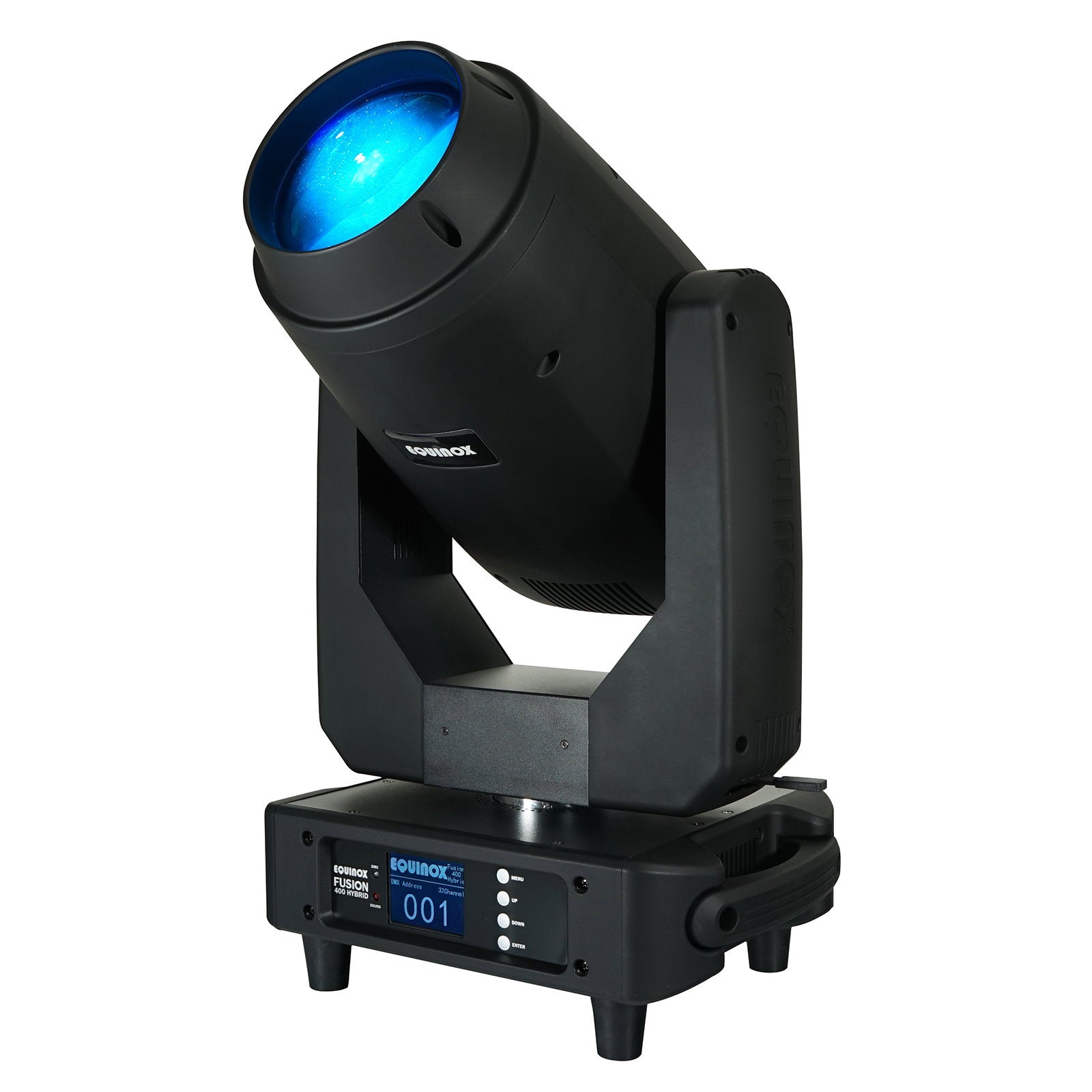

Equinox Fusion 400 Hybrid
Brand: Equinox
SKU: EQLED459
Need help with choosing the right product?
The Equinox Fusion 400 Hybrid is an all-in-one BSW moving head that combines a powerful spot beam and wash all in a single fixture. Fitted with an intense 400W LED with motorised zoom and focus it projects sharp beams and gobos over almost any distance. Two overlapping independently controlled prisms create dynamic beam effects. Two gobo wheels allow for gobo morphing and superb mid-air projections whilst full CMY colour mixing and 8 colours allow for even more effects. Also included is a frost filter and variable CTO flag. Control is facilitated by 4 button LCD display.
1 × 400W white LED (8000K) Adjustable beam angle: 4°–50° Lumens (source): 22000 Lumens (output): 13000 Motorised zoom and focus 5-facet circular rotating indexable prism plus 6-facet linear rotating indexable prism Frost filter CRI: 70 Refresh rate: 8 selectable presets between 900 Hz–25 kHz Gobo wheel 1: 7 rotating replaceable gobos + open Gobo wheel 2: 10 static replaceable gobos + open CMY colour mixing: Cyan 0–100% Magenta 0–100% Yellow 0–100% Colour wheel: 8 colours + variable CTO (0–100%) + open DMX channels: 25 or 33 selectable Wireless control (W-DMX Sweden transceiver) Auto sound active manual control and primary/secondary modes RDM (Remote Device Management) Pan/tilt transit lock and auto correction 16-bit pan/tilt positioning Pan: 540° Tilt: 270° 0–100% dimming Variable strobe Supplied with quick-release omega clamps 4-button menu with 2.8" LCD touch screen display PowerTwist TR1 input/output 3-pin XLR input/output 5-pin XLR input/output Temperature-controlled fans
Power consumption: 430W Power supply: 100~240V 50/60Hz Fuse: F7A 250V Dimensions (H × W × D): 650 x 380 x 363mm Weight: 26kg
