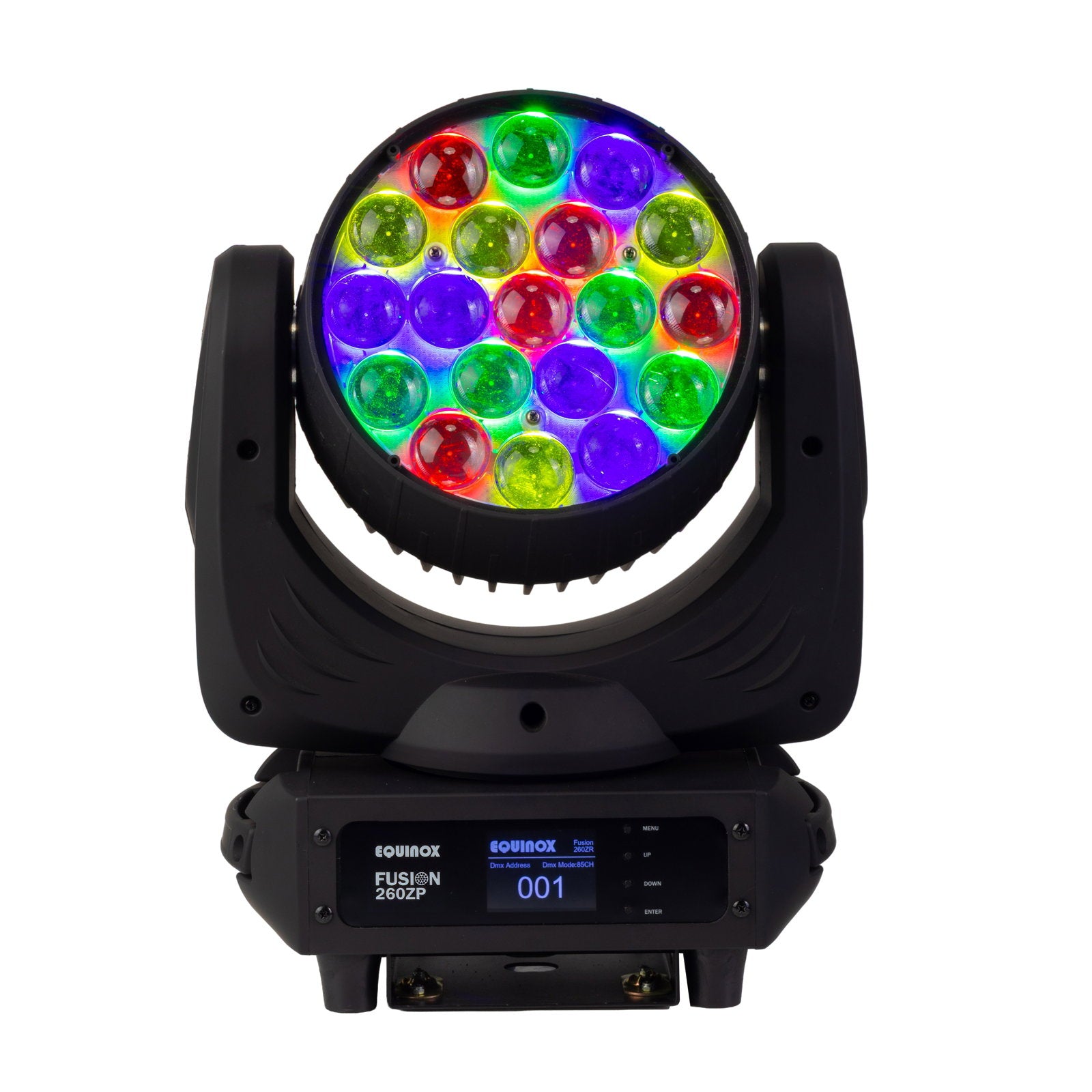

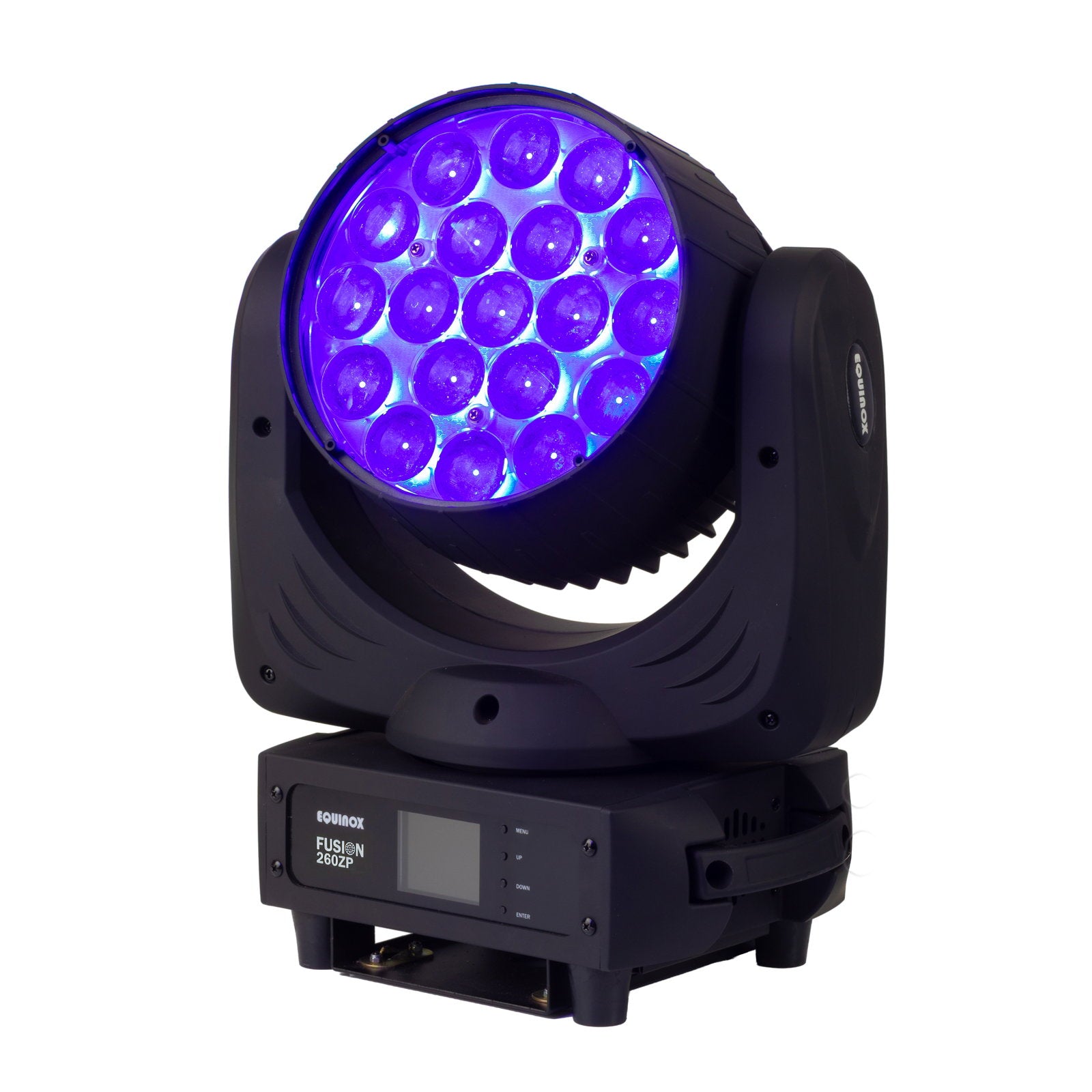

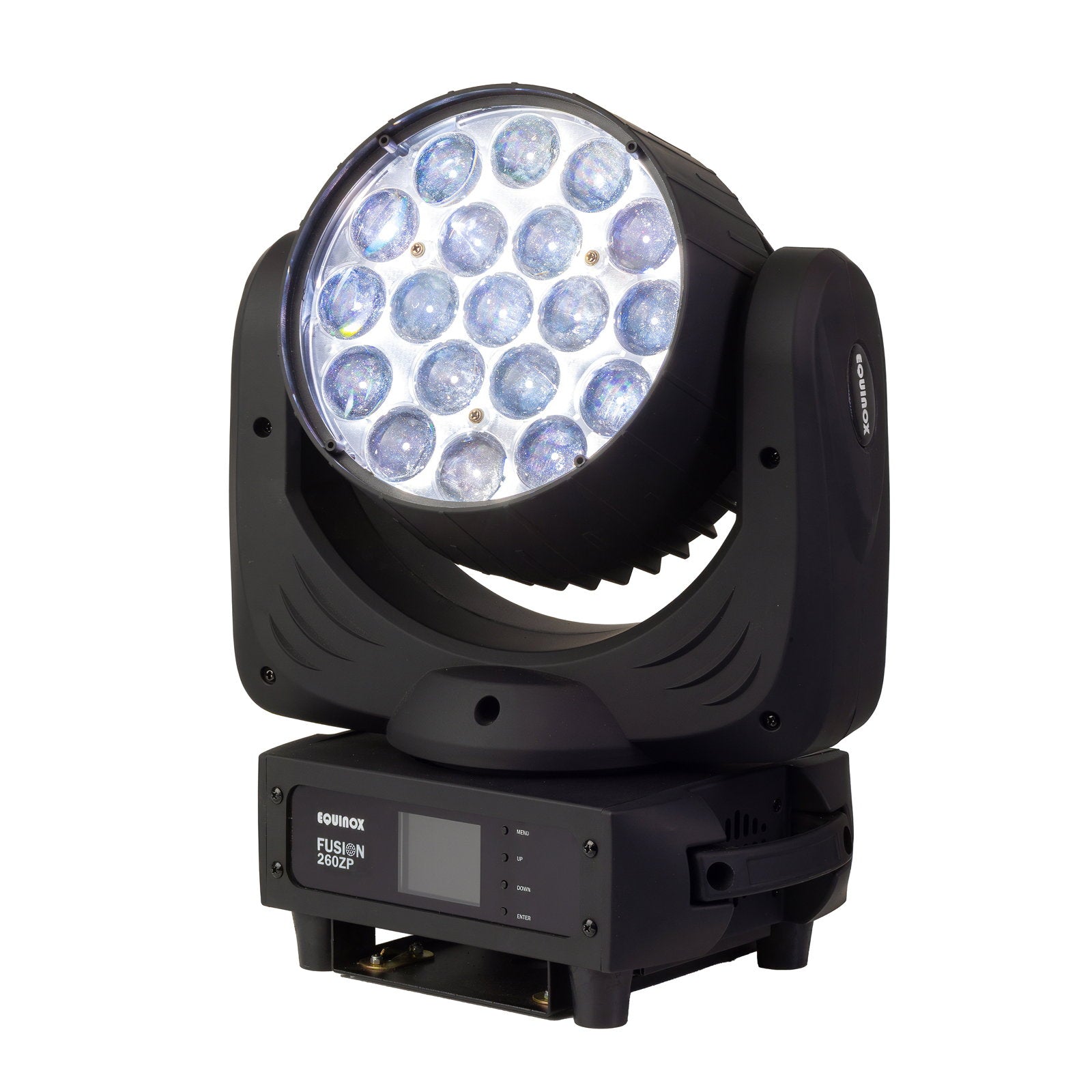

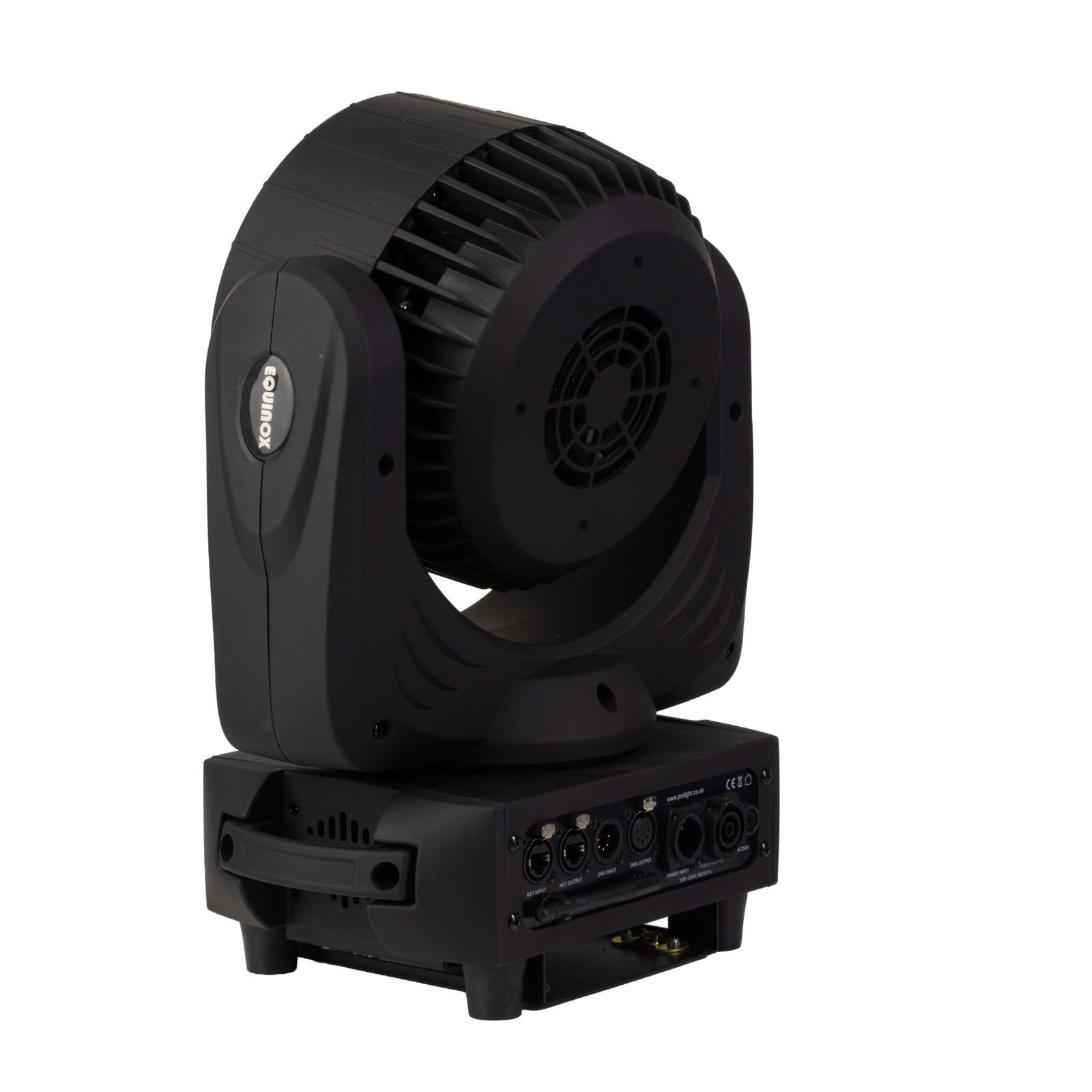

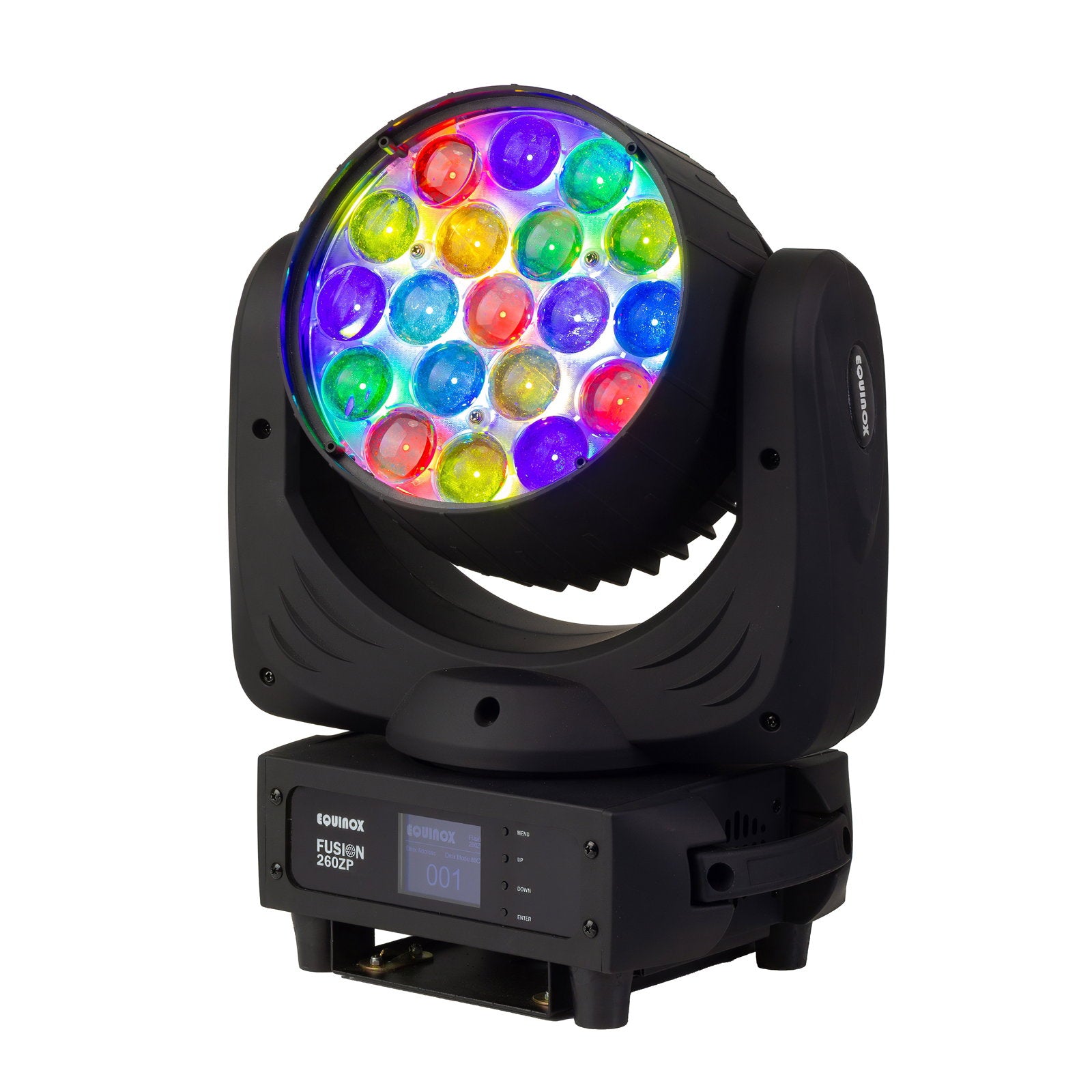

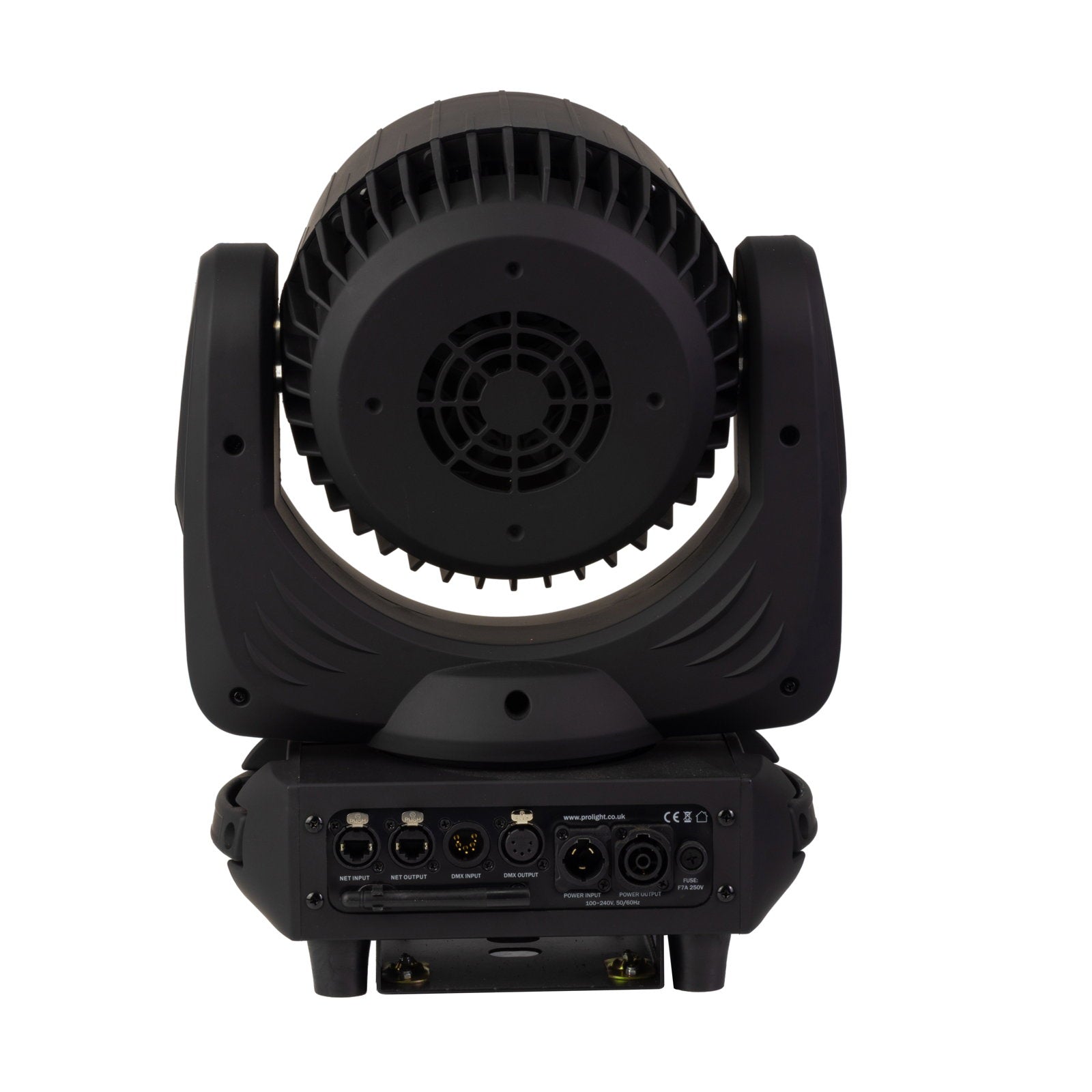

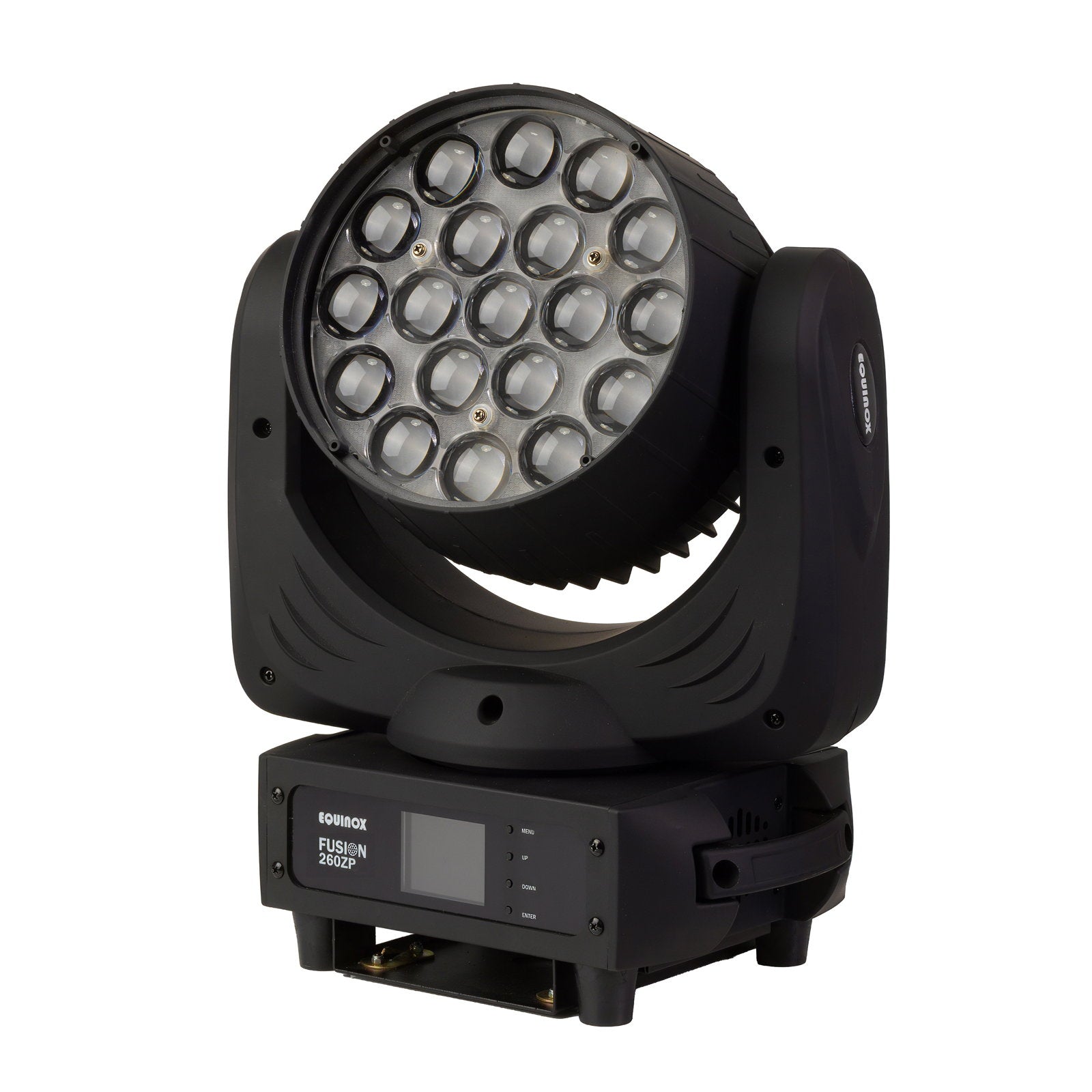

The Equinox Fusion 260ZP Moving Head Wash Light takes performance to the next level with temperature-controlled fans smoother movement and refined dimming control. Equipped with 19 × 12W RGBL quad-colour LEDs it delivers everything from a range of colour temperature presets and soft pastels to vivid saturated colours with exceptional clarity.
Designed for creative versatility the LEDs are fully pixel mappable enabling dynamic colour chases eye-catching patterns and comprehensive wash coverage. A motorised zoom range of 6°–50° provides both tight beam effects and wide-angle washes adapting effortlessly to a range of performance environments.
Ideal for concerts theatre productions and live events the Fusion 260ZP is a powerful and reliable tool for any lighting designer. 16-bit pan/tilt with auto correction 7 selectable DMX channel modes wireless DMX ArtNet PowerTwist TR1 and quick-release omega clamps make this fixture extremely versatile and able to integrate seamlessly into any rig.

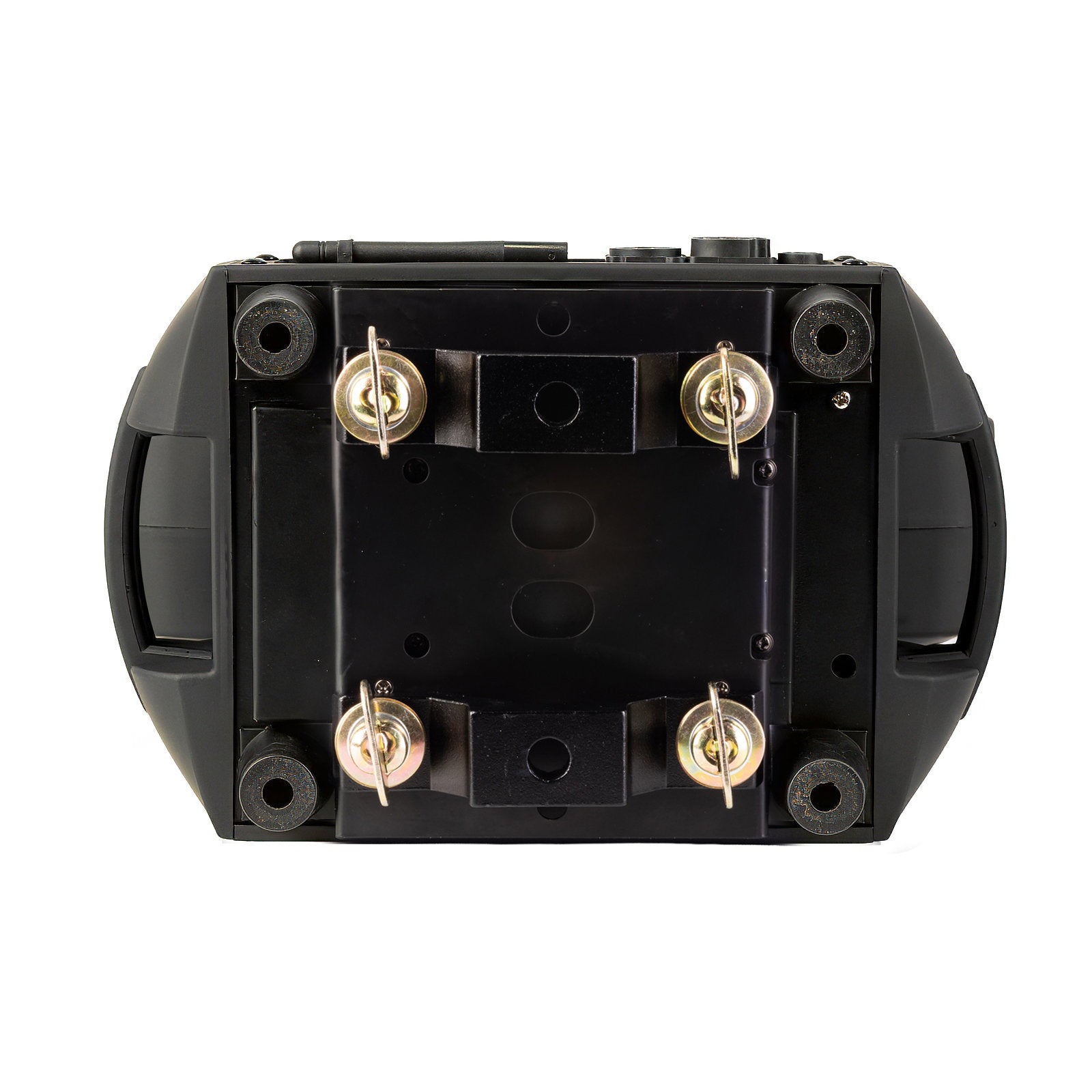

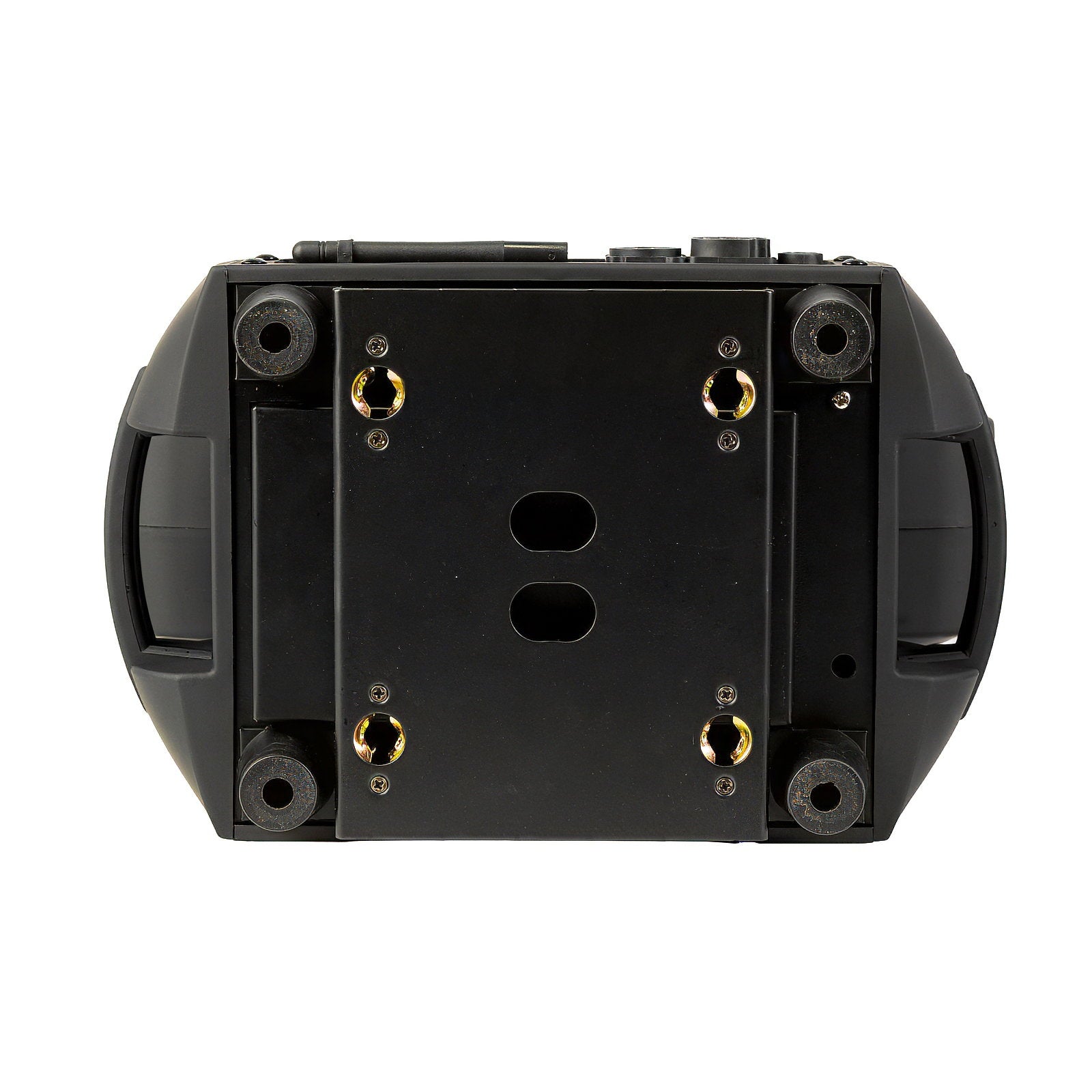

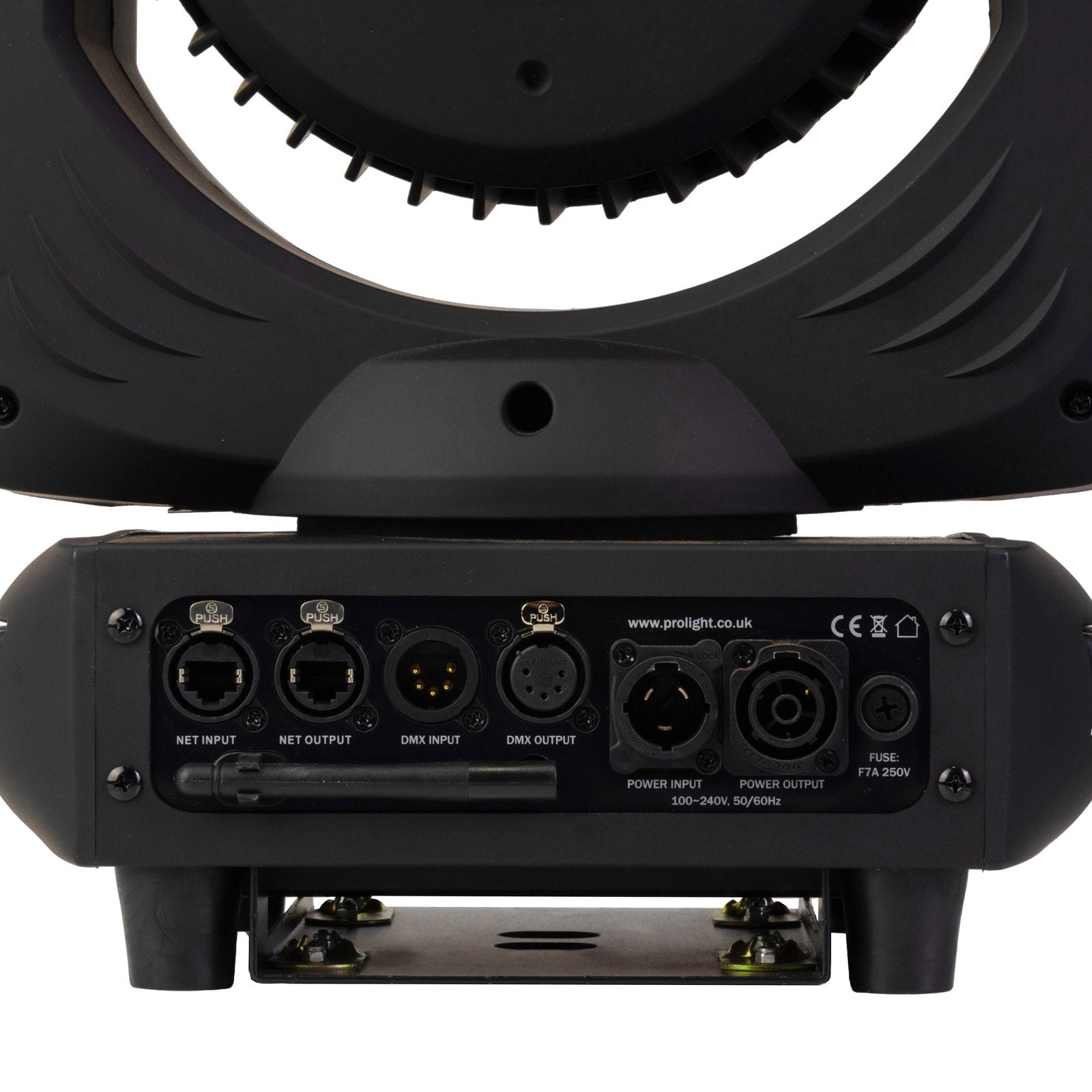

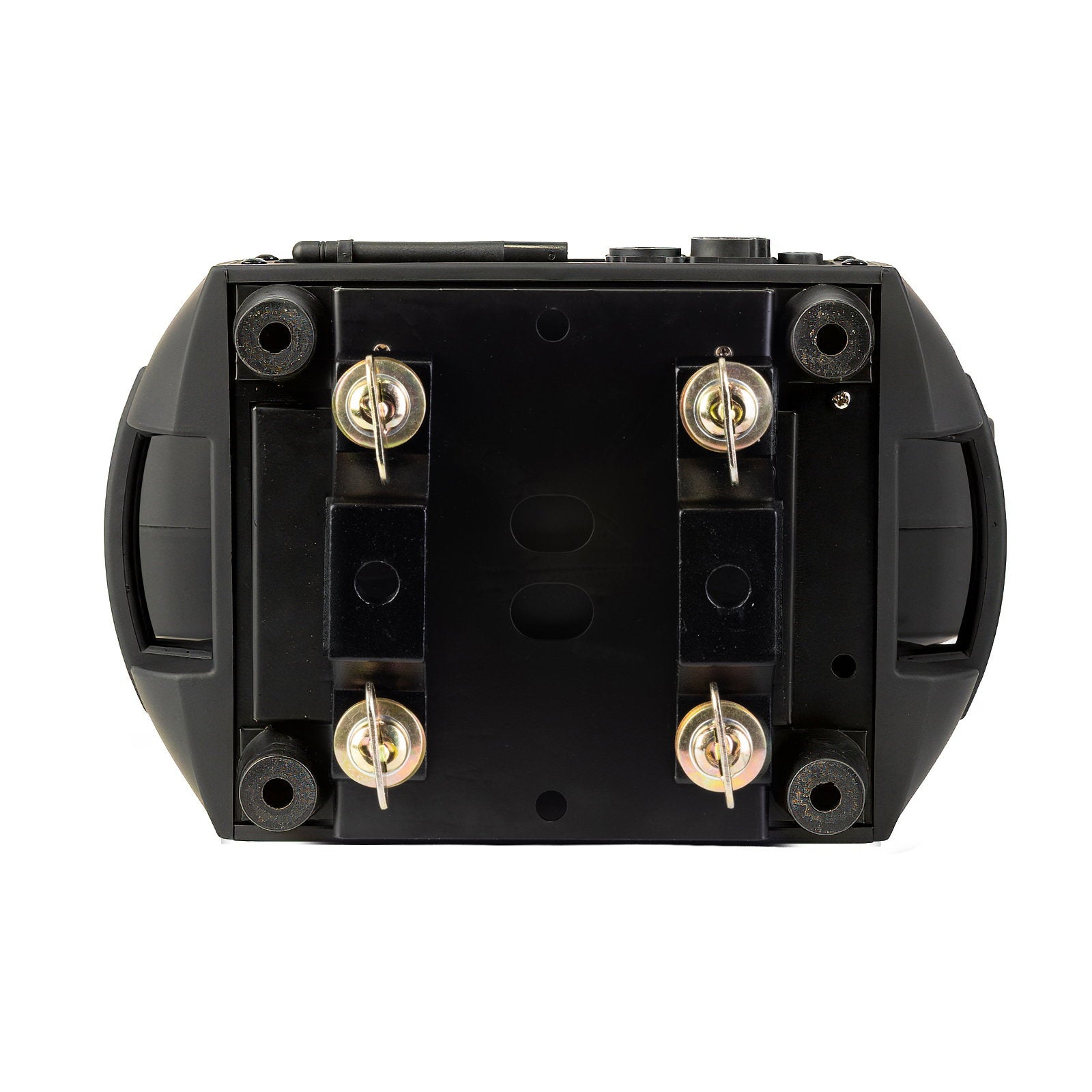

19 × 12W quad-colour LEDs (RGBL) Adjustable beam angle: 6°–50° 6° – 32722 Lux @ 2m (full on) 50° – 3896 Lux @ 2m (full on) CRI: 89 Refresh rate: 650Hz 1.5kHz 3.6kHz 12kHz or 25kHz selectable Motorised zoom Full pixel mapping capabilities Control protocols: DMX Kling-net Art-net and sACN DMX channels: 2/9/18/23/27/85 or 93 selectable Wireless control (W-DMX Sweden compatible transceiver) Auto sound active and primary/secondary modes Forward facing show modes Colour temperature presets Pan/tilt auto correction 16-bit pan/tilt positioning Pan: 540° Tilt: 270° 0–100% dimming Variable strobe 4 dimming curves: Linear square law inverse square law and S-curve Supplied with quick release omega clamps Square hole spacing allows clamp mounting in all orientations 4-button menu with LCD display PowerTwist TR1 input/output EtherNET input/output 5-pin XLR input/output Temperature controlled fans
Power consumption: 323W Power supply: 100–240V 50/60Hz Fuse: F4A 250V Dimensions (H x W x D): 414 x 324 x 193mm Weight: 8.5kg

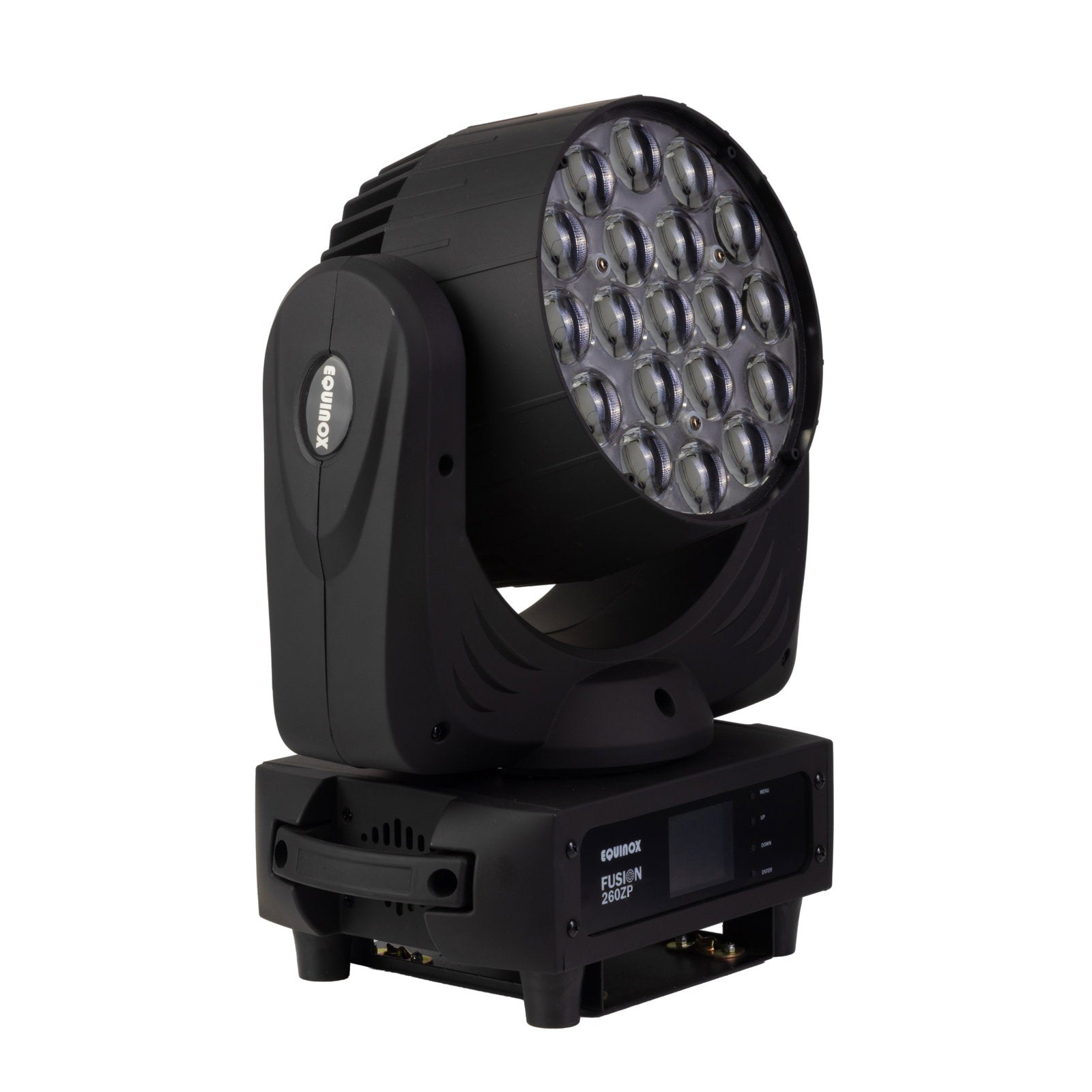

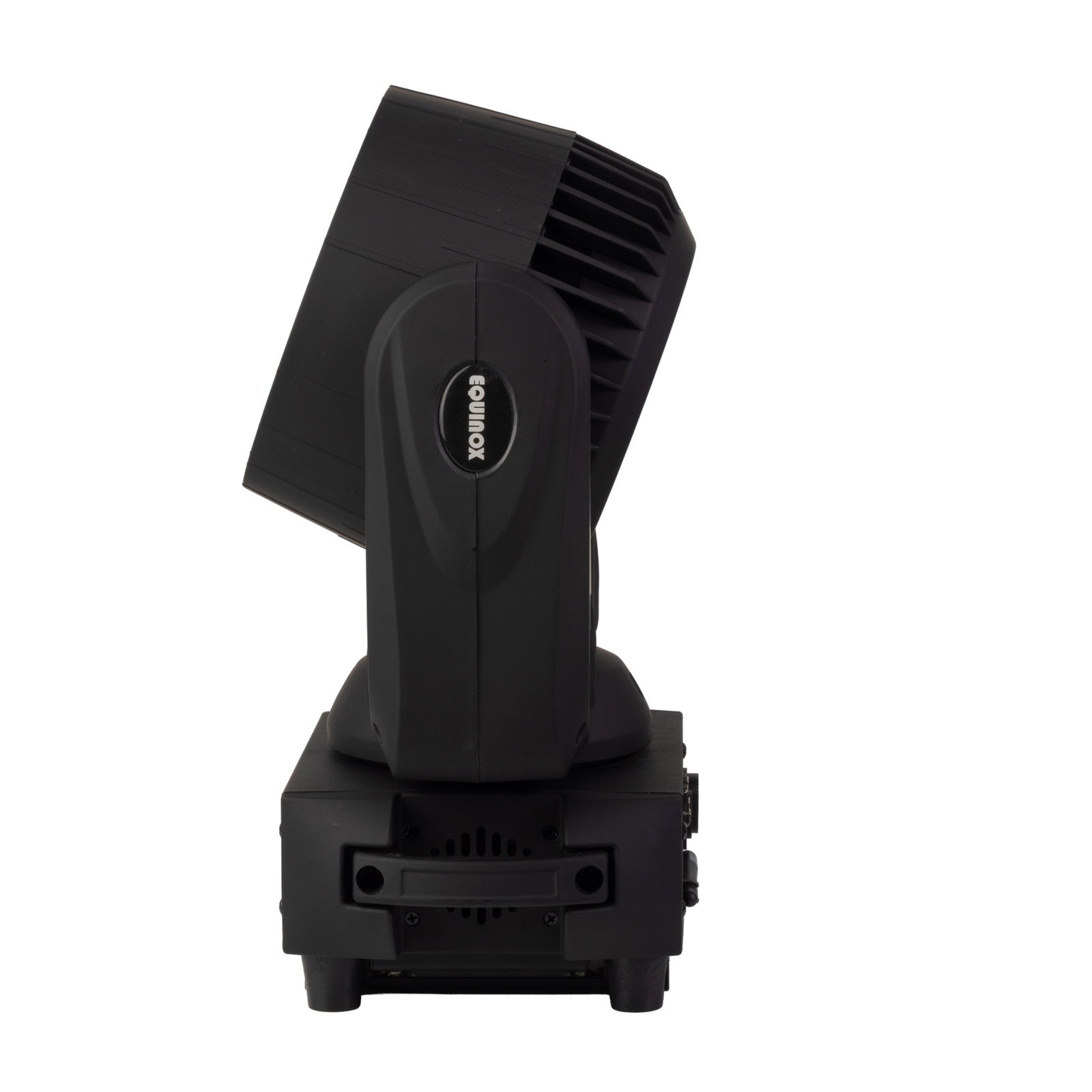

Equinox Fusion 260ZP
Brand: Equinox
SKU: EQLED462
Need help with choosing the right product?
The Equinox Fusion 260ZP Moving Head Wash Light takes performance to the next level with temperature-controlled fans smoother movement and refined dimming control. Equipped with 19 × 12W RGBL quad-colour LEDs it delivers everything from a range of colour temperature presets and soft pastels to vivid saturated colours with exceptional clarity.
Designed for creative versatility the LEDs are fully pixel mappable enabling dynamic colour chases eye-catching patterns and comprehensive wash coverage. A motorised zoom range of 6°–50° provides both tight beam effects and wide-angle washes adapting effortlessly to a range of performance environments.
Ideal for concerts theatre productions and live events the Fusion 260ZP is a powerful and reliable tool for any lighting designer. 16-bit pan/tilt with auto correction 7 selectable DMX channel modes wireless DMX ArtNet PowerTwist TR1 and quick-release omega clamps make this fixture extremely versatile and able to integrate seamlessly into any rig.
19 × 12W quad-colour LEDs (RGBL) Adjustable beam angle: 6°–50° 6° – 32722 Lux @ 2m (full on) 50° – 3896 Lux @ 2m (full on) CRI: 89 Refresh rate: 650Hz 1.5kHz 3.6kHz 12kHz or 25kHz selectable Motorised zoom Full pixel mapping capabilities Control protocols: DMX Kling-net Art-net and sACN DMX channels: 2/9/18/23/27/85 or 93 selectable Wireless control (W-DMX Sweden compatible transceiver) Auto sound active and primary/secondary modes Forward facing show modes Colour temperature presets Pan/tilt auto correction 16-bit pan/tilt positioning Pan: 540° Tilt: 270° 0–100% dimming Variable strobe 4 dimming curves: Linear square law inverse square law and S-curve Supplied with quick release omega clamps Square hole spacing allows clamp mounting in all orientations 4-button menu with LCD display PowerTwist TR1 input/output EtherNET input/output 5-pin XLR input/output Temperature controlled fans
Power consumption: 323W Power supply: 100–240V 50/60Hz Fuse: F4A 250V Dimensions (H x W x D): 414 x 324 x 193mm Weight: 8.5kg
