The Evora CMY600 Profile is a powerful tour-grade moving head which features a comprehensive array of effects. The impressive 600W LED provides an immense output whilst the 4-blade rotatable framing system 9°- 46° motorised zoom focus and iris allow precise beam adjustment. The CMY600 offers replaceable static and rotating gobos 5 facet linear and 4 facet circular prisms and a variable frost filter. Endless colours can be achieved with CMY colour mixing along with its colour wheel and variable CTO flag.Suited to rental stage and touring the LED is flicker-free with an adjustable refresh rate. Control is via DMX RDM Kling-Net Art-NET and sACN protocols and for further convenience wireless DMX is onboard via W-DMX Sweden.

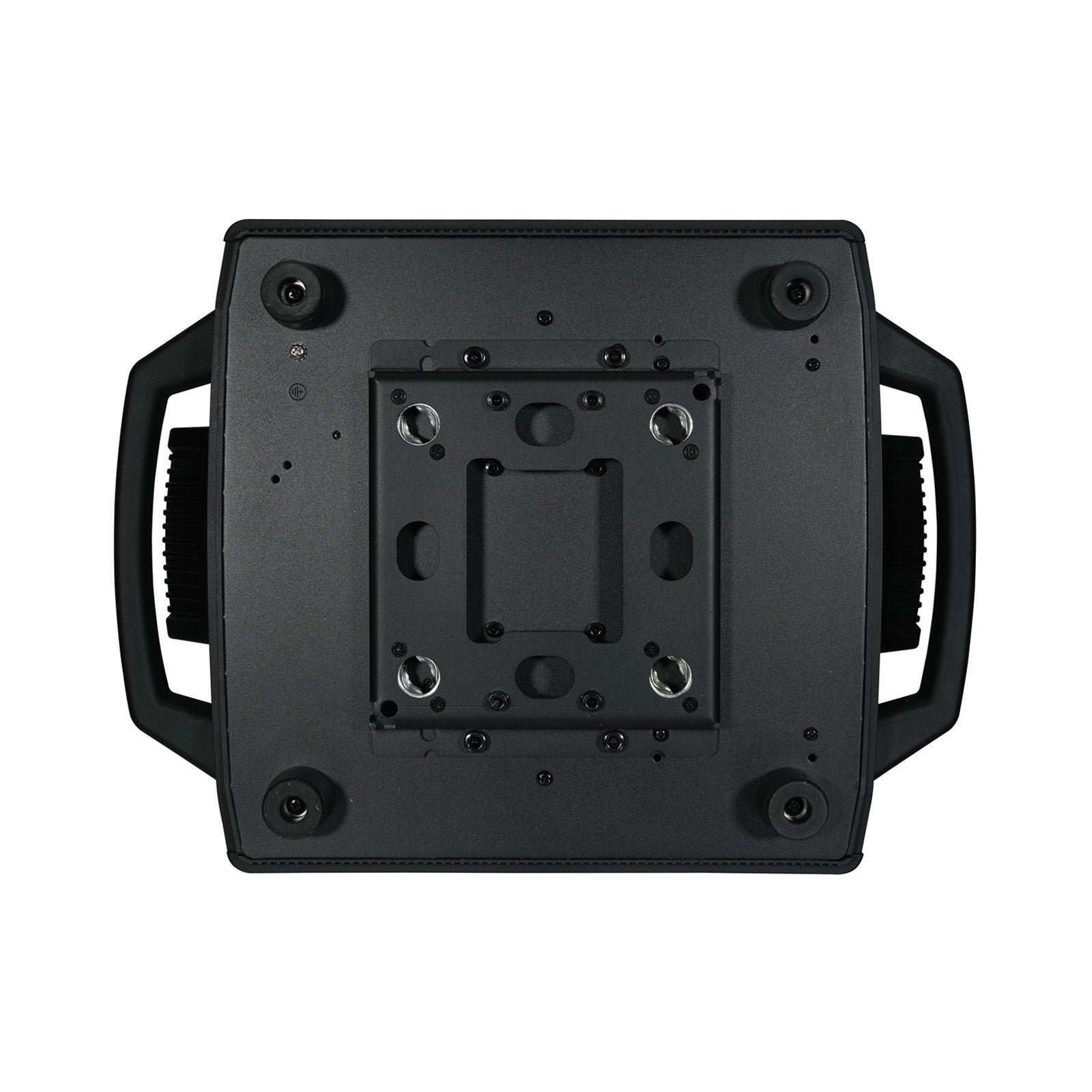

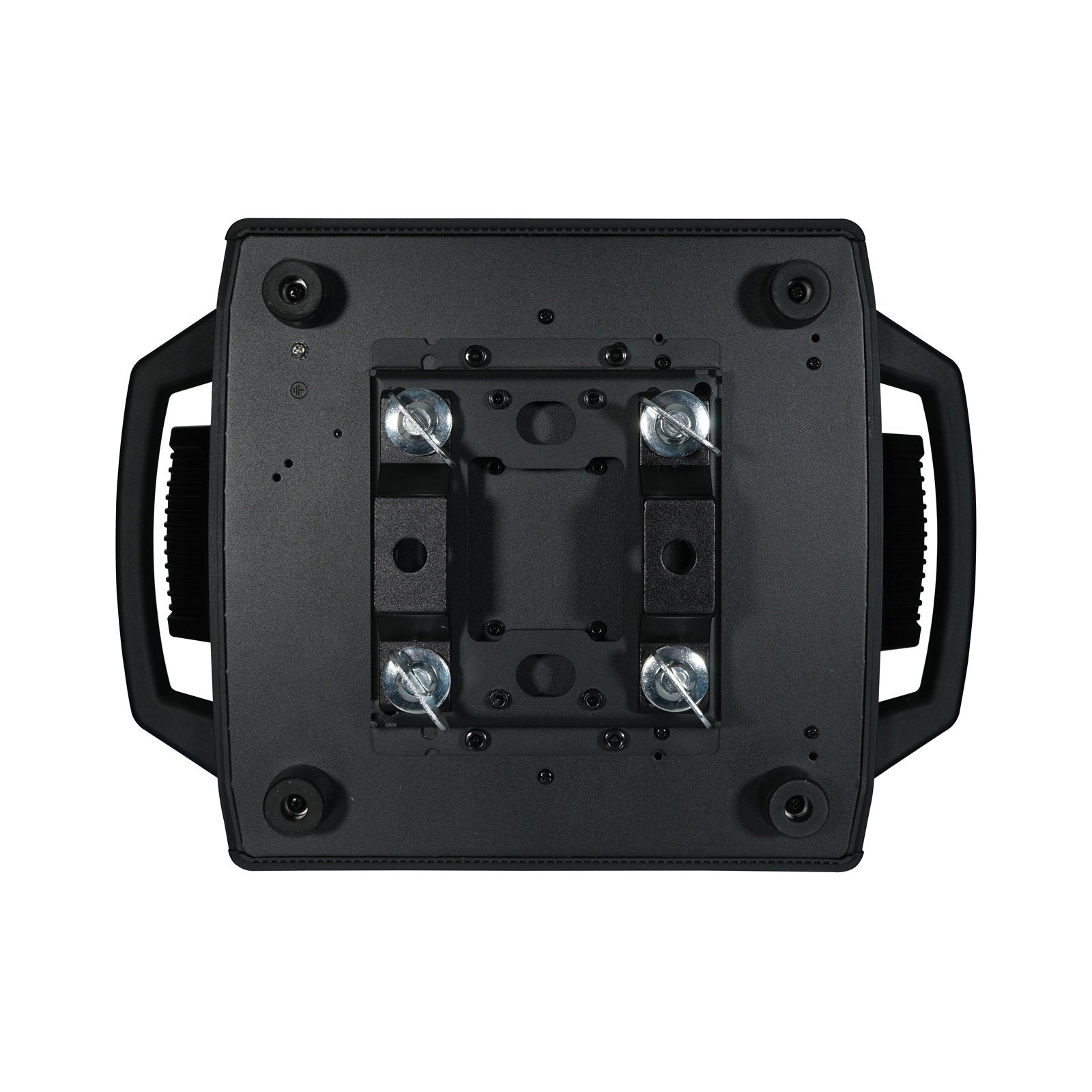

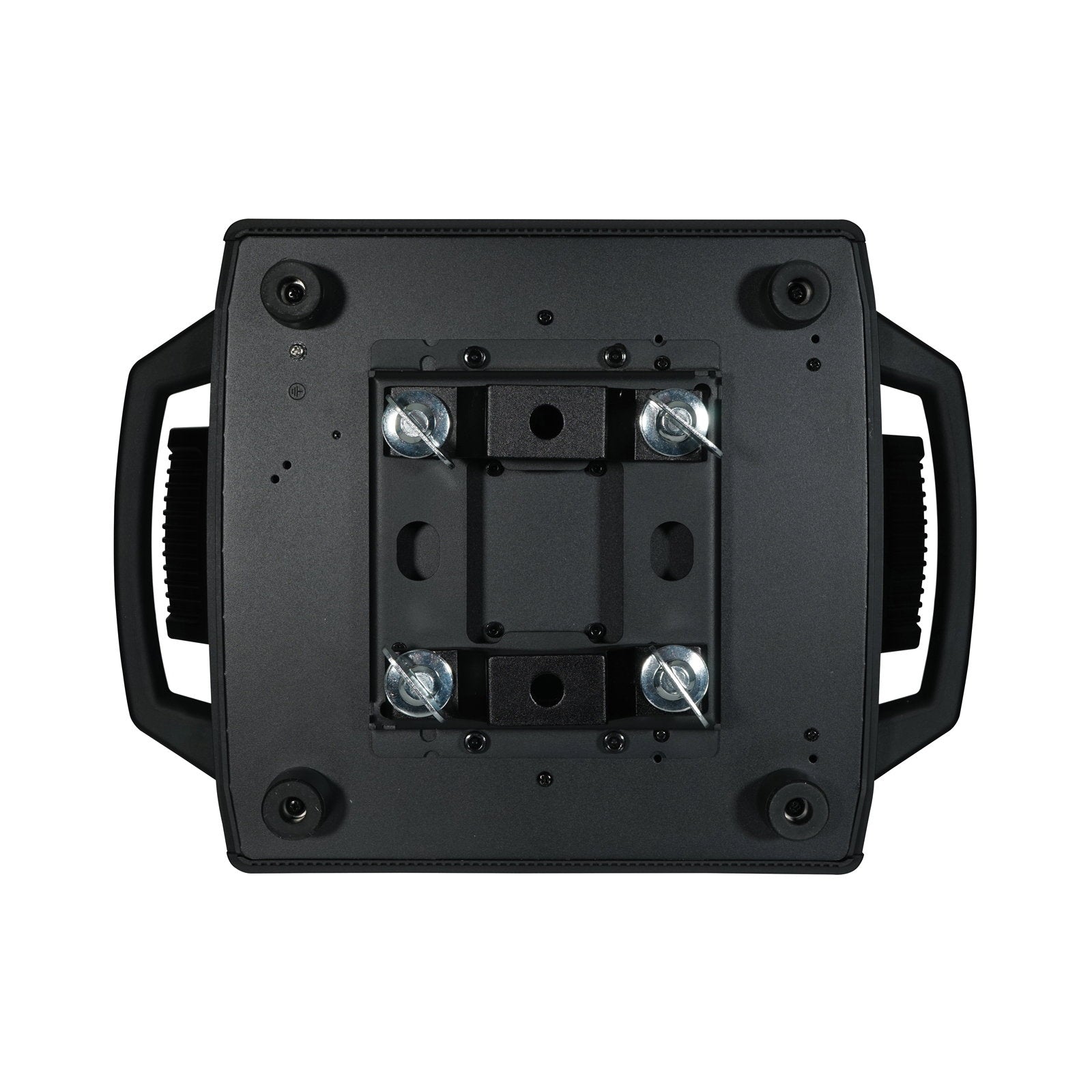

2 year warranty 1 x 600W white LED (6500K) Adjustable beam angle: 9°-46° Lumens – Source: 46000 Lumens – Output: 19165 9° - 9755 Lux @ 10m 46° - 421 Lux @ 10m CRI: 72 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom focus and iris 4 rotating framing shutters +/-45° plus shape rotation 4 facet circular rotating indexable prism plus 5 facet linear rotating indexable prism Variable frost filter (0-100%) Gobo wheel 1: 7 rotating indexable replaceable gobos + open Gobo wheel 2: 8 static replaceable gobos + open Animation wheel CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Variable CTO flag (0-100%) Colour wheel: 7 colours + open Control protocols: DMX Kling-net Art-net and sACN DMX channels: 33/40 or 54 selectable Wireless control (W-DMXSweden transceiver) Manual control and master/slave modes plus built-in programs RDM (Remote Device Management) Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe Supplied with quick release omega clamps 6 button menu with 2.7” LCD display Display battery backup for offline configuration USB port (firmware updates) powerCON TRUE1 input/output 5-Pin XLR input/output etherCON input/output Temperature controlled fans
Power consumption: 659W Power supply: 100~240V 50/60Hz Fuse: T8A 250V Noise level: 37.8dB @ 1m (low speed) 45.6dB @ 1m (auto speed) 51.8dB @ 1m (high speed) Dimensions (H x W x D): 720 x 390 x 288mm Weight: 31kg
2 year warranty 1 x 600W white LED (6500K) Adjustable beam angle: 9°-46° Lumens – Source: 46000 Lumens – Output: 19165 9° - 9755 Lux @ 10m 46° - 421 Lux @ 10m CRI: 72 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom focus and iris 4 rotating framing shutters +/-45° plus shape rotation 4 facet circular rotating indexable prism plus 5 facet linear rotating indexable prism Variable frost filter (0-100%) Gobo wheel 1: 7 rotating indexable replaceable gobos + open Gobo wheel 2: 8 static replaceable gobos + open Animation wheel CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Variable CTO flag (0-100%) Colour wheel: 7 colours + open Control protocols: DMX Kling-net Art-net and sACN DMX channels: 33/40 or 54 selectable Wireless control (W-DMXSweden transceiver) Manual control and master/slave modes plus built-in programs RDM (Remote Device Management) Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe Supplied with quick release omega clamps 6 button menu with 2.7” LCD display Display battery backup for offline configuration USB port (firmware updates) powerCON TRUE1 input/output 5-Pin XLR input/output etherCON input/output Temperature controlled fans
Power consumption: 659W Power supply: 100~240V 50/60Hz Fuse: T8A 250V Noise level: 37.8dB @ 1m (low speed) 45.6dB @ 1m (auto speed) 51.8dB @ 1m (high speed) Dimensions (H x W x D): 720 x 390 x 288mm Weight: 31kg

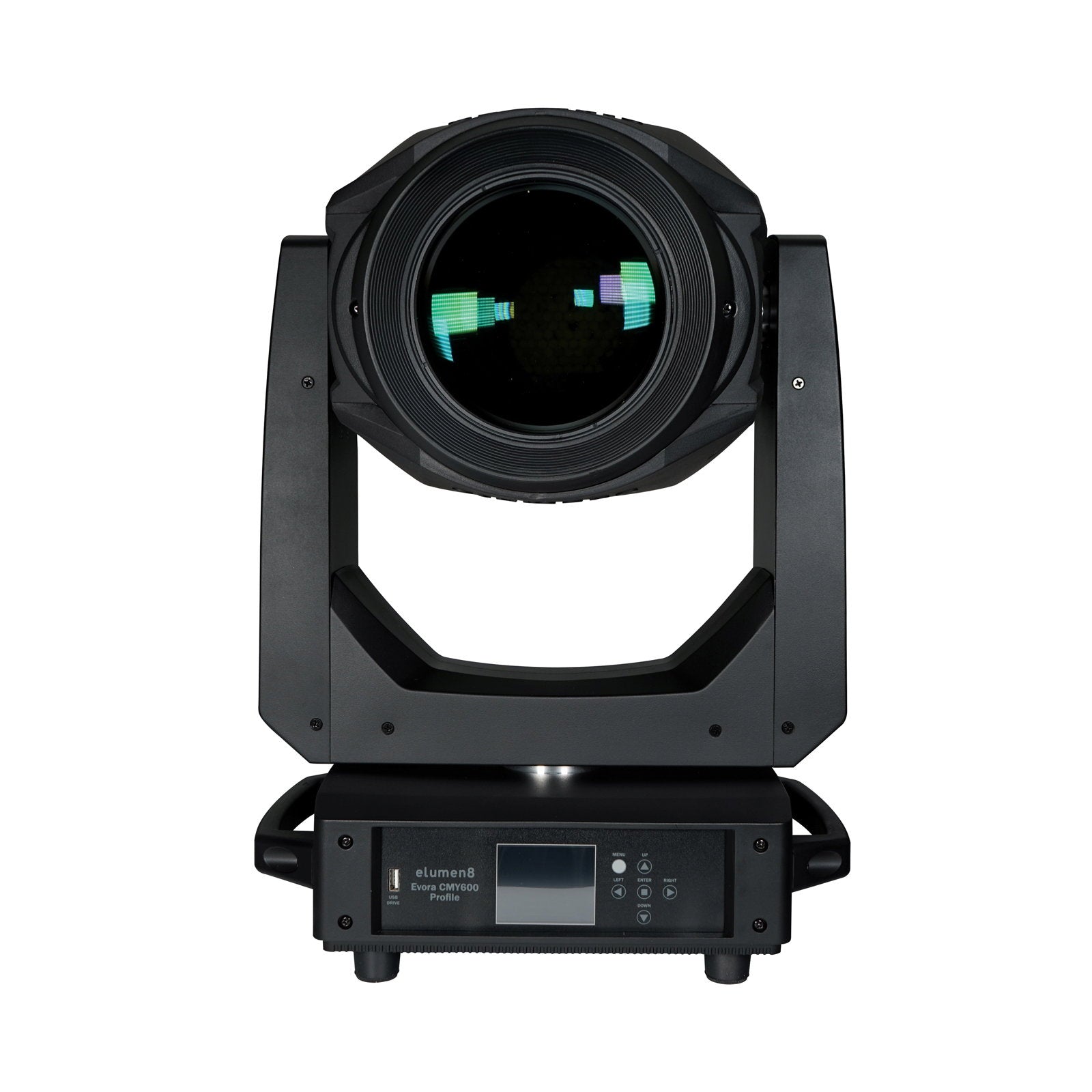

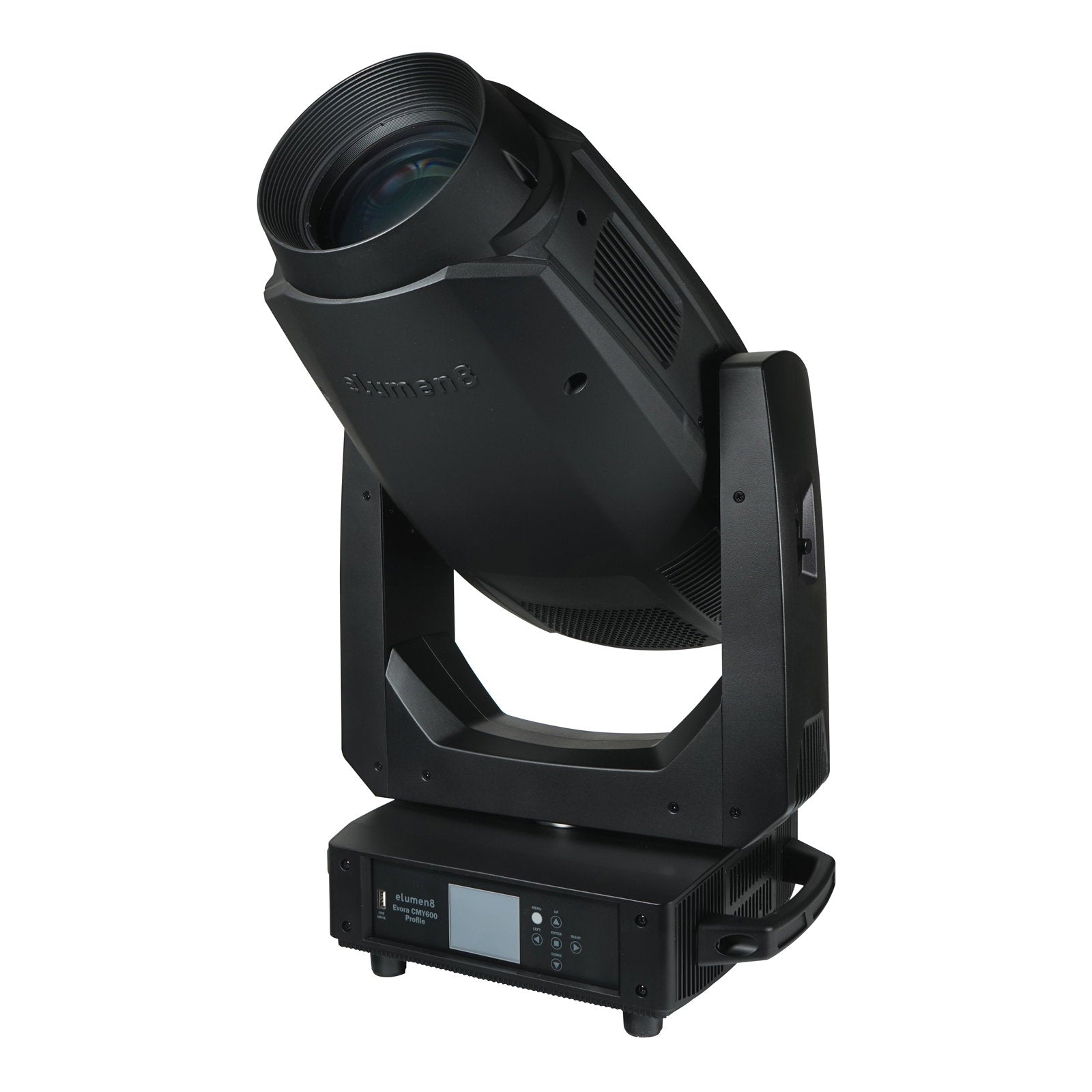

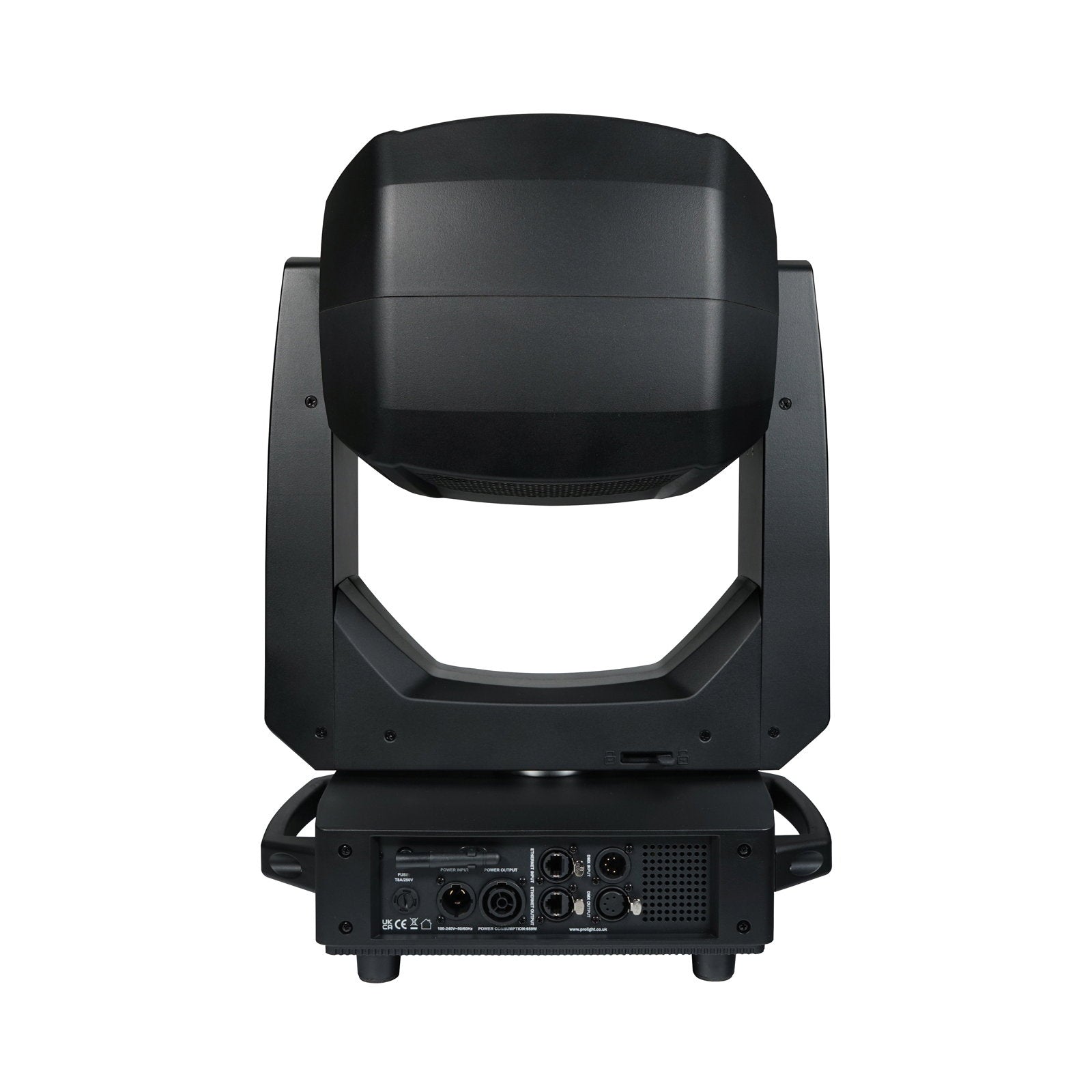

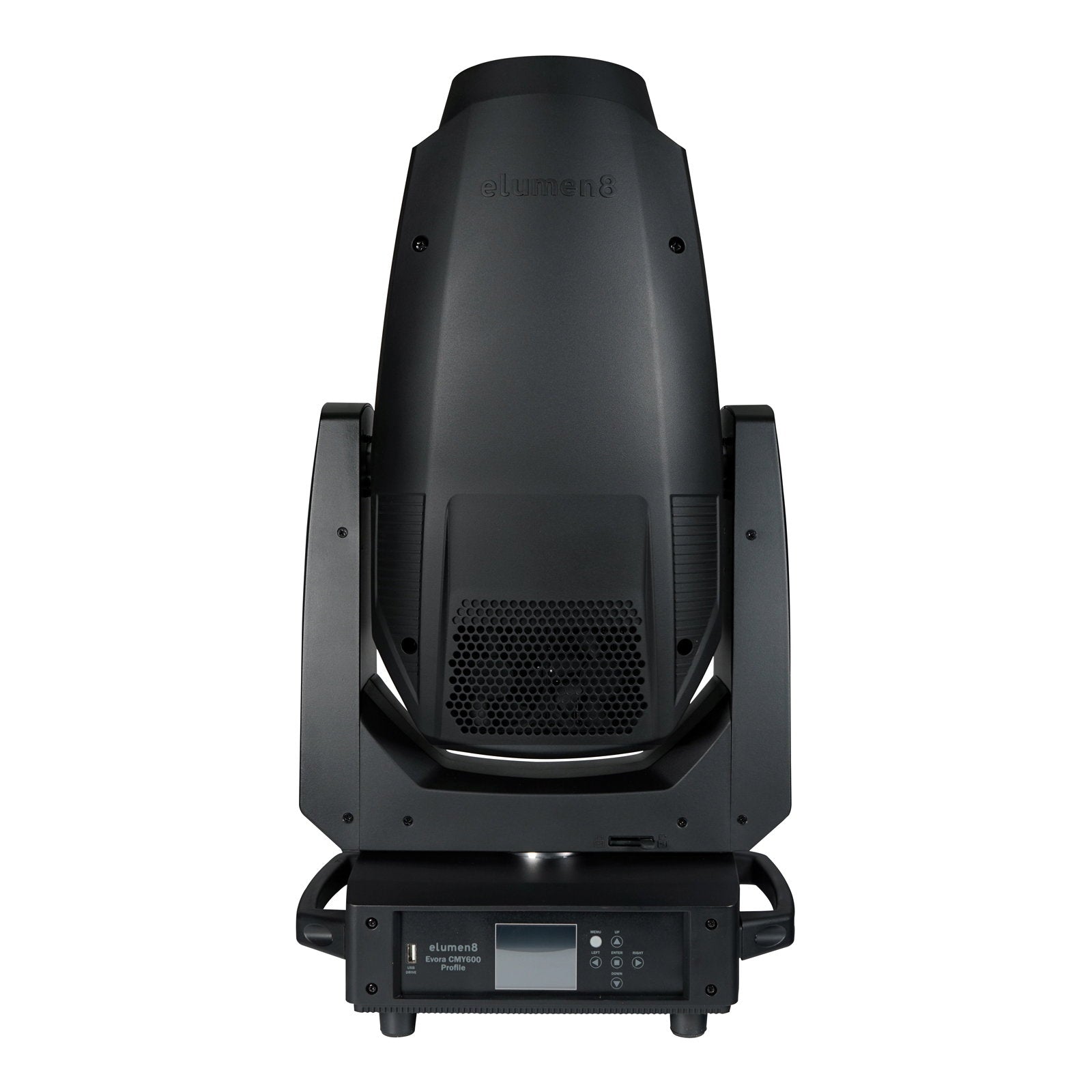

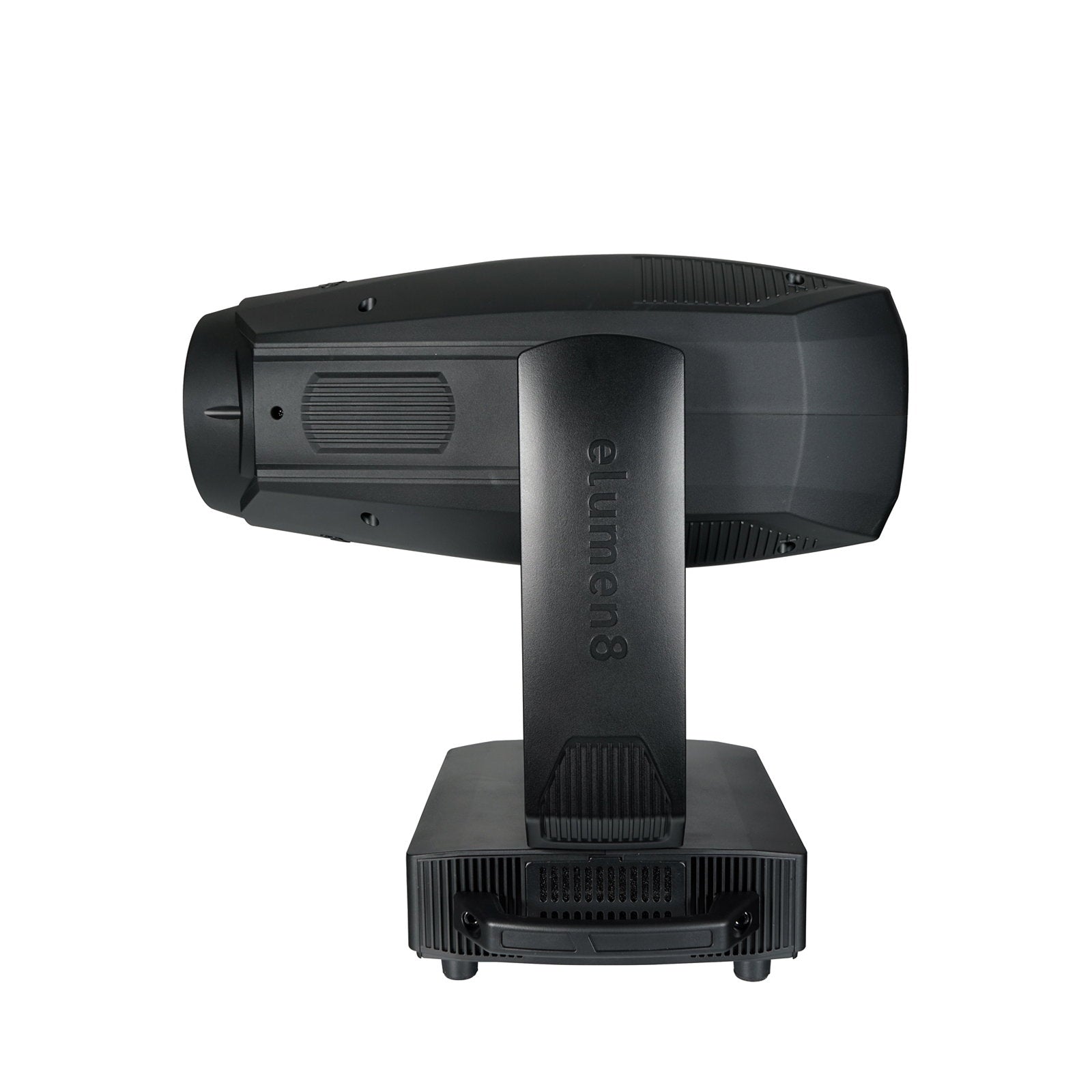

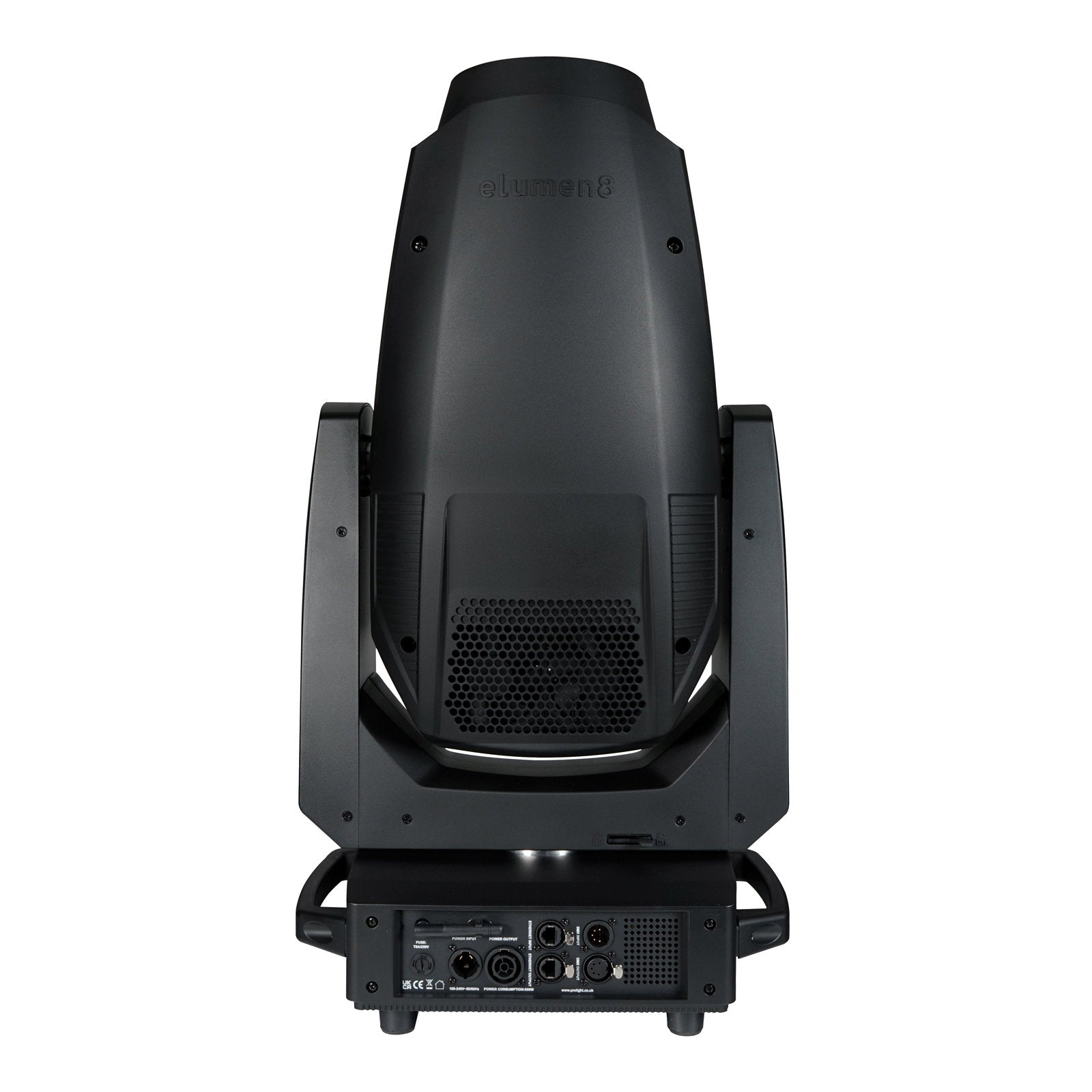

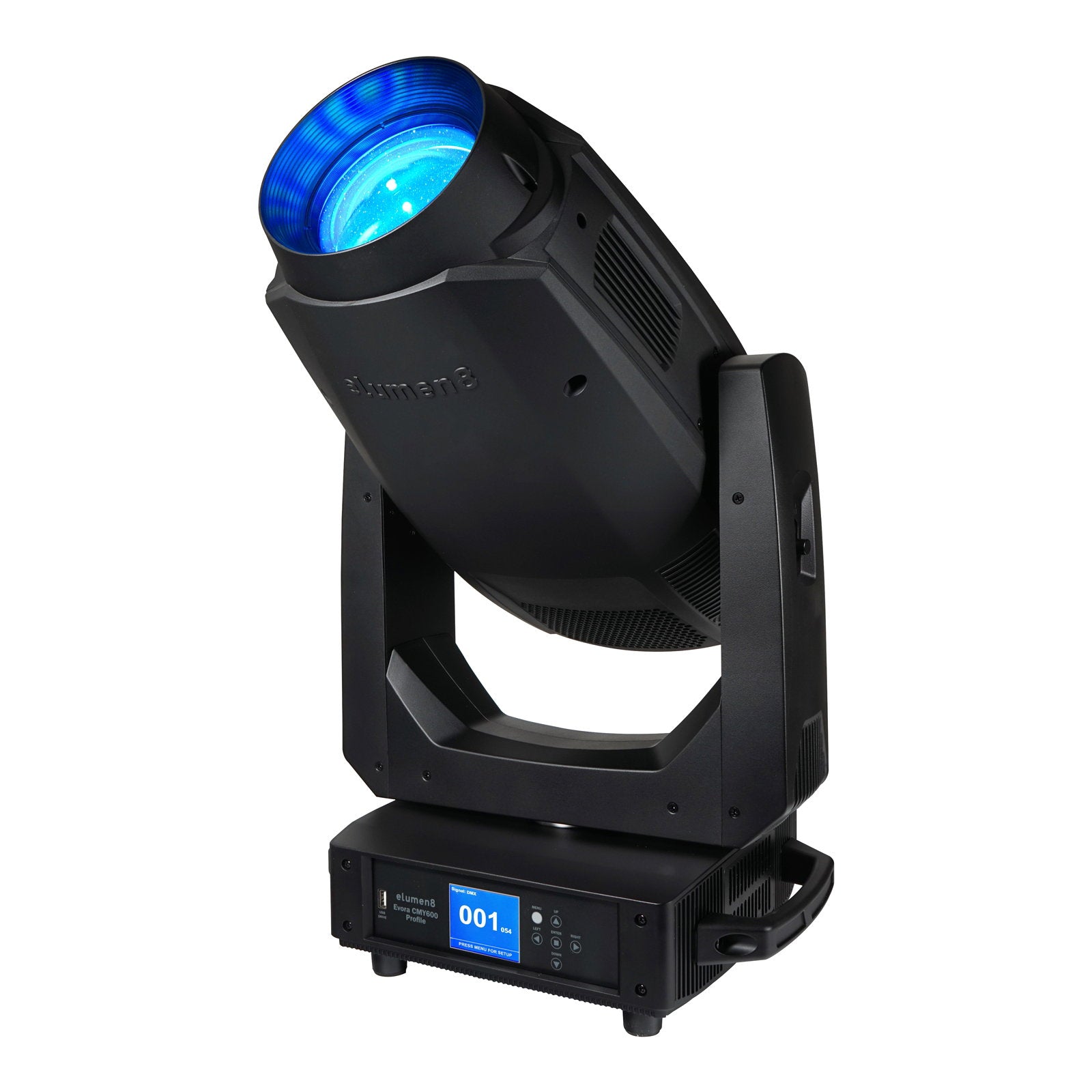

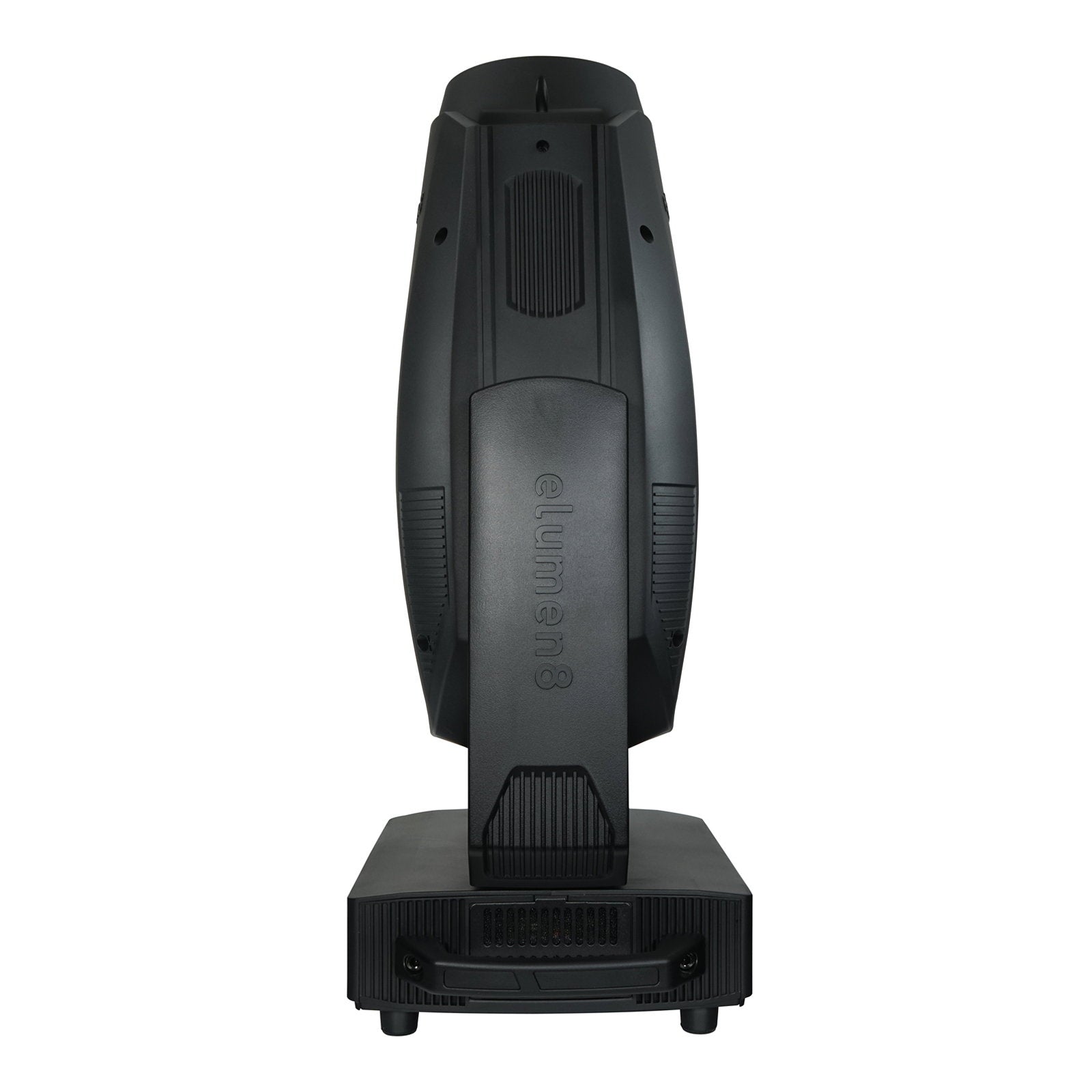

Elumen8 Evora CMY600 Profile
Brand: Elumen8
SKU: ELUM703
Regular price
£4,468.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 Evora CMY600 Profile
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Evora CMY600 Profile is a powerful tour-grade moving head which features a comprehensive array of effects. The impressive 600W LED provides an immense output whilst the 4-blade rotatable framing system 9°- 46° motorised zoom focus and iris allow precise beam adjustment. The CMY600 offers replaceable static and rotating gobos 5 facet linear and 4 facet circular prisms and a variable frost filter. Endless colours can be achieved with CMY colour mixing along with its colour wheel and variable CTO flag.Suited to rental stage and touring the LED is flicker-free with an adjustable refresh rate. Control is via DMX RDM Kling-Net Art-NET and sACN protocols and for further convenience wireless DMX is onboard via W-DMX Sweden.
2 year warranty 1 x 600W white LED (6500K) Adjustable beam angle: 9°-46° Lumens – Source: 46000 Lumens – Output: 19165 9° - 9755 Lux @ 10m 46° - 421 Lux @ 10m CRI: 72 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom focus and iris 4 rotating framing shutters +/-45° plus shape rotation 4 facet circular rotating indexable prism plus 5 facet linear rotating indexable prism Variable frost filter (0-100%) Gobo wheel 1: 7 rotating indexable replaceable gobos + open Gobo wheel 2: 8 static replaceable gobos + open Animation wheel CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Variable CTO flag (0-100%) Colour wheel: 7 colours + open Control protocols: DMX Kling-net Art-net and sACN DMX channels: 33/40 or 54 selectable Wireless control (W-DMXSweden transceiver) Manual control and master/slave modes plus built-in programs RDM (Remote Device Management) Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe Supplied with quick release omega clamps 6 button menu with 2.7” LCD display Display battery backup for offline configuration USB port (firmware updates) powerCON TRUE1 input/output 5-Pin XLR input/output etherCON input/output Temperature controlled fans
Power consumption: 659W Power supply: 100~240V 50/60Hz Fuse: T8A 250V Noise level: 37.8dB @ 1m (low speed) 45.6dB @ 1m (auto speed) 51.8dB @ 1m (high speed) Dimensions (H x W x D): 720 x 390 x 288mm Weight: 31kg
2 year warranty 1 x 600W white LED (6500K) Adjustable beam angle: 9°-46° Lumens – Source: 46000 Lumens – Output: 19165 9° - 9755 Lux @ 10m 46° - 421 Lux @ 10m CRI: 72 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom focus and iris 4 rotating framing shutters +/-45° plus shape rotation 4 facet circular rotating indexable prism plus 5 facet linear rotating indexable prism Variable frost filter (0-100%) Gobo wheel 1: 7 rotating indexable replaceable gobos + open Gobo wheel 2: 8 static replaceable gobos + open Animation wheel CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Variable CTO flag (0-100%) Colour wheel: 7 colours + open Control protocols: DMX Kling-net Art-net and sACN DMX channels: 33/40 or 54 selectable Wireless control (W-DMXSweden transceiver) Manual control and master/slave modes plus built-in programs RDM (Remote Device Management) Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe Supplied with quick release omega clamps 6 button menu with 2.7” LCD display Display battery backup for offline configuration USB port (firmware updates) powerCON TRUE1 input/output 5-Pin XLR input/output etherCON input/output Temperature controlled fans
Power consumption: 659W Power supply: 100~240V 50/60Hz Fuse: T8A 250V Noise level: 37.8dB @ 1m (low speed) 45.6dB @ 1m (auto speed) 51.8dB @ 1m (high speed) Dimensions (H x W x D): 720 x 390 x 288mm Weight: 31kg
