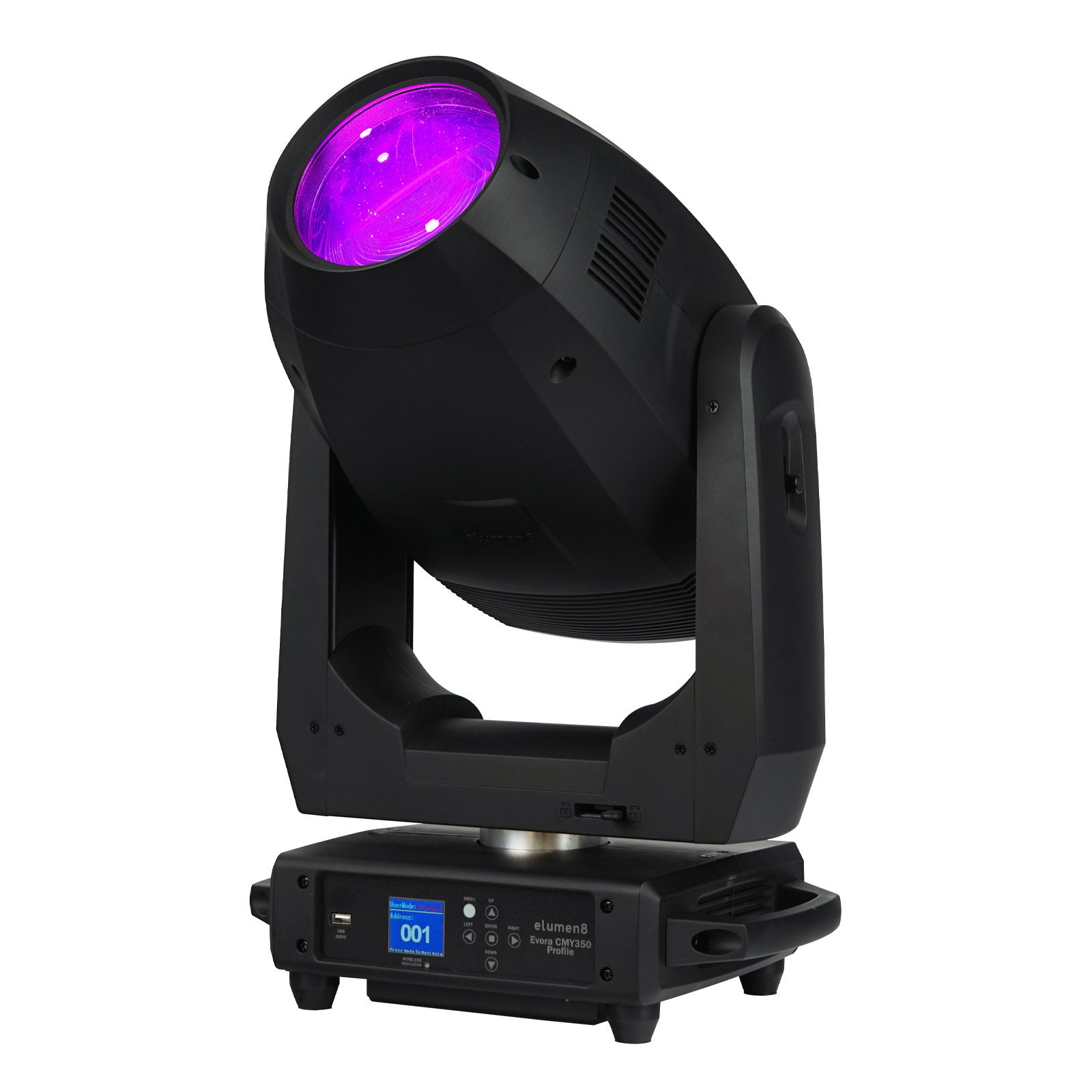

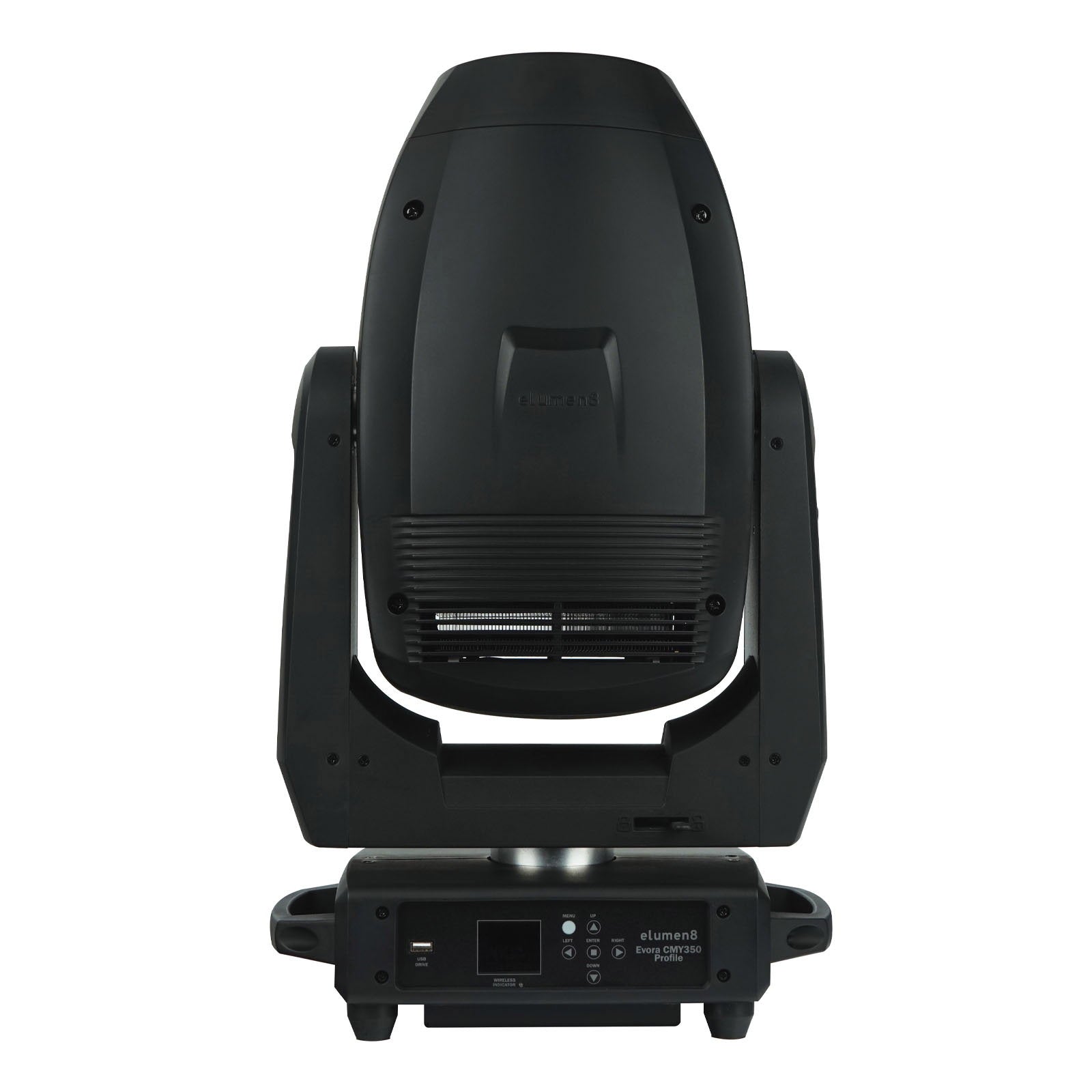

The Elumen8 Evora CMY350 Profile is a feature packed immensely bright 350W moving head with crystal clear optics. This impressive fixture offers a 4-blade rotatable framing system 3°- 53° motorised zoom focus and iris allowing for precise beam adjustment. Further enhancing this fixtures array of features it has a rotating gobo wheel linear and circular prisms two variable frost filters plus endless colours can be achieved with CMY colour mixing variable CTO flag and the colour wheel with high CRI filter. Suited to rental stage and touring the LED is flicker-free with an adjustable refresh rate. Control is via DMX RDM Kling-Net Art-NET and sACN protocols and for further convenience wireless DMX is on-board via W-DMX Sweden.
2 year warranty 1 x 350W white LED (6900K) Adjustable beam angle: 3°- 53° Lumens – Source: 20500 Lumens – Output: 13000 3° - 21200 Lux @ 10m 53° - 310 Lux @ 10m CRI: 71 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom focus and iris 4 rotating framing shutters +/-45° plus shape rotation 6 facet circular rotating indexable prism plus 6 facet linear rotating indexable prism Variable frost filter Gobo wheel: 7 rotating indexable replaceable gobos + open Animation wheel CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Variable CTO flag (0-100%) Colour wheel: 7 colours + High CRI filter (CRI: 84) + open Control protocols: DMX Kling-net Art-net and sACN DMX channels: 34/41 or 55 selectable Wireless control (W-DMX Sweden transceiver) Can be used to receive wireless DMX and relay the DMX signal via the XLR output Features an integral Art-Net node for internal conversion from Art-Net to DMX for control of DMX fixtures downstream on the same universe Manual control and master/slave modes plus built-in programs Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe PowerTwist TR1 input/output 5-Pin XLR input/output etherCON input/output RDM (Remote Device Management) 6 button menu with 1.8” LCD display Display battery backup for offline configuration Supplied with quick release omega clamps USB port (firmware updates) Temperature controlled fans Supplied with an additional 10 rotating gobos
Power consumption: 608W Power supply: 100~240V 50/60Hz Fuse: T8A 250V Noise level: ≤40dBA @ 1m (low speed) ≤50dBA @ 1m (auto speed) ≤55dBA @ 1m (high speed) Dimensions (H x D x W): 594 x 362 x 232mm Weight: 22kg
2 year warranty 1 x 350W white LED (6900K) Adjustable beam angle: 3°- 53° Lumens – Source: 20500 Lumens – Output: 13000 3° - 21200 Lux @ 10m 53° - 310 Lux @ 10m CRI: 71 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom focus and iris 4 rotating framing shutters +/-45° plus shape rotation 6 facet circular rotating indexable prism plus 6 facet linear rotating indexable prism Variable frost filter Gobo wheel: 7 rotating indexable replaceable gobos + open Animation wheel CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Variable CTO flag (0-100%) Colour wheel: 7 colours + High CRI filter (CRI: 84) + open Control protocols: DMX Kling-net Art-net and sACN DMX channels: 34/41 or 55 selectable Wireless control (W-DMX Sweden transceiver) Can be used to receive wireless DMX and relay the DMX signal via the XLR output Features an integral Art-Net node for internal conversion from Art-Net to DMX for control of DMX fixtures downstream on the same universe Manual control and master/slave modes plus built-in programs Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe PowerTwist TR1 input/output 5-Pin XLR input/output etherCON input/output RDM (Remote Device Management) 6 button menu with 1.8” LCD display Display battery backup for offline configuration Supplied with quick release omega clamps USB port (firmware updates) Temperature controlled fans Supplied with an additional 10 rotating gobos
Power consumption: 608W Power supply: 100~240V 50/60Hz Fuse: T8A 250V Noise level: ≤40dBA @ 1m (low speed) ≤50dBA @ 1m (auto speed) ≤55dBA @ 1m (high speed) Dimensions (H x D x W): 594 x 362 x 232mm Weight: 22kg
Elumen8 Evora CMY350 Profile
Brand: Elumen8
SKU: ELUM706
Regular price
£3,191.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 Evora CMY350 Profile
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Elumen8 Evora CMY350 Profile is a feature packed immensely bright 350W moving head with crystal clear optics. This impressive fixture offers a 4-blade rotatable framing system 3°- 53° motorised zoom focus and iris allowing for precise beam adjustment. Further enhancing this fixtures array of features it has a rotating gobo wheel linear and circular prisms two variable frost filters plus endless colours can be achieved with CMY colour mixing variable CTO flag and the colour wheel with high CRI filter. Suited to rental stage and touring the LED is flicker-free with an adjustable refresh rate. Control is via DMX RDM Kling-Net Art-NET and sACN protocols and for further convenience wireless DMX is on-board via W-DMX Sweden.
2 year warranty 1 x 350W white LED (6900K) Adjustable beam angle: 3°- 53° Lumens – Source: 20500 Lumens – Output: 13000 3° - 21200 Lux @ 10m 53° - 310 Lux @ 10m CRI: 71 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom focus and iris 4 rotating framing shutters +/-45° plus shape rotation 6 facet circular rotating indexable prism plus 6 facet linear rotating indexable prism Variable frost filter Gobo wheel: 7 rotating indexable replaceable gobos + open Animation wheel CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Variable CTO flag (0-100%) Colour wheel: 7 colours + High CRI filter (CRI: 84) + open Control protocols: DMX Kling-net Art-net and sACN DMX channels: 34/41 or 55 selectable Wireless control (W-DMX Sweden transceiver) Can be used to receive wireless DMX and relay the DMX signal via the XLR output Features an integral Art-Net node for internal conversion from Art-Net to DMX for control of DMX fixtures downstream on the same universe Manual control and master/slave modes plus built-in programs Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe PowerTwist TR1 input/output 5-Pin XLR input/output etherCON input/output RDM (Remote Device Management) 6 button menu with 1.8” LCD display Display battery backup for offline configuration Supplied with quick release omega clamps USB port (firmware updates) Temperature controlled fans Supplied with an additional 10 rotating gobos
Power consumption: 608W Power supply: 100~240V 50/60Hz Fuse: T8A 250V Noise level: ≤40dBA @ 1m (low speed) ≤50dBA @ 1m (auto speed) ≤55dBA @ 1m (high speed) Dimensions (H x D x W): 594 x 362 x 232mm Weight: 22kg
2 year warranty 1 x 350W white LED (6900K) Adjustable beam angle: 3°- 53° Lumens – Source: 20500 Lumens – Output: 13000 3° - 21200 Lux @ 10m 53° - 310 Lux @ 10m CRI: 71 Refresh rate: 14 selectable presets between 900Hz-25kHz Motorised zoom focus and iris 4 rotating framing shutters +/-45° plus shape rotation 6 facet circular rotating indexable prism plus 6 facet linear rotating indexable prism Variable frost filter Gobo wheel: 7 rotating indexable replaceable gobos + open Animation wheel CMY colour mixing: Cyan 0-100% Magenta 0-100% and Yellow 0-100% Variable CTO flag (0-100%) Colour wheel: 7 colours + High CRI filter (CRI: 84) + open Control protocols: DMX Kling-net Art-net and sACN DMX channels: 34/41 or 55 selectable Wireless control (W-DMX Sweden transceiver) Can be used to receive wireless DMX and relay the DMX signal via the XLR output Features an integral Art-Net node for internal conversion from Art-Net to DMX for control of DMX fixtures downstream on the same universe Manual control and master/slave modes plus built-in programs Pan/tilt transit lock and auto correction 16-Bit pan/tilt positioning Pan: 540° or 630° selectable Tilt: 270° 0 – 100% dimming 5 dimming modes: Standard stage TV architectural and theatre Variable strobe PowerTwist TR1 input/output 5-Pin XLR input/output etherCON input/output RDM (Remote Device Management) 6 button menu with 1.8” LCD display Display battery backup for offline configuration Supplied with quick release omega clamps USB port (firmware updates) Temperature controlled fans Supplied with an additional 10 rotating gobos
Power consumption: 608W Power supply: 100~240V 50/60Hz Fuse: T8A 250V Noise level: ≤40dBA @ 1m (low speed) ≤50dBA @ 1m (auto speed) ≤55dBA @ 1m (high speed) Dimensions (H x D x W): 594 x 362 x 232mm Weight: 22kg
