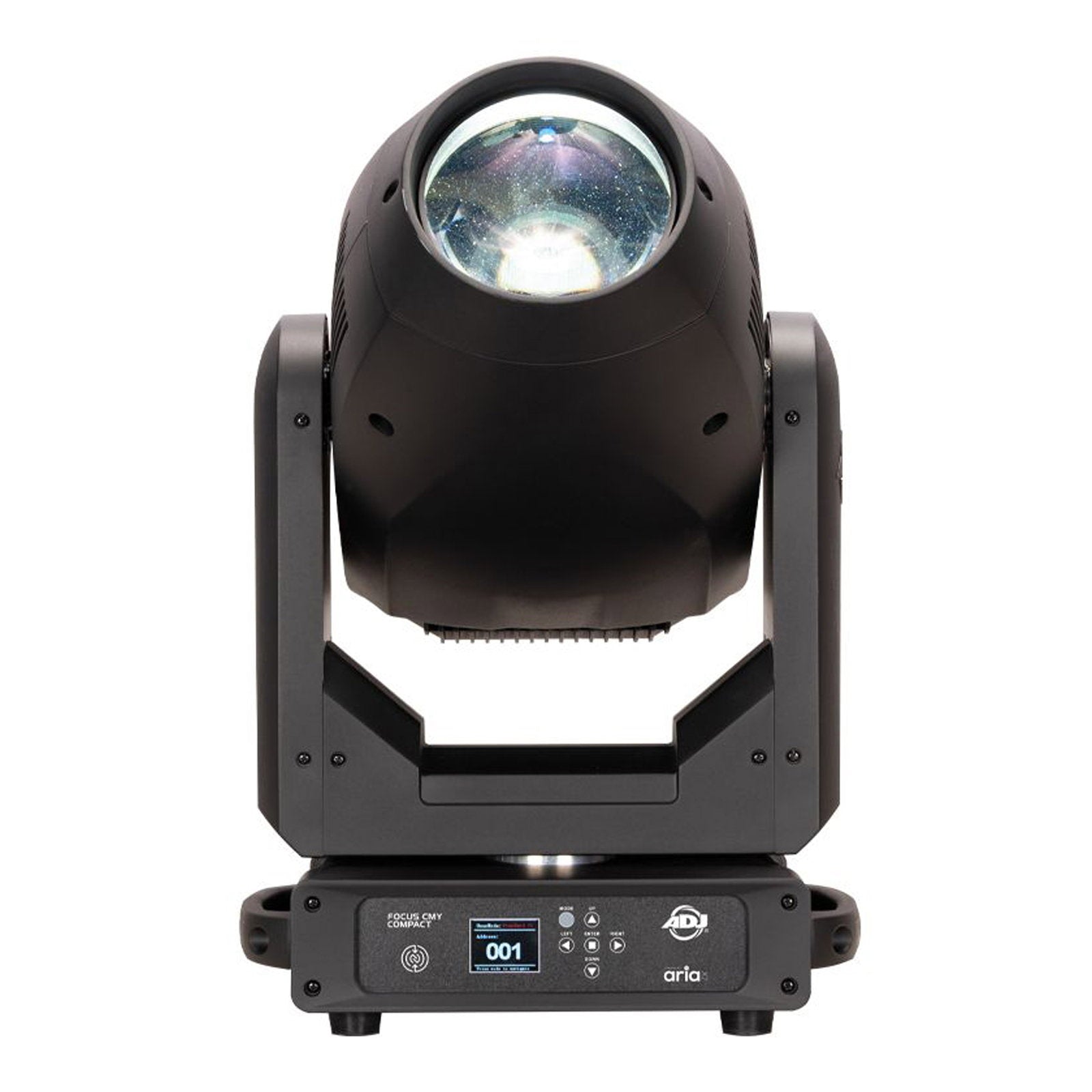

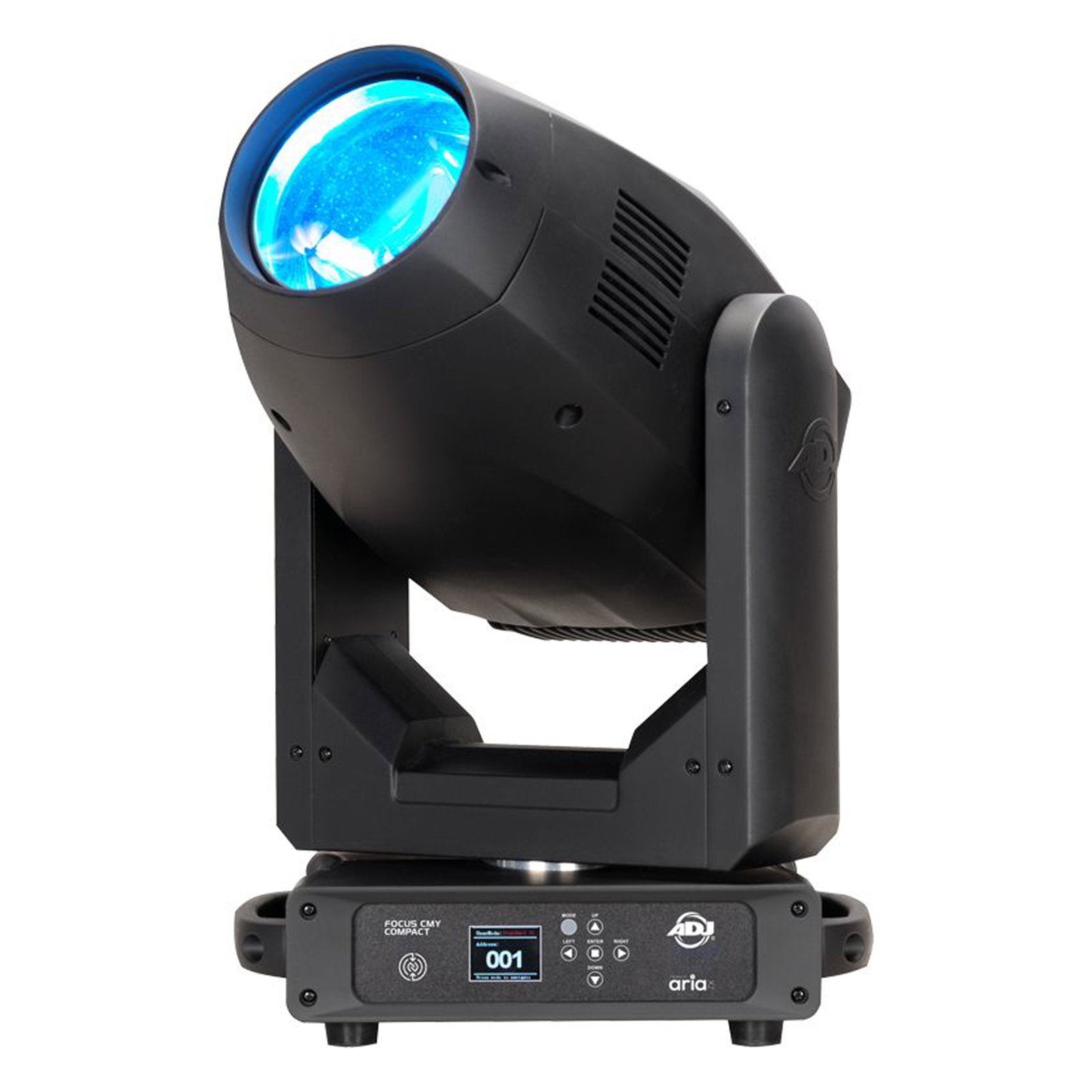

Offer exceptional performance in a compact form factor the ADJ Focus CMY Compact is a powerful and versatile automated luminaire designed to meet the demands of modern lighting designers. Equipped with a potent 400-watt LED engine it delivers an impressive 14500 lumens of output making it equally at home on concert stages in theatres at corporate events or within houses of worship. 3-phase pan and tilt motors ensure lightning-fast movement and precise control while a motorized zoom range of 3° to 52° allows interchangeable beam spot or wash functionality providing maximum flexibility from a single fixture.
The Focus CMY Compact’s creative potential is enhanced by an extensive collection of beam-shaping features. Its full CMY colour mixing system is complemented by variable CTO (3200K–8500K) and a colour wheel featuring seven dichroic filters including a High CRI filter for applications requiring accurate colour rendering. Two GOBO wheels – one with eight rotating indexable patterns and another with ten static designs – allow for dynamic texture projection while dual rotating prisms (6-facet circular and 6-facet linear) and two frost filters (light and heavy) enable a wide variety of aerial and wash effects.

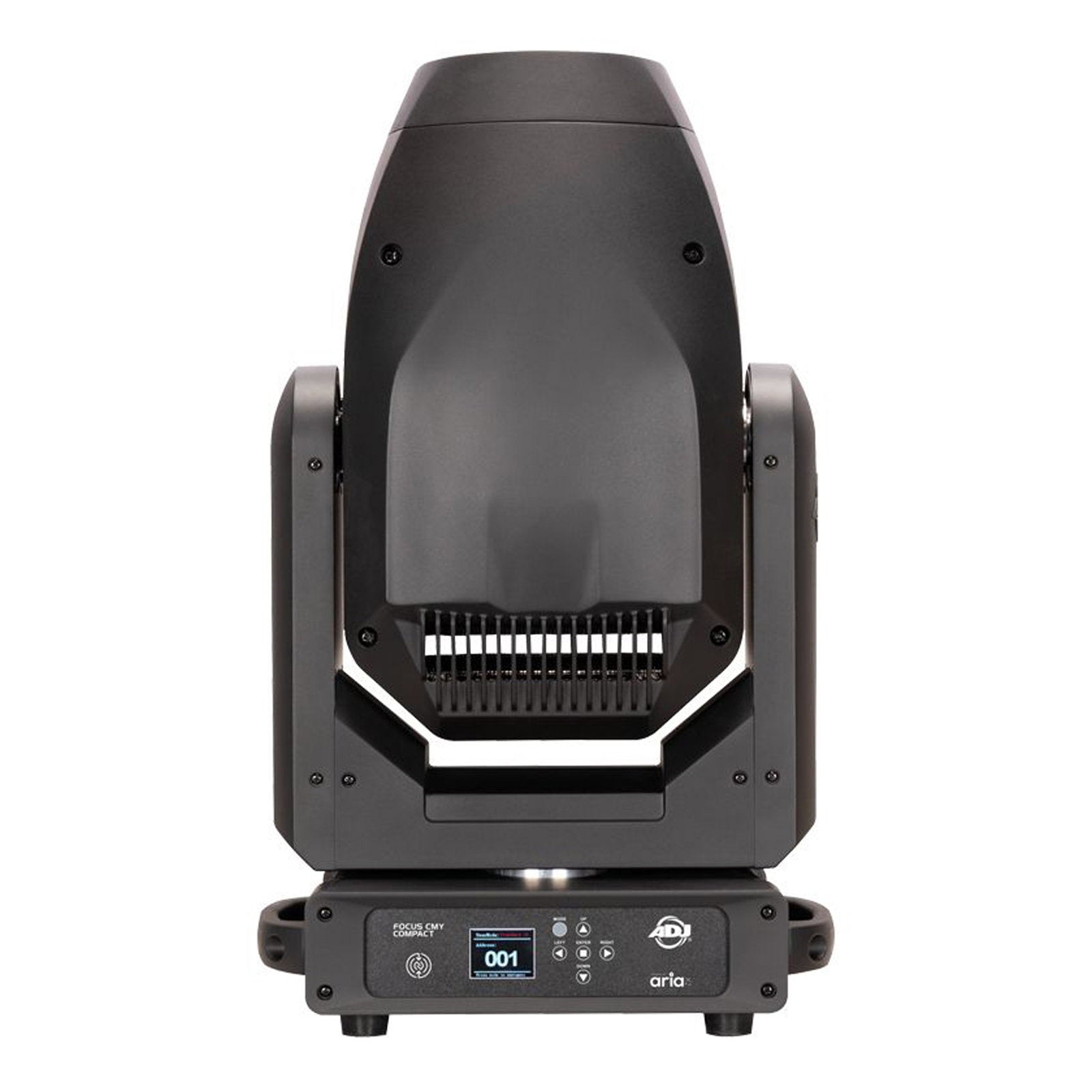

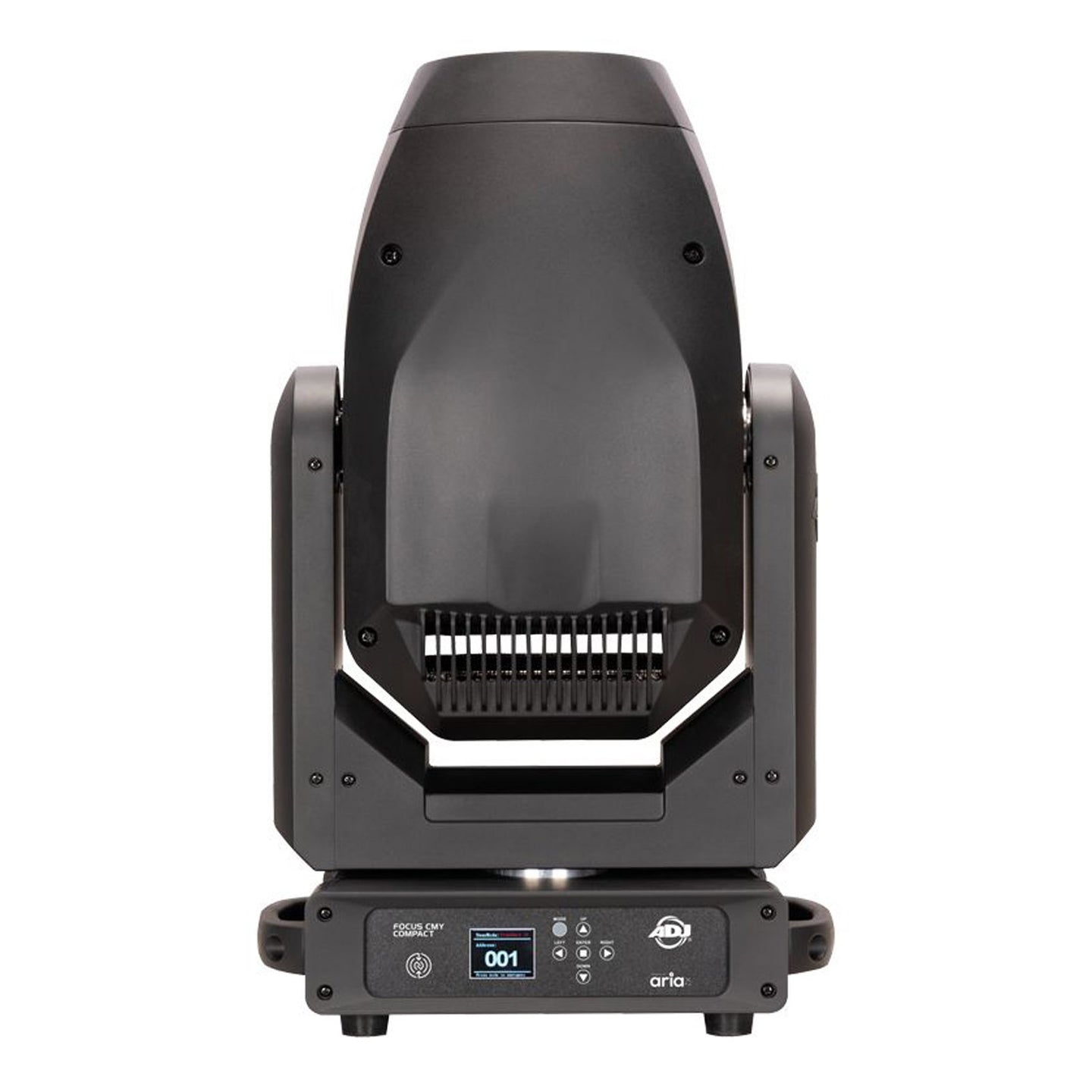

Engineered with professional control and connectivity in mind the fixture supports DMX RDM Art-Net and sACN and features Aria X2 wireless management and control for streamlined setup and monitoring as well as cable free DMX. It also includes NFC configuration a 6-button touch control panel and a full-colour reversible LCD display. Despite its impressive capabilities the Focus CMY Compact weighs under 45 lbs. making it easy to rig and transport. With its robust construction efficient power draw and extensive creative toolkit the Focus CMY Compact sets a new benchmark for high-output hybrid LED moving heads in a portable professional package.

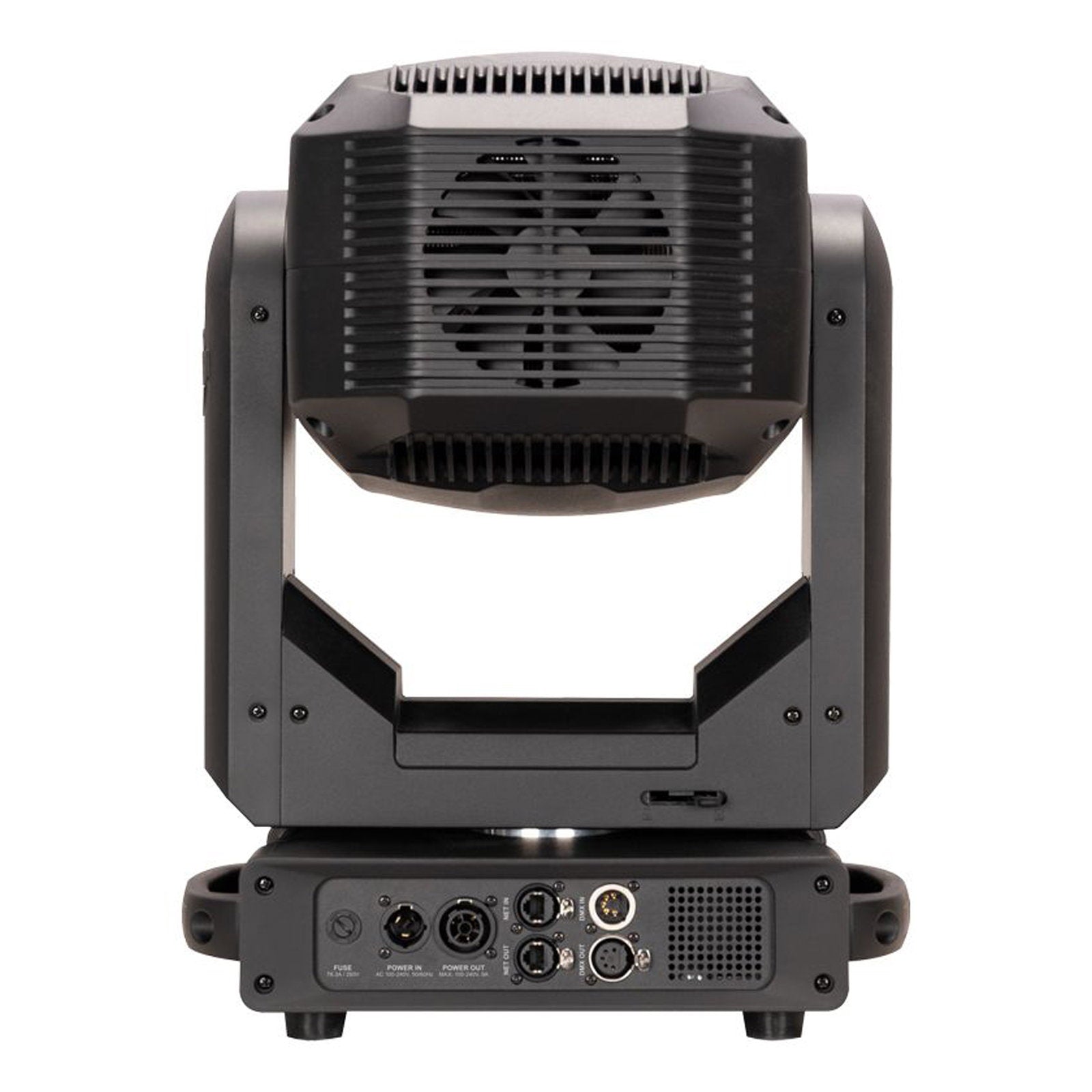

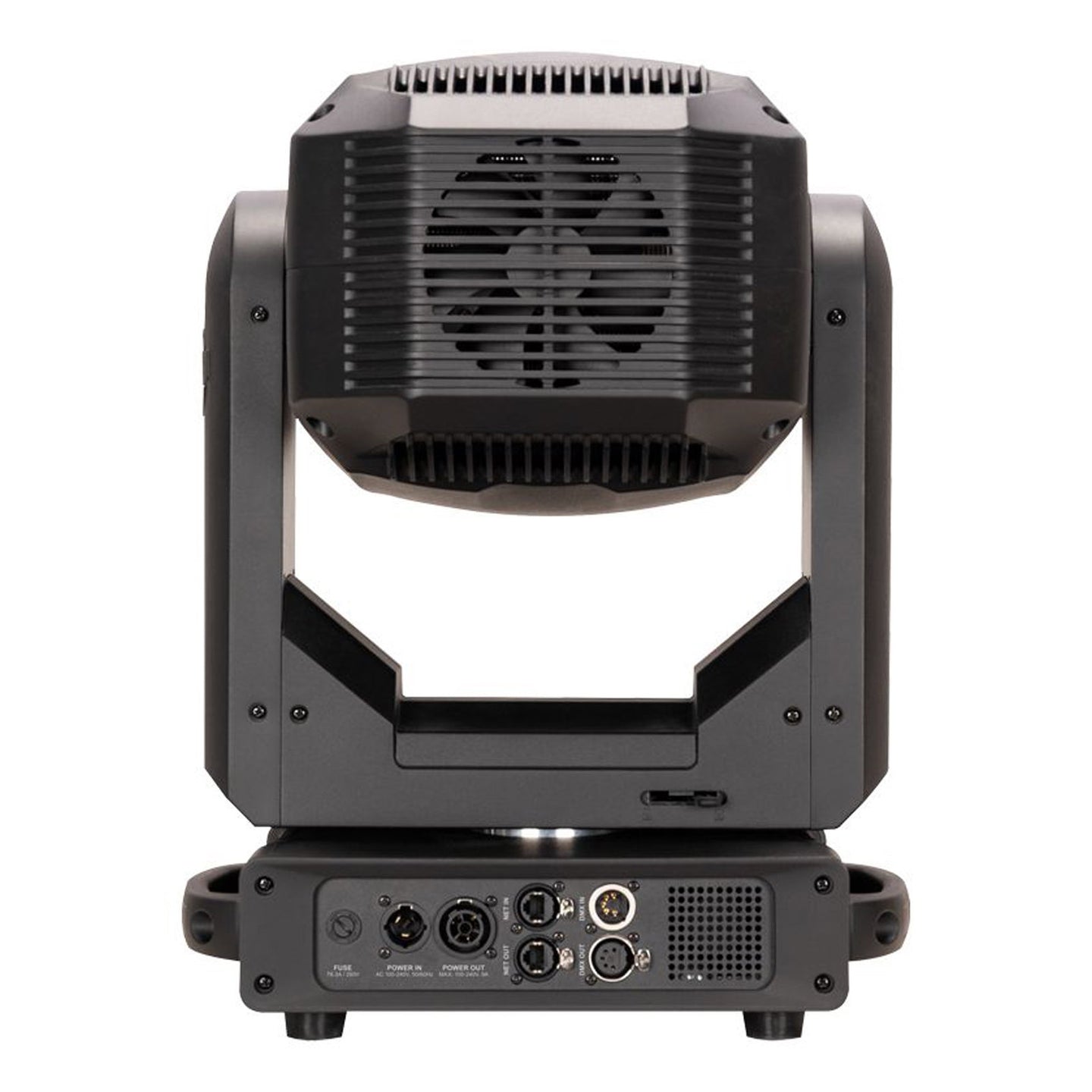

2 year warranty 400W LED Engine Colour Temperature: 6900K (+/-350K) Motorized zoom range: 3°–52° Motorized Focus 14500 Total Lumens CRI: 64 (80 or 90 with HCRI Filter) 6-Facet Circular & 6-Facet Linear Rotating Prisms 2 x Frost Filters (Light and Heavy) Gobo Wheel 1: 8 Rotating Gobos (Interchangeable and Indexable) Gobo Wheel 2: 10 Static Gobos Full CMY Colour Mixing Variable CTO (3200K to 8500K) Colour Wheel with 7 Dichroic Colours (Includes High CRI Filter in Slot 7) Control protocols: DMX RDM sACN and ArtNet 3 DMX Channel Modes (Basic / Standard / Extended) Aria X2 Wireless Management System NFC System Pan/tilt transit lock Pan/tilt auto correction 16-Bit pan/tilt positioning Pan: 540°/630° Tilt: 270° 0–100% dimming Variable strobe Quick release omega clamps included 6 Button Touch Control Panel Full Colour 180° Reversible LCD Menu Display IP65 Power Locking In/Thru Seetronic 5-pin XLR Locking DMX In/Thru Seetronic RJ45 Locking In/Thru Fan cooled
Power consumption: 450W Power supply: 100–240V 50/60Hz Dimensions (H×W×D): 597 × 360 × 234mm Weight: 20.2kg
ADJ Focus CMY Compact
Brand: ADJ
SKU: ADJ1237000364
Need help with choosing the right product?
Offer exceptional performance in a compact form factor the ADJ Focus CMY Compact is a powerful and versatile automated luminaire designed to meet the demands of modern lighting designers. Equipped with a potent 400-watt LED engine it delivers an impressive 14500 lumens of output making it equally at home on concert stages in theatres at corporate events or within houses of worship. 3-phase pan and tilt motors ensure lightning-fast movement and precise control while a motorized zoom range of 3° to 52° allows interchangeable beam spot or wash functionality providing maximum flexibility from a single fixture.
The Focus CMY Compact’s creative potential is enhanced by an extensive collection of beam-shaping features. Its full CMY colour mixing system is complemented by variable CTO (3200K–8500K) and a colour wheel featuring seven dichroic filters including a High CRI filter for applications requiring accurate colour rendering. Two GOBO wheels – one with eight rotating indexable patterns and another with ten static designs – allow for dynamic texture projection while dual rotating prisms (6-facet circular and 6-facet linear) and two frost filters (light and heavy) enable a wide variety of aerial and wash effects.
Engineered with professional control and connectivity in mind the fixture supports DMX RDM Art-Net and sACN and features Aria X2 wireless management and control for streamlined setup and monitoring as well as cable free DMX. It also includes NFC configuration a 6-button touch control panel and a full-colour reversible LCD display. Despite its impressive capabilities the Focus CMY Compact weighs under 45 lbs. making it easy to rig and transport. With its robust construction efficient power draw and extensive creative toolkit the Focus CMY Compact sets a new benchmark for high-output hybrid LED moving heads in a portable professional package.
2 year warranty 400W LED Engine Colour Temperature: 6900K (+/-350K) Motorized zoom range: 3°–52° Motorized Focus 14500 Total Lumens CRI: 64 (80 or 90 with HCRI Filter) 6-Facet Circular & 6-Facet Linear Rotating Prisms 2 x Frost Filters (Light and Heavy) Gobo Wheel 1: 8 Rotating Gobos (Interchangeable and Indexable) Gobo Wheel 2: 10 Static Gobos Full CMY Colour Mixing Variable CTO (3200K to 8500K) Colour Wheel with 7 Dichroic Colours (Includes High CRI Filter in Slot 7) Control protocols: DMX RDM sACN and ArtNet 3 DMX Channel Modes (Basic / Standard / Extended) Aria X2 Wireless Management System NFC System Pan/tilt transit lock Pan/tilt auto correction 16-Bit pan/tilt positioning Pan: 540°/630° Tilt: 270° 0–100% dimming Variable strobe Quick release omega clamps included 6 Button Touch Control Panel Full Colour 180° Reversible LCD Menu Display IP65 Power Locking In/Thru Seetronic 5-pin XLR Locking DMX In/Thru Seetronic RJ45 Locking In/Thru Fan cooled
Power consumption: 450W Power supply: 100–240V 50/60Hz Dimensions (H×W×D): 597 × 360 × 234mm Weight: 20.2kg
