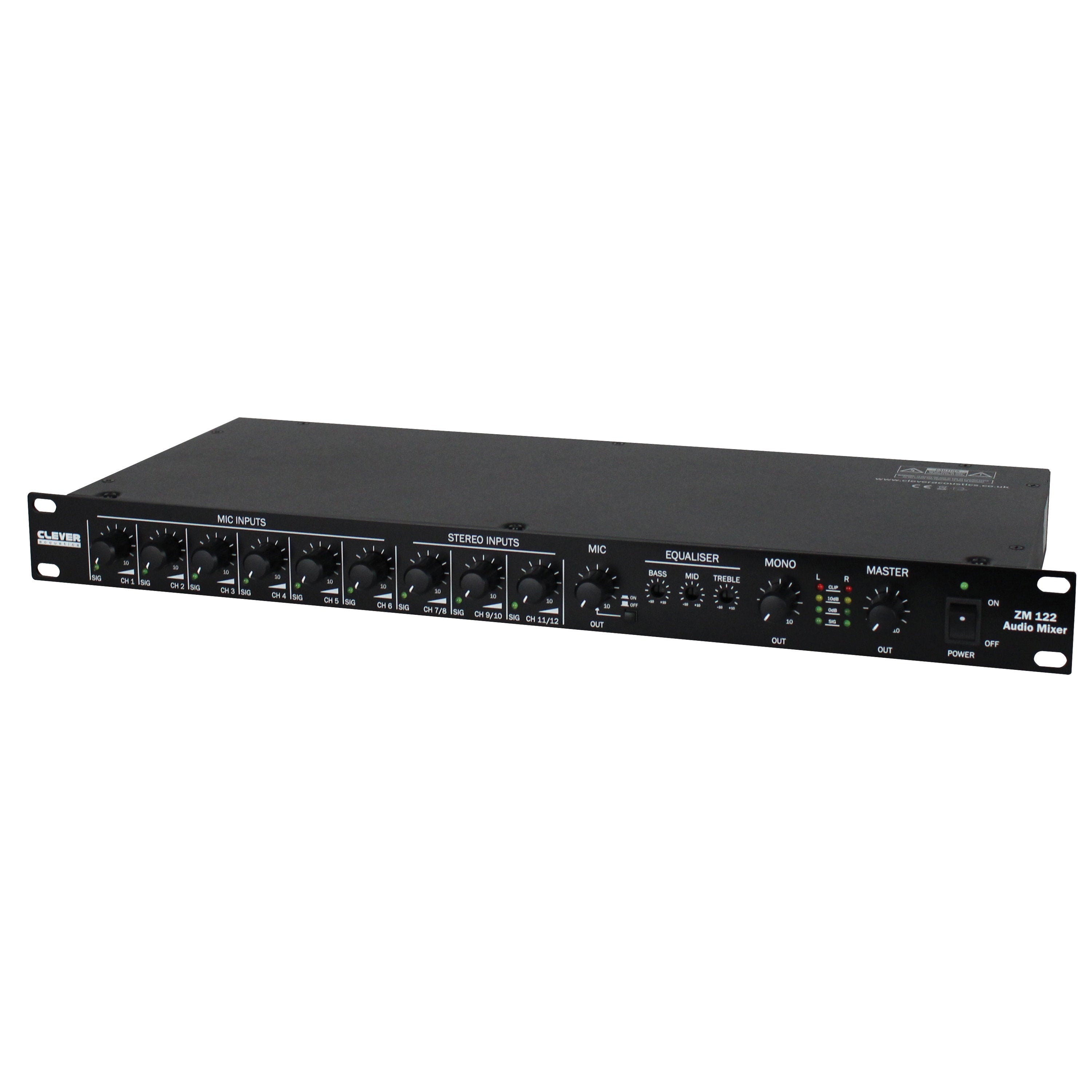

The ZM 122 rackmountable audio mixer from Clever Acoustics is ideal for public address and background music systems where multiple inputs are required. Suitable for use in a wide range of applications the ZM 122 offers the user a clean simple control surface while retaining a large number of features for complex audio systems. The ZM 122 mixer has 9 input channels each with adjustable volume controls. Six of the channels are microphone inputs with XLR 1/4” combo sockets the other three are stereo line level inputs. Adding to the features the ZM 122 has a 3 band EQ mono out and microphone out all in a 1U 19” rack mount unit.

3 year warranty Six mono channels with combo XLR/Jack input each with Mic/Mic+ Phantom/Line selector Three stereo line level inputs via phono sockets Low distortion microphone pre-amplifiers with high dynamic range Individual channel level control with signal LED to indicate input signal Microphone 1 features adjustable priority override Stereo line output via balanced XLRs Mono output via 6.35mm (1/4”) unbalanced jack with volume control Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control and on/off switch Stereo record output via unbalanced phono sockets 3-band EQ for low mid high Master volume control 4-segment LED signal level meters AC 220V-240V and DC 24V operating voltage 1U 19” rackmount chassis with brushed aluminium front panel

Power supply: 220-240V~50/60Hz AC or 24V DC Power consumption: 35W Dimensions (H x W x D): 44 x 483 x 238mm Weight: 3.9kg
