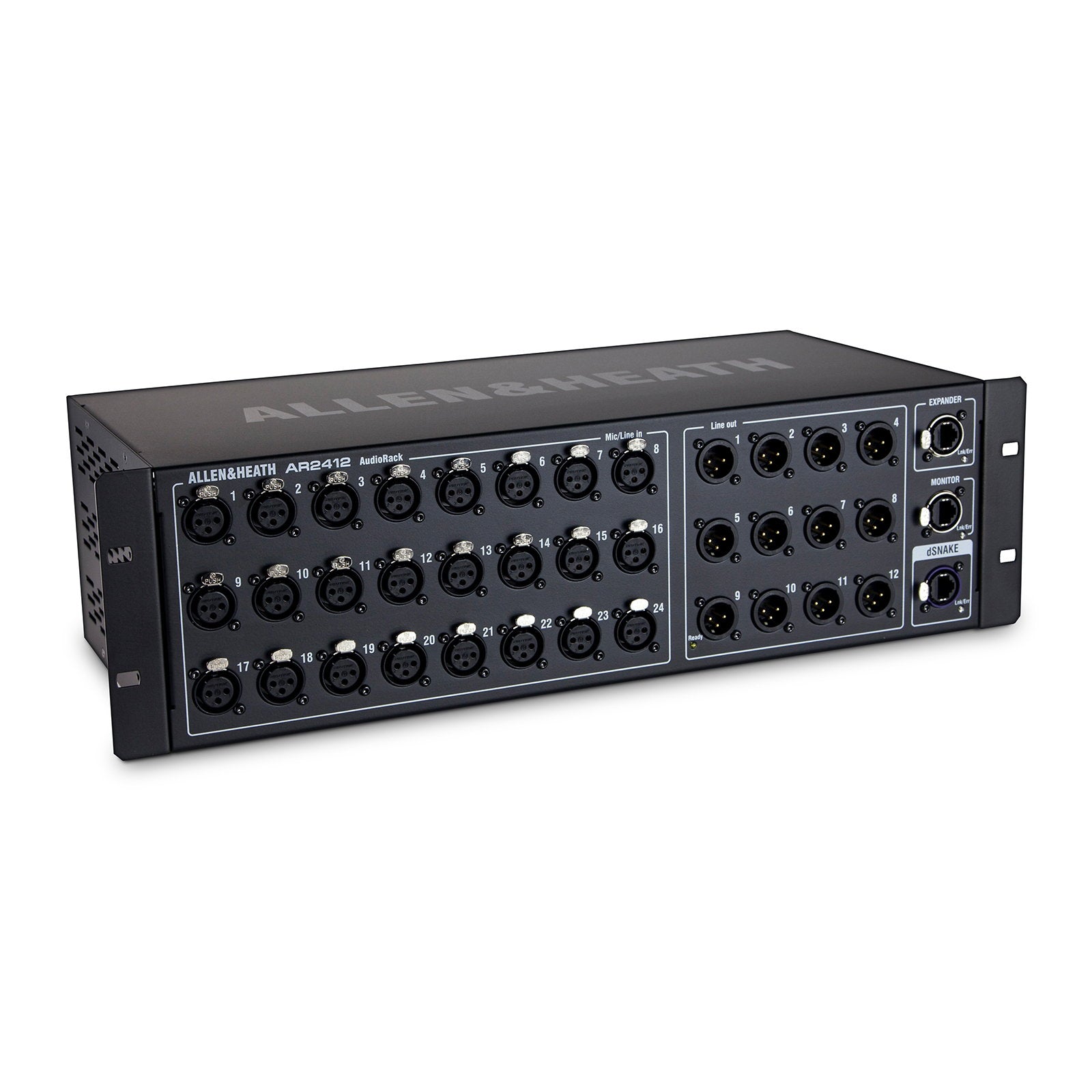

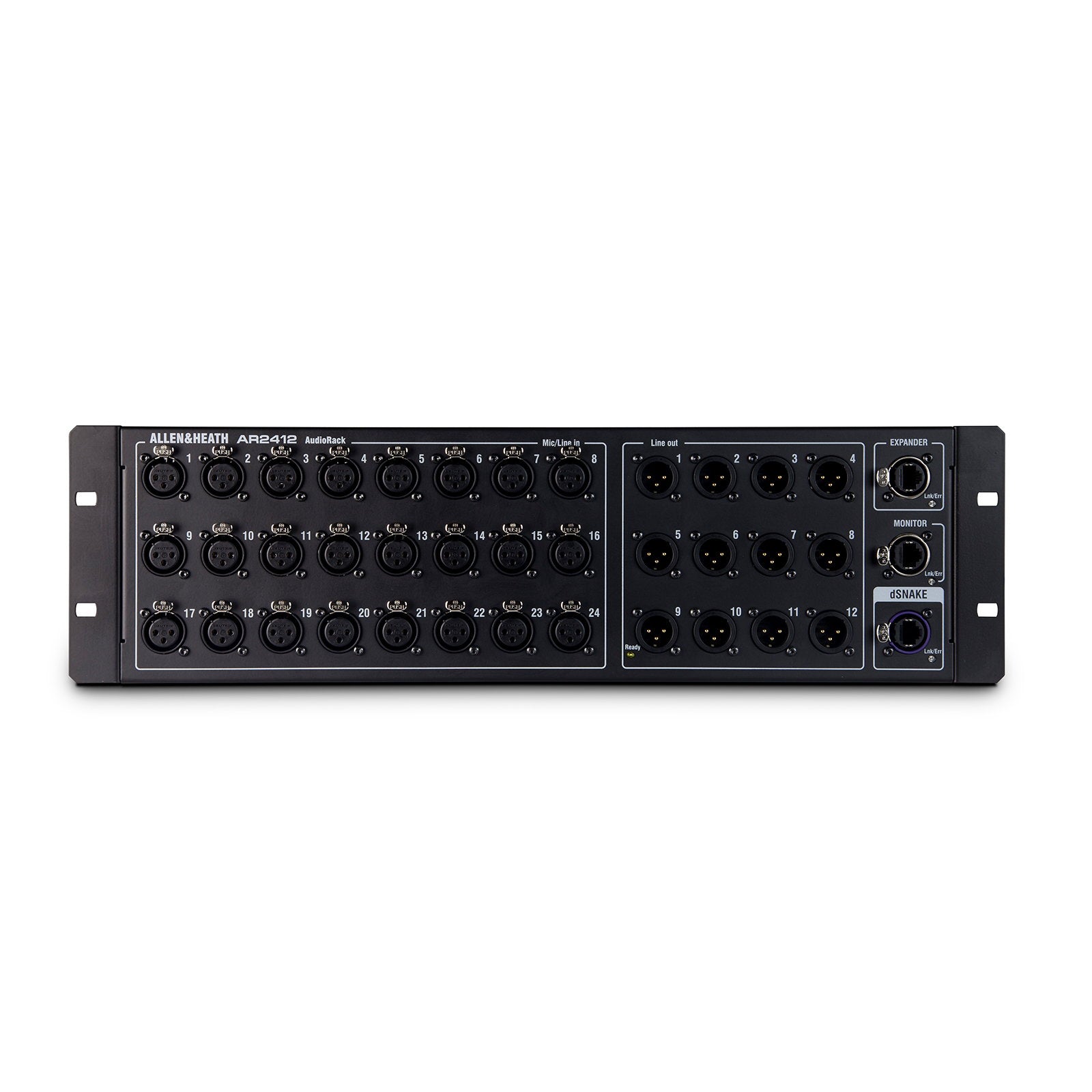

The Allen & Heath AR2412 is a 48kHz remote AudioRack featuring 24 XLR mic preamps and 12 XLR line outputs. Compatible with Qu SQ Avantis mixers and the AHM-64 matrix processor it connects via a single Cat5 using the dSNAKE protocol providing up to 100m of distance between the mixer and I/O. The AR2412 supports remote preamp control scene recall personal monitoring via ME-1 and expansion through the AR84 or AB168 AudioRacks. It’s the ideal remote stagebox solution for fixed installs live sound and touring.

• 24 remote mic preamps on balanced XLR
• 12 balanced XLR line outputs
• dSNAKE connection over a single Cat5 cable (up to 100m)
• Remote preamp control with scene recall
• Expander port for daisy-chaining AR84 or AB168
• Dedicated ME personal monitor port
• Locking EtherCon connectors
• Compatible with Qu SQ Avantis and AHM-64
• 3U rack-mountable chassis

• Inputs: 24 x XLR mic/line preamps
• Outputs: 12 x XLR line outputs
• Connection: dSNAKE over Cat5 (locking EtherCon)
• Compatibility: Qu SQ Avantis AHM-64
• Expansion: Expander port for AR84 or AB168
• Monitoring: Dedicated ME port for personal mixers
• Rack Size: 3U
• Max Cable Length: 100m (328ft)
