Low profile ceiling or panel mounting boundary microphone with an omnidirectional pick-up pattern which is suitable for use where discreet audio surveillance is required. Applications range from audio pick-up in induction loop systems to audio monitoring and recording for CCTV systems.
Threaded for up to 50mm through-hole mounting
Omnidirectional pickup pattern
Power supply:9-52Vdc phantom power
Cutout:20mmØ
Connection:XLR male
Frequency response:50Hz-17kHz
Max. input SPL:140dB @ 1kHz (≤1% THD)
Sensitivity:-39dB ±3dB (0dB=1V/Pa at 1kHz)
Impedance:200 Ohms ±30% (at 1 kHz)
Dimensions:72 x 32mmØ
Weight:76g
Specifications
Phantom powered (9-52Vdc)Threaded for up to 50mm through-hole mounting
Omnidirectional pickup pattern
Power supply:9-52Vdc phantom power
Cutout:20mmØ
Connection:XLR male
Frequency response:50Hz-17kHz
Max. input SPL:140dB @ 1kHz (≤1% THD)
Sensitivity:-39dB ±3dB (0dB=1V/Pa at 1kHz)
Impedance:200 Ohms ±30% (at 1 kHz)
Dimensions:72 x 32mmØ
Weight:76g

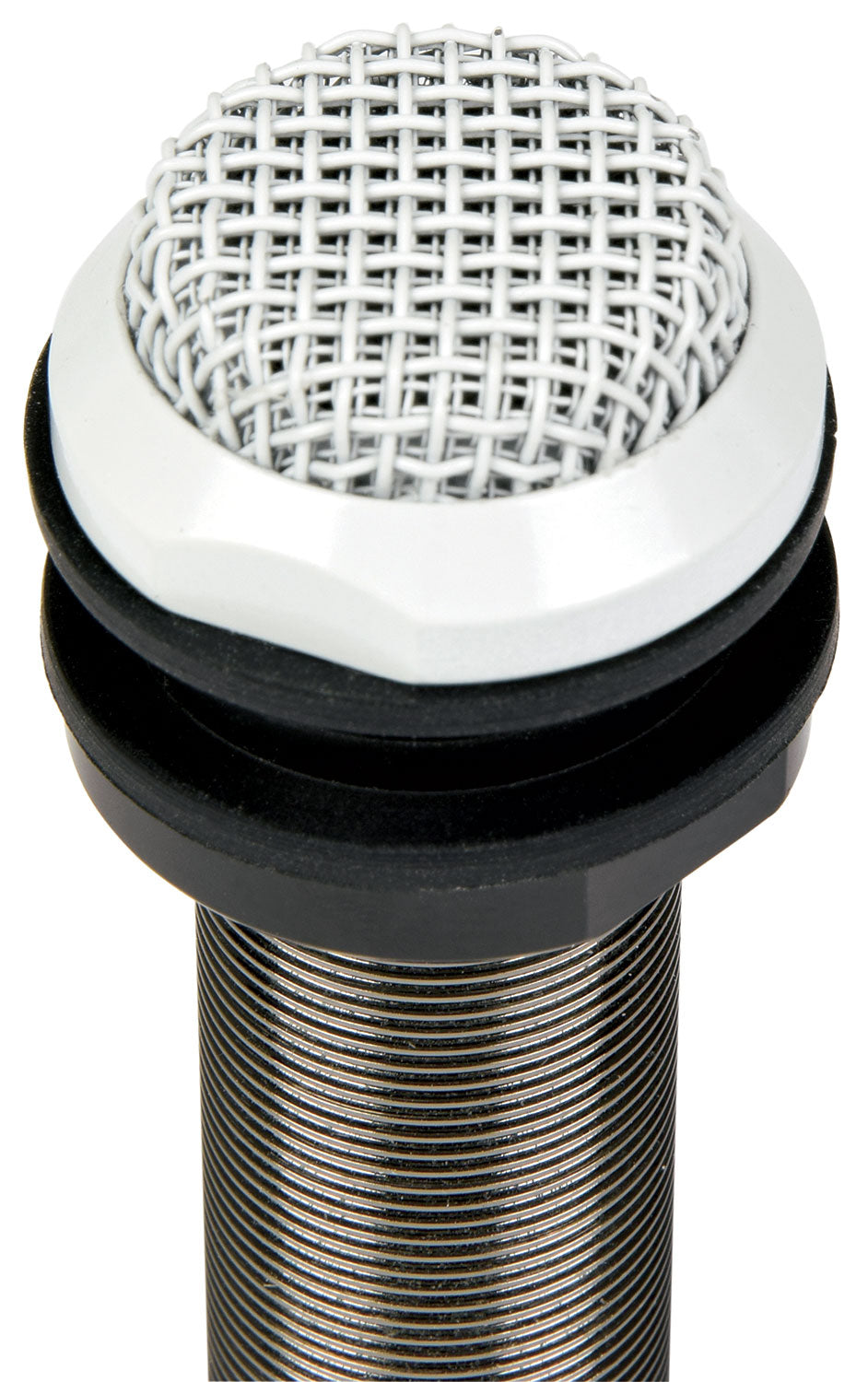

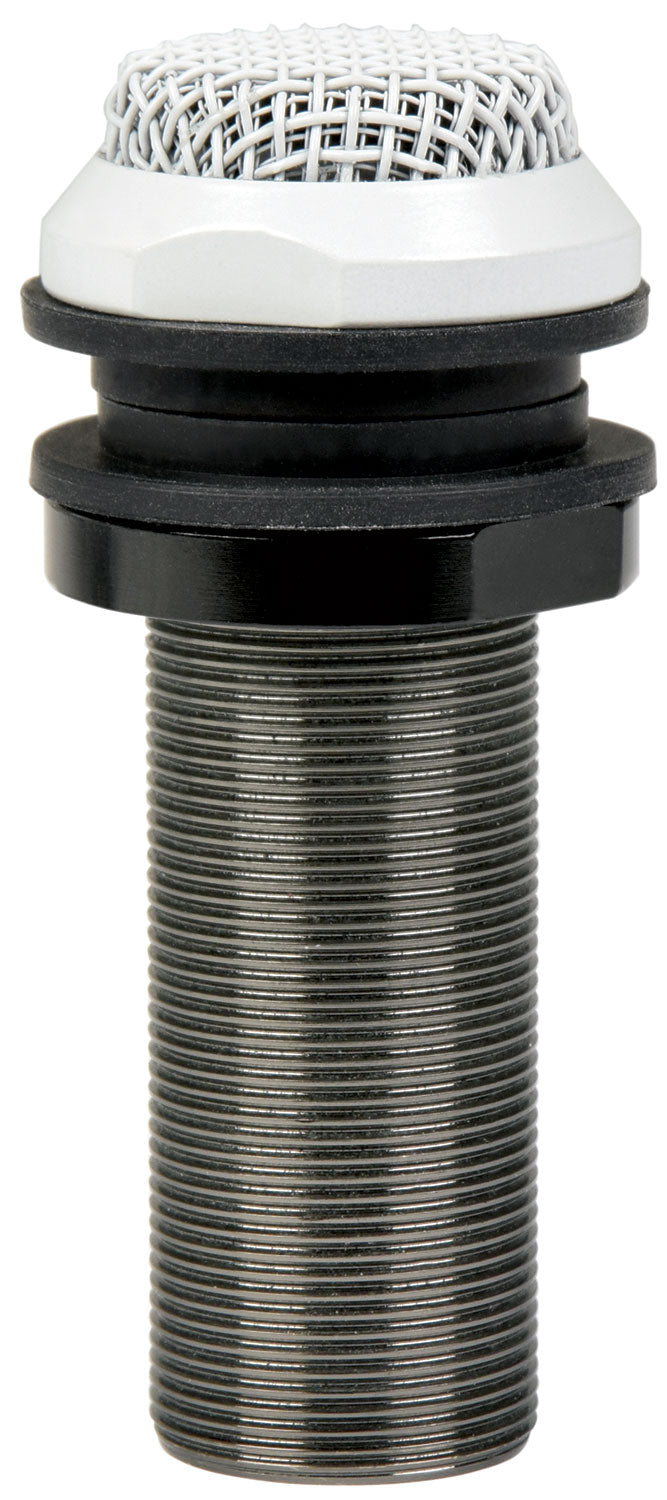

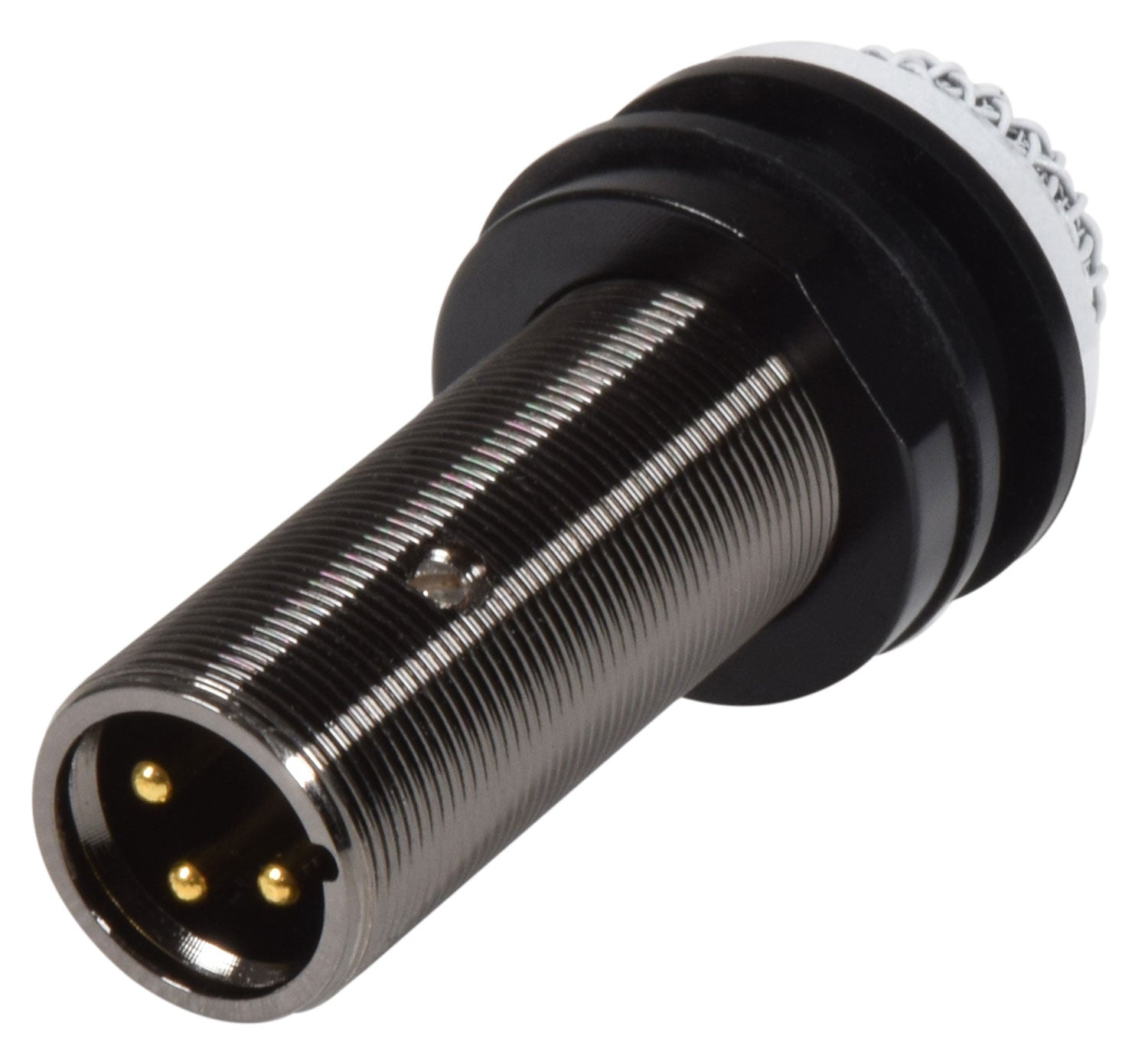

Adastra CBM20 Ceiling Boundary Mic
Brand: Adastra
SKU: 952.347UK
Regular price
£39.99
Pickup available at Venutec
Usually ready in 24 hours
Adastra CBM20 Ceiling Boundary Mic
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Low profile ceiling or panel mounting boundary microphone with an omnidirectional pick-up pattern which is suitable for use where discreet audio surveillance is required. Applications range from audio pick-up in induction loop systems to audio monitoring and recording for CCTV systems.
Threaded for up to 50mm through-hole mounting
Omnidirectional pickup pattern
Power supply:9-52Vdc phantom power
Cutout:20mmØ
Connection:XLR male
Frequency response:50Hz-17kHz
Max. input SPL:140dB @ 1kHz (≤1% THD)
Sensitivity:-39dB ±3dB (0dB=1V/Pa at 1kHz)
Impedance:200 Ohms ±30% (at 1 kHz)
Dimensions:72 x 32mmØ
Weight:76g
Specifications
Phantom powered (9-52Vdc)Threaded for up to 50mm through-hole mounting
Omnidirectional pickup pattern
Power supply:9-52Vdc phantom power
Cutout:20mmØ
Connection:XLR male
Frequency response:50Hz-17kHz
Max. input SPL:140dB @ 1kHz (≤1% THD)
Sensitivity:-39dB ±3dB (0dB=1V/Pa at 1kHz)
Impedance:200 Ohms ±30% (at 1 kHz)
Dimensions:72 x 32mmØ
Weight:76g
