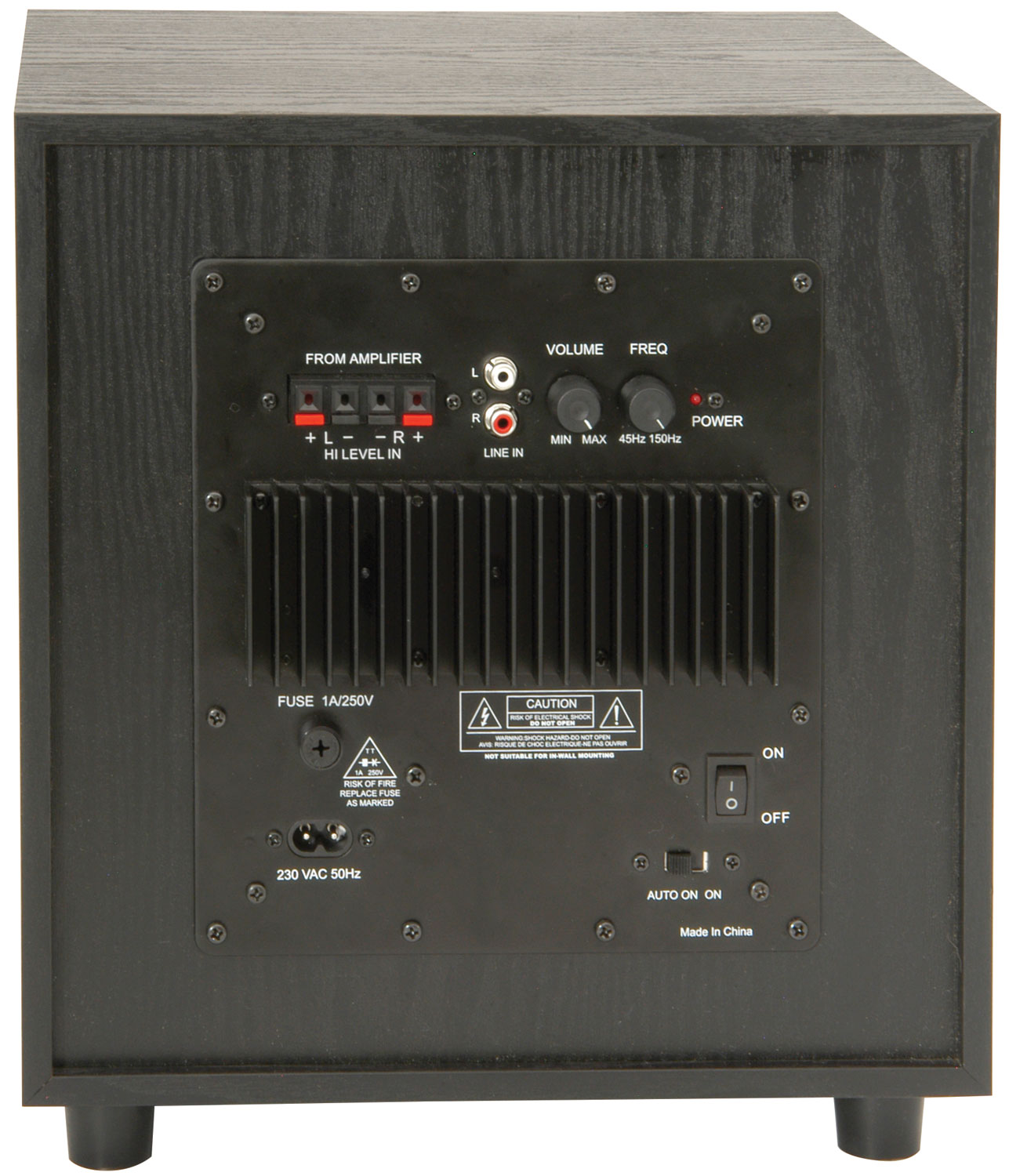

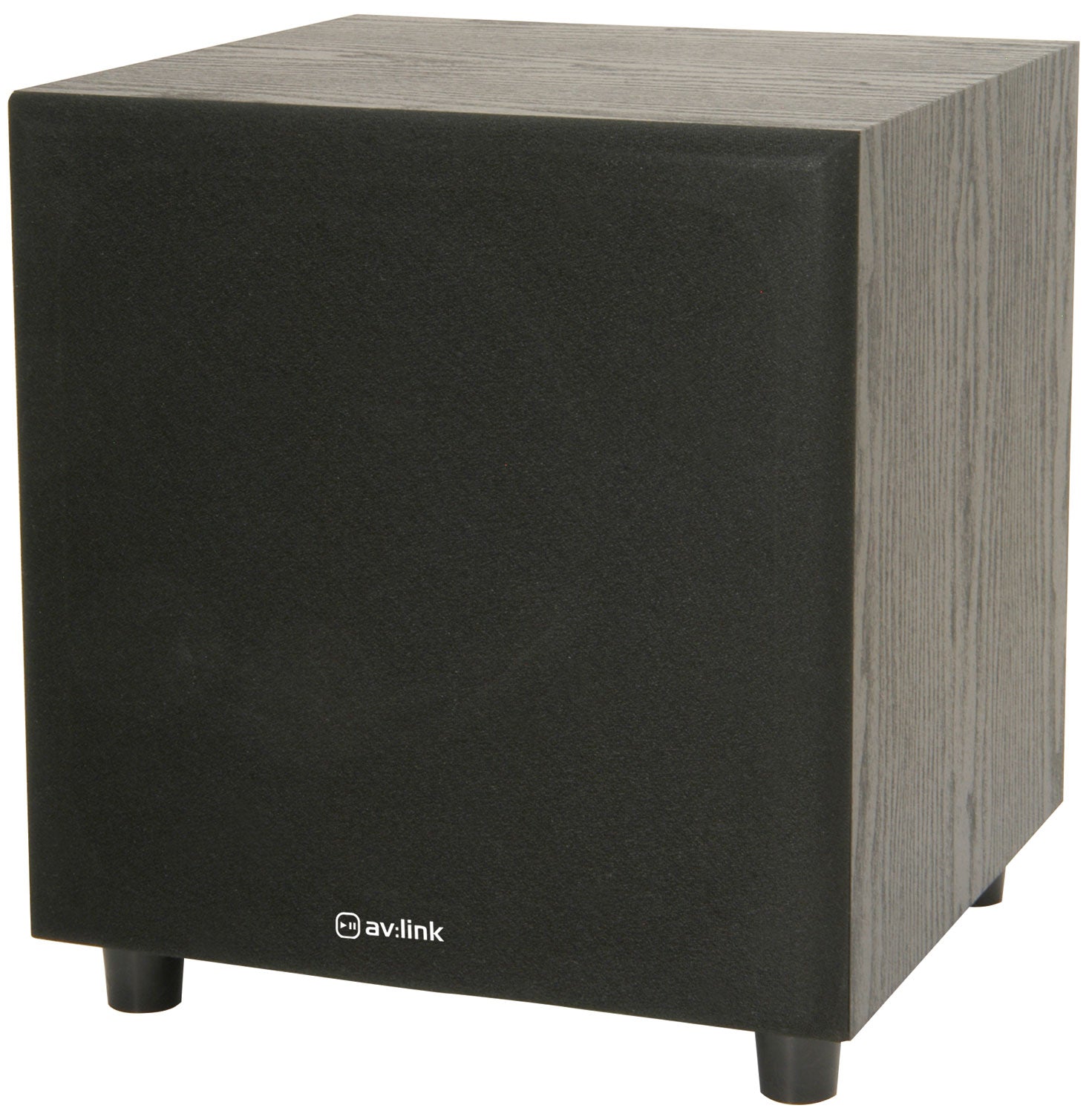

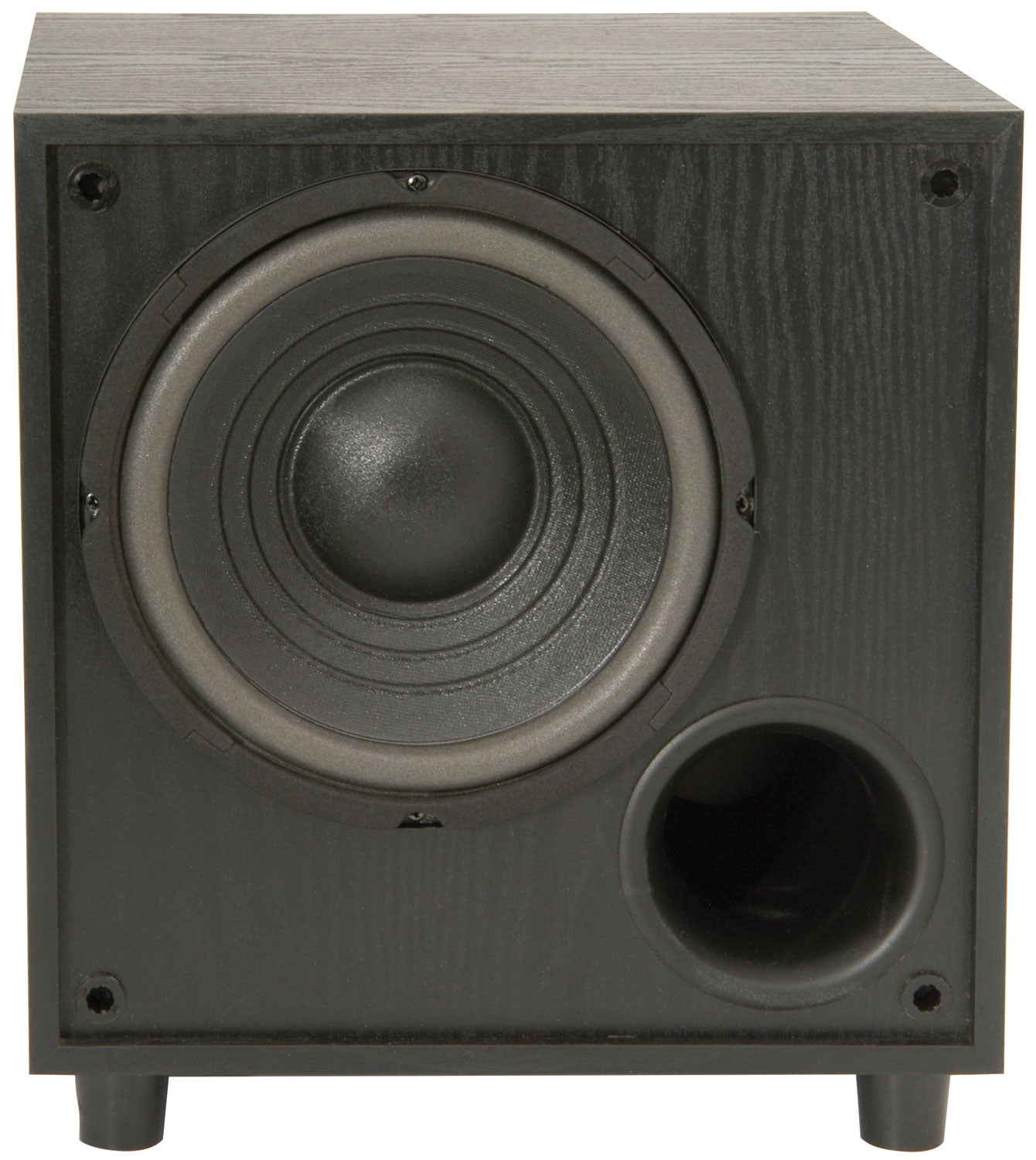

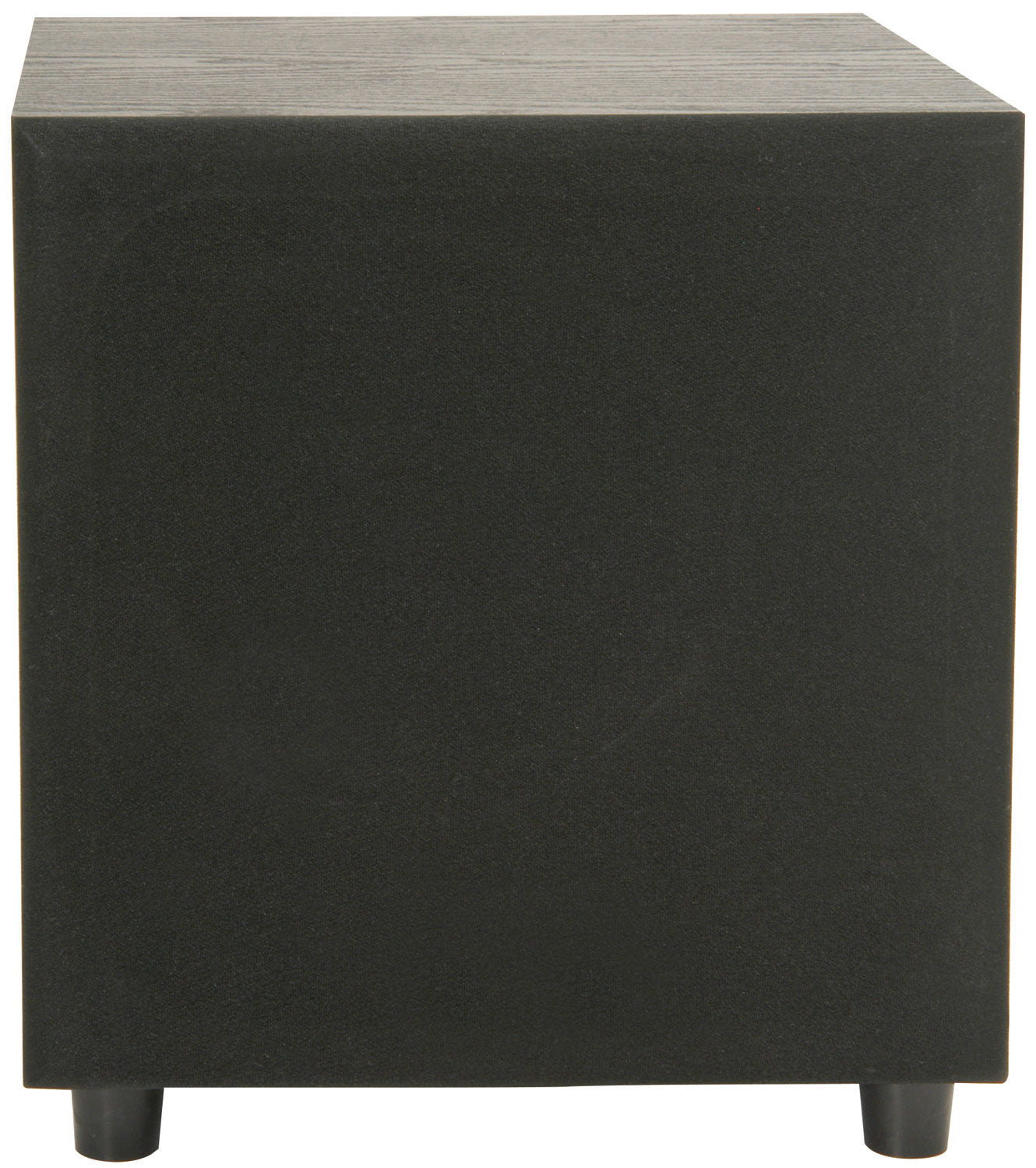

Active sub cabinet with 8" (20cm) reinforced driver and internal amplifier with active filter circuit. Inputs are on twin RCA or from a stereo amplifier on spring terminals (between amp and mid-top speakers). Cutoff frequency and Gain rotary controls can be adjusted as required. "Auto Off" function deactivates the amplifier when no incoming signal is detected to conserve energy.
Auto off function conserves energy
Speaker level or line level inputs
Power supply:220-250Vac, 50/60Hz (Fig 8)
Connections:Speaker level input terminals, RCA line level in
Frequency response:50 - 250Hz
Peak output:200W
Rated output power:100W
Driver:20cm (8") reinforced cone
Dimensions:300 x 330 x 300mm
Weight:7.44kg
Cut-off frequency:45 - 150Hz
Speaker : impedance:4 Ohms
Specifications
Integral amplifier with variable crossoverAuto off function conserves energy
Speaker level or line level inputs
Power supply:220-250Vac, 50/60Hz (Fig 8)
Connections:Speaker level input terminals, RCA line level in
Frequency response:50 - 250Hz
Peak output:200W
Rated output power:100W
Driver:20cm (8") reinforced cone
Dimensions:300 x 330 x 300mm
Weight:7.44kg
Cut-off frequency:45 - 150Hz
Speaker : impedance:4 Ohms
AV:Link M8S active sub cabinet 8in 100W
Brand: AV:Link
SKU: 170.190UK
Regular price
£159.00
Pickup available at Venutec
Usually ready in 24 hours
AV:Link M8S active sub cabinet 8in 100W
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Active sub cabinet with 8" (20cm) reinforced driver and internal amplifier with active filter circuit. Inputs are on twin RCA or from a stereo amplifier on spring terminals (between amp and mid-top speakers). Cutoff frequency and Gain rotary controls can be adjusted as required. "Auto Off" function deactivates the amplifier when no incoming signal is detected to conserve energy.
Auto off function conserves energy
Speaker level or line level inputs
Power supply:220-250Vac, 50/60Hz (Fig 8)
Connections:Speaker level input terminals, RCA line level in
Frequency response:50 - 250Hz
Peak output:200W
Rated output power:100W
Driver:20cm (8") reinforced cone
Dimensions:300 x 330 x 300mm
Weight:7.44kg
Cut-off frequency:45 - 150Hz
Speaker : impedance:4 Ohms
Specifications
Integral amplifier with variable crossoverAuto off function conserves energy
Speaker level or line level inputs
Power supply:220-250Vac, 50/60Hz (Fig 8)
Connections:Speaker level input terminals, RCA line level in
Frequency response:50 - 250Hz
Peak output:200W
Rated output power:100W
Driver:20cm (8") reinforced cone
Dimensions:300 x 330 x 300mm
Weight:7.44kg
Cut-off frequency:45 - 150Hz
Speaker : impedance:4 Ohms
