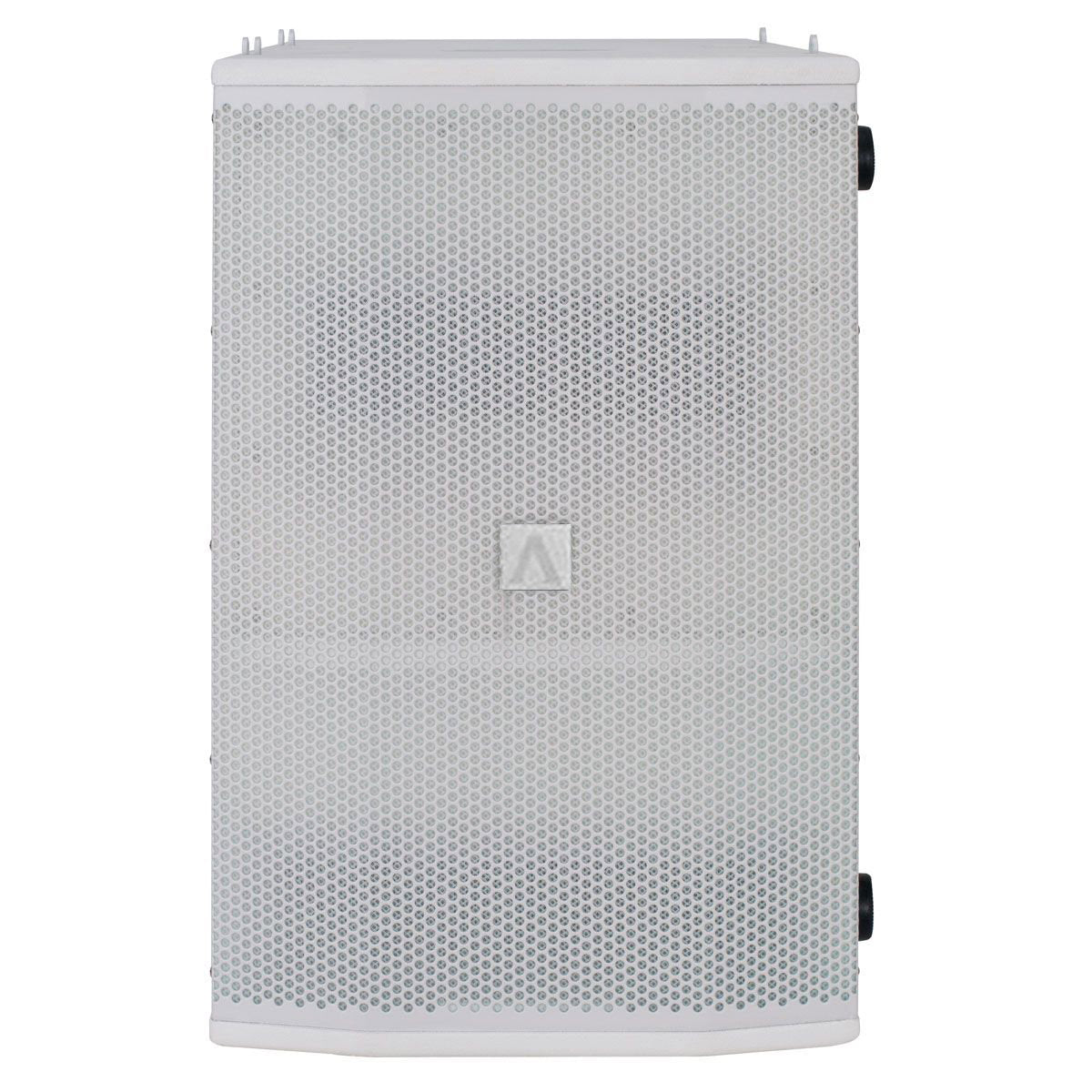

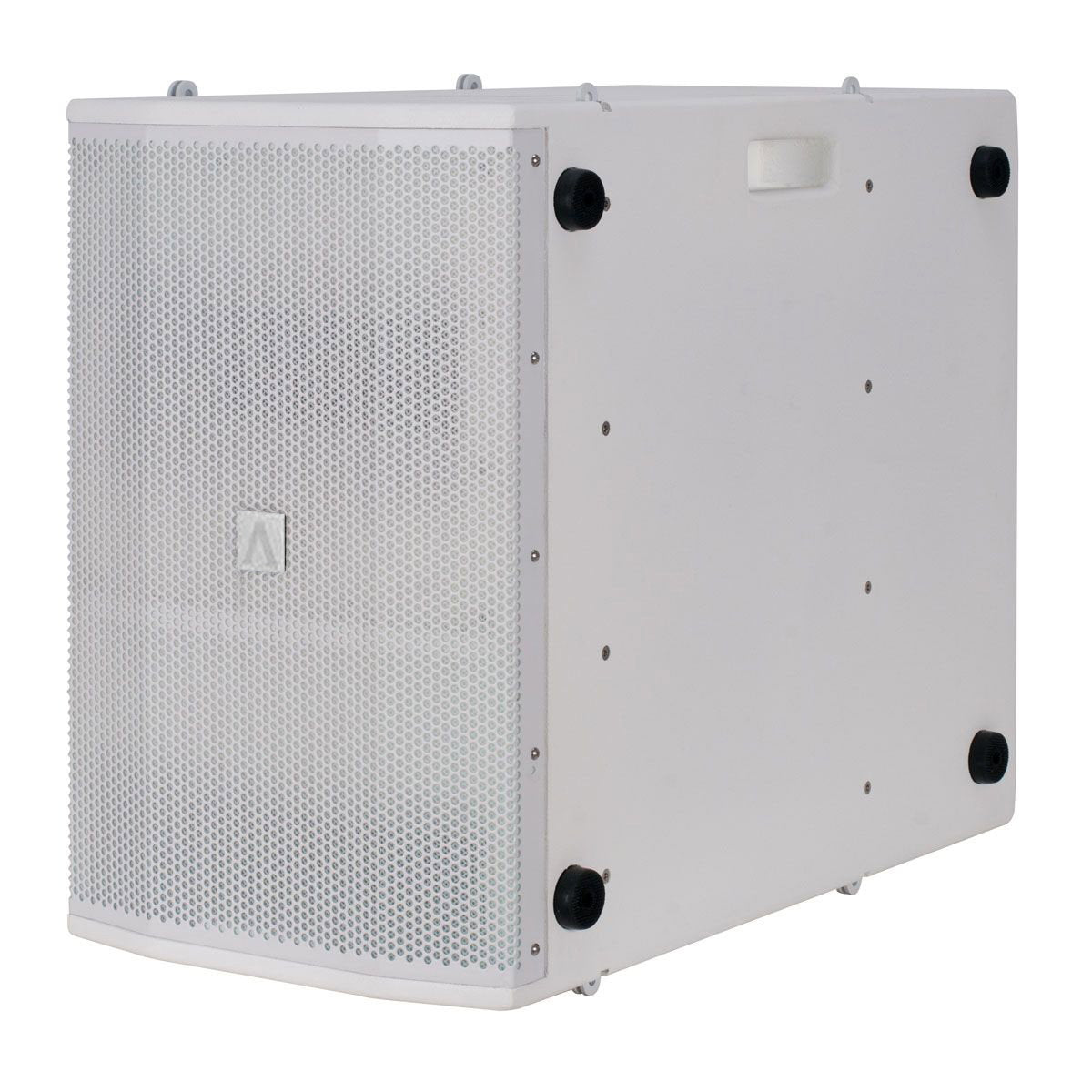

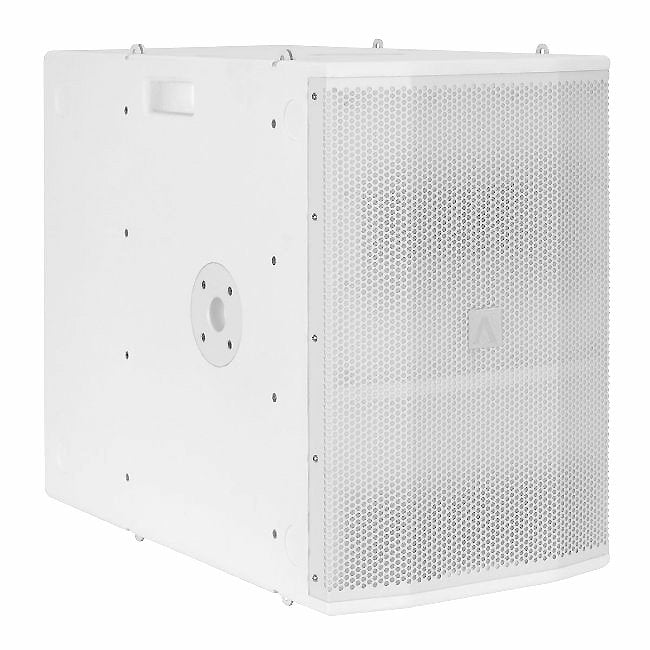

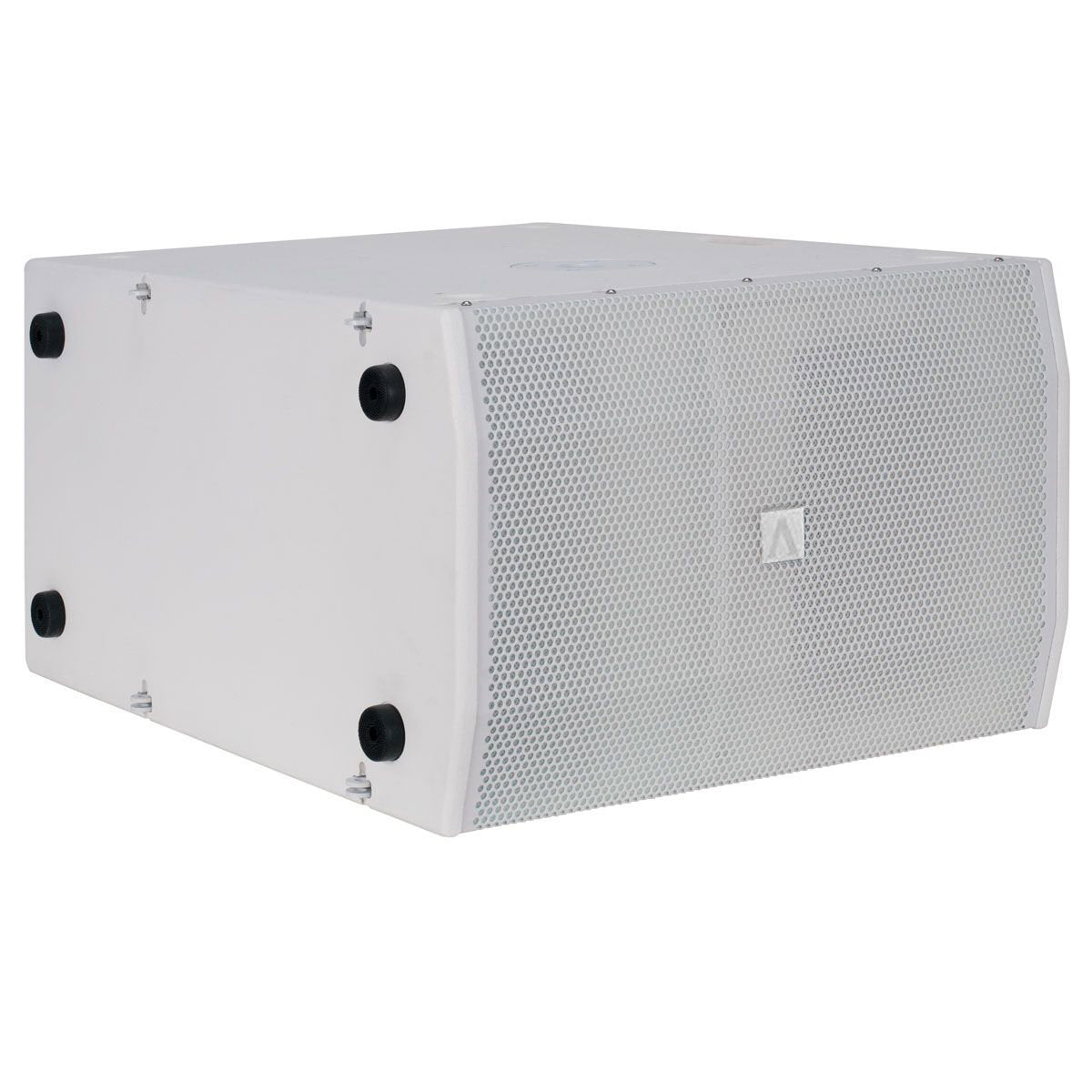

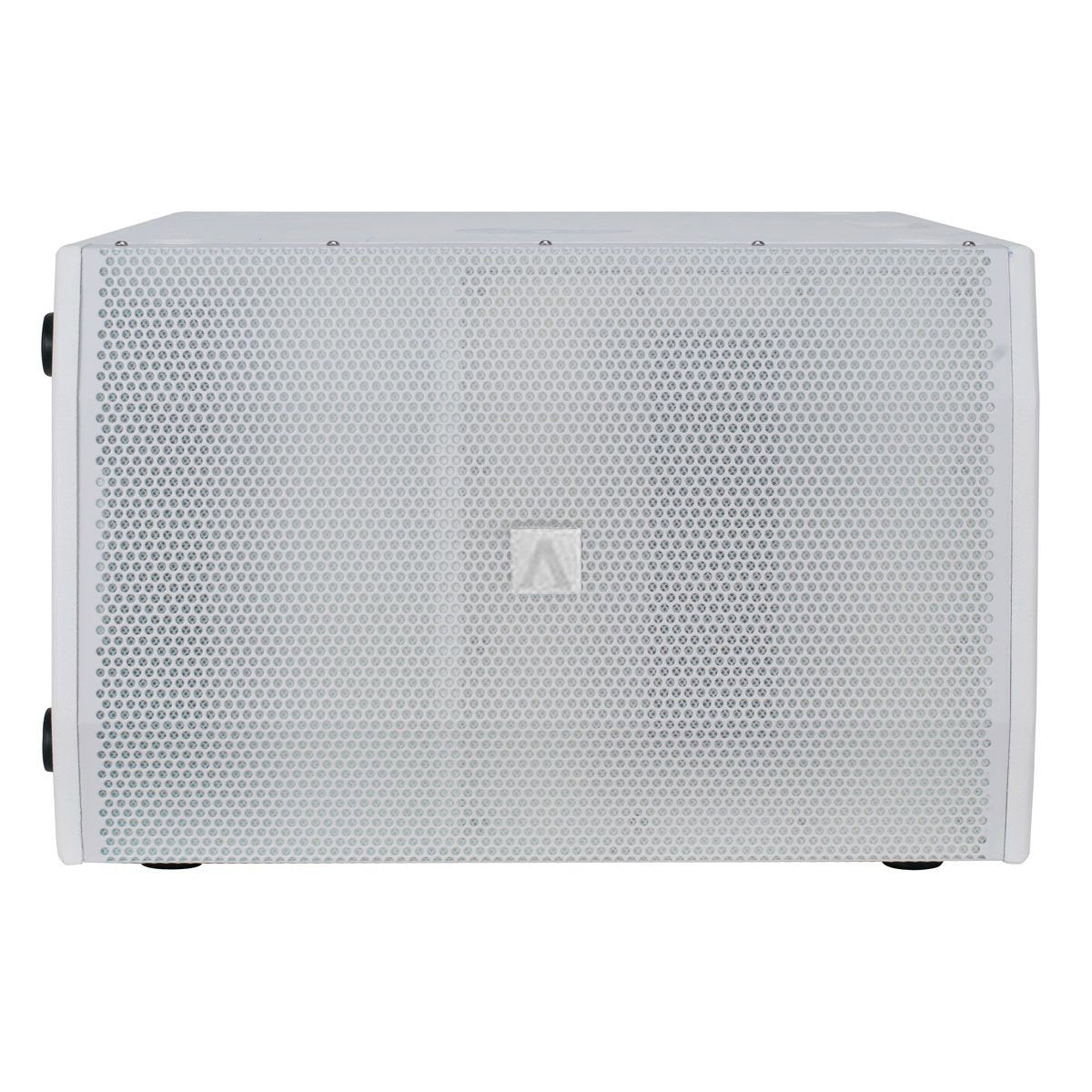

Dual 10-inch woofers with 700 watts RMS class D power amplifier. Part of the Imperio Mini Line Array System White.

Avante Audio's Imperio mini line array system is a great solution for small to mid-sized venues and can be expanded by adding additional Imperio units as your needs require. The Imperio system consist of the Imperio mid/high unit which features dual 4.75" woofers and 6 inverted dome tweeters (IDVAT - Inverted Dome Vertical Array Technology) HF drivers a 240 watt RMS class D power amplifier and 24 bit DSP the Imperio sub which has a 10" woofer along with a 350 watt RMS class D power amplifier and for when more bass is required we recommend the Imperio SUB210 which features dual 10" woofers with 700 watts RMS (2 x 350 watt RMS 2100 watt peak) class D power amplifier

Imperio accessories include: Imperio Flybar Lg White Imperio Flybar Small White Imperio Pole w/mounting bracket White LinkPin Kit4

Specifications :

Speaker

• Dual 10-inch Active Subwoofer

• Driver Information: Two 10" woofers with 2.5” Voice Coils

• Max Output SPL: 124dB

Coverage

• Frequency Range: 40Hz – 150Hz

• 6th Order Bandpass Design

Construction

• Cabinet: Plywood white finish

• Grill: 1.2mm steel

• 2x M20 Screw Pole Mount (Can be used vertically or horizontally)

• Flyable with optional flybar

Amplification

• 2x 350W Class D Amplifier Module 1400W Peak

• LED Power / Signal / Clip Indicator

• Phase Switchable (0 / 180)

• Internal Selectable X-Over (90Hz or 120Hz)

• Volume Control Dial

• Impedance: 8 Ohm

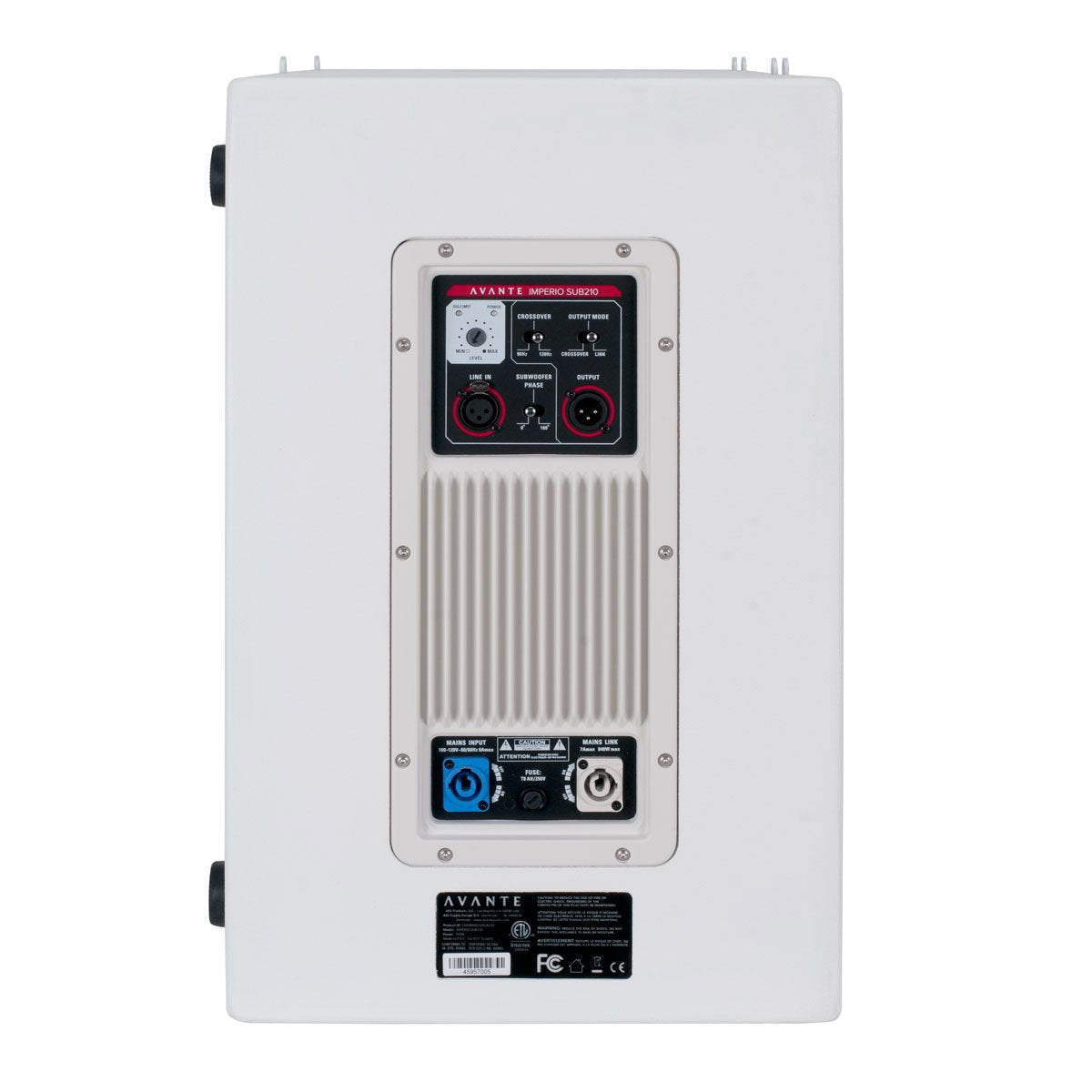

Connections

• Signal Input/Output : Locking 3pin XLR

• Power Input/Output: Locking Power

Electrical

• 100-120V / 220-240V ~ 50/60Hz (country specific)

Dimensions & Weight

• Dimensions: (W x D x H) 670 x 362 x 575mm

• Weight: 345 kg
