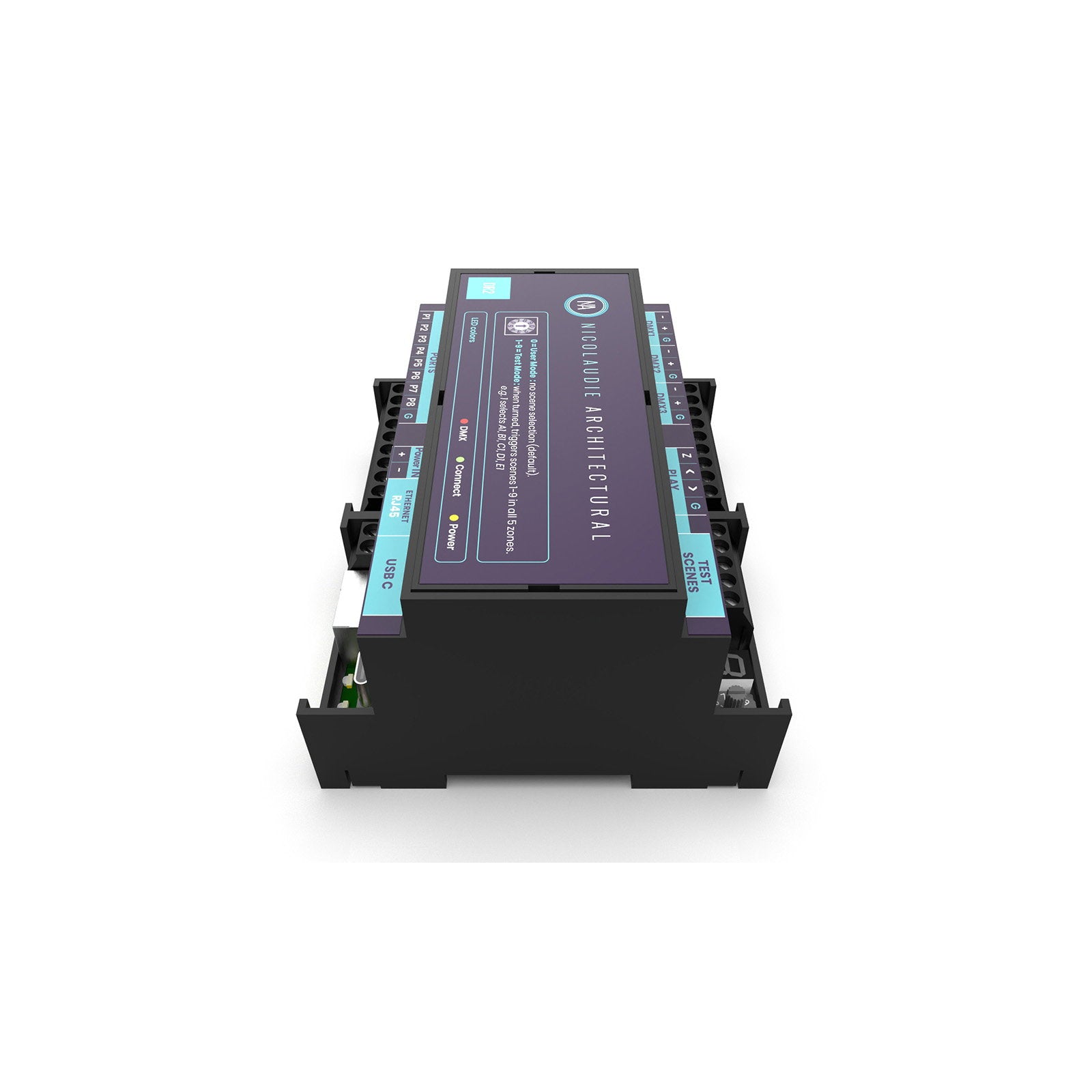

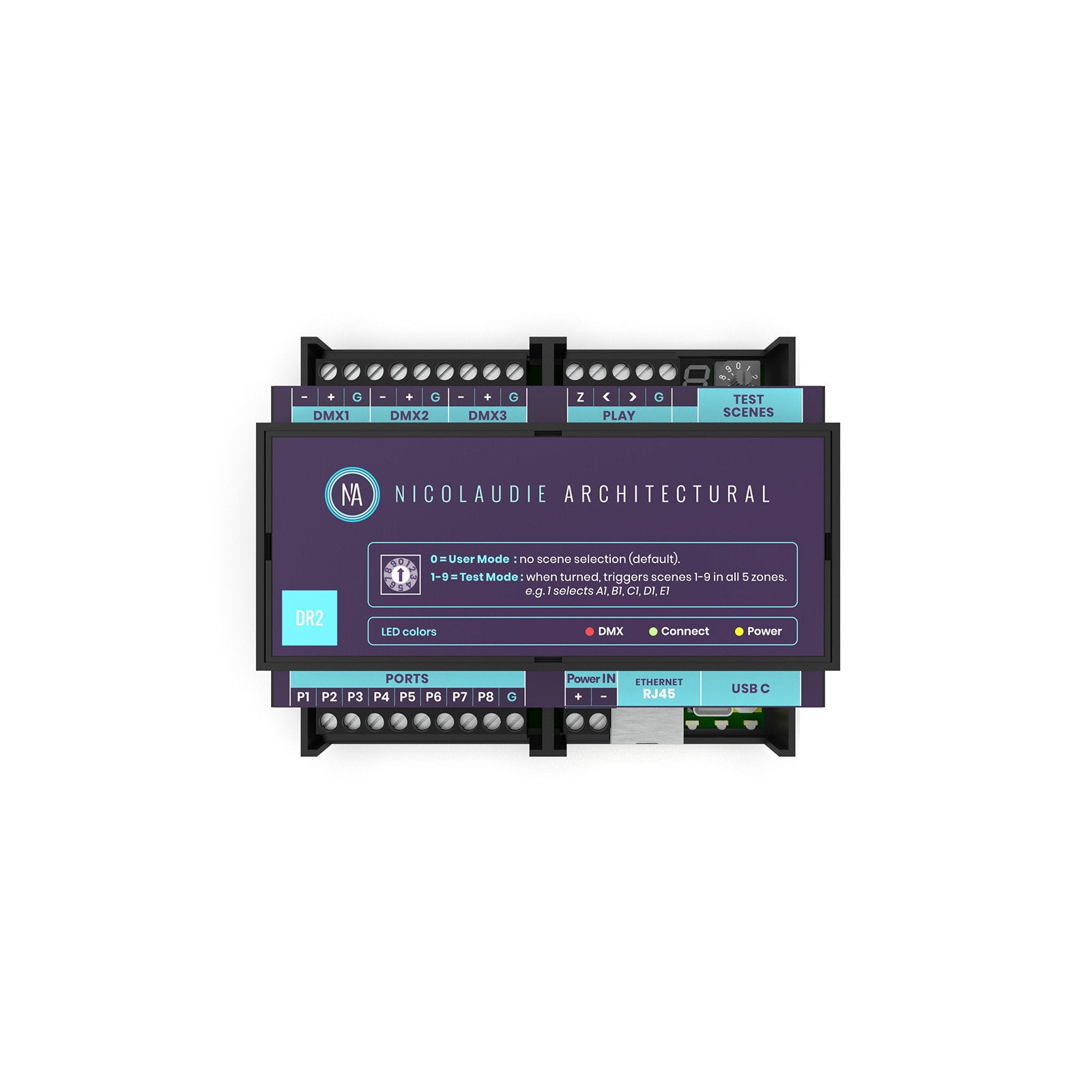

DINA-DR2 DIN Rail Lighting Controller
2 year warranty DMX Stand Alone controller Up to 3 x DMX512 universes (1536 channels) RDM compatible USB & Ethernet connectivity for programming/control Stand Alone mode with 99 scenes Play scenes in 5 areas / zones microSD slot 8+3 dry contact trigger ports Test scenes rotary switch Windows/Mac software to set dynamic colours/effects iPhone/iPad/Android remote and programming apps SUT Technology allows the device to be used with other Nicolaudie Group software via an online upgrade LS cloud compatibility
Input Power: 12V DC (8–15V range) Output Protocol: 3 x DMX512 Programmability: PC Mac Android iOS Connections: USB-C Ethernet Screw terminals for: 3 DMX/RDM Universes 8+3 Contact ports 12V power-in Battery holder: LIR2032 3.6V microSD slot Memory: SD Card Temperature: 0 to +50°C Buttons: Rotary switch OS Requirements: Mac OSX 10.8–10.14 Windows 7/8/10 Dimensions (H x W x D): 59 x 106 x 91mm Weight: 0.32kg
2 year warranty DMX Stand Alone controller Up to 3 x DMX512 universes (1536 channels) RDM compatible USB & Ethernet connectivity for programming/control Stand Alone mode with 99 scenes Play scenes in 5 areas / zones microSD slot 8+3 dry contact trigger ports Test scenes rotary switch Windows/Mac software to set dynamic colours/effects iPhone/iPad/Android remote and programming apps SUT Technology allows the device to be used with other Nicolaudie Group software via an online upgrade LS cloud compatibility
Input Power: 12V DC (8–15V range) Output Protocol: 3 x DMX512 Programmability: PC Mac Android iOS Connections: USB-C Ethernet Screw terminals for: 3 DMX/RDM Universes 8+3 Contact ports 12V power-in Battery holder: LIR2032 3.6V microSD slot Memory: SD Card Temperature: 0 to +50°C Buttons: Rotary switch OS Requirements: Mac OSX 10.8–10.14 Windows 7/8/10 Dimensions (H x W x D): 59 x 106 x 91mm Weight: 0.32kg
Nicolaudie Architectural DINA-DR2 DIN Rail Lighting Controller
Brand: Nicolaudie Architectural
SKU: NA0010
Regular price
£1,013.99
Need help with choosing the right product?
Click here to reach out to one of our experts.
DINA-DR2 DIN Rail Lighting Controller
2 year warranty DMX Stand Alone controller Up to 3 x DMX512 universes (1536 channels) RDM compatible USB & Ethernet connectivity for programming/control Stand Alone mode with 99 scenes Play scenes in 5 areas / zones microSD slot 8+3 dry contact trigger ports Test scenes rotary switch Windows/Mac software to set dynamic colours/effects iPhone/iPad/Android remote and programming apps SUT Technology allows the device to be used with other Nicolaudie Group software via an online upgrade LS cloud compatibility
Input Power: 12V DC (8–15V range) Output Protocol: 3 x DMX512 Programmability: PC Mac Android iOS Connections: USB-C Ethernet Screw terminals for: 3 DMX/RDM Universes 8+3 Contact ports 12V power-in Battery holder: LIR2032 3.6V microSD slot Memory: SD Card Temperature: 0 to +50°C Buttons: Rotary switch OS Requirements: Mac OSX 10.8–10.14 Windows 7/8/10 Dimensions (H x W x D): 59 x 106 x 91mm Weight: 0.32kg
2 year warranty DMX Stand Alone controller Up to 3 x DMX512 universes (1536 channels) RDM compatible USB & Ethernet connectivity for programming/control Stand Alone mode with 99 scenes Play scenes in 5 areas / zones microSD slot 8+3 dry contact trigger ports Test scenes rotary switch Windows/Mac software to set dynamic colours/effects iPhone/iPad/Android remote and programming apps SUT Technology allows the device to be used with other Nicolaudie Group software via an online upgrade LS cloud compatibility
Input Power: 12V DC (8–15V range) Output Protocol: 3 x DMX512 Programmability: PC Mac Android iOS Connections: USB-C Ethernet Screw terminals for: 3 DMX/RDM Universes 8+3 Contact ports 12V power-in Battery holder: LIR2032 3.6V microSD slot Memory: SD Card Temperature: 0 to +50°C Buttons: Rotary switch OS Requirements: Mac OSX 10.8–10.14 Windows 7/8/10 Dimensions (H x W x D): 59 x 106 x 91mm Weight: 0.32kg
