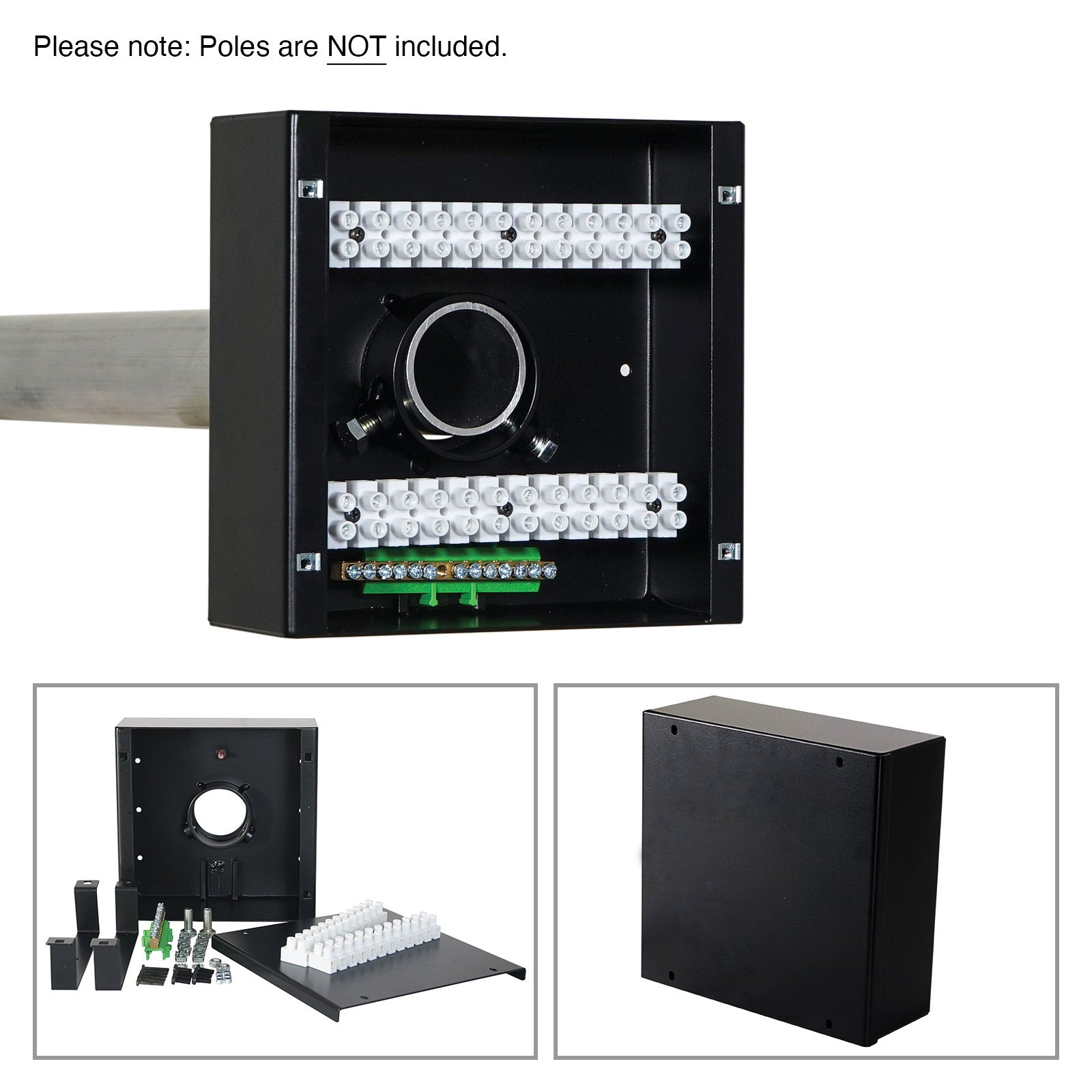

This end box is designed to fit onto the end of an internally wired lighting bar for neat and easy termination. This end box is manufactured from 1.5mm mild steel and is finished in black powder coat. It comes complete with 20A screw terminal strips for up to 12 circuits and has an internal tube clamp to attach the box to 48mm OD tube. An additional 6 way terminal kit can be fitted to allow up to 18 circuits in total (CONN1139).
Enclosure material 18 SWG mild steel Tube Clamp Accepts 48.3mm OD tube Durable powder coat finish
L&N terminal rating 380VAC 20A L&N terminal cable capacity 6mm CSA L&N terminal material Brass with steel screws Earth terminal bar cable capacity 1 x 25mm (max) and 8 x 16mm (max) CSA Dimensions 180mm x 180mm x 72mm Weight 1.6kg (complete)
Enclosure material 18 SWG mild steel Tube Clamp Accepts 48.3mm OD tube Durable powder coat finish
L&N terminal rating 380VAC 20A L&N terminal cable capacity 6mm CSA L&N terminal material Brass with steel screws Earth terminal bar cable capacity 1 x 25mm (max) and 8 x 16mm (max) CSA Dimensions 180mm x 180mm x 72mm Weight 1.6kg (complete)
Robolights IWB End Terminal Box 12 Circuit (EB/B)
Brand: Robolights
SKU: CONN1138
Regular price
£99.99
Pickup available at Venutec
Usually ready in 24 hours
Robolights IWB End Terminal Box 12 Circuit (EB/B)
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
This end box is designed to fit onto the end of an internally wired lighting bar for neat and easy termination. This end box is manufactured from 1.5mm mild steel and is finished in black powder coat. It comes complete with 20A screw terminal strips for up to 12 circuits and has an internal tube clamp to attach the box to 48mm OD tube. An additional 6 way terminal kit can be fitted to allow up to 18 circuits in total (CONN1139).
Enclosure material 18 SWG mild steel Tube Clamp Accepts 48.3mm OD tube Durable powder coat finish
L&N terminal rating 380VAC 20A L&N terminal cable capacity 6mm CSA L&N terminal material Brass with steel screws Earth terminal bar cable capacity 1 x 25mm (max) and 8 x 16mm (max) CSA Dimensions 180mm x 180mm x 72mm Weight 1.6kg (complete)
Enclosure material 18 SWG mild steel Tube Clamp Accepts 48.3mm OD tube Durable powder coat finish
L&N terminal rating 380VAC 20A L&N terminal cable capacity 6mm CSA L&N terminal material Brass with steel screws Earth terminal bar cable capacity 1 x 25mm (max) and 8 x 16mm (max) CSA Dimensions 180mm x 180mm x 72mm Weight 1.6kg (complete)
