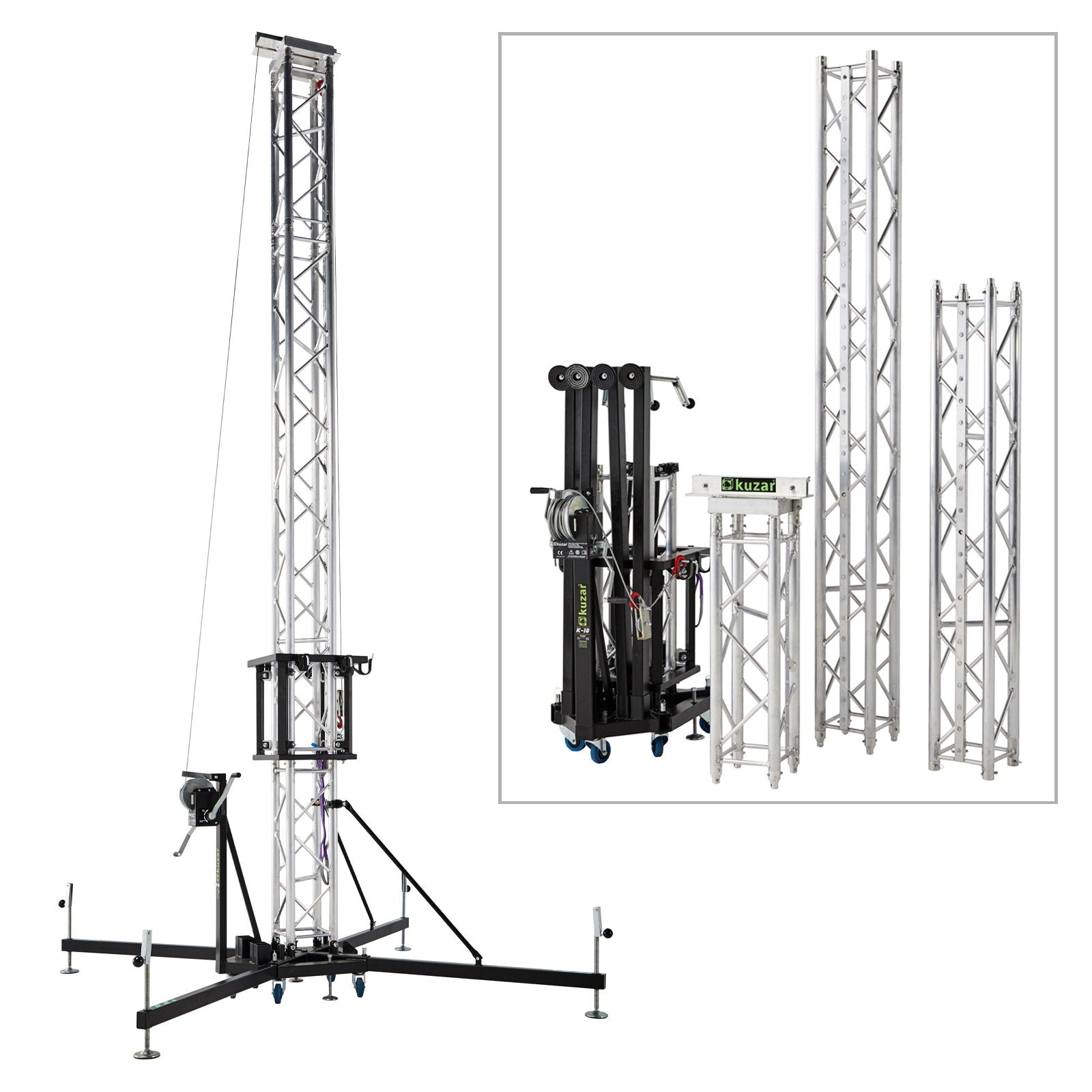

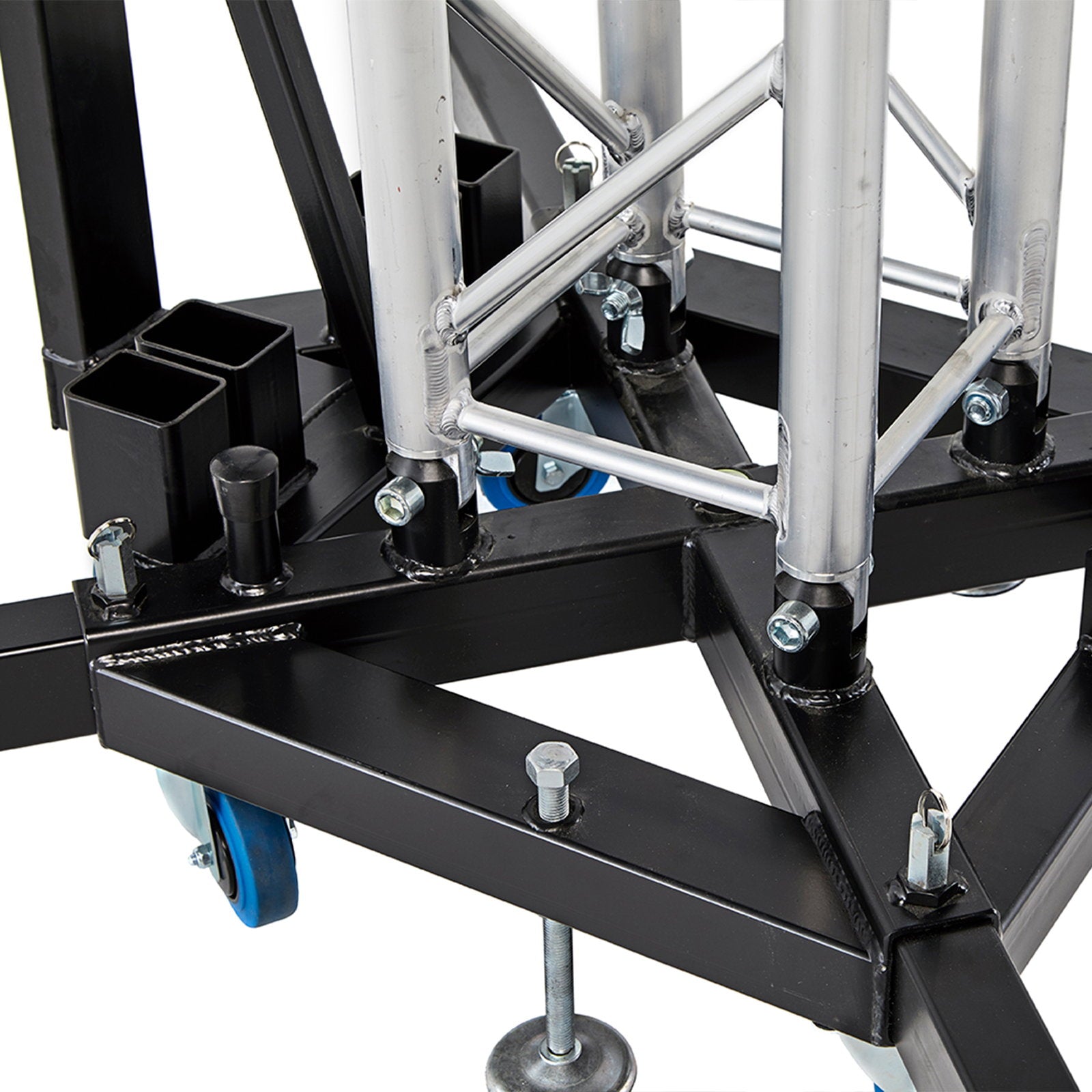

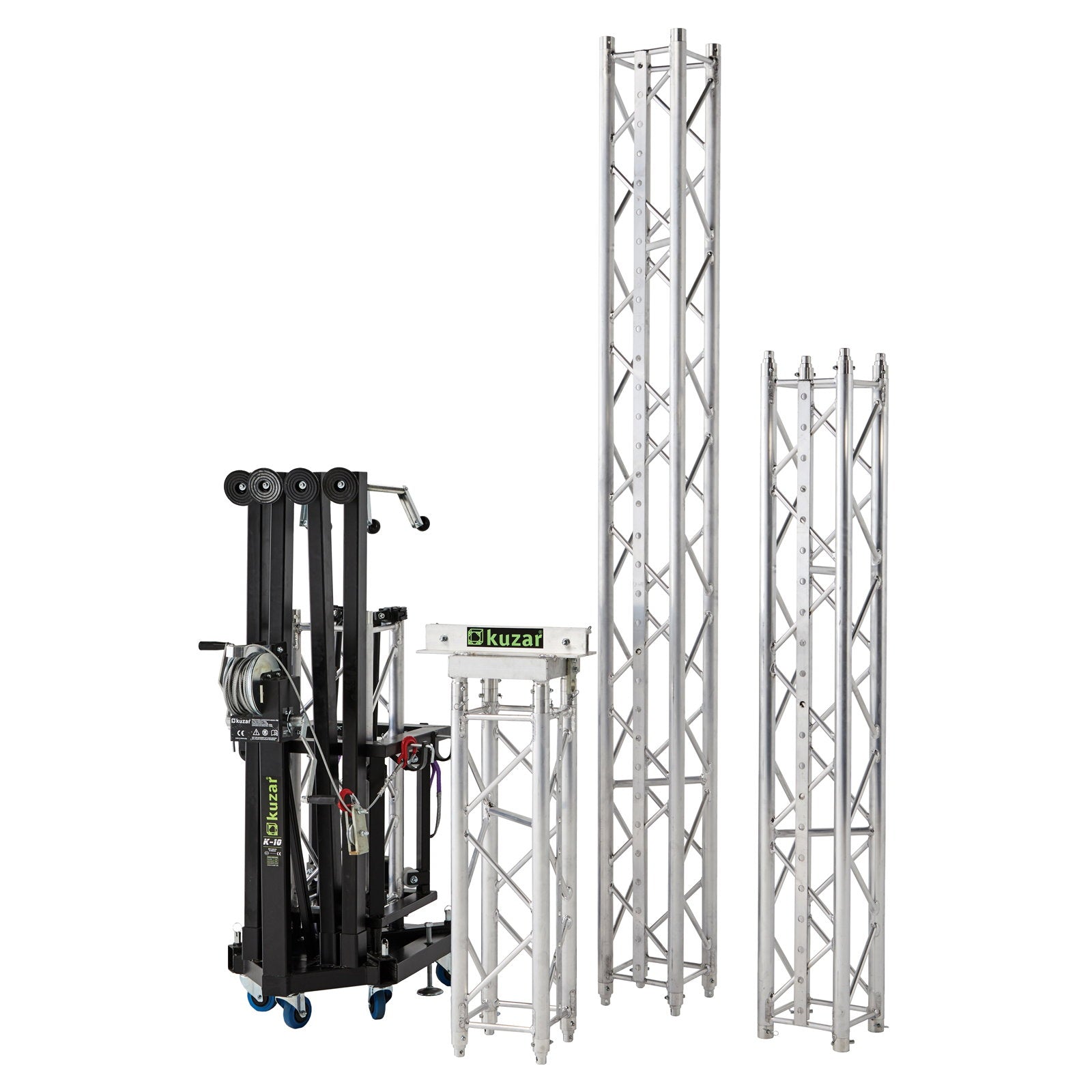

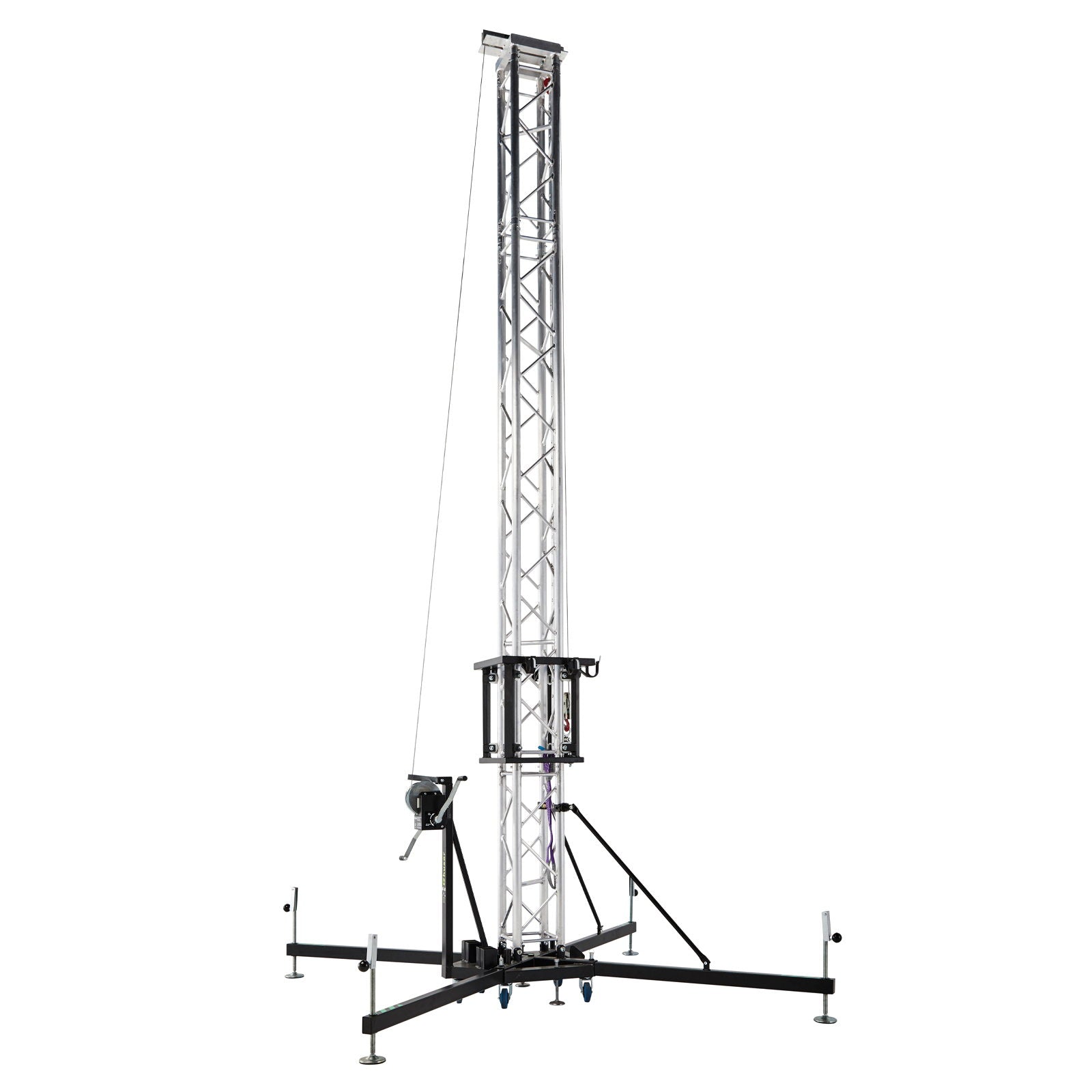

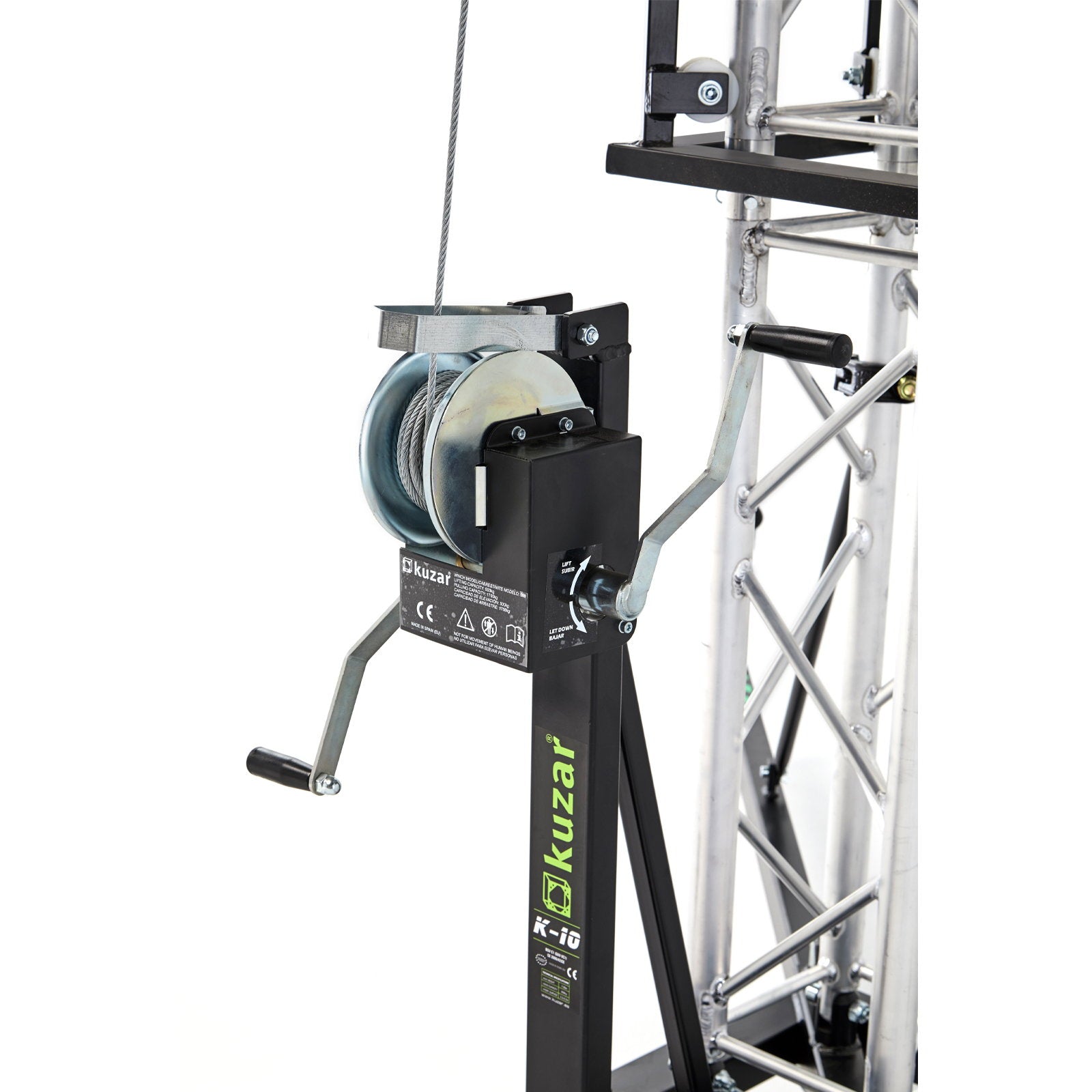

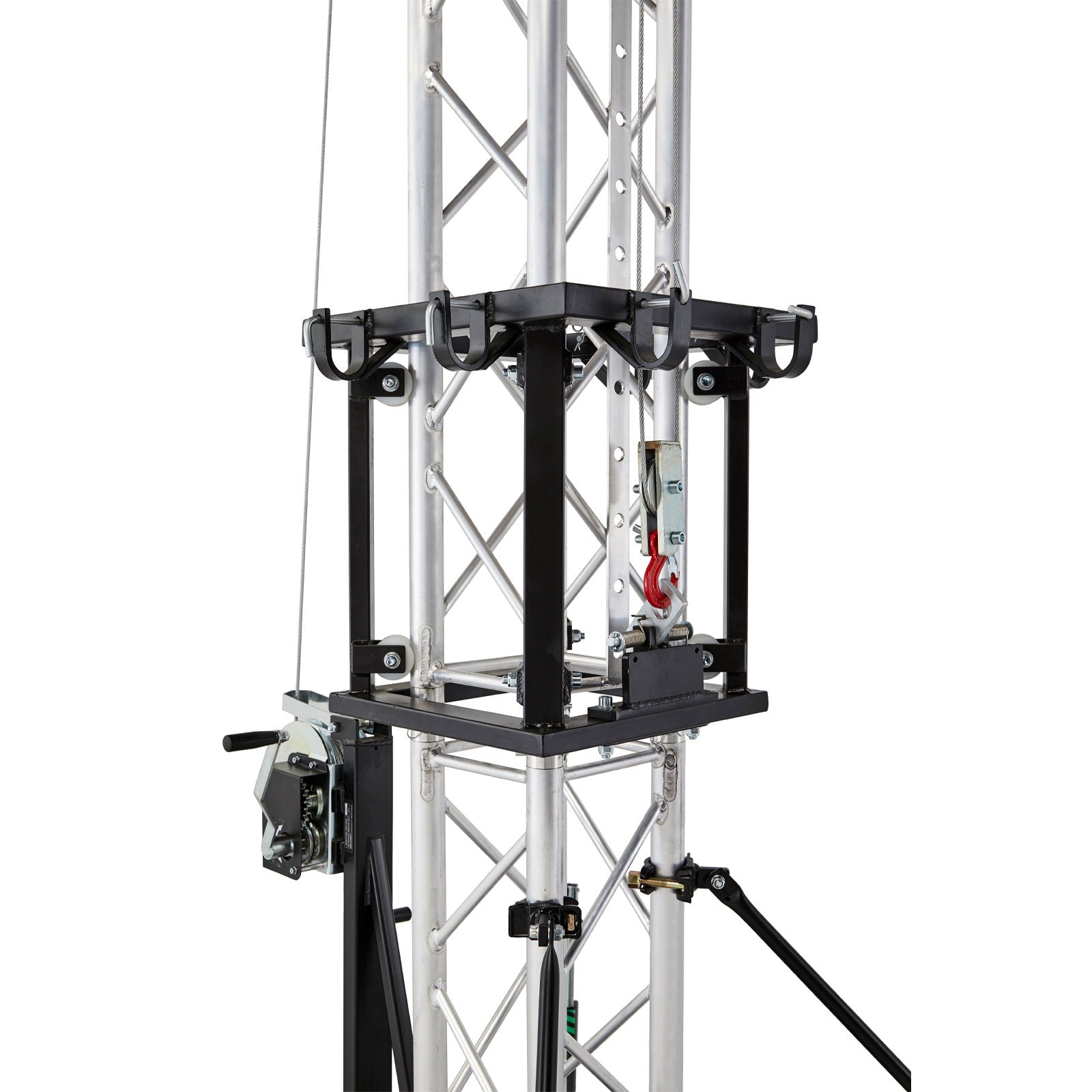

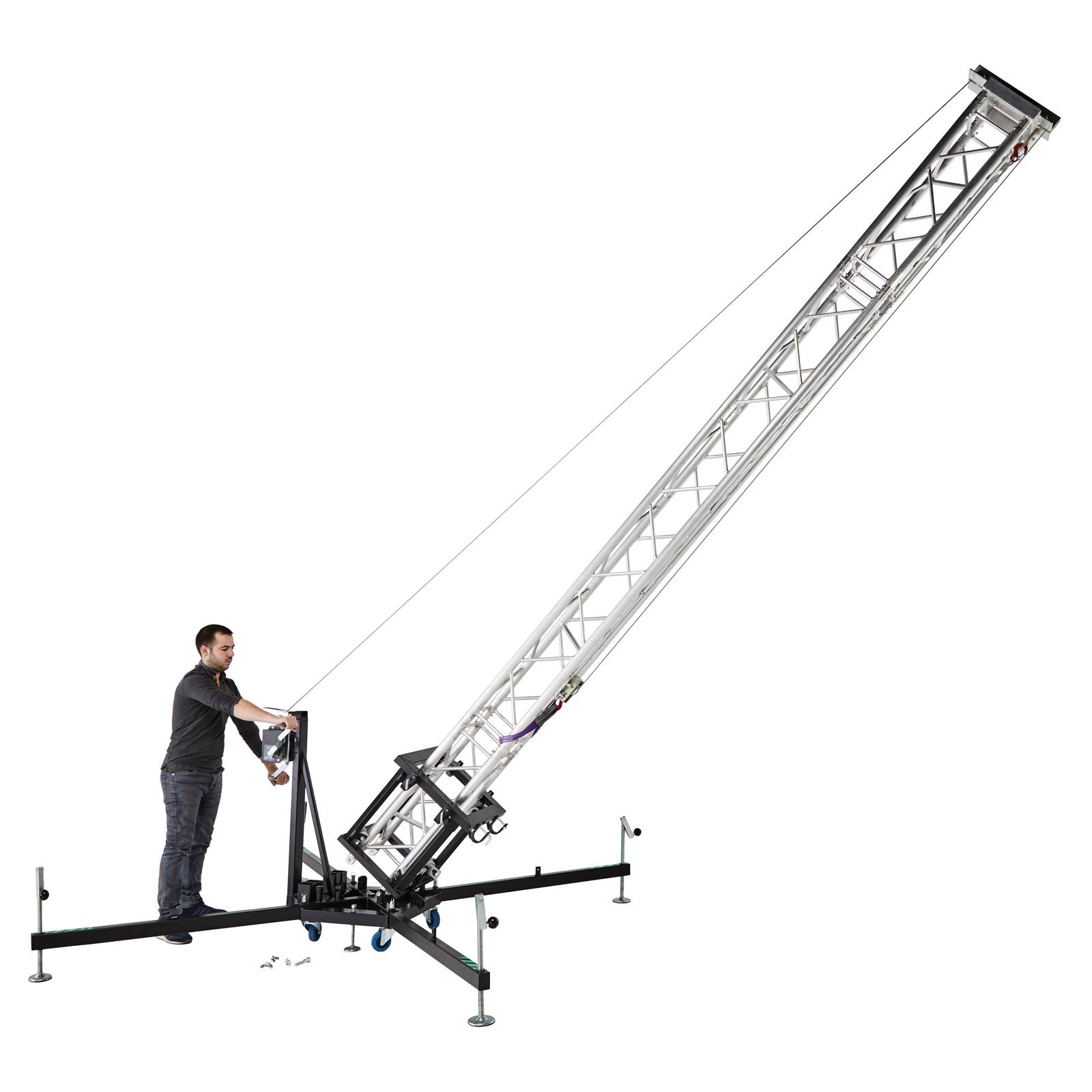

The K-10 from Kuzar is an easy to use ground support tower requiring only one person to setup. The tower is erected using the integral winch hoisting the tower over the base’s pivot joints into the vertical position whilst the rigid steel base gives stability. The rest of the tower is built with 30 × 30cm Kuzar truss composed of 50mmØ thick tubes with integral brake runner. The composition of trusses to form the tower is 1m + 3m + 2m + 1m giving the user an overall height of 7m. Once the tower is erected the load is lifted with the manual hoist and non-slip and adjustable supports are used on the base. Adaptors are available separately to integrate with Global Truss F34PL or Global Truss F34 Standard truss sections.

Please note: Shipping charges may apply 2 year warranty High quality winch loaded with steel cable Manufactured in Europe to both DGUV 17 Directive and CE (2006/42/CE) standards Automatic trigger braking system prevents the sleeve from lowering in error Supplied with 7m of truss Adaptors available separately to integrate with Global Truss F34PL or Global Truss F34 Standard truss sections

Maximum height: 7m Maximum load: 500kg Folded height: 1.68m Maximum footprint (W x D): 2.29 x 2.29m Truss specification: 2.5mm wall thickness aluminium Truss diameter: 300mmØ Tube diameter: 50mmØ Note: This product does not have a wind speed rating and is only suitable for indoor applications
