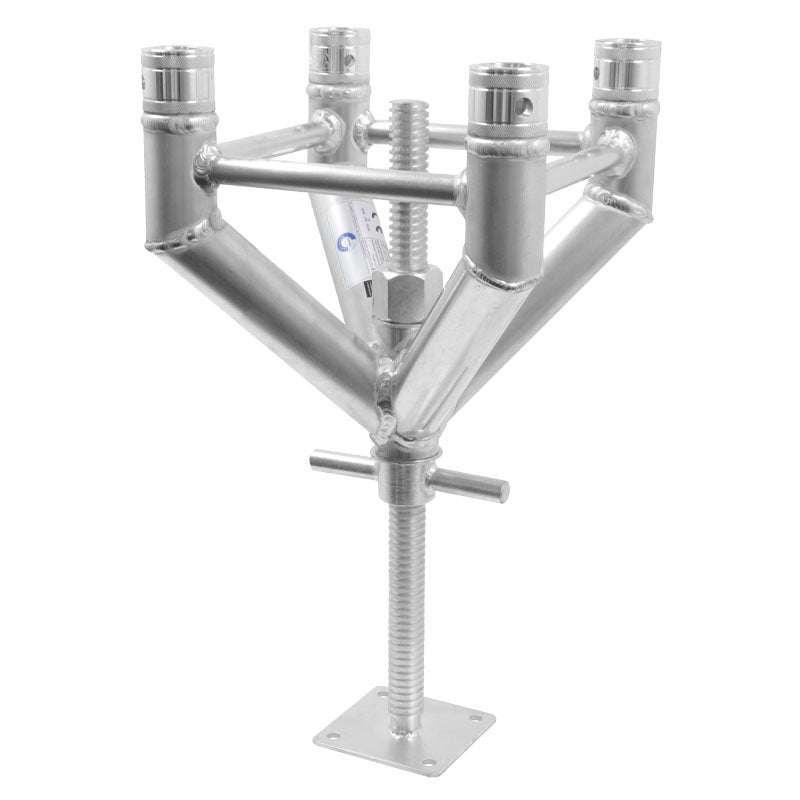

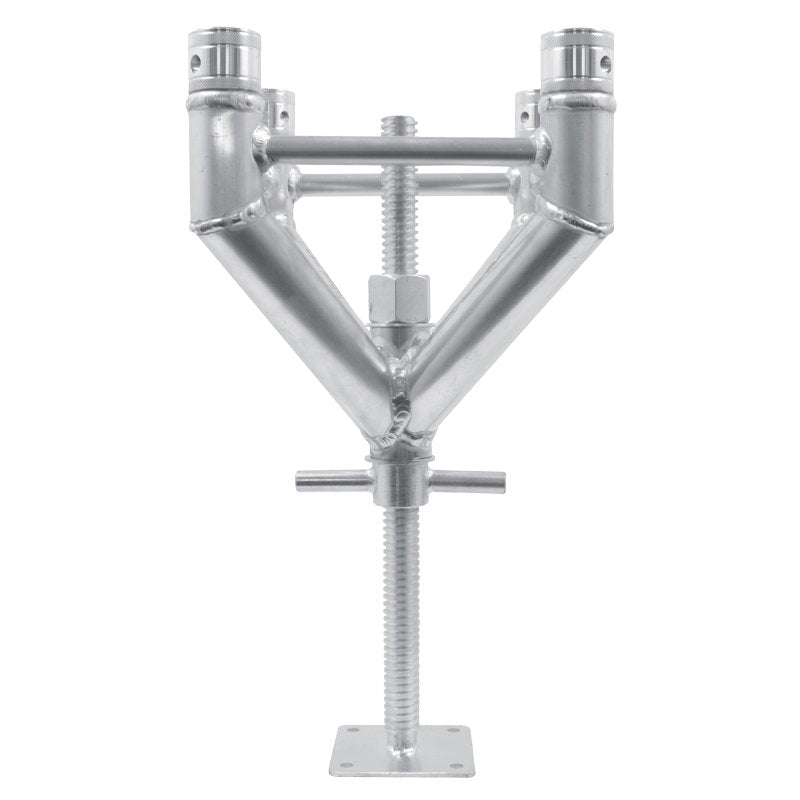

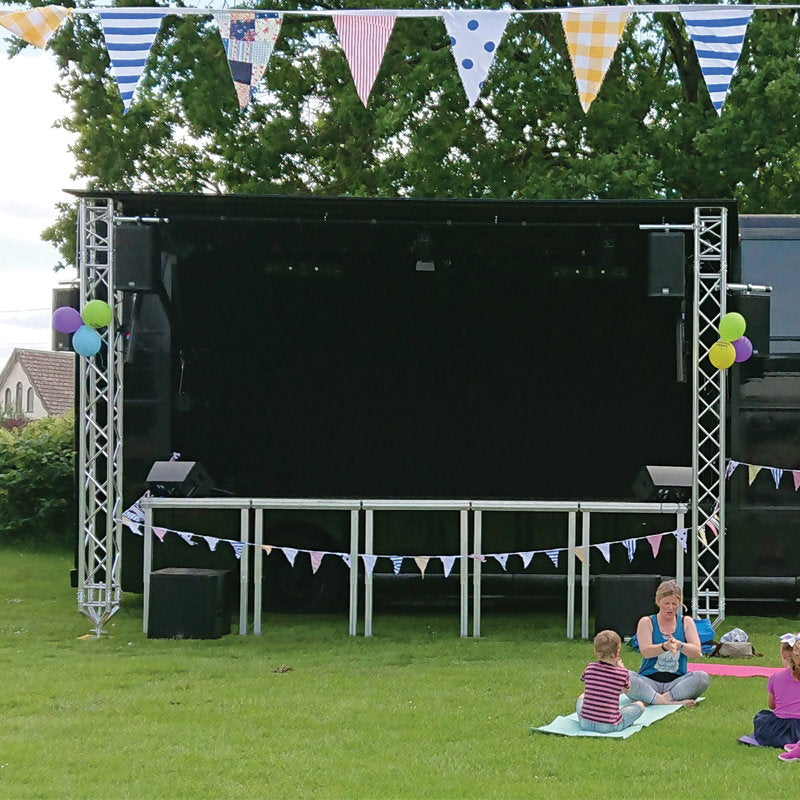

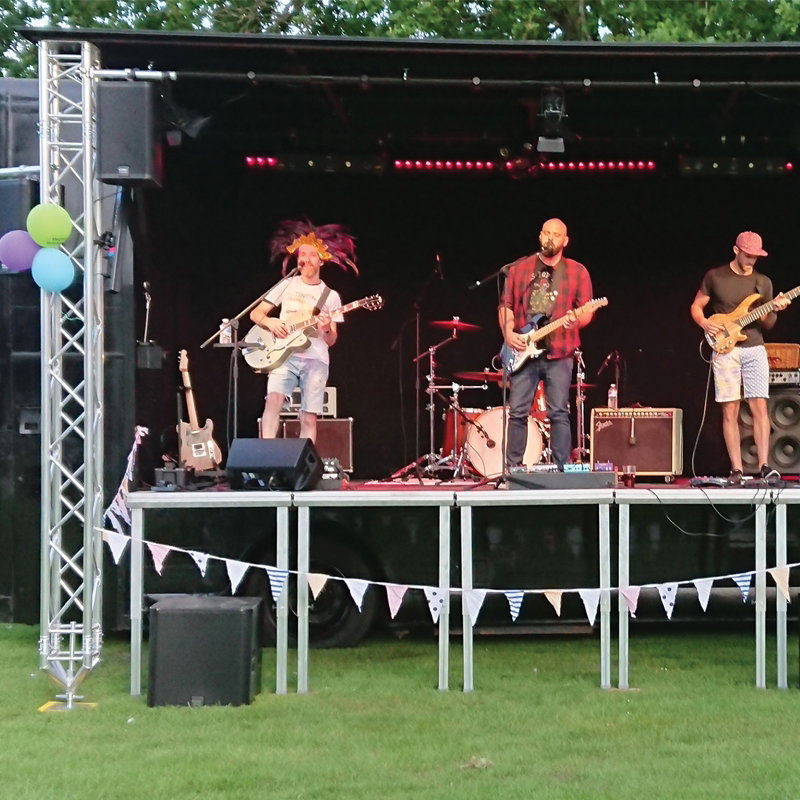

This height adjustable (35-70cm) Standard F34 threaded spindle base is used as an alternative to a base plate in uneven floor situations allowing for the variable height adjustment of truss verticals with the easy-to-use screw jack. The spindle base is commonly used for constructions including stage roof systems and exhibition stands where the base beneath the construction is not level.

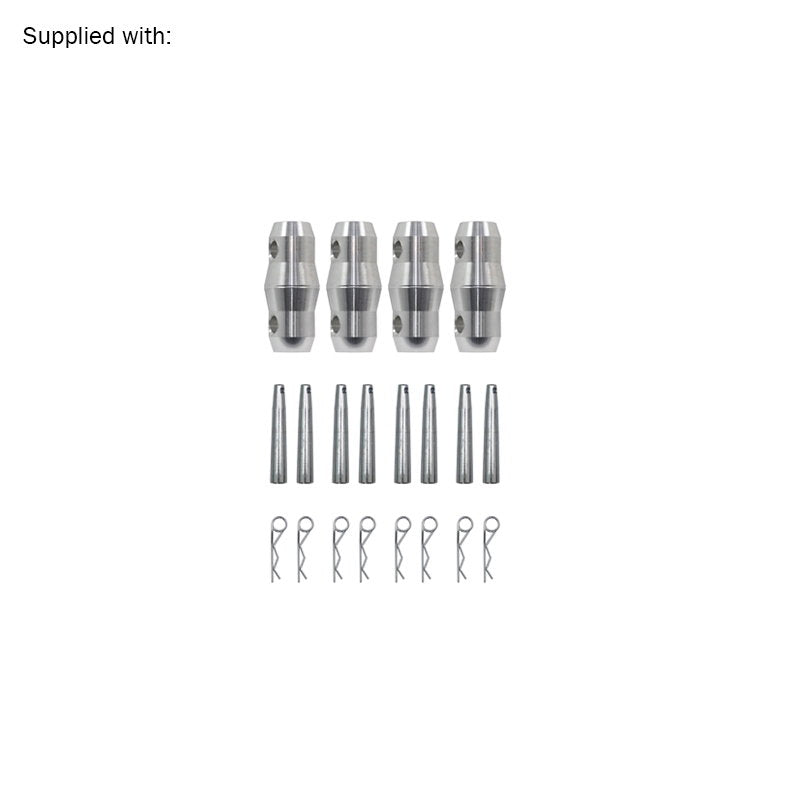

Supplied with 4 x conical connectors 8 x bullet pins and 8 x R clips 2mm wall thickness aluminium 1000kg static load capacity (indoor zero side load) Supplied with 500mm screw jack

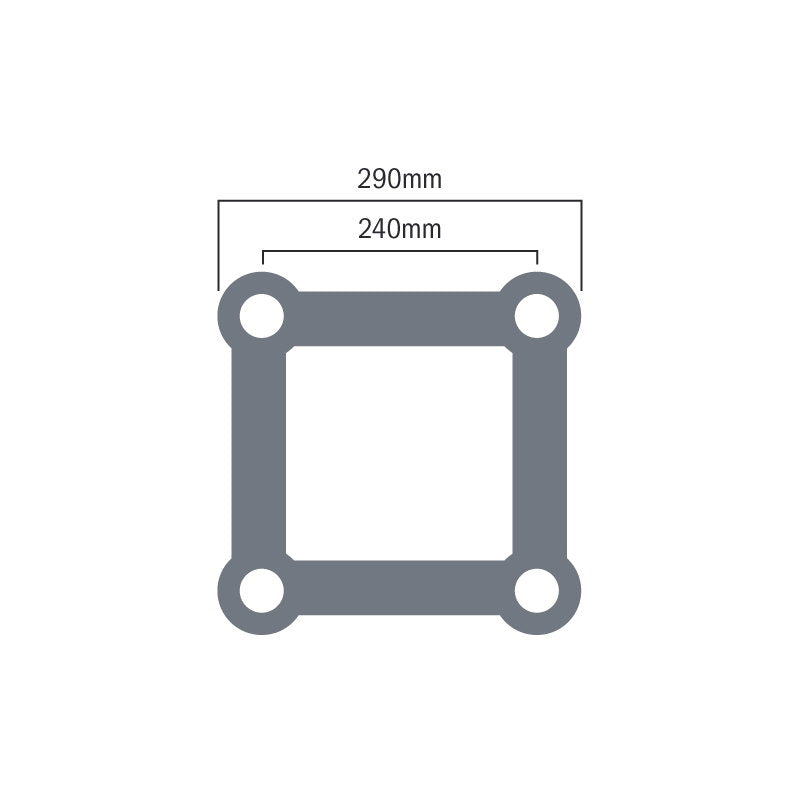

Truss diameter: 290mmØ Tube diameter: 50mmØ Dimensions (H x W x D): 350 x 290 x 290mm (without the screw jack) Weight: 5.6kg
