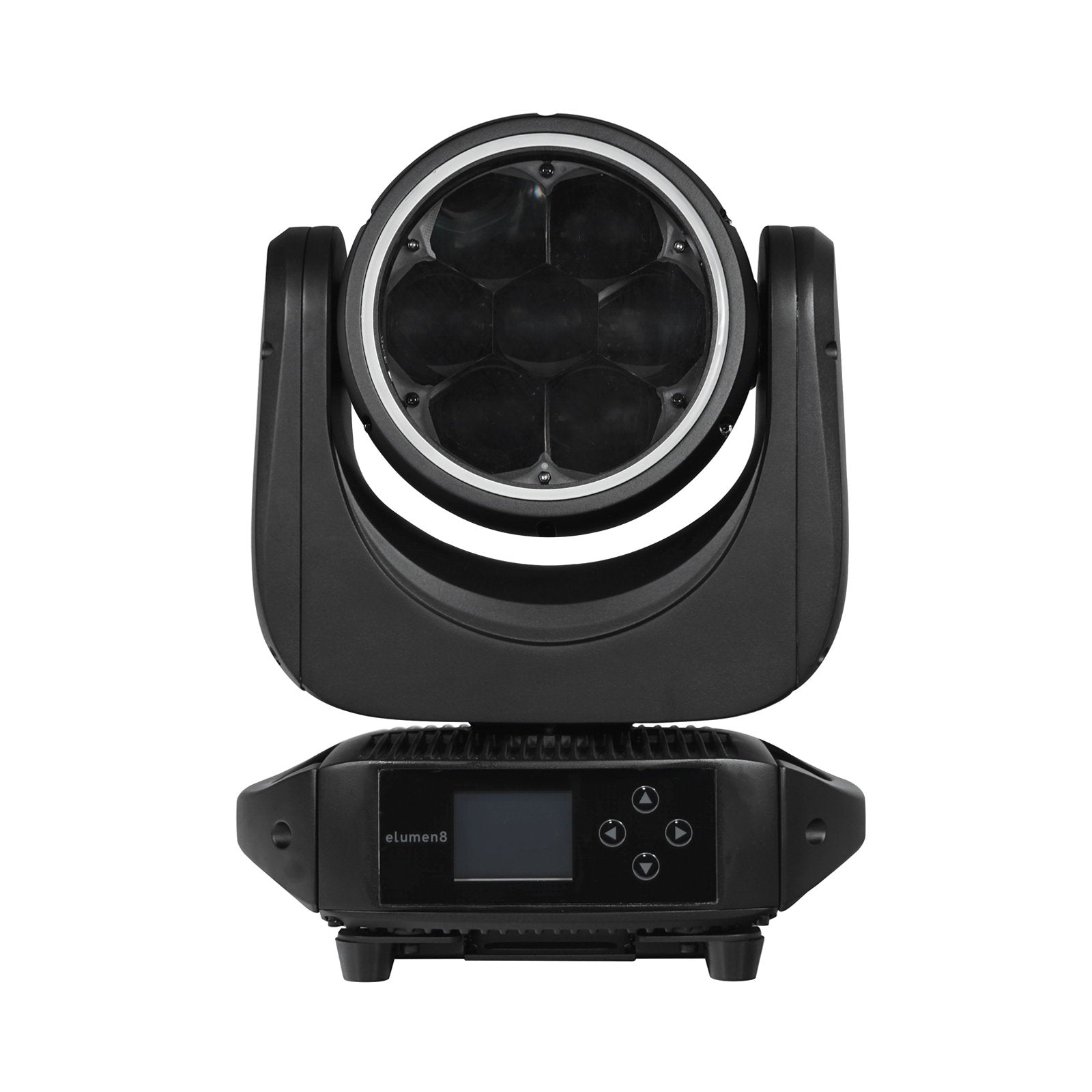

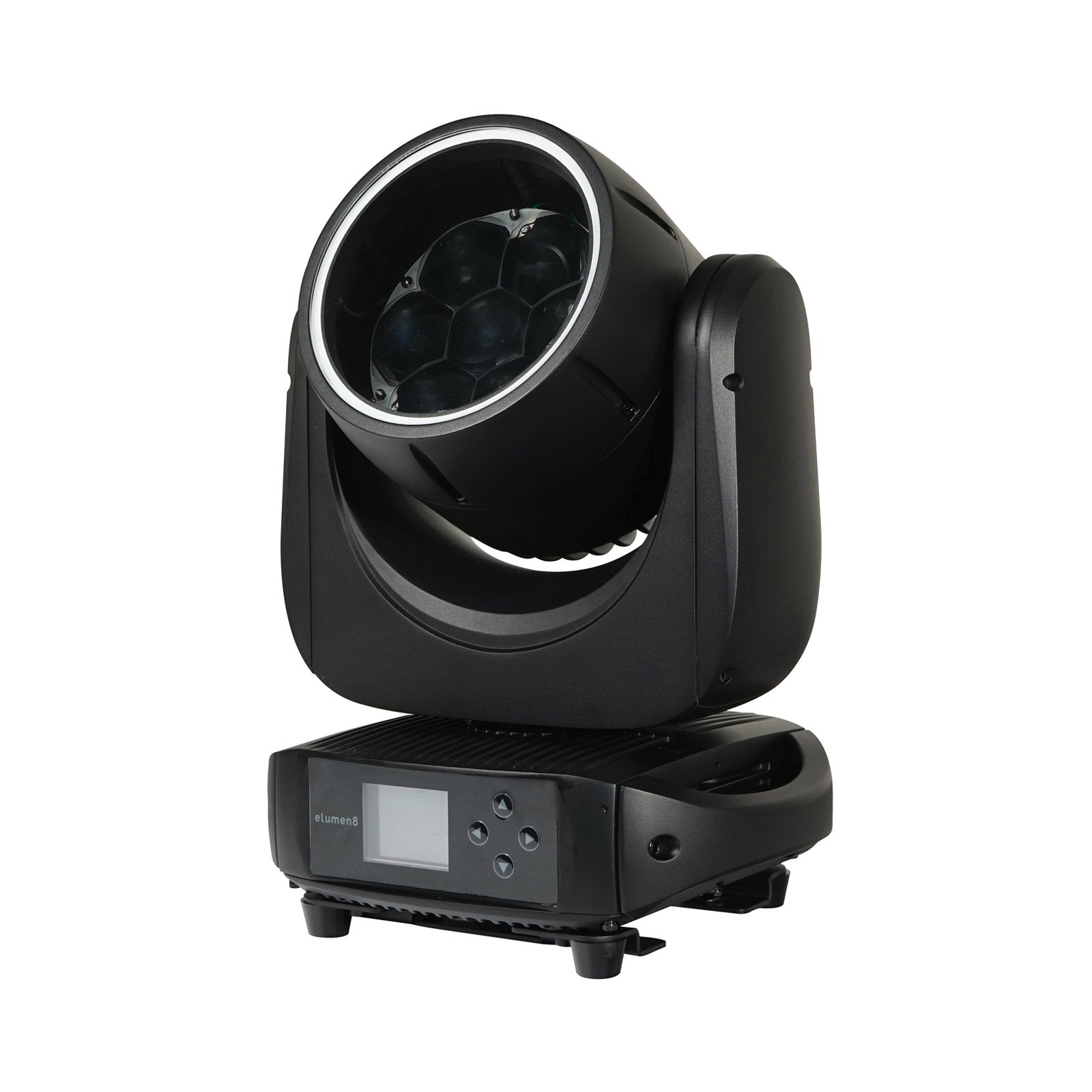

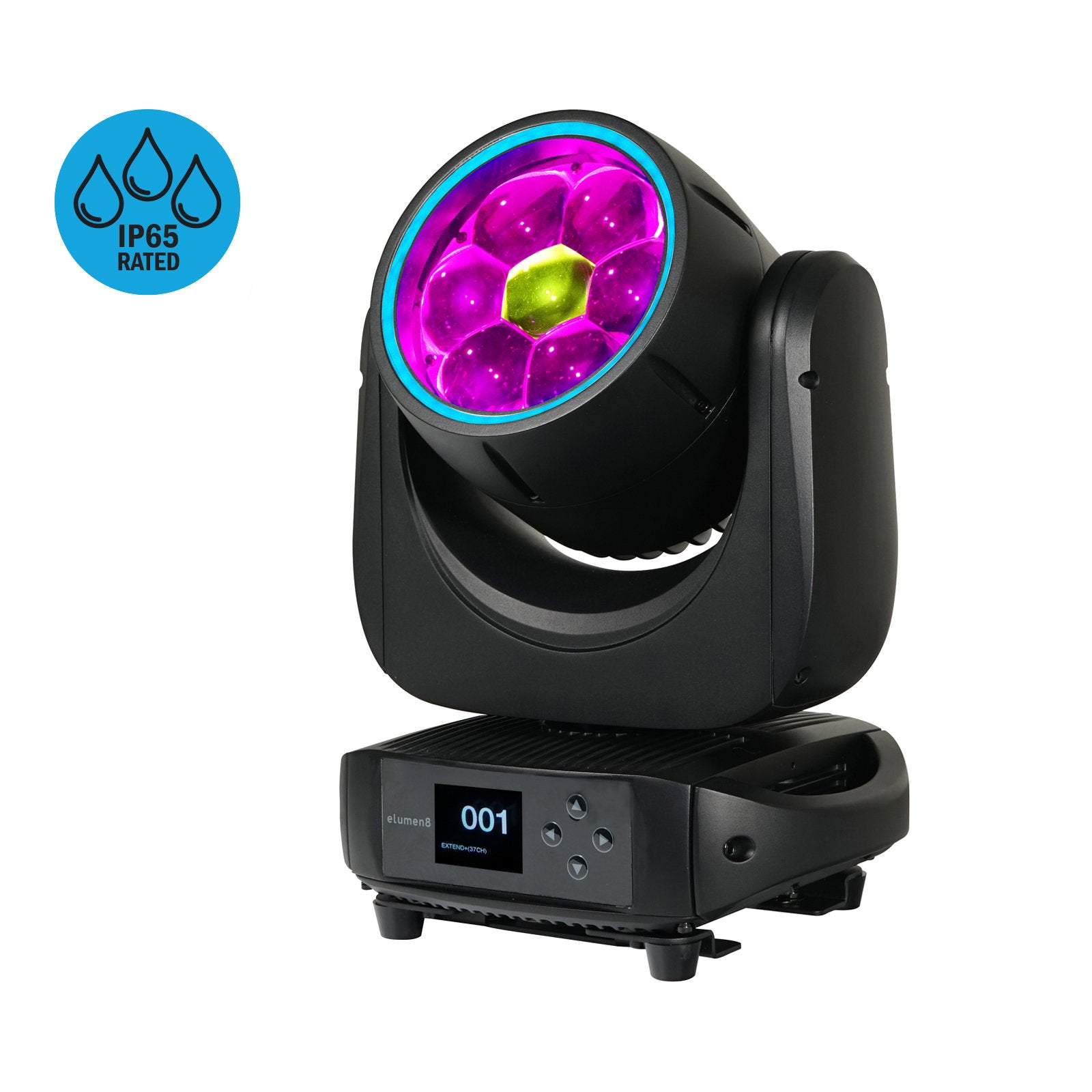

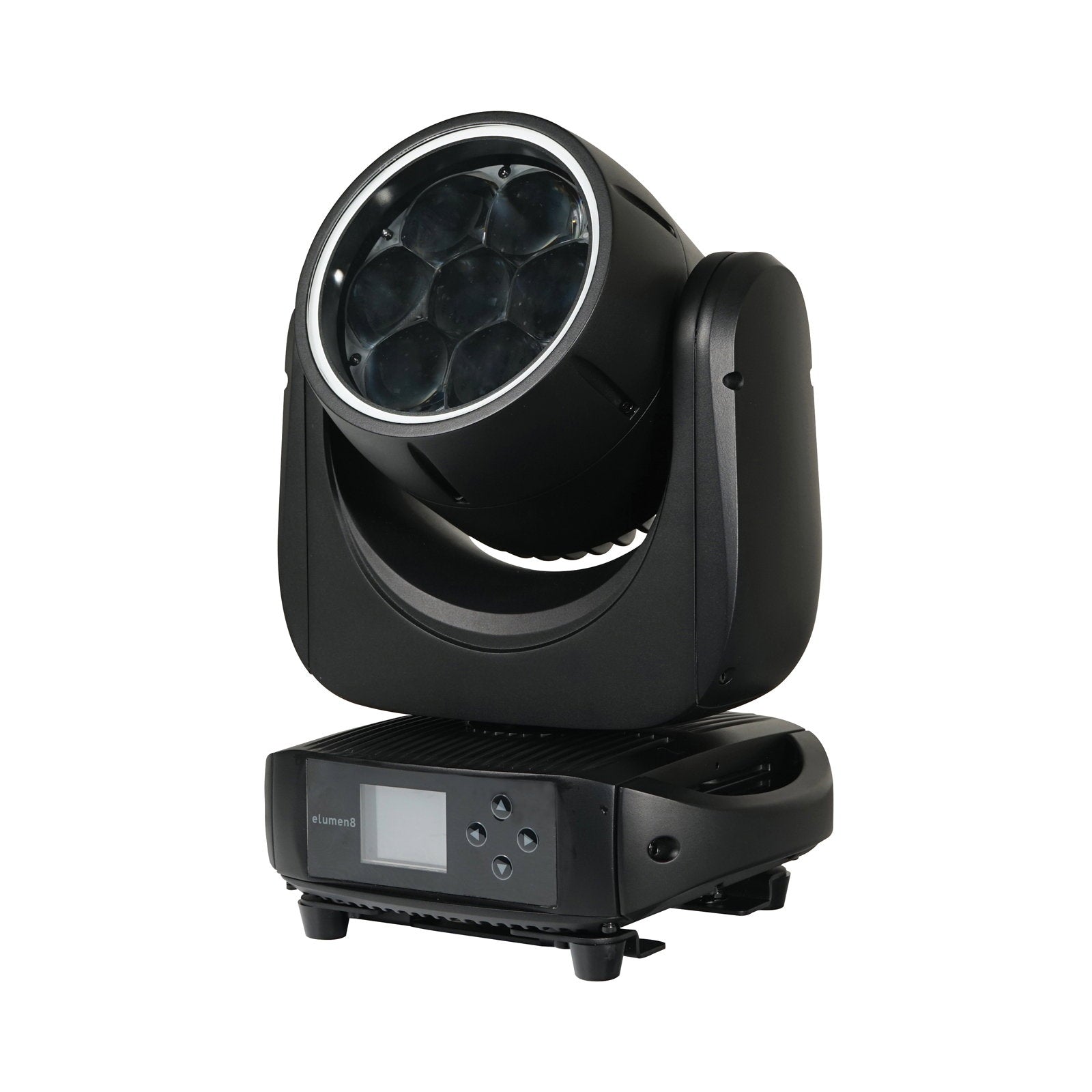

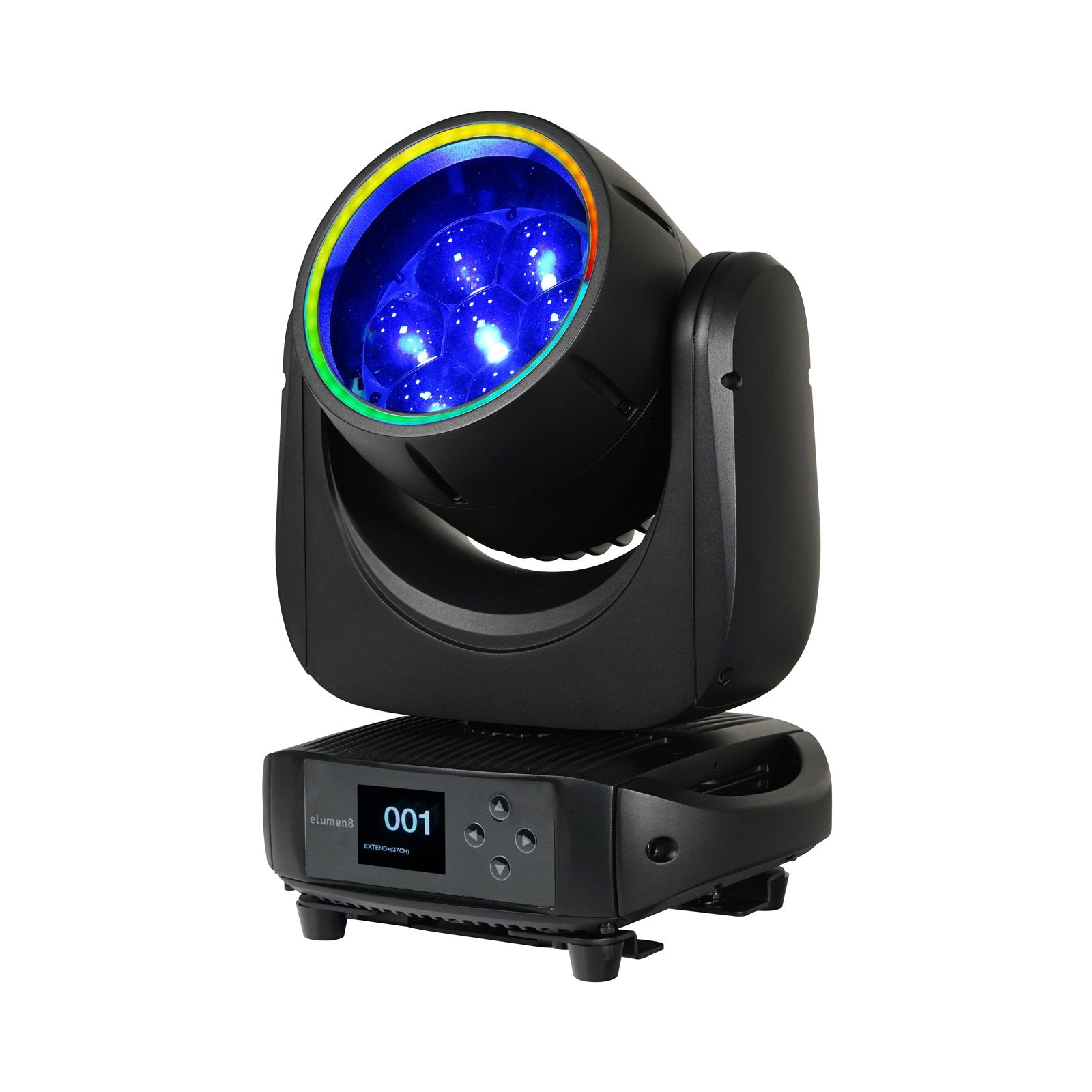

Further expanding the Titan range the Zoom Wash T1 is an IP65 rated fixture with a lightweight compact durable housing specifically designed for wet dusty and sandy conditions. Designed for both rental and installation applications the fixture is equipped with 7 x 40W RGBL LEDs along with super-fast and quiet motors for precision movements. When used at its narrowest 3.5 degree beam angle sharp mid-air effects can be created whilst at its widest 45 degrees wide washes can bathe venues and stages in rich colours. The addition of lime in the LEDs produces a high CRI of 85Ra and the central LED can be controlled separately to the outer LEDs whilst the RGB halo produces a range of eye-candy effects. The Titan Zoom Wash T1 has an adjustable refresh rate perfect for TV and film it also features 3 selectable fan speeds including a studio mode with a 32.7dB noise level for noise sensitive applications. A range of preset colour macros ring programs along with colour temperature presets further bolsters this fixtures offering.

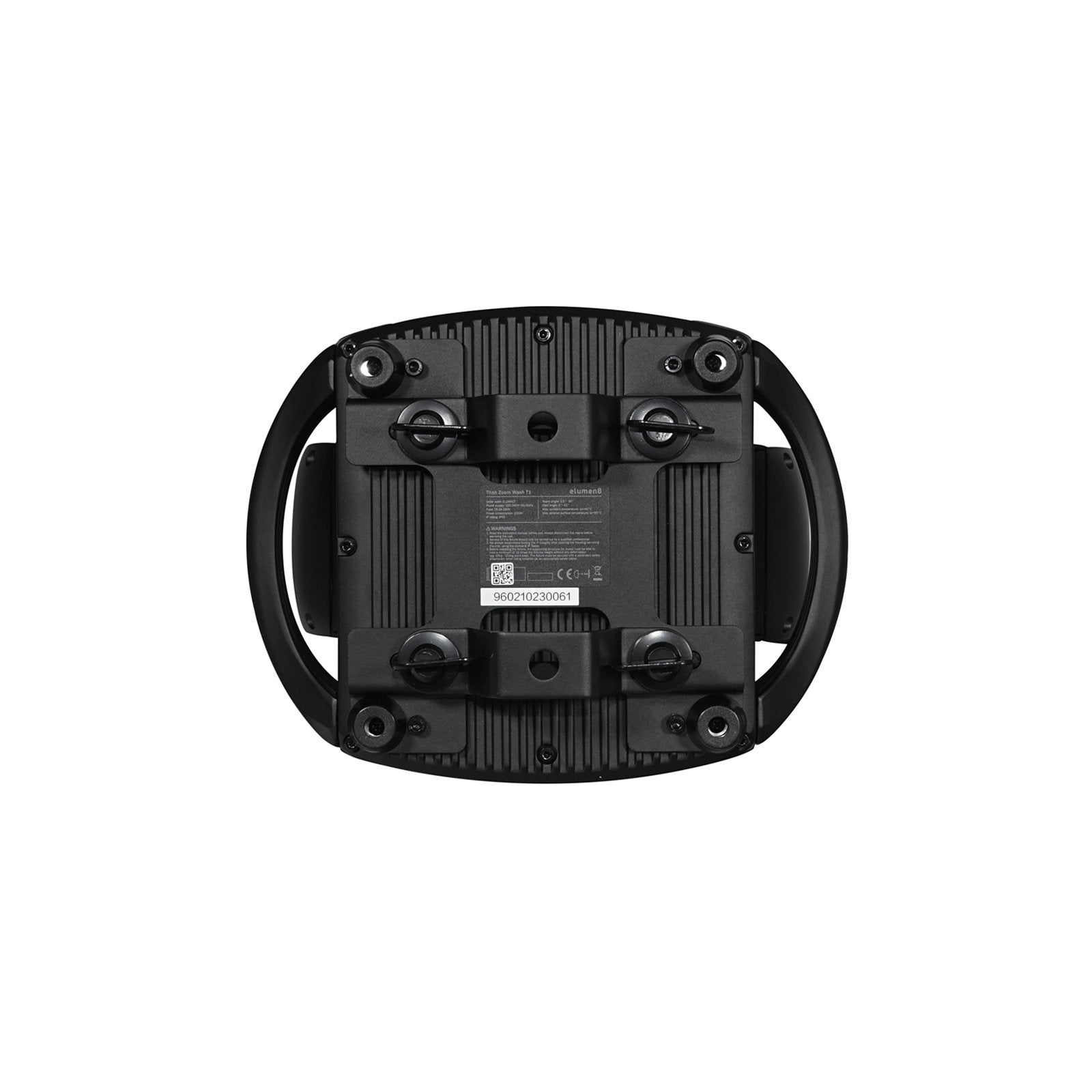

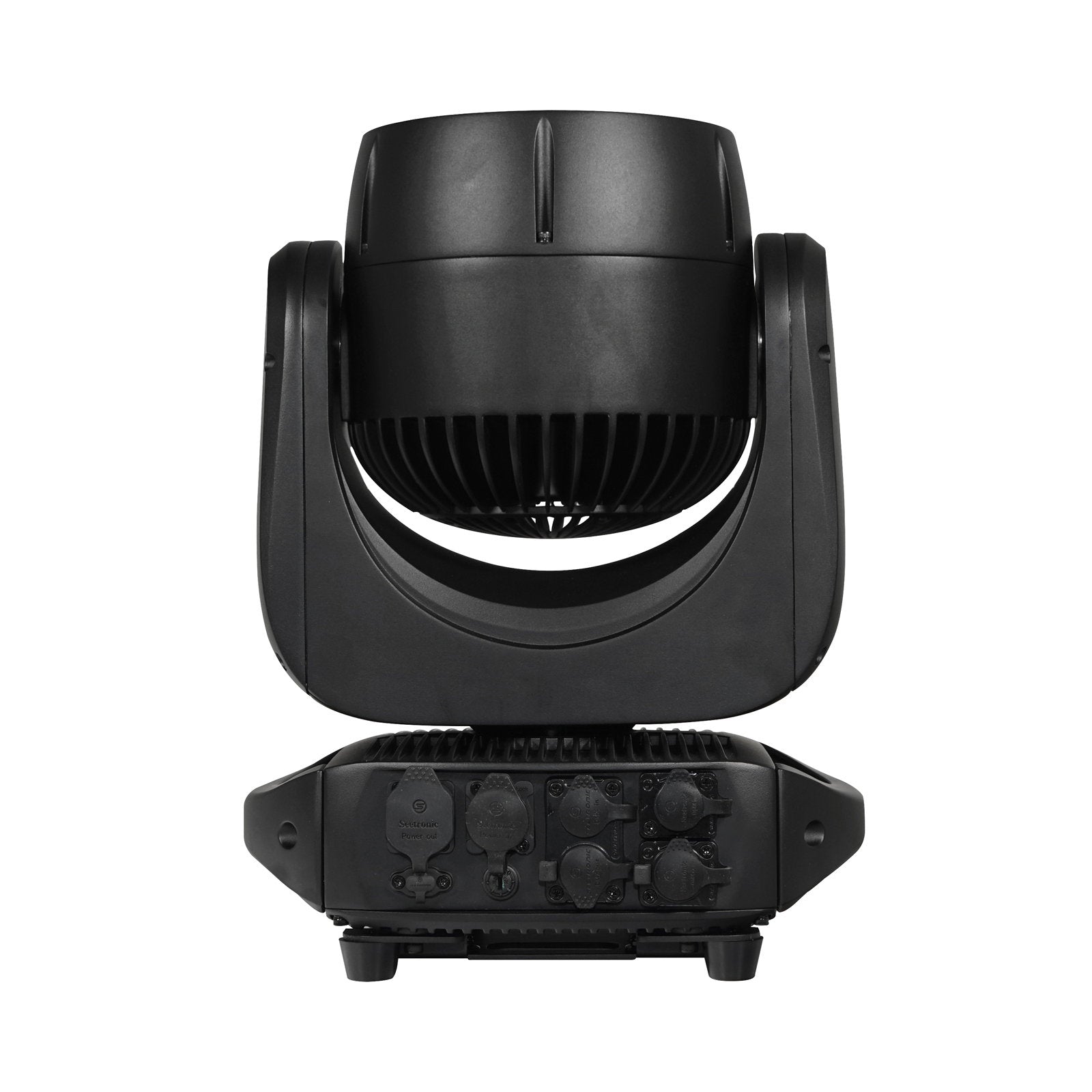

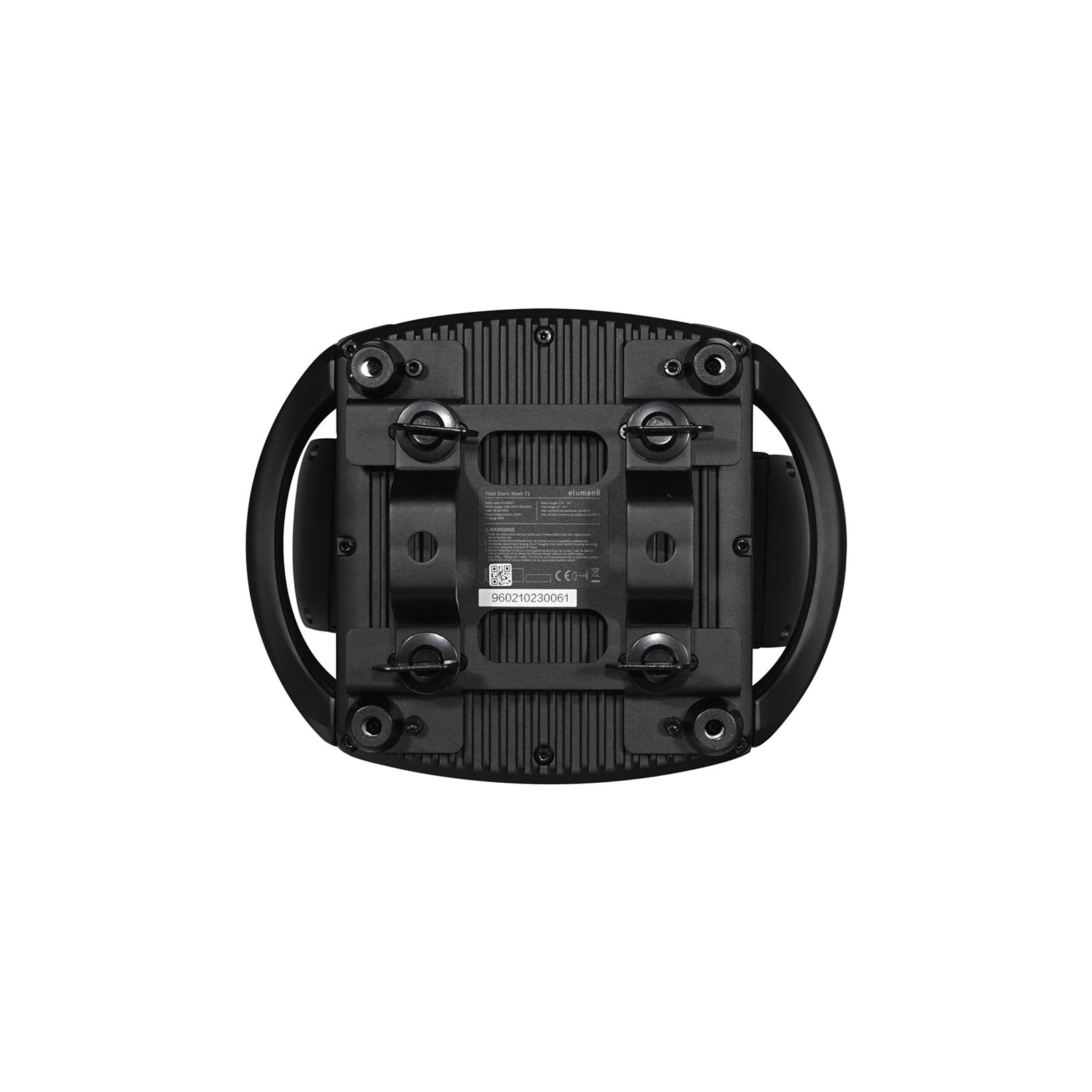

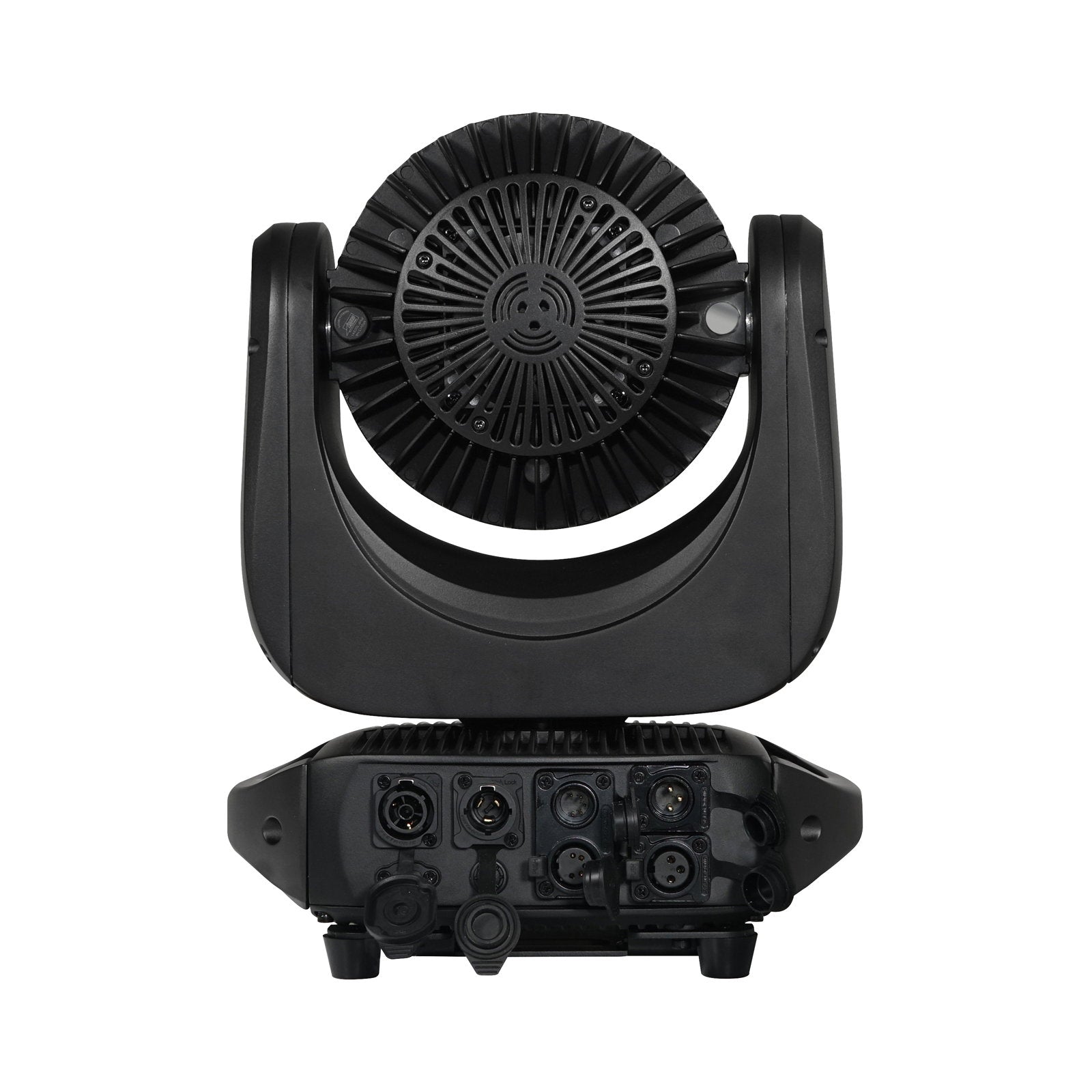

2 year warranty 7 x 40W quad-colour LEDs (RGBL) 46 x tri-colour 3535 SMD LEDs (RGB) Adjustable beam angle: 3.5°- 45° 3.5° - 82723 Lux @ 2m (full on) 45° - 2040 Lux @ 2m (full on) CRI: >85Ra Refresh rate: 5 selectable presets between 1.2kHz-25kHz Motorised zoom Pixel zone mapping DMX channels: 9/13/14/20/28/32 or 37 selectable Wireless control (W-DMX Sweden transceiver) Auto manual control and master/slave modes Built-in colour macros and patterns Colour temperature presets Pan/tilt auto correction 16-Bit pan/tilt positioning Pan: 540° Tilt: 220° 0 - 100% dimming 4 dimming curves: Linear square law inverse square law and S-curve Variable strobe PowerTwist TR1 input/output 5-Pin XLR input/output 3-Pin XLR input/output RDM (Remote Device Management) 4 button menu with 2.4” TFT display Display battery backup for offline configuration Supplied with quick release omega clamps Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations USB-C port (firmware updates) 3 selectable fan modes (live power and studio)
Power consumption: 320W Power supply: 100~240V 50/60Hz Fuse: T6.3A 250V IP rating: IP65 Noise level @ 1m (no movement): Studio – 32.7dB Power – 41.6dB Live – 41dB Noise level @ 1m (with movement): Studio – 47.7dB Power – 50.8dB Live – 50.5dB Dimensions (H x W x D): 385 x 290 x 227mm Weight: 10.1kg
2 year warranty 7 x 40W quad-colour LEDs (RGBL) 46 x tri-colour 3535 SMD LEDs (RGB) Adjustable beam angle: 3.5°- 45° 3.5° - 82723 Lux @ 2m (full on) 45° - 2040 Lux @ 2m (full on) CRI: >85Ra Refresh rate: 5 selectable presets between 1.2kHz-25kHz Motorised zoom Pixel zone mapping DMX channels: 9/13/14/20/28/32 or 37 selectable Wireless control (W-DMX Sweden transceiver) Auto manual control and master/slave modes Built-in colour macros and patterns Colour temperature presets Pan/tilt auto correction 16-Bit pan/tilt positioning Pan: 540° Tilt: 220° 0 - 100% dimming 4 dimming curves: Linear square law inverse square law and S-curve Variable strobe PowerTwist TR1 input/output 5-Pin XLR input/output 3-Pin XLR input/output RDM (Remote Device Management) 4 button menu with 2.4” TFT display Display battery backup for offline configuration Supplied with quick release omega clamps Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations USB-C port (firmware updates) 3 selectable fan modes (live power and studio)
Power consumption: 320W Power supply: 100~240V 50/60Hz Fuse: T6.3A 250V IP rating: IP65 Noise level @ 1m (no movement): Studio – 32.7dB Power – 41.6dB Live – 41dB Noise level @ 1m (with movement): Studio – 47.7dB Power – 50.8dB Live – 50.5dB Dimensions (H x W x D): 385 x 290 x 227mm Weight: 10.1kg
Elumen8 Titan Zoom Wash T1
Brand: Elumen8
SKU: ELUM417
Regular price
£1,436.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 Titan Zoom Wash T1
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Further expanding the Titan range the Zoom Wash T1 is an IP65 rated fixture with a lightweight compact durable housing specifically designed for wet dusty and sandy conditions. Designed for both rental and installation applications the fixture is equipped with 7 x 40W RGBL LEDs along with super-fast and quiet motors for precision movements. When used at its narrowest 3.5 degree beam angle sharp mid-air effects can be created whilst at its widest 45 degrees wide washes can bathe venues and stages in rich colours. The addition of lime in the LEDs produces a high CRI of 85Ra and the central LED can be controlled separately to the outer LEDs whilst the RGB halo produces a range of eye-candy effects. The Titan Zoom Wash T1 has an adjustable refresh rate perfect for TV and film it also features 3 selectable fan speeds including a studio mode with a 32.7dB noise level for noise sensitive applications. A range of preset colour macros ring programs along with colour temperature presets further bolsters this fixtures offering.
2 year warranty 7 x 40W quad-colour LEDs (RGBL) 46 x tri-colour 3535 SMD LEDs (RGB) Adjustable beam angle: 3.5°- 45° 3.5° - 82723 Lux @ 2m (full on) 45° - 2040 Lux @ 2m (full on) CRI: >85Ra Refresh rate: 5 selectable presets between 1.2kHz-25kHz Motorised zoom Pixel zone mapping DMX channels: 9/13/14/20/28/32 or 37 selectable Wireless control (W-DMX Sweden transceiver) Auto manual control and master/slave modes Built-in colour macros and patterns Colour temperature presets Pan/tilt auto correction 16-Bit pan/tilt positioning Pan: 540° Tilt: 220° 0 - 100% dimming 4 dimming curves: Linear square law inverse square law and S-curve Variable strobe PowerTwist TR1 input/output 5-Pin XLR input/output 3-Pin XLR input/output RDM (Remote Device Management) 4 button menu with 2.4” TFT display Display battery backup for offline configuration Supplied with quick release omega clamps Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations USB-C port (firmware updates) 3 selectable fan modes (live power and studio)
Power consumption: 320W Power supply: 100~240V 50/60Hz Fuse: T6.3A 250V IP rating: IP65 Noise level @ 1m (no movement): Studio – 32.7dB Power – 41.6dB Live – 41dB Noise level @ 1m (with movement): Studio – 47.7dB Power – 50.8dB Live – 50.5dB Dimensions (H x W x D): 385 x 290 x 227mm Weight: 10.1kg
2 year warranty 7 x 40W quad-colour LEDs (RGBL) 46 x tri-colour 3535 SMD LEDs (RGB) Adjustable beam angle: 3.5°- 45° 3.5° - 82723 Lux @ 2m (full on) 45° - 2040 Lux @ 2m (full on) CRI: >85Ra Refresh rate: 5 selectable presets between 1.2kHz-25kHz Motorised zoom Pixel zone mapping DMX channels: 9/13/14/20/28/32 or 37 selectable Wireless control (W-DMX Sweden transceiver) Auto manual control and master/slave modes Built-in colour macros and patterns Colour temperature presets Pan/tilt auto correction 16-Bit pan/tilt positioning Pan: 540° Tilt: 220° 0 - 100% dimming 4 dimming curves: Linear square law inverse square law and S-curve Variable strobe PowerTwist TR1 input/output 5-Pin XLR input/output 3-Pin XLR input/output RDM (Remote Device Management) 4 button menu with 2.4” TFT display Display battery backup for offline configuration Supplied with quick release omega clamps Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations USB-C port (firmware updates) 3 selectable fan modes (live power and studio)
Power consumption: 320W Power supply: 100~240V 50/60Hz Fuse: T6.3A 250V IP rating: IP65 Noise level @ 1m (no movement): Studio – 32.7dB Power – 41.6dB Live – 41dB Noise level @ 1m (with movement): Studio – 47.7dB Power – 50.8dB Live – 50.5dB Dimensions (H x W x D): 385 x 290 x 227mm Weight: 10.1kg
