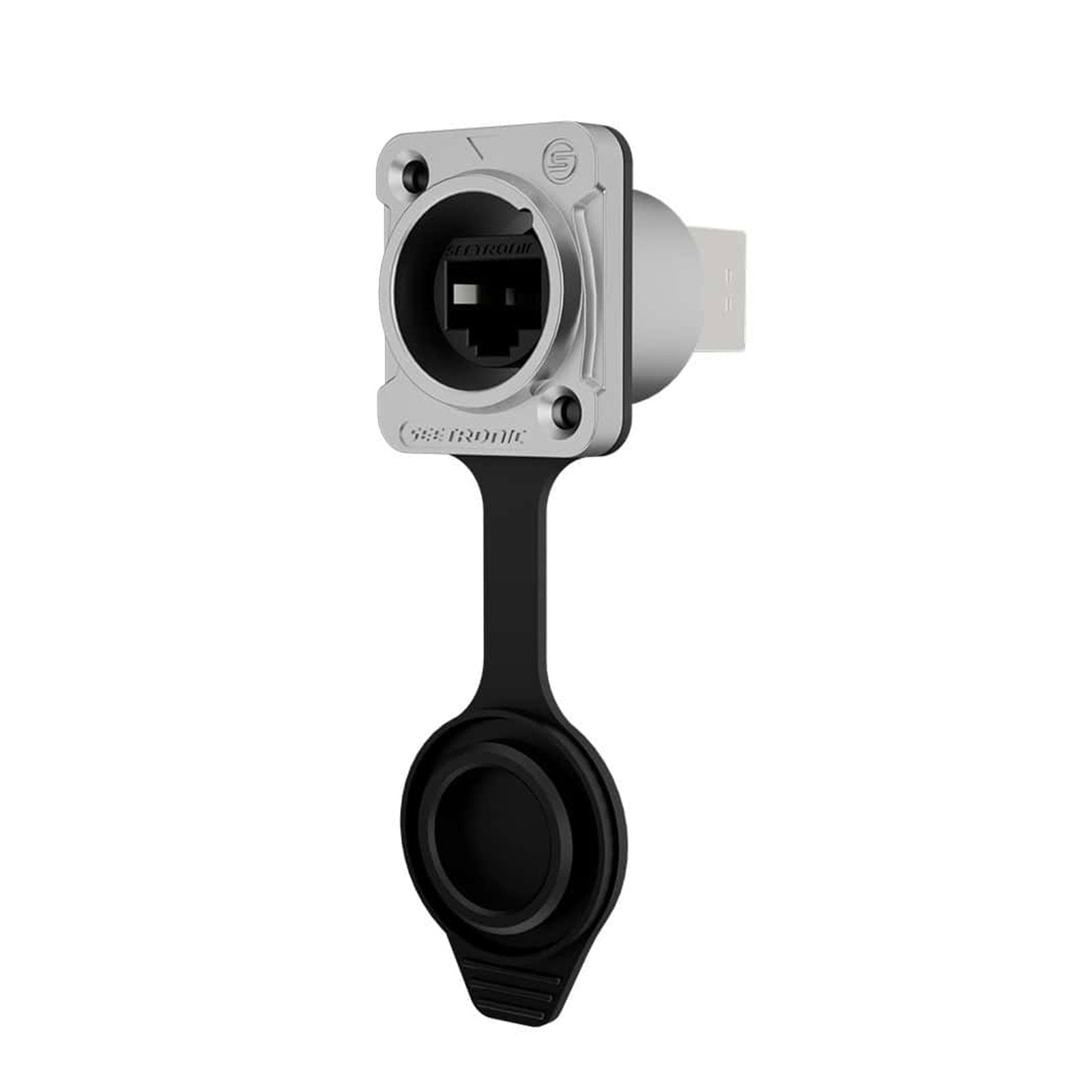

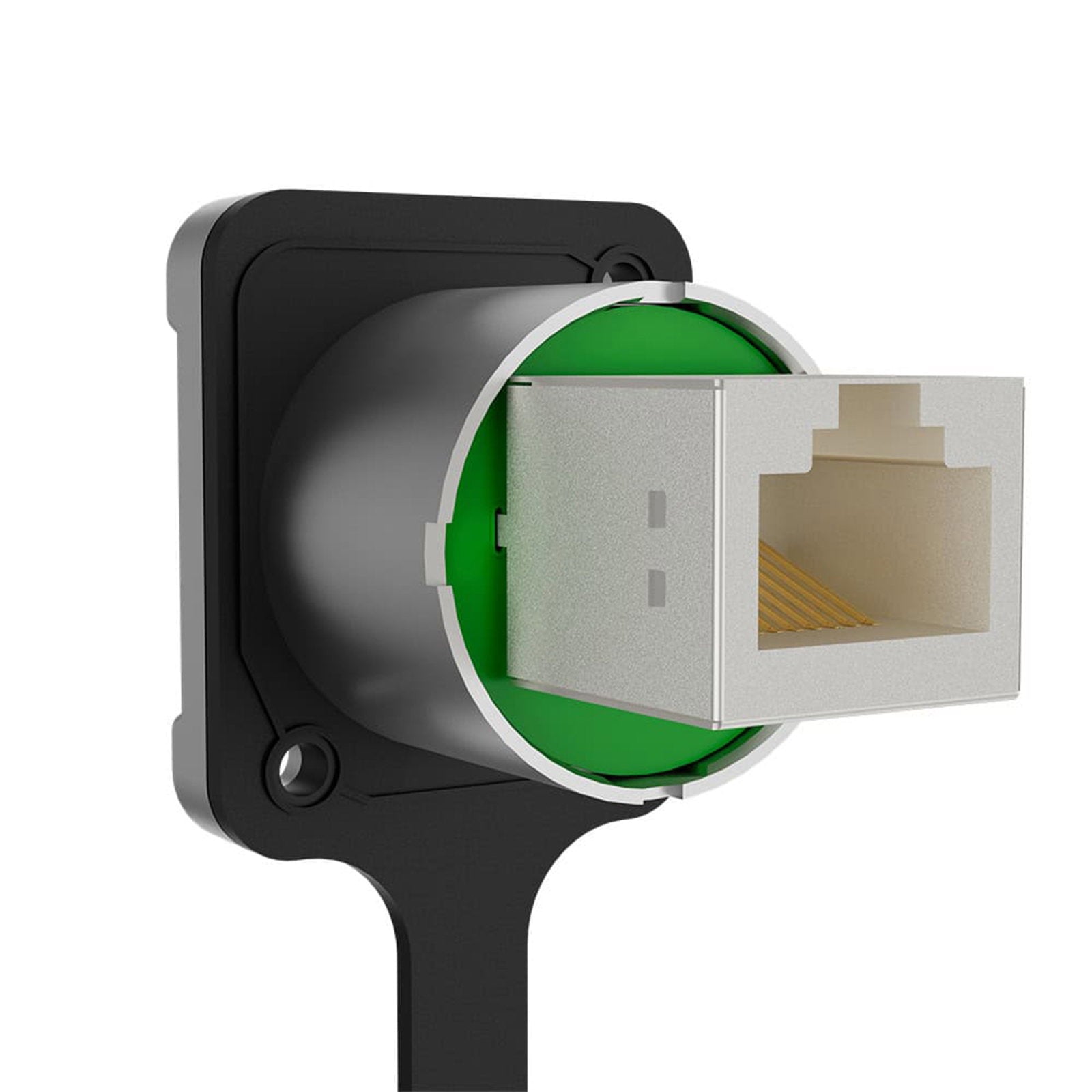

The Seetronic SE8FD05-01 is a robust IP65-rated RJ45 D-shape panel socket designed for harsh outdoor and industrial environments. Featuring a front-mount feedthrough design and CAT5e performance per TIA/EIA 568B and ISO/IEC 11801 it ensures secure and stable Ethernet connectivity. Compatible exclusively with SE8MC-05 Series plugs.
D-shape panel mount with standard flange Front-mount feedthrough RJ45 socket IP65 protection when used with supplied gasket and waterproof cap Exclusive compatibility with SE8MC-05 Series plugs Meets CAT5e performance (TIA/EIA 568B ISO/IEC 11801) Fast locking/unlocking for stable signal under movement Supplied with gasket backplate and screws for secure installation
Connection Type: RJ45 Gender: Female Rated Voltage: 50V Rated Current: 1.5A Contact Resistance: <10 mΩ Insulation Resistance: ≥0.5 GΩ Dielectric Strength: 1kV DC Transmission: CAT5e (1–100MHz) Chassis Shape: D-shape Insertion Force: ≤50 N Service Life: >1000 mating cycles Housing: Zinc alloy (chrome-plated) Contacts: Copper alloy gold-plated Insert: PBT Temperature Range: -30°C to +80°C Ingress Protection: IP65 (with gasket/cap) Standards: TIA/EIA 568B IEC 11801
D-shape panel mount with standard flange Front-mount feedthrough RJ45 socket IP65 protection when used with supplied gasket and waterproof cap Exclusive compatibility with SE8MC-05 Series plugs Meets CAT5e performance (TIA/EIA 568B ISO/IEC 11801) Fast locking/unlocking for stable signal under movement Supplied with gasket backplate and screws for secure installation
Connection Type: RJ45 Gender: Female Rated Voltage: 50V Rated Current: 1.5A Contact Resistance: <10 mΩ Insulation Resistance: ≥0.5 GΩ Dielectric Strength: 1kV DC Transmission: CAT5e (1–100MHz) Chassis Shape: D-shape Insertion Force: ≤50 N Service Life: >1000 mating cycles Housing: Zinc alloy (chrome-plated) Contacts: Copper alloy gold-plated Insert: PBT Temperature Range: -30°C to +80°C Ingress Protection: IP65 (with gasket/cap) Standards: TIA/EIA 568B IEC 11801
Seetronic RJ45 PCB Mount Socket SE8FD05-01-01
Brand: Seetronic
SKU: CONN1461
Regular price
£8.99
Pickup available at Venutec
Usually ready in 24 hours
Seetronic RJ45 PCB Mount Socket SE8FD05-01-01
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Seetronic SE8FD05-01 is a robust IP65-rated RJ45 D-shape panel socket designed for harsh outdoor and industrial environments. Featuring a front-mount feedthrough design and CAT5e performance per TIA/EIA 568B and ISO/IEC 11801 it ensures secure and stable Ethernet connectivity. Compatible exclusively with SE8MC-05 Series plugs.
D-shape panel mount with standard flange Front-mount feedthrough RJ45 socket IP65 protection when used with supplied gasket and waterproof cap Exclusive compatibility with SE8MC-05 Series plugs Meets CAT5e performance (TIA/EIA 568B ISO/IEC 11801) Fast locking/unlocking for stable signal under movement Supplied with gasket backplate and screws for secure installation
Connection Type: RJ45 Gender: Female Rated Voltage: 50V Rated Current: 1.5A Contact Resistance: <10 mΩ Insulation Resistance: ≥0.5 GΩ Dielectric Strength: 1kV DC Transmission: CAT5e (1–100MHz) Chassis Shape: D-shape Insertion Force: ≤50 N Service Life: >1000 mating cycles Housing: Zinc alloy (chrome-plated) Contacts: Copper alloy gold-plated Insert: PBT Temperature Range: -30°C to +80°C Ingress Protection: IP65 (with gasket/cap) Standards: TIA/EIA 568B IEC 11801
D-shape panel mount with standard flange Front-mount feedthrough RJ45 socket IP65 protection when used with supplied gasket and waterproof cap Exclusive compatibility with SE8MC-05 Series plugs Meets CAT5e performance (TIA/EIA 568B ISO/IEC 11801) Fast locking/unlocking for stable signal under movement Supplied with gasket backplate and screws for secure installation
Connection Type: RJ45 Gender: Female Rated Voltage: 50V Rated Current: 1.5A Contact Resistance: <10 mΩ Insulation Resistance: ≥0.5 GΩ Dielectric Strength: 1kV DC Transmission: CAT5e (1–100MHz) Chassis Shape: D-shape Insertion Force: ≤50 N Service Life: >1000 mating cycles Housing: Zinc alloy (chrome-plated) Contacts: Copper alloy gold-plated Insert: PBT Temperature Range: -30°C to +80°C Ingress Protection: IP65 (with gasket/cap) Standards: TIA/EIA 568B IEC 11801
