The Seetronic SE8FF-02-C6A is a compact IP65-rated RJ45 feedthrough adapter designed for seamless CAT6a and PoE++ (IEEE 802.3bt) connectivity. Built for demanding environments it ensures fast reliable data and power transmission in AV industrial and networking applications and is compatible with SE8MC-02-NEW connectors.
CAT6a RJ45 feedthrough adapter for cable joining PoE++ support (IEEE 802.3bt) for combined power and data Compatible with Seetronic SE8MC-02-NEW connectors Short compact space-saving design IP65 rated for outdoor and industrial use Complies with TIA/EIA 568B and ISO/IEC 11801 CAT6a standards
Connection Type: RJ45 Adapter Transmission Standard: CAT6a PoE Compatibility: PoE++ (IEEE 802.3bt) Contact Resistance: < 10 mΩ Rated Current: 2A Rated Voltage: 60V Insulation Resistance: ≥ 0.5GΩ Dielectric Strength: 1 KV DC Frequency Range: 1–100 MHz Insertion Force: ≤ 20 N Service Life: >1000 mating cycles Locking Device: Latch lock Contacts: Copper alloy gold plated Insert: PBT Panel: Zinc alloy Operating Temperature: -30°C to +80°C Ingress Protection: IP65 Standards: TIA/EIA 568B IEC 11801
CAT6a RJ45 feedthrough adapter for cable joining PoE++ support (IEEE 802.3bt) for combined power and data Compatible with Seetronic SE8MC-02-NEW connectors Short compact space-saving design IP65 rated for outdoor and industrial use Complies with TIA/EIA 568B and ISO/IEC 11801 CAT6a standards
Connection Type: RJ45 Adapter Transmission Standard: CAT6a PoE Compatibility: PoE++ (IEEE 802.3bt) Contact Resistance: < 10 mΩ Rated Current: 2A Rated Voltage: 60V Insulation Resistance: ≥ 0.5GΩ Dielectric Strength: 1 KV DC Frequency Range: 1–100 MHz Insertion Force: ≤ 20 N Service Life: >1000 mating cycles Locking Device: Latch lock Contacts: Copper alloy gold plated Insert: PBT Panel: Zinc alloy Operating Temperature: -30°C to +80°C Ingress Protection: IP65 Standards: TIA/EIA 568B IEC 11801

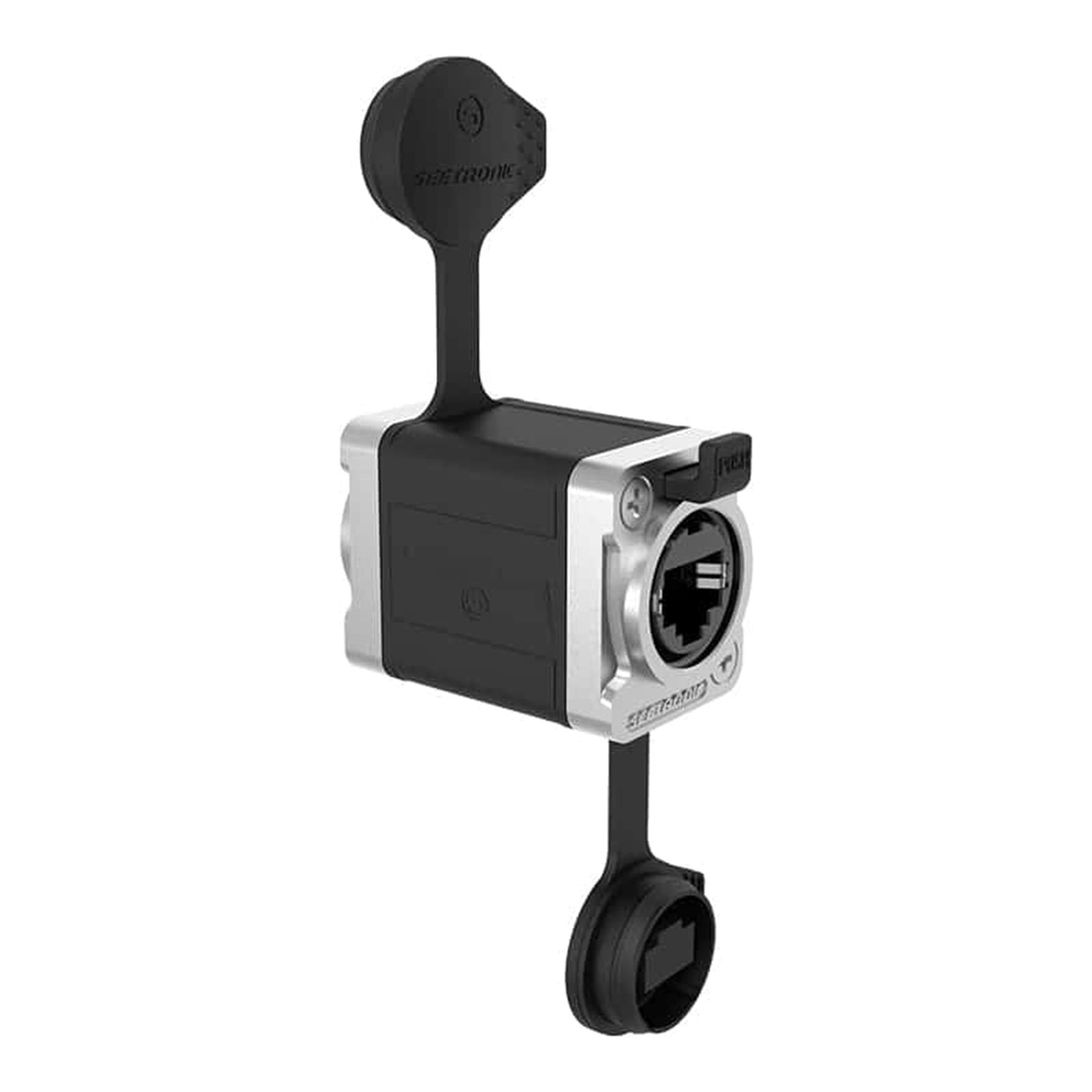

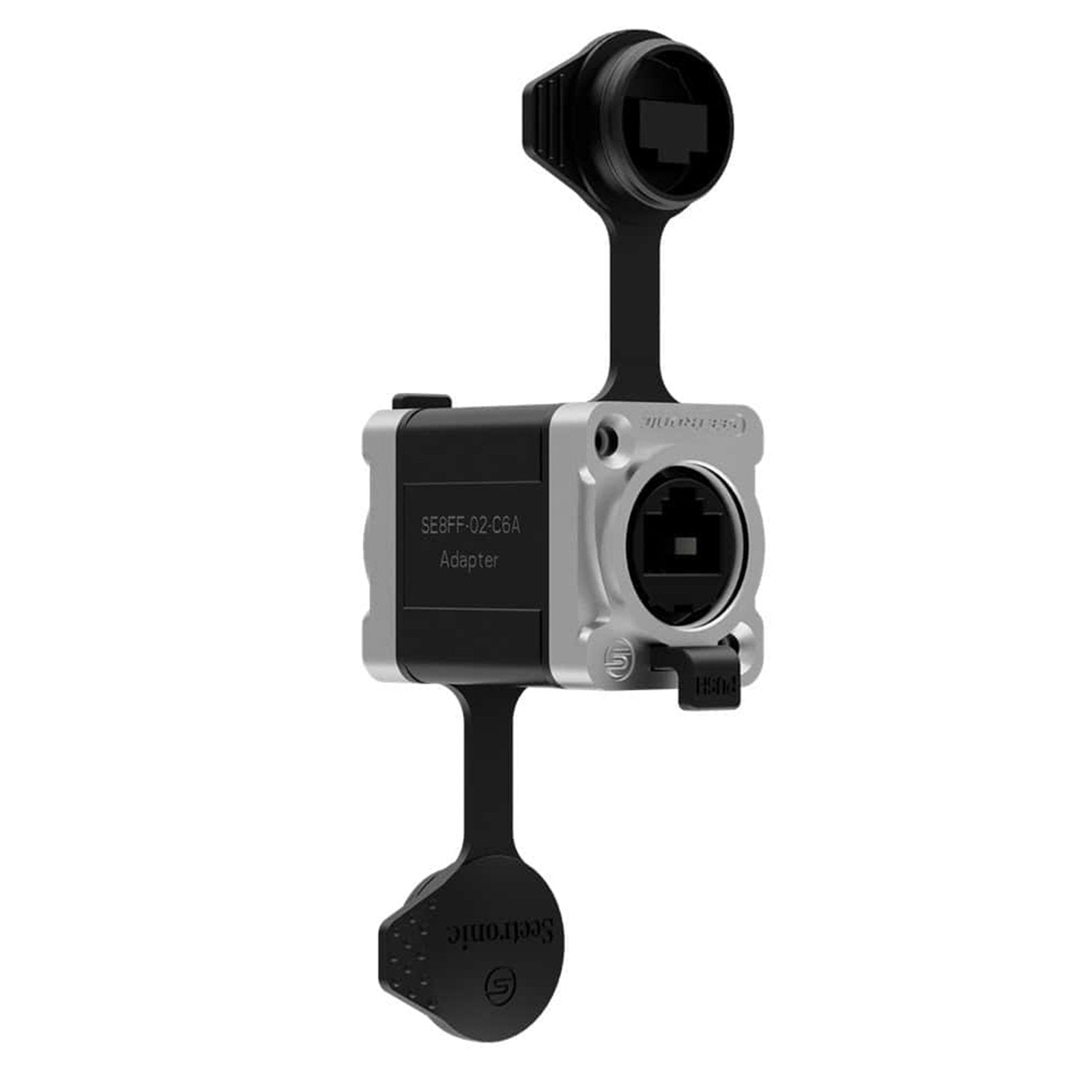

Seetronic RJ45 CAT6A Feedthrough Coupler IP65 SE8FF-02-C6A
Brand: Seetronic
SKU: CONN1468
Regular price
£28.99
Pickup available at Venutec
Usually ready in 24 hours
Seetronic RJ45 CAT6A Feedthrough Coupler IP65 SE8FF-02-C6A
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Seetronic SE8FF-02-C6A is a compact IP65-rated RJ45 feedthrough adapter designed for seamless CAT6a and PoE++ (IEEE 802.3bt) connectivity. Built for demanding environments it ensures fast reliable data and power transmission in AV industrial and networking applications and is compatible with SE8MC-02-NEW connectors.
CAT6a RJ45 feedthrough adapter for cable joining PoE++ support (IEEE 802.3bt) for combined power and data Compatible with Seetronic SE8MC-02-NEW connectors Short compact space-saving design IP65 rated for outdoor and industrial use Complies with TIA/EIA 568B and ISO/IEC 11801 CAT6a standards
Connection Type: RJ45 Adapter Transmission Standard: CAT6a PoE Compatibility: PoE++ (IEEE 802.3bt) Contact Resistance: < 10 mΩ Rated Current: 2A Rated Voltage: 60V Insulation Resistance: ≥ 0.5GΩ Dielectric Strength: 1 KV DC Frequency Range: 1–100 MHz Insertion Force: ≤ 20 N Service Life: >1000 mating cycles Locking Device: Latch lock Contacts: Copper alloy gold plated Insert: PBT Panel: Zinc alloy Operating Temperature: -30°C to +80°C Ingress Protection: IP65 Standards: TIA/EIA 568B IEC 11801
CAT6a RJ45 feedthrough adapter for cable joining PoE++ support (IEEE 802.3bt) for combined power and data Compatible with Seetronic SE8MC-02-NEW connectors Short compact space-saving design IP65 rated for outdoor and industrial use Complies with TIA/EIA 568B and ISO/IEC 11801 CAT6a standards
Connection Type: RJ45 Adapter Transmission Standard: CAT6a PoE Compatibility: PoE++ (IEEE 802.3bt) Contact Resistance: < 10 mΩ Rated Current: 2A Rated Voltage: 60V Insulation Resistance: ≥ 0.5GΩ Dielectric Strength: 1 KV DC Frequency Range: 1–100 MHz Insertion Force: ≤ 20 N Service Life: >1000 mating cycles Locking Device: Latch lock Contacts: Copper alloy gold plated Insert: PBT Panel: Zinc alloy Operating Temperature: -30°C to +80°C Ingress Protection: IP65 Standards: TIA/EIA 568B IEC 11801
