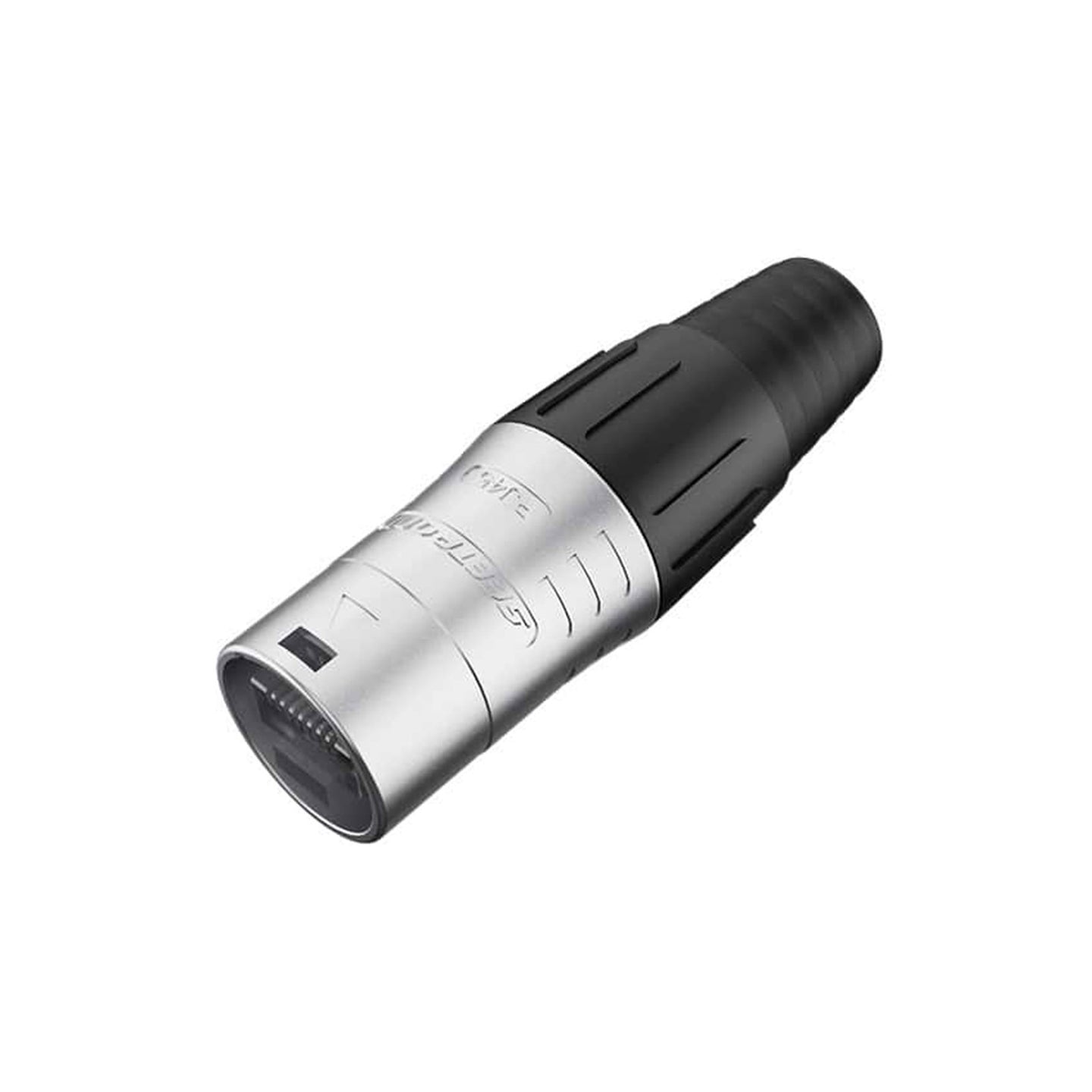

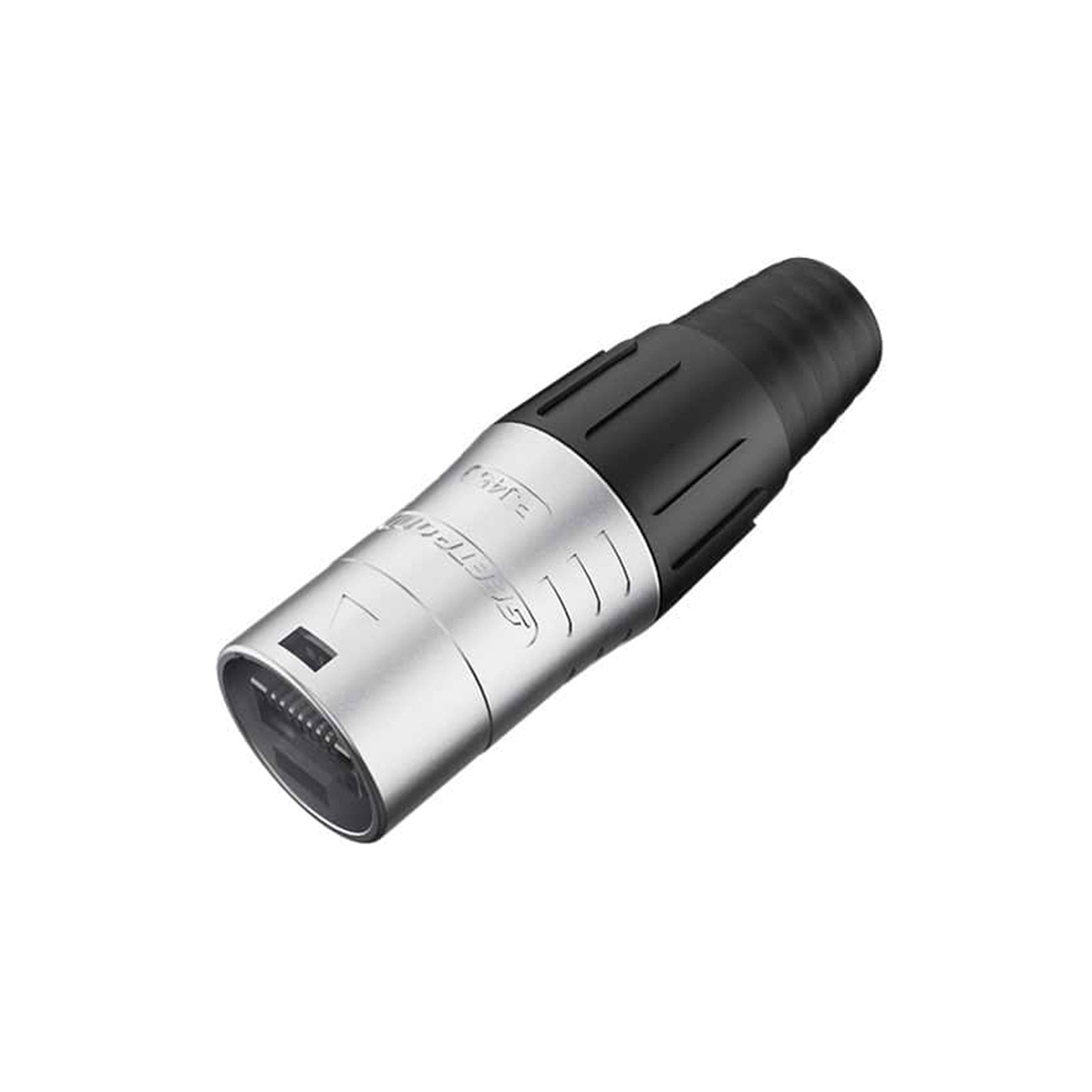

The Seetronic SE8MC‑02‑30‑LOD is a rugged RJ45 cable carrier connector engineered for harsh environments. With an IP65 waterproof rating chrome-plated die-cast housing and support for standard and dovetail clip RJ45 plugs this 30 cm cable solution ensures a secure weatherproof Ethernet connection in demanding applications.
- RJ45 cable carrier with chrome-plated die-cast zinc alloy housing
- IP65-rated waterproof protection for harsh outdoor environments
- Supports standard RJ45 plugs and dovetail-clip RJ45 connectors
- Compatible with cable diameters from 7.5mm to 9mm
- Latch-lock design prevents accidental disconnections

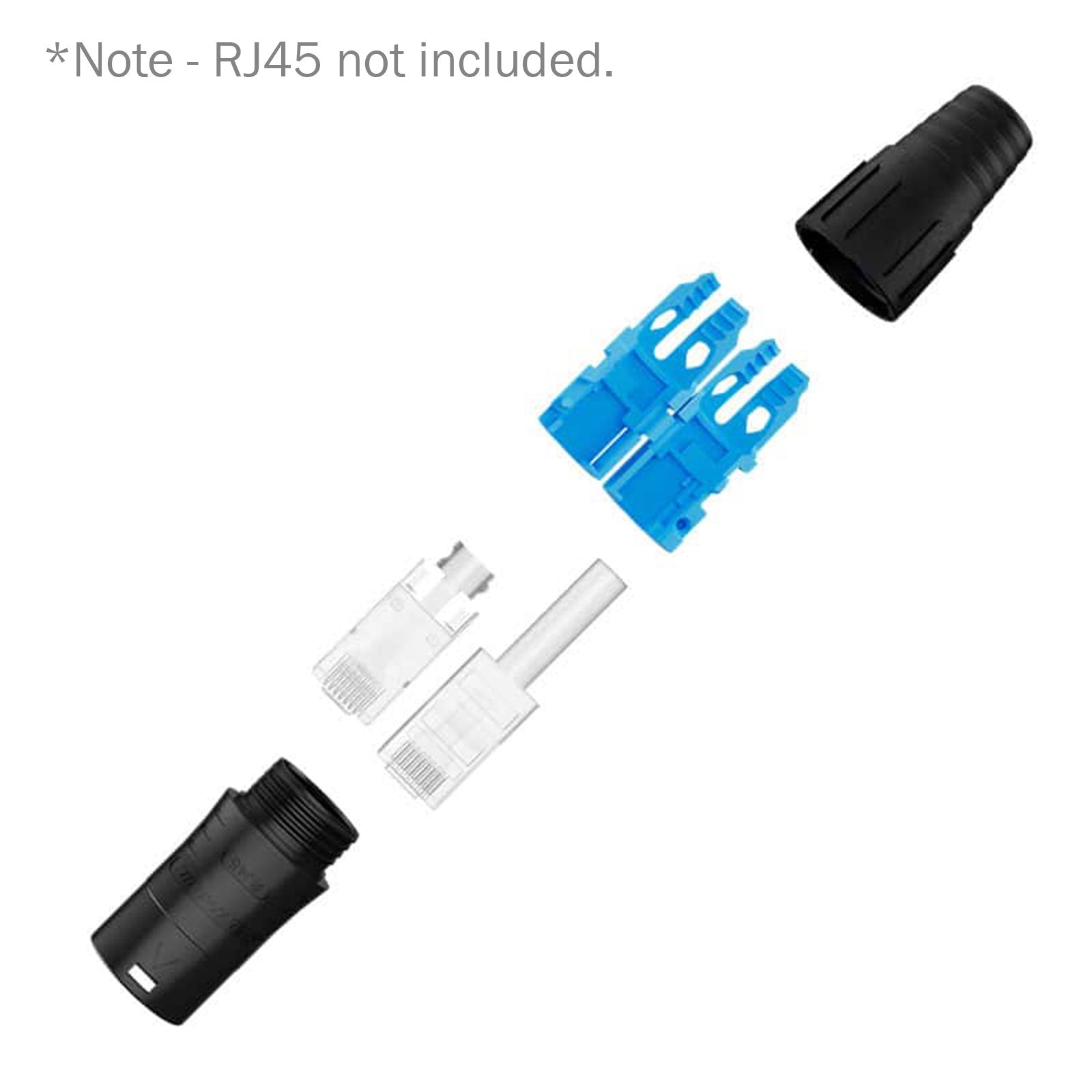

- Supplied with boot cable clip and housing for full assembly
- Connection Type: RJ45 (male)
- Cable Length: 30 cm
- Cable OD Compatibility: 7.5 – 9 mm
- Material: Zinc alloy housing (chrome plated) PA boot
- Ingress Protection: IP65
- Insertion/Withdrawal Force: ≤ 20 N
- Service Life: > 1000 mating cycles
- Operating Temp: –30 °C to +80 °C
Seetronic RJ45 Cable Housing SE8MC-02-30-LOD
Brand: Seetronic
SKU: CONN1457
Regular price
£2.99
Pickup available at Venutec
Usually ready in 24 hours
Seetronic RJ45 Cable Housing SE8MC-02-30-LOD
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Seetronic SE8MC‑02‑30‑LOD is a rugged RJ45 cable carrier connector engineered for harsh environments. With an IP65 waterproof rating chrome-plated die-cast housing and support for standard and dovetail clip RJ45 plugs this 30 cm cable solution ensures a secure weatherproof Ethernet connection in demanding applications.
- RJ45 cable carrier with chrome-plated die-cast zinc alloy housing
- IP65-rated waterproof protection for harsh outdoor environments
- Supports standard RJ45 plugs and dovetail-clip RJ45 connectors
- Compatible with cable diameters from 7.5mm to 9mm
- Latch-lock design prevents accidental disconnections
- Supplied with boot cable clip and housing for full assembly
- Connection Type: RJ45 (male)
- Cable Length: 30 cm
- Cable OD Compatibility: 7.5 – 9 mm
- Material: Zinc alloy housing (chrome plated) PA boot
- Ingress Protection: IP65
- Insertion/Withdrawal Force: ≤ 20 N
- Service Life: > 1000 mating cycles
- Operating Temp: –30 °C to +80 °C
