The Neutrik NE8FDP NE8FDV-YK-B and NE8FDV-YK EtherCON chassis connectors are designed for secure high-performance RJ45 connections in professional audio video and industrial applications. These connectors feature robust metal housings for durability and are compatible with standard Ethernet cables. The NE8FDP offers solder terminals for a straightforward connection while the NE8FDV-YK and NE8FDV-YK-B models feature IDC (insulation displacement contact) terminals for quick and reliable tool-free assembly. With their D-size panel-mount compatibility and shielding for EMI protection these connectors provide versatile solutions for fixed installations touring rigs and demanding setups.
Rugged Design: Durable metal housing ensures longevity in demanding environments Secure Connection: Latch lock system provides a stable and secure mating with RJ45 plugs Ease of Installation: Mountable from the front or rear of the panel offering flexibility during installation Compatibility: Accommodates NE8MC* or any standard RJ45 plug
Contact resistance: < 50 mΩ Dielectric strength: 1 kV DC Insulation resistance: 0.5 GΩ Rated current per contact: 1.5 A Rated voltage: ≤ 50 V Transmission performance: CAT5e according to TIA/EIA 568C and ISO/IEC 11801 standards Panel thickness: Max. 4 mm Temperature range: -30 °C to +80 °C
Rugged Design: Durable metal housing ensures longevity in demanding environments Secure Connection: Latch lock system provides a stable and secure mating with RJ45 plugs Ease of Installation: Mountable from the front or rear of the panel offering flexibility during installation Compatibility: Accommodates NE8MC* or any standard RJ45 plug
Contact resistance: < 50 mΩ Dielectric strength: 1 kV DC Insulation resistance: 0.5 GΩ Rated current per contact: 1.5 A Rated voltage: ≤ 50 V Transmission performance: CAT5e according to TIA/EIA 568C and ISO/IEC 11801 standards Panel thickness: Max. 4 mm Temperature range: -30 °C to +80 °C

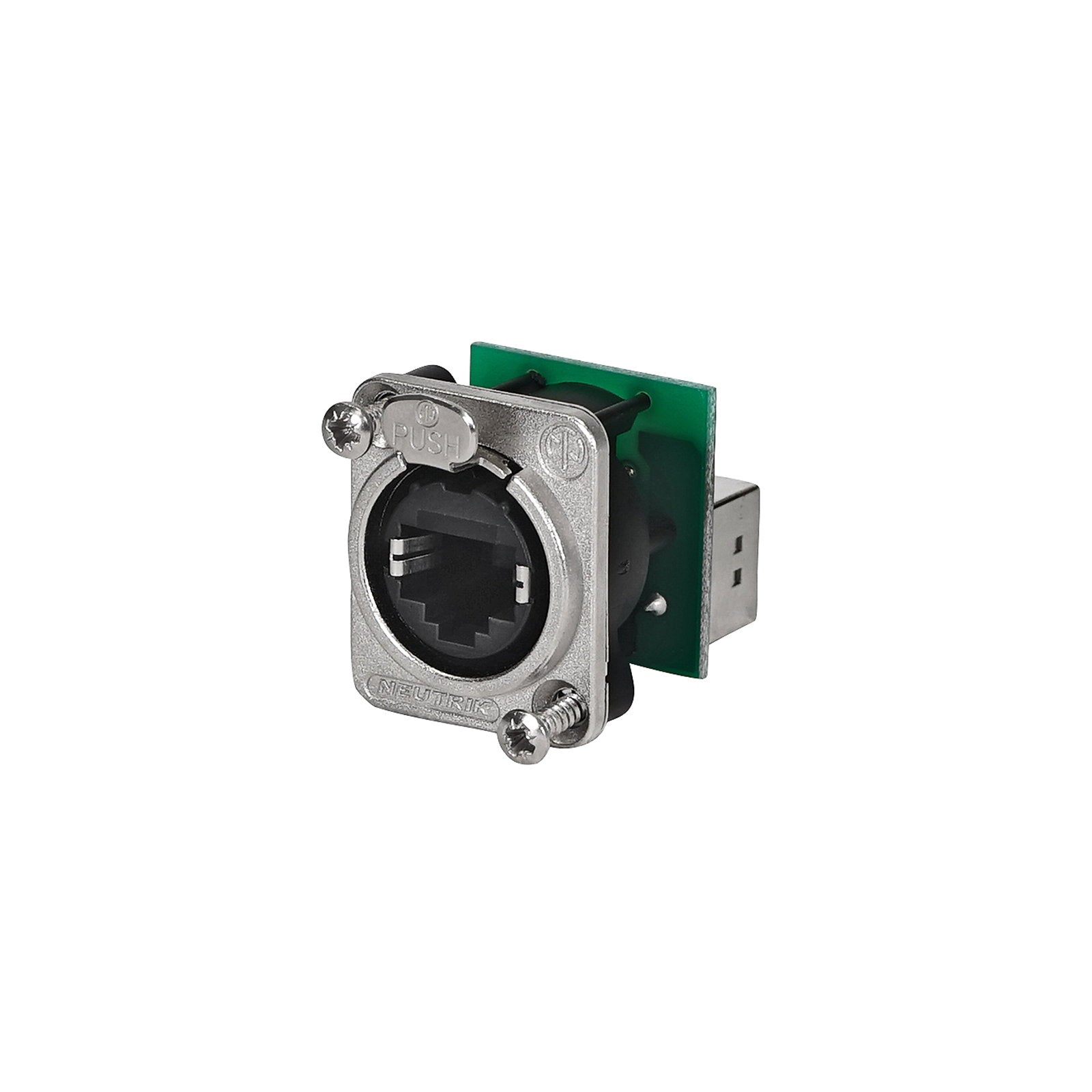

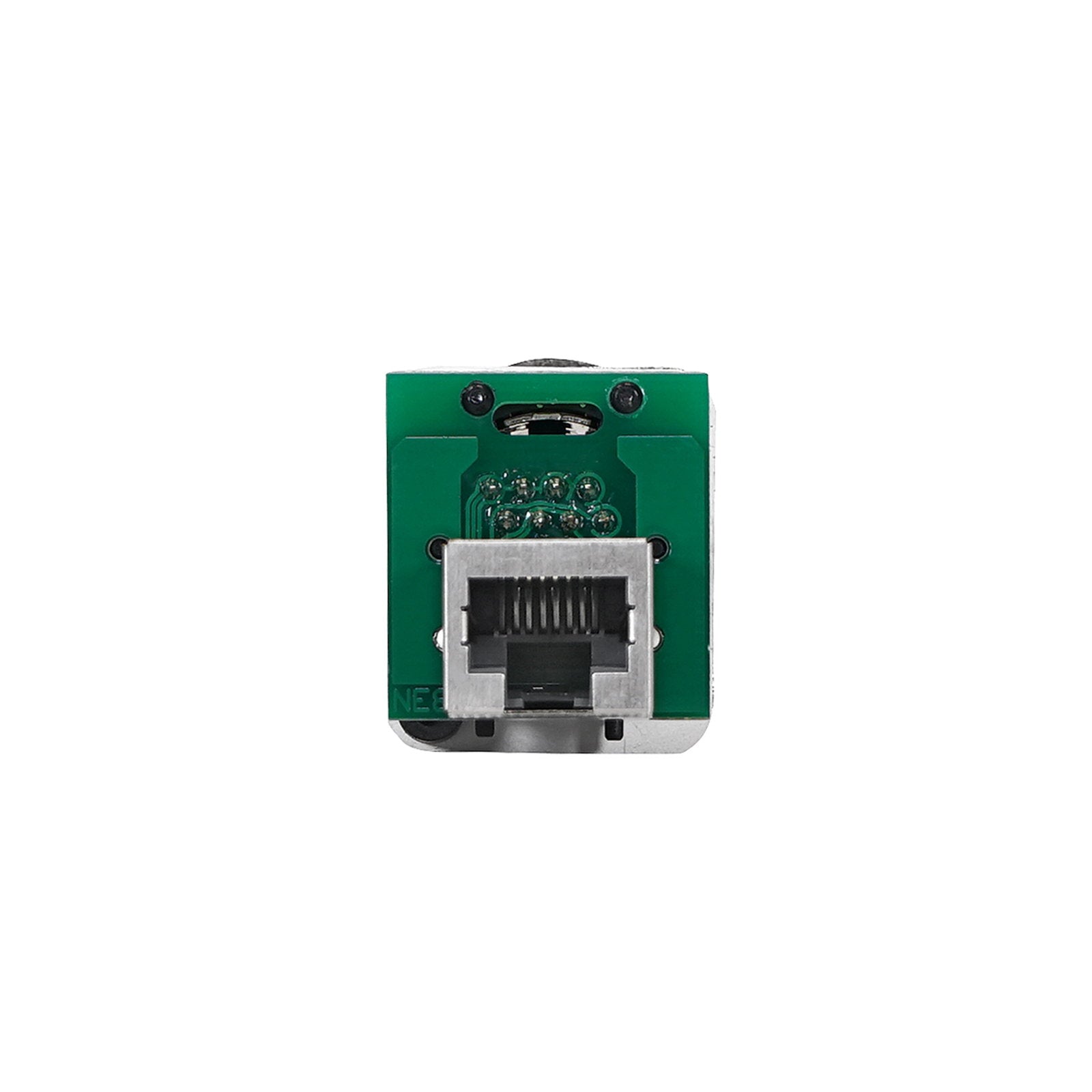

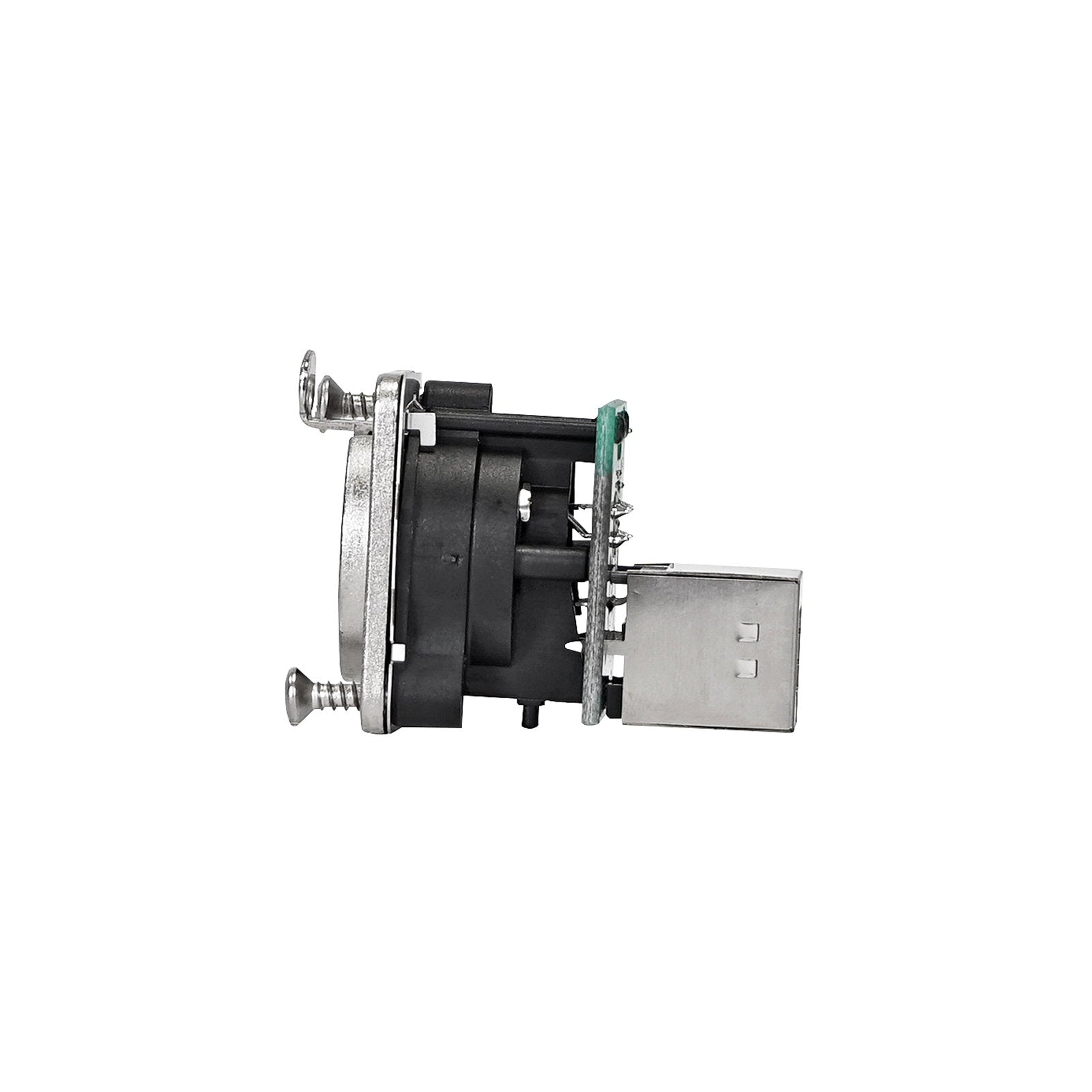

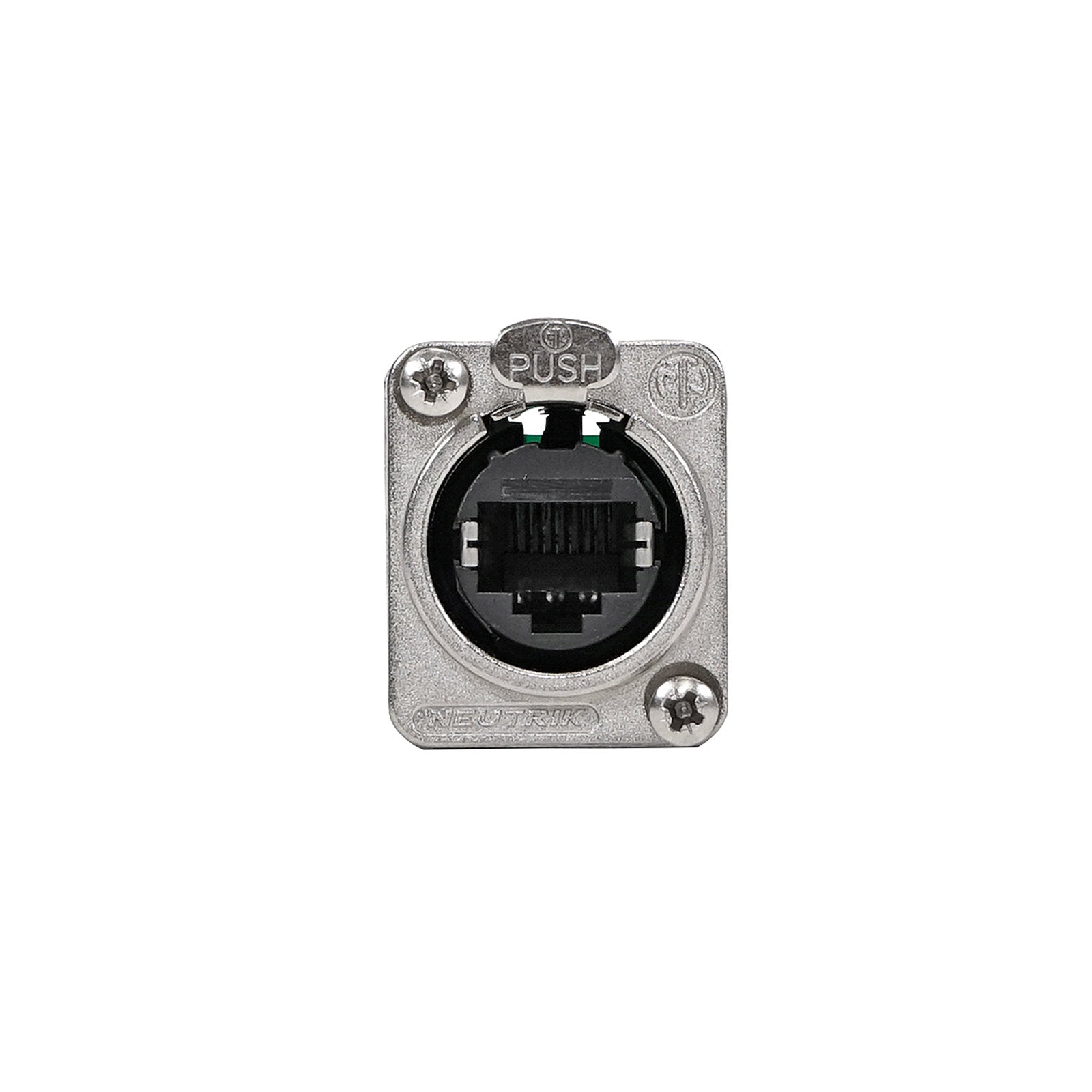

Neutrik etherCON Chassis Connector NE8FDP
Brand: Neutrik
SKU: CONN562
Regular price
£13.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik etherCON Chassis Connector NE8FDP
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Neutrik NE8FDP NE8FDV-YK-B and NE8FDV-YK EtherCON chassis connectors are designed for secure high-performance RJ45 connections in professional audio video and industrial applications. These connectors feature robust metal housings for durability and are compatible with standard Ethernet cables. The NE8FDP offers solder terminals for a straightforward connection while the NE8FDV-YK and NE8FDV-YK-B models feature IDC (insulation displacement contact) terminals for quick and reliable tool-free assembly. With their D-size panel-mount compatibility and shielding for EMI protection these connectors provide versatile solutions for fixed installations touring rigs and demanding setups.
Rugged Design: Durable metal housing ensures longevity in demanding environments Secure Connection: Latch lock system provides a stable and secure mating with RJ45 plugs Ease of Installation: Mountable from the front or rear of the panel offering flexibility during installation Compatibility: Accommodates NE8MC* or any standard RJ45 plug
Contact resistance: < 50 mΩ Dielectric strength: 1 kV DC Insulation resistance: 0.5 GΩ Rated current per contact: 1.5 A Rated voltage: ≤ 50 V Transmission performance: CAT5e according to TIA/EIA 568C and ISO/IEC 11801 standards Panel thickness: Max. 4 mm Temperature range: -30 °C to +80 °C
Rugged Design: Durable metal housing ensures longevity in demanding environments Secure Connection: Latch lock system provides a stable and secure mating with RJ45 plugs Ease of Installation: Mountable from the front or rear of the panel offering flexibility during installation Compatibility: Accommodates NE8MC* or any standard RJ45 plug
Contact resistance: < 50 mΩ Dielectric strength: 1 kV DC Insulation resistance: 0.5 GΩ Rated current per contact: 1.5 A Rated voltage: ≤ 50 V Transmission performance: CAT5e according to TIA/EIA 568C and ISO/IEC 11801 standards Panel thickness: Max. 4 mm Temperature range: -30 °C to +80 °C
