The Neutrik NE8MX-B-TOP Series includes ruggedised RJ45 cable connectors designed for outdoor and demanding environments. Engineered to meet IP65 and UL 50E standards when mated these connectors ensure superior protection against dust water and harsh conditions. Featuring a robust zinc die-cast shell with a weatherproof black chromium finish the NE8MX-B-TOP Series provides durability and reliability. These connectors are compatible with shielded or unshielded CAT5e cables and support high-speed data transmission up to 100 Mbps. Their simple assembly process and secure twist-lock system make them ideal for professional applications in AV broadcast and industrial settings.
Robust Design: Rugged die-cast shell with unique chuck-type strain relief Environmental Protection: IP65 rated and TOP approved per UL50E when mated with appropriate connectors Versatility: Accepts most common RJ45 plugs User-Friendly: Allows assembly of non-preassembled conventional RJ45 cables
Cable outer diameter: 5.0 – 8.0mm Insertion/Withdrawal force: ≤ 20N Durability: 1000 mating cycles Materials: Boot: Thermoplastic elastomer (TPE) Shell: Zinc die-cast (ZnAl4Cu1) with black KTL coating Insert: Polyamide (PA66) Strain relief: Polyacetal (POM) Environmental Ratings: Protection class: IP65 (when mated) Operating temperature range: -30°C to +80°C
Robust Design: Rugged die-cast shell with unique chuck-type strain relief Environmental Protection: IP65 rated and TOP approved per UL50E when mated with appropriate connectors Versatility: Accepts most common RJ45 plugs User-Friendly: Allows assembly of non-preassembled conventional RJ45 cables
Cable outer diameter: 5.0 – 8.0mm Insertion/Withdrawal force: ≤ 20N Durability: 1000 mating cycles Materials: Boot: Thermoplastic elastomer (TPE) Shell: Zinc die-cast (ZnAl4Cu1) with black KTL coating Insert: Polyamide (PA66) Strain relief: Polyacetal (POM) Environmental Ratings: Protection class: IP65 (when mated) Operating temperature range: -30°C to +80°C

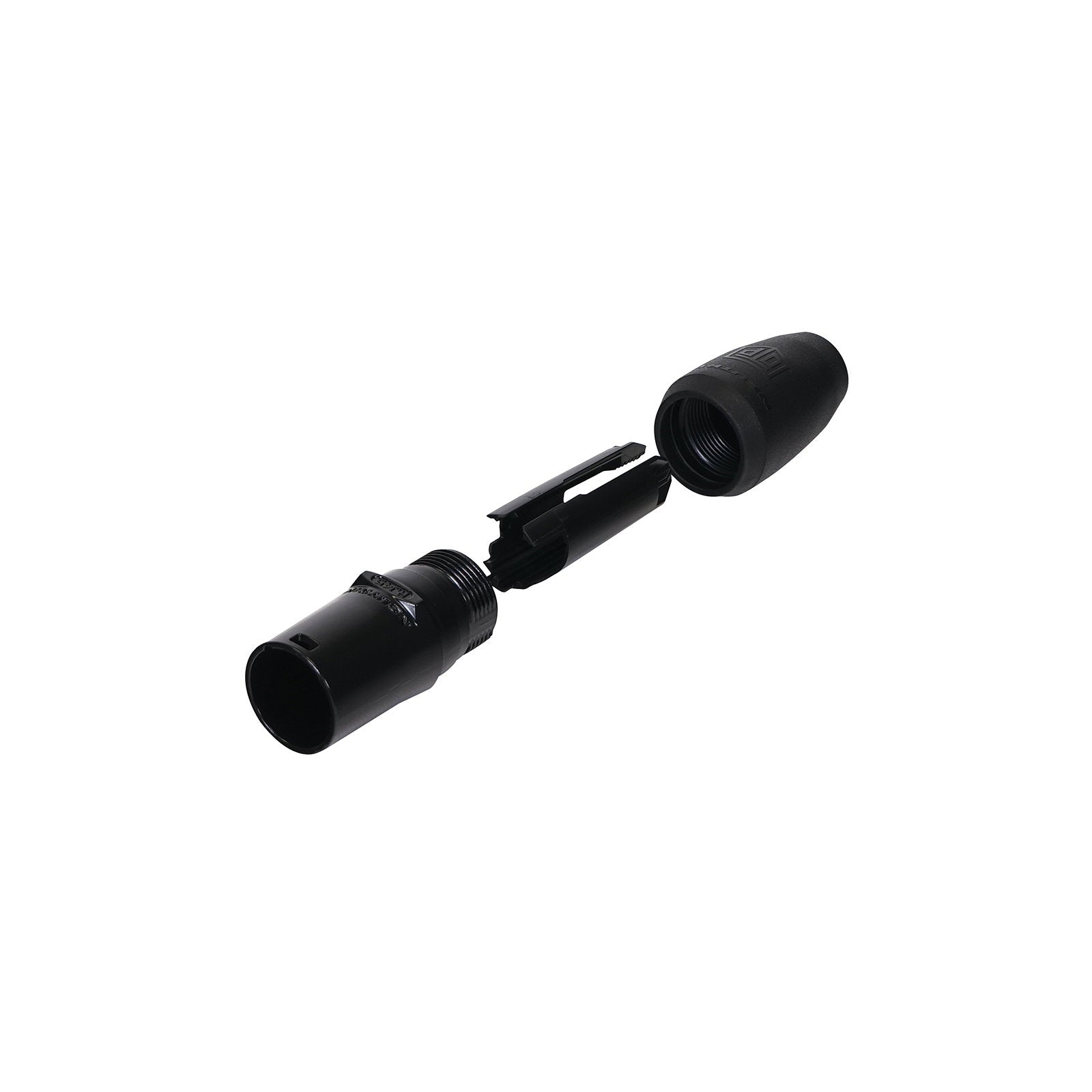

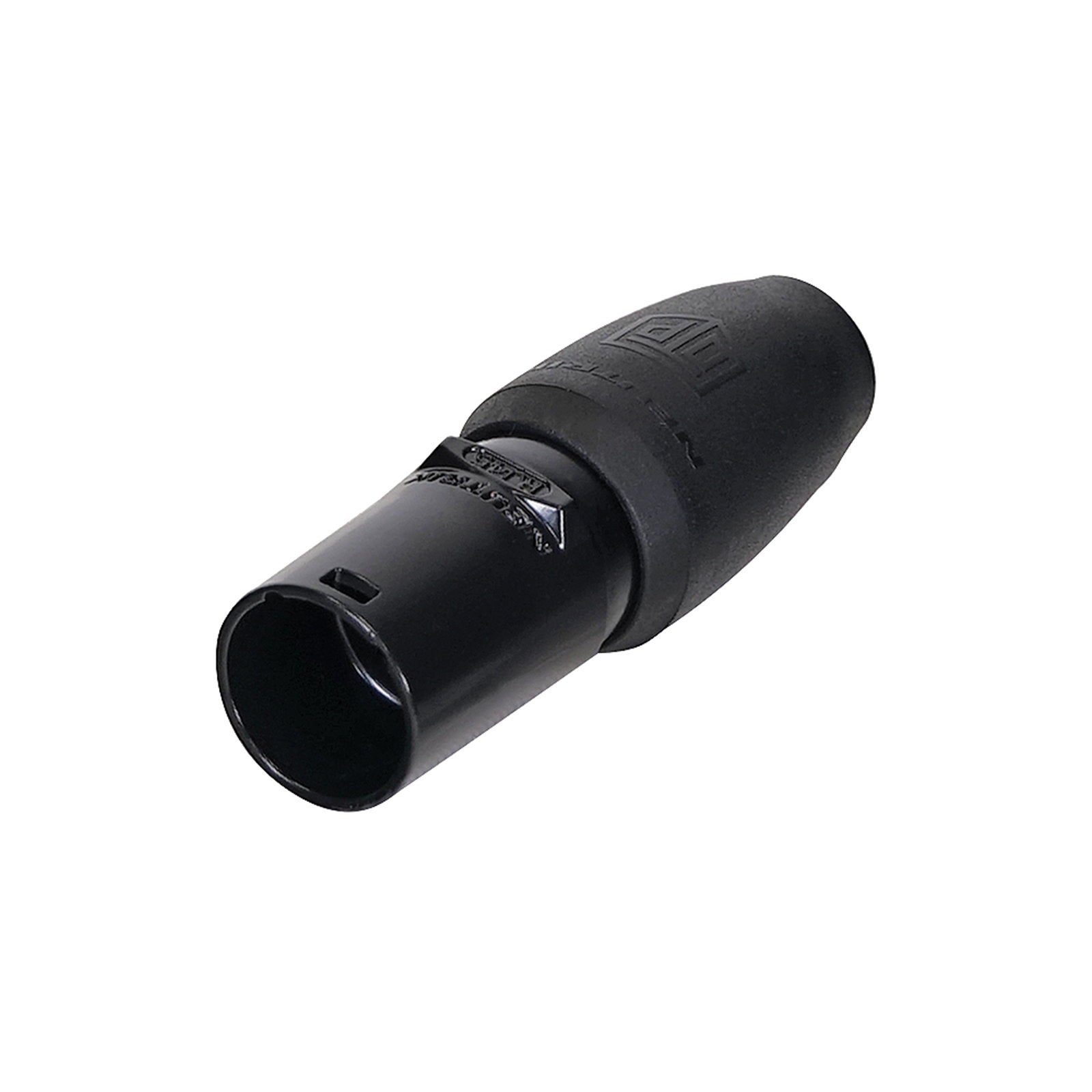

Neutrik etherCON Cable Connector RJ45 Carrier NE8MX-B-TOP
Brand: Neutrik
SKU: CONN560
Regular price
£4.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik etherCON Cable Connector RJ45 Carrier NE8MX-B-TOP
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Neutrik NE8MX-B-TOP Series includes ruggedised RJ45 cable connectors designed for outdoor and demanding environments. Engineered to meet IP65 and UL 50E standards when mated these connectors ensure superior protection against dust water and harsh conditions. Featuring a robust zinc die-cast shell with a weatherproof black chromium finish the NE8MX-B-TOP Series provides durability and reliability. These connectors are compatible with shielded or unshielded CAT5e cables and support high-speed data transmission up to 100 Mbps. Their simple assembly process and secure twist-lock system make them ideal for professional applications in AV broadcast and industrial settings.
Robust Design: Rugged die-cast shell with unique chuck-type strain relief Environmental Protection: IP65 rated and TOP approved per UL50E when mated with appropriate connectors Versatility: Accepts most common RJ45 plugs User-Friendly: Allows assembly of non-preassembled conventional RJ45 cables
Cable outer diameter: 5.0 – 8.0mm Insertion/Withdrawal force: ≤ 20N Durability: 1000 mating cycles Materials: Boot: Thermoplastic elastomer (TPE) Shell: Zinc die-cast (ZnAl4Cu1) with black KTL coating Insert: Polyamide (PA66) Strain relief: Polyacetal (POM) Environmental Ratings: Protection class: IP65 (when mated) Operating temperature range: -30°C to +80°C
Robust Design: Rugged die-cast shell with unique chuck-type strain relief Environmental Protection: IP65 rated and TOP approved per UL50E when mated with appropriate connectors Versatility: Accepts most common RJ45 plugs User-Friendly: Allows assembly of non-preassembled conventional RJ45 cables
Cable outer diameter: 5.0 – 8.0mm Insertion/Withdrawal force: ≤ 20N Durability: 1000 mating cycles Materials: Boot: Thermoplastic elastomer (TPE) Shell: Zinc die-cast (ZnAl4Cu1) with black KTL coating Insert: Polyamide (PA66) Strain relief: Polyacetal (POM) Environmental Ratings: Protection class: IP65 (when mated) Operating temperature range: -30°C to +80°C
