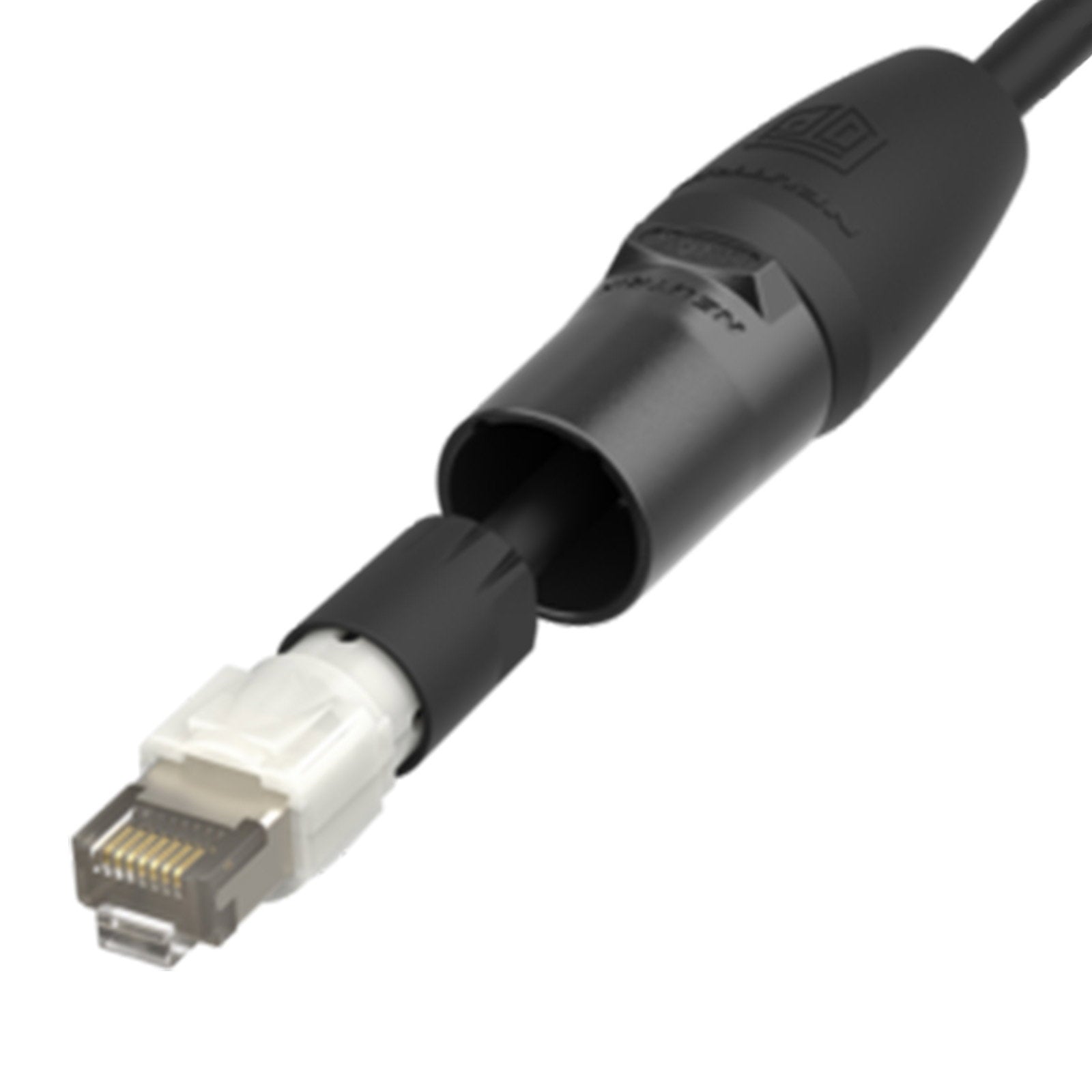

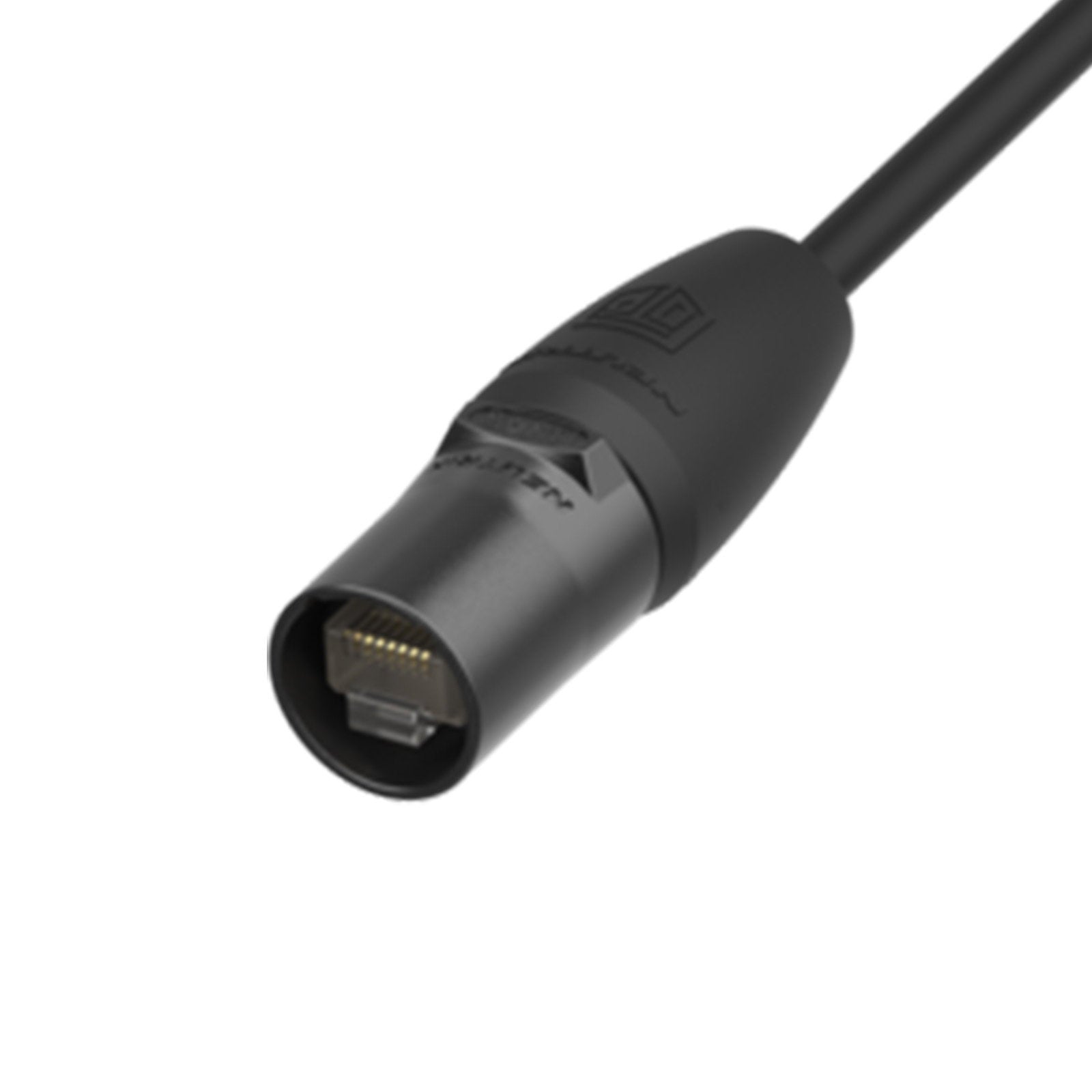

The Neutrik NE8MXR-B-TOP is a rugged retractable RJ45 carrier connector from the etherCON® TRUE OUTDOOR PROTECTION (TOP) series engineered for demanding conditions. With a retractable shell for compatibility with both standard RJ45 and etherCON® receptacles it ensures secure weather-resistant performance. IP65-rated when mated or sealed it features UV-resistant halogen-free materials and a flame-retardant V0 rating—ideal for professional AV industrial and outdoor networking.
Retractable shell design ensures compatibility with standard RJ45 and etherCON® receptacles Die-cast zinc housing with chuck-type strain relief IP65 protection when mated or sealed with SCMX-TOP cap UV-resistant halogen-free V0 flame-rated materials Supports cables with outer diameters of 5.5–8.0mm ≥1000 mating cycles and ≥100 retracting cycles for long-term reliability Designed for outdoor professional AV and industrial networking applications
Product Family: etherCON® Connection Type: RJ45 carrier cable connector Gender: Male Cable OD Compatibility: 5.5–8.0mm Insertion/Withdrawal Force: ≤30N Mating Cycles: ≥1000 Retracting Cycles: ≥100 Protection Class: IP65 (mated or with sealed cap) Temperature Range: –30°C to +80°C Boot: Thermoplastic Elastomer (TPE) Shell: Zinc Diecast (ZnAl4Cu1) Strain Relief: Polyketon (PK) Sleeve: Polyamide (PA6 GF15%) UV Resistance: F2 certified Flammability: UL94 V0 Halogen-Free: Yes
Retractable shell design ensures compatibility with standard RJ45 and etherCON® receptacles Die-cast zinc housing with chuck-type strain relief IP65 protection when mated or sealed with SCMX-TOP cap UV-resistant halogen-free V0 flame-rated materials Supports cables with outer diameters of 5.5–8.0mm ≥1000 mating cycles and ≥100 retracting cycles for long-term reliability Designed for outdoor professional AV and industrial networking applications
Product Family: etherCON® Connection Type: RJ45 carrier cable connector Gender: Male Cable OD Compatibility: 5.5–8.0mm Insertion/Withdrawal Force: ≤30N Mating Cycles: ≥1000 Retracting Cycles: ≥100 Protection Class: IP65 (mated or with sealed cap) Temperature Range: –30°C to +80°C Boot: Thermoplastic Elastomer (TPE) Shell: Zinc Diecast (ZnAl4Cu1) Strain Relief: Polyketon (PK) Sleeve: Polyamide (PA6 GF15%) UV Resistance: F2 certified Flammability: UL94 V0 Halogen-Free: Yes
Neutrik etherCON Cable Connector RJ45 Black NE8MXR-B-TOP
Brand: Neutrik
SKU: CONN1266
Regular price
£6.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik etherCON Cable Connector RJ45 Black NE8MXR-B-TOP
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Neutrik NE8MXR-B-TOP is a rugged retractable RJ45 carrier connector from the etherCON® TRUE OUTDOOR PROTECTION (TOP) series engineered for demanding conditions. With a retractable shell for compatibility with both standard RJ45 and etherCON® receptacles it ensures secure weather-resistant performance. IP65-rated when mated or sealed it features UV-resistant halogen-free materials and a flame-retardant V0 rating—ideal for professional AV industrial and outdoor networking.
Retractable shell design ensures compatibility with standard RJ45 and etherCON® receptacles Die-cast zinc housing with chuck-type strain relief IP65 protection when mated or sealed with SCMX-TOP cap UV-resistant halogen-free V0 flame-rated materials Supports cables with outer diameters of 5.5–8.0mm ≥1000 mating cycles and ≥100 retracting cycles for long-term reliability Designed for outdoor professional AV and industrial networking applications
Product Family: etherCON® Connection Type: RJ45 carrier cable connector Gender: Male Cable OD Compatibility: 5.5–8.0mm Insertion/Withdrawal Force: ≤30N Mating Cycles: ≥1000 Retracting Cycles: ≥100 Protection Class: IP65 (mated or with sealed cap) Temperature Range: –30°C to +80°C Boot: Thermoplastic Elastomer (TPE) Shell: Zinc Diecast (ZnAl4Cu1) Strain Relief: Polyketon (PK) Sleeve: Polyamide (PA6 GF15%) UV Resistance: F2 certified Flammability: UL94 V0 Halogen-Free: Yes
Retractable shell design ensures compatibility with standard RJ45 and etherCON® receptacles Die-cast zinc housing with chuck-type strain relief IP65 protection when mated or sealed with SCMX-TOP cap UV-resistant halogen-free V0 flame-rated materials Supports cables with outer diameters of 5.5–8.0mm ≥1000 mating cycles and ≥100 retracting cycles for long-term reliability Designed for outdoor professional AV and industrial networking applications
Product Family: etherCON® Connection Type: RJ45 carrier cable connector Gender: Male Cable OD Compatibility: 5.5–8.0mm Insertion/Withdrawal Force: ≤30N Mating Cycles: ≥1000 Retracting Cycles: ≥100 Protection Class: IP65 (mated or with sealed cap) Temperature Range: –30°C to +80°C Boot: Thermoplastic Elastomer (TPE) Shell: Zinc Diecast (ZnAl4Cu1) Strain Relief: Polyketon (PK) Sleeve: Polyamide (PA6 GF15%) UV Resistance: F2 certified Flammability: UL94 V0 Halogen-Free: Yes
