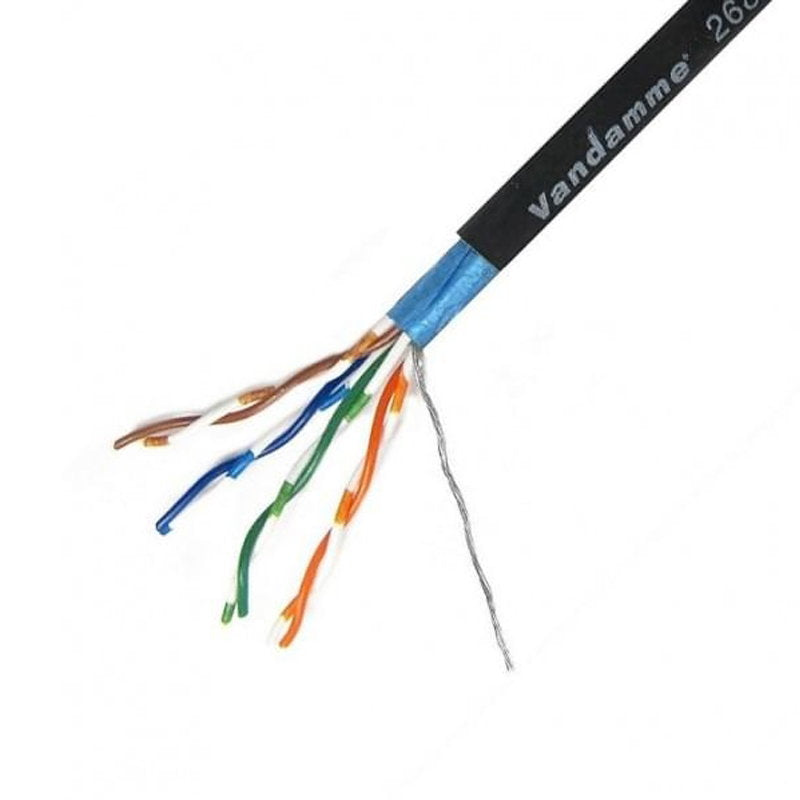

Ethernet and Ethernet based protocols continue to proliferate in the professional and domestic audio visual market and the choice of products in the Tourcat range now supports most applications. The original Van Damme Tourcat is a flexible patch cable that has the feel and flexibility of Van Damme microphone cable. It meets the requirements of Category 5E TIA/EIA-568-C-2 and has been tested with a Fluke DTX cable verifier proving Cat 5E Gigabit channel link performance to 53 metres. Longer distances are possible but not guaranteed.

Suitable for patch cords and link cables for Ethernet and Ethernet based protocols Flexible and robust for touring and dynamic use Ideal for use with the Neutrik Ethercon Conductor: 7 x 0.16mm bare oxygen free copper Conductor size 7 x 0.16mm 0.14mm² (AWG 26/7) Dielectric material: Low density polyolefin (PE-LD) Dielectric diameter 0.94 ± 0.07mm Colour coding: Pair 1 - White/Blue-Blue Pair 2 - White/Orange-Orange Pair 3 - White/Green-Green Pair 4 - White/Brown-Brown Drain wire: 7 x 0.16mm tinned oxygen free copper Drain wire size: 7 x 0.16mm 0.14mm² (AWG 26/7) Screen Aluminium/Polyester Foil > 100% coverage Jacket material: Flexible PVC Jet Black RAL 9005 Overall diameter: 6.00 ± 0.30 mm Bend radius 10 x overall diameter Operating temperature: -40 to +70°C
