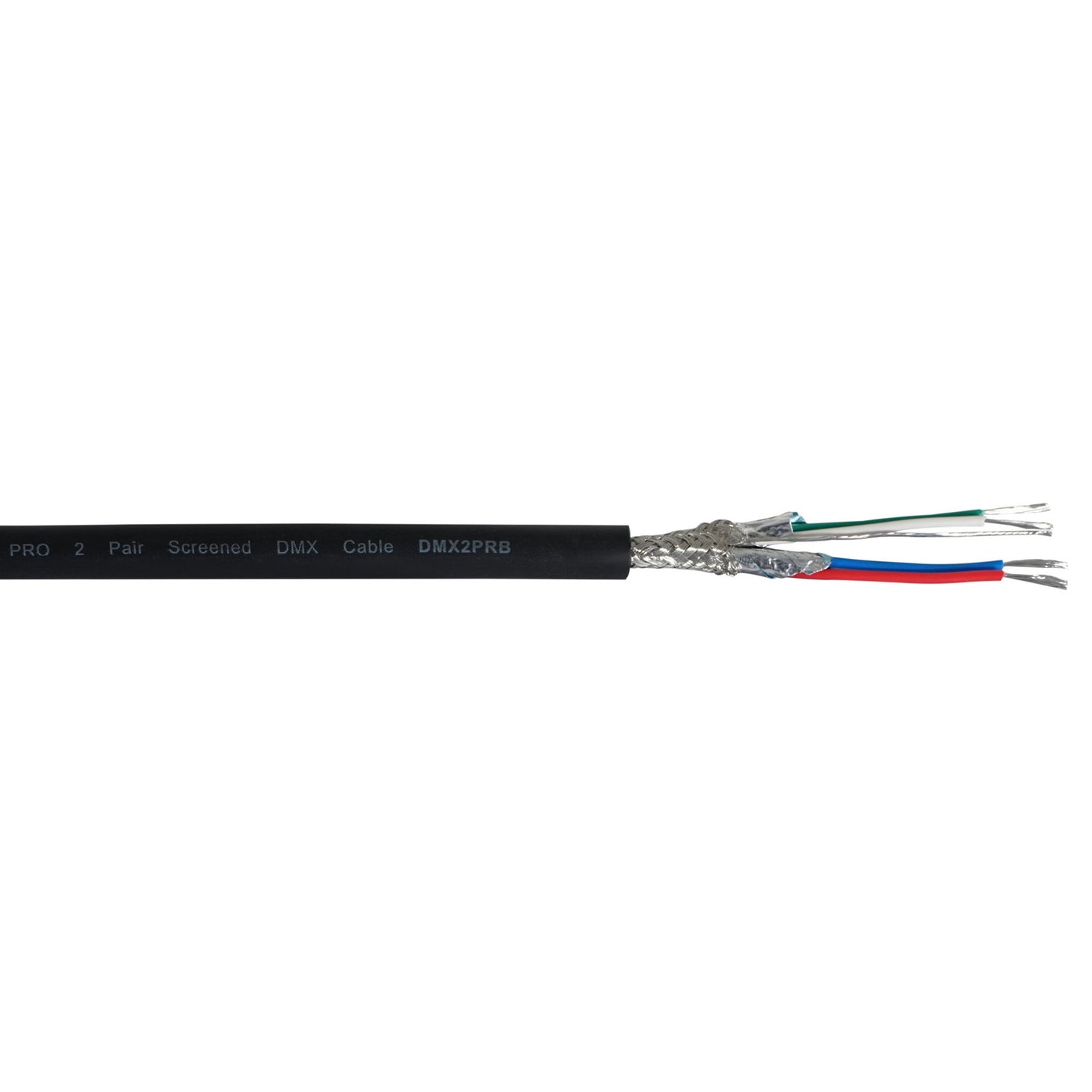

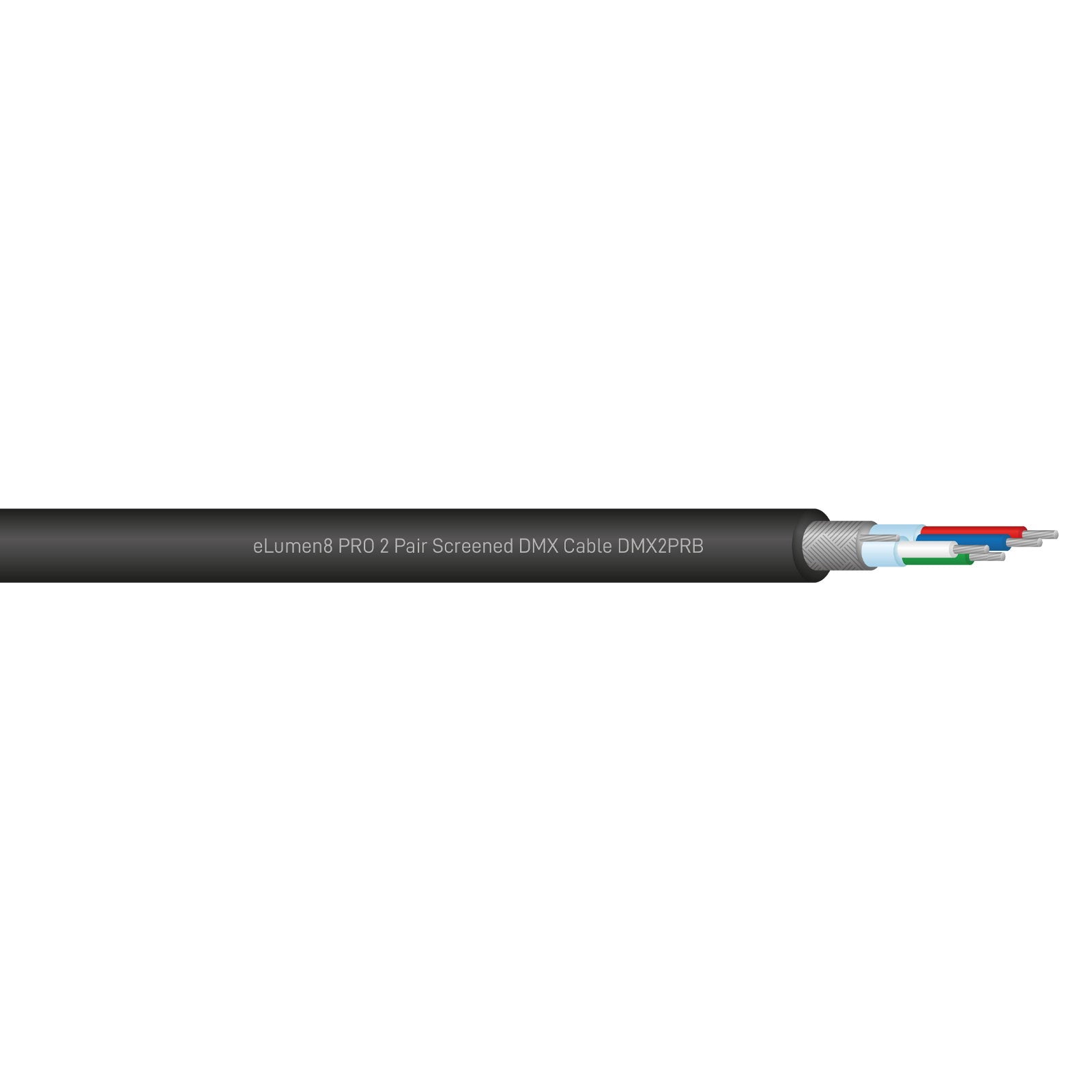

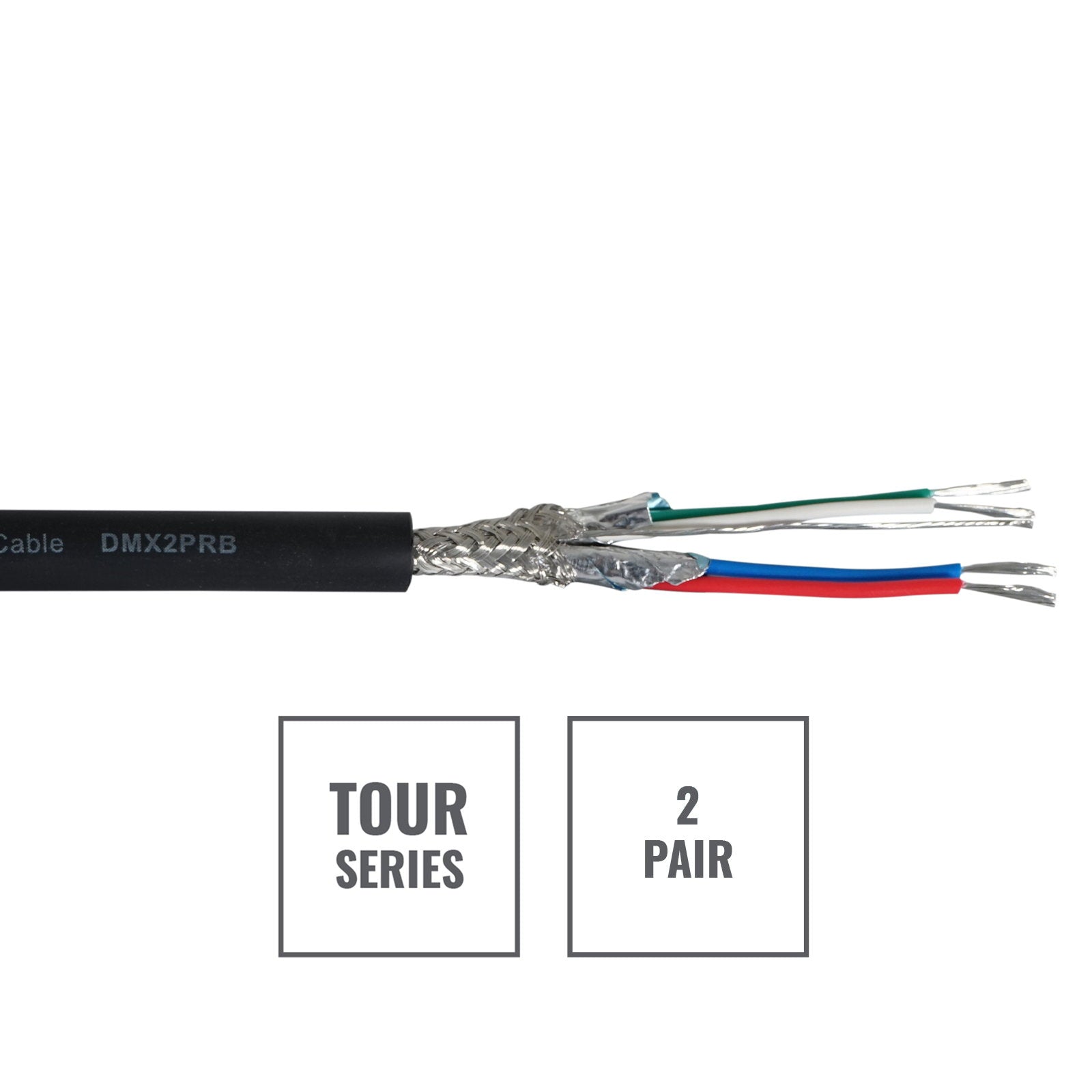

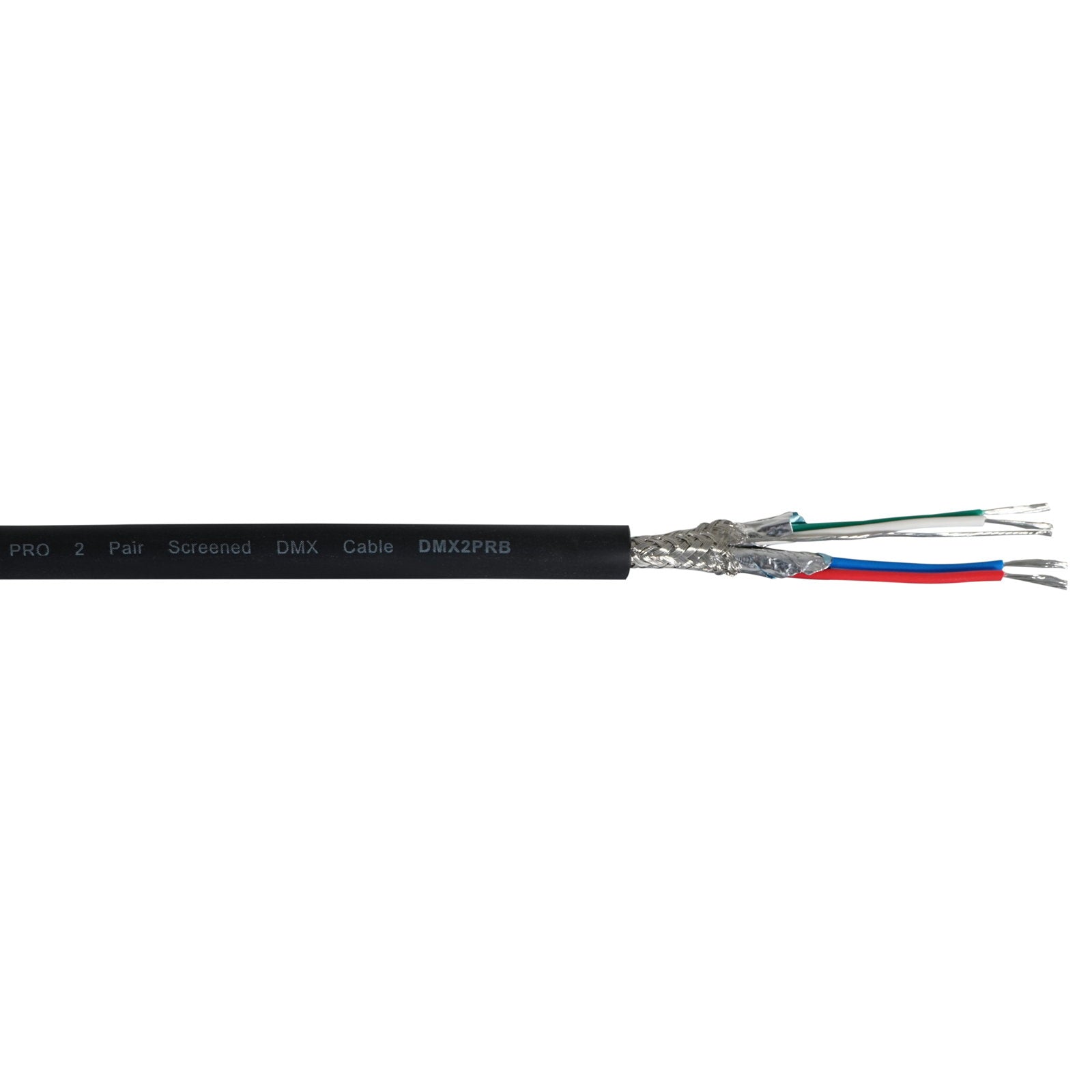

Touring grade 2 pair screened DMX cable suitable for heavy duty stage lighting control applications. The cable is constructed from a pair of tinned oxygen-free copper cores protected by both aluminium polyester foil and a tinned oxygen-free copper woven braid complete with drain wire. The cable is finished with a low memory super flexible outer PVC jacket for the ultimate flexibility. The outer diameter of 7.8mm is designed so it still fits into the cable glands on most 5-Pin XLR connectors.
110Ω impedance Tinned copper cores 2 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen for each pair Colour coding: Red/Blue/White/Green Super flexible PVC outer jacket Supplied on 500m reels
Conductors: 4 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 7.8mm Operating temperature range: 0 to +60°C
110Ω impedance Tinned copper cores 2 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen for each pair Colour coding: Red/Blue/White/Green Super flexible PVC outer jacket Supplied on 500m reels
Conductors: 4 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 7.8mm Operating temperature range: 0 to +60°C
Elumen8 TOUR Screened 2 Pair DMX Cable DMX2PRB 500m Drum Black
Brand: Elumen8
SKU: CABL628B
Regular price
£664.99
Need help with choosing the right product?
Click here to reach out to one of our experts.
Touring grade 2 pair screened DMX cable suitable for heavy duty stage lighting control applications. The cable is constructed from a pair of tinned oxygen-free copper cores protected by both aluminium polyester foil and a tinned oxygen-free copper woven braid complete with drain wire. The cable is finished with a low memory super flexible outer PVC jacket for the ultimate flexibility. The outer diameter of 7.8mm is designed so it still fits into the cable glands on most 5-Pin XLR connectors.
110Ω impedance Tinned copper cores 2 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen for each pair Colour coding: Red/Blue/White/Green Super flexible PVC outer jacket Supplied on 500m reels
Conductors: 4 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 7.8mm Operating temperature range: 0 to +60°C
110Ω impedance Tinned copper cores 2 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen for each pair Colour coding: Red/Blue/White/Green Super flexible PVC outer jacket Supplied on 500m reels
Conductors: 4 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 7.8mm Operating temperature range: 0 to +60°C
