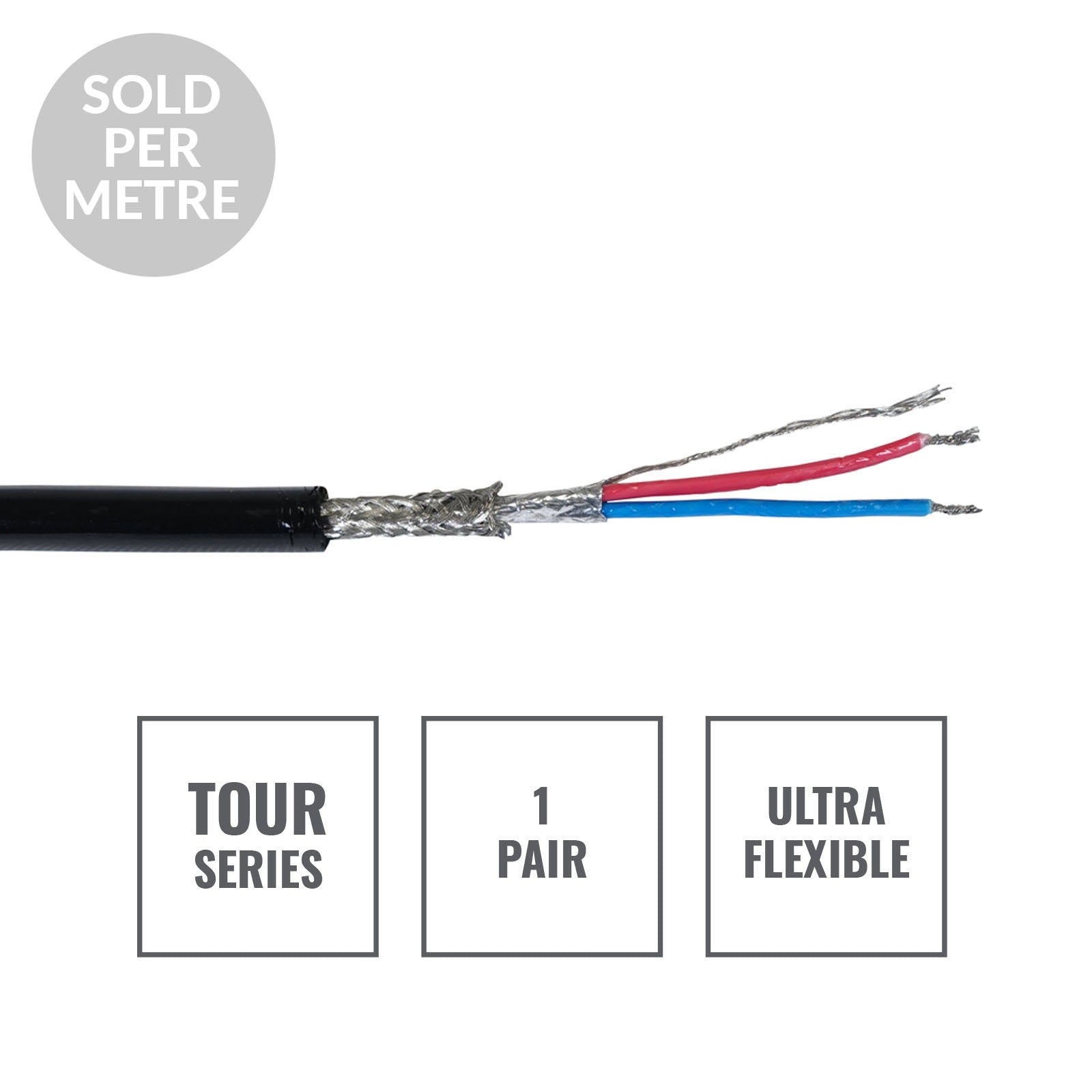

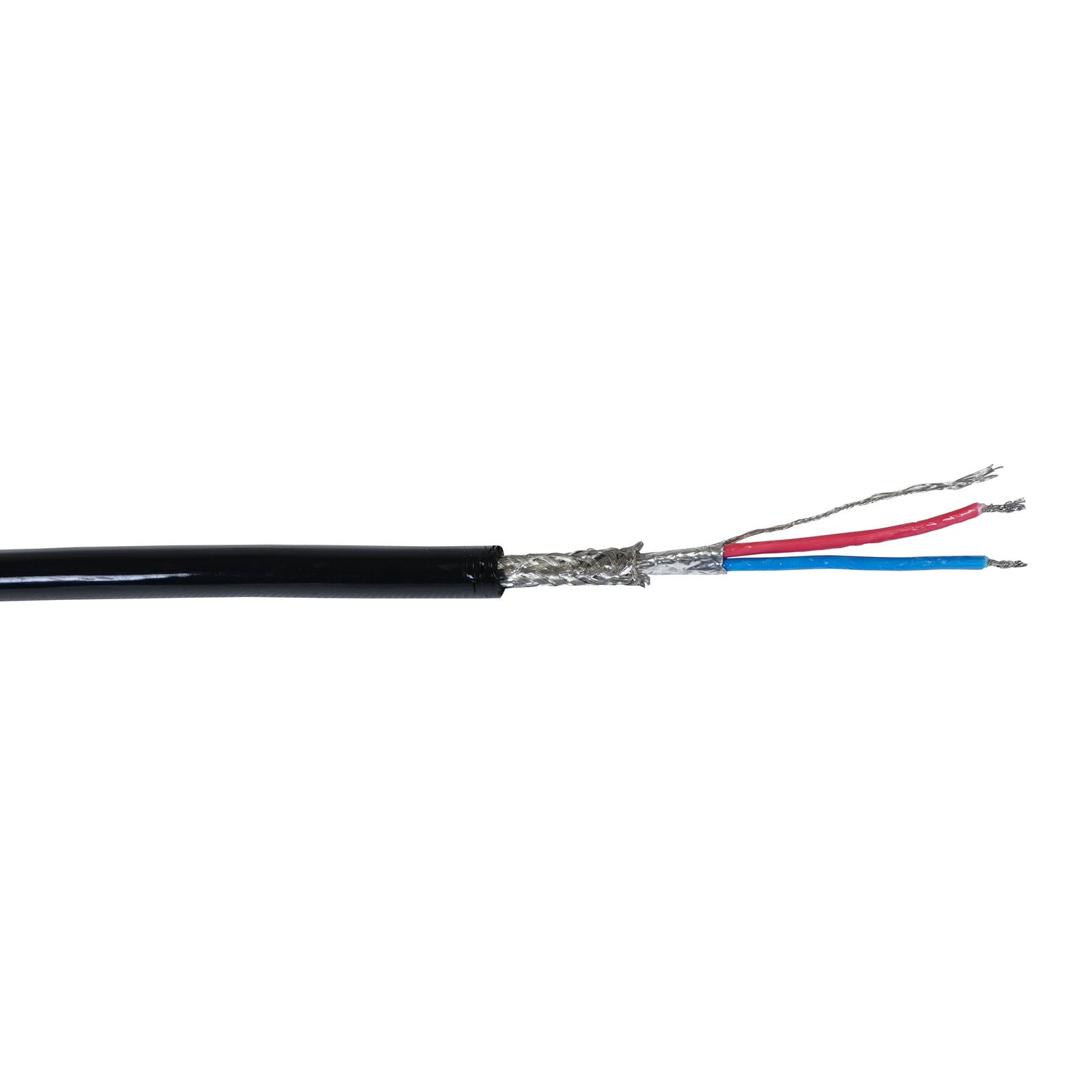

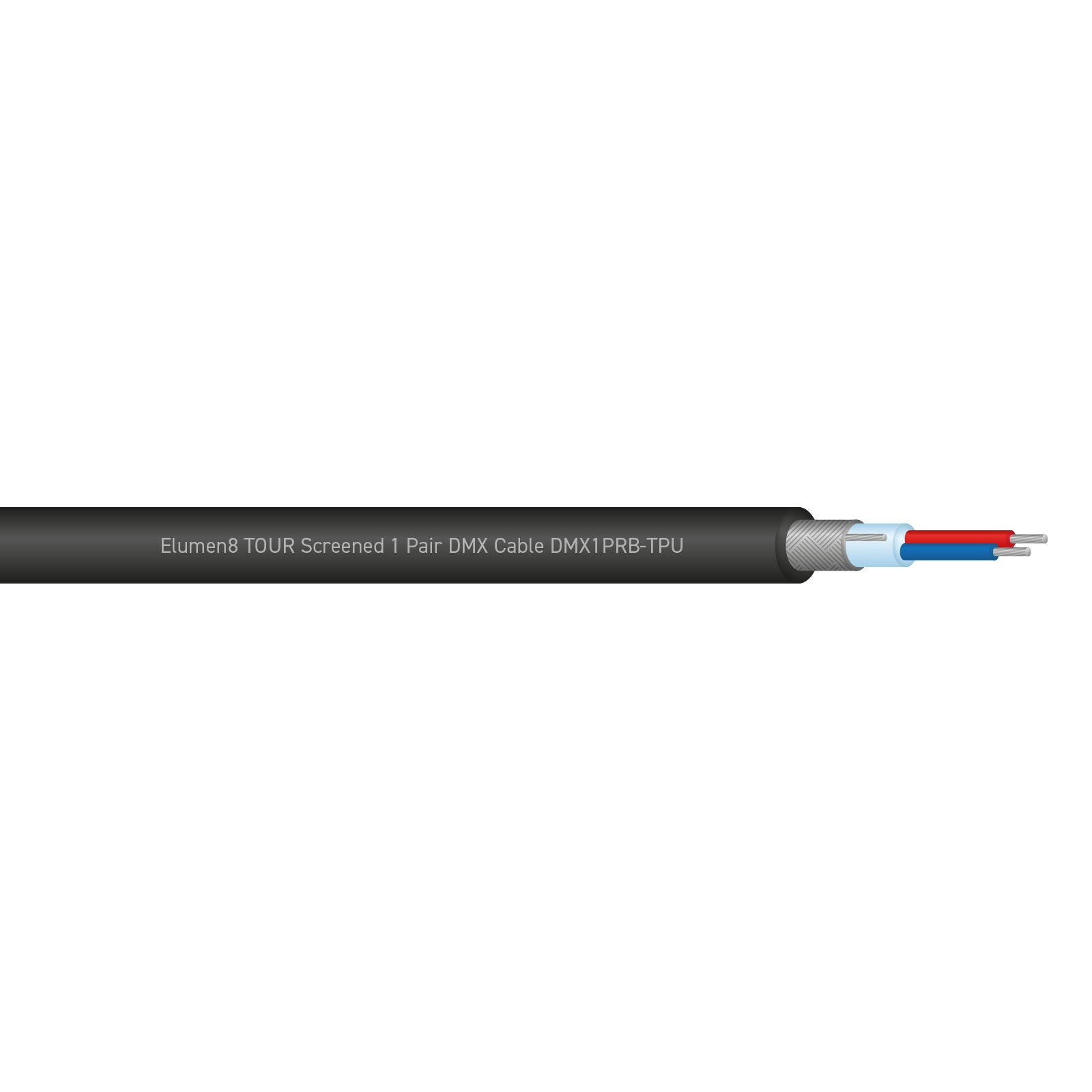

Touring quality 1 pair screened DMX cable suitable for heavy duty stage lighting control applications. The cable is constructed from a pair of tinned oxygen-free copper cores protected by both aluminium polyester foil and a tinned oxygen-free copper woven braid complete with drain wire. The cable is finished with a super flexible outer thermoplastic polyurethane (TPU) jacket for the ultimate flexibility while allowing cables to be coiled many times over under the harsh environments of touring and professional theatre.
Rugged and durable – designed with touring in mind 110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue Super flexible thermoplastic polyurethane outer jacket Supplied on 100m reels
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: -15 to +60°C
Rugged and durable – designed with touring in mind 110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue Super flexible thermoplastic polyurethane outer jacket Supplied on 100m reels
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: -15 to +60°C
Elumen8 TOUR Screened 1 Pair DMX Cable DMX1PRB-TPU Cut Length
Brand: Elumen8
SKU: CABL640PM
Regular price
£2.99
Need help with choosing the right product?
Click here to reach out to one of our experts.
Touring quality 1 pair screened DMX cable suitable for heavy duty stage lighting control applications. The cable is constructed from a pair of tinned oxygen-free copper cores protected by both aluminium polyester foil and a tinned oxygen-free copper woven braid complete with drain wire. The cable is finished with a super flexible outer thermoplastic polyurethane (TPU) jacket for the ultimate flexibility while allowing cables to be coiled many times over under the harsh environments of touring and professional theatre.
Rugged and durable – designed with touring in mind 110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue Super flexible thermoplastic polyurethane outer jacket Supplied on 100m reels
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: -15 to +60°C
Rugged and durable – designed with touring in mind 110Ω impedance Tinned copper cores 1 pair plus braided screen and tinned drain wire Aluminium/polyester foil screen Colour coding: Red/Blue Super flexible thermoplastic polyurethane outer jacket Supplied on 100m reels
Conductors: 2 x 0.23mm² (24AWG) Drain wire: 0.22mm² (24AWG) Shield: Aluminium foil plus braided screen Outer diameter: 6mm Operating temperature range: -15 to +60°C
