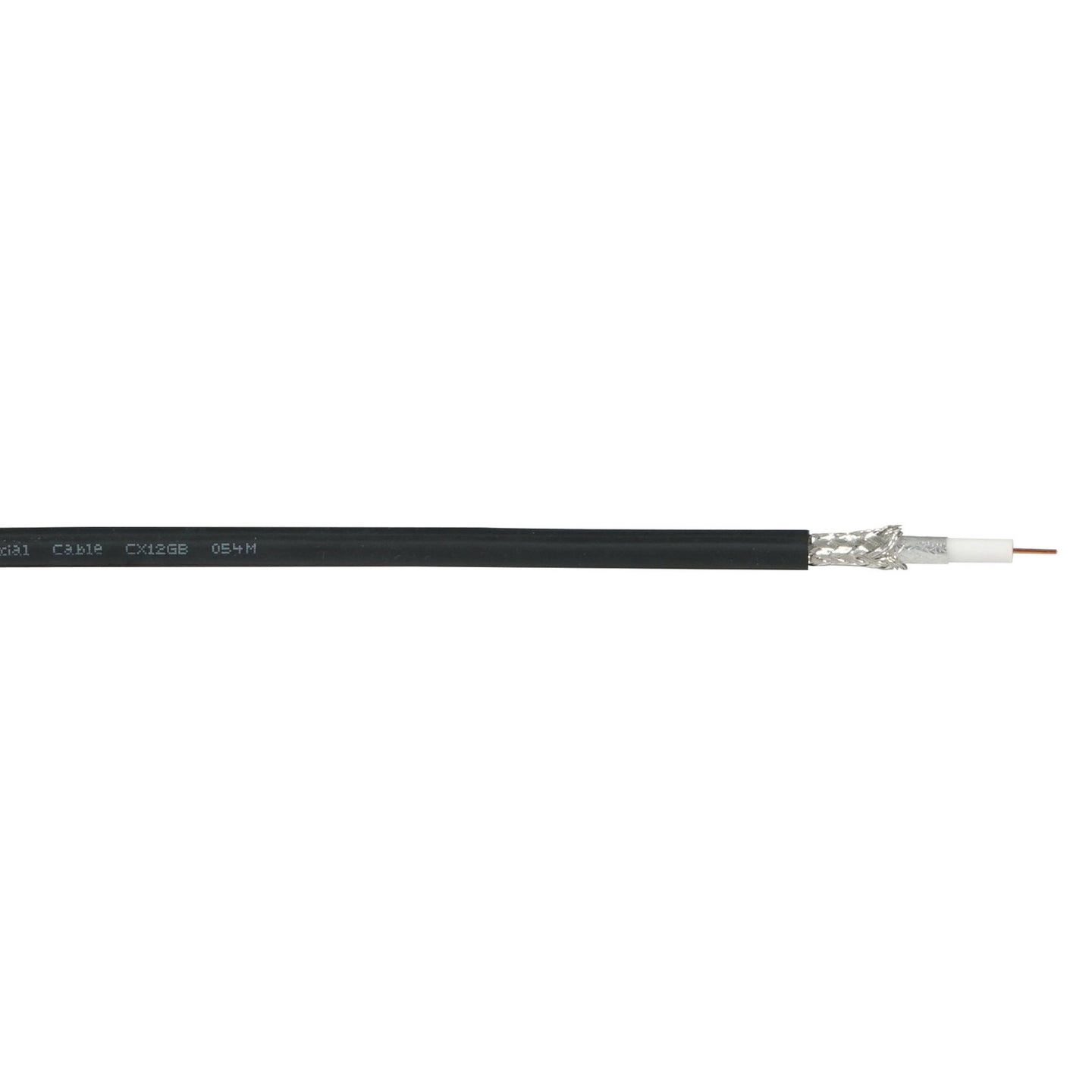

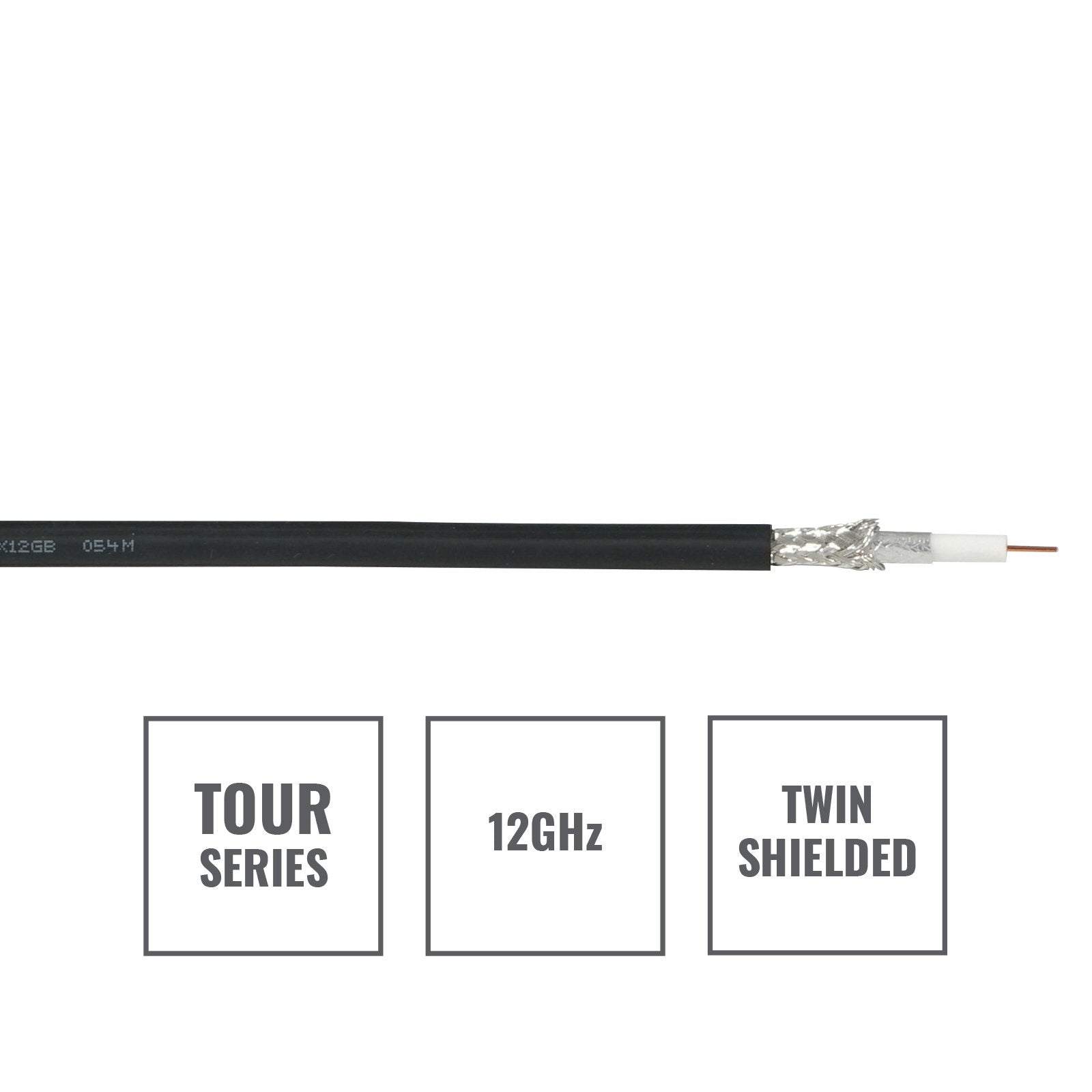

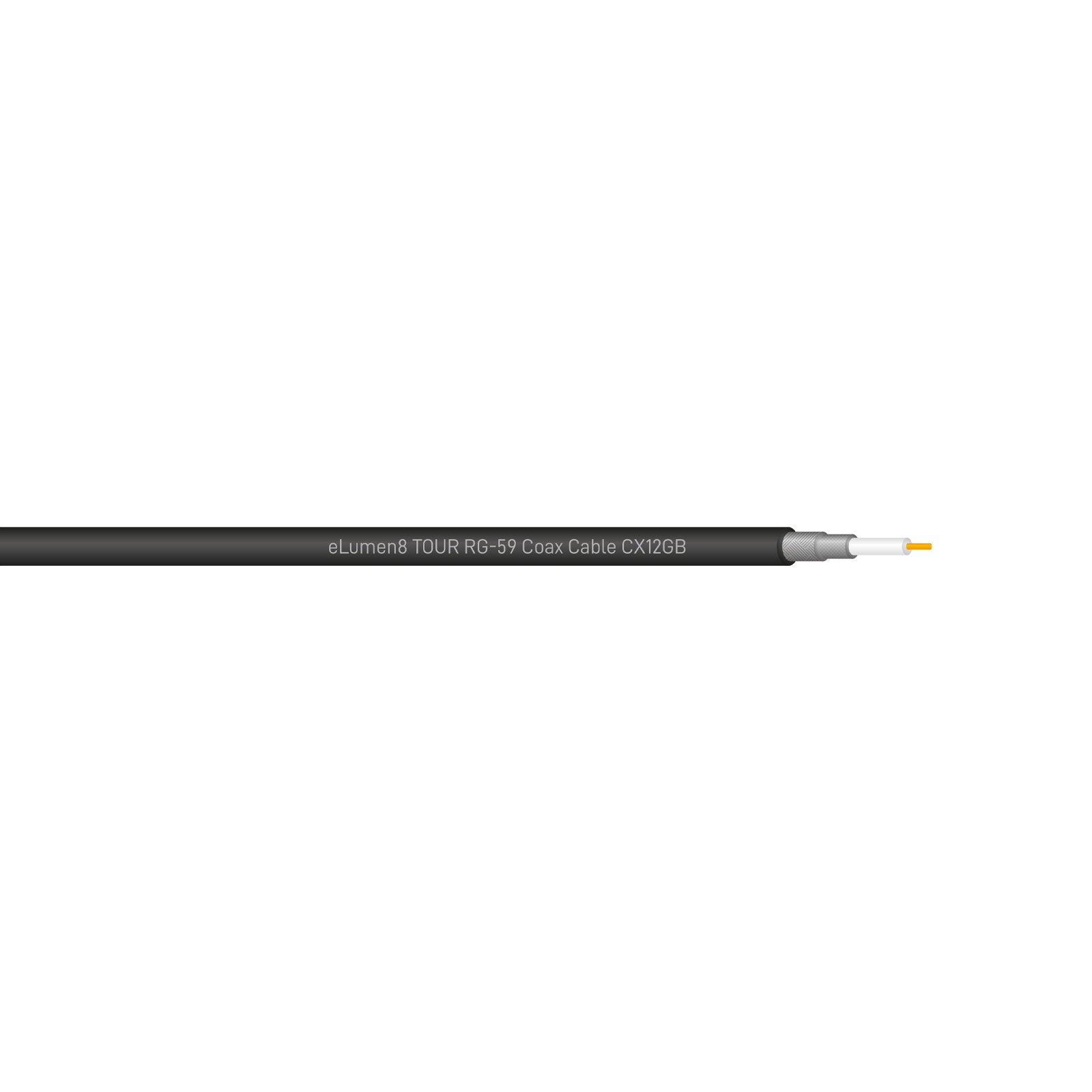

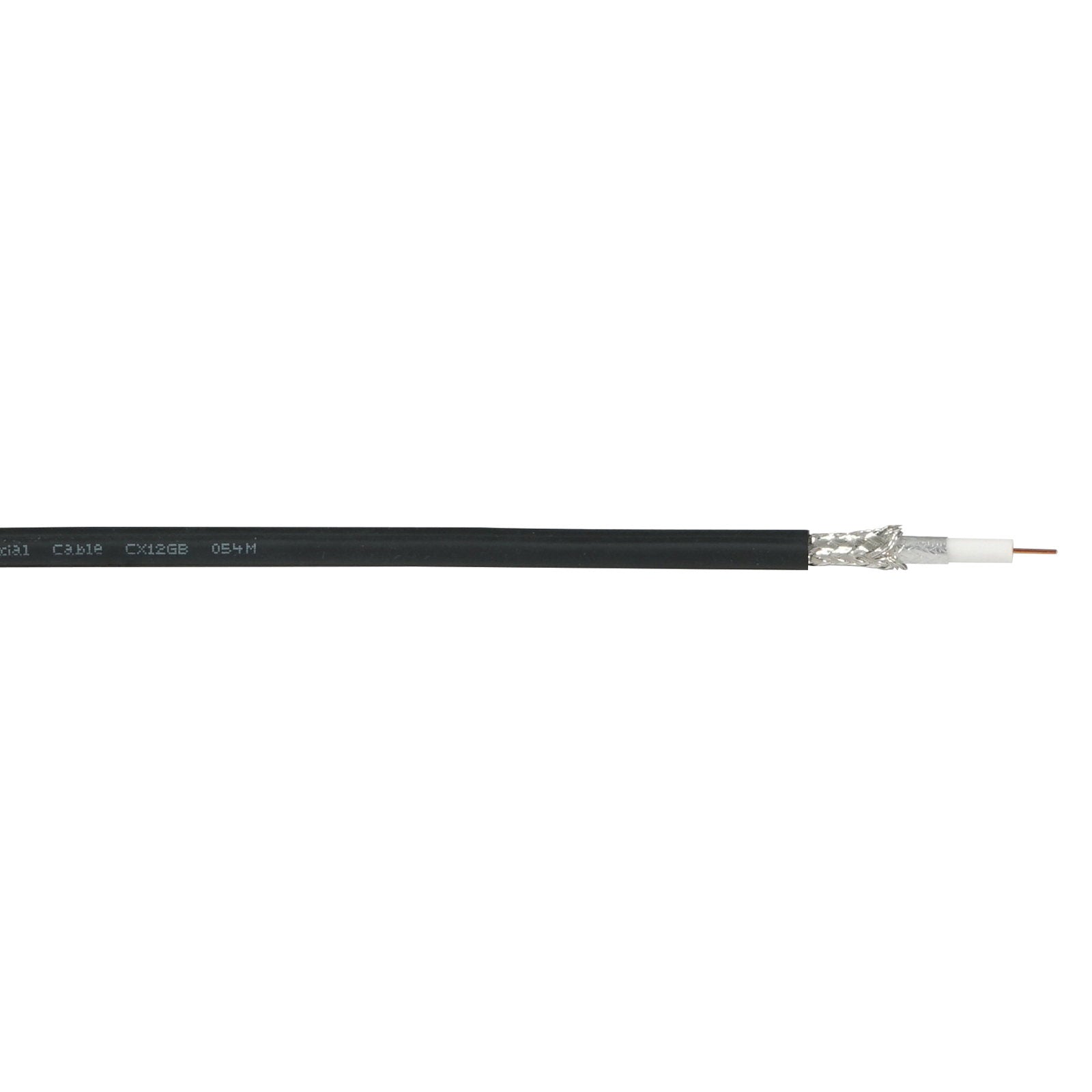

RG-59 style coaxial cable designed for analogue or HD-SDI video signals up to 12Gbps commonly used for high definition video signals in the event production sector. The cable is constructed from a single oxygen-free copper core protected by both aluminium polyester foil and a tinned oxygen-free copper woven braid designed to reject interference. The cable is finished with a low memory super flexible outer PVC jacket for the ultimate flexibility.
75Ω impedance Solid oxygen free copper core Shield 1: Aluminium foil 125% coverage Shield 2: Braided screen 95% coverage Super flexible PVC outer jacket Conductor: 1 x 0.23mm² (24AWG) Dielectric: 1.2mm Polyethylene foam Outer diameter: 6mm Operating temperature range: -20 to +80°C
75Ω impedance Solid oxygen free copper core Shield 1: Aluminium foil 125% coverage Shield 2: Braided screen 95% coverage Super flexible PVC outer jacket Conductor: 1 x 0.23mm² (24AWG) Dielectric: 1.2mm Polyethylene foam Outer diameter: 6mm Operating temperature range: -20 to +80°C
Elumen8 TOUR RG-59 Coax Cable CX12GB 100M
Brand: Elumen8
SKU: CABL629
Regular price
£137.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 TOUR RG-59 Coax Cable CX12GB 100M
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
RG-59 style coaxial cable designed for analogue or HD-SDI video signals up to 12Gbps commonly used for high definition video signals in the event production sector. The cable is constructed from a single oxygen-free copper core protected by both aluminium polyester foil and a tinned oxygen-free copper woven braid designed to reject interference. The cable is finished with a low memory super flexible outer PVC jacket for the ultimate flexibility.
75Ω impedance Solid oxygen free copper core Shield 1: Aluminium foil 125% coverage Shield 2: Braided screen 95% coverage Super flexible PVC outer jacket Conductor: 1 x 0.23mm² (24AWG) Dielectric: 1.2mm Polyethylene foam Outer diameter: 6mm Operating temperature range: -20 to +80°C
75Ω impedance Solid oxygen free copper core Shield 1: Aluminium foil 125% coverage Shield 2: Braided screen 95% coverage Super flexible PVC outer jacket Conductor: 1 x 0.23mm² (24AWG) Dielectric: 1.2mm Polyethylene foam Outer diameter: 6mm Operating temperature range: -20 to +80°C
