Hybrid multicore comprising of a screened and jacketed signal pair combined with 2.5mm jacketed power cables. Ultra flexible and designed for touring use this cable range provides a solution to the problem of integrated signal and power distribution. Constructed using carefully selected fillers to maintain the overall shape and facilitate easier coiling.
Please note: Shipping charges may apply Analogue or AES digital audio RS422/485 or DMX512 control with a three core power cable H05VV-F harmonised standard 2.5mm² power Suitable for most 110Ω balanced data application such as RS422 RS485 DMX512 and timecode Oxygen-free copper cores for maximum signal integrity Supplied on 100m reels
Operating temperature range: -20 to +70°C Filler: PVC plus non-woven fabric Outer jacket Soft PVC outer jacket: 17.5mm outer diameter 1.2mm outer jacket thickness Power: Cross section: 2.5mm² Perm current rating open air: 20A 10mm black PVC jacket Signal: Conductors: 2 x 0.23mm² (24AWG) Tinned copper drain wire: 0.22mm² (24AWG) Aluminium foil shield 110Ω impedance 4.1mm diameter grey PVC jacket
Please note: Shipping charges may apply Analogue or AES digital audio RS422/485 or DMX512 control with a three core power cable H05VV-F harmonised standard 2.5mm² power Suitable for most 110Ω balanced data application such as RS422 RS485 DMX512 and timecode Oxygen-free copper cores for maximum signal integrity Supplied on 100m reels
Operating temperature range: -20 to +70°C Filler: PVC plus non-woven fabric Outer jacket Soft PVC outer jacket: 17.5mm outer diameter 1.2mm outer jacket thickness Power: Cross section: 2.5mm² Perm current rating open air: 20A 10mm black PVC jacket Signal: Conductors: 2 x 0.23mm² (24AWG) Tinned copper drain wire: 0.22mm² (24AWG) Aluminium foil shield 110Ω impedance 4.1mm diameter grey PVC jacket

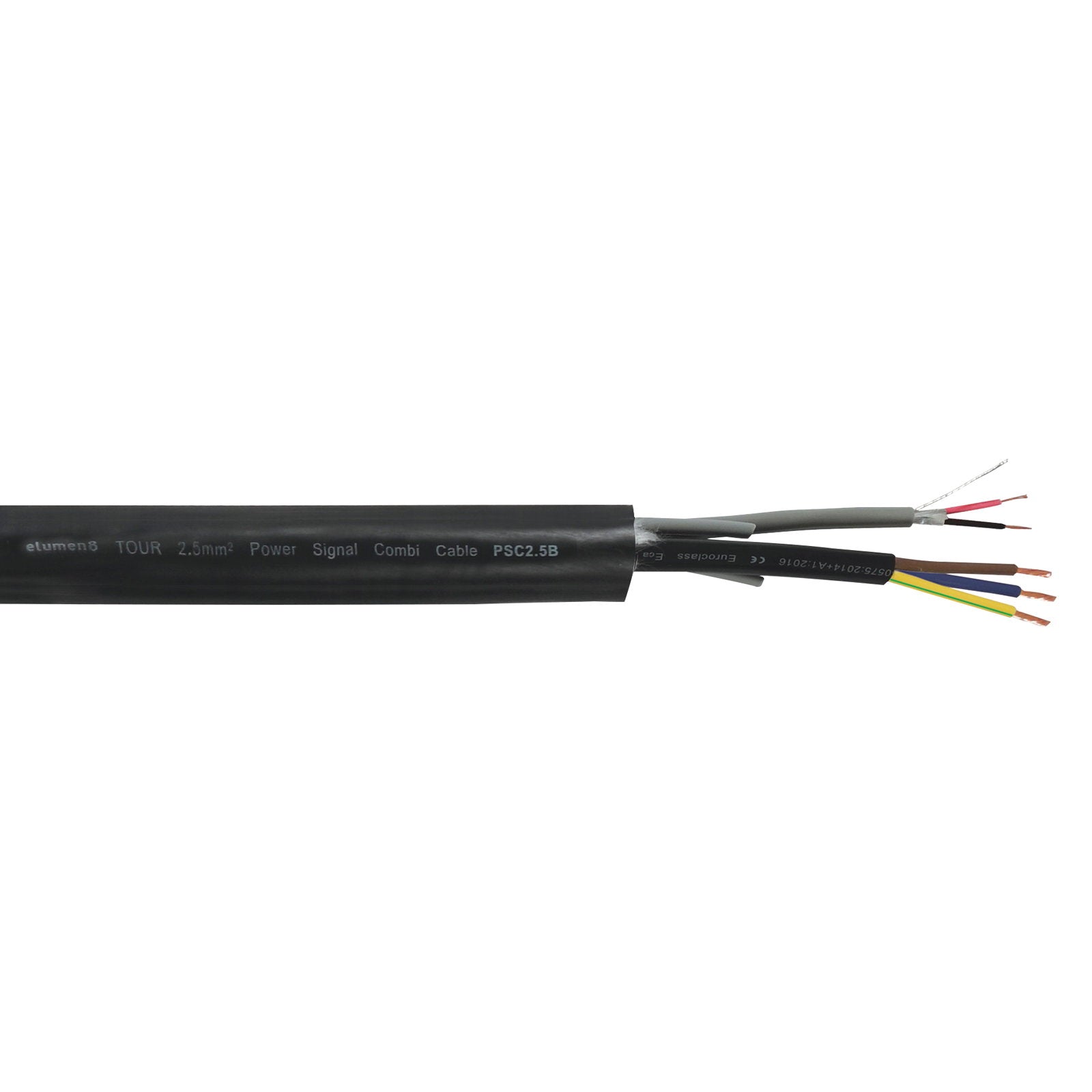

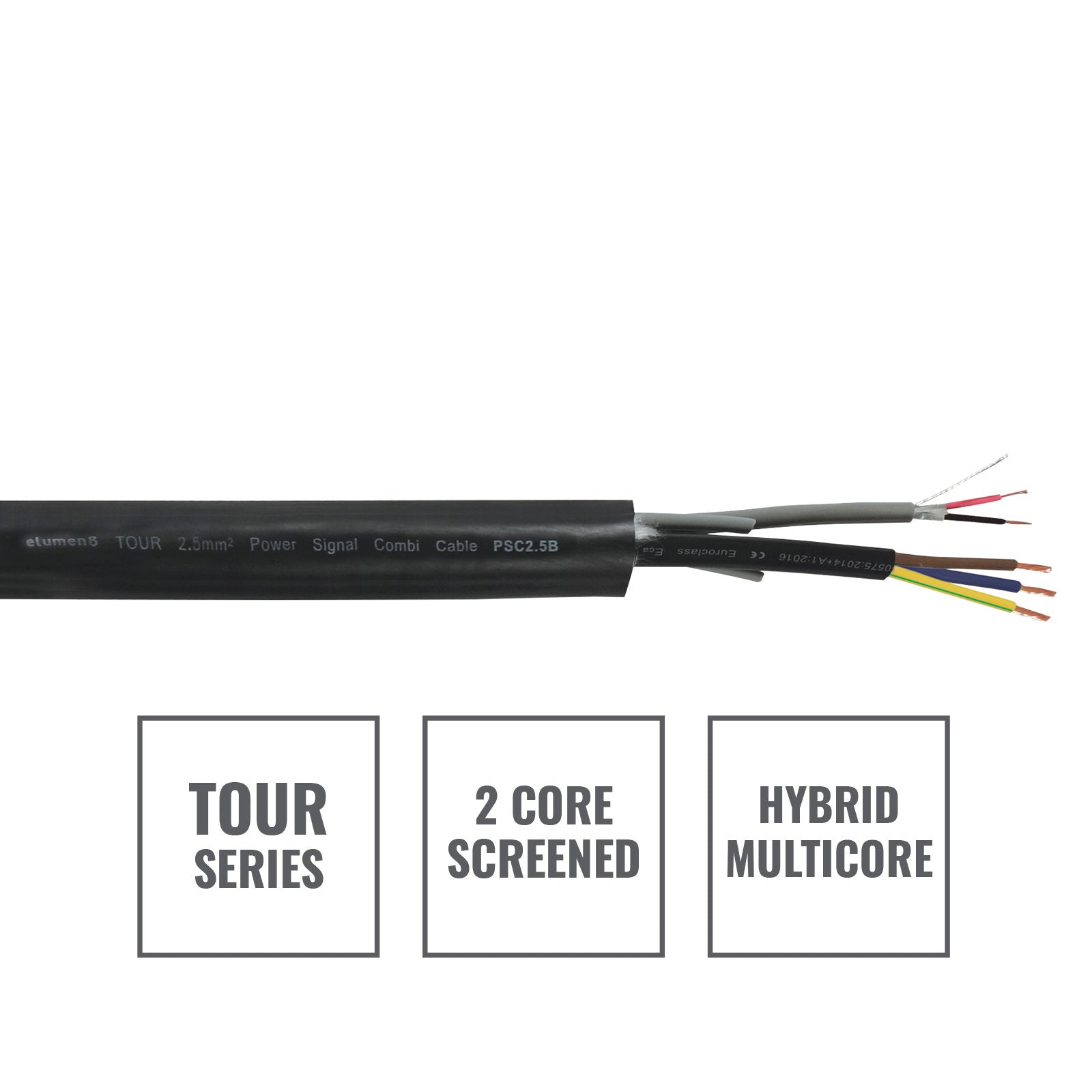

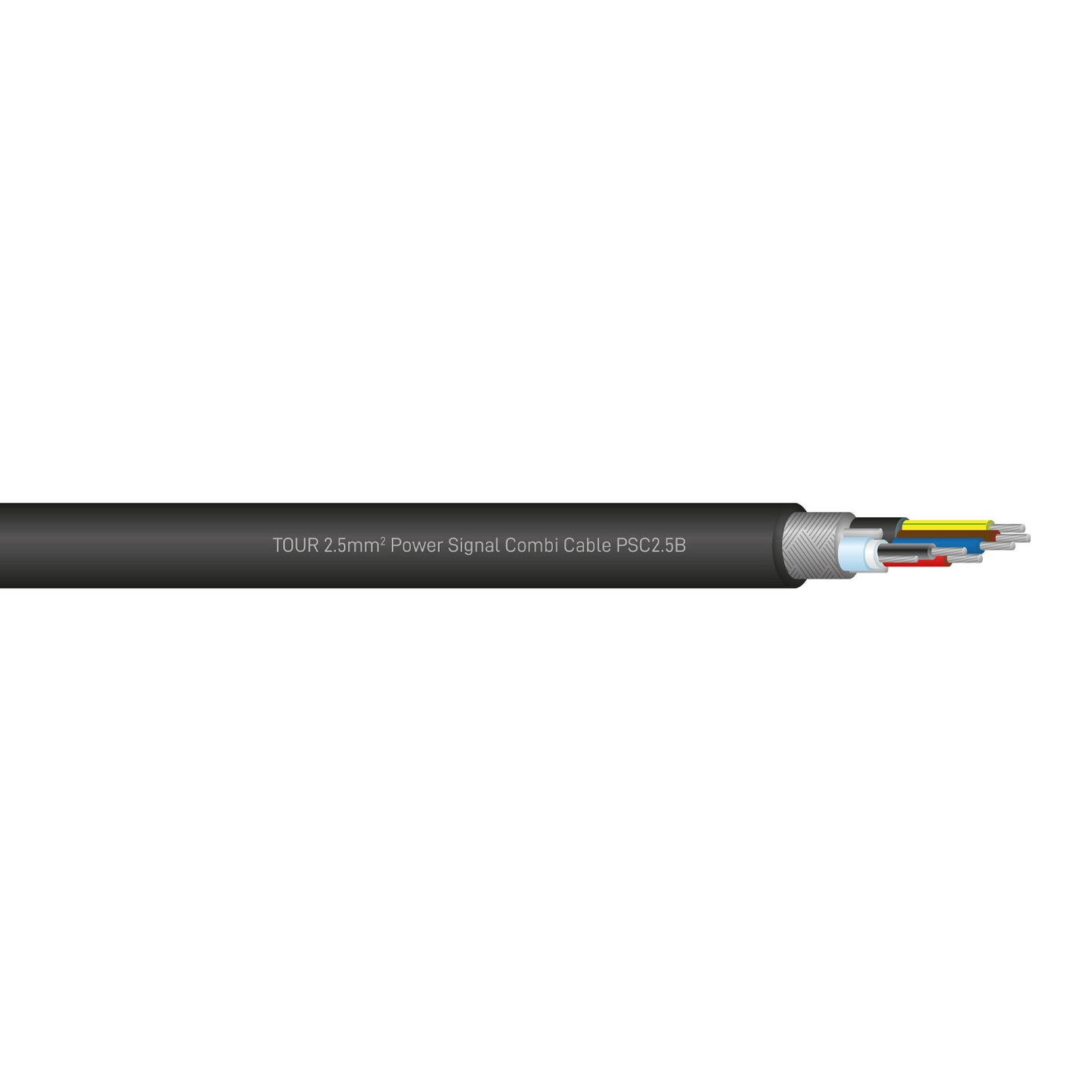

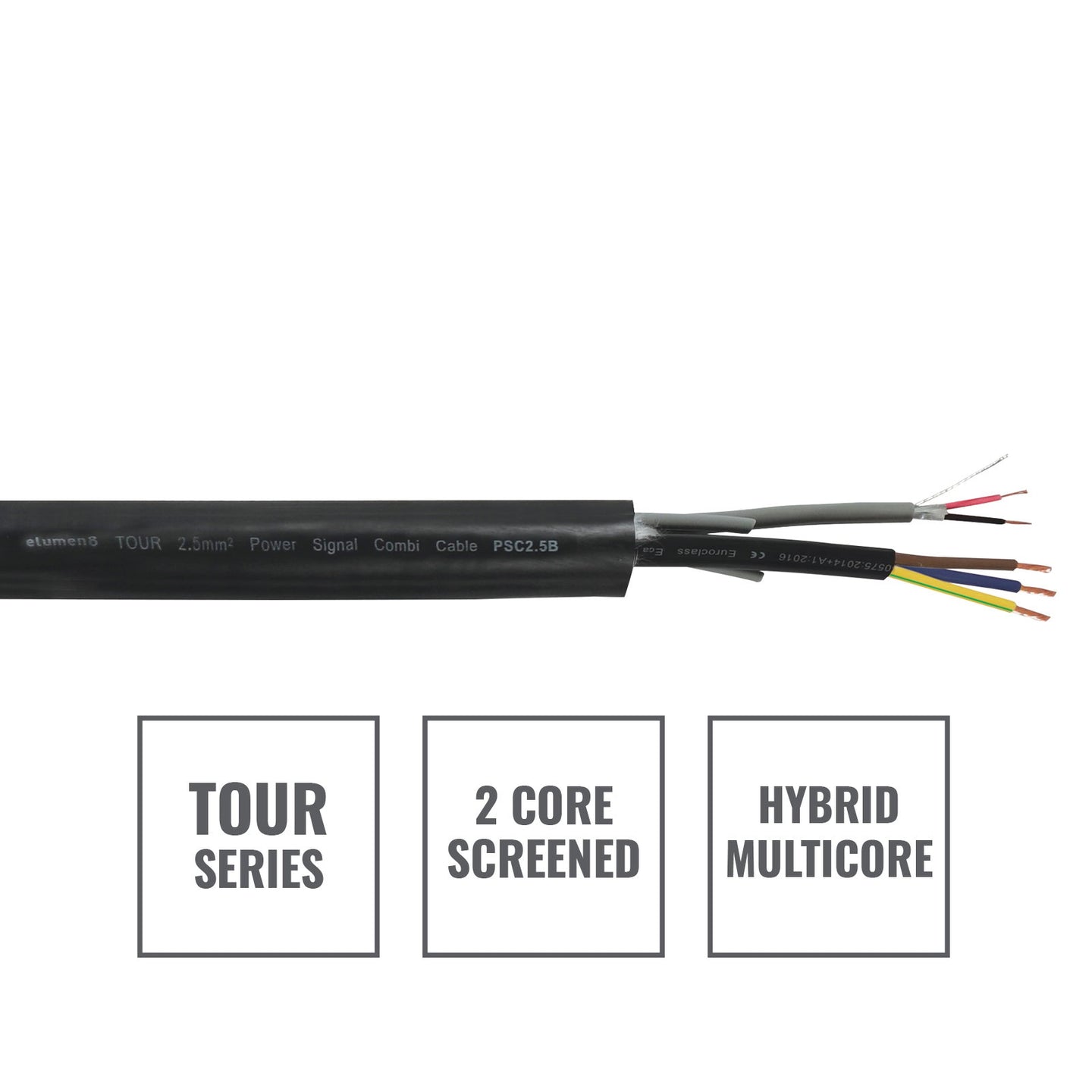

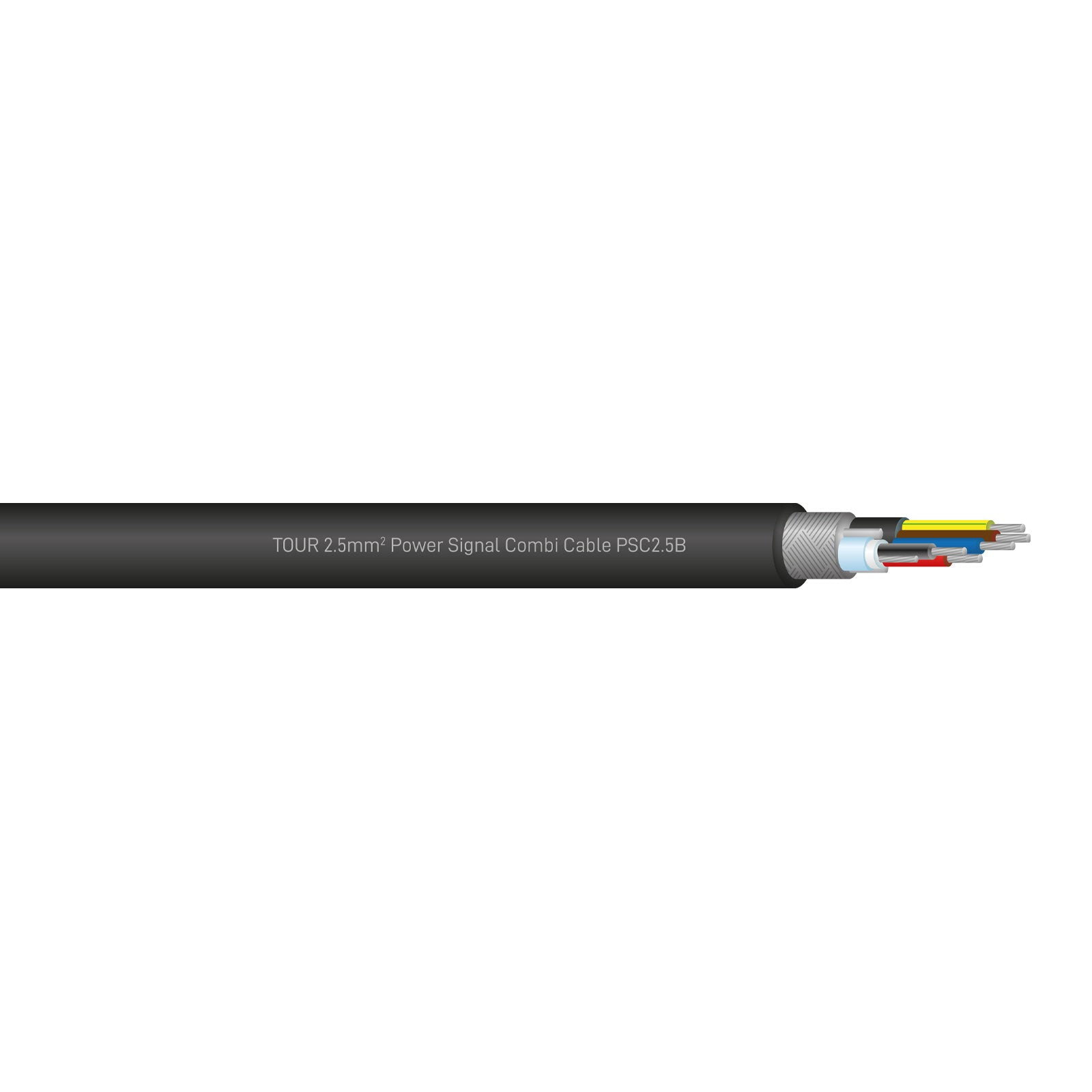

Elumen8 TOUR 2.5mm2 Power Signal Combi Cable PSC2.5B 100m Reel
Brand: Elumen8
SKU: CABL624
Regular price
£664.99
Pickup available at Venutec
Usually ready in 24 hours
Elumen8 TOUR 2.5mm2 Power Signal Combi Cable PSC2.5B 100m Reel
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
Hybrid multicore comprising of a screened and jacketed signal pair combined with 2.5mm jacketed power cables. Ultra flexible and designed for touring use this cable range provides a solution to the problem of integrated signal and power distribution. Constructed using carefully selected fillers to maintain the overall shape and facilitate easier coiling.
Please note: Shipping charges may apply Analogue or AES digital audio RS422/485 or DMX512 control with a three core power cable H05VV-F harmonised standard 2.5mm² power Suitable for most 110Ω balanced data application such as RS422 RS485 DMX512 and timecode Oxygen-free copper cores for maximum signal integrity Supplied on 100m reels
Operating temperature range: -20 to +70°C Filler: PVC plus non-woven fabric Outer jacket Soft PVC outer jacket: 17.5mm outer diameter 1.2mm outer jacket thickness Power: Cross section: 2.5mm² Perm current rating open air: 20A 10mm black PVC jacket Signal: Conductors: 2 x 0.23mm² (24AWG) Tinned copper drain wire: 0.22mm² (24AWG) Aluminium foil shield 110Ω impedance 4.1mm diameter grey PVC jacket
Please note: Shipping charges may apply Analogue or AES digital audio RS422/485 or DMX512 control with a three core power cable H05VV-F harmonised standard 2.5mm² power Suitable for most 110Ω balanced data application such as RS422 RS485 DMX512 and timecode Oxygen-free copper cores for maximum signal integrity Supplied on 100m reels
Operating temperature range: -20 to +70°C Filler: PVC plus non-woven fabric Outer jacket Soft PVC outer jacket: 17.5mm outer diameter 1.2mm outer jacket thickness Power: Cross section: 2.5mm² Perm current rating open air: 20A 10mm black PVC jacket Signal: Conductors: 2 x 0.23mm² (24AWG) Tinned copper drain wire: 0.22mm² (24AWG) Aluminium foil shield 110Ω impedance 4.1mm diameter grey PVC jacket
