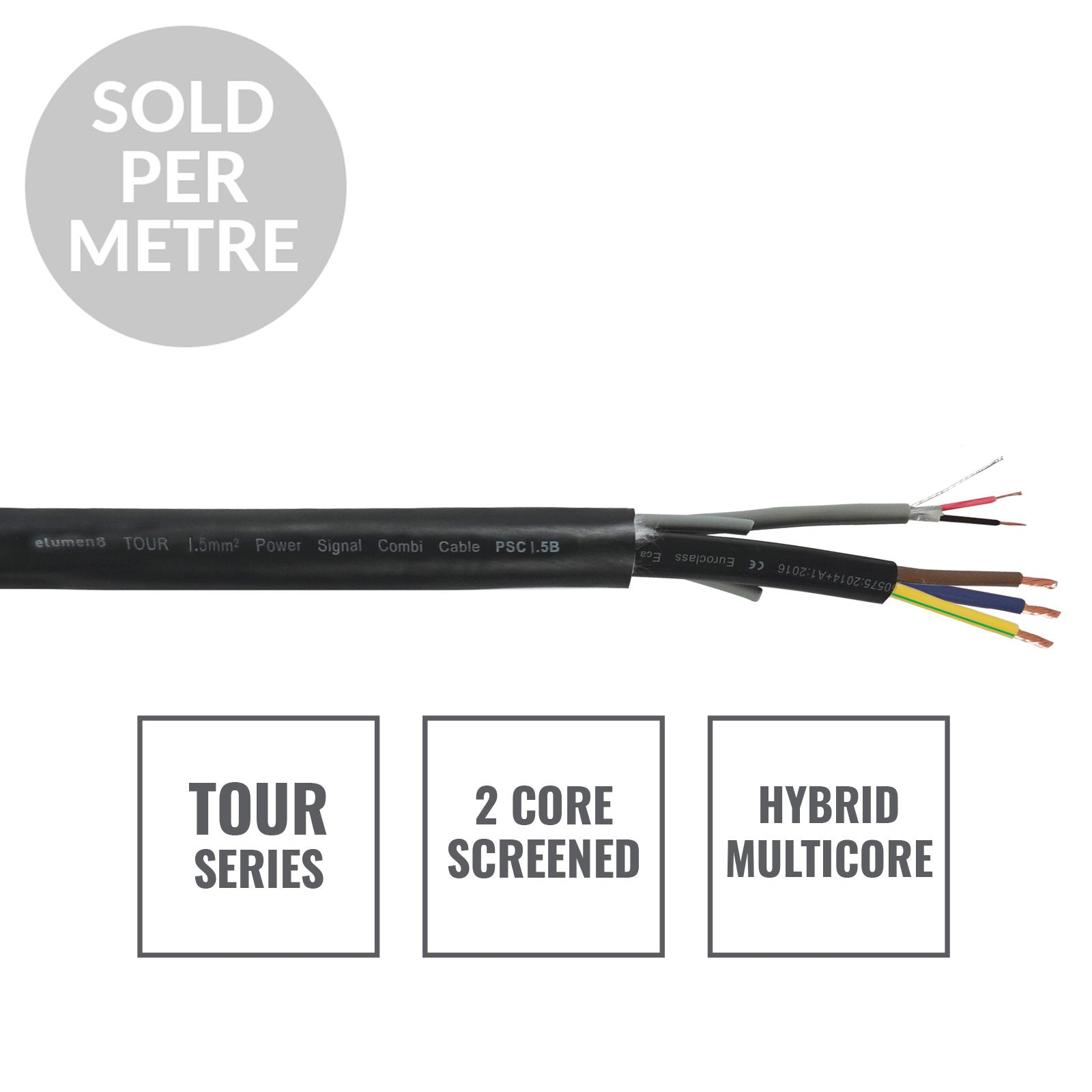

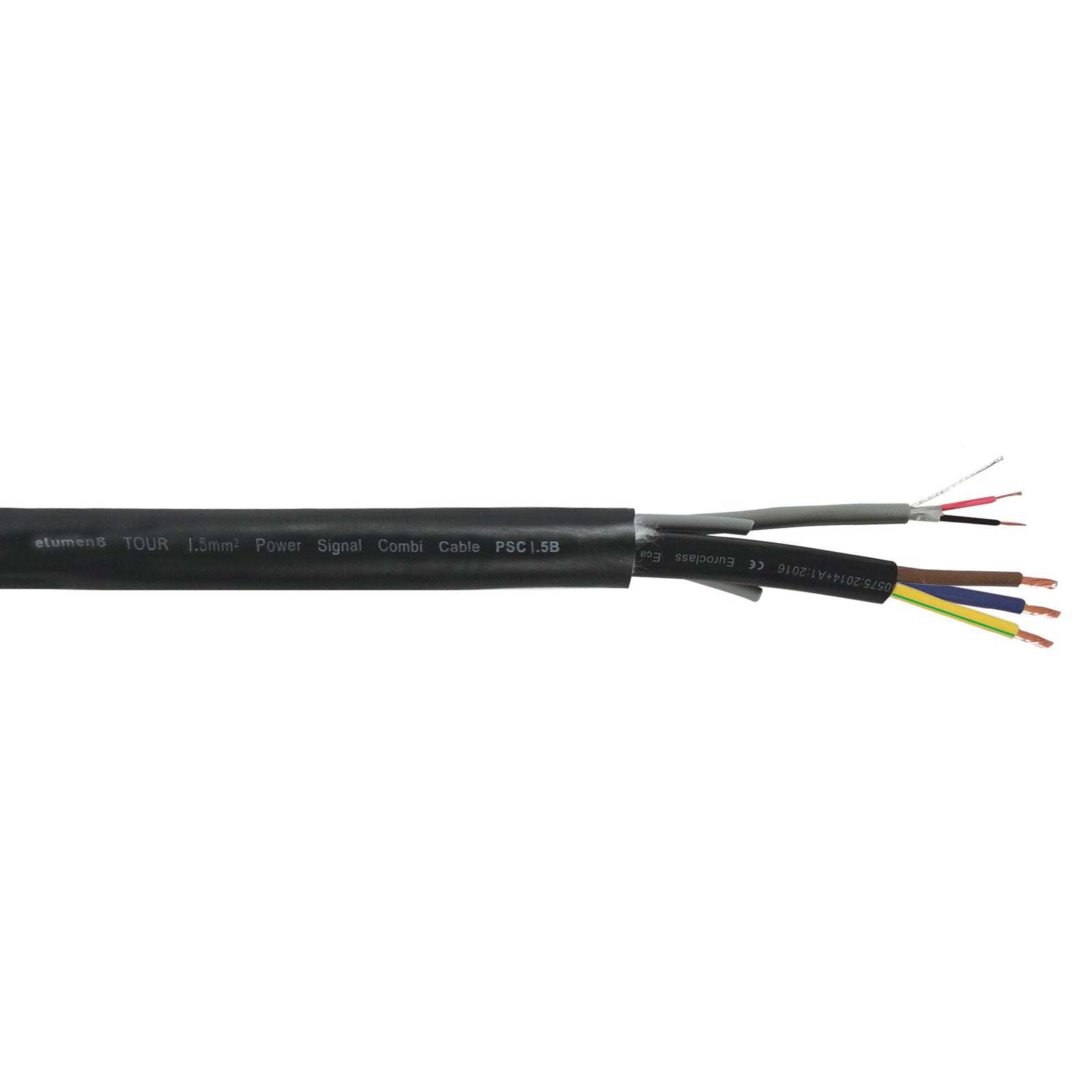

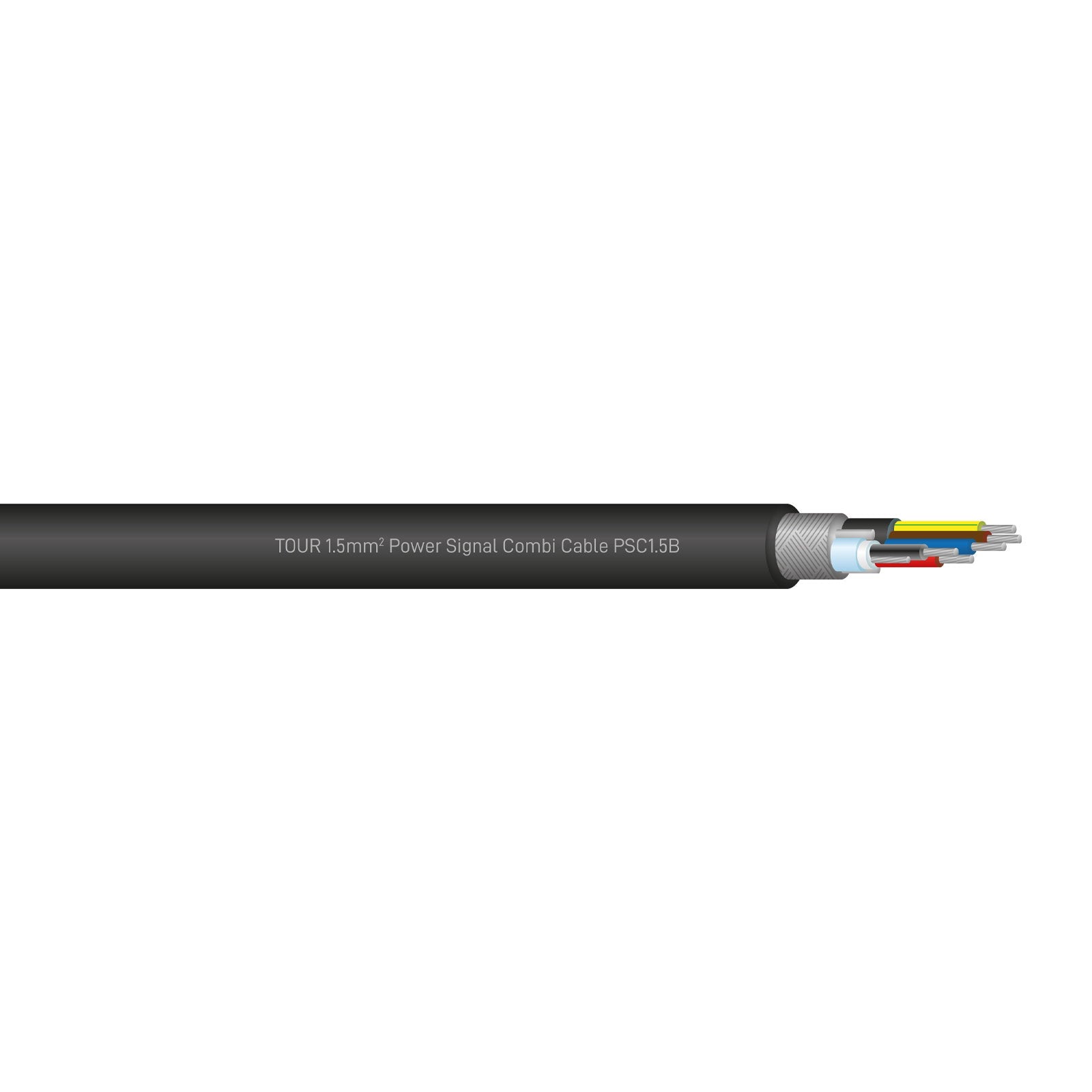

Hybrid multicore comprising of a screened and jacketed signal pair combined with 1.5mm jacketed power cables. Ultra flexible and designed for touring use this cable range provides a solution to the problem of integrated signal and power distribution. Constructed using carefully selected fillers to maintain the overall shape and facilitate easier coiling.

Please note: Shipping charges may apply Sold per metre (Please specify your requirements in the notes section when ordering eg 20m in 1m cuts 50m in 10m cuts etc) Analogue or AES digital audio RS422/485 or DMX512 control with a three core power cable H05VV-F harmonised standard 1.5mm² power Suitable for most 110Ω balanced data application such as RS422 RS485 DMX512 and timecode Oxygen-free copper cores for maximum signal integrity

Operating temperature range: -15 to +60°C Filler: PVC plus non-woven fabric Outer jacket Soft PVC outer jacket: 15.5mm outer diameter 1.2mm outer jacket thickness Power: Cross section: 1.5mm² Perm current rating open air: 15A 8.2mm black PVC jacket Signal: Conductors: 2 x 0.23mm² (24AWG) Tinned copper drain wire: 0.22mm² (24AWG) Aluminium foil shield 110Ω impedance 4.1mm diameter grey PVC jacket
