The Elumen8 Cygnus Series is a comprehensive range of advanced data-management solutions engineered to meet the demands of modern lighting networks. Designed with professional users in mind the series includes DMX splitters DMX mergers Art-Net nodes and sleek wall-plate interfaces each crafted to simplify complex system layouts while maximising control efficiency. Whether you’re expanding a theatre’s infrastructure integrating robust data routing for live production or building a permanent architectural installation Cygnus delivers.

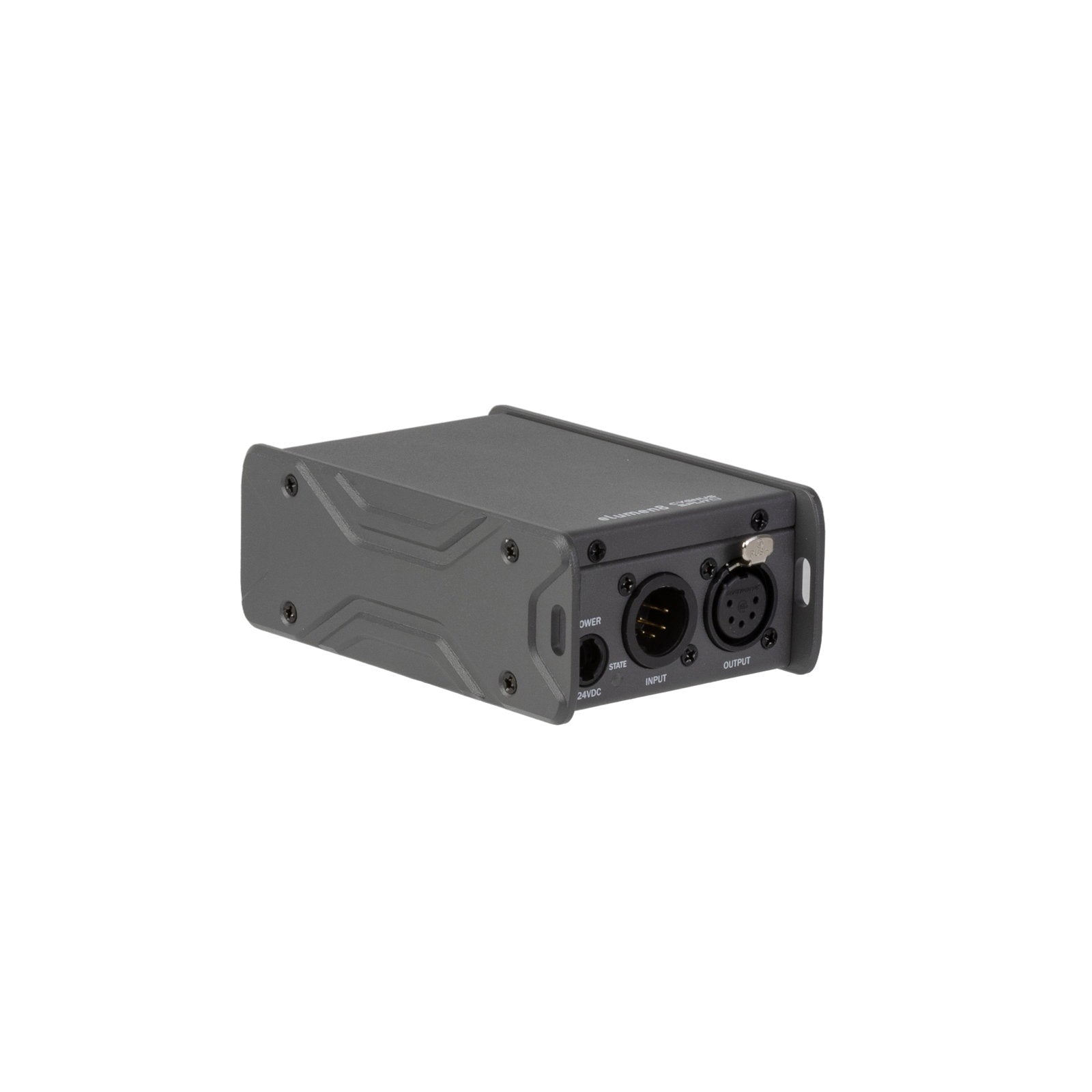

The SPLIT2 is a compact 2-way DMX distribution splitter/booster featuring one input passthrough and 2 outputs electronically opto isolated from each other and from the input.

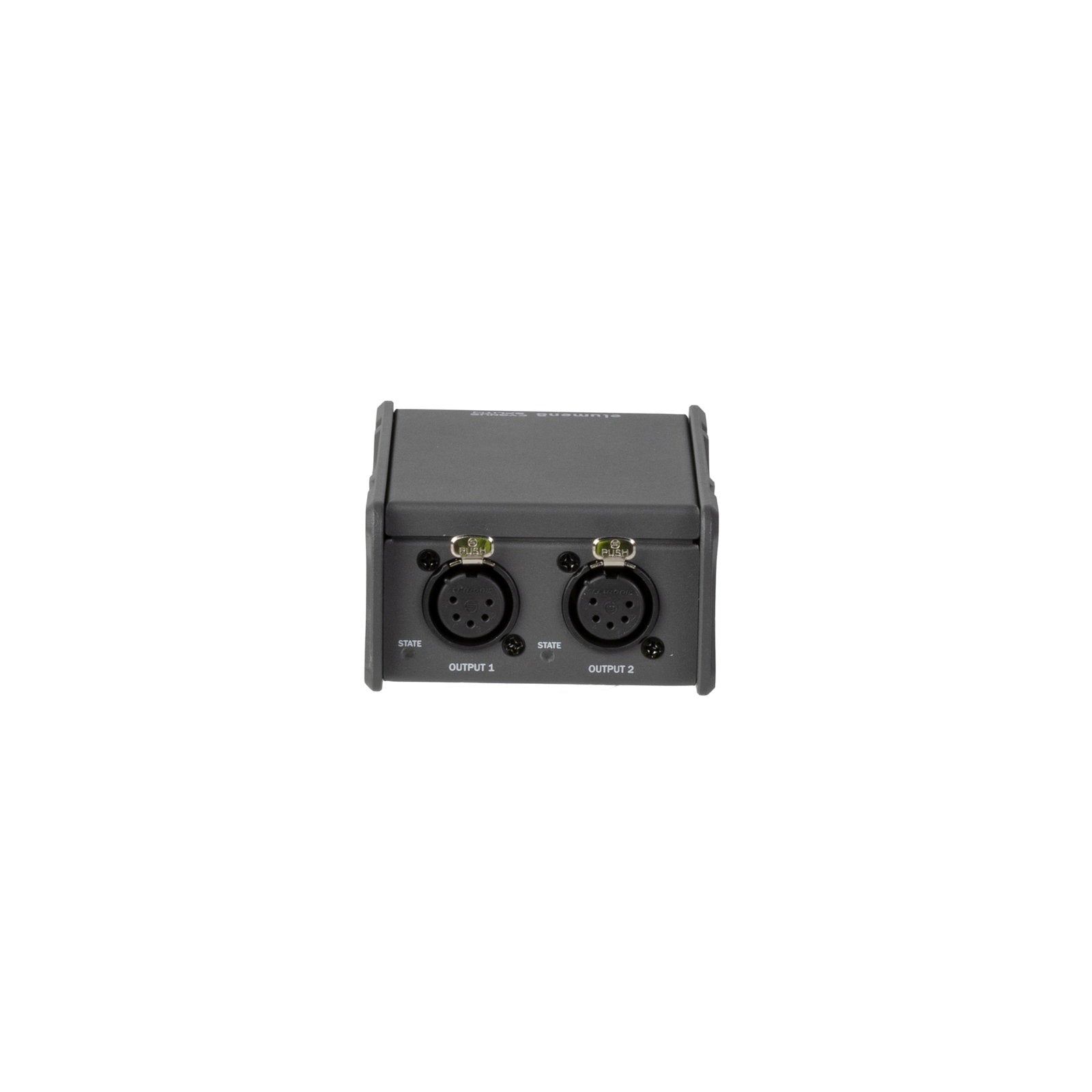

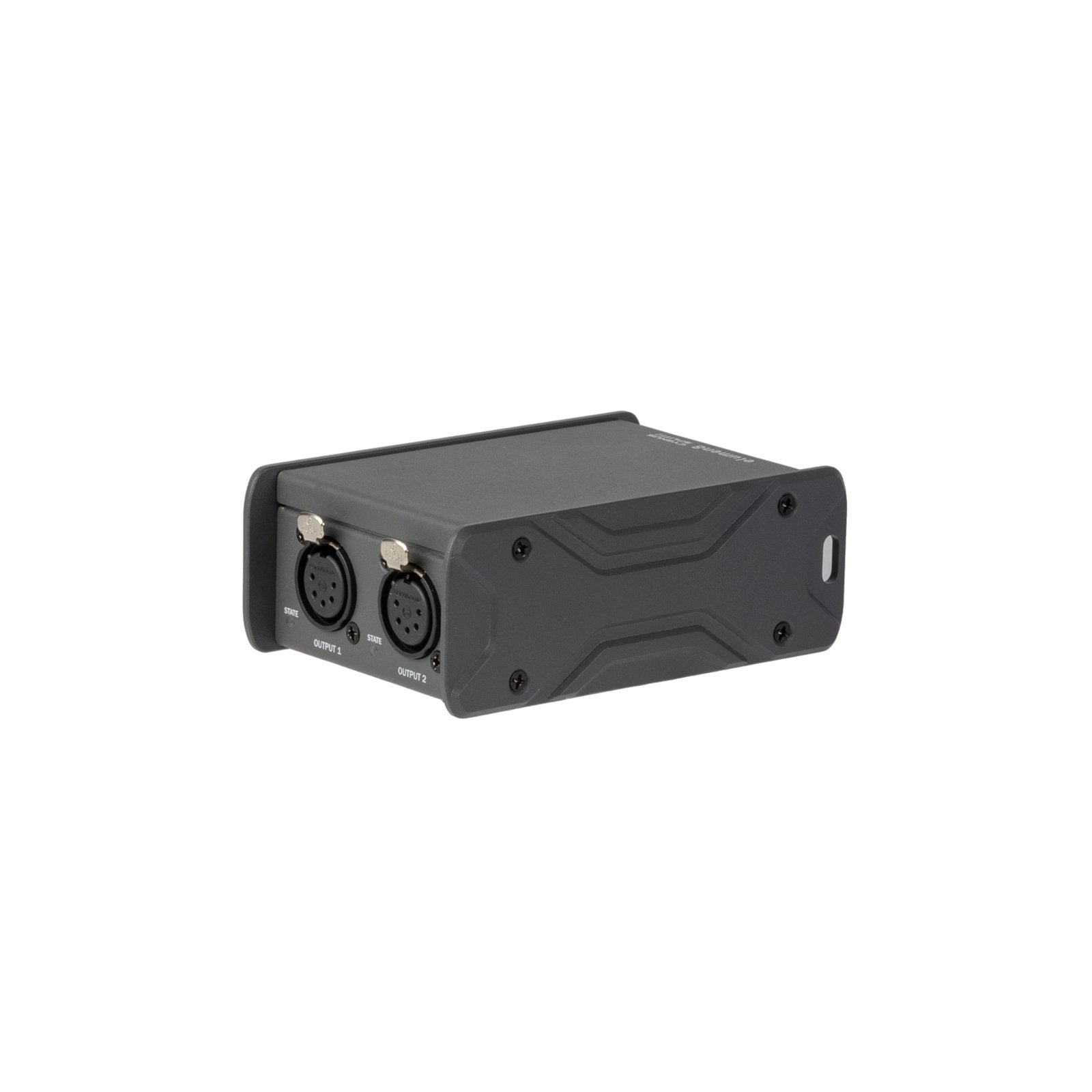

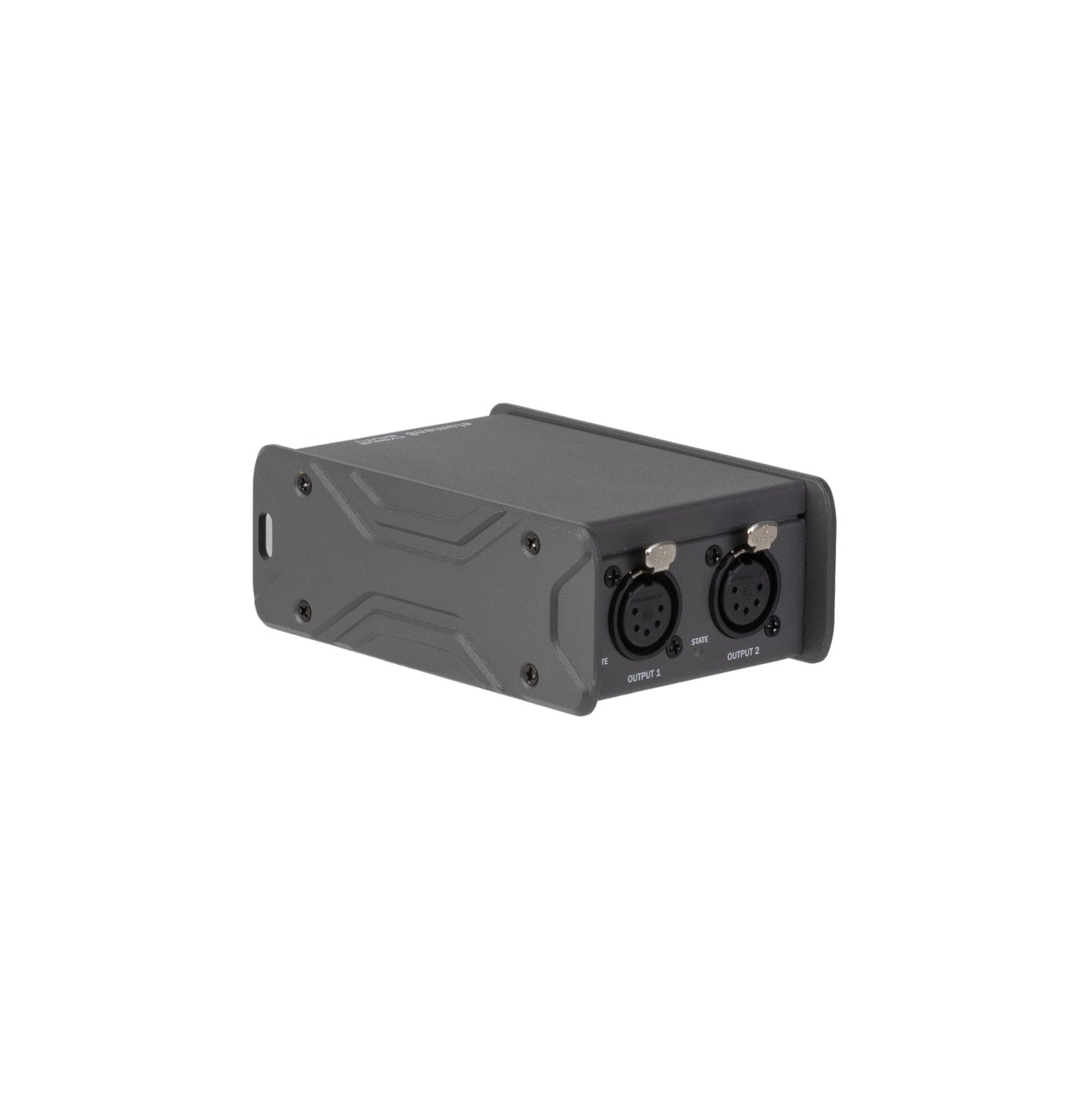

Each of the outputs features an independent driver coupled with DMX indicator LEDs. All DMX inputs and outputs are equipped with 5-Pin XLR Seetronic connectors.

Housed within a rugged chassis the SPLIT2 is ideally suited to professional applications ensuring your show data arrives exactly where it needs to every time.

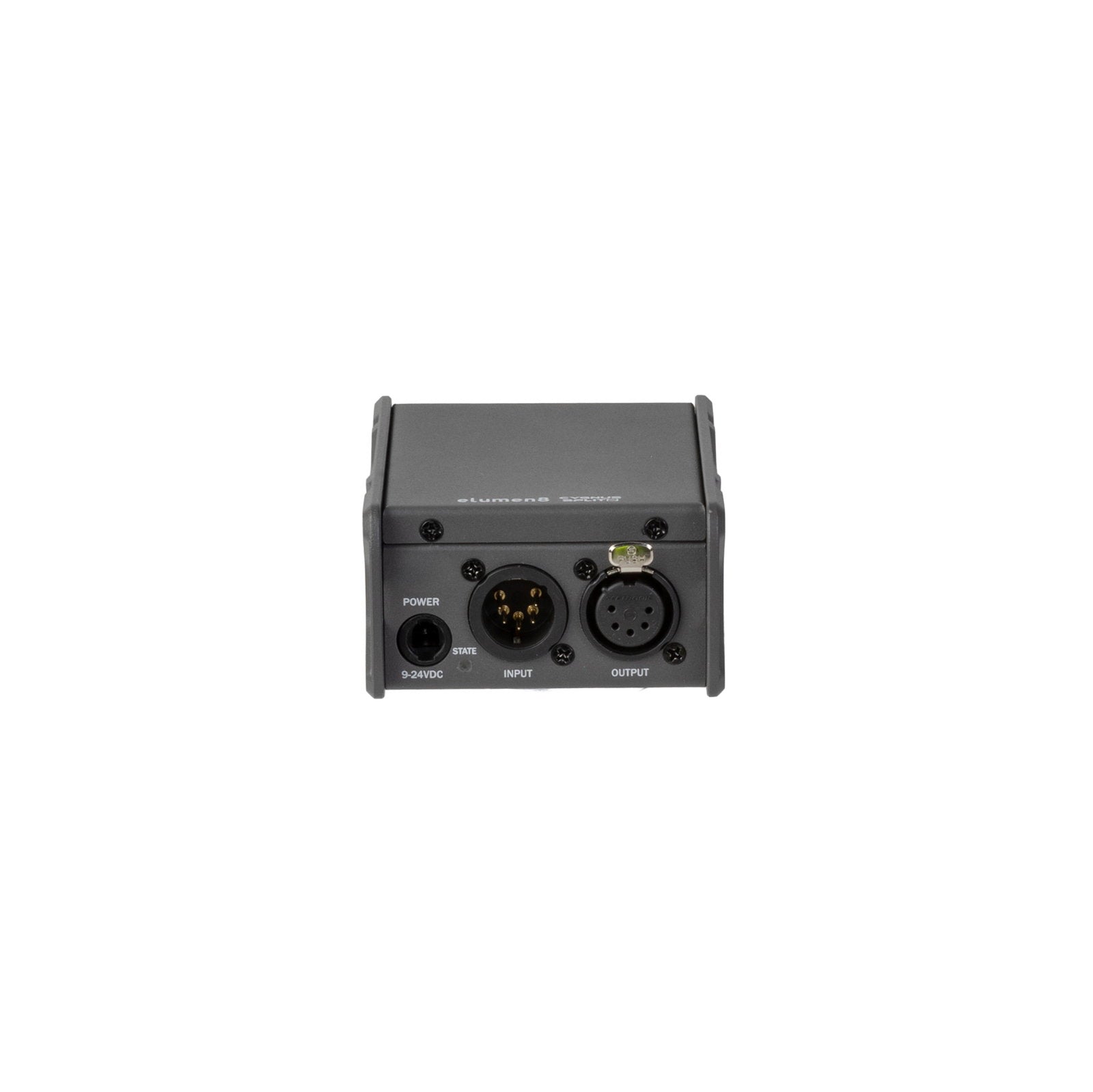

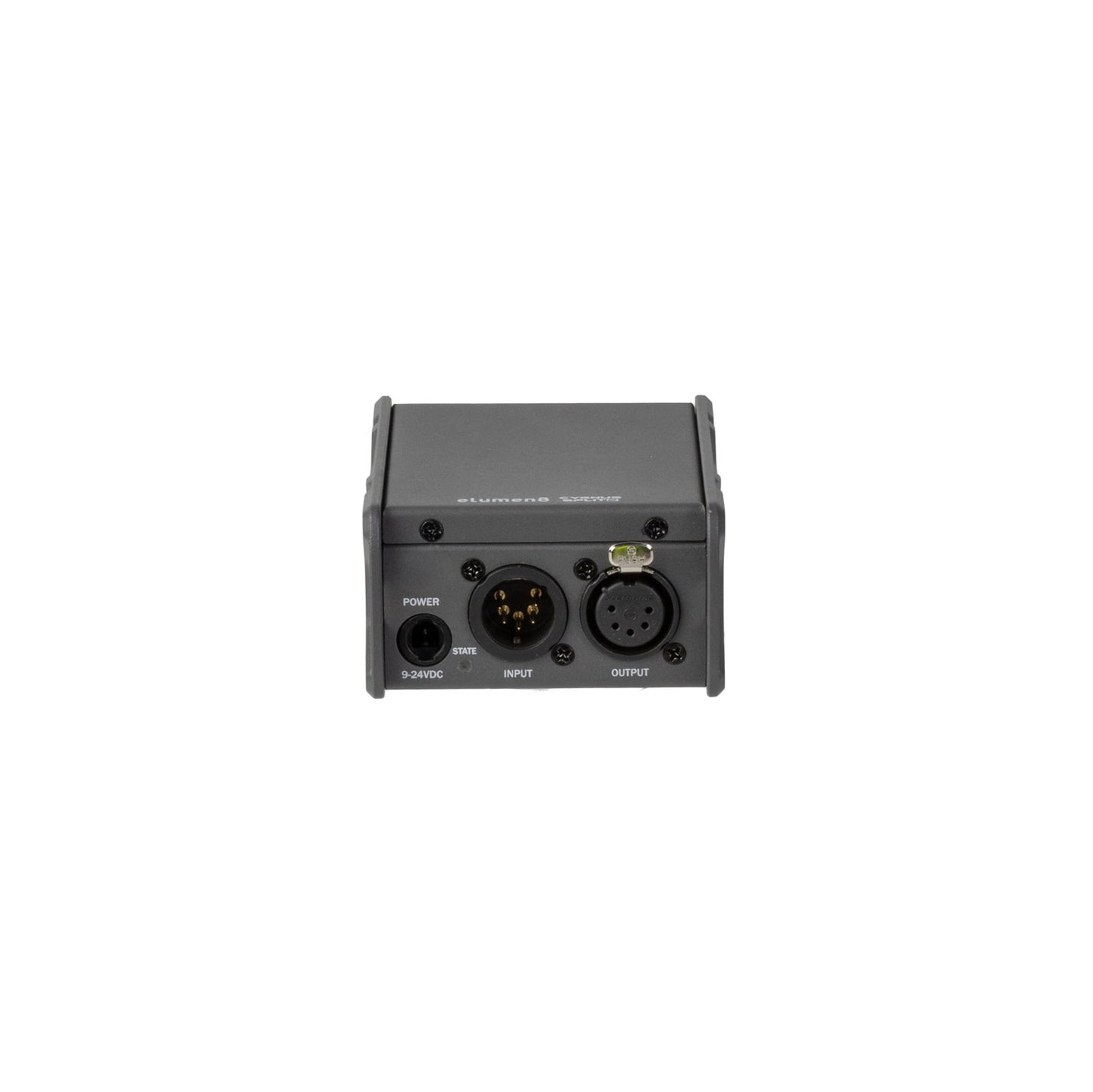

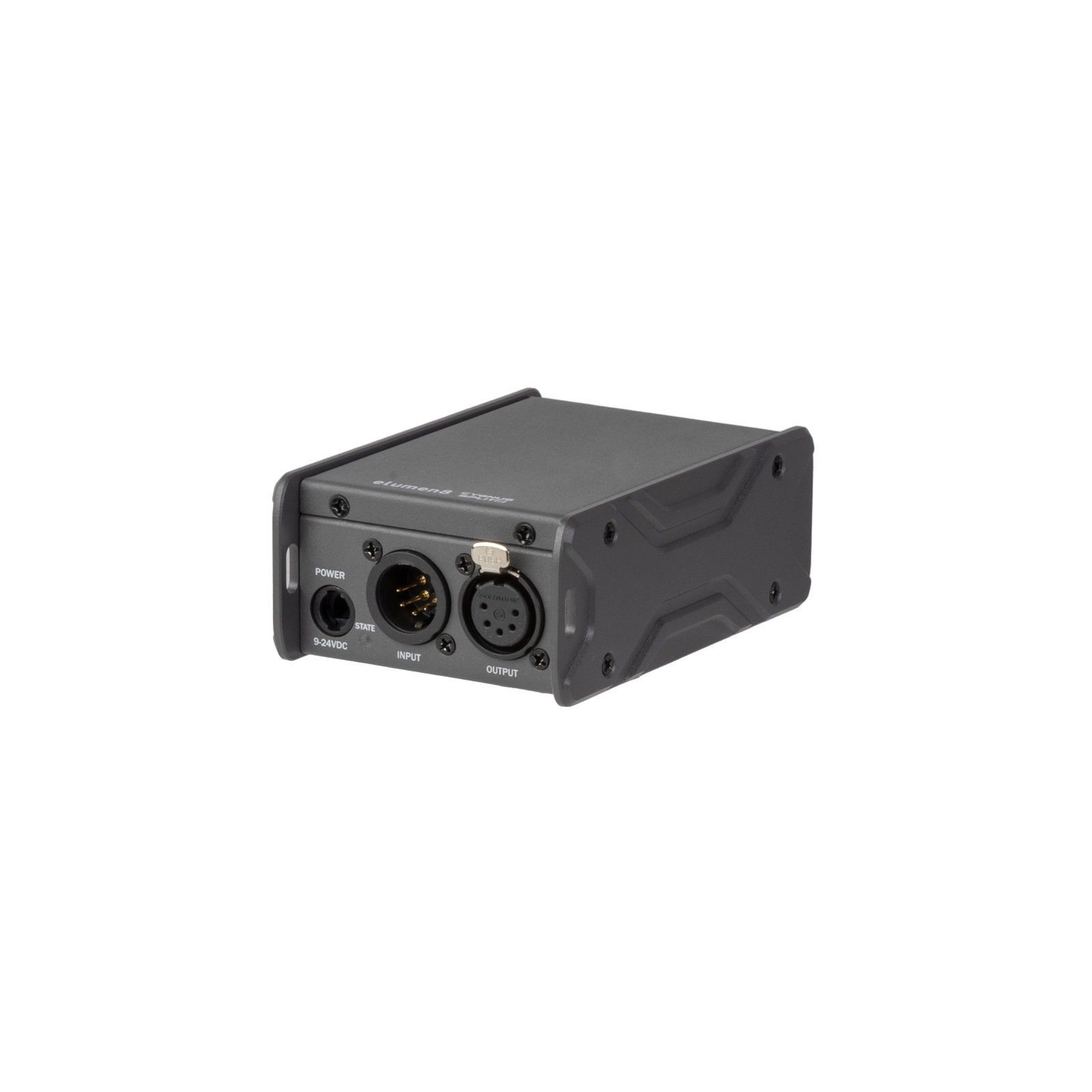

2 year warranty 1 x Seetronic 5-Pin DMX input 1 x Seetronic 5-Pin passthrough 2 x DMX outputs Boosts DMX signal Outputs electronically opto isolated from each other and from the input RDM (Remote Device Management) DMX indicator LEDs Powder coated aluminium chassis 9-24V DC power input Convection cooled

Power consumption: 2W Power supply: 12V 1A DC (UK & EU adaptor included) Dimensions (H x W x D): 46 x 80 x 121mm Weight: 0.36kg
