The Elumen8 Cygnus Series is a comprehensive range of advanced data-management solutions engineered to meet the demands of modern lighting networks. Designed with professional users in mind the series includes DMX splitters mergers recorders Art-Net nodes and sleek wall-plate interfaces each crafted to simplify complex system layouts while maximising control efficiency. Whether you’re expanding a theatre’s infrastructure integrating robust data routing for live production or building a permanent architectural installation Cygnus delivers.
The RSP4 is a 4-way DMX recorder switch pack and programmable trigger with timer function featuring four 5-Pin DMX outputs and four Power Twist TR1 outputs each of which has its own current monitor which can be limited to the user’s preference. Scenes shows chases and switching can be triggered by daily or weekly timers or via DMX.
The RSP4 is the perfect solution for lighting automation in a multitude of ways ideal for shops theme parks museums and events requiring pre-programmed and triggered shows.

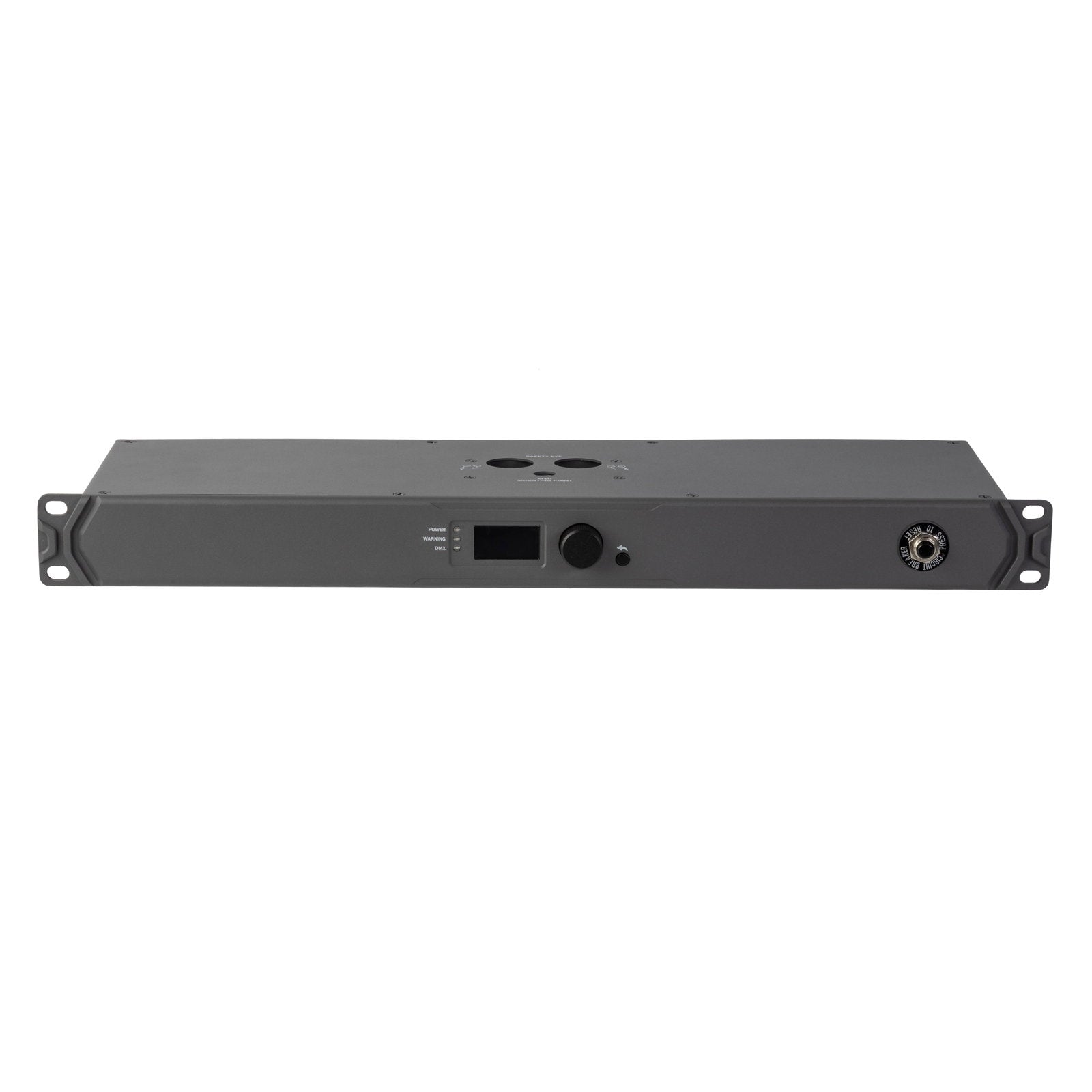

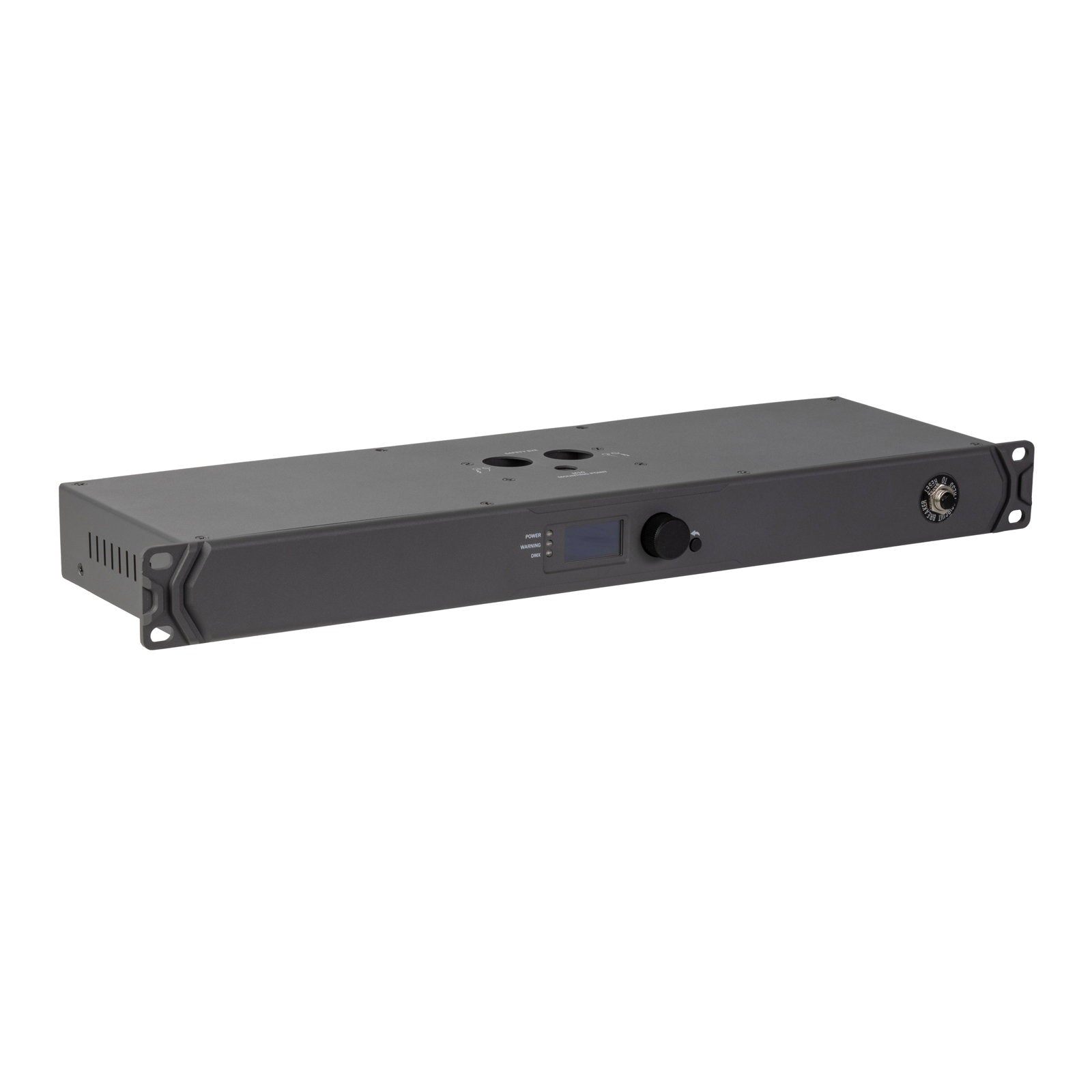

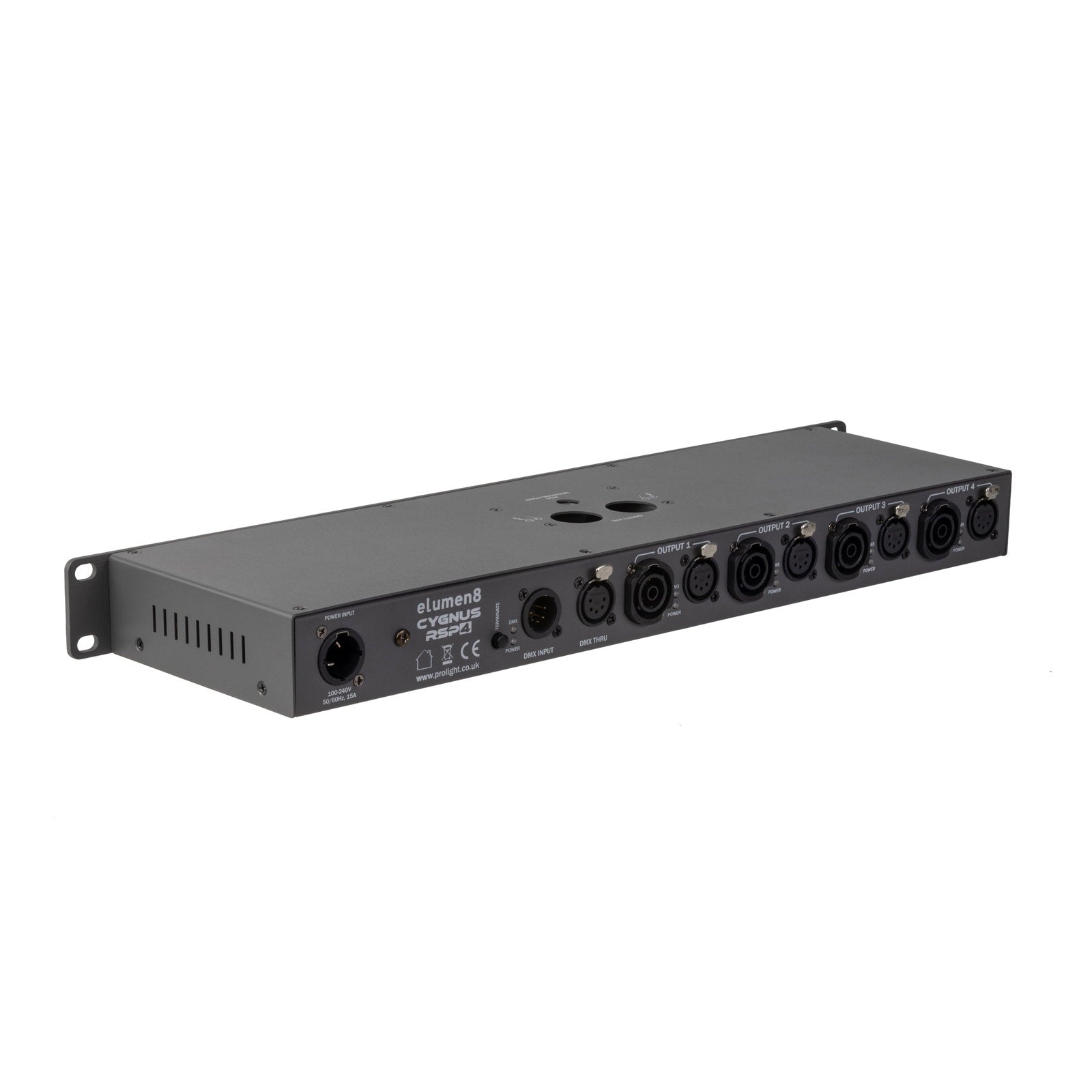

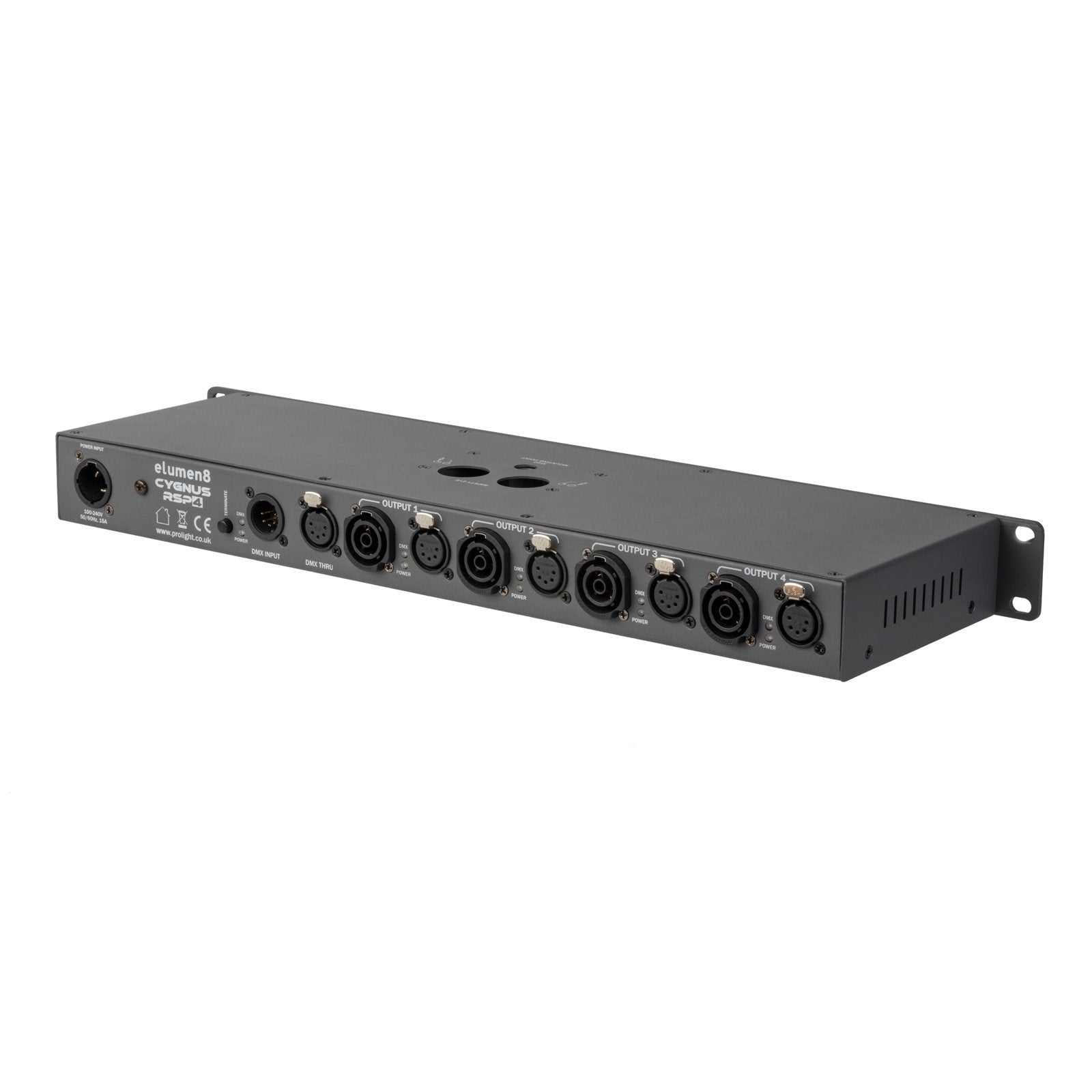

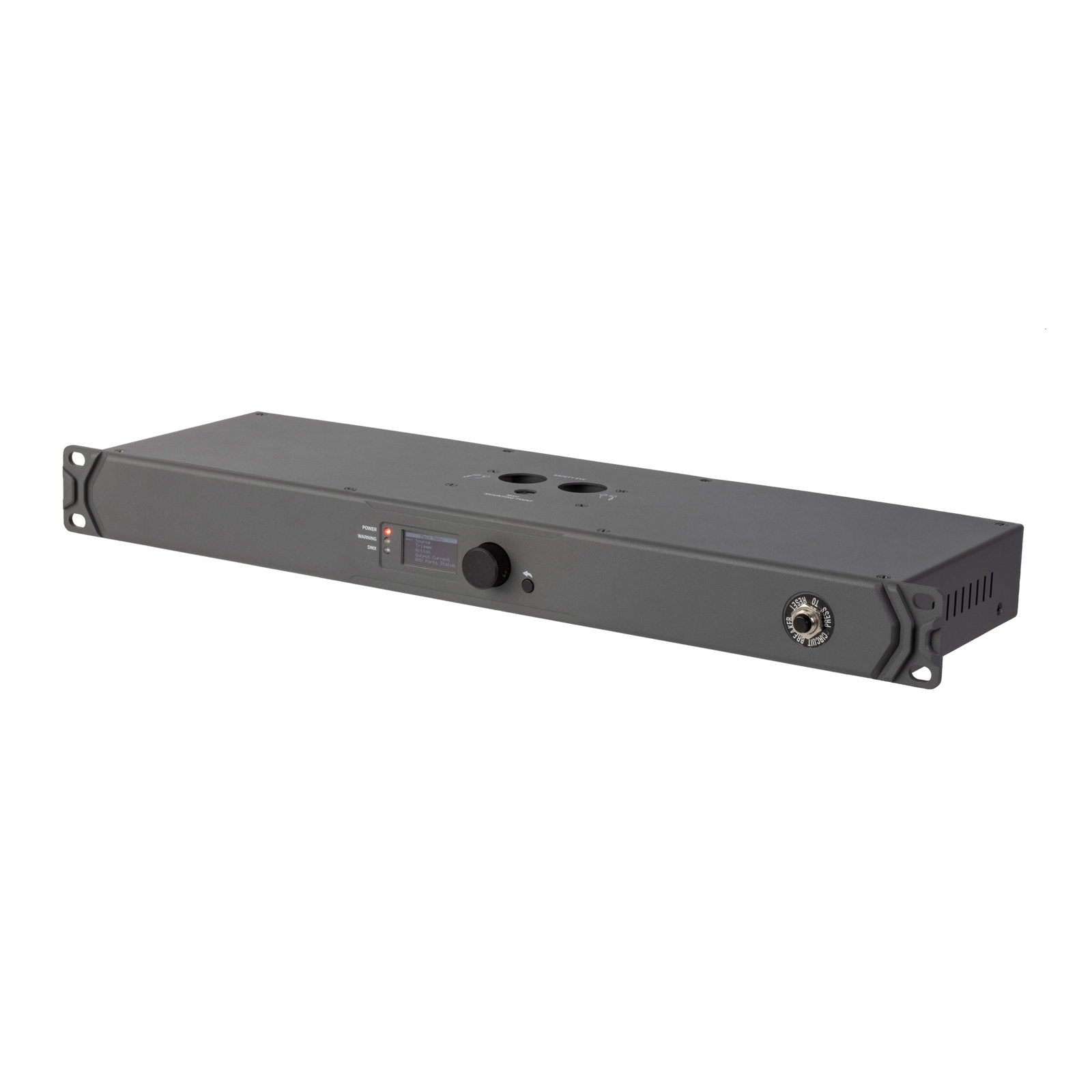

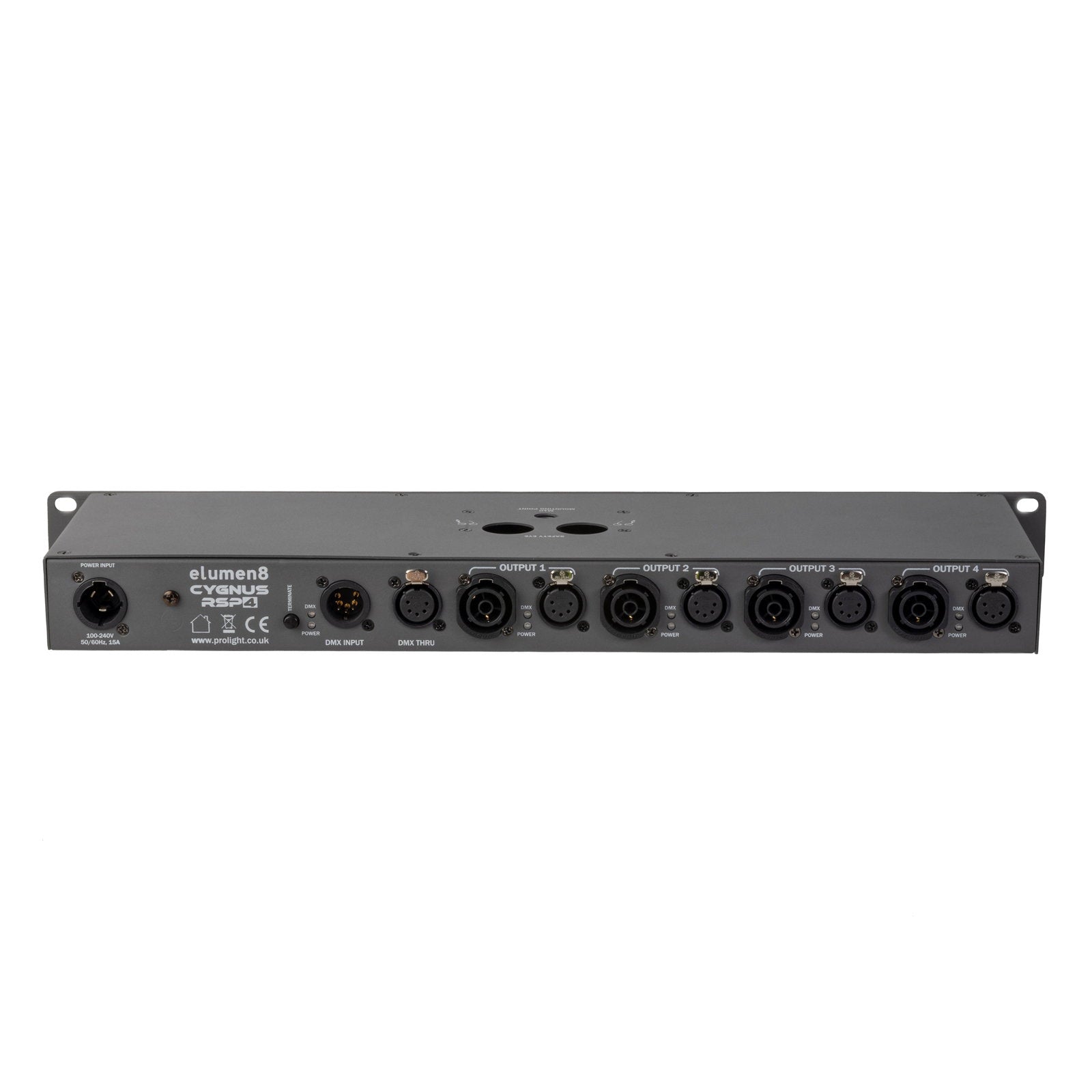

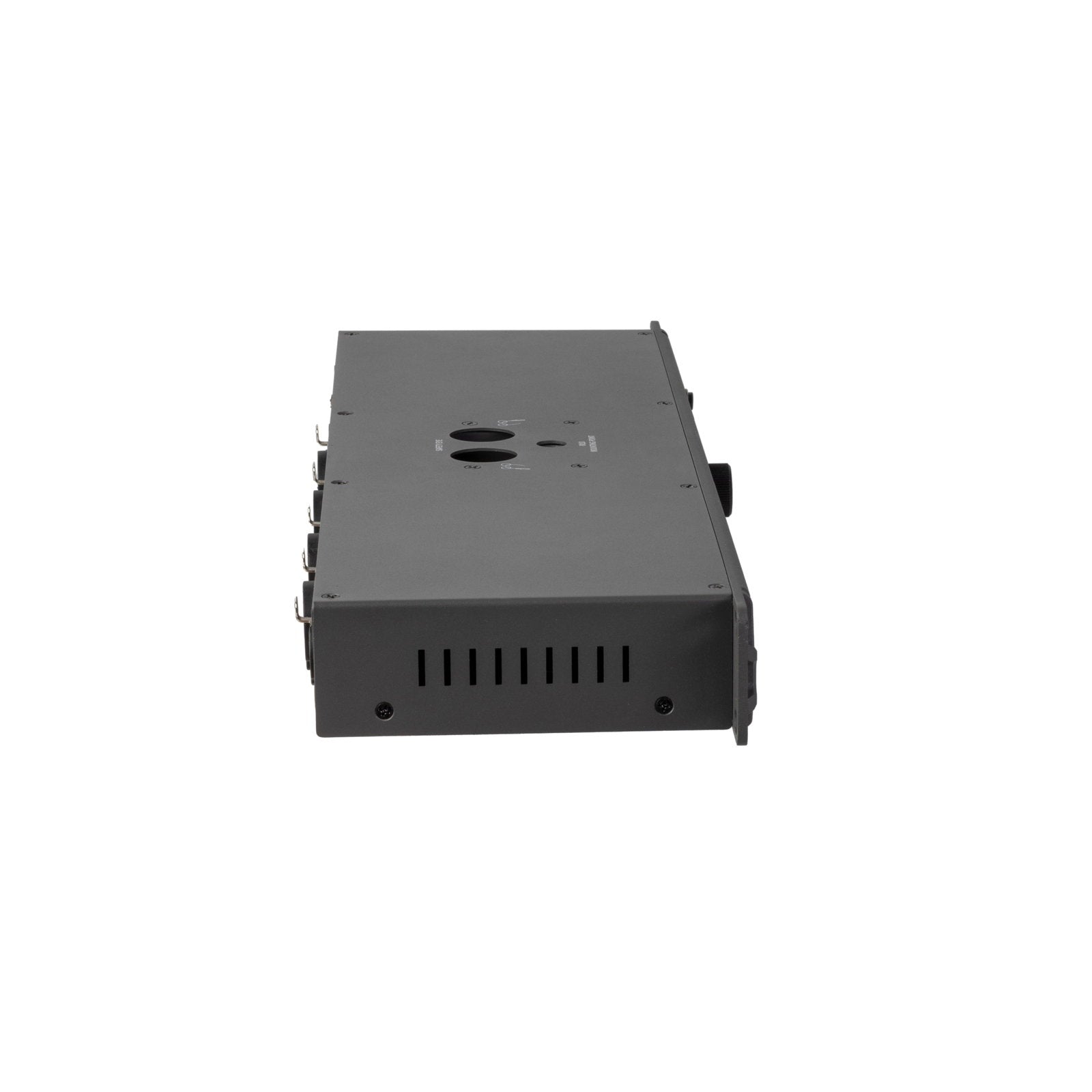

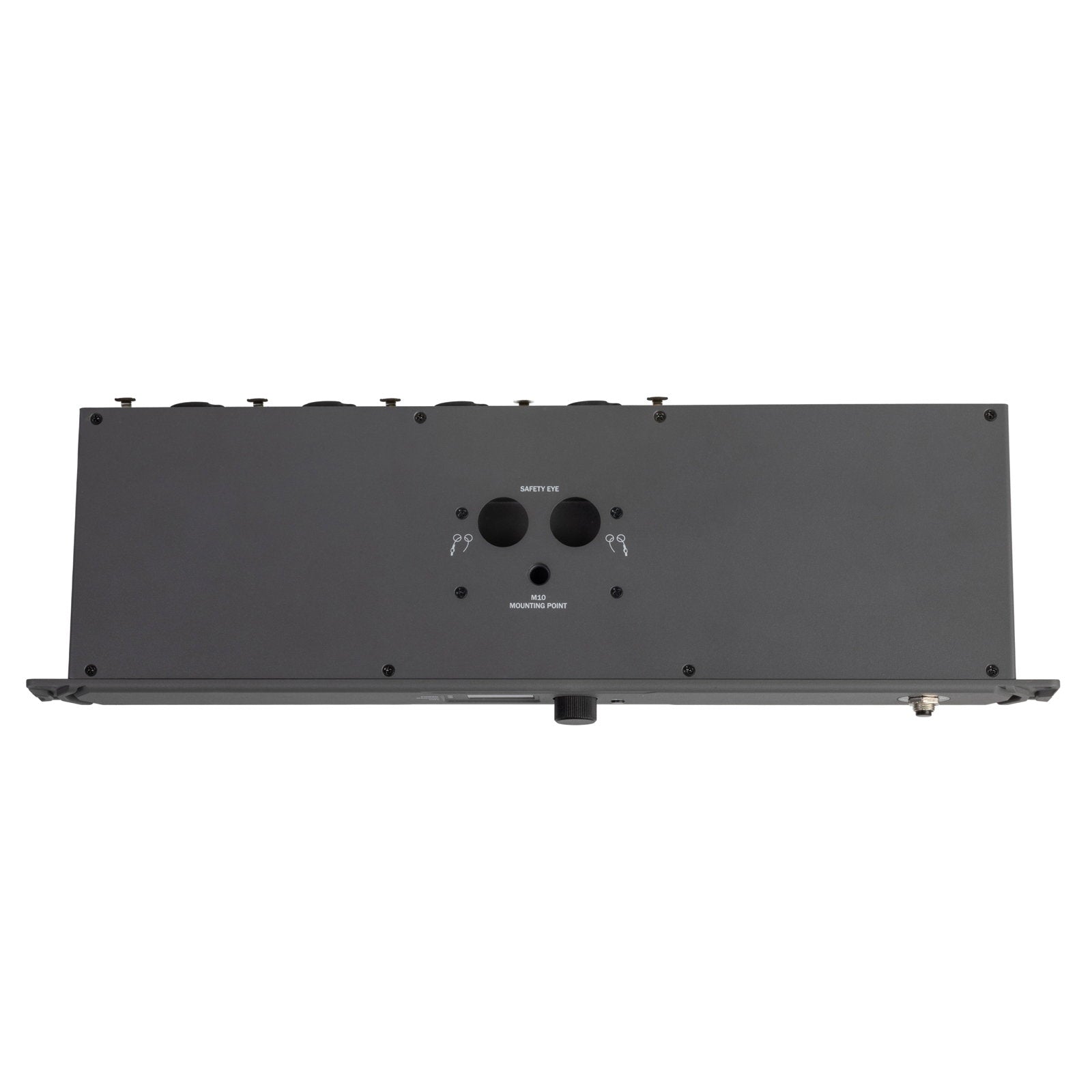

Housed within a rugged 1U 19” rack mount chassis the RSP4 is equipped with Seetronic Power Twist TR1 and 5-Pin XLR connectors and has an M10 mounting point for clamps and is ideally suited to professional applications ensuring your show data arrives exactly where it needs to every time.
2 year warranty 1 x Seetronic 5-Pin DMX input 1 x Seetronic 5-Pin passthrough 4 x Seetronic 5-Pin DMX outputs 4 x Power Twist TR1 switchable outputs Programmable daily and weekly timers Programmable DMX input triggers 32GB internal memory Current limiter and monitor per output Maximum power: 10A (per channel) 15A (total) Auto manual timer and DMX modes DMX outputs electronically opto isolated from each other and from the input Link output with switchable termination facility RDM (Remote Device Management) Power warning and DMX indicator LEDs 1.4” OLED display with rotary control M10 rigging point for clamp Powder coated aluminium 1U 19” rack mount chassis Power Twist TR1 input Convection cooled
Power consumption: 4W (3450W fully loaded) Power supply: 100~240V 50/60Hz Fuse: T1A 250V Dimensions (H x W x D): 44 x 483 x 155mm Weight: 2.36kg

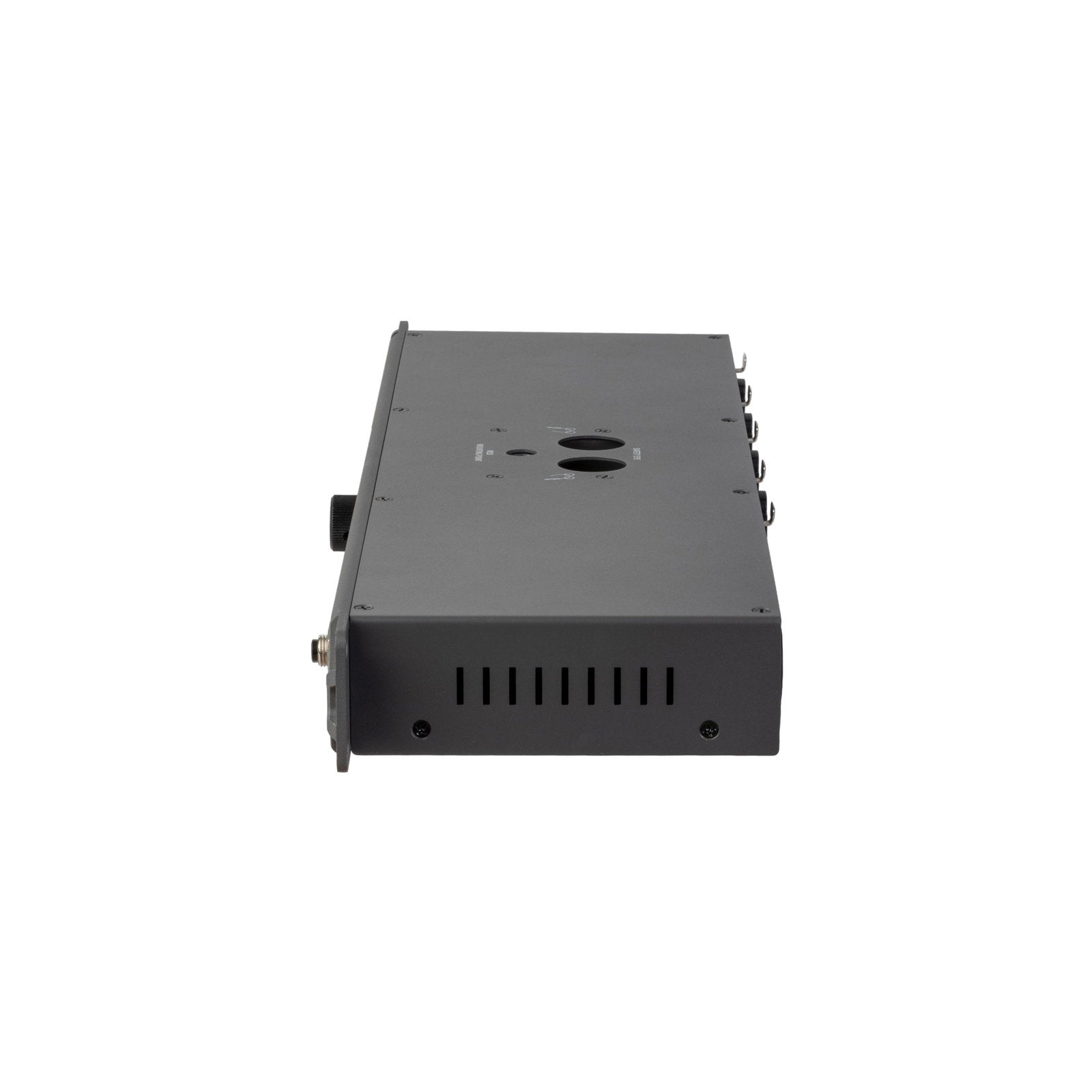

Elumen8 Cygnus RSP4 DMX Recorder / Switch Pack
Brand: Elumen8
SKU: ELUM255
Need help with choosing the right product?
The Elumen8 Cygnus Series is a comprehensive range of advanced data-management solutions engineered to meet the demands of modern lighting networks. Designed with professional users in mind the series includes DMX splitters mergers recorders Art-Net nodes and sleek wall-plate interfaces each crafted to simplify complex system layouts while maximising control efficiency. Whether you’re expanding a theatre’s infrastructure integrating robust data routing for live production or building a permanent architectural installation Cygnus delivers.
The RSP4 is a 4-way DMX recorder switch pack and programmable trigger with timer function featuring four 5-Pin DMX outputs and four Power Twist TR1 outputs each of which has its own current monitor which can be limited to the user’s preference. Scenes shows chases and switching can be triggered by daily or weekly timers or via DMX.
The RSP4 is the perfect solution for lighting automation in a multitude of ways ideal for shops theme parks museums and events requiring pre-programmed and triggered shows.
Housed within a rugged 1U 19” rack mount chassis the RSP4 is equipped with Seetronic Power Twist TR1 and 5-Pin XLR connectors and has an M10 mounting point for clamps and is ideally suited to professional applications ensuring your show data arrives exactly where it needs to every time.
2 year warranty 1 x Seetronic 5-Pin DMX input 1 x Seetronic 5-Pin passthrough 4 x Seetronic 5-Pin DMX outputs 4 x Power Twist TR1 switchable outputs Programmable daily and weekly timers Programmable DMX input triggers 32GB internal memory Current limiter and monitor per output Maximum power: 10A (per channel) 15A (total) Auto manual timer and DMX modes DMX outputs electronically opto isolated from each other and from the input Link output with switchable termination facility RDM (Remote Device Management) Power warning and DMX indicator LEDs 1.4” OLED display with rotary control M10 rigging point for clamp Powder coated aluminium 1U 19” rack mount chassis Power Twist TR1 input Convection cooled
Power consumption: 4W (3450W fully loaded) Power supply: 100~240V 50/60Hz Fuse: T1A 250V Dimensions (H x W x D): 44 x 483 x 155mm Weight: 2.36kg
