The Elumen8 Cygnus Series is a comprehensive range of advanced data-management solutions engineered to meet the demands of modern lighting networks. Designed with professional users in mind the series includes DMX splitters DMX mergers Art-Net nodes and sleek wall-plate interfaces each crafted to simplify complex system layouts while maximising control efficiency. Whether you’re expanding a theatre’s infrastructure integrating robust data routing for live production or building a permanent architectural installation Cygnus delivers.
The QR is a compact DMX recorder and playback unit that can trigger shows stored on the included micro SD card. Shows can be triggered via 6 external triggers (when used with the WP3 Playback Wall Plate) or via 12 DMX triggers. Each trigger can start a show or scene with up to 24 hours of storage from the included SD card. Each show can be played once or on a loop.
The idle playback mode allows 3 different options; Scene mode – allowing a static scene between active shows (when no file is selected it defaults to blackout) Show mode – allowing a selected show to be looped perfect for background effects or ongoing entertainment when there are no triggered events Passthrough mode – allowing a DMX signal received from another source to be passed through to a connected lighting setup via the DMX input and output.
The remote input allows full bidirectional communication with the WP3 Playback Wall Plate via a CAT5 cable. The Cygnus QR is the ideal solution for triggering shows or scenes in theme parks shops or museums.
Housed within a rugged chassis the QR is ideally suited to professional applications ensuring your show data arrives exactly where it needs to every time.

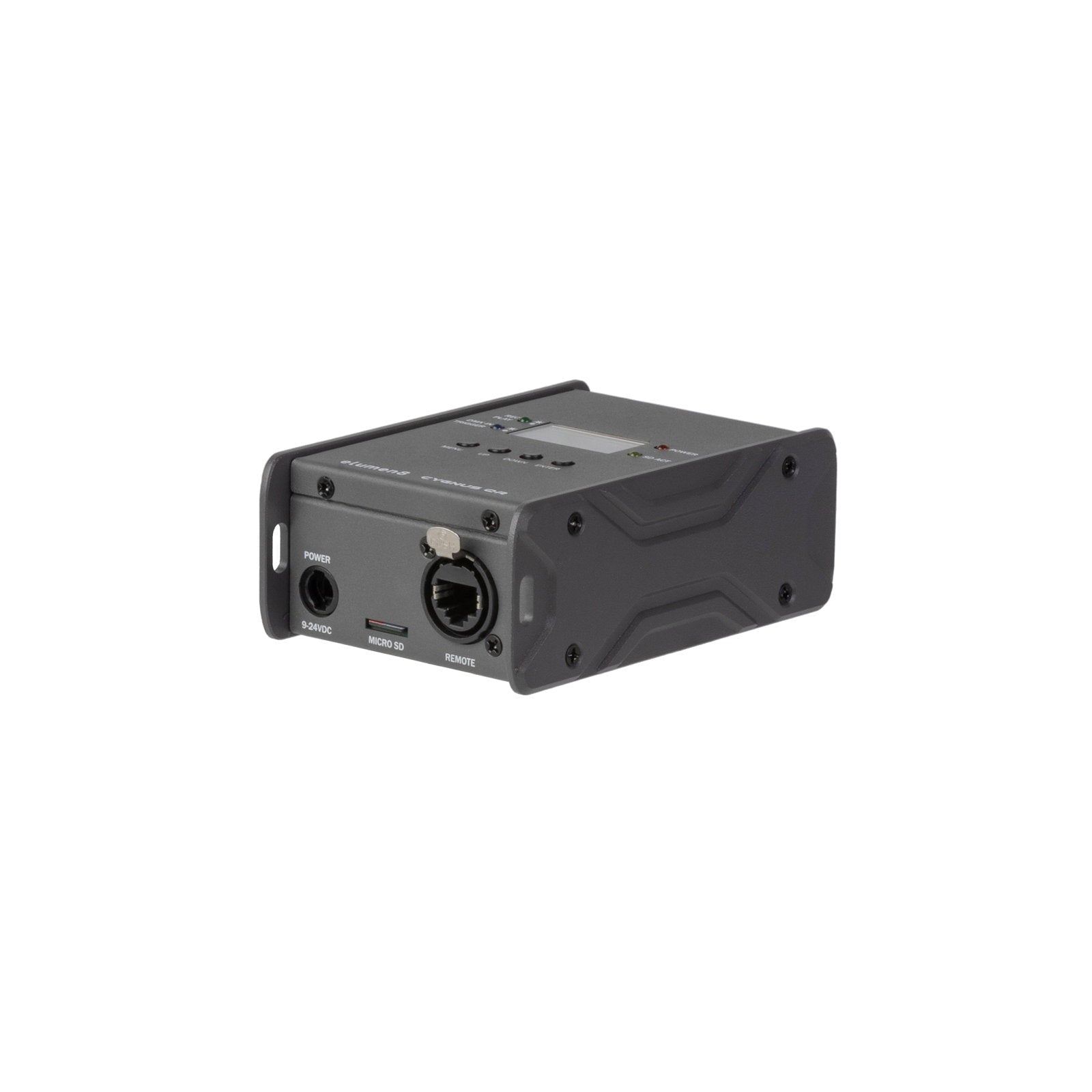

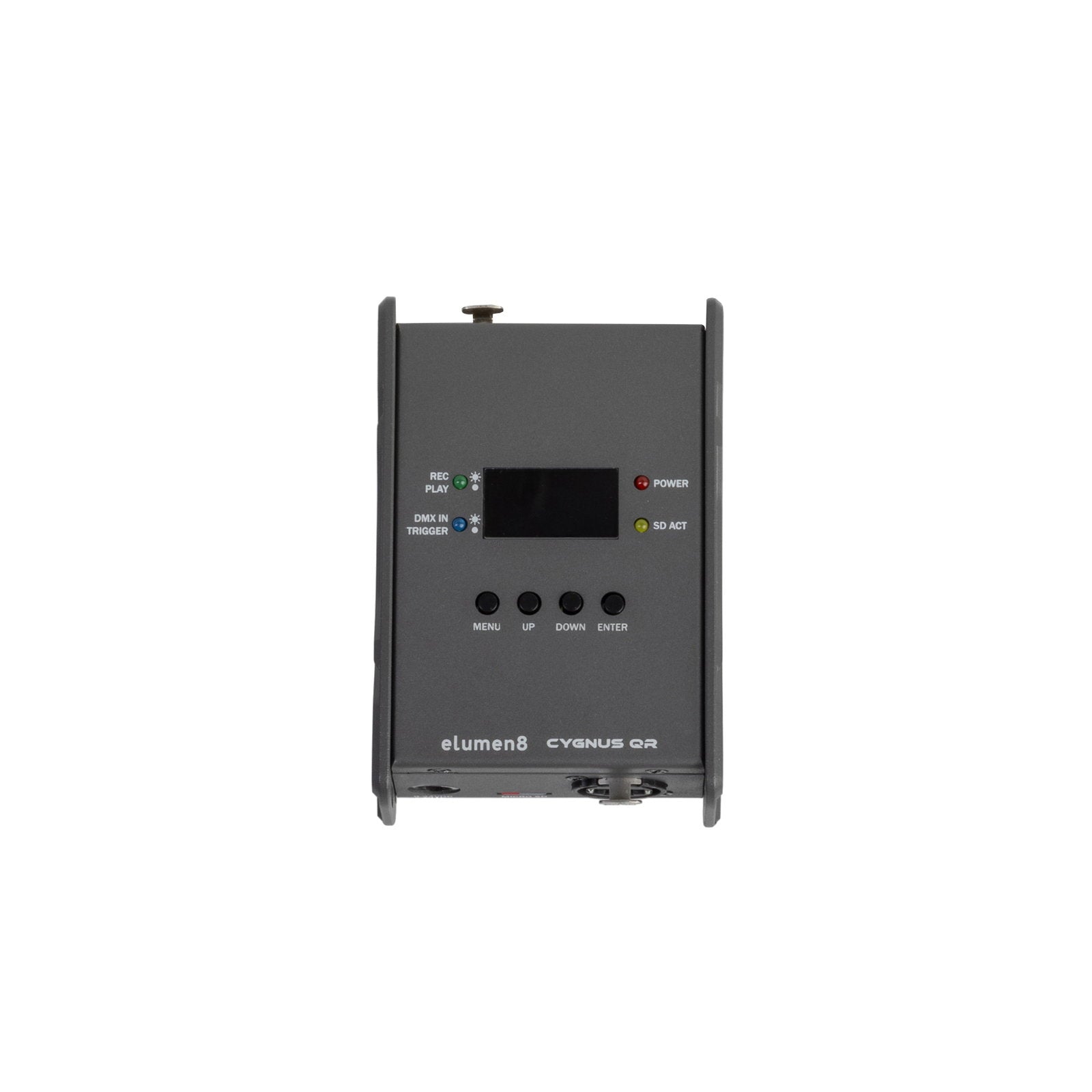

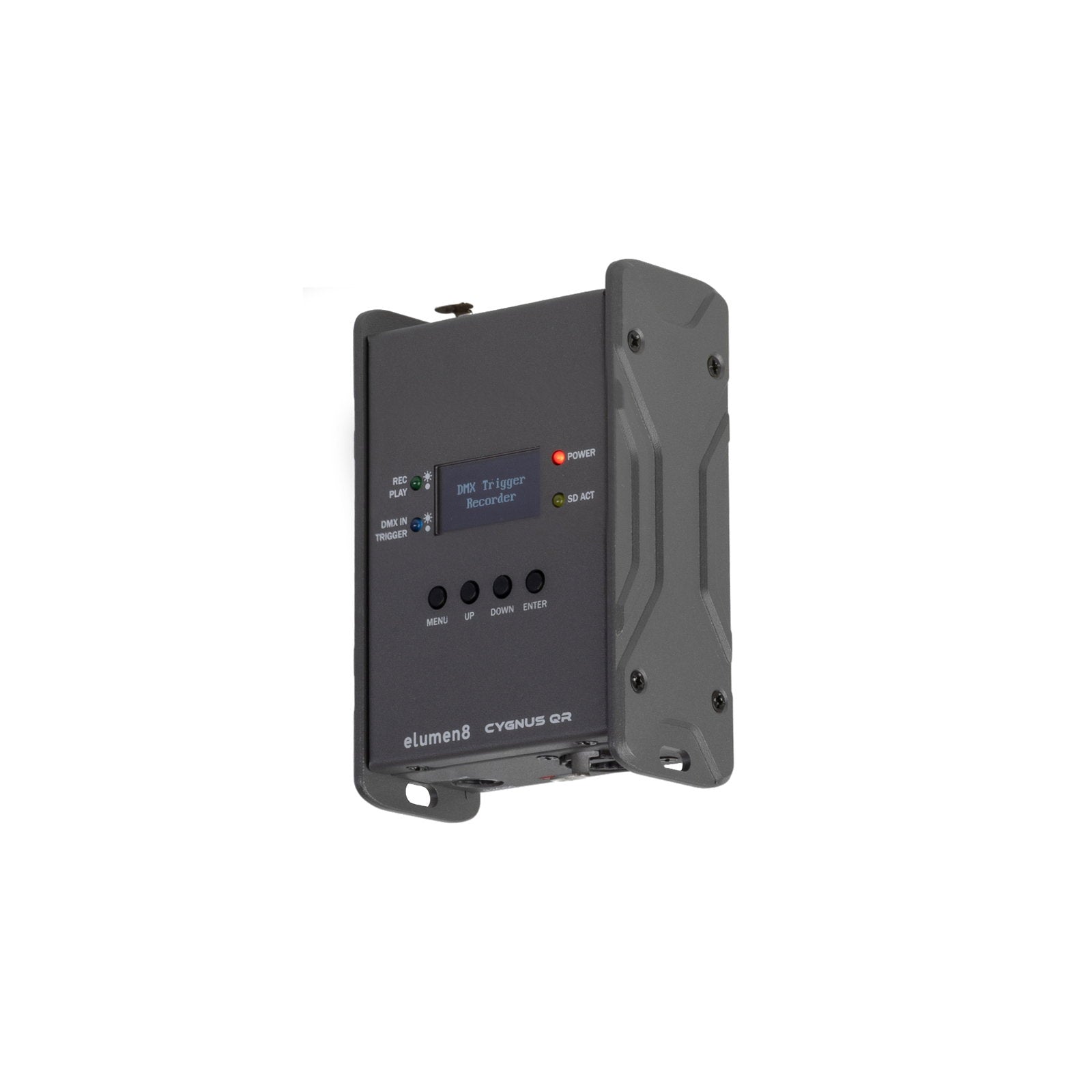

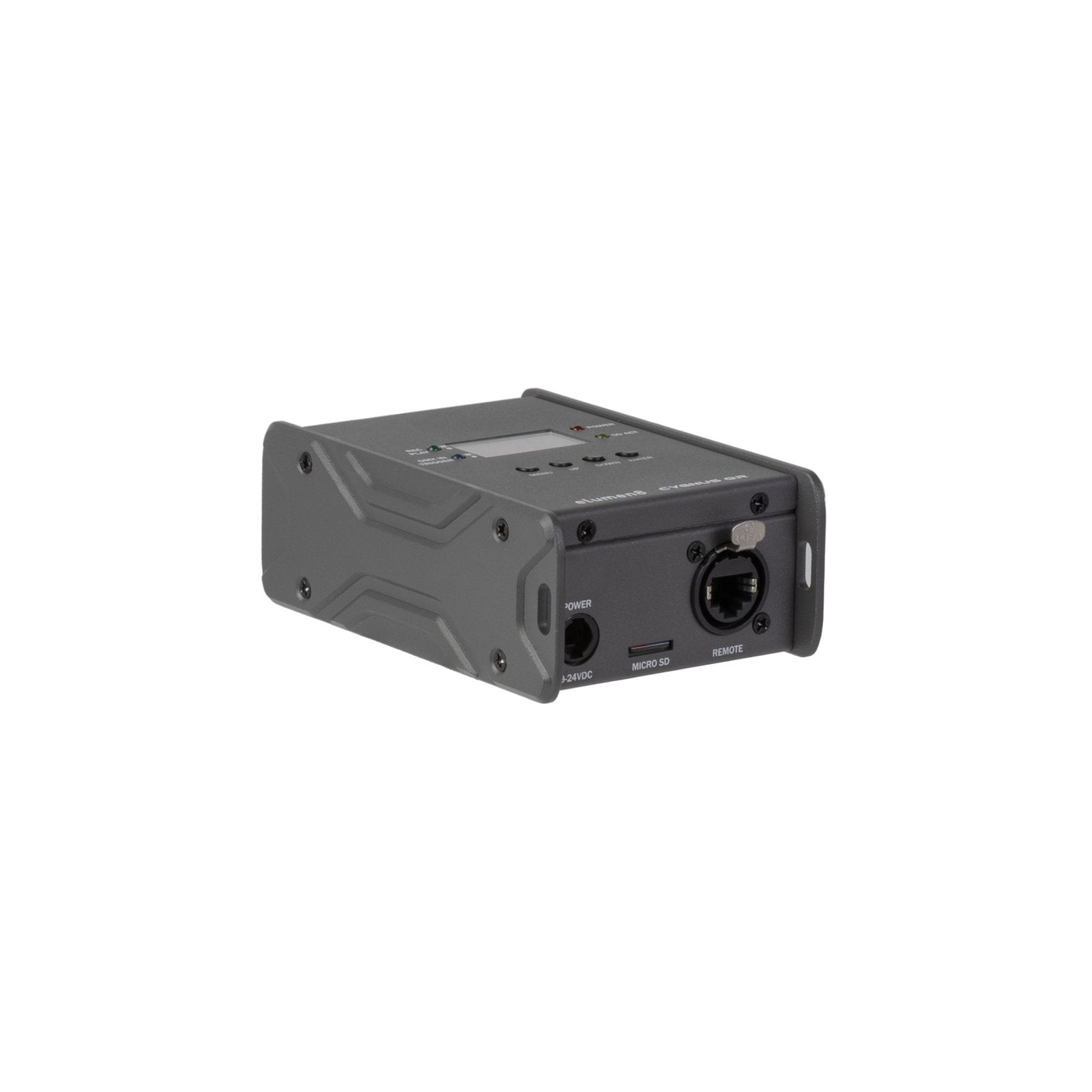

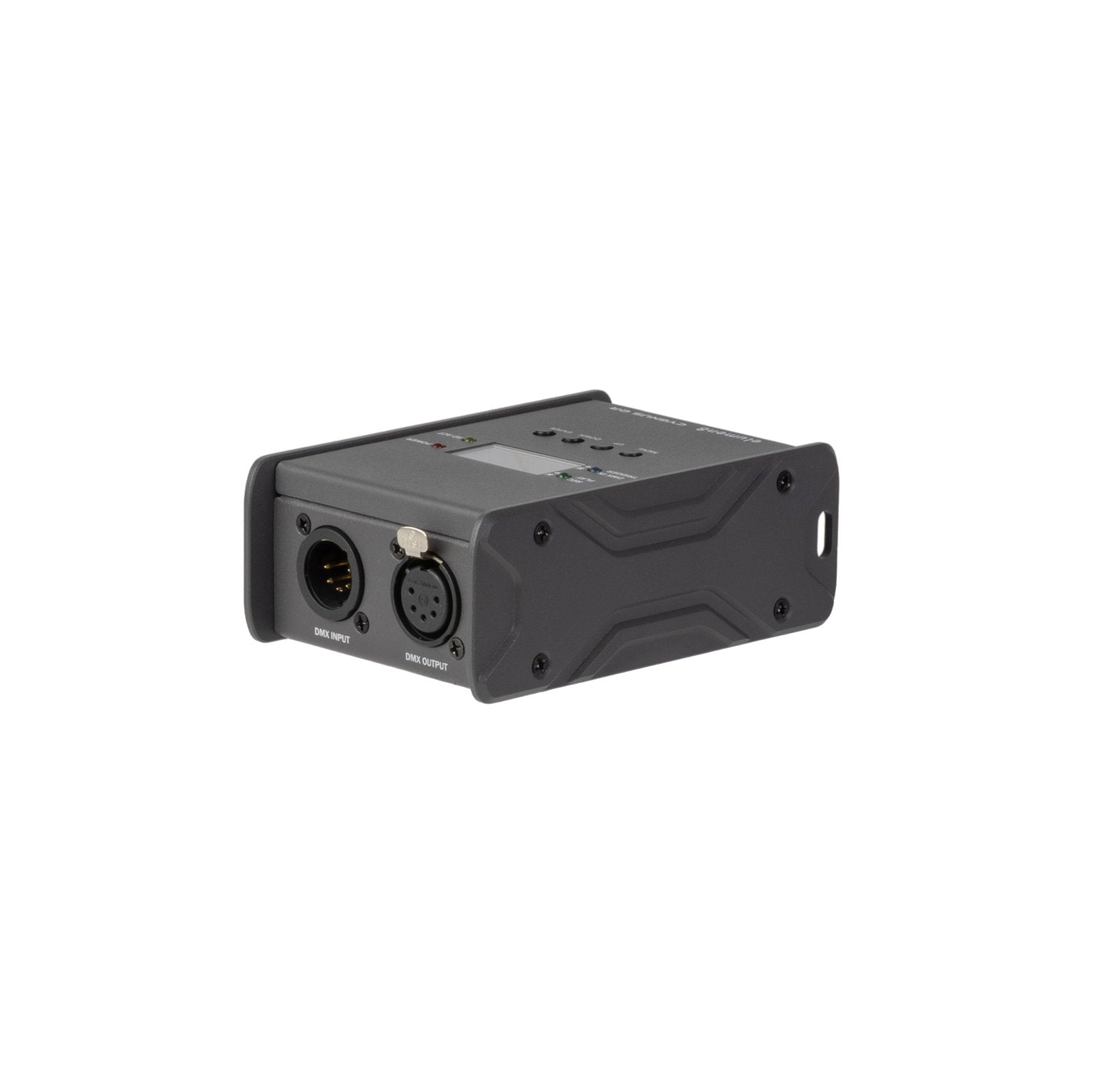

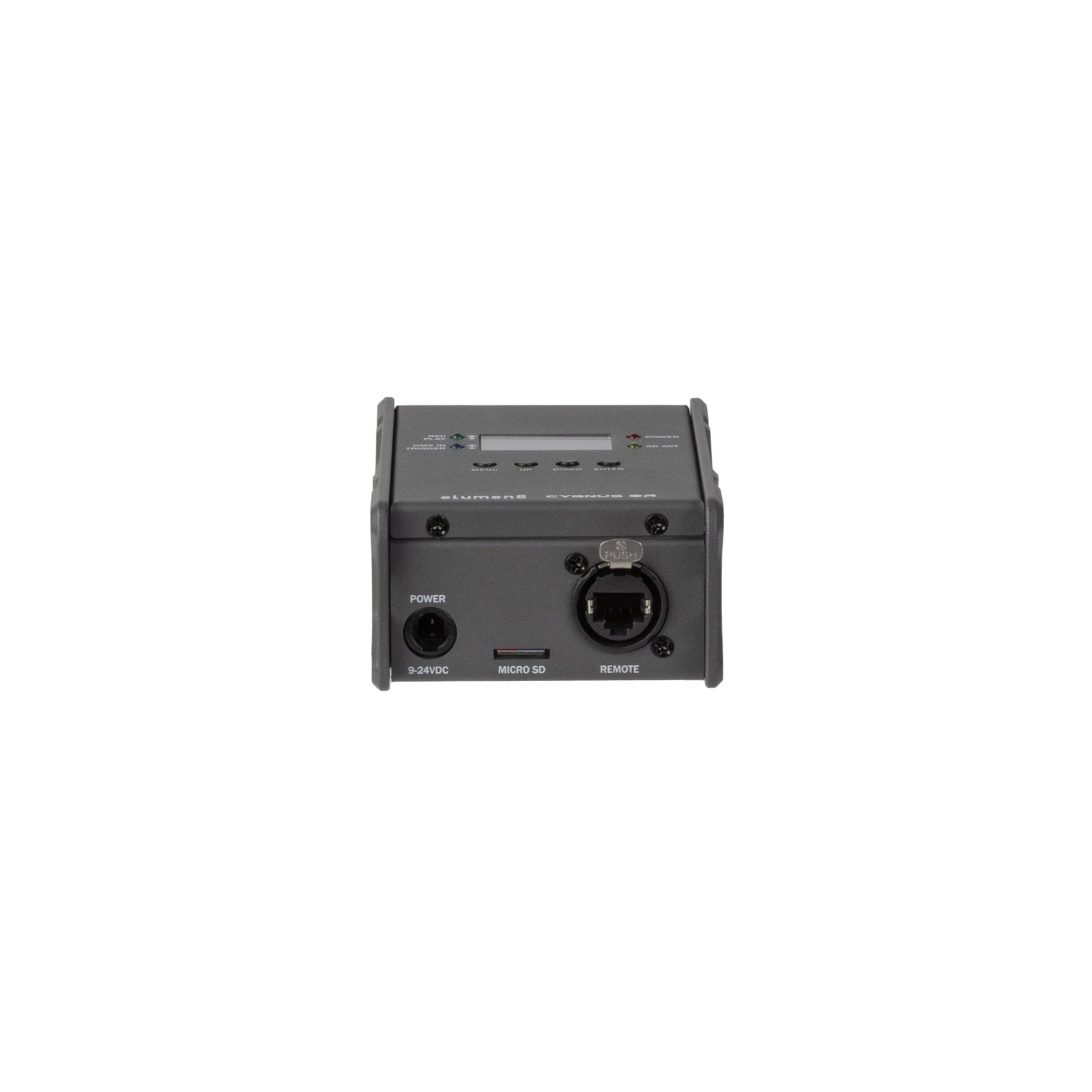

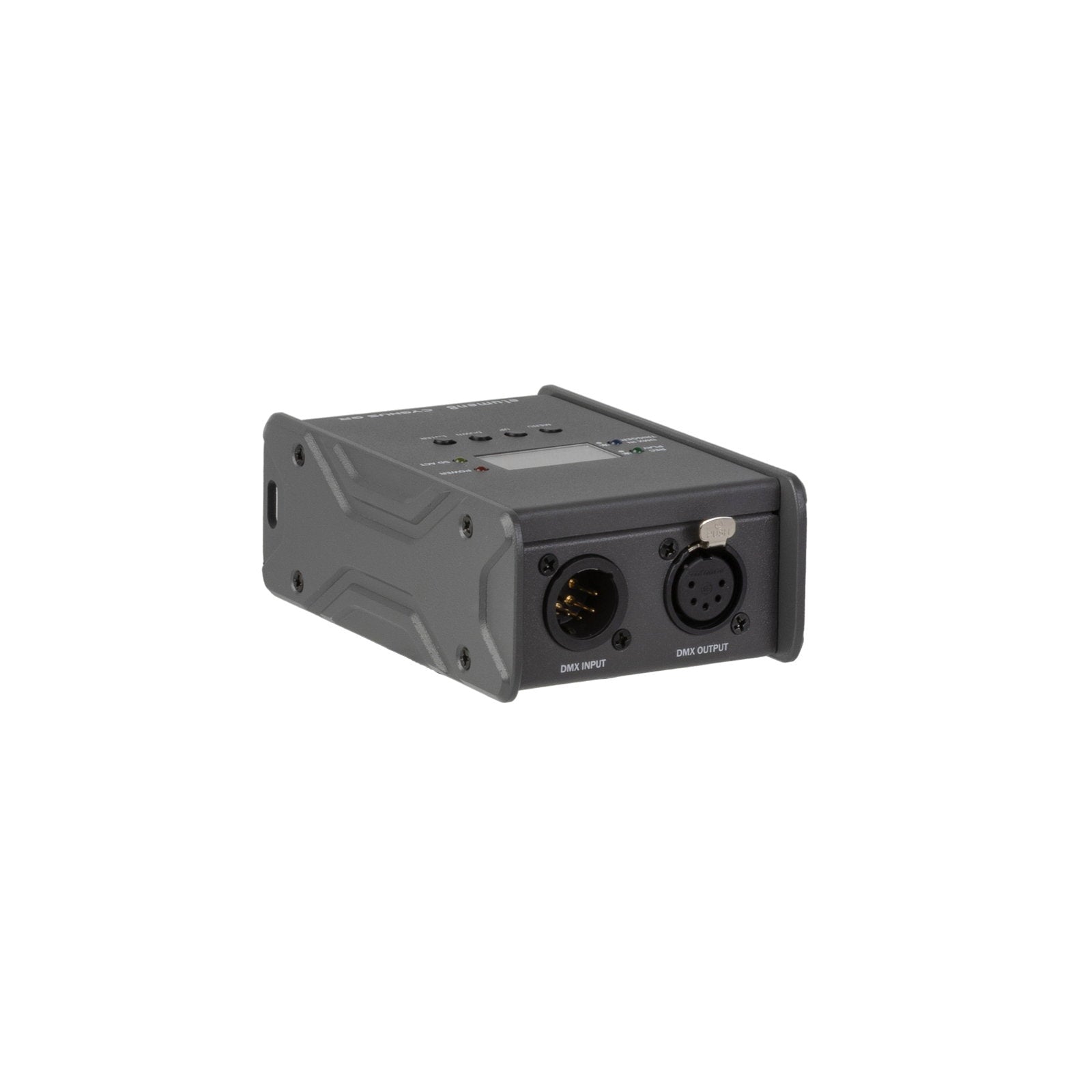

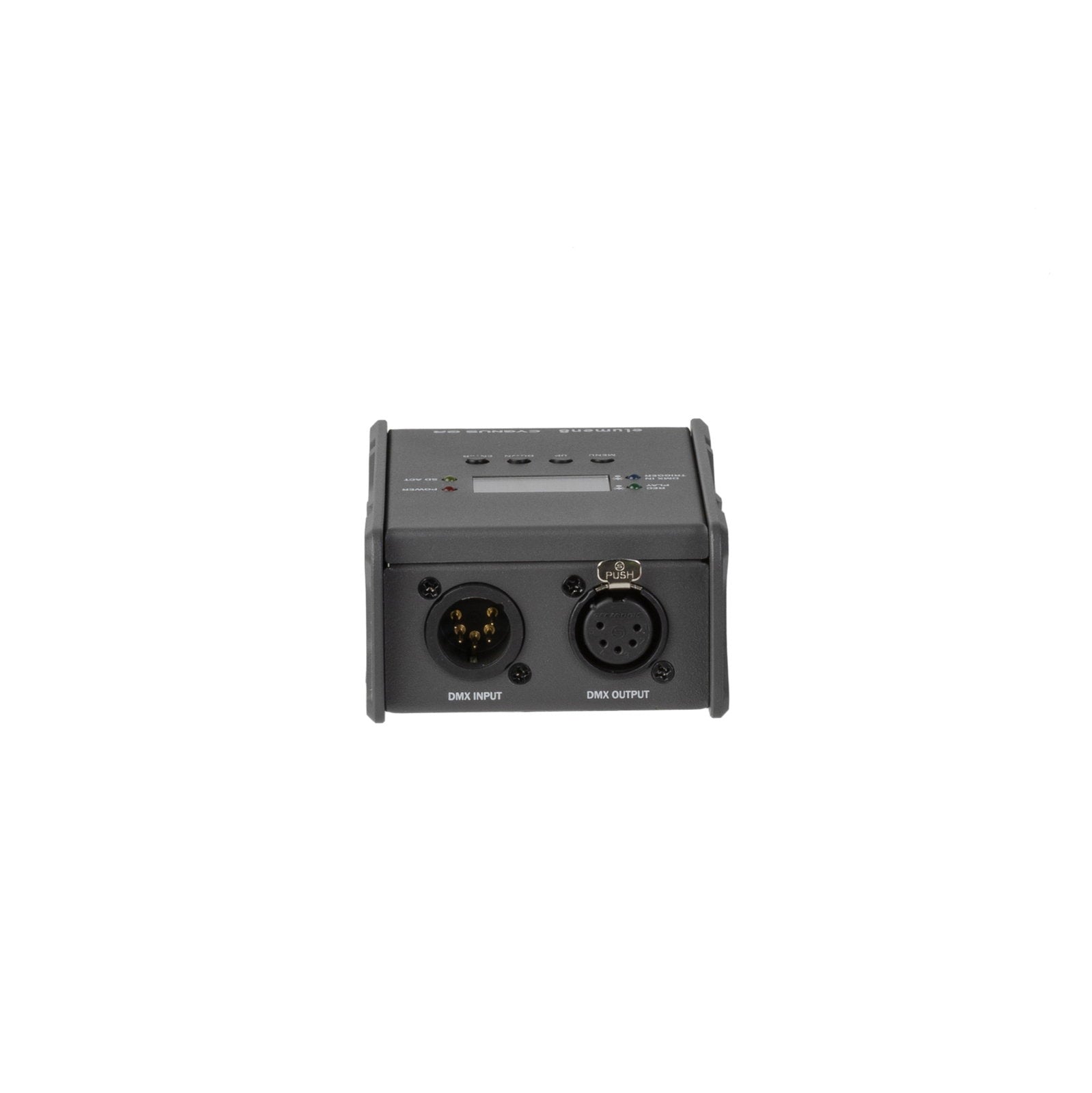

2 year warranty 1 x Seetronic 5-Pin DMX input 1 x Seetronic 5-Pin DMX output 1 x remote input (for use with WP3 Wall Plate) Power record/play DMX in/trigger and SD activity LEDs RDM (Remote Device Management) 1.4” OLED display with rotary control Powder coated aluminium chassis 9-24V DC power input micro SD card input (32GB micro SD card included) Convection cooled
Power consumption: 5W Power supply: 12V 1A DC (UK & EU adaptor included) Dimensions (H x W x D): 46 x 80 x 121mm Weight: 0.38kg
Elumen8 Cygnus QR Mini DMX Recorder
Brand: Elumen8
SKU: ELUM258
Need help with choosing the right product?
The Elumen8 Cygnus Series is a comprehensive range of advanced data-management solutions engineered to meet the demands of modern lighting networks. Designed with professional users in mind the series includes DMX splitters DMX mergers Art-Net nodes and sleek wall-plate interfaces each crafted to simplify complex system layouts while maximising control efficiency. Whether you’re expanding a theatre’s infrastructure integrating robust data routing for live production or building a permanent architectural installation Cygnus delivers.
The QR is a compact DMX recorder and playback unit that can trigger shows stored on the included micro SD card. Shows can be triggered via 6 external triggers (when used with the WP3 Playback Wall Plate) or via 12 DMX triggers. Each trigger can start a show or scene with up to 24 hours of storage from the included SD card. Each show can be played once or on a loop.
The idle playback mode allows 3 different options; Scene mode – allowing a static scene between active shows (when no file is selected it defaults to blackout) Show mode – allowing a selected show to be looped perfect for background effects or ongoing entertainment when there are no triggered events Passthrough mode – allowing a DMX signal received from another source to be passed through to a connected lighting setup via the DMX input and output.
The remote input allows full bidirectional communication with the WP3 Playback Wall Plate via a CAT5 cable. The Cygnus QR is the ideal solution for triggering shows or scenes in theme parks shops or museums.
Housed within a rugged chassis the QR is ideally suited to professional applications ensuring your show data arrives exactly where it needs to every time.
2 year warranty 1 x Seetronic 5-Pin DMX input 1 x Seetronic 5-Pin DMX output 1 x remote input (for use with WP3 Wall Plate) Power record/play DMX in/trigger and SD activity LEDs RDM (Remote Device Management) 1.4” OLED display with rotary control Powder coated aluminium chassis 9-24V DC power input micro SD card input (32GB micro SD card included) Convection cooled
Power consumption: 5W Power supply: 12V 1A DC (UK & EU adaptor included) Dimensions (H x W x D): 46 x 80 x 121mm Weight: 0.38kg
