The Elumen8 Cygnus Series is a comprehensive range of advanced data-management solutions engineered to meet the demands of modern lighting networks. Designed with professional users in mind the series includes DMX splitters DMX mergers Art-Net nodes and sleek wall-plate interfaces each crafted to simplify complex system layouts while maximising control efficiency. Whether you’re expanding a theatre’s infrastructure integrating robust data routing for live production or building a permanent architectural installation Cygnus delivers.

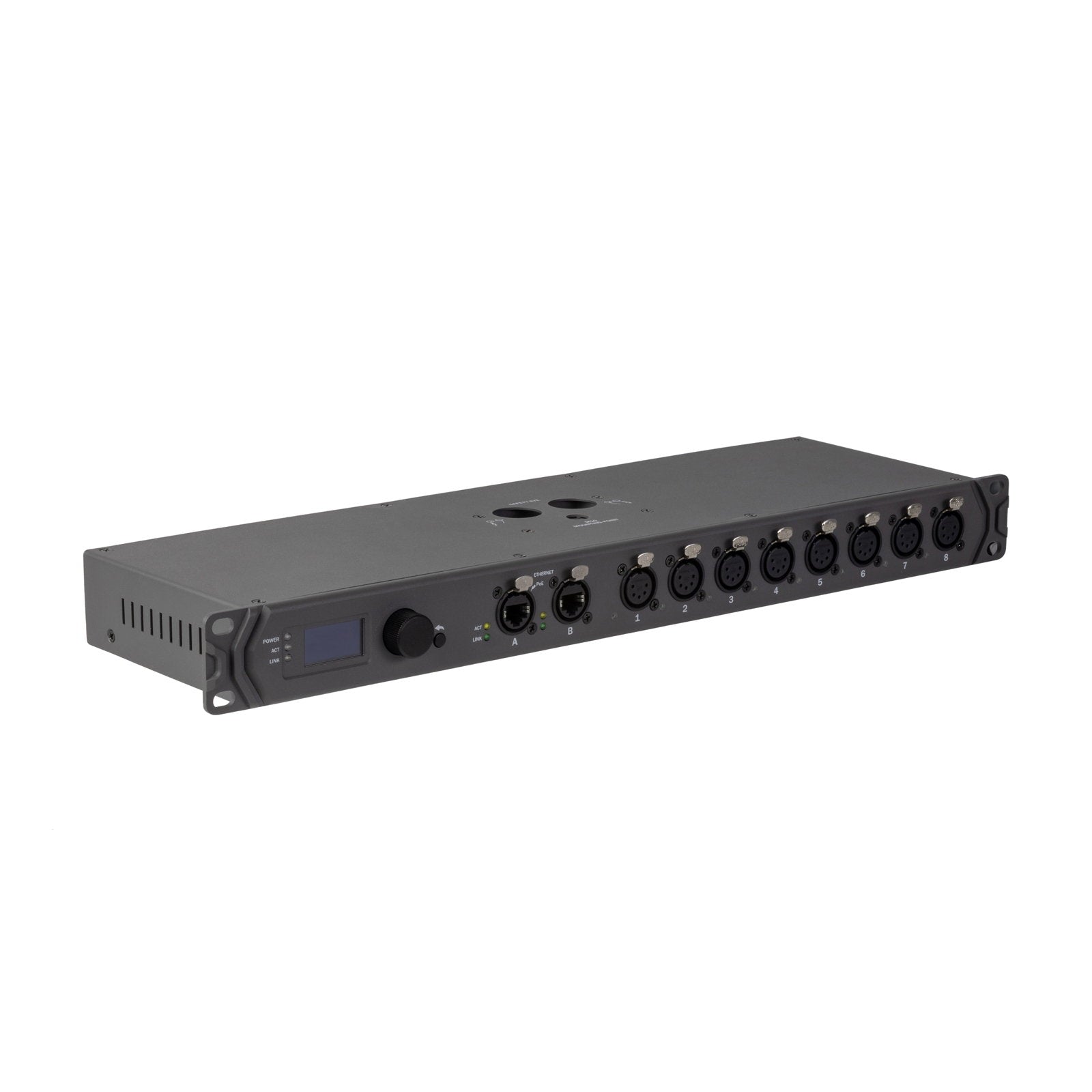

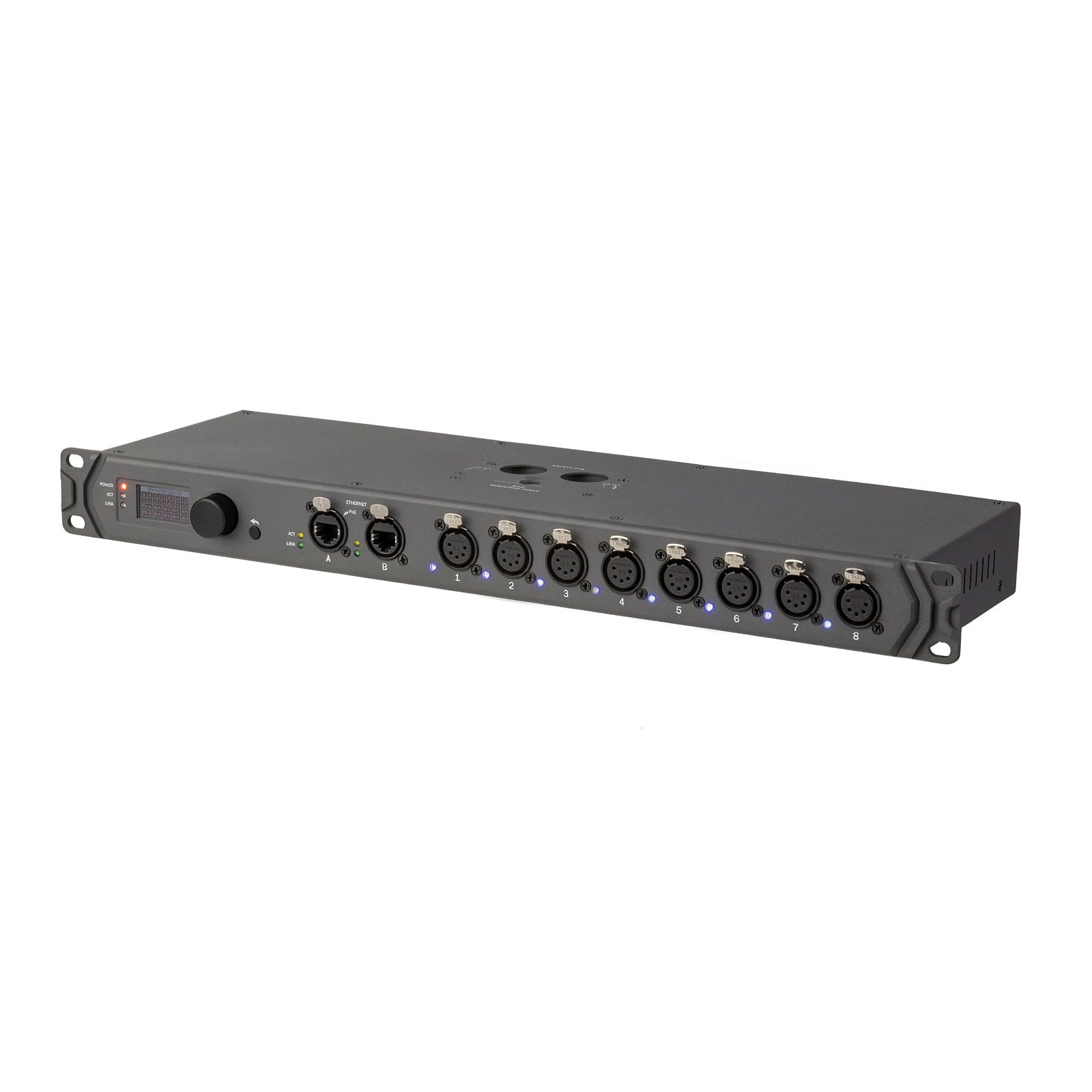

The NET8 is an 8-way universe node which converts Art-Net or sACN to DMX giving a maximum of 4096 channels. Two Ethernet sockets are included with one POE allowing for a single cable to be used for both power and data input. Data speeds of up to 1 GB/s can be achieved whilst the built-in network switch allows the NET8 to be used as an ethernet repeater.

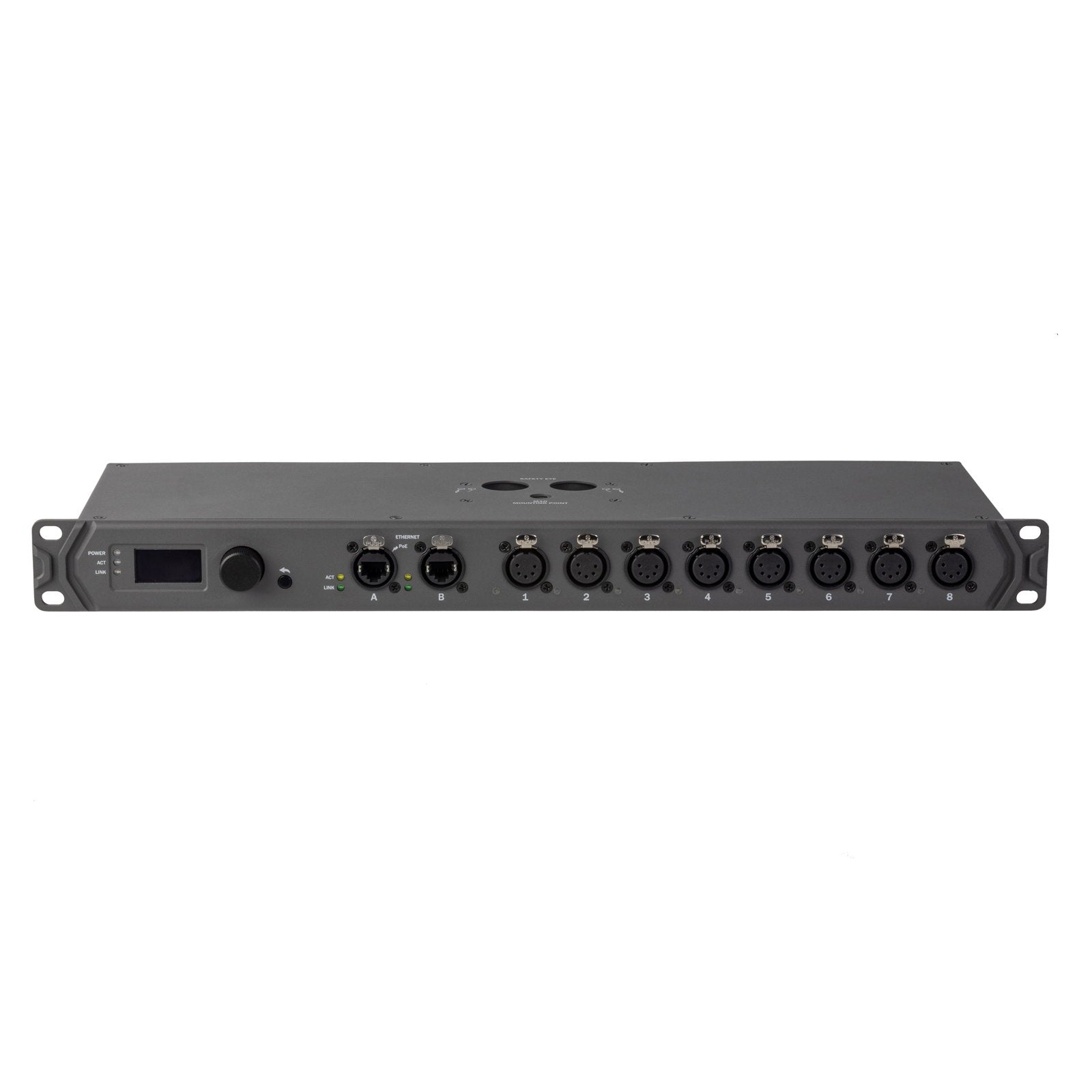

An easy-to-use GUI allows remote access via a computer or over a network whilst the built-in intuitive menu means all settings can be changed from the unit also. All DMX inputs and outputs are equipped with 5-Pin XLR Seetronic connectors.

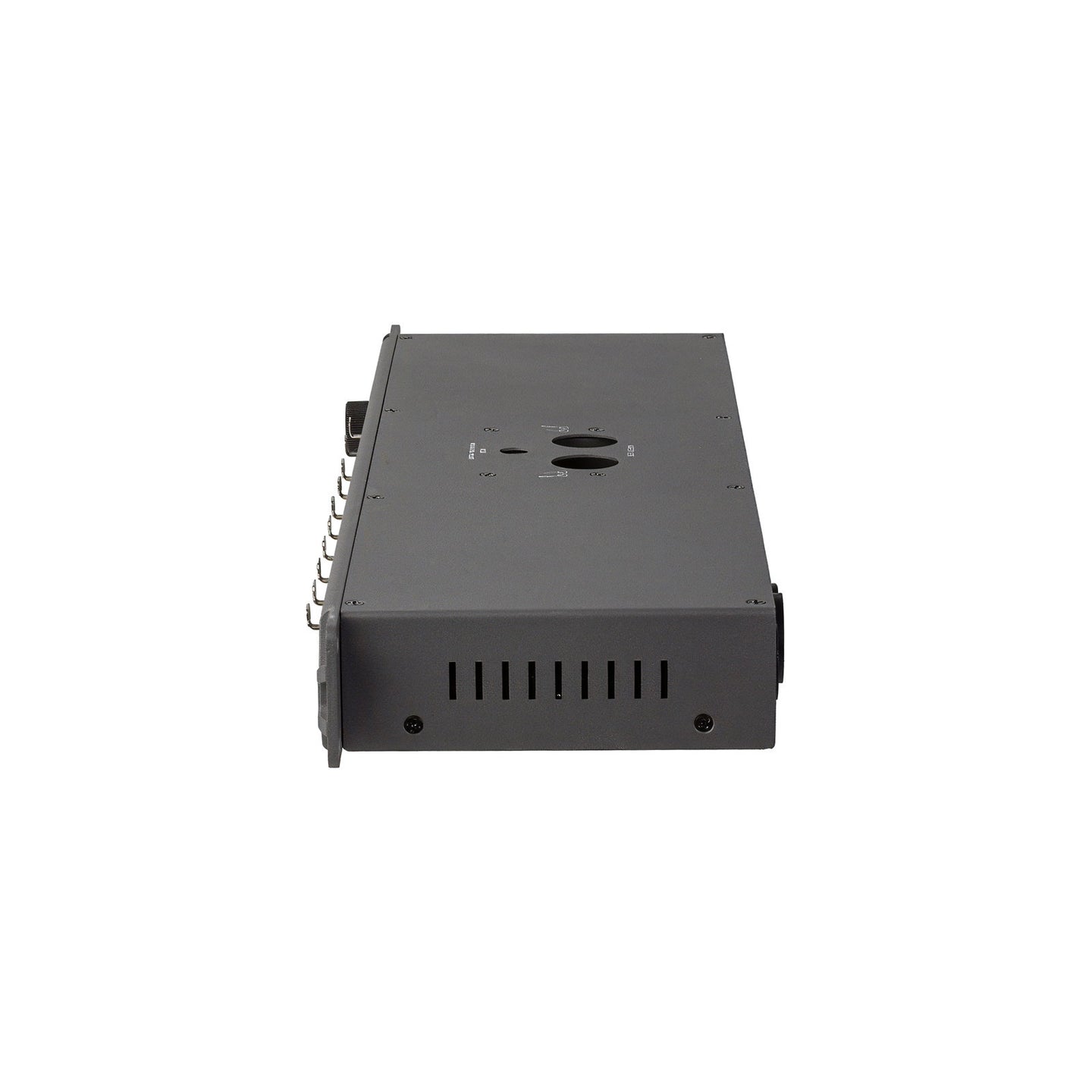

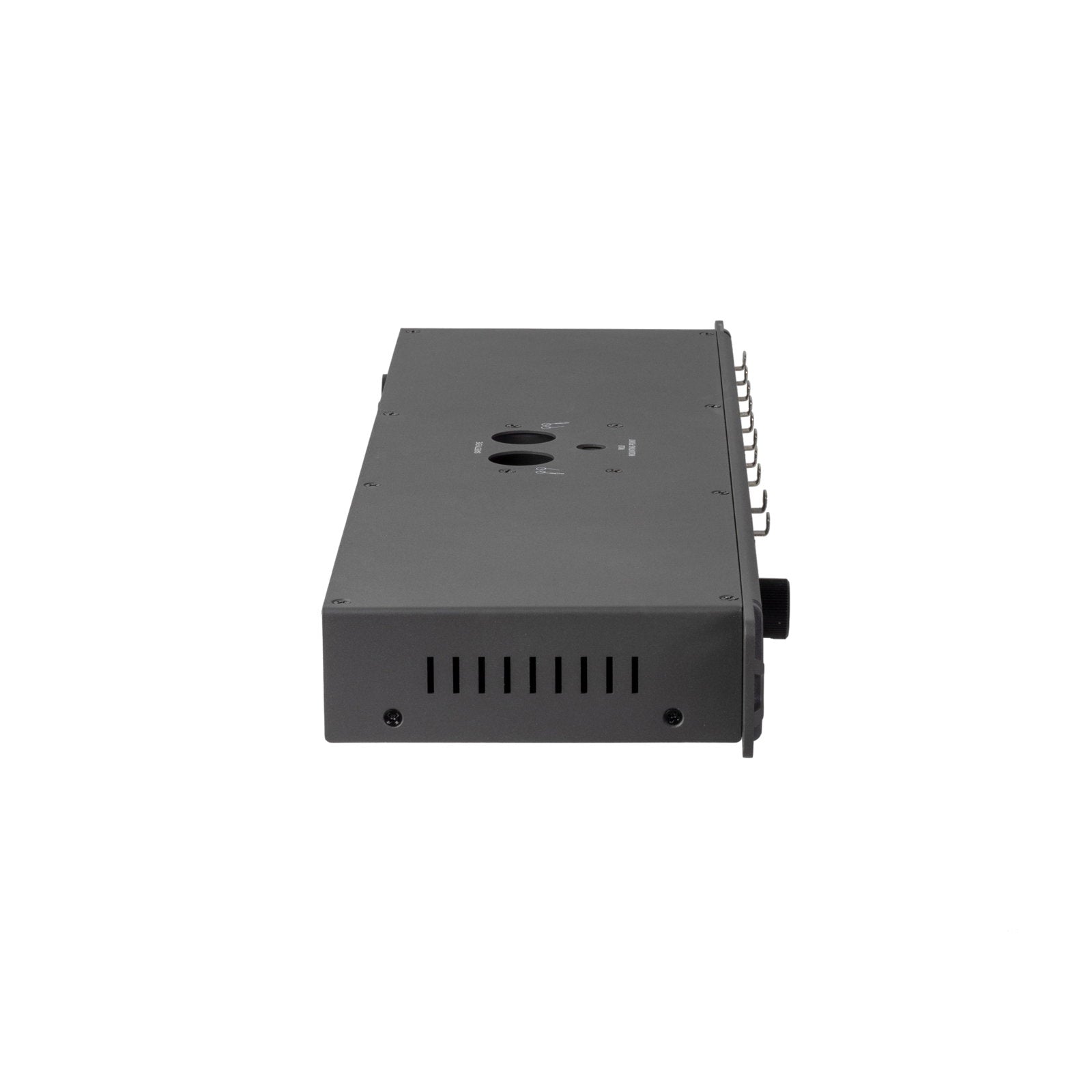

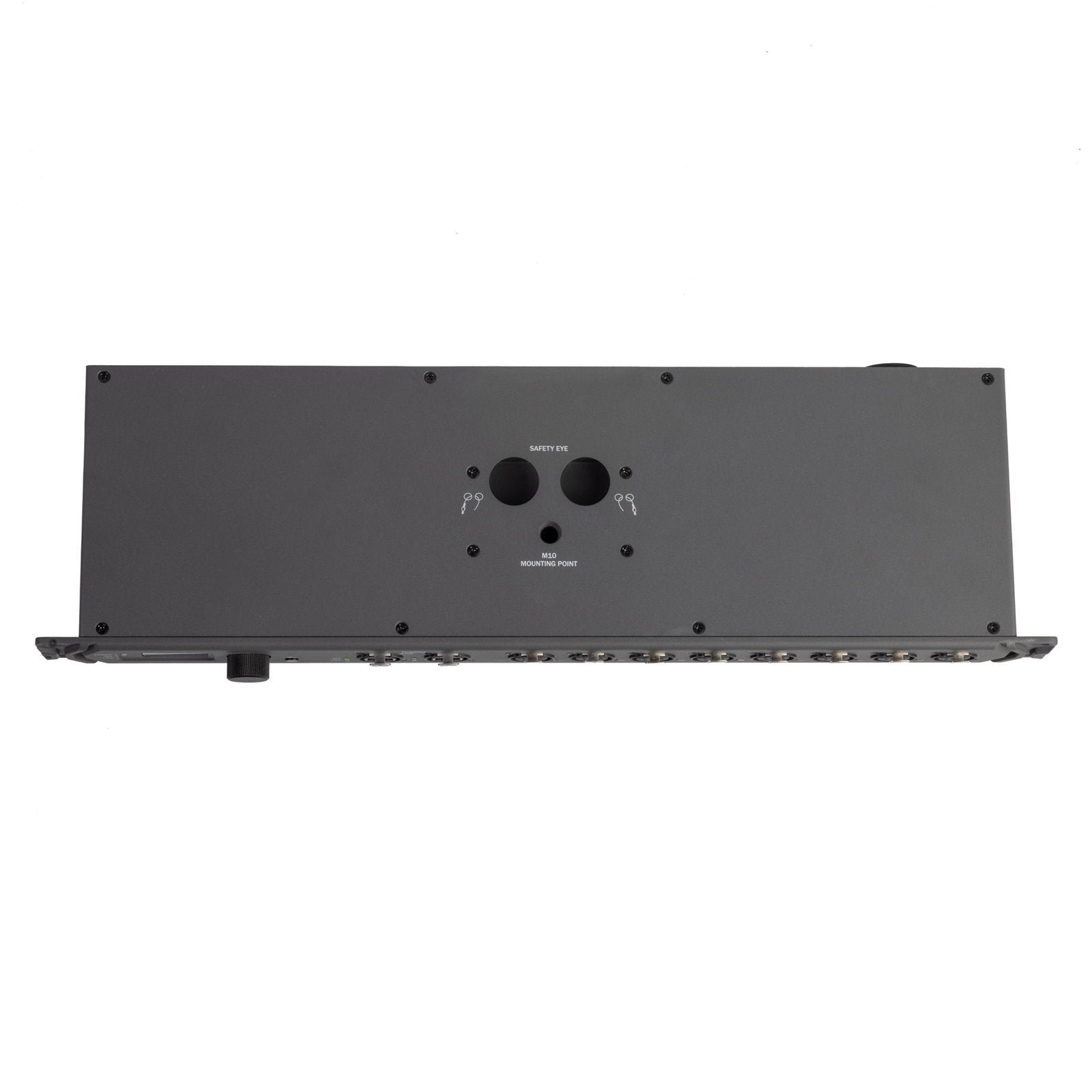

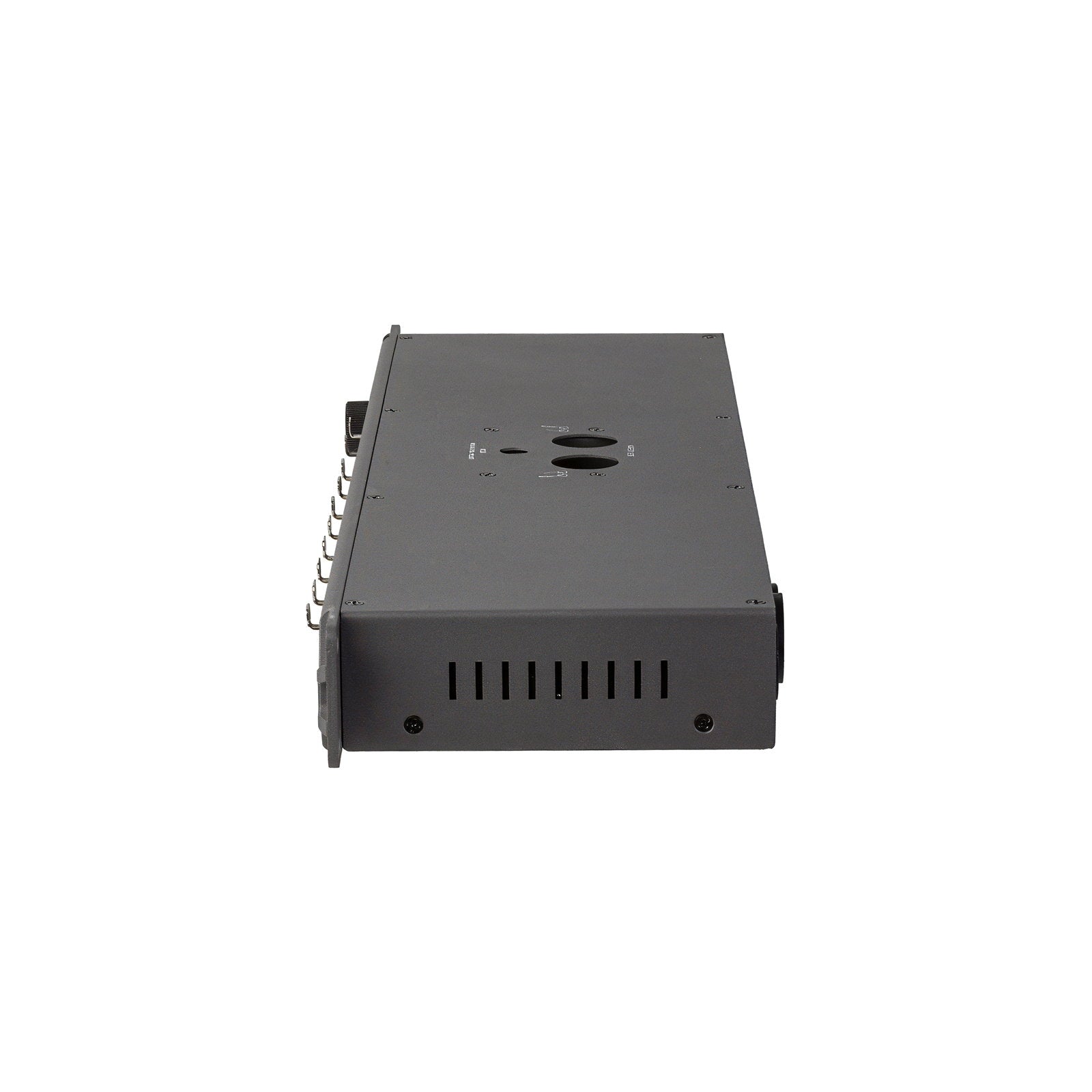

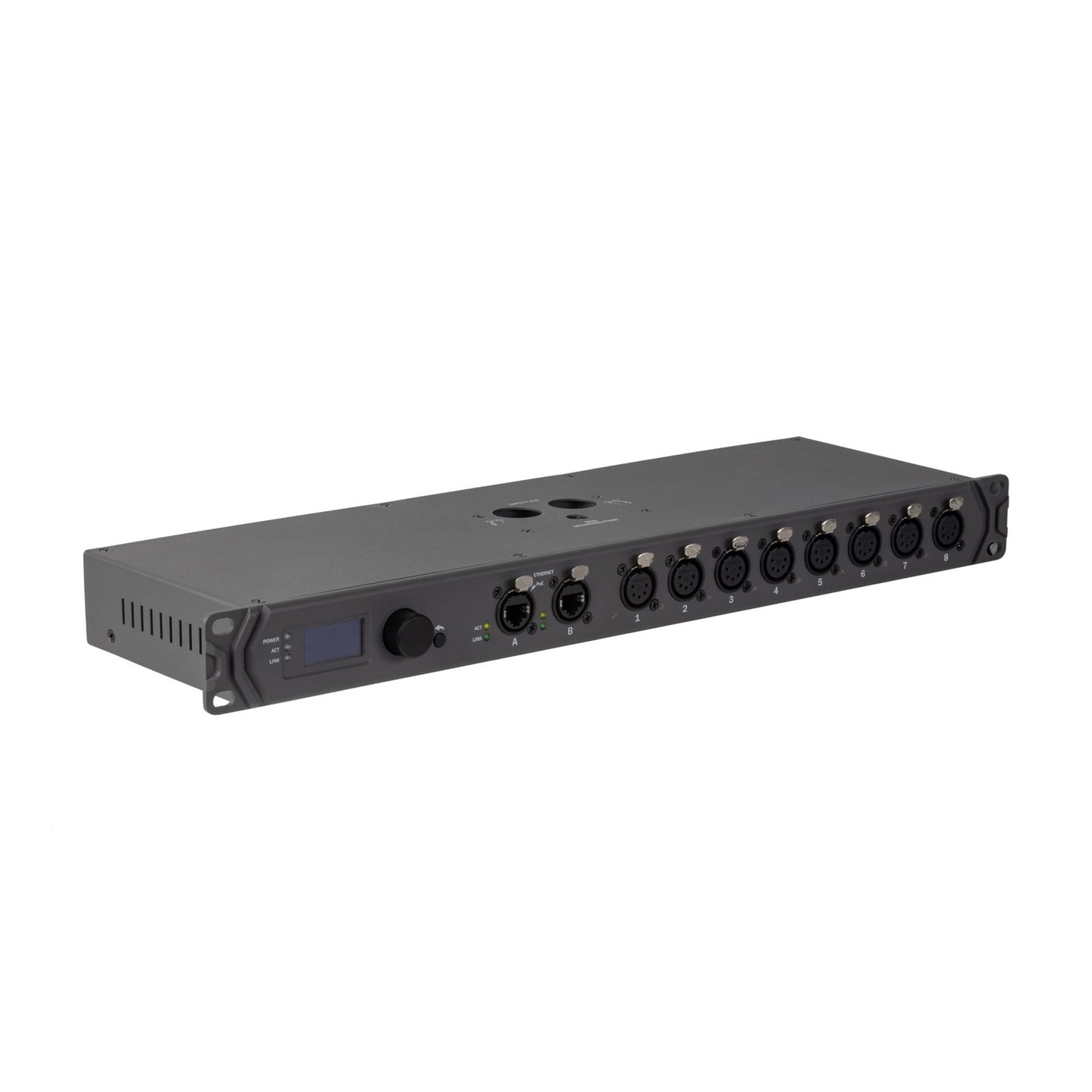

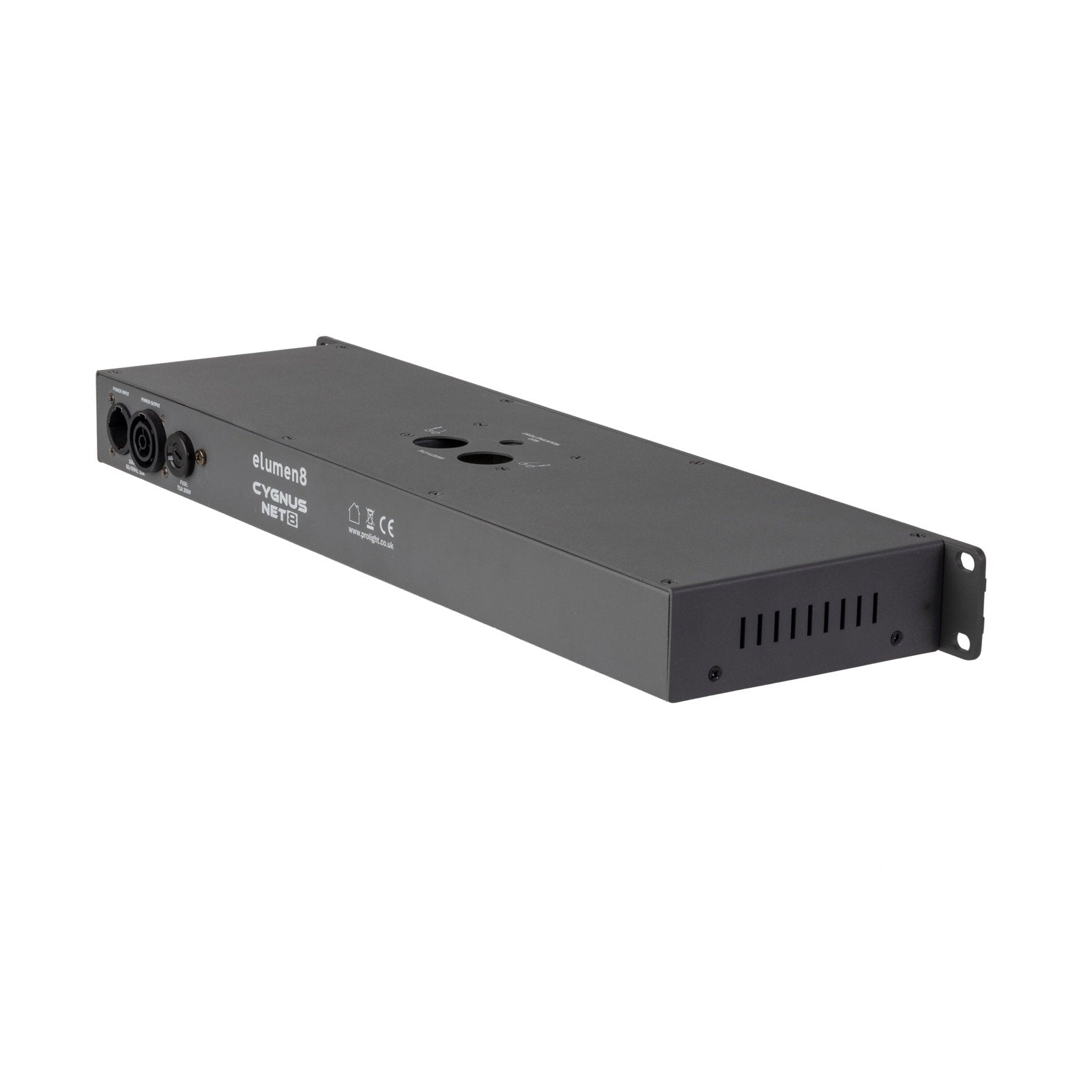

Housed within a rugged 1U 19” rack mount chassis the NET8 has an M10 mounting point for clamps and is ideally suited to professional applications ensuring your show data arrives exactly where it needs to every time.

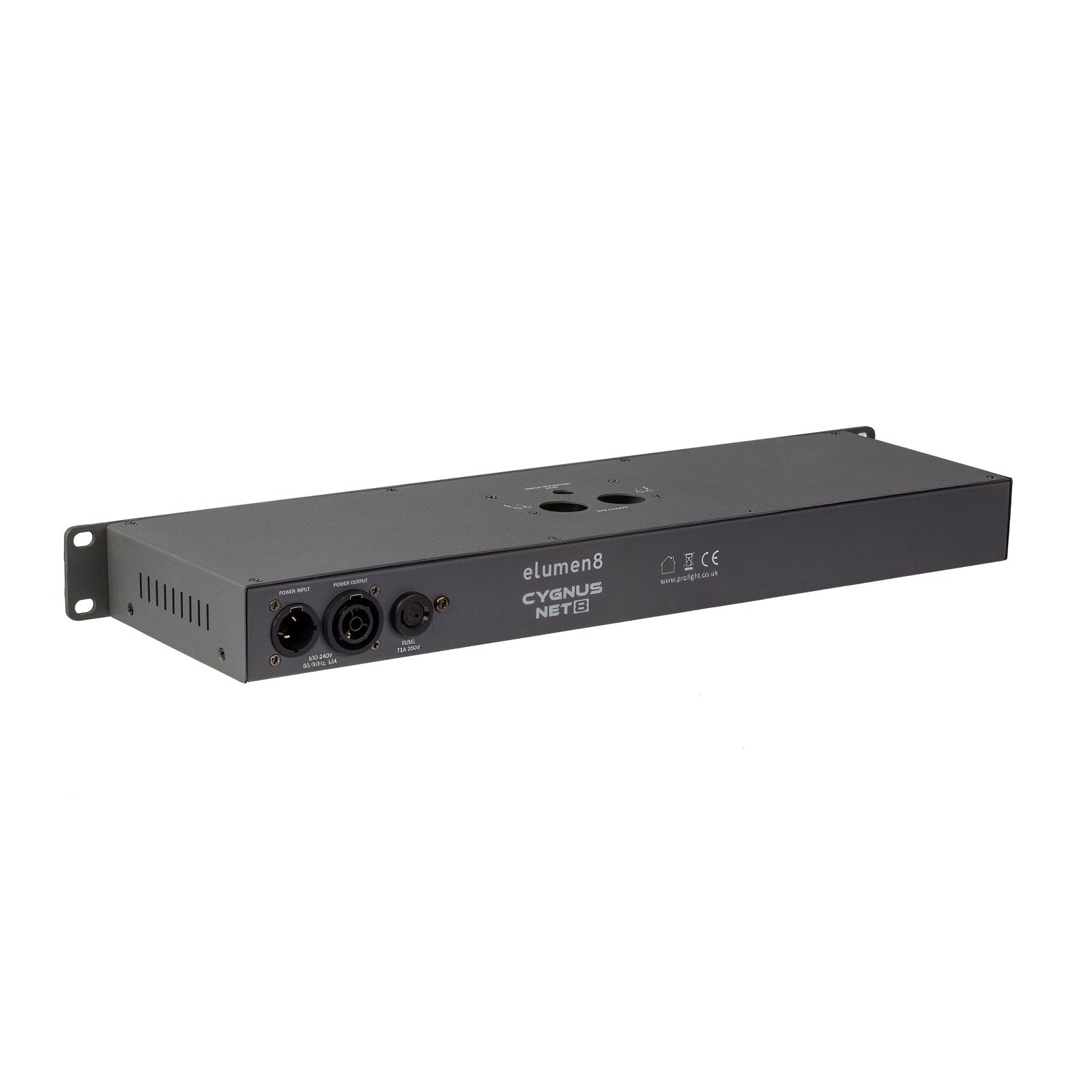

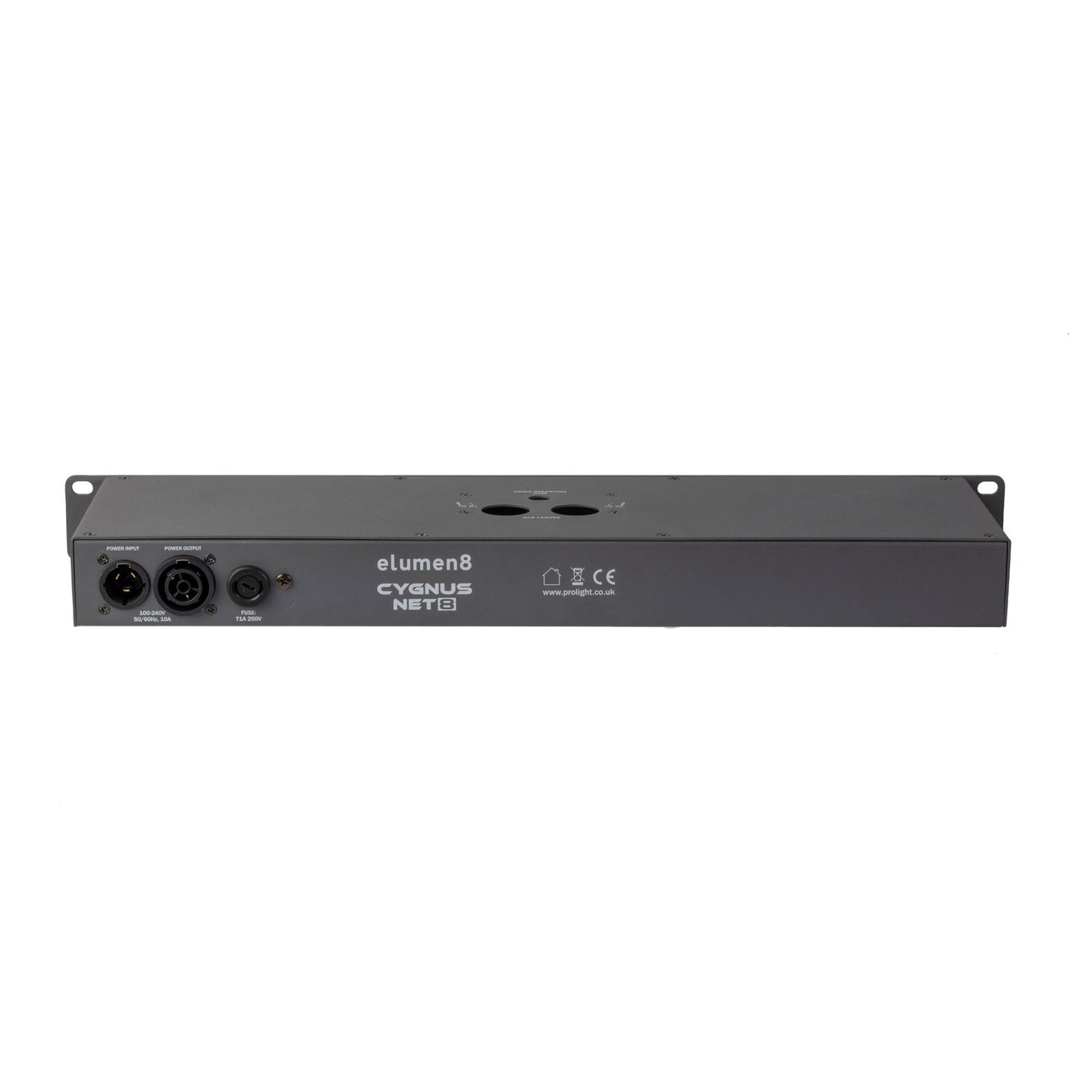

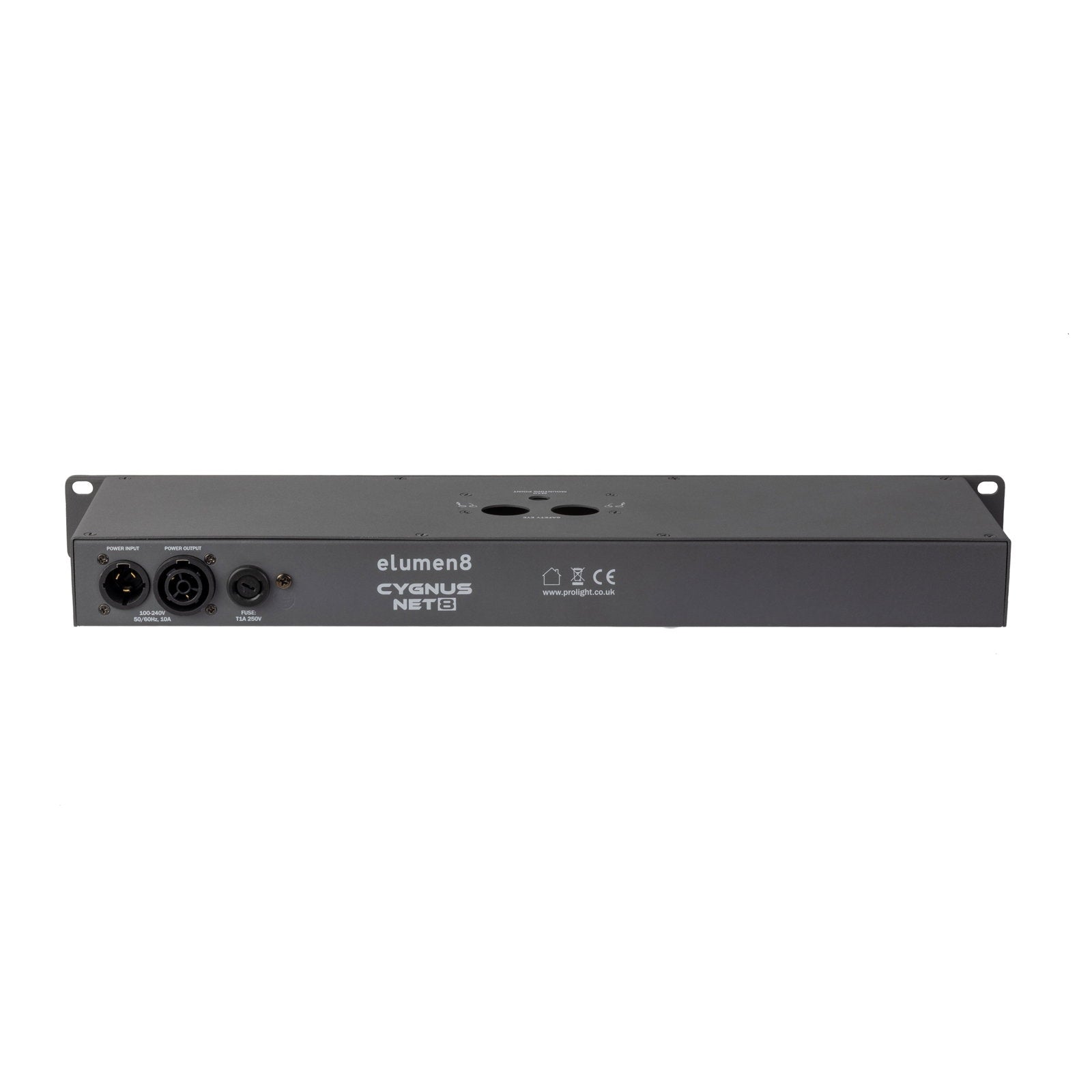

2 year warranty 2 x Seetronic etherCON compatible ethernet sockets for input/link output POE (IEEE 802.3 Af) power option 10 MB/s 100 MB/s or 1 GB/s network speed Built-in network switch allows the unit to be used as an ethernet repeater 8 x Seetronic 5-Pin DMX outputs Easy-to-use web browser GUI Outputs electronically opto isolated from each other and from the input DMX power activity and link indicator LEDs Protocols: Art-Net sACN DMX RDM TCP-IPv4 RDM (Remote Device Management) Static or DHCP manual IP address selection 1.8” OLED display with rotary control M10 rigging point for clamp Powder coated aluminium 1U 19” rack mount chassis Power Twist TR1 input/output Convection cooled
Power consumption: 10W Power supply: 100~240V 50/60Hz Fuse: T1A 250V Dimensions (H x W x D): 44 x 483 x 155mm Weight: 1.94kg
Elumen8 Cygnus NET8 ArtNet Node
Brand: Elumen8
SKU: ELUM251
Need help with choosing the right product?
The Elumen8 Cygnus Series is a comprehensive range of advanced data-management solutions engineered to meet the demands of modern lighting networks. Designed with professional users in mind the series includes DMX splitters DMX mergers Art-Net nodes and sleek wall-plate interfaces each crafted to simplify complex system layouts while maximising control efficiency. Whether you’re expanding a theatre’s infrastructure integrating robust data routing for live production or building a permanent architectural installation Cygnus delivers.
The NET8 is an 8-way universe node which converts Art-Net or sACN to DMX giving a maximum of 4096 channels. Two Ethernet sockets are included with one POE allowing for a single cable to be used for both power and data input. Data speeds of up to 1 GB/s can be achieved whilst the built-in network switch allows the NET8 to be used as an ethernet repeater.
An easy-to-use GUI allows remote access via a computer or over a network whilst the built-in intuitive menu means all settings can be changed from the unit also. All DMX inputs and outputs are equipped with 5-Pin XLR Seetronic connectors.
Housed within a rugged 1U 19” rack mount chassis the NET8 has an M10 mounting point for clamps and is ideally suited to professional applications ensuring your show data arrives exactly where it needs to every time.
2 year warranty 2 x Seetronic etherCON compatible ethernet sockets for input/link output POE (IEEE 802.3 Af) power option 10 MB/s 100 MB/s or 1 GB/s network speed Built-in network switch allows the unit to be used as an ethernet repeater 8 x Seetronic 5-Pin DMX outputs Easy-to-use web browser GUI Outputs electronically opto isolated from each other and from the input DMX power activity and link indicator LEDs Protocols: Art-Net sACN DMX RDM TCP-IPv4 RDM (Remote Device Management) Static or DHCP manual IP address selection 1.8” OLED display with rotary control M10 rigging point for clamp Powder coated aluminium 1U 19” rack mount chassis Power Twist TR1 input/output Convection cooled
Power consumption: 10W Power supply: 100~240V 50/60Hz Fuse: T1A 250V Dimensions (H x W x D): 44 x 483 x 155mm Weight: 1.94kg
