The Elumen8 Cygnus Series is a comprehensive range of advanced data-management solutions engineered to meet the demands of modern lighting networks. Designed with professional users in mind the series includes DMX splitters mergers recorders Art-Net nodes and sleek wall-plate interfaces each crafted to simplify complex system layouts while maximising control efficiency. Whether you’re expanding a theatre’s infrastructure integrating robust data routing for live production or building a permanent architectural installation Cygnus delivers.

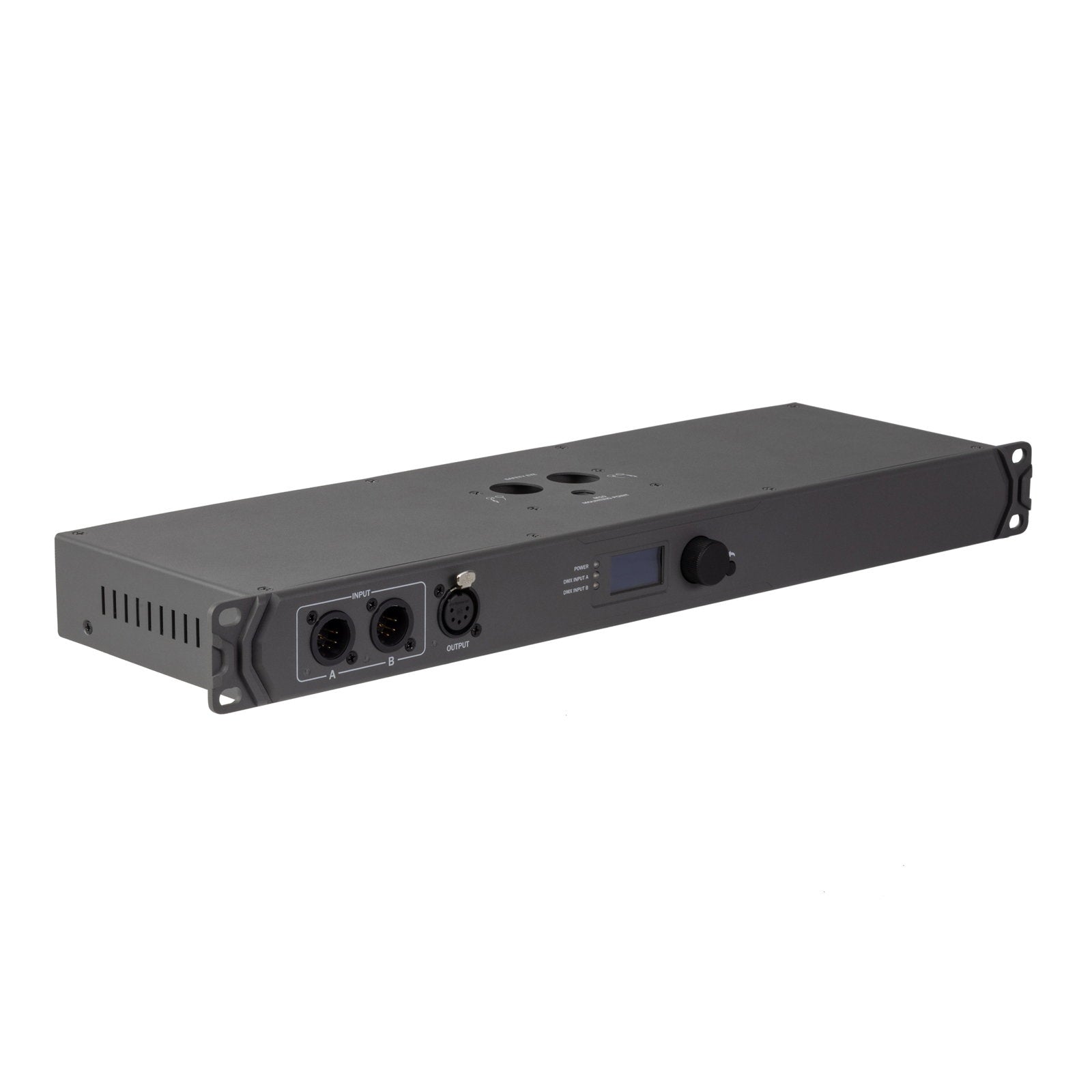

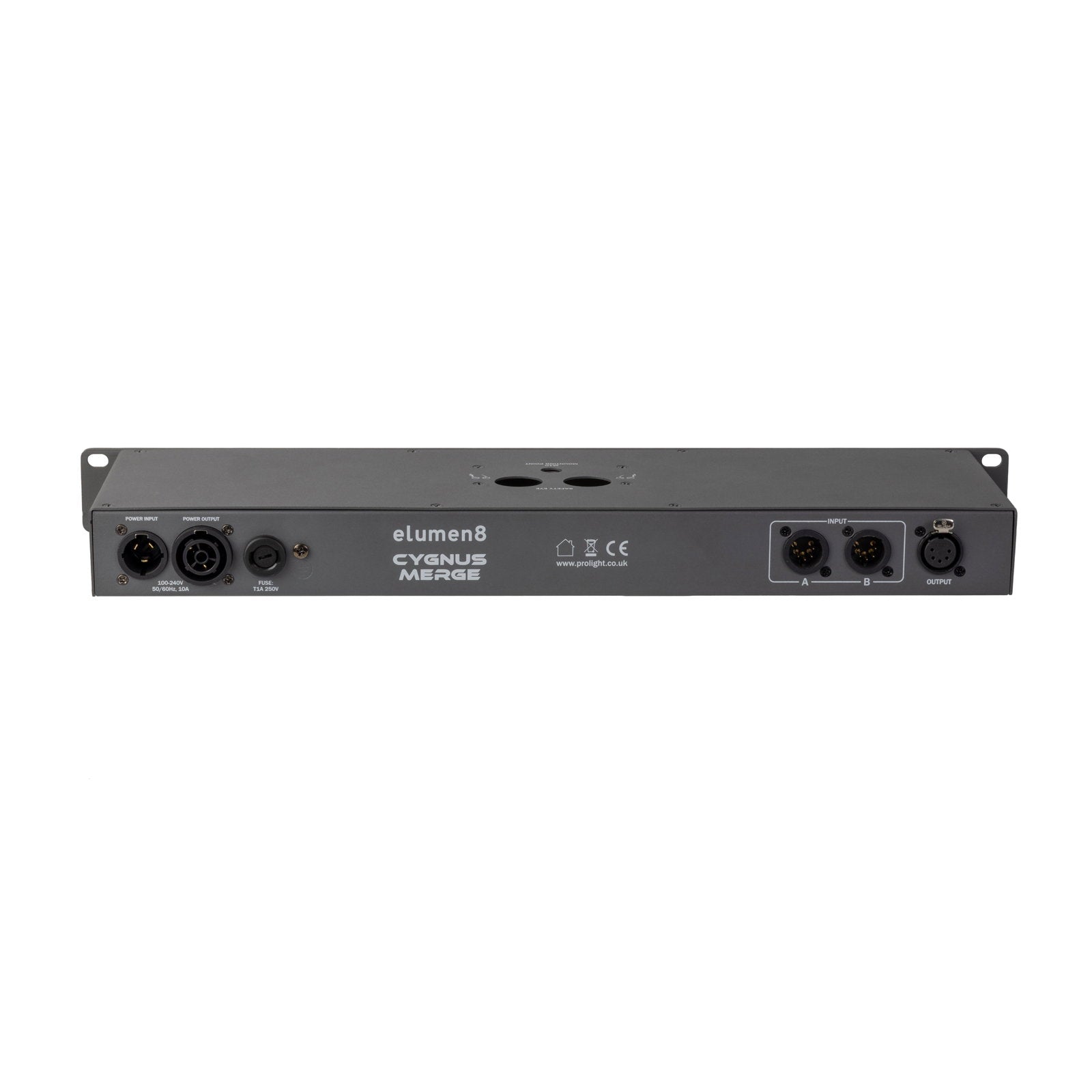

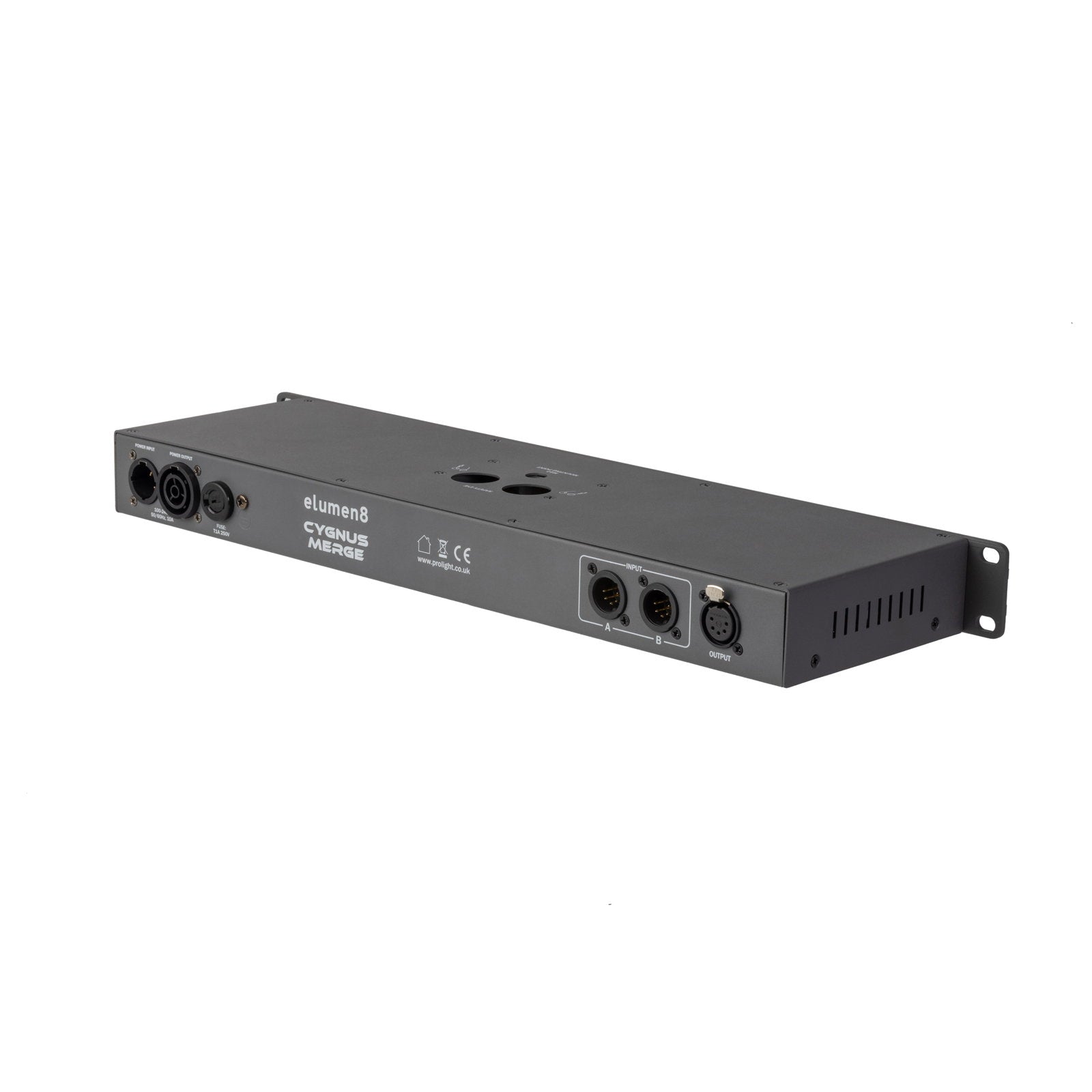

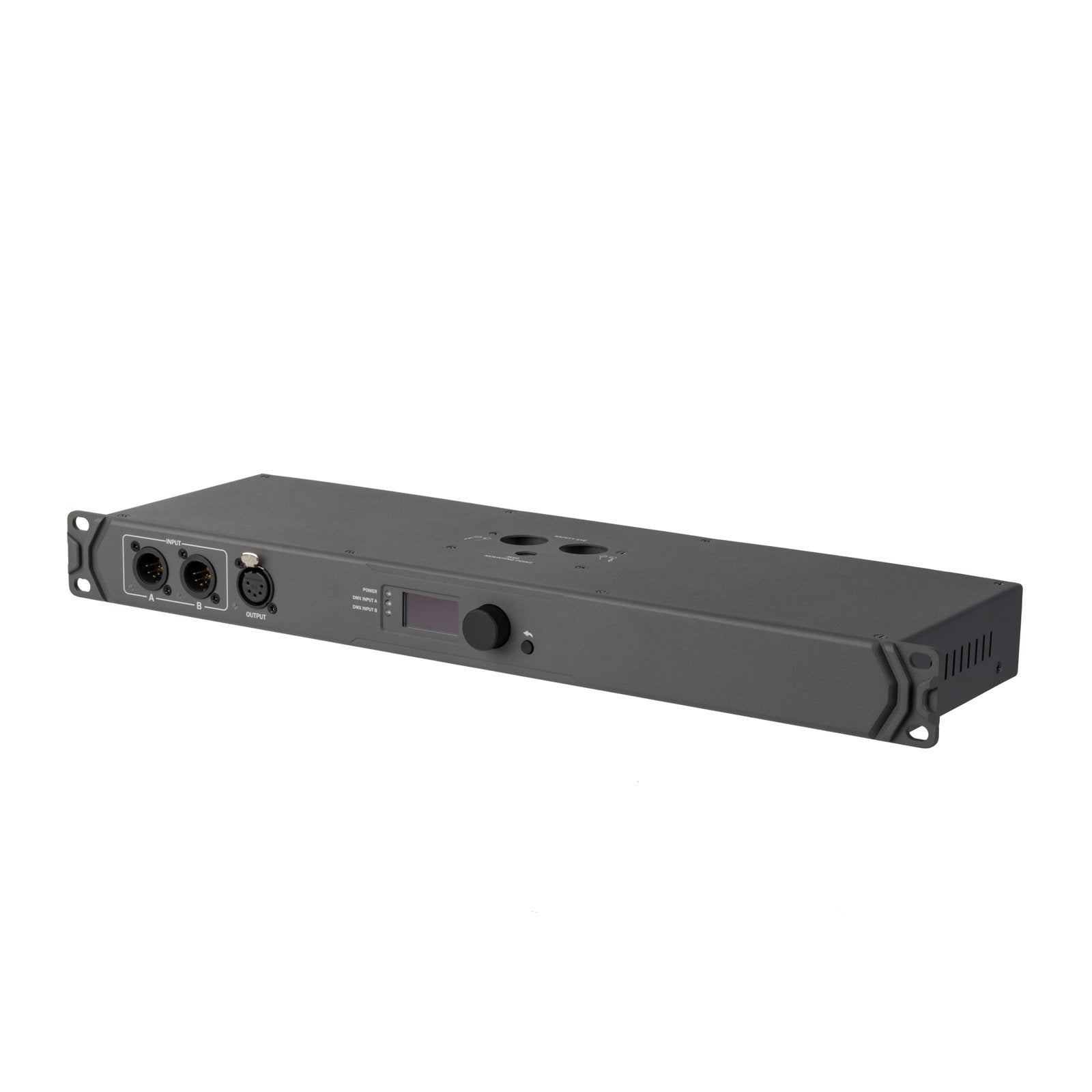

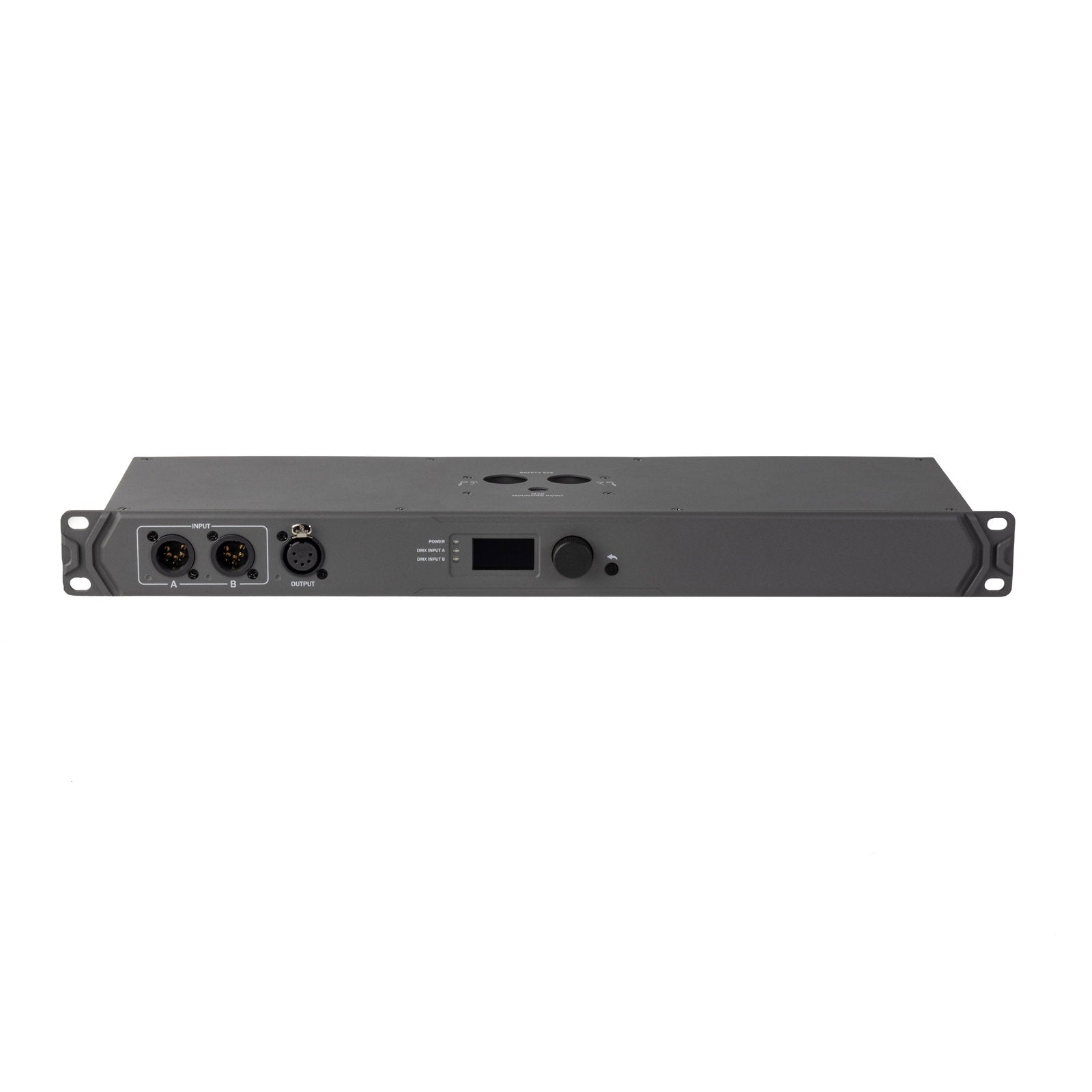

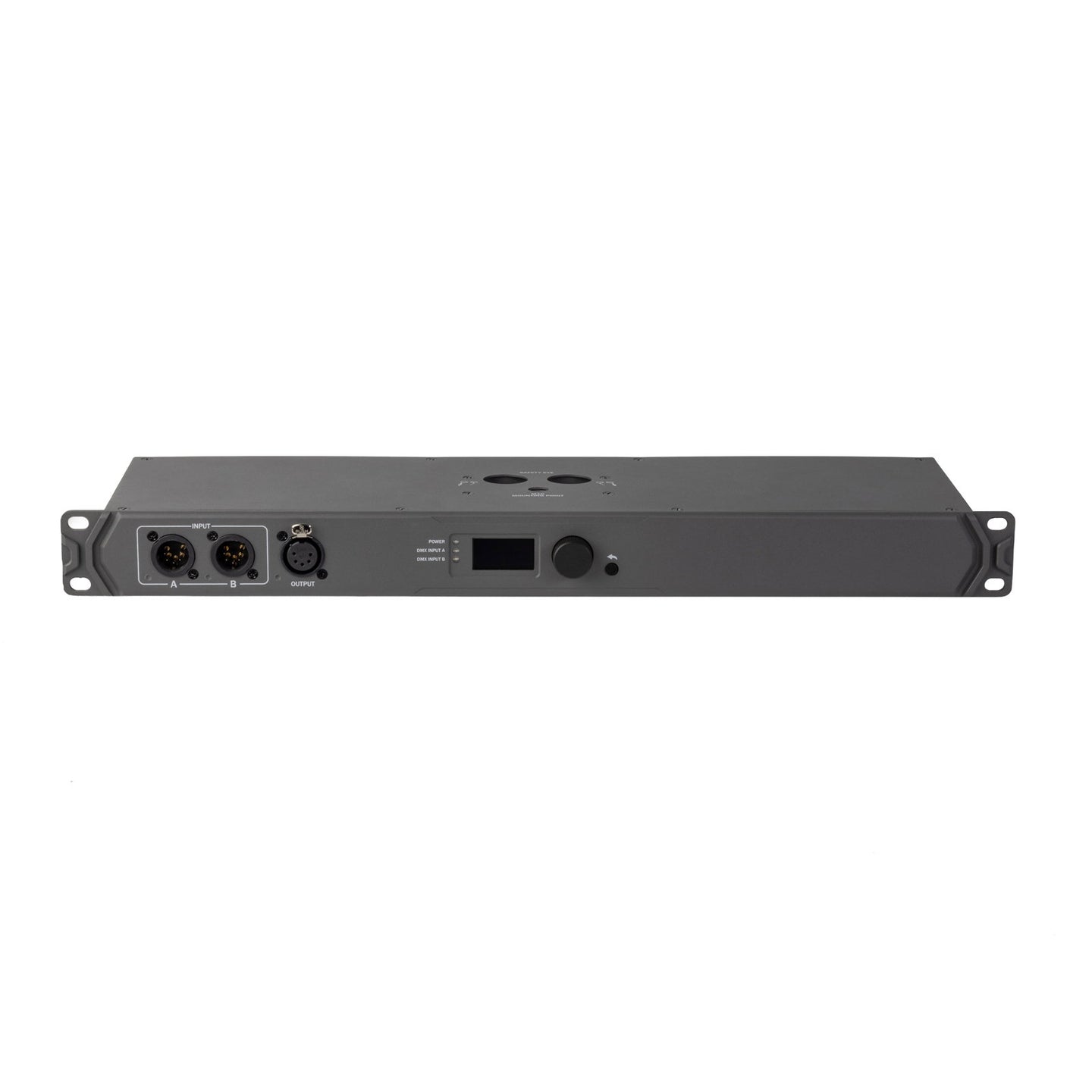

The MERGE allows two DMX controllers to be combined into one DMX line or for a second desk to be used as a backup desk. A/B inputs and output are located on both front and rear panels and feature 5-Pin XLR Seetronic connectors.

The unit has 6 modes including: HTP (Highest Take Precedence) LoTP (Lowest Take Precedence) LTPc (Latest Takes Precedence - Channel) LTPin (Latest Takes Precedence - Input) Back-up mode and Merge mode.

The Cygnus MERGE also features an RDM filter allowing RDM and non-RDM devices to be used together and removes RDM commands.

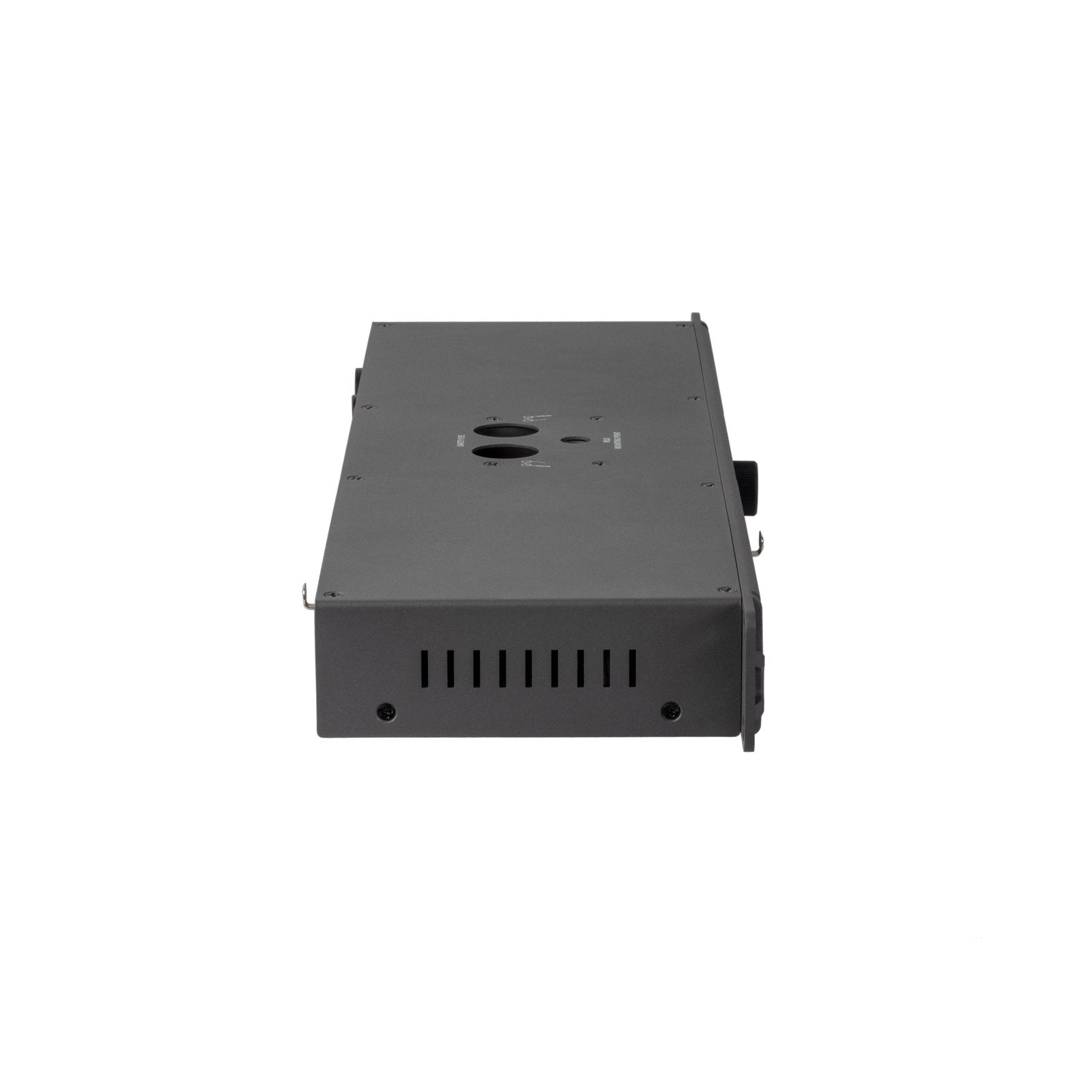

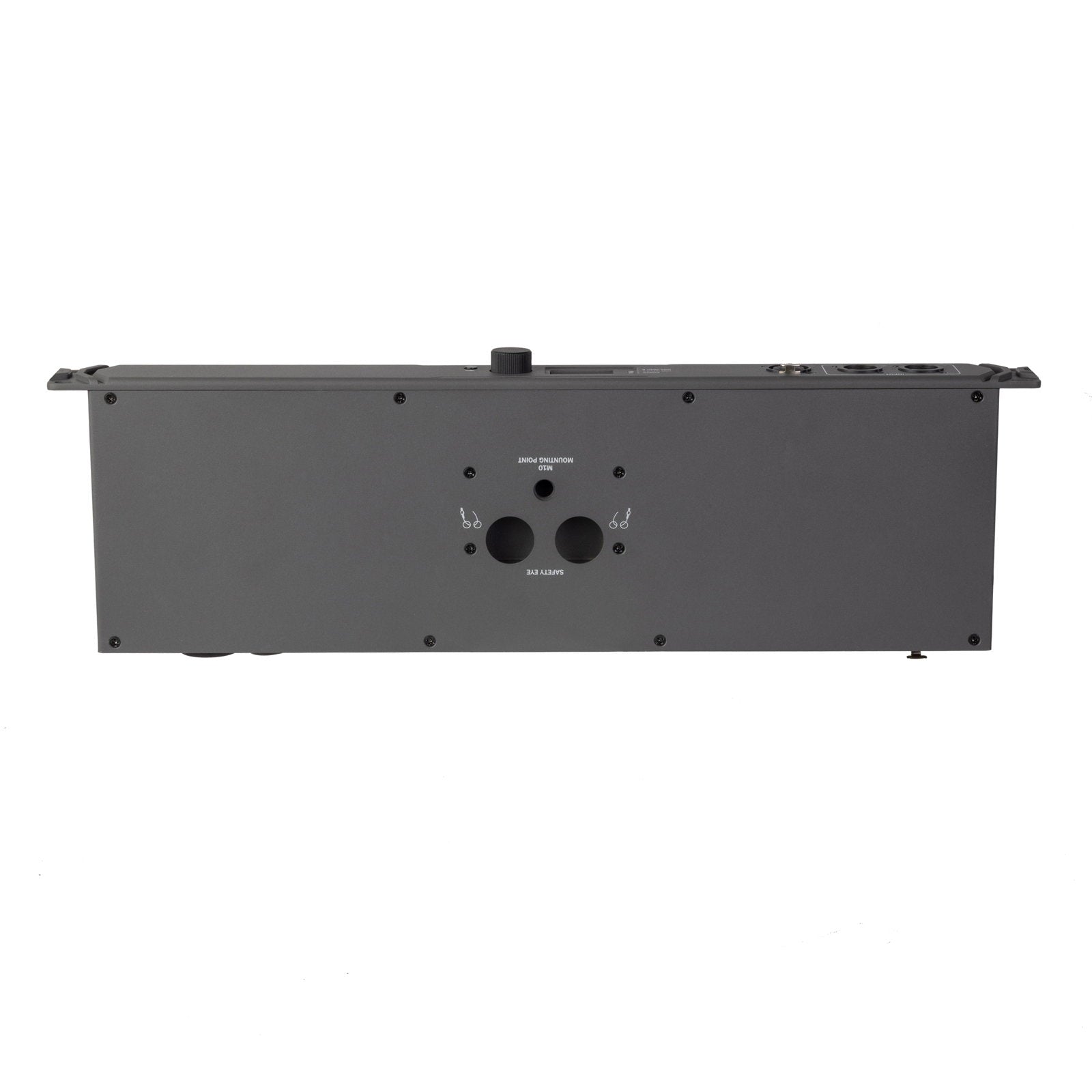

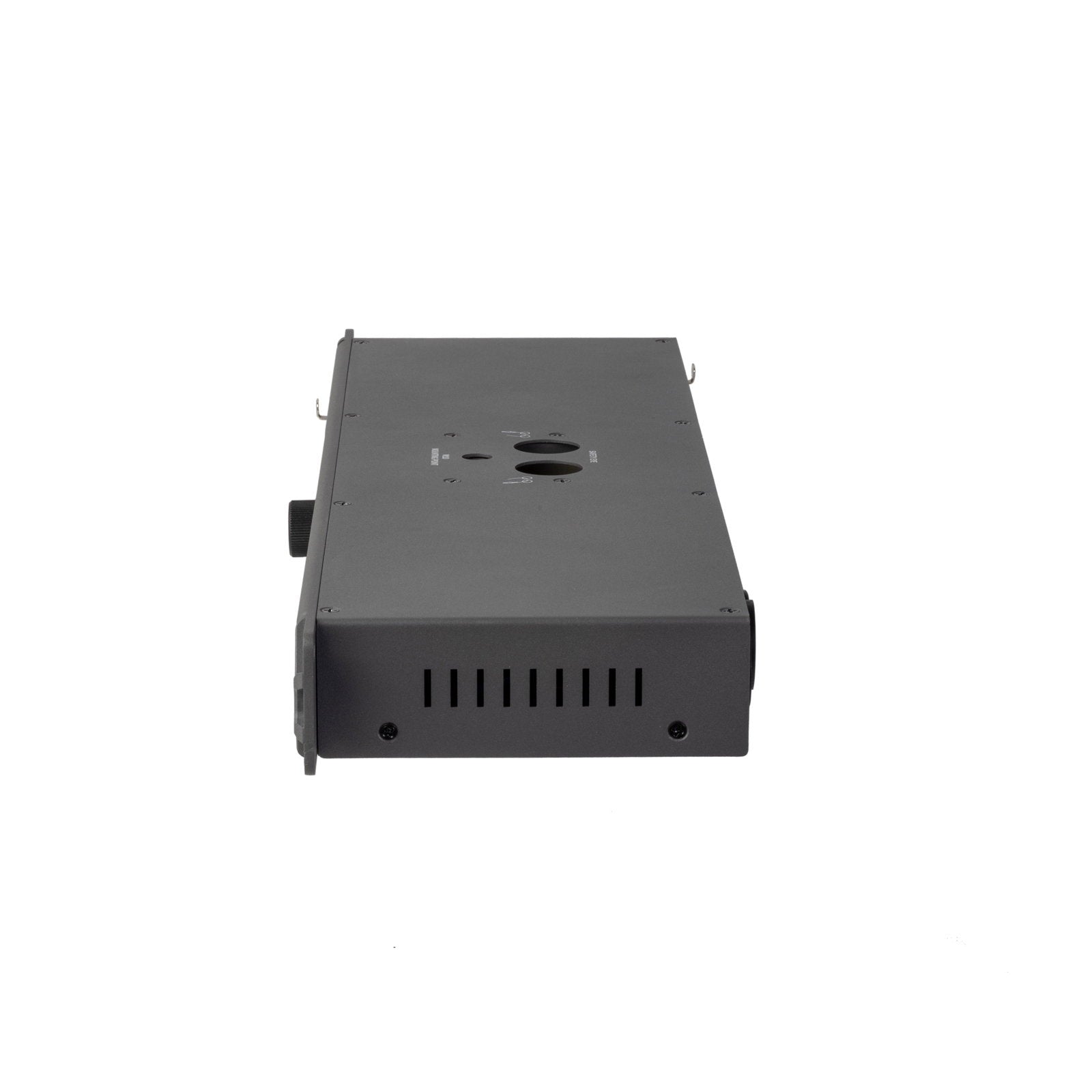

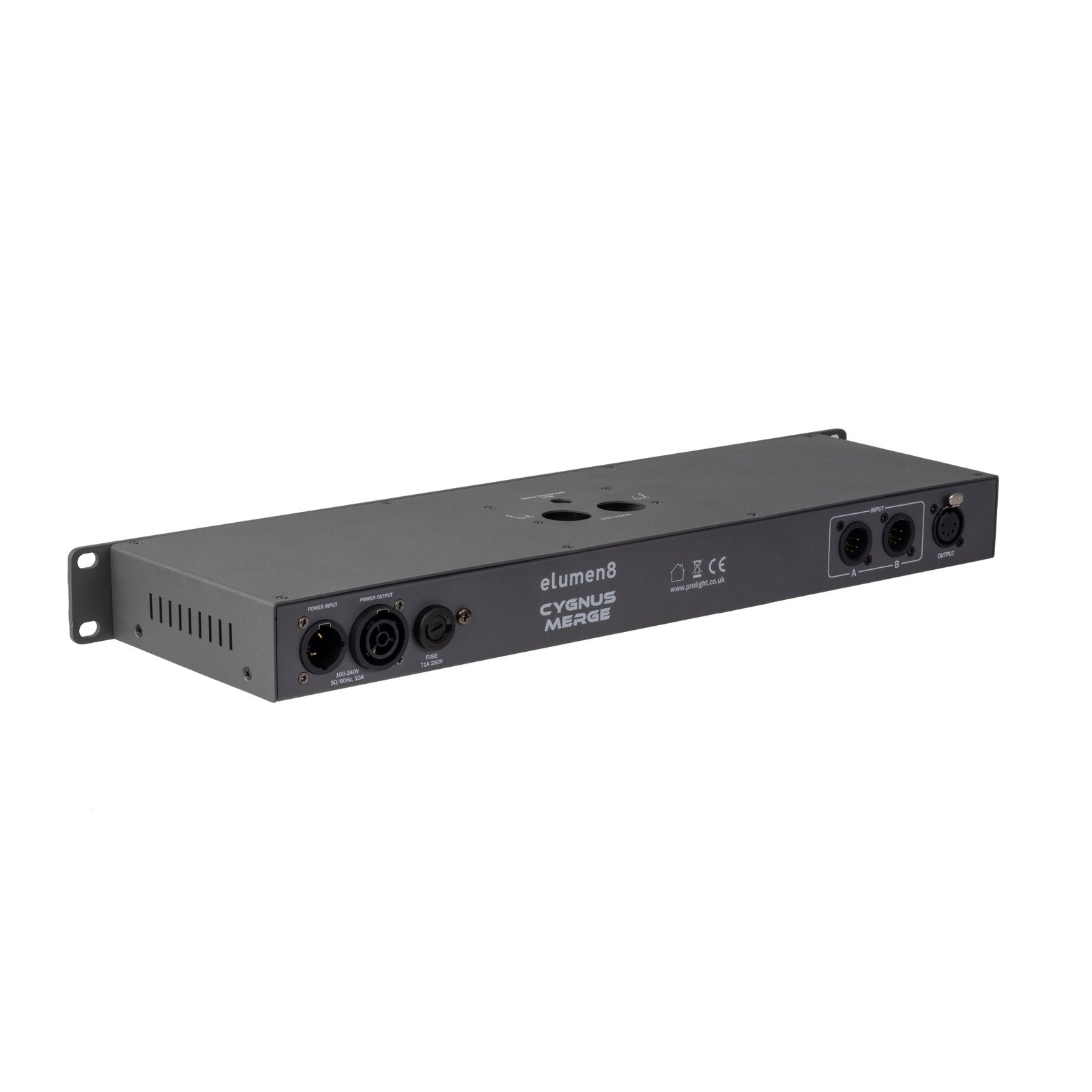

Housed within a rugged 1U 19” rack mount chassis the MERGE has an M10 mounting point for clamps and is ideally suited to professional applications ensuring your show data arrives exactly where it needs to every time.

2 year warranty A/B Seetronic 5-Pin inputs on front and rear panels Seetronic 5-Pin DMX output on front and rear panels Power A/B and DMX indicator LEDs 6 modes including: HTP LoTP LTPc LTPin Back-up mode and Merge mode Selectable RDM filter to remove RDM traffic from the output Outputs electronically opto isolated from each other and from the inputs Configurable frame rates RDM (Remote Device Management) 1.4” OLED display with rotary control M10 rigging point for clamp Powder coated aluminium 1U 19” rack mount chassis Power Twist TR1 input/output Convection cooled

Power consumption: 3W Power supply: 100~240V 50/60Hz Fuse: T1A 250V Dimensions (H x W x D): 44 x 483 x 155mm Weight: 1.91kg
