The ADJ Lighting RDM XS8 is a 19-inch rack mount 8-way DMX and RDM data splitter.
With one 5-pin input one 5-pin thru and eight 5-pin outputs the RDM XS8 makes running DMX cables easier and more efficient. Designed for seamless integration into your lighting setup this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet.

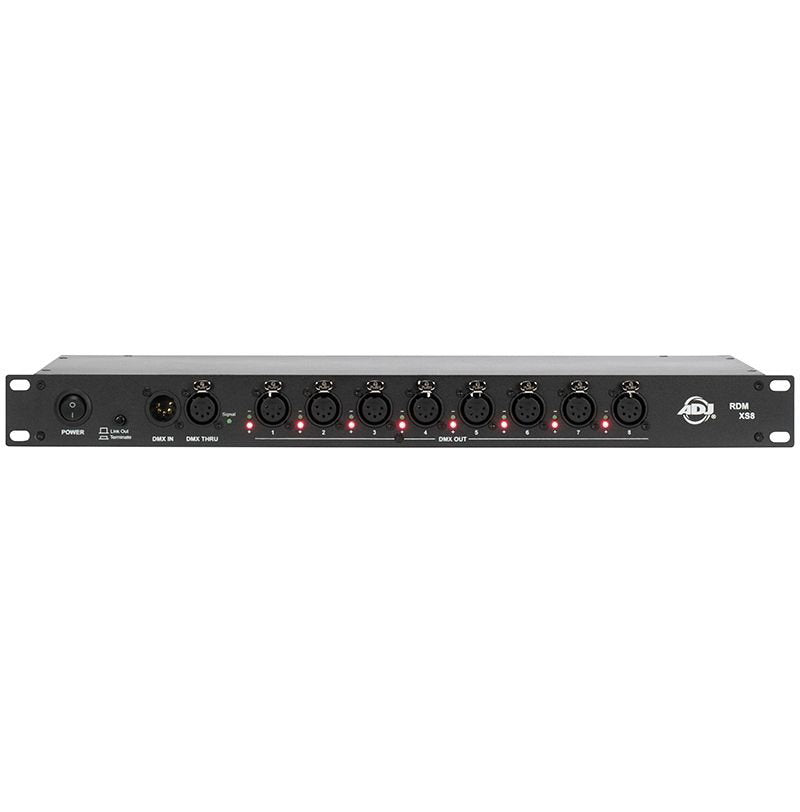

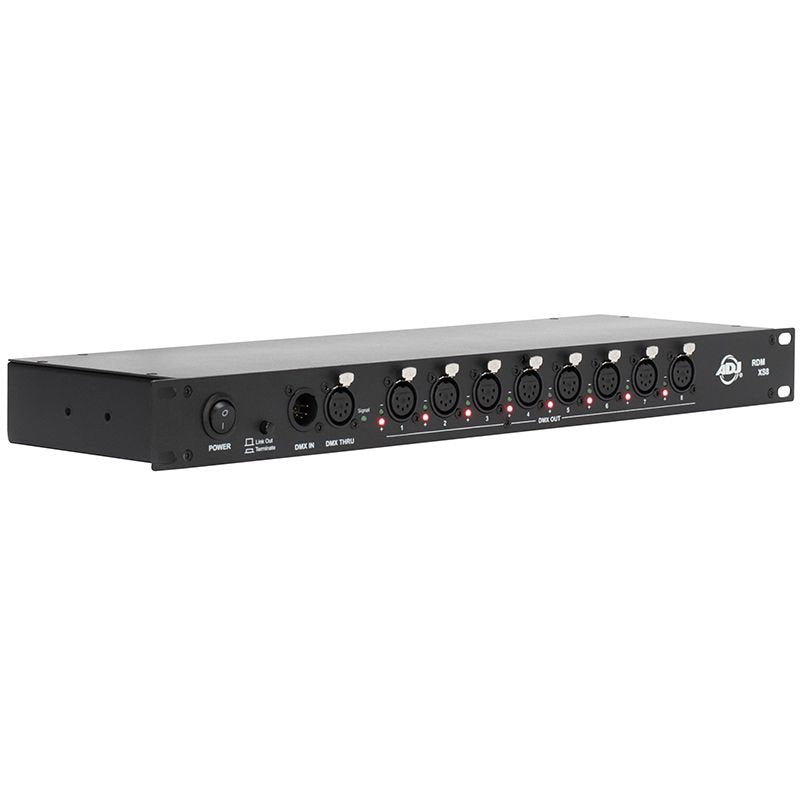

Its slim 1U configuration includes 1x 5-pin XLR input 1x 5-pin XLR thru 8x 5-pin XLR outputs plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.
SPECIFICATIONS
Protocols:
DMX512 RDMPhysical:
19 inch Rack Mount (1 rack space) 1x 5-pin XLR Input 1x 5-pin XLR Thru 8x 5-pin XLR Outputs Link Out Termination Switch DMX / RDM Protocol SwitchDimensions & Weight:
Length: 152.4mm Width: 482mm Height: 44mm Weight: 2.21kgElectrical:
AC Input: 100-230V 50/60Hz Power Consumption: 3.3W @ 230V Power Input Protection: Fuse T1.25A/250 (5.2x20mm)Thermal:
Ambient Operational Temperature: -20°C to 45°C Humidity: <75% Storage Temperature: 25°CManufacturer Part Number: 1321000087 Dimensions (L x W x H): 48.0 x 14.5 x 4.5cm
ADJ RDM XS8
Brand: ADJ
SKU: ADJ1321000087
Regular price
£146.99
Pickup available at Venutec
Usually ready in 24 hours
ADJ RDM XS8
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The ADJ Lighting RDM XS8 is a 19-inch rack mount 8-way DMX and RDM data splitter.
With one 5-pin input one 5-pin thru and eight 5-pin outputs the RDM XS8 makes running DMX cables easier and more efficient. Designed for seamless integration into your lighting setup this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet.
Its slim 1U configuration includes 1x 5-pin XLR input 1x 5-pin XLR thru 8x 5-pin XLR outputs plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.
SPECIFICATIONS
Protocols:
DMX512 RDMPhysical:
19 inch Rack Mount (1 rack space) 1x 5-pin XLR Input 1x 5-pin XLR Thru 8x 5-pin XLR Outputs Link Out Termination Switch DMX / RDM Protocol SwitchDimensions & Weight:
Length: 152.4mm Width: 482mm Height: 44mm Weight: 2.21kgElectrical:
AC Input: 100-230V 50/60Hz Power Consumption: 3.3W @ 230V Power Input Protection: Fuse T1.25A/250 (5.2x20mm)Thermal:
Ambient Operational Temperature: -20°C to 45°C Humidity: <75% Storage Temperature: 25°CManufacturer Part Number: 1321000087 Dimensions (L x W x H): 48.0 x 14.5 x 4.5cm
