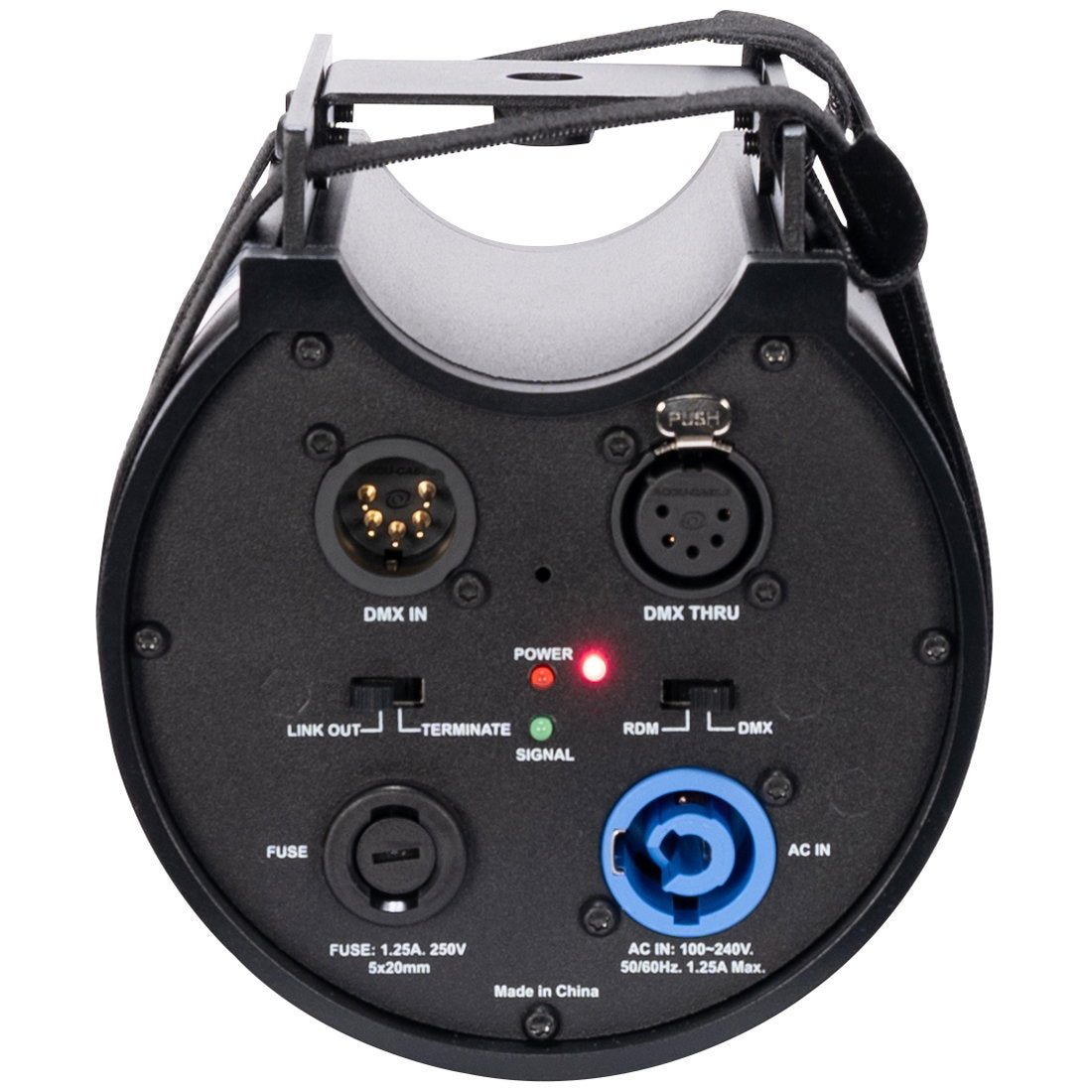

ADJ Data Distro 6 - Back Panel and Connections

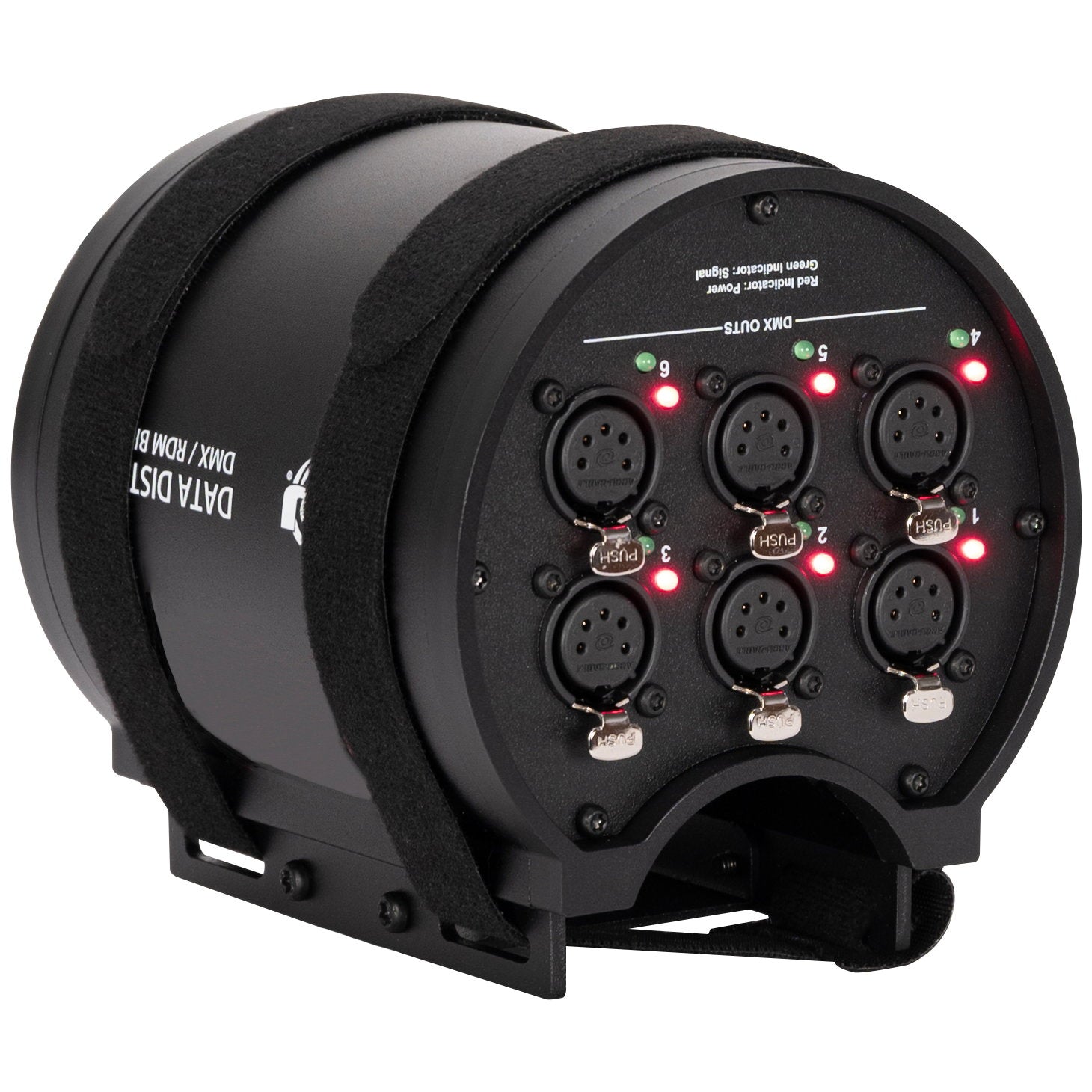

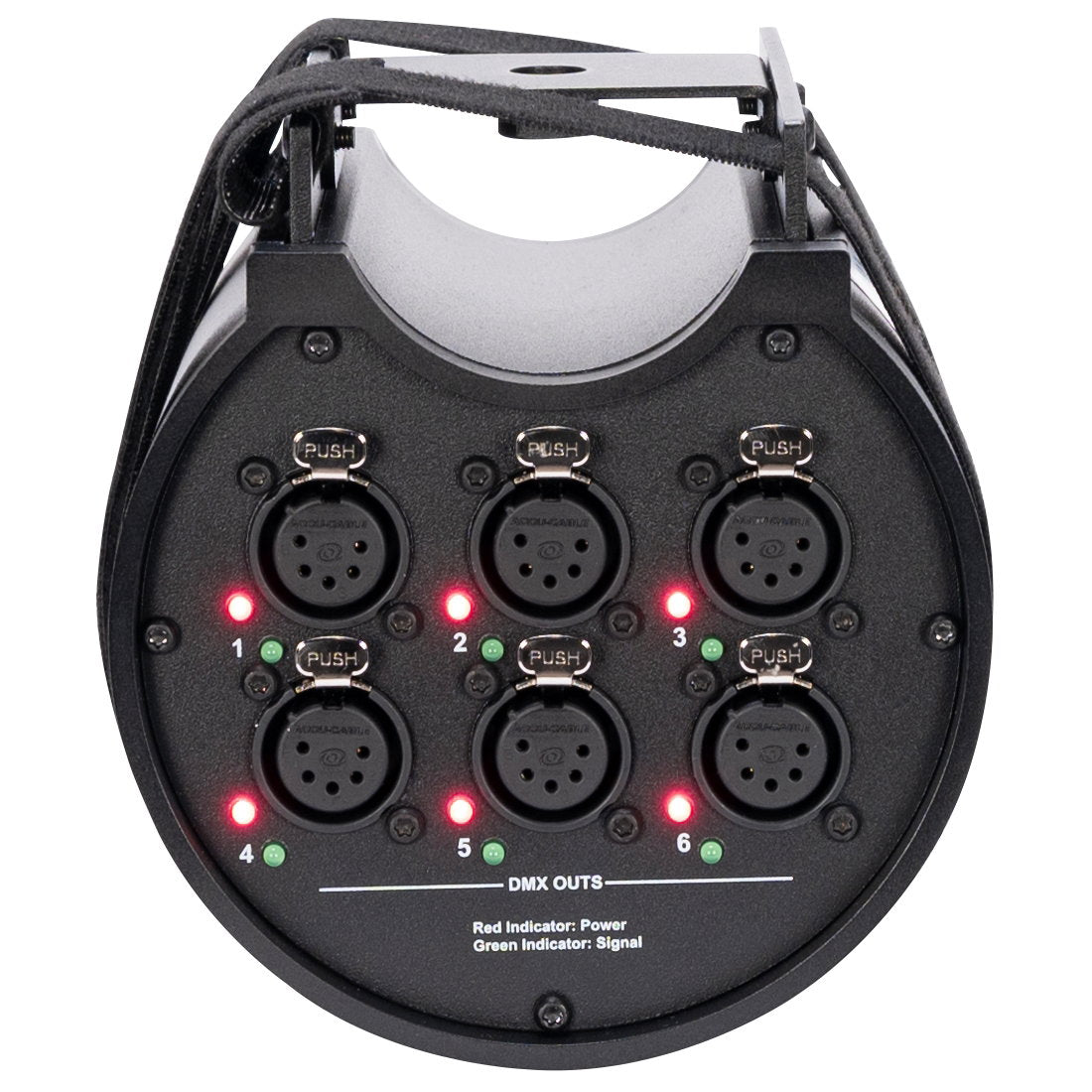

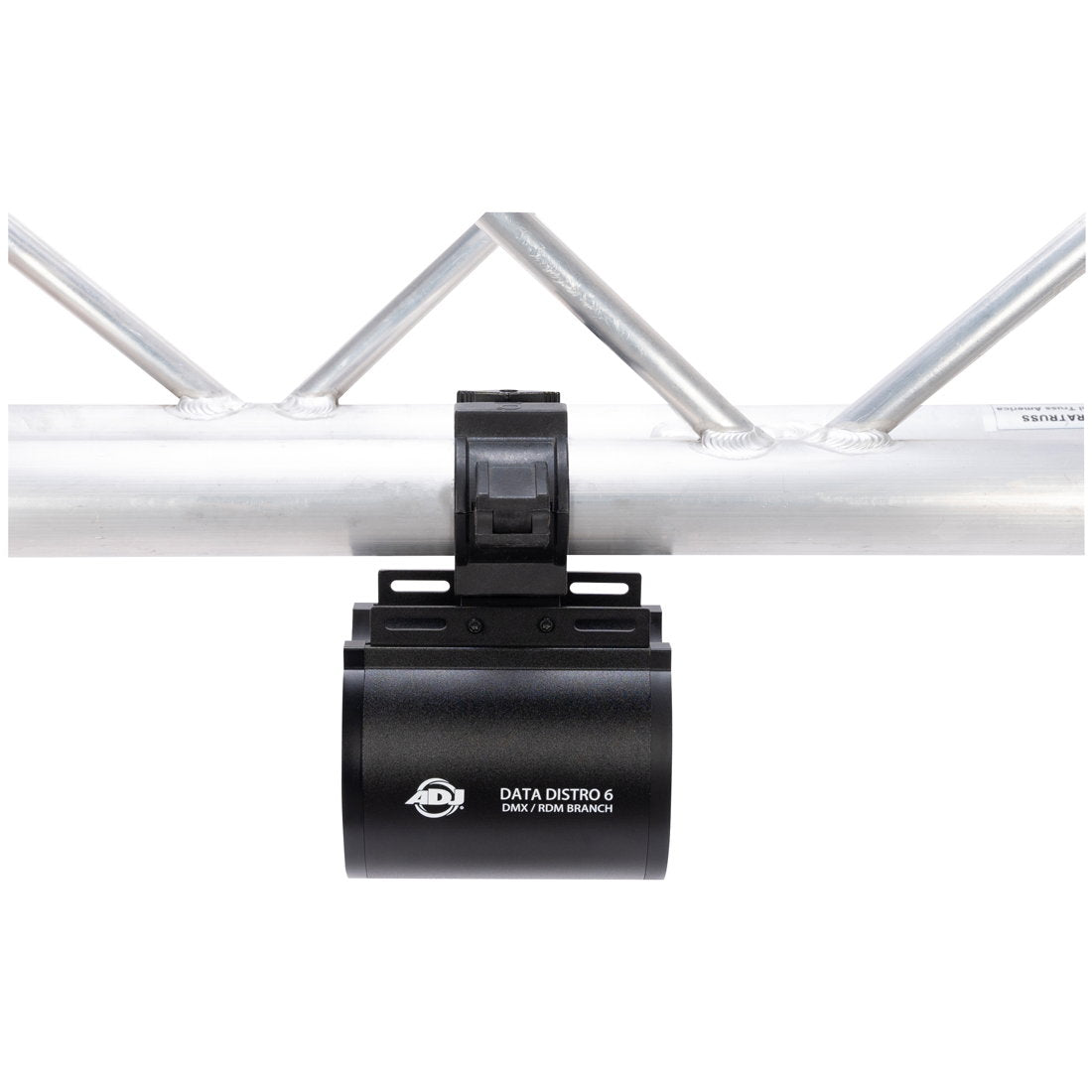

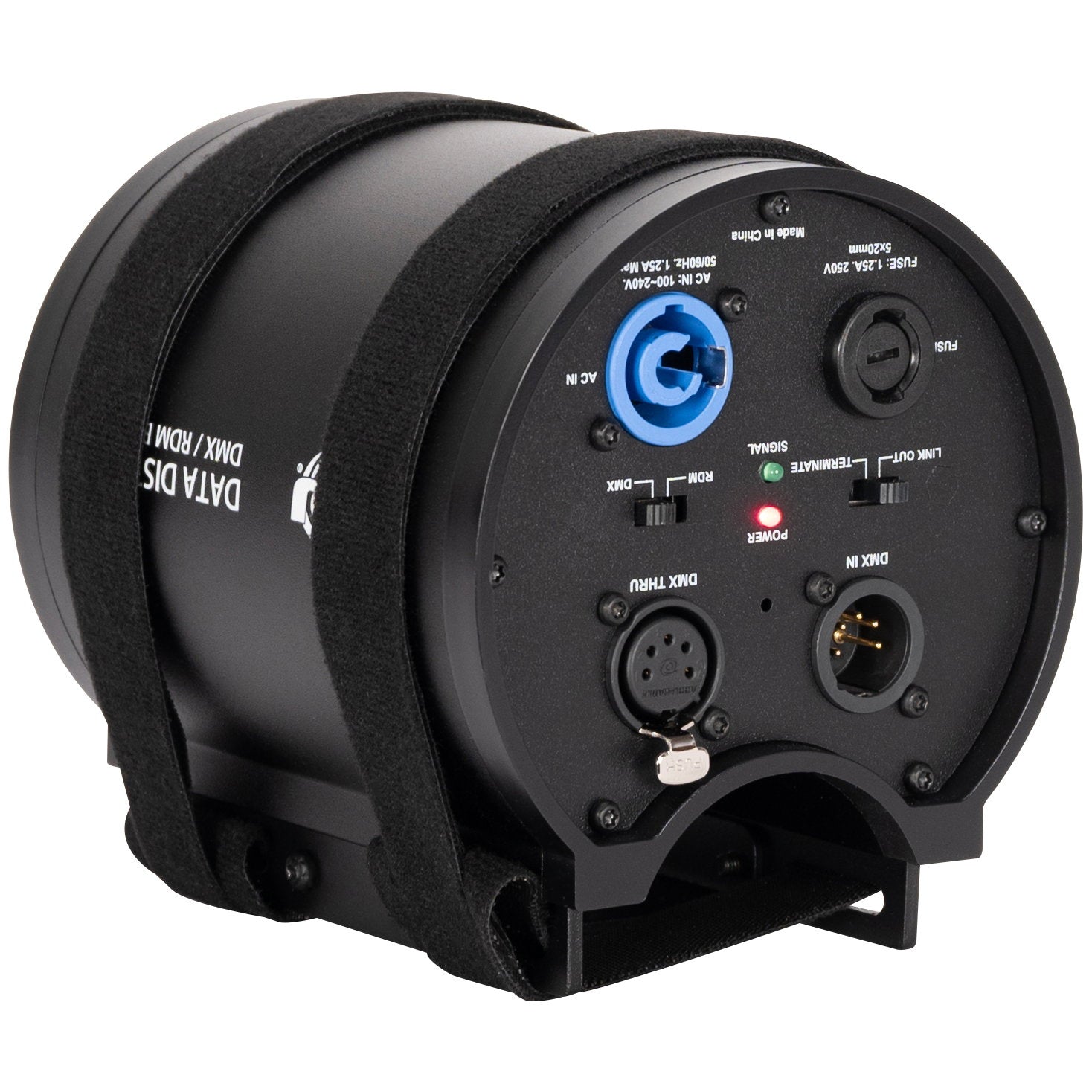

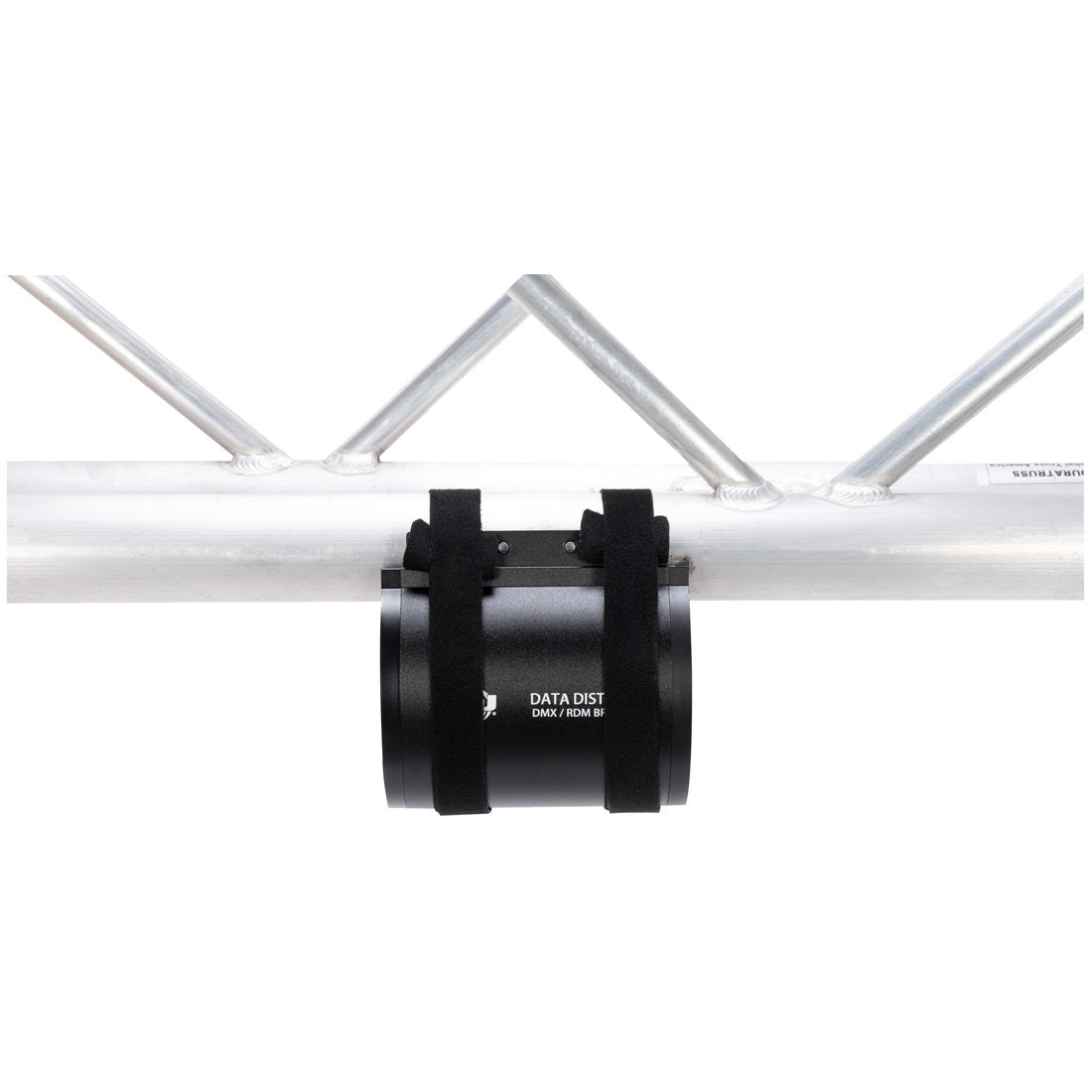

ADJ Lighting Data Distro 6 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup this data splitter ensures reliable and convenient hanging with 1 Truss Mount featuring two Velcro Straps or M10 Screw Clamp (clamp not included). Its robust physical configuration includes 1x indoor 5-pin XLR input 1x indoor 5-pin XLR thru and 6x indoor 5-pin XLR outputs. Equipped with a Link Out Termination Switch and a DMX/RDM Protocol Switch it also features an indoor locking power socket for added security.

Specifications:

PROTOCOLS:

DMX512 RDM

PHYSICAL:

180 degree mounting bracket system

DIMENSIONS / WEIGHT:

Length: 120mm Width: 137.75mm Height: 129.55mm Weight: 0.83kg

ELECTRICAL:

AC Input: 100-230V 50/60Hz Power Consumption: 2.9W @ 230V Power Input Protection: Fuse T1.25A/250 (5.2x20mm)

THERMAL:

Ambient Operational Temperature: -20°C to 45°C Humidity: <75% Storage Temperature: 25°C

WHAT’S INCLUDED:

2x Straps (used to attach unit to truss) 1x Clamp Mounting Bracket 1x Power Cord

APPROVALS / RATINGS:

IP20

Specifications subject to change without notice.

Manufacturer Part Number: 1321000084

ADJ Data Distro 6

Brand: ADJ

SKU: ADJ1321000084
