The Nicolaudie Architectural STICK-CW4 is a stylish and intuitive DMX wall controller designed for controlling RGB and RGBW lighting installations. Featuring a touch-sensitive colour wheel and 12 capacitive buttons this sleek glass-panel interface allows direct access to up to 36 dynamic or static lighting scenes. With 1024 DMX channels it supports control of up to 340 RGB fixtures. The STICK-CW4 offers flexible programming via USB or WiFi using ESA2 ESA Pro 2 or Arcolis software and includes a real-time clock and calendar with sunrise/sunset triggering. Perfect for architectural commercial and hospitality lighting installations requiring elegant wall-mounted DMX control.
2 year warranty Sleek glass design which sits 11mm from the wall Ready-to-use (pre-loaded with 8 scenes and 170 RGB fixtures) Colour palette (can also be used for scene selection) 12 touch-sensitive buttons. No mechanical parts Touch-sensitive wheel allows for accurate colour selection Built-in flash memory for storing programs Up to 36 dynamic or static scenes 1024 DMX channels - control 340 RGB fixtures Clock and calendar with Sunrise/Sunset triggering Wi-Fi network communication - control lighting remotely USB connectivity for programming and control 8 dry contact trigger ports Windows/Mac software to set dynamic colours/effects
Input Power: 5-15V DC 0.6A Output Protocol: 2 x DMX512 Programmability: PC Mac Connections: USB 8 dry contact ports open drain ouput (for relay) Memory: In-built flash Temperature: -10 °C - 45 °C Battery: LIR1220 Mounting: Single or double-gang wall socket Dimensions (H x W x D): 146 x 106 x 11mm Weight: 0.2kg
2 year warranty Sleek glass design which sits 11mm from the wall Ready-to-use (pre-loaded with 8 scenes and 170 RGB fixtures) Colour palette (can also be used for scene selection) 12 touch-sensitive buttons. No mechanical parts Touch-sensitive wheel allows for accurate colour selection Built-in flash memory for storing programs Up to 36 dynamic or static scenes 1024 DMX channels - control 340 RGB fixtures Clock and calendar with Sunrise/Sunset triggering Wi-Fi network communication - control lighting remotely USB connectivity for programming and control 8 dry contact trigger ports Windows/Mac software to set dynamic colours/effects
Input Power: 5-15V DC 0.6A Output Protocol: 2 x DMX512 Programmability: PC Mac Connections: USB 8 dry contact ports open drain ouput (for relay) Memory: In-built flash Temperature: -10 °C - 45 °C Battery: LIR1220 Mounting: Single or double-gang wall socket Dimensions (H x W x D): 146 x 106 x 11mm Weight: 0.2kg

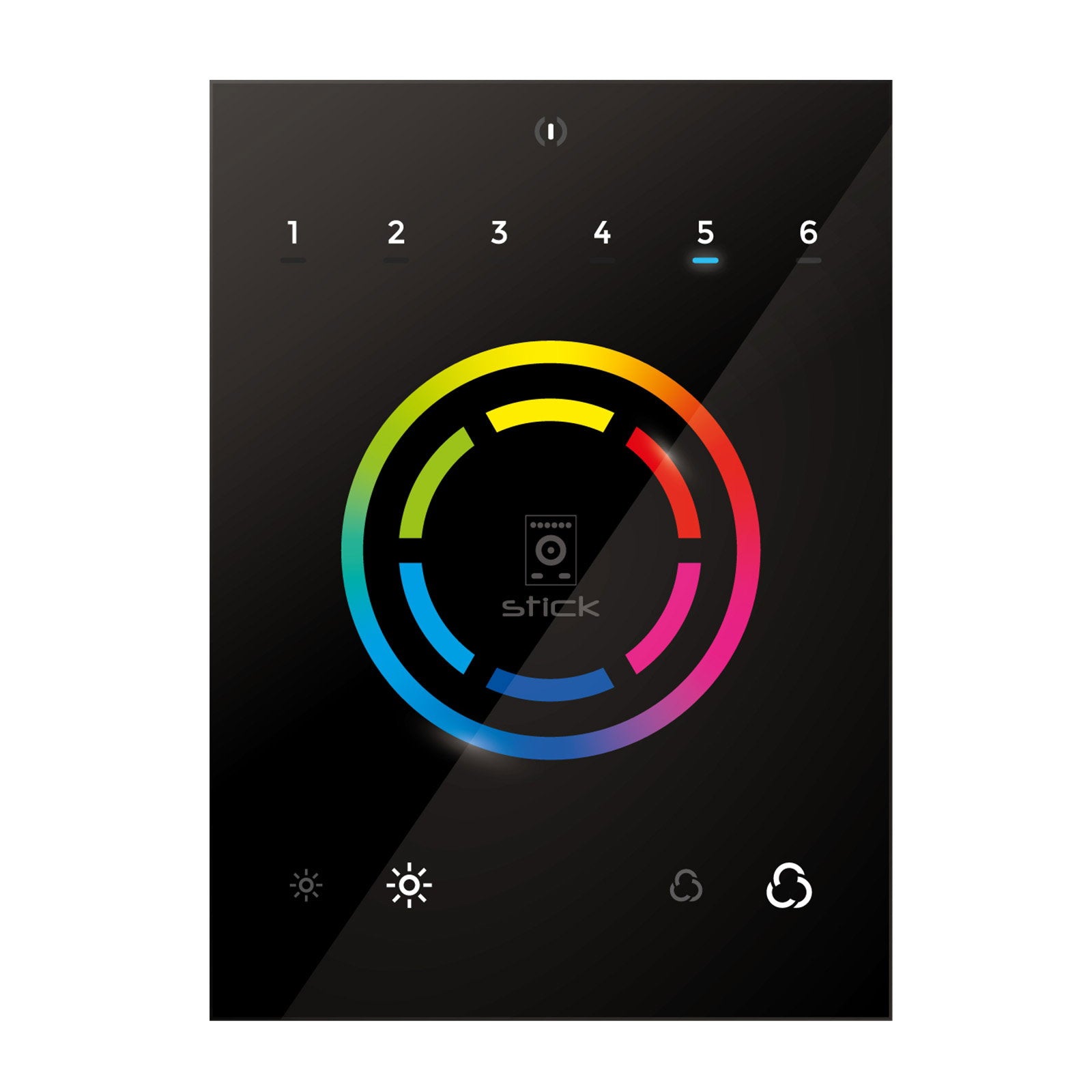

Nicolaudie Architectural STICK-CW4 DMX Wall Controller Black
Brand: Nicolaudie Architectural
SKU: NA0004
Regular price
£454.99
Pickup available at Venutec
Usually ready in 24 hours
Nicolaudie Architectural STICK-CW4 DMX Wall Controller Black
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Nicolaudie Architectural STICK-CW4 is a stylish and intuitive DMX wall controller designed for controlling RGB and RGBW lighting installations. Featuring a touch-sensitive colour wheel and 12 capacitive buttons this sleek glass-panel interface allows direct access to up to 36 dynamic or static lighting scenes. With 1024 DMX channels it supports control of up to 340 RGB fixtures. The STICK-CW4 offers flexible programming via USB or WiFi using ESA2 ESA Pro 2 or Arcolis software and includes a real-time clock and calendar with sunrise/sunset triggering. Perfect for architectural commercial and hospitality lighting installations requiring elegant wall-mounted DMX control.
2 year warranty Sleek glass design which sits 11mm from the wall Ready-to-use (pre-loaded with 8 scenes and 170 RGB fixtures) Colour palette (can also be used for scene selection) 12 touch-sensitive buttons. No mechanical parts Touch-sensitive wheel allows for accurate colour selection Built-in flash memory for storing programs Up to 36 dynamic or static scenes 1024 DMX channels - control 340 RGB fixtures Clock and calendar with Sunrise/Sunset triggering Wi-Fi network communication - control lighting remotely USB connectivity for programming and control 8 dry contact trigger ports Windows/Mac software to set dynamic colours/effects
Input Power: 5-15V DC 0.6A Output Protocol: 2 x DMX512 Programmability: PC Mac Connections: USB 8 dry contact ports open drain ouput (for relay) Memory: In-built flash Temperature: -10 °C - 45 °C Battery: LIR1220 Mounting: Single or double-gang wall socket Dimensions (H x W x D): 146 x 106 x 11mm Weight: 0.2kg
2 year warranty Sleek glass design which sits 11mm from the wall Ready-to-use (pre-loaded with 8 scenes and 170 RGB fixtures) Colour palette (can also be used for scene selection) 12 touch-sensitive buttons. No mechanical parts Touch-sensitive wheel allows for accurate colour selection Built-in flash memory for storing programs Up to 36 dynamic or static scenes 1024 DMX channels - control 340 RGB fixtures Clock and calendar with Sunrise/Sunset triggering Wi-Fi network communication - control lighting remotely USB connectivity for programming and control 8 dry contact trigger ports Windows/Mac software to set dynamic colours/effects
Input Power: 5-15V DC 0.6A Output Protocol: 2 x DMX512 Programmability: PC Mac Connections: USB 8 dry contact ports open drain ouput (for relay) Memory: In-built flash Temperature: -10 °C - 45 °C Battery: LIR1220 Mounting: Single or double-gang wall socket Dimensions (H x W x D): 146 x 106 x 11mm Weight: 0.2kg
