The ADJ Lighting SDC24 is a basic 24-channel DMX Controller that operates via an external 12VDC power supply (included) or a 9VDC battery (not included). SDC24 has 5-pin and 3-pin DMX output sockets DIP switches to set a starting DMX channel a master dimmer fader an on/off switch and Channel Page button with Indicator LEDs. This a great compact controller for product demos or manual control of LED or conventional fixtures.

SPECIFICATIONS:

Features:

8 individual channel faders and 1 master fader 24 DMX channels Compact portable design 3-Pin and 5-Pin XLR output Battery Type: PP3 9V (not included)

Control / Connection:

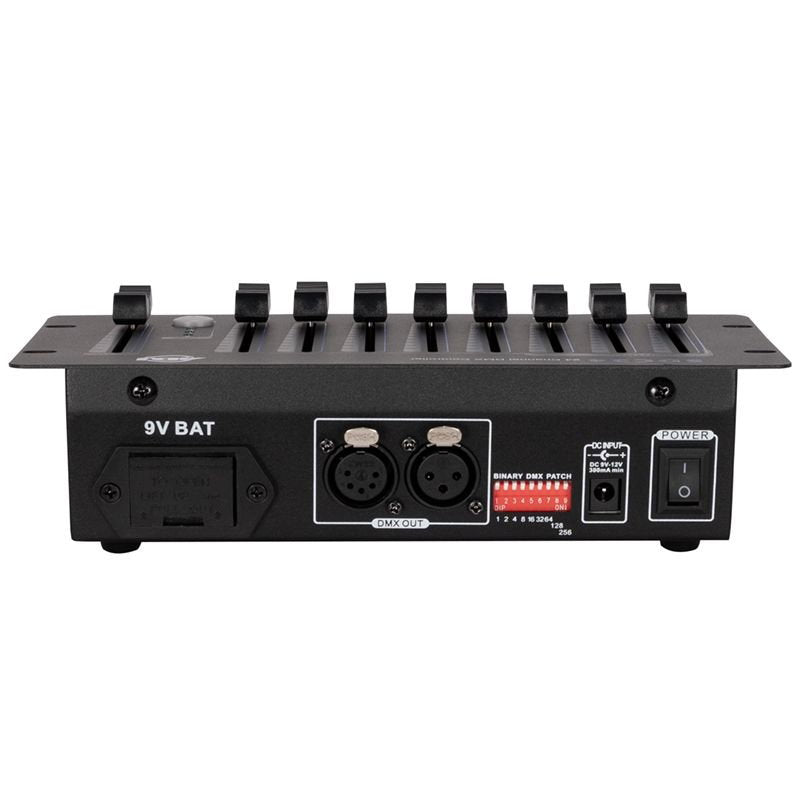

DIP Switches To Set Starting DMX Channel 3pin & 5pin DMX Outputs On/Off Switch Channel Page button with Indicator LED's DC9V-12V Power Supply Input 9V Battery slot

Size / Weight:

Length: 120mm Width: 230mm Height: 56.66mm Weight: 0.84kg

Electrical:

DC9V-12V 300mA min or 9V Battery (Not Included) Power Consumption: DC9V 40mA 0.36W DC12V 40mA 0.48W

Approvals / Ratings:

CE Approved RoHs Compliant IP20

Included Accessories:

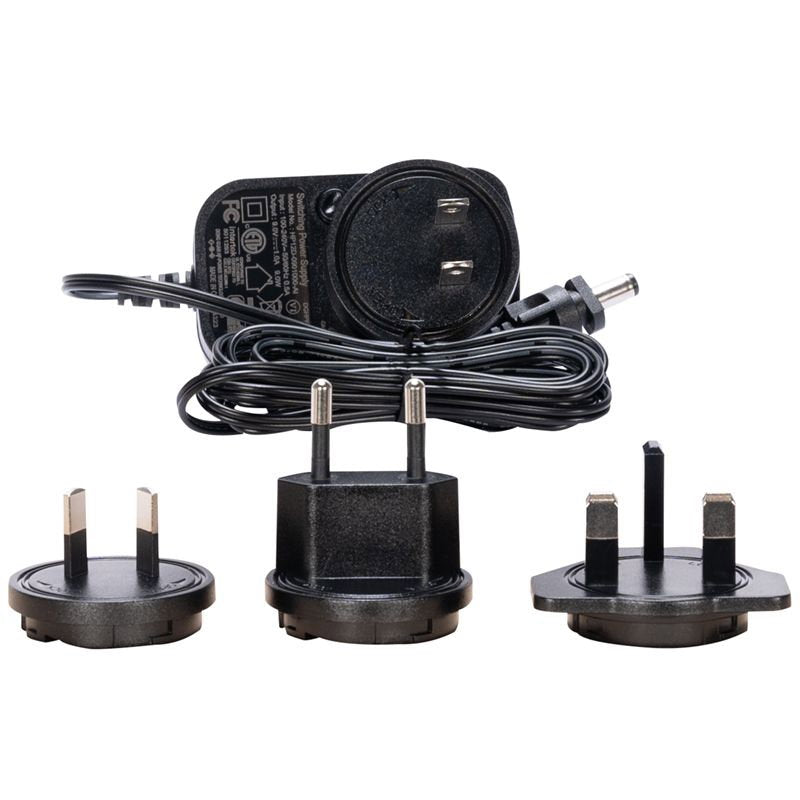

9V 1A Power Supply

Specifications subject to change without notice.

Manufacturer Part Number: 1322000065

ADJ SDC24

Brand: ADJ

SKU: ADJ1322000065
