The Neutrik NLT8FPXX-BAG is an 8-pole female chassis connector designed for heavy-duty amplifier-loudspeaker applications particularly in professional touring environments. It features a robust black-chrome metal housing and is IEC 61984 certified making it suitable for equipment compliant with IEC 62368-1 standards.
Manufacturer's Part Code: NLT8FPXX-BAG 8-pole female speakON chassis connector for professional audio applications Locking 30A / 250V AC-rated connector ideal for amplifier-to-loudspeaker connections Rugged black-chrome metal housing ensures durability in demanding environments Quick Lock system facilitates easy and secure connections Compatible with all Neutrik speakON 8-pole connectors for seamless integration Solder contact termination for reliable and straightforward assembly Ergonomic design with slip-proof two-component molded housing for comfortable handling Superior Neutrik quality standard ensures exceptional robustness and reliability Enhanced kink protection through a two-component bushing design Unique Neutrik locking bushing and strain relief accommodates cable diameters from 8mm to 20mm
Contact resistance: < 2mΩ Dielectric strength: 1.5kVac Insulation resistance: 0.1GΩ (after damp heat) Rated current per contact: 30A RMS continuous (IEC 61984) Rated voltage: 250V AC Attention: speakON is NOT to be used as a mains or power supply connector (AC/DC). Lifetime: 5000 mating cycles Wire size: 1.5mm² - 6mm² (10 AWG) Termination: Solder contacts Locking device: Quick Lock Mounting direction: Front mounting Chassis shape: Square G-size flange Layout: Four thru holes Contact plating: Silver (Ag) Contacts: Copper alloy Shell: Zinc die-cast black chrome plated Insert: Polyamide (PA 6.6) Temperature range: -30°C to +80°C Flammability: UL 94 V-0 Protection class: IP50 (mated condition) Solderability: Complies with IEC 68-2-20
Manufacturer's Part Code: NLT8FPXX-BAG 8-pole female speakON chassis connector for professional audio applications Locking 30A / 250V AC-rated connector ideal for amplifier-to-loudspeaker connections Rugged black-chrome metal housing ensures durability in demanding environments Quick Lock system facilitates easy and secure connections Compatible with all Neutrik speakON 8-pole connectors for seamless integration Solder contact termination for reliable and straightforward assembly Ergonomic design with slip-proof two-component molded housing for comfortable handling Superior Neutrik quality standard ensures exceptional robustness and reliability Enhanced kink protection through a two-component bushing design Unique Neutrik locking bushing and strain relief accommodates cable diameters from 8mm to 20mm
Contact resistance: < 2mΩ Dielectric strength: 1.5kVac Insulation resistance: 0.1GΩ (after damp heat) Rated current per contact: 30A RMS continuous (IEC 61984) Rated voltage: 250V AC Attention: speakON is NOT to be used as a mains or power supply connector (AC/DC). Lifetime: 5000 mating cycles Wire size: 1.5mm² - 6mm² (10 AWG) Termination: Solder contacts Locking device: Quick Lock Mounting direction: Front mounting Chassis shape: Square G-size flange Layout: Four thru holes Contact plating: Silver (Ag) Contacts: Copper alloy Shell: Zinc die-cast black chrome plated Insert: Polyamide (PA 6.6) Temperature range: -30°C to +80°C Flammability: UL 94 V-0 Protection class: IP50 (mated condition) Solderability: Complies with IEC 68-2-20

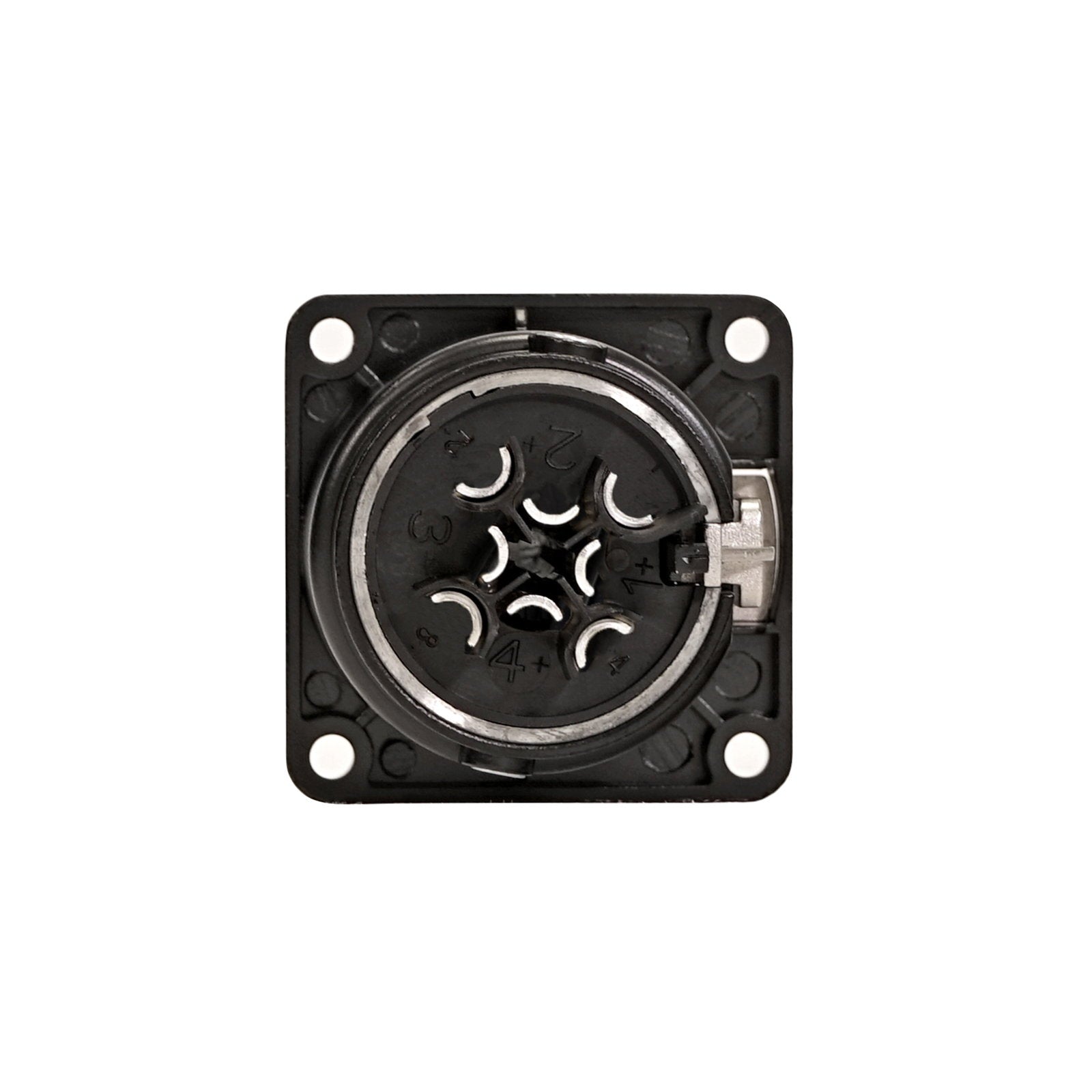

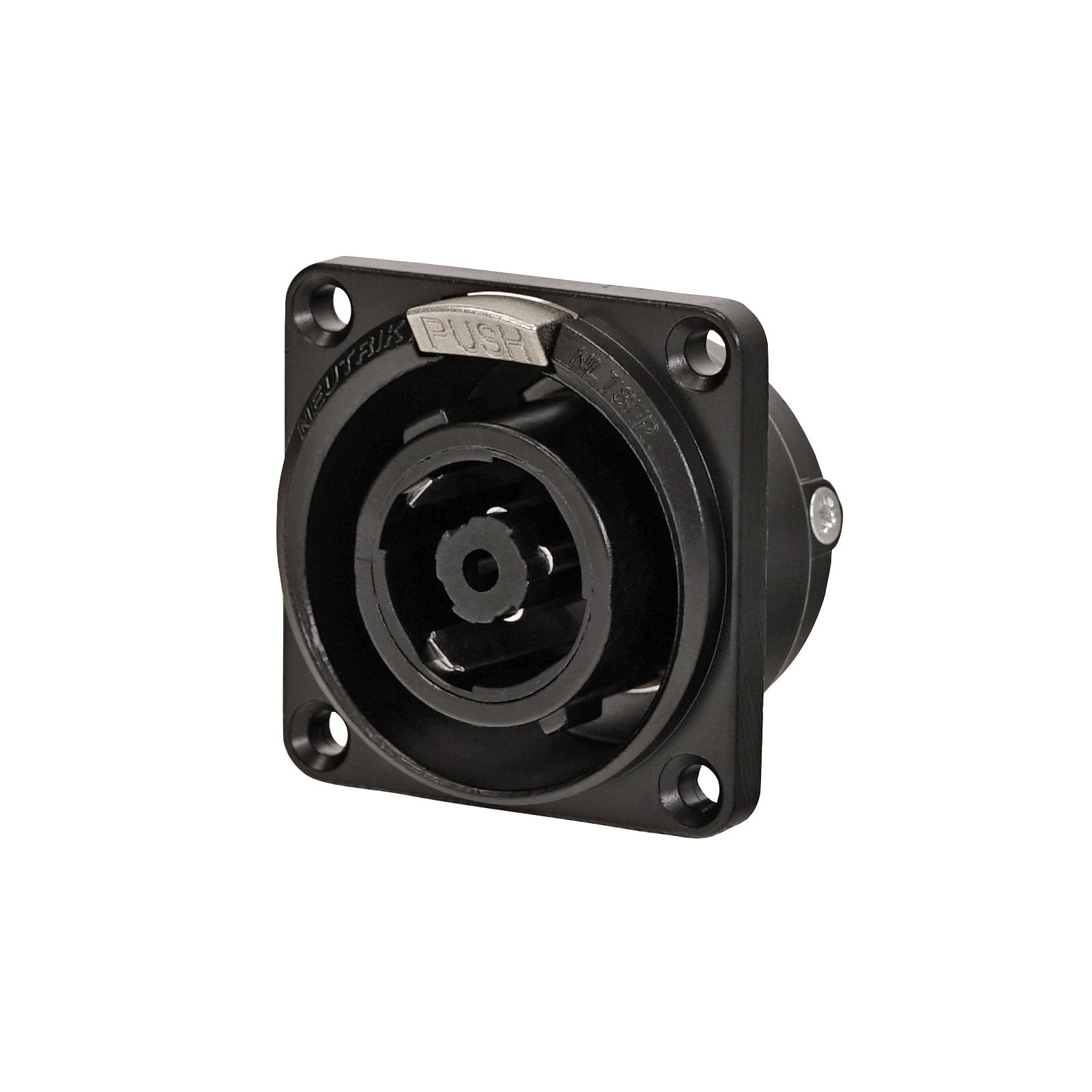

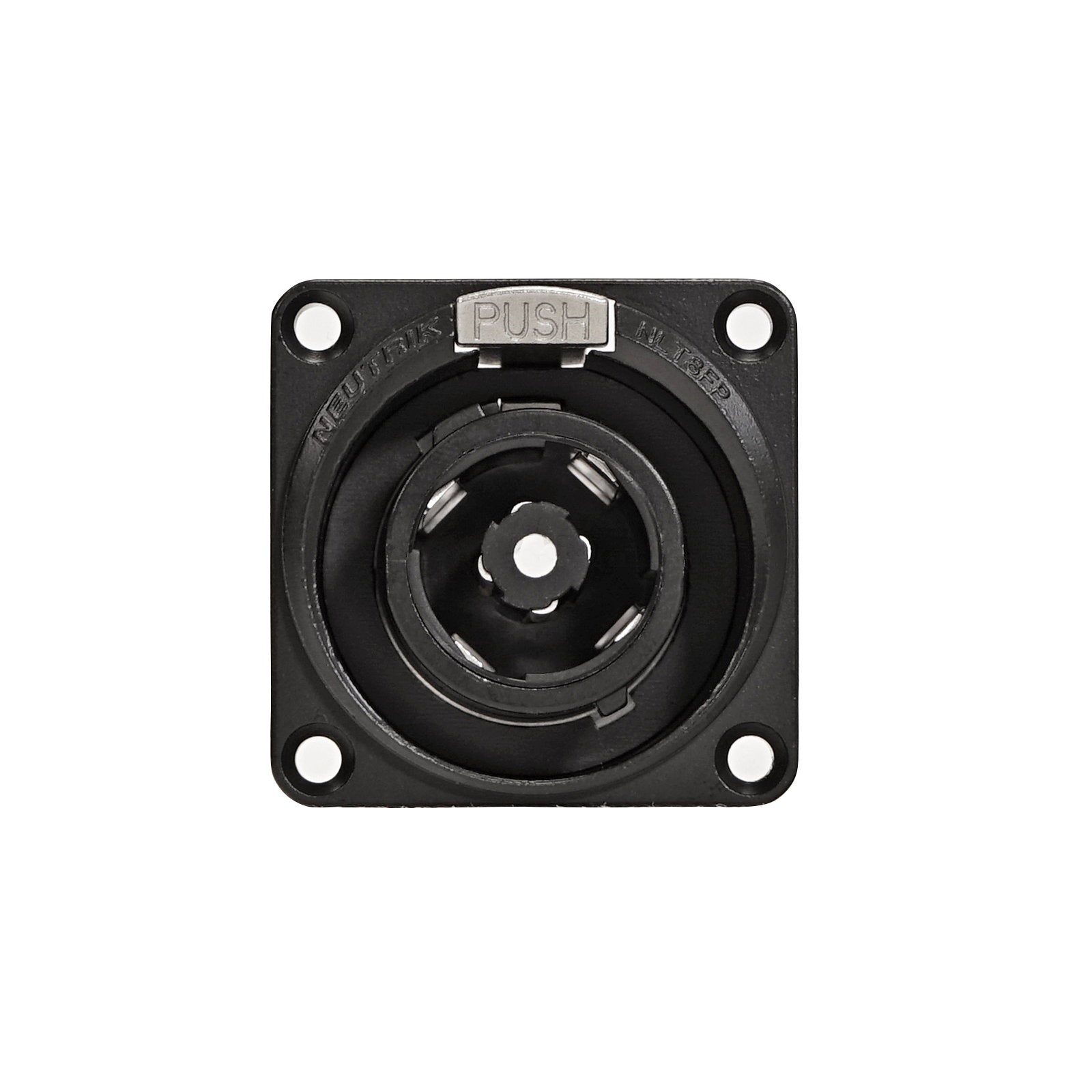

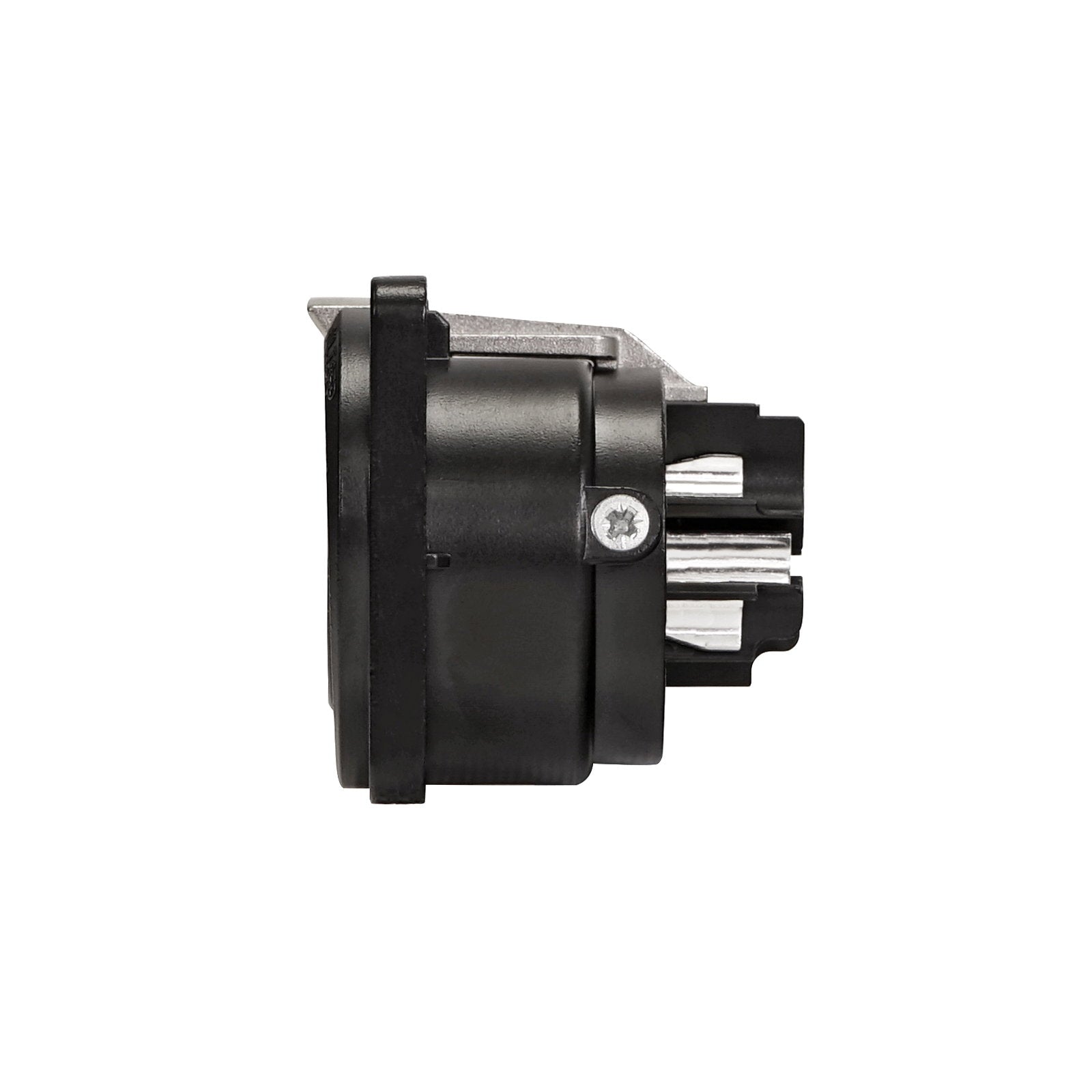

Neutrik speakON Chassis Connector NLT8FPXX-BAG
Brand: Neutrik
SKU: CONN555
Regular price
£23.99
Pickup available at Venutec
Usually ready in 24 hours
Neutrik speakON Chassis Connector NLT8FPXX-BAG
-
Venutec
Pickup availableUsually ready in 24 hours
3 Waterside Court
Bone Lane
Newbury RG14 5SH
United Kingdom447404920360
Need help with choosing the right product?
Click here to reach out to one of our experts.
The Neutrik NLT8FPXX-BAG is an 8-pole female chassis connector designed for heavy-duty amplifier-loudspeaker applications particularly in professional touring environments. It features a robust black-chrome metal housing and is IEC 61984 certified making it suitable for equipment compliant with IEC 62368-1 standards.
Manufacturer's Part Code: NLT8FPXX-BAG 8-pole female speakON chassis connector for professional audio applications Locking 30A / 250V AC-rated connector ideal for amplifier-to-loudspeaker connections Rugged black-chrome metal housing ensures durability in demanding environments Quick Lock system facilitates easy and secure connections Compatible with all Neutrik speakON 8-pole connectors for seamless integration Solder contact termination for reliable and straightforward assembly Ergonomic design with slip-proof two-component molded housing for comfortable handling Superior Neutrik quality standard ensures exceptional robustness and reliability Enhanced kink protection through a two-component bushing design Unique Neutrik locking bushing and strain relief accommodates cable diameters from 8mm to 20mm
Contact resistance: < 2mΩ Dielectric strength: 1.5kVac Insulation resistance: 0.1GΩ (after damp heat) Rated current per contact: 30A RMS continuous (IEC 61984) Rated voltage: 250V AC Attention: speakON is NOT to be used as a mains or power supply connector (AC/DC). Lifetime: 5000 mating cycles Wire size: 1.5mm² - 6mm² (10 AWG) Termination: Solder contacts Locking device: Quick Lock Mounting direction: Front mounting Chassis shape: Square G-size flange Layout: Four thru holes Contact plating: Silver (Ag) Contacts: Copper alloy Shell: Zinc die-cast black chrome plated Insert: Polyamide (PA 6.6) Temperature range: -30°C to +80°C Flammability: UL 94 V-0 Protection class: IP50 (mated condition) Solderability: Complies with IEC 68-2-20
Manufacturer's Part Code: NLT8FPXX-BAG 8-pole female speakON chassis connector for professional audio applications Locking 30A / 250V AC-rated connector ideal for amplifier-to-loudspeaker connections Rugged black-chrome metal housing ensures durability in demanding environments Quick Lock system facilitates easy and secure connections Compatible with all Neutrik speakON 8-pole connectors for seamless integration Solder contact termination for reliable and straightforward assembly Ergonomic design with slip-proof two-component molded housing for comfortable handling Superior Neutrik quality standard ensures exceptional robustness and reliability Enhanced kink protection through a two-component bushing design Unique Neutrik locking bushing and strain relief accommodates cable diameters from 8mm to 20mm
Contact resistance: < 2mΩ Dielectric strength: 1.5kVac Insulation resistance: 0.1GΩ (after damp heat) Rated current per contact: 30A RMS continuous (IEC 61984) Rated voltage: 250V AC Attention: speakON is NOT to be used as a mains or power supply connector (AC/DC). Lifetime: 5000 mating cycles Wire size: 1.5mm² - 6mm² (10 AWG) Termination: Solder contacts Locking device: Quick Lock Mounting direction: Front mounting Chassis shape: Square G-size flange Layout: Four thru holes Contact plating: Silver (Ag) Contacts: Copper alloy Shell: Zinc die-cast black chrome plated Insert: Polyamide (PA 6.6) Temperature range: -30°C to +80°C Flammability: UL 94 V-0 Protection class: IP50 (mated condition) Solderability: Complies with IEC 68-2-20
